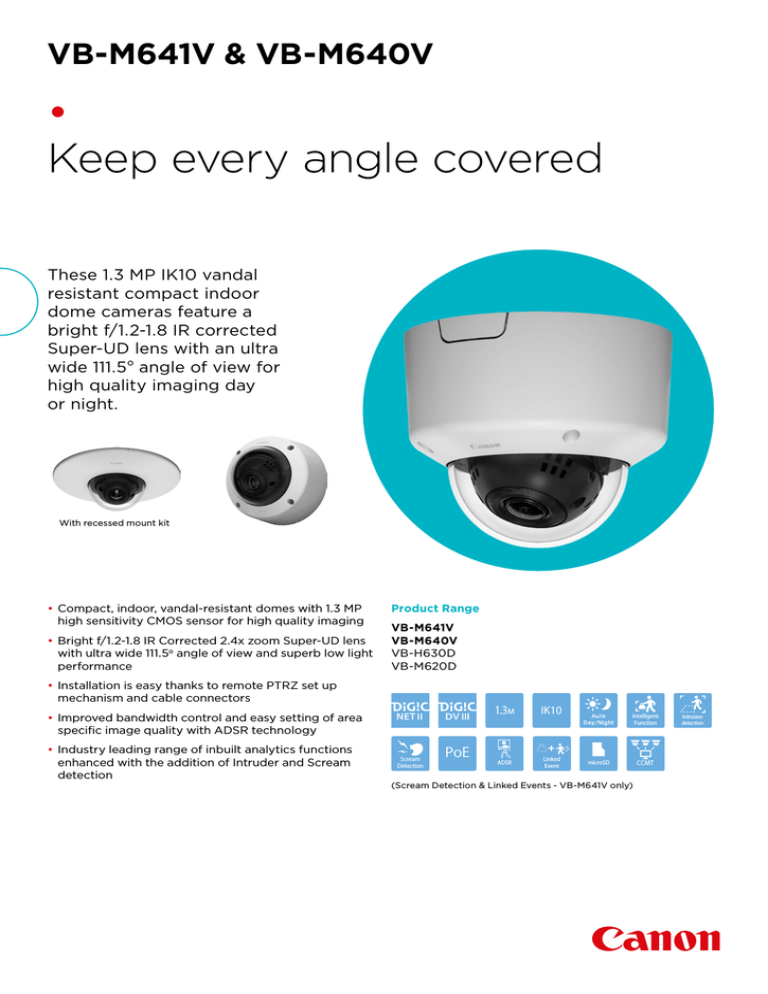

VB-M641V & VB-M640V
•
Keep every angle covered
These 1.3 MP IK10 vandal
resistant compact indoor
dome cameras feature a
bright f/1.2-1.8 IR corrected
Super-UD lens with an ultra
wide 111.5 o angle of view for
high quality imaging day
or night.
With recessed mount kit
• Compact, indoor, vandal-resistant domes with 1.3 MP
high sensitivity CMOS sensor for high quality imaging
• Bright f/1.2-1.8 IR Corrected 2.4x zoom Super-UD lens
with ultra wide 111.5o angle of view and superb low light
performance
Product Range
VB-M641V
VB-M640V
VB-H630D
VB-M620D
• Installation is easy thanks to remote PTRZ set up
mechanism and cable connectors
• Improved bandwidth control and easy setting of area
specific image quality with ADSR technology
• Industry leading range of inbuilt analytics functions
enhanced with the addition of Intruder and Scream
detection
Scream
Detection
PoE
1.3M
IK10
ADSR
Linked
Event
Intelligent
Function
microSD
(Scream Detection & Linked Events - VB-M641V only)
CCMT
Intrusion
detection
•
Technical Specifications
VB-M641V
VB-M641V & VB-M640V
Image Sensor
Protocol
IPv4:TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client),
DNS (Client), mDNS, ARP, ICMP, POP3 (Client), NTP (Client), SMTP
authentication (POP before SMTP, SMTP-AUTH), AutoIP, RTP/RTCP, RTSP,
SSL/TLS, IPsec, WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G)
Progressive
Lens
2.4 optical zoom (4x digital zoom) lens (electric drive)
Focal Length
2.55 (W) – 6.12 mm (T)
F-number
F1.2 (W) – F1.8 (T)
Viewing Angle
For 16:9 aspect ratios:
Horizontal: 111.5° (W) – 46.2° (T)
Vertical: 60.5° (W) – 25.9° (T)
For 4:3 aspect ratios
Horizontal: 111.5° (W) – 46.2° (T)
Vertical: 81.7° (W) – 34.6° (T)
Day/Night Switch
Auto/Manual
(F1.2, shutter speed 1/30 sec., when smart shade control is off, 50IRE)
Day Mode (colour):0.02 lux
Night Mode (mono): 0.001 lux
When using the Dome Unit (Smoked) (sold separately)
Day Mode (colour): 0.04 lux
Night Mode (mono): 0.002 lux
Focus
IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS
(Client), mDNS, ICMPv6, POP3 (Client), NTP (Client), SMTP authentication
(POP before SMTP, SMTP-AUTH), RTP/RTCP, RTSP, SSL/TLS, IPsec,
WV-HTTP (Canon proprietary), ONVIF (Profile S, Profile G)
Audio
Compression
Method
Audio File
Playback
Day Mode: 0.3 m (12 in.) – infinity
Night Mode: 0.3 m (12 in.) – infinity
1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000,
1/4000, 1/8000, 1/10000, 1/16000 sec.
Exposure
Auto / Auto (Flickerless) / Auto (Shutter-priority AE) / Manual
(Shutter Speed, Aperture, Gain)
White Balance
Auto / Light Source/Manual
Light Source: Daylight Fluorescent / White Fluorescent / Warm
Fluorescent / Mercury Lamp / Sodium Lamp / Halogen Lamp
Manual: One-shot WB / R Gain / B Gain
Metering Mode
Center-Weighted / Average / Spot
Exposure
Compensation
Auto / Manual / Disable
Auto: 3 levels
Manual: 7 levels
– Brightens shaded areas of a video
Haze
Compensation
Full-duplex (two-way) – Echo
cancellation function compliant
RTP, Sound Transfer Protocol by
Canon
–
Available (audio files can be
played back when an event
is triggered by the intelligent
function or external device input.)
– A third-party amplifier speaker
is necessary
–
Number of registration: Max. 8 places, Number of mask colors: 1
(select from 9 colors)
Preset
Intelligent
Function (Video)
Number of registers: Max. 20 positions (+Home Position)
Items to Reg.:Digital Pan / Digital Tilt / Digital Zoom, Exposure, Smart
Shade Control, Focus, White Balance, Video Quality Adjustment,
Day / Night, Haze Compensation
Number of Preset Tour Route: Max. 1
Detection Types: Moving Object Detection, Abandoned Object Detection,
Removed Object Detection, Camera Tampering Detection, Passing
Detection, Intrusion Detection
Detection Settings: Max. 15
Intelligent
Function (Audio)
Event Trigger Type
Auto/Manual / Disable
Auto: 3 levels
Manual: 7 levels
AGC Limit
6 levels
Image Stabilizer
2 levels (digital)
Pan Angle Range
350° (±175°)
Image Upload
Tilt Angle Range
150° (±75°)
Event Notification
Rotation Angle
Range
350° (±175°)
Image Cropping
Function
Moving Speed
Pan: 20.1°/sec.
Tilt: 20.7°/sec.
Rotation: 40.0°/sec.
– When Using Camera Angle Setting Tool
SERVER
Video
Compression
Method
JPEG, H.264
JPEG, H.264: 1280 x 720, 640 x 360, 320 x 180
1280 x 960, 640 x 480, 320 x 240
Video Quality
JPEG, H.264: 10 levels
Frame Rate
Maximum frame rate when used in the following combinations:
When streaming H.264(1) (1280 x 720) and H.264(2)
(1280 x 720) simultaneously: 15 fps
When streaming H.264(1) (1280 x 960) and H.264(2)
(1280 x 960) simultaneously: 15 fps
I-Frame Interval
0.5 / 1 / 1.5 / 2 / 3 / 4 / 5 sec.
Simultaneous
Client Access
Max. 30 Clients + 1 Admin Client
– H.264: Max. 10 Clients
Target Bit Rate: 64 / 128 / 256 / 384 / 512 / 768 / 1024 / 2048 / 3072 /
4096 / 6144 / 8192 / 10240 / 12288 / 14336 / 16384 kbps
ADSR: Areaspecific Data Size
Reduction
Canon Inc.
canon.com
Canon Europe
canon-europe.com
English edition
© Canon Europa N.V.,2015
Number of Specified Areas: Max. 8 areas
–
Intelligent Function (Video),
Timer, Day/Night Switch
HTTP/SMTP (e-mail)
Digital PTZ
Cropping sizes:
640 x 360 / 512 x 288 / 384 x 216 / 256 x 144 / 128 x 72
640 x 480 / 512 x 384 / 384 x 288 / 256 x 192 / 128 x 96
On-Screen Display
Available
Daylight Saving
Time
Available
APPLICATION
Admin Tools
JPEG: 0.1 – 30 fps
H.264: 1 / 2 / 3 / 5 / 6 / 10 / 15 / 30 fps
– Values represent streaming performance from the camera.
– The frame rate may be reduced due to Viewer computer’s specs, the
number of clients accessing at the same time, network loads, video
quality setting, type or movement of the subject or other reasons.
Volume Detection,
Scream Detection
External Device Input, Intelligent
Function (Video), Intelligent
Function (Audio), Timer,
Day / Night Switch
Number of Linked Events: 2
Linked Event Conditions: AND,
OR (whether or not there is a
sequence to events)
FTP/HTTP/SMTP (e-mail)
Viewer
Video Size
Bit Rate Control
–
Privacy Mask
9 levels
Smart Shade
Control
G.711 μ-law (64 kbps)
Audio
Communication
Method
Auto/One-shot AF/Manual/Fixed at infinity
Shooting Distance
(from front of lens)
Shutter Speed
Camera Control: Administrator, Authorized user, Guest user
(level of control varies depending on user)
Access Control: User authority (user name and password), Host Access
Restrictions (IPv4, IPv6)
IEEE802.1X: EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
Encrypted Communications: SSL/TLS, IPsec
Approx. 1.3 million pixels
Scanning Method
VB-M640V
Security
1/3 type CMOS (primary color filter)
Number of
Effective Pixels
Min. Subject
Illumination
VB-M641V
VB-M640V
CAMERA
Included Software
Language
Operating
Environment
(PC specifications
and OS (does not
apply to RM-Lite))
Camera-side: Admin Viewer
VB Viewer
Client-side: RM-Lite Viewer
Privacy Mask Setting Tool
Intelligent Function Setting Tool
Log Viewer
Recorded Video Utility
Camera Management Tool
Camera Angle Setting Tool
RM-Lite
Proxy Authentication Admin Tools / Admin Viewer
German / English / Spanish / French / Italian / Russian / Turkish /
Chinese (Simplified) / Japanese
OS:
Windows Vista Ultimate / Business / Enterprise / Home Premium SP2
32/64-bit
Operating System Language:
German / English / Spanish / French / Italian / Russian / Turkish / Chinese
(Simplified) / Japanese
– Language switching environment using language-packs is not
supported
Compatible Browser:
Internet Explorer 8/9 32-bit
Internet Explorer 10/11
– Must be configured to allow use of JavaScript, XAML browser
applications, and IFRAME (html tag).
– For VB Viewer only, cookies must be enable
•
Technical Specifications
VB-M641V & VB-M640V
VB-M641V
VB-M640V
Software (Runtime Libraries)
.NET Framework 3.5 SP1 (When using Internet Explorer 8/9)
–Must be installed on Windows Vista and Windows Server 2008 systems
External Device
I/O Terminal
Memory Card
CPU (Recommended)
Intel Core i7-2600 or higher
Operating
Environment
Temperature
AC, DC, PoE: -10°C – +50°C
(+14°F – +122°F)
Memory (Recommended)
2 GB or higher
Humidity
5% – 85% (without condensation)
Viewer Display (Recommended)
1920 x 1080 or higher
Power Supply
PoE: PoE power supply via
LAN connector
(IEEE802.3at Type 1 compliant)
AC Adapter: PA-V18
(100 – 240 V AC) (sold separately)
External power source: 24 V
AC/12 V DC
PoE: PoE power supply via
LAN connector
(IEEE802.3at Type1 compliant)
Power
Consumption
PoE: Max. approx. 8.4 W
AC Adapter PA-V18: Max. approx.
9.8 W (100 V AC)
Max. approx. 9.8 W (240 V AC)
DC: Max. approx. 8.7 W
AC: Max. approx. 8.1 W
PoE: Max. approx. 8.4 W
INTERFACE
LAN x 1 (RJ45, 100Base-TX (auto / full-duplex / half-duplex))
ϕ3.5 mm (ϕ0.14 in.) mini-jack
connector (monaural)
LINE IN (connect to an amplifier
microphone) or MIC IN (connect to
a microphone w/o amplifier)
– Switch LINE IN / MIC IN in the
setting page.
–
Use the included interface cable
Audio Output
Terminal (LINE
OUT)
ϕ3.5 mm (ϕ0.14 in.) mini-jack
connector (monaural)
–
OTHER
Graphics Board (Recommended)
Not specified
Audio Input
Terminal
(common for LINE
IN & MIC IN)
VB-M640V
microSD Memory Card, microSDHC Memory Card, microSDXC Memory
Card Compatible.
Recorded Content: Log, Video (Event, Manual, ONVIF, Timer, Upload)
Frame Rate: Max. 1 fps (JPEG)
Max. 30 fps (H.264)
.NET Framework 4.5 (When using Internet Explorer 10/11)
– Must be installed on Windows 7 and Windows Server 2008 R2 systems
Network Terminal
VB-M641V
Input x 2, Output x 2
–
Dimensions
Weight
LINE OUT (connect to an
amplifier speaker)
(ϕ x H) ϕ150 x 129 mm (ϕ5.91 x 5.08 in.)
– Camera only (excluding Ceiling Plate)
Approx. 900 g (1.99 lb.)
Approx. 910 g (2.01 lb.)
Impact Resistance
IK10 (20J)
Use the included interface cable
What’s in the box?
• Setup CD-ROM
• Fixing Screws
• Wrench
• Power Connector
• Installation Guide
• Ceiling Plate
• S
afety Wire &
Fixing Screw
• Template
• Audio Interface
Cable
• Warranty Card
Dimensions
• L
eaflet of Warranty
Card
• Packaging
Compatible Accessories
SR640-S-VB
Recessed Mounting Kit
PC640-VB
Pendant Mounting Kit
PA-V17 / PA-V18
AC Power Supply
*Available in Euro 2-Pin
& UK 3-Pin plug
DU640-S-VB
Smoked Dome Unit
Canon Inc.
canon.com
Canon Europe
canon-europe.com
English edition
© Canon Europa N.V.,2015
SR640-P-VB
Plenum Recessed Mounting Kit
(Fire resistant)
