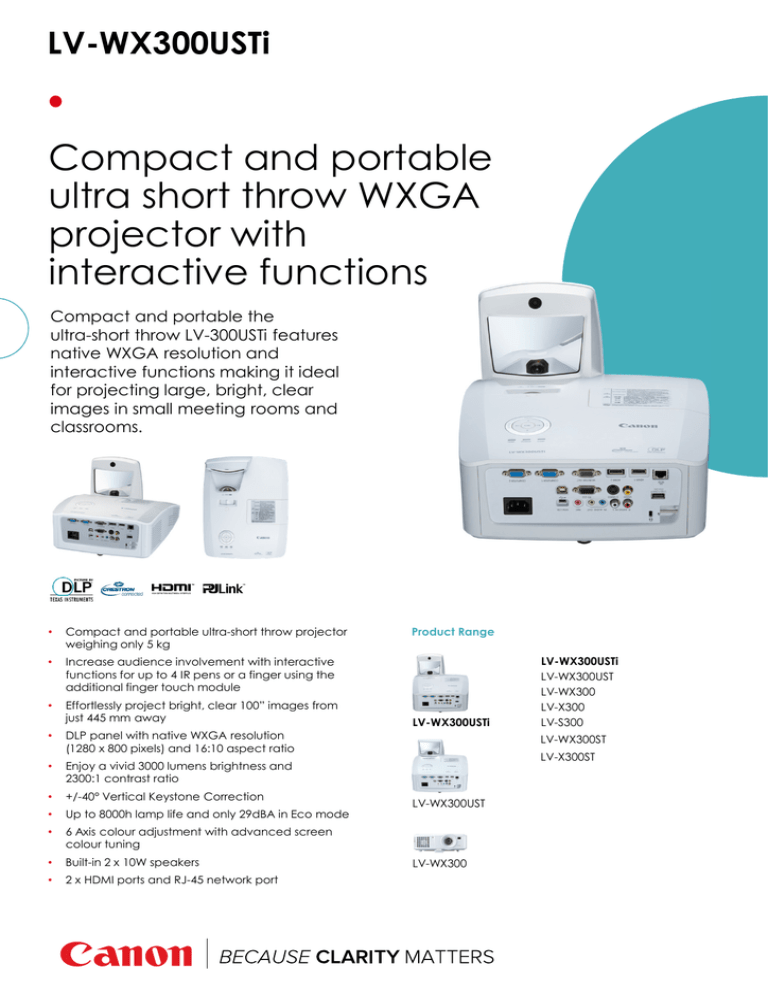

LV-WX300USTi
Compact and portable
ultra short throw WXGA
projector with
interactive functions
Compact and portable the
ultra-short throw LV-300USTi features
native WXGA resolution and
interactive functions making it ideal
for projecting large, bright, clear
images in small meeting rooms and
classrooms.
•
Compact and portable ultra-short throw projector
weighing only 5 kg
•
Increase audience involvement with interactive
functions for up to 4 IR pens or a finger using the
additional finger touch module
•
Effortlessly project bright, clear 100” images from
just 445 mm away
•
DLP panel with native WXGA resolution
(1280 x 800 pixels) and 16:10 aspect ratio
•
Enjoy a vivid 3000 lumens brightness and
2300:1 contrast ratio
•
+/-40° Vertical Keystone Correction
•
Up to 8000h lamp life and only 29dBA in Eco mode
•
6 Axis colour adjustment with advanced screen
colour tuning
•
Built-in 2 x 10W speakers
•
2 x HDMI ports and RJ-45 network port
Product Range
LV-WX300USTi
LV-WX300USTi
LV-WX300UST
LV-WX300
LV-X300
LV-S300
LV-WX300ST
LV-X300ST
LV-WX300UST
LV-WX300
LV-WX300USTi
Technical Specifications
PANEL
PORTS AND CONNECTORS
Type
DLP™ chip
0.65” diagonal, Single chip
Digital RGB / Analogue
RGB Input 1
HDMI™ V1.3 x 2 (with Deep Colour)
Size and Number
Aspect Ratio
16:10
Analogue RGB Input 1
Native Resolution
1280 x 800 (WXGA), 1024000 pixels
Mini D-Sub 15-pin (Component Video via optional cable /
SCART–RGB via optional cable)
OPTICS
Lamp Type
230 W
Lens F Number and Focal
Length
F2.5 ; f=5.1 mm
Zoom Magnification and
Control
1.0x Fixed
Focus Control
Manual
IMAGE AND AUDIO
Analogue RGB Input 2
Mini D-Sub 15-pin (shared with RGB output)
Analogue RGB Output
Mini D-Sub 15-pin (shared with RGB input 2)
S-Video Input
Mini DIN 4-pin
Composite Video Input
Mini DIN 4-pin
Audio Input 1
3.5 mm stereo mini-jack (input for RGB 1)
Audio Input 2
RCA (L/R) input for video
Audio Output
3.5 mm stereo mini-jack (variable level)
USB Port
Type B & USB Mini B
Service Port / Projector
Control
Mini D-Sub 9-pin (RS232c)
Brightness
3000 lumens (2500 Eco Mode)
Network Port
RJ-45
Brightness Uniformity
75 %
Interactive functions
USB Mini B
Contrast Ratio
2300:1
Projection Distance
Coverage
28.2 cm – 44.5 cm (28.2 cm for 80 inch image)
Screen Size
80” – 100” (1.29 m x 0.81 m – 21.5 x 1.35 m)
MECHANISMS
Front Elevation Mechanism
1 x rotary foot (fine adjustment)
Rear Elevation Mechanism
2 x rotary feet
Projection Ratio
0.35:1
Keystone Correction
Range
Vertical : Manual +/-40°
RATINGS
Dimensions (W x H x D)
287.7 mm x 186 mm x 374.5 mm (including protrusions)
Digital RGB Compatibility
UXGA / SXGA+ / WXGA+ / FWXGA / WXGA / SXGA / XGA /
SVGA / VGA
Weight
5 kg
Analogue RGB
Compatibility
UXGA / SXGA+ / WXGA / SXGA / XGA / SVGA / VGA / Mac
Digital Video Scan Systems
1080p / 1080i / 720p / 576p / 480p / 480i
Component Video Scan
Systems
1080p / 1080i / 720p / 576p / 480p / 480i
Video / S-Video Colour
Systems
PAL B/G/H/I, / NTSC / NTSC4.43 / SECAM
Display Modes
Presentation, Standard, sRGB, Movie, User 1 & 2
Image Enhancement
10–bit Colour Reproduction (1.07 billion colours)
Built-in Speaker
10.0 W x 2 RMS
Power Source
100-120 / 200-240 V AC, 50/60Hz
Power Consumption
Modes – Normal : 310W / Eco : 260W
Standby: (LAN on/off) 6W / 0.5W
Noise Level
Modes – Normal : 33dBA / Eco : 29dBA
Operating Environment
0°C to +40°C
Storage Environment
-10°C to +60°C
Warranty
3 years
All data is based on Canon standard testing methods except where indicated
Subject to change without notice.
LV-WX300USTi
Compact and portable ultra-short
throw WXGA projector
Compact and portable the ultra-short throw LV-300USTi
features native WXGA resolution and interactive functions
making it ideal for projecting large, bright, clear images in
small meeting rooms and classrooms.
Sales Start Date: June 2015
Product Details:
Product Name
Mercury Code
EAN Code
Multimedia Projector LV-WX300USTi (E)
0647C003AA
4549292040746
Product Name
Mercury Code
EAN Code
Remote Controller LV-RC09 (w/Laser pointer)
0742C001AA
4549292044928
Remote Controller LV-RC10 (same as supplied in box)
0748C001AA
4549292044935
Projector Lamp LV-LP41
0740C001AA
4549292046663
Wall Attachment LV-WL02
0747C001AA
4549292044911
Optional Accessories:
Interactive Pen LV-IP01 (2pcs) (same as supplied in box)
0883C001AA
4549292048490
Finger touch module LV-FM01
0884C001AA
4549292048506
LV-WX300USTi
Compact and portable ultra-short
throw WXGA projector
Compact and portable the ultra-short throw LV-300USTi
features native WXGA resolution and interactive functions
making it ideal for projecting large, bright, clear images in
small meeting rooms and classrooms.
Measurement / Logistic Information:
Product Name
Mercury Code
Pack
type
Pack description
Quantity
per pack
Length
(mm)
Width
(mm)
Height
(mm
Net Weight
(kg)
Gross Weight
(kg)
Multimedia Projector LV-WX300USTi (E)
0647C003AA
EA
Each
1
374
287
186
Approx. 5.0
NA
CT
Carton
1
430
510
280
NA
Approx. 5.5
What’s in the box?
•
•
•
•
•
•
•
•
•
•
•
Multimedia Projector LV-WX300USTi
Remote Control
AC Mains Power Cable
Computer (VGA) Cable
Quick Start Guide (Book)
User’s Manual (Multi, CD-ROM)
Warranty book (E)
Precautions for connecting HDMI
Interactive Application CD
Interactive Pen
USB Cable
