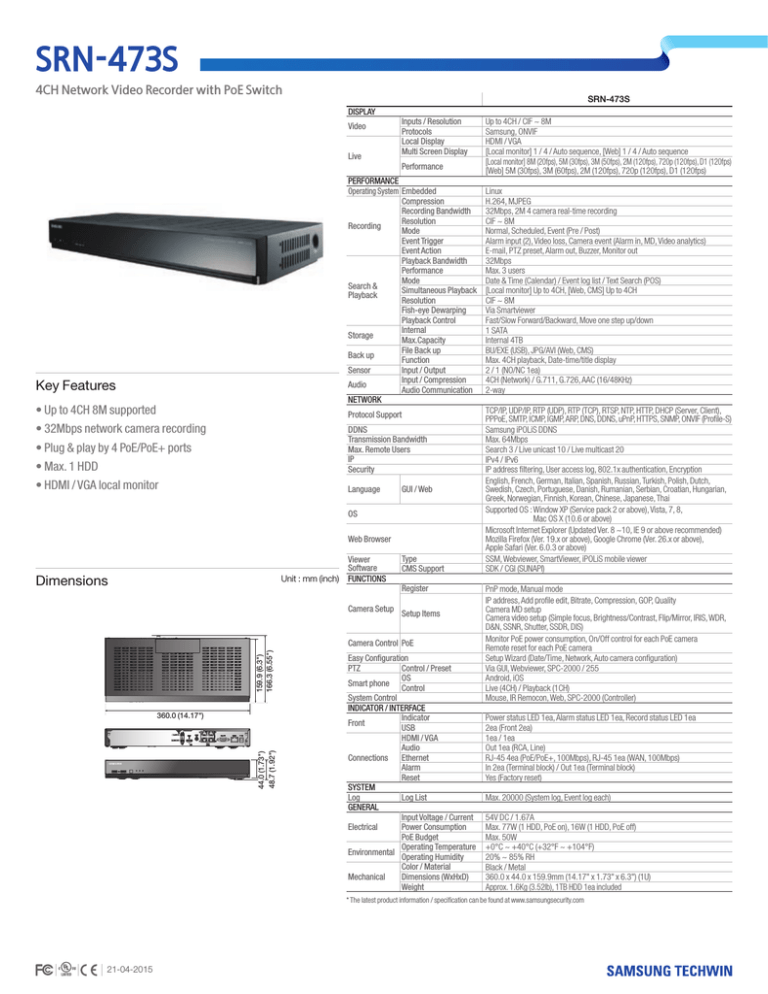

SRN-473S
4CH Network Video Recorder with PoE Switch
SRN-473S
Display
Inputs / Resolution
Protocols
Local Display
Multi Screen Display
Video
Live
Performance
Performance
Operating System Embedded
Compression
Recording Bandwidth
Resolution
Recording
Mode
Event Trigger
Event Action
Playback Bandwidth
Performance
Mode
Search &
Simultaneous Playback
Playback
Resolution
Fish-eye Dewarping
Playback Control
Internal
Storage
Max.Capacity
File Back up
Back up
Function
Sensor
Input / Output
Input / Compression
Audio
Audio Communication
Network
Key Features
• Up to 4CH 8M supported
• 32Mbps network camera recording
• Plug & play by 4 PoE/PoE+ ports
• Max. 1 HDD
• HDMI / VGA local monitor
Protocol Support
DDNS
Transmission Bandwidth
Max. Remote Users
IP
Security
Language
GUI / Web
OS
Web Browser
Dimensions
Unit : mm (inch)
Viewer
Software
Functions
Camera Setup
Type
CMS Support
Register
Setup Items
159.9
(6.3")
159.9
(6.3")
166.3(6.55")
(6.55")
166.3
Camera Control PoE
44.0(1.73")
(1.73")
44.0
48.7 (1.92")
(1.92")
48.7
360.0(14.17")
(14.17")
360.0
Easy Configuration
PTZ
Control / Preset
OS
Smart phone
Control
System Control
Indicator / Interface
Indicator
Front
USB
HDMI / VGA
Audio
Connections
Ethernet
Alarm
Reset
System
Log
Log List
General
Input Voltage / Current
Electrical
Power Consumption
PoE Budget
Operating Temperature
Environmental
Operating Humidity
Color / Material
Mechanical
Dimensions (WxHxD)
Weight
Up to 4CH / CIF ~ 8M
Samsung, ONVIF
HDMI / VGA
[Local monitor] 1 / 4 / Auto sequence, [Web] 1 / 4 / Auto sequence
[Local monitor] 8M (20fps), 5M (30fps), 3M (50fps), 2M (120fps), 720p (120fps), D1 (120fps)
[Web] 5M (30fps), 3M (60fps), 2M (120fps), 720p (120fps), D1 (120fps)
Linux
H.264, MJPEG
32Mbps, 2M 4 camera real-time recording
CIF ~ 8M
Normal, Scheduled, Event (Pre / Post)
Alarm input (2), Video loss, Camera event (Alarm in, MD, Video analytics)
E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
32Mbps
Max. 3 users
Date & Time (Calendar) / Event log list / Text Search (POS)
[Local monitor] Up to 4CH, [Web, CMS] Up to 4CH
CIF ~ 8M
Via Smartviewer
Fast/Slow Forward/Backward, Move one step up/down
1 SATA
Internal 4TB
BU/EXE (USB), JPG/AVI (Web, CMS)
Max. 4CH playback, Date-time/title display
2 / 1 (NO/NC 1ea)
4CH (Network) / G.711, G.726, AAC (16/48KHz)
2-way
TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client),
PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S)
Samsung iPOLiS DDNS
Max. 64Mbps
Search 3 / Live unicast 10 / Live multicast 20
IPv4 / IPv6
IP address filtering, User access log, 802.1x authentication, Encryption
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch,
Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian,
Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Supported OS : Window XP (Service pack 2 or above), Vista, 7, 8,
Mac OS X (10.6 or above)
Microsoft Internet Explorer (Updated Ver. 8 ~10, IE 9 or above recommended)
Mozilla Firefox (Ver. 19.x or above), Google Chrome (Ver. 26.x or above),
Apple Safari (Ver. 6.0.3 or above)
SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
SDK / CGI (SUNAPI)
PnP mode, Manual mode
IP address, Add profile edit, Bitrate, Compression, GOP, Quality
Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR,
D&N, SSNR, Shutter, SSDR, DIS)
Monitor PoE power consumption, On/Off control for each PoE camera
Remote reset for each PoE camera
Setup Wizard (Date/Time, Network, Auto camera configuration)
Via GUI, Webviewer, SPC-2000 / 255
Android, iOS
Live (4CH) / Playback (1CH)
Mouse, IR Remocon, Web, SPC-2000 (Controller)
Power status LED 1ea, Alarm status LED 1ea, Record status LED 1ea
2ea (Front 2ea)
1ea / 1ea
Out 1ea (RCA, Line)
RJ-45 4ea (PoE/PoE+, 100Mbps), RJ-45 1ea (WAN, 100Mbps)
In 2ea (Terminal block) / Out 1ea (Terminal block)
Yes (Factory reset)
Max. 20000 (System log, Event log each)
54V DC / 1.67A
Max. 77W (1 HDD, PoE on), 16W (1 HDD, PoE off)
Max. 50W
+0°C ~ +40°C (+32°F ~ +104°F)
20% ~ 85% RH
Black / Metal
360.0 x 44.0 x 159.9mm (14.17" x 1.73" x 6.3") (1U)
Approx. 1.6Kg (3.52lb), 1TB HDD 1ea included
* The latest product information / specification can be found at www.samsungsecurity.com
21-04-2015
