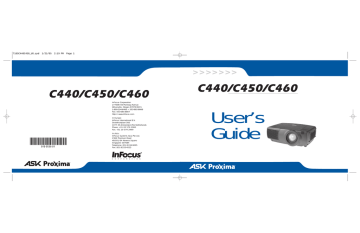

7185C440C450_UG.qxd 1/21/05 2:19 PM Page 1
InFocus Corporation
27700B SW Parkway Avenue
Wilsonville, Oregon 97070-9215
1-800-294-6400 • 503-685-8888
Fax: 503-685-8887 http://www.infocus.com
In Europe:
InFocus International B.V.
Strawinskylaan 585
1077 XX Amsterdam,The Netherlands
Phone: +31 20 579 2000
Fax: +31 20 579 2999
In Asia:
InFocus Systems Asia Pte Ltd.
238A Thomson Road
#18-01/04 Novena Square
Singapore 307684
Telephone: (65) 6334-9005
Fax: (65) 6333-4525
> > > > > > >
User’s
Guide
Declaration of Conformity
Manufacturer: InFocus Corporation, 27700B SW Parkway Ave. Wilsonville, Oregon
97070 USA
European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands
We declare under our sole responsibility that this projector conform to the following directives and norms:
EMC Directive 89/336/EEC, Amended by 93/68/EEC
EMC: EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC
Safety: EN 60950: 2000
October, 2003
Trademarks
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple
Computer, Inc. IBM is a trademark or registered trademark of International Business
Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation. Adobe and Acrobat are trademarks or registered trademarks of Adobe Systems Incorporated.InFocus, In Focus, and
INFOCUS (stylized), LP, LiteShow, ScreenPlay, LitePort, ASK and Proxima are either registered trademarks or trademarks of InFocus Corporation in the United States and other countries.
FCC Warning
Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Agency Approvals
UL, CUL, TUV, GOST
Other specific Country Approvals may apply, see please product certification label.
Remote Control Warning
Laser radiation class II product; wavelength 650nm; maximum output 1mW. Remote control complies with applicable requirements of 21 CFR 1040.10 and 1040.11. Remote control complies with applicable requirements of EN 60 825-1: 1994 +A11.
Do not look into laser beam emitted from the front of the remote control
Location of laser beam warning labels on remote
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
EN 55022 Warning
This is a Class A product. In a domestic environment it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room or auditorium.
2
InFocus reserves the right to alter product offerings and specifications at any time without notice.
Table of Contents
Introduction
Positioning the projector
Connecting a computer
Required computer connections
Displaying a computer image
First-time projector use with Windows 98
Adjusting the image
Connecting a video device
Displaying a video image
Shutting down the projector
Troubleshooting your setup
Using the keypad buttons
Using the remote control
Using the audio
Optimizing computer images
Presentation features
Optimizing video images
Customizing the projector
Using the menus
Picture menu
Settings menu 35
Maintenance 39
Cleaning the lens
Changing the lens
39
39
30
30
31
32
Replacing the projection lamp
Cleaning the dust filter
40
42
Using the security lock 42
Appendix 43
Projected image size
LED Behavior
RS-232 commands
43
44
45
27
28
29
29
16
18
18
26
10
11
13
14
8
8
5
7
If you are experienced in setting up presentation systems, use the included
Quick Set Up card. For complete details on connecting and operating the projector, refer to this User’s Guide. Electronic versions of this User’s Guide in multiple languages are available on the included CD and on our website.
The website also has technical specifications (an interactive image size calculator, laptop activation commands, connector pin outs, a glossary, the product data sheet), a web store to buy accessories, and a page for online registration. See the inside of the back cover for a list of all relevant web addresses.
3
Important Operating Considerations for Safety
• Place the projector in a horizontal position no greater than 15 degrees off axis.
• Locate the projector in a well-ventilated area without any obstructions to intake or exhaust vents. Do not place the projector on a tablecloth or other soft covering that may block the vents.
• Locate the projector at least 4' (1.2 m) away from any heating or cooling vents.
• Use only InFocus-approved ceiling mounts.
• Use only the power cord provided. A surge-protected power strip is recommended.
• Refer to this manual for proper startup and shutdown procedures.
• In the unlikely event of the lamp rupturing, discard any edible items placed in the surrounding area and thoroughly clean the area along all sides of the projector. Wash hands after cleaning the area and handling the ruptured lamp. This product has a lamp which contains a very small amount of mercury. Dispose of it as required by local, state or federal ordinances and regulations. For more information see www.eiae.org
.
Follow these instructions to help ensure image quality and lamp life over the life of the projector. Failure to follow these instructions may affect the warranty. For complete details of the warranty, see the Warranty section at the end of this User's Guide.
2 ft (.6m)
2 ft (.6m)
2 ft (.6m)
Do not place objects in the areas along the left, back and front sides of the projector
For ceiling mount applications, this area should be 5 feet (1.5m).
5 ft (1.5m)
4
Introduction
Your new multimedia projector provides three computer, three video, and two audio inputs, one audio output, and RS-232 control. The C440 and C450 have XGA 1024x768 resolution while the C460 has SXGA+ 1400x1050 resolution. Optional user-changeable short, fixed short, long and super long throw lenses make this a flexible product suitable for many different uses.
The projector is easy to connect, easy to use, and easy to maintain.
Product specifications
To read the latest specifications on your multimedia projector, be sure to visit our website. Web address information is located on the back inside cover of this User’s Guide.
Accessories
The standard accessories that came with your projector can be found on the packing list that came with your projector. Optional accessories are listed in the Accessories catalog that came with the projector and can also found on our website. See the inside back cover for the web address.
Online Registration
Register your projector on our website to receive product updates, announcements, and registration incentives. See the inside back cover for the web address.
Projector components and features: front heat vent elevator foot release lens speakers
Projector components and features: back keypad air intake vent remote control receiver (IR) elevator foot release handle air intake vent connectors back foot air intake vent
5
Connector Panel
The projector provides three computer and three video connection options:
• one M1-D (DVI with USB)
• one VESA computer
• one BNC (RGBHV and Pr, Pb, Y)
• one component RCA video (Pr, Pb, Y)
• one S-video
• one composite RCA video
The projector provides computer and video connectors for audio support:
• two composite RCA stereo audio (L, R)
• one audio out
• two audio ins for computer
The projector also provides the following connectors:
• one wired remote
• one monitor out
• RS-232 serial connector (for serial control)
• RJ-45 connector (for networked control via ProjectorNet software)
The RS-232 Command Line Interface (CLI) specifications and commands are available on our website. See the back inside cover of this User’s Guide for website information.
VESA computer
M1-D computer monitor component video
RS232 serial control
RJ-45 wired remote remote control receiver
(IR) computer audio
BNC external speakers
(audio out) composite video s-video power connector power switch lock
6
Positioning the projector
To determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat surface at a right angle to the screen. The projector (with the standard lens) must be at least 3 feet (0.9m) from the projection screen.
• Position the projector within 10 feet (3m) of your power source and within 6 feet (1.8m) of your video device (unless you purchase extension cables). To ensure adequate cable access, do not place the projector within 6 inches (.15m) of a wall or other object.
• If you are installing the projector on the ceiling, refer to the installation guide that comes with the Ceiling Mount Kit for more information. To
turn the image upside down, see “Ceiling” on page 35. We recom-
mends using an authorized ceiling mount. The Ceiling Mount Kit is sold separately; see the Accessories catalog that came with this projector or visit our website for more information.
• Position the projector the desired distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image. For information
about image sizes at different distances, see “Projected image size” on page 43.
• For the standard lens that comes with the projector, the image exits at a given angle. However, the lens shift feature makes the image offset variable. The image offset is 100% at a 10:0 ratio when the projector is in
4:3 mode (default mode). This means that if you have an image 10’ high, all 10’ will appear above the center of the lens.
• The image offset is 50% when the lens shift is at a 1:1 ratio. This means that if you have an image 10’ high, the bottom of the image will be 5’ below the center of the lens.
•
For information about the optional lenses image offsets, see “Projected image size” on page 43.
7
10 ft high image
10:0 bottom of image
100% above lens center
1:0 bottom of image
50% below lens center lens center
Projection angle in 4:3 mode (default)
10:0
1:1
Connecting a computer
Required computer connections
Connect one end of the VESA computer cable to the Computer 2 connector on the projector. Connect the other end to the video port on your computer.
If you are using a desktop computer, you first need to disconnect the monitor cable from the computer’s video port.
Connect the black power cable to the connector on the back of the projector and to your electrical outlet.
NOTE : Always use the power cable that shipped with the projector.
Optional computer connections
To control your computer’s mouse using the projector’s remote control, connect the USB and DVI cables to the USB and DVI ports on your computer, and connect the other end to the Computer 1 (M1-D) connector on the projector. USB drivers must be installed to use the USB feature. For more infor-
If your projector cannot receive the remote’s signal due to IR interference, you can connect directly to the projector via a remote cable. To do so, plug the remote cable into the wired remote connector on the projector. Plug the other end into the connector on the remote, connect computer cable connect power cable connect M1-D cable connect wired remote
To have sound with your presentation, connect the audio cable to your computer and to the corresponding computer Audio In connector on the projector. connect audio cable
8
If you are using a desktop computer and want to see the image on your computer screen as well as on the projection screen, plug the monitor cable to the Monitor out connector on the projector. connect monitor cable
You can also connect to your computer using a BNC cable. Connect the BNC connectors on the BNC cable to the appropriate Computer 3 connectors on the projector. Connect the other end to the video port on your computer. If you are using a desktop computer, you first need to disconnect the monitor cable from the computer’s video port. When all 5 BNCs are connected, the projector handles separate synchs on H and V.
You can control the projector from an LCD control panel, touch screen, or other control device or computer by connecting an RS-232 cable to the projector’s Serial connector. Specific RS-232 commands can be found in the Service and Support section of our website and in this User’s Guide’s
Appendix.
The projector can be managed by ProjectorNet networking software through its Network (RJ-45) connector. Contact an authorized dealer or visit our website for information on ProjectorNet.
connect BNC cables
R G B H V connect RS-232 cable connect CAT-5 cable
Network
9
Displaying a computer image
Remove the lens cap.
remove lens cap
Press the power switch on the back of the projector to the on position, then press the Power button on the top of the projector or the remote.
The LED flashes green and the fans start to run. When the lamp comes on, the startup screen is displayed and the LED is steady green. It can take a minute for the image to achieve full brightness.
? No startup screen?
Turn on your computer.
The computer’s image should appear on the projection screen. If it doesn’t, press the Computer button on the projector’s keypad. press Power switch press Power button turn on computer
Make sure your laptop’s external video port is active.
Many laptops do not automatically turn on their external video port when a projector is connected. Usually a key combination like FN + F5 is used to turn the external display on and off. Refer to your computer’s documentation to learn your computer’s key combination.
? No computer image? Try pressing the Auto Image
button on the keypad. Get help on page 19.
activate laptop’s external port
10
2
1
First-time projector use with Windows 98
The first time you connect a computer running Windows 98 to the projector, the computer recognizes the projector as “new hardware” and the Add
New Hardware Wizard appears. Follow these instructions to use the Wizard to load the correct driver (which was installed with your Windows operating system).
If you are running Windows 2000, Windows ME, or Window XP, skip these
steps and go to “Adjusting the image” on page 13.
a Click Next to begin searching for the driver.
a b b Make sure “Search for the best driver” is selected, then click Next.
c Uncheck any checked boxes, then click Next. Windows automatically locates the driver. If this driver has been removed, reload the driver using your Windows operating system CD.
c d When Windows finds the driver, you are ready to install it. Click Next.
d
11
Skip this page if you did not connect a USB mouse cable
For Windows 98:
• If you connected the USB cable, the Add New Hardware Wizard appears again. Drivers must be installed to use the USB functionality.
• The Wizard launches two times .
The first time it detects a USB Human Interface Device (for the keyboard).
The second time it detects a USB Human Interface Device (for the mouse).
For Windows 2000, Windows ME, and Windows XP:
• The USB drivers are automatically installed.
12
Adjusting the image
Adjust the height of the projector, if necessary, by pressing the release buttons on each side of the projector’s front to extend the elevator feet. adjust height release button elevator foot
Position the projector the desired distance from the screen at a 90 degree angle (perpendicular) to the screen.
See page 43 for a table listing screen sizes and distances.
adjust distance
Adjust the zoom or focus by pressing the power Zoom or power Focus buttons on the keypad until the desired image size and focus are produced.
You can also adjust the zoom and focus via the menus. See page 32
adjust zoom and focus zoom focus
If the image is not on the screen or viewing area, adjust it by pressing the lens shift button on the keypad.
Press the upper Lens Shift button to shift the lens upward. Press the lower
Lens Shift button to shift the lens downward.
You can also adjust the lens shift via the menus. See page 32.
Adjust the Contrast or Brightness in the Picture menu.
See page 31 for help with the menus.
adjust lens shift lens shift adjust Contrast or Brightness
13 contrast brightness release button elevator foot
Connecting a video device
Standard video connections
Plug the audio/video (A/V) cable’s yellow connector into the video-out connector on the video device. Plug the other yellow connector into the yellow Video 3 connector on the projector. Plug a white connector into the left audio out connector on the video device and plug a red connector into the right audio out connector on the video device. Plug the remaining white connector into the left audio in connector on the projector, and plug the red connector into the right audio in connector on the projector.
Connect the black power cable to the connector on the back of the projector and to your electrical outlet. NOTE: Always use the power cable that shipped with the projector.
connect A/V cable connect power cable
Optional video connections
If the video device uses a round, four-prong S-video connector, plug an
S-video cable (sold separately) into the S-video connector on the video device and into the Video 2 connector on the projector. Use the A/V cable’s audio connectors as described directly above (the yellow connectors on the
A/V cable are not used).
connect S-video and video cables
If the video device uses component cable connectors (sold separately), plug the cable’s green connectors into the green component-out connector on the video device and into the Video 1 green component connector (labeled “Y”) on the projector. Plug the component cable’s blue connectors into the blue component-out connector on the video device and into the blue component connector (labeled “Pb”) on the projector. Plug the component cable’s red connectors into the red component-out connector on the video device and into the red component connector (labeled “Pr”) on the projector. Use the
A/V cable’s audio connectors as described above (the yellow connectors on the A/V cable are not used). NOTE: The component connectors can be used for HDTV sources (480i, 480p, 720p and 1080i formats).
14 connect component cables and video cables
You can also connect to your video device using a BNC cable. Connect the
BNC connectors of the BNC cable to the appropriate Computer 3 connectors on the projector. Connect the other end to the video port on your video device. Use the A/V cable’s audio connectors as described on the previous page (the yellow connectors on the A/V cable are not used).
When 4 BNCs are connected, the projector handles a composite synch on H.
When 3 BNCs are connected, the projector handles a composite synch on G.
NOTE : The BNC connectors can be used for HDTV sources (480i, 480p,
720p and 1080i formats).
connect BNC cables
R G B H V
15
Displaying a video image
Remove the lens cap. remove lens cap
Press the power switch on the back of the projector to the on position, then press the Power button on the top of the projector.
The LED flashes green and the fans start to run. When the lamp comes on, the startup screen is displayed and the LED is steady green. It can take a minute for the image to achieve full brightness.
? No startup screen?
Plug in and turn on the video device.
The video device’s image should appear on the projection screen. If it doesn’t, press the Video button on the keypad. press Power switch press Power button turn on video device
Adjust the height of the projector, if necessary, by pressing the release buttons on each side of the projector’s front to extend the elevator feet. adjust height release button elevator foot
Position the projector the desired distance from the screen at a 90 degree
angle to the screen. See page 43 for a table listing screen sizes and distances
to the screen.
adjust distance
16
2
1 release button elevator foot
Adjust the zoom or focus by pressing the power Zoom or power Focus buttons on the keypad until the desired image size and focus are produced.
You can also adjust the zoom and focus via the menus. See page 32
adjust Zoom and Focus zoom focus
If the image is not on the screen or viewing area, adjust it by pressing the lens shift button on the keypad.
Press the upper Lens Shift button to shift the lens upward. Press the lower
.
Lens Shift button to shift the lens downward
You can also adjust the lens shift via the menus. See page 32.
Adjust the volume on the keypad or remote.
adjust Lens Shift lens shift adjust volume volume
Adjust the Contrast, Brightness, Color, or Tint in the Picture menu.
See page 31 for help with the menus.
adjust Picture menu contrast brightness color tint
17
Shutting down the projector
The projector automatically blanks the screen after no active source is detected for 50 minutes. This blank screen helps preserve the life of the projector. The image returns when an active source is detected or a remote or keypad button is pressed.
Screen Save
You can make the blank screen appear after five minutes by turning on
Screen Save in the Settings>System menu. See page 36.
Power Save
The projector also has a Power Save feature that automatically turns the lamp off after no signals are detected for 20 minutes. After 10 additional minutes with no signal, the projector powers down. If an active signal is received before the projector powers down, the image is displayed. You must press the Power button to display an image after 30 minutes have
passed. When Power Save is enabled, Screen Save is disabled. See page 36.
Turning off the projector
To turn off the projector, press the power button and verify that you want to turn the projector off by pressing the power button again within 3 seconds.
You can cancel the shutdown by not pressing the power button a second time. The lamp turns off and the LED blinks green for over 1 minute while the fans continue to run to cool the lamp. When the lamp has cooled, the
LED lights green and the fans stop. Press the power switch on the back of the projector and unplug the power cable to completely power off the projector.
Troubleshooting your setup
If your image appears correctly on the screen, skip to the next section. If it does not, troubleshoot the setup. The LED on top of the projector indicates
The following tables show common problems. In some cases, more than one possible solution is provided. Try the solutions in the order they are presented. When the problem is solved, you can skip the additional solutions.
18
Source Troubleshooting
Problem Solution
No startup screen
Plug power cable in, press power switch, press power button. Remove lens cap.
3
Result
Correct image
1
2
Only startup screen appears startup screen
Computer image projected
Press the Computer button
Activate laptop’s external port
startup screen
A A
A or restart laptop
19
No computer image, just the words “Signal out of range”
Adjust computer refresh rate in Control
Panel>Display>Settings>Advanced>
Adapter (location varies by operating system)
Computer image projected
Signal range out of
A A
A
You may also need to set a different resolution on your computer, as shown in the following problem, “Image fuzzy or cropped”
20
Image fuzzy or cropped
A
A
Set your computer’s display resolution to the native resolution of the projector
(Start>Settings>Control
Panel>Display>Settings tab, select1024x768 for C440/450, 1400x1050 for C460)
Image clear and not cropped
A
For a laptop, disable laptop monitor or turn-on dualdisplay mode
Remote control navigation buttons not working with my computer
Connect USB cable (page 8) then load USB
drivers, if needed (page 11). Or, connect
wired remote cable and reboot your
Remote controls navigation buttons.
See page 27 for information on the remote
X
21
Projector troubleshooting
Problem Solution
Image not square Adjust keystone the Picture menu
Result
Square image
Image not sharp Adjust the focus on the keypad or
Sharpness in the Picture>Advanced menu
Correct image
A B
Change aspect ratio to 16:9 in
Picture>Aspect ratio menu
Correct image
Image does not fit 16:9 screen
22
Image upside down
A B
Image reversed left to right
A
Projected colors don’t match source
COLOR
Turn on/off Ceiling in Settings>System menu Correct image
A B
Turn on/off Rear in Settings>System menu Correct image
A B
Adjust color, tint, color temperature, brightness, contrast in the menus
Correct image
COLOR
23
Lamp won’t turn on, Temp LED solid red (page 44)
Make sure vents aren’t blocked; allow projector to cool for one minute solid red temp lamp
Lamp won’t turn on, Lamp LED blinking red
blinking red temp lamp
Lamp may need to be replaced (page 40)
Unplug projector; wait one minute; plug in projector and turn it on: lamp lights
Lamp turns on startup screen startup screen
24
Image not centered on screen Move projector, adjust zoom or lens shift on keypad, adjust height
Correct image
Adjust horizontal or vertical position in
Picture>Advanced menu
Still having problems?
If you need assistance, visit our website or call us. See the inside of the back cover for a list of all relevant web addresses.
This product is backed by a limited two-year warranty. An extended warranty plan may be purchased from your dealer. When sending the projector in for repair, we recommend shipping the unit in its original packing material, or having a professional packaging company pack the unit. Please insure your shipment for its full value.
25
Using the keypad buttons
Most buttons are described in detail in other sections, but here is an overview of their functions: power
–turns the projector on (page 10) and off (page 16).
lens shift –shifts the projected image up or down zoom –moves the projected image closer or further away.
focus –adjusts the clarity.
menu
–opens the on-screen menus (page 31).
up/down arrows
–navigates to and adjusts settings in the menus (page 31).
select
–confirms choices made in the menus (page 31).
volume
video and computer –changes the active source. temp
–alerts you to possible temperature-related problems (page 44).
lamp
–alerts you to possible lamp-related problems (page 44).
Temp menu navigation buttons
26
Using the remote control
The remote uses two (2) provided AAA batteries. They are easily installed by sliding the cover off the remote's back, aligning the + and - ends of the batteries, sliding them into place, and then replacing the cover.
To operate, point the remote at the projection screen or at the projector (not at the computer). The range of optimum operation is about 30 feet
(9.14m).For best results, aim the remote directly at the projector.
To use the laser pointer, press and hold the Laser button. The laser turns off when the button is released, or times out after two (2) minutes of continuous operation.
WARNING : Do not look into the laser beam emitted from the top of the remote control.
The remote contains four Source buttons that allow you to assign a particular input to a specific source. Simply press the numbered Source buttons to travel to whatever four sources you wish to have available.
Press the remote's Menu button to open the projector's menu system. Use the arrow buttons to navigate, and the Select button to select features and adjust values in the menus.
The remote also has a power button to turn the projector on and off, volume buttons and a mute button to control the sound, a backlight button to light the remote's buttons in the dark, and a video and computer button to switch between those two sources.
Two presentation-specific features are also provided. Use the blank button to display a blank screen instead of the current slide; use the effect button to invoke a user-definable action, such as freeze, PiP, or magnify.
The Auto Image button reacquires the computer image and the Presets button lets you customize the settings for each source. Up to three Preset settings can be customized and saved.
LED navigation buttons source buttons laser button backlight button
Troubleshooting the remote
• Make sure the batteries are installed in the proper orientation and are not dead. The LED at the top of the remote lights when any button is pressed when the battery power is adequate.
• Make sure you’re pointing the remote at the projector, not the computer, and are within the remote range of 30 feet (9.14m).
• If you are trying to control your computer’s mouse, make sure a mouse cable is connected. If using the USB cable that is part of the M1 cable, make sure the correct drivers are installed.
27
Using the audio
To play sound from the projector, connect your source to the Audio In connector on the projector.
To adjust the volume, use the buttons on the keypad or remote.
To adjust the balance, or loudness, use the Audio menu (see page 35).
To mute the sound, press the Mute button.
Troubleshooting audio
If there is no sound, check the following:
• Make sure the audio cable is connected.
• Make sure mute isn’t active.
• Make sure the volume is turned up enough. Press the volume button on the keypad or remote.
• Make sure you are connected to the corresponding audio in for your source. Computer 1 and 3 share a single audio input. Computer 2 has its own audio input. Video 1, 2 and 3 share a single stereo input.
• Adjust the audio source.
• If playing a video, make sure the playback has not been paused.
Connecting external speakers
The projector can be attached to external speakers that have their own power source by plugging a speaker cable into the projector’s Audio Out connector. connect audio cable adjust volume volume computer 1 and 3 corresponding audio external speakers audio out audio in audio in computer 1 computer 2 computer 3 computer in computer 2 and corresponding audio
28 speaker cable
Optimizing computer images
After your computer is connected properly and the computer’s image is on the screen, you can optimize the image using the onscreen menus. For gen-
eral information on using the menus, see page 31.
• Adjust the Keystone, Contrast, or Brightness in the Picture menu.
• Change the Aspect Ratio. Aspect Ratio is the ratio of the image width to image height. TV screens are usually 1.33:1, also known as 4:3. HDTV and most DVDs are 1.78:1, or 16:9. Choose the option that best fits your
input source. See page 32 for details.
• Adjust the Color Temperature in the Advanced menu.
• Adjust the Phase, Tracking, or Horizontal or Vertical position in the
Advanced menu.
• Once you have optimized the image for a particular source, you can save the settings using Presets. This allows you to quickly recall these
Presentation features
Several features are provided to make giving presentation easier. The fol-
lowing is an overview, details are found in the menu section on page 31.
• The remote’s Effect button allows you to assign various features to the key. The default effect is Magnify. You can select from Blank, Mute,
Aspect Ratio, Source, Auto Image, Freeze, Magnify, About, and PiP
Source. See page 37 for details.
• The Freeze effect allows you to freeze the displayed image. This is useful if you want to make changes on your computer without your audience seeing them.
• The Blank button on the remote allows you to display a blank screen
instead of the active source. See page 36.
• The PiP Source effect lets you change the video source in a smaller win-
dow on top of the computer image. See page 37.
• The Startup Logo menu option lets you change the default startup screen to a black, white, blue, or a custom logo screen via Logo Cap-
• Two menu options, Power Save and Screen Save, are provided to automatically shut down the projector after several minutes of inactivity or
display a blank screen. This helps preserve lamp life. See page 35 and
• A Low Power menu option is also available to help lower the projec-
tor’s fan sound volume. See page 35.
29
Optimizing video images
After the video device is connected properly and the image is on the screen, you can optimize the image using the onscreen menus. For general informa-
tion on using the menus, see page 31.
• Adjust the Keystone, Contrast, Brightness, Color, or Tint in the Picture
• Change the Aspect ratio. Aspect ratio is the ratio of the image width to image height. TV screens are usually 1.33:1, also known as 4:3. HDTV and most DVDs are 1.78:1, or 16:9. Choose the option that best fits your
•
Select a Sharpness setting. See page 34.
• Adjust the Color Temperature. Select a listed value, or select User and individually adjust the intensity of the red, green, and blue color. See
Customizing the projector
You can customize the projector for your specific setup and needs. See
page 35 to page 39 for details on these features.
• For rear projection, turn Rear mode on in the Settings>System menu.
• For ceiling mounted projection, turn Ceiling mode on in the Set- tings>System menu.
• Specify which source the projector checks first for an active signal during power-up.
• Specify the function of the Effect Key on the remote.
• Turn the projector’s on-screen display messages on and off.
• Turn on power saving features.
• Specify blank screen colors and startup logos.
• Specify the menu language.
•
Manage your projector via ProjectorNet software. See page 9 for more
information.
•
Control your projector using RS232 commands. See page 9.
• Customize the projector for your specific installation using optional long or short throw lenses. See the inside back cover of this User’s
Guide for ordering information.
• Gain control of your projector from your laptop with InFocus
ProjectorManager ™ , a free application that turns any PC into an advanced projector remote control.
ProjectorManager can be downloaded from our website link found on the CD that came with your projector.
30
Using the menus
To open the menus, press the menu button on the keypad or remote. (The menus automatically close after 60 seconds if no buttons are pressed.) The
Main menu appears. Use the arrow buttons to move up and down to highlight the desired submenu, then press the Select button.
To change a menu setting, highlight it, press Select, then use the up and down arrow buttons to adjust the value, select an option using radio buttons, or turn the feature on or off using check boxes. Press Select to confirm your changes. Use the arrows to navigate to another setting. When your adjustments are complete, navigate to Previous, then press Select to go to the previous menu; press the Menu button at any time to close the menus.
Dots appear before the menu name. The number of dots indicate the menu’s level, ranging from one (the Main menu) to four (the most nested menus).
The menus are grouped by usage:
• The Picture menu provides image adjustments.
• The Settings menu provides set-up type adjustments that are not changed often.
• The About menu provides a read-only display of information about the projector and source.
Certain menu items may be grayed out until a particular source is connected. For example, Sharpness is only available for video sources and will be hidden when a computer source is active. Other menu items may be grayed out when they are not available. For example, Brightness is grayed out until an image is active.
Dot
Main menu
Menu button
Picture menu
Dots
Settings menu
Keypad navigation buttons
About menu
31
Picture menu
To adjust the following six settings, highlight the setting, press Select, use the up and down arrows to adjust the values, then press select to confirm the changes.
Zoom : allows you to adjust a lens to zoom in and out. Highlight Zoom, then press the up or down arrows on the keypad or remote.
Focus : allows you to adjust the lens focus for an image. Highlight Focus, then press the up or down arrows on the keypad or remote.
Lens Shift : allows you to mechanically shift the lens. Highlight Lens Shift, then press the up or down arrows on the keypad or remote.
Keystone Vertical : adjusts the image vertically and makes a squarer image by using an adjustable scale band.
Keystone Horizontal : adjusts the image horizontally and makes a squarer image by using an adjustable scale band.
Contrast : controls the degree of difference between the lightest and darkest parts of the picture and changes the amount of black and white in the image.
Brightness : changes the intensity of the image.
Color : (video sources only) adjusts a video image from black and white to fully saturated color.
Tint : adjusts the red-green color balance in the image.
Aspect Ratio : Aspect ratio is the ratio of the image width to image height.
TV screens are usually 1.33:1, also known as 4:3. HDTV and most DVDs are
1.78:1, or 16:9. The default is 4:3, which displays the input resized up or down to fill the display area.
32
Keystone Vertical increasing keystone decreasing keystone
Keystone Horizontal
Aspect Ratio
Presets : The provided Presets optimize the projector for displaying computer presentations, photographs, film images, and video images. (Film input is material originally captured on a film camera, like a movie; video input is material originally captured on a video camera, like a TV show or sporting event.) You can use the preset as a starting point, then further customize the settings for each source. The settings you customize are saved in the preset for each source. To restore the factory default settings, choose Factory Reset in the Settings>Service menu.
There are also three user-definable presets. To set a preset for the current source, adjust the image, then choose Save User 1, 2, or 3 in the Save Set- tings menu. You can recall these settings in the future by selecting the appropriate user presets.
Presets
Save Settings
33
Advanced settings
Sharpness : (video sources only on C440 and C450) changes the clarity of the edges of a video image. Select a sharpness setting.
Color Space : This option applies to computer and component video sources. It allows you to select a color space that has been specifically tuned for the input signal. When Auto is selected, the projector automatically determines the standard. To choose a different setting, turn off Auto, then choose RGB for computer sources, choose either SMPTE240, REC709 or
REC601 for component video sources.
Color Temperature : changes the intensity of the colors. Select a listed value, or select User and individually adjust the intensity of the red, green, and blue colors.
Video Standard : when set to Auto, the projector attempts to automatically pick the video standard based on the input signal it receives. (The video standard options may vary depending on your region of the world.) If the projector is unable to detect the correct standard, the colors may not look right or the image may appear “torn.” If this happens, manually select a video standard by selecting NTSC, PAL, or SECAM from the Video Standard menu.
Overscan : (video sources only) removes noise around the video image.
The following 4 options are for computer sources only.
Phase : adjusts the horizontal phase of a computer source.
Tracking : adjusts the vertical scan of a computer source.
Horizontal / Vertical Position : adjusts the position of a computer source.
34
Sharpness
Color Space
Color Temperature
Video Standard
Settings menu
Audio : allows adjustments to the Balance and Volume. Also allows you to turn on and off the Internal speakers, and projector startup Chime.
Sources : allows you to assign a particular input to a specific source key when using the Integrator remote. Also allows selection of a default Startup
Source and enables or disables Autosource.
Sources>Power-up Source: this determines which source the projector checks first for active signal during power-up.
Sources>Autosource: When Autosource is not checked, the projector defaults to the source selected in Powerup Source. If no source is found, a blank screen displays. When Autosource is checked, Powerup Source determines which source the projector defaults to at power-up. If no signal is present, the projector checks the sources in order until a source is found or until power down.
System>Rear: reverses the image so you can project from behind a translucent screen.
Ceiling : turns the image upside down for ceiling-mounted projection.
IR Receivers: turns individual IR receivers off or on to avoid environmental interference.
Auto Power : When Auto Power is checked, the projector automatically goes into the startup state after the projector is powered on. This allows control of ceiling mounted projectors with a wall power switch.
Display Messages : displays status messages (such as “Searching” or
“Mute”) in the lower-left corner of the screen.
Low Power : toggles between on and off. Turn it on to lower the light output of the lamp. This also lowers the fan speed, making the projector quieter.
NND: prevents your notebook computer from going into Screen Save mode (functions only when the USB connector is plugged in).
Power Save : automatically turns the lamp off after no signals are detected for 20 minutes. After 10 additional minutes with no signal, the projector powers down. If an active signal is received before the projector powers down, the image will be displayed.
35
Settings menu
Audio
Sources Powerup
Source
System
IR Receivers
IR Receivers
Screen Save : automatically blanks the screen after no signals are detected for five minutes. The image returns when an active source is detected or a remote or keypad button is pressed. Screen Save is disabled when Power Save is enabled.
Startup Logo: allows you to display a blank Black, White, or Blue screen instead of the default screen at startup and when no source is detected. It also allows you to capture and display a custom startup screen.
To capture a custom logo, display the image you want to capture on your computer and select the Logo Capture option. From the Logo Capture menu, use the Capture Position X and Capture Position Y adjustments to frame the logo to be captured. Press Capture Start in the Logo Capture menu. The projector will let you know if the capture was a success or a failure.
The next time you start the projector, the custom logo you captured displays.
Startup Logo
Blank Screen : determines what color is displayed when you press the
Blank button on the remote.
Screen Save
Blank Screen
Logo Capture
36
PiP : (Picture in Picture) allows you to overlay a smaller window showing the video source on top of the larger computer source window. Only video sources 2 and 3 (composite and S-video) support PiP. You must have both a computer and video source connected to use PiP. You can’t show a computer image in the smaller PiP window, only a video image. You can select a small, medium, or large window. You can also move the PiP window on the screen using the PiP Position X and Y options, or the Upper left, Upper
Right, Lower Left, or Lower Right options in the menu. Press the up and down arrows to change the position.
NOTE: PiP is not available for UXGA 1600x1200 resolution and above.
Effect Key : allows you to assign a different function to the Effect button on the remote to quickly and easily use the effect. Only one effect can be enabled at a time. Highlight an effect and press Select to choose a different one.
Blank : shows an empty screen.
Mute : turns off all sound.
Aspect Ratio: sets the ratio of the image width to image height.
Source: cycles through the available sources.
Auto Image: causes computer sources to be reacquired.
Freeze: pauses the projected image.
Magnify : Is the default effect. It allows you to enlarge a section of the projected image.
About : displays the About menu.
PiP Source: changes the video source of Picture in Picture smaller window display on the projected screen.
PiP menu
PiP Enable
Effect Key
37
PiP Position
Network: The projector has an RJ45 Ethernet connector that supports network connections and TCP/IP protocols. This will allow for the control and management of the projector over a corporate network. The following fields are accessible when DHCP is not checked and available for manual entry of data.
IP Address: Identifies the projector on the network.
Subnet mask: Separates the network address part of the IP address.
Default gateway: The IP address of the local router.
DHCP: Select this to automatically obtain an IP address, Subnet mask, and Default gateway.
Network Info: Provides information on the network configuration.
The Network Info menu is informational and cannot be edited. It displays the current IP Address, Subnet Mask, Default Gateway, and the projector’s
MAC Address.
Language : allows you to select a language for the onscreen display of menus and messages.
Service : to use these features, highlight them and press Select.
Factory Reset : restores all settings (except Lamp Hours and Network settings) to their default after displaying a confirmation dialog box.
Lamp Reset : resets the lamp hours counter in the About menu to zero. Do this only after changing the lamp. It displays a confirmation dialog box.
Filter Reset : resets the filter counter in the About menu to zero. Do this only after cleaning the filter. It displays a confirmation dialog box.
Service Code : only used by authorized service personnel.
Network
Language
Service menu
Network
Info
38
Maintenance
NOTE : When you are performing maintenance activities on your projector, keep in mind that you should only remove screws that are single-slot, or flathead, screws. Any other type of screw, such as a phillips or star should not be removed. These types of screws should only be removed by technical support experts.
Cleaning the lens
1 Apply a non-abrasive camera lens cleaner to a soft, dry cloth.
Avoid using an excessive amount of cleaner, and don’t apply the cleaner directly to the lens. Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.
2 Lightly wipe the cleaning cloth over the lens in a circular motion. If you don’t intend to use the projector immediately, replace the lens cap.
Changing the lens
Long throw and short throw lenses are available with your projector.
1 Turn off the projector and unplug the power cable.
2 Turn the projector upright with the lens facing upward and use a screwdriver to remove the two screws from the front bezel release holes on the bottom of the projector.
3 Lift off the front bezel.
4 Gently place a flathead screwdriver into the slot on the top of the projector (it is by the right speaker) and slide the small lever toward the right speaker. The cover that protects the lens and the lamp housing pops up.
5 Loosen the captive screw to the door that covers the lens housing.
clean the lens with a soft dry cloth and non-abrasive cleaner lens release holes front bezel turn off and unplug the projector cover slide lever in slot to pop open cover
39
6 To remove a lens, push the lever inside the lens housing and turn the lens counterclockwise until it stops. Remove the lens.
7 To install a new lens, place it in the opening through the front of the projector, aligning the red dot (near the base of the lens) with the red dot on the projector. Turn clockwise until you feel the lens click into place.
8 Tighten the captive screw to the lens housing door. Place the front bezel back onto the projector and replace the two screws on the bottom of the projector. Replace the cover that protects the lens and the lamp housing on top of the projector.
Replacing the projection lamp
The lamp hour timer in the About menu counts the number of hours the lamp has been in use. Twenty hours before the specified end of the lamp’s life, the message “Change lamp” briefly appears on the projected screen.
You can order new lamp modules from your dealer. See the Accessories catalog that came with the projector or visit our website for information.
1 Turn off the projector and unplug the power cable.
2 Wait 60 minutes to allow the projector to cool thoroughly.
3 Gently place a flathead screwdriver into the slot on the top of the projector (it is by the right speaker) and slide the small lever toward the right speaker. The cover that protects the lamp housing and the lens pops up.
The lamp module is on the right.
4 Loosen the three captive screws on the lamp module.
cover lever inside lens housing
About menu turn off and unplug the projector wait 60 minutes slide lever in slot to pop open cover
40
WARNINGS :
• To avoid burns, allow the projector to cool for at least 60 minutes before you replace the lamp.
• Do not drop the lamp module. The glass may shatter and cause injury.
Do not touch the glass lamp screen. Fingerprints can obscure projection sharpness.
• Be extremely careful when removing the lamp housing. In the unlikely event that the bulb ruptures, small glass fragments may be generated.
The lamp housing is designed to contain these fragments, but use caution when removing the lamp housing. Before replacing the lamp, clean the lamp compartment and dispose of cleaning materials. Wash hands after lamp replacement. This product has a lamp which contains a very small amount of mercury. Dispose of it as required by local, state or federal ordinances and regulations. For more information see www.eiae.org
.
5 Carefully remove the lamp module by grasping and lifting the metal bail wire. Dispose of the lamp in an environmentally proper manner.
6 Install the new lamp module, making sure that it is properly seated, and tighten the three captive screws.
7 Replace the cover over the lamp module by inserting the tabs into the tab bays and pushing the rest of the cover down into place.
8 Plug in the power cable, press the power switch then press the Power button to turn the projector back on. Reset the lamp hour timer.
Resetting the lamp timer
If the lamp timer has reached the maximum number of hours for the projector lamp, the LED on the projector’s keypad will show a lamp error (see
“LED Behavior” on page 44). To reset the lamp timer, simultaneously press
the decrease volume button and increase volume button on the keypad for
10 seconds. At that point the LED will turn green and you can power on the projector. You can also navigate to the Settings>Service menu and select
Lamp Reset to reset the lamp timer.
41 loosen the captive screws on lamp module remove module using bail wire reset lamp time in Service menu
Cleaning the dust filter
1 Turn off the projector and unplug the power cable.
2 Wait 60 minutes to allow the projector to cool thoroughly.
WARNING : To avoid burns, allow the projector to cool for at least 60 minutes before you clean or replace the dust filter.
3 Remove the dust filter grill door on the side of the projector by pulling down on the two tabs at the grill’s top.
4 Press the tab on the center of the dust filter and lift it off.
5 Clean the filter using a vacuum set on low power.
6 Replace the dust filter and the dust filter grill door.
7 Reset the filter hour timer.
Troubleshooting
If the Temp and Lamp LEDs indicate a problem with the filter, check the following:
• Use a soft cloth to wipe the mirrors on the dust filter grill.
• Remove the dust filter and use a soft cloth to wipe the window behind the dust filter.
• Replace the dust filter and the dust filter grill.
Using the security lock
The projector has a security lock for use with a cable lock system. See the
Accessories catalog that came with the projector, or visit our website, for ordering information. Refer to the information that came with the lock for instructions on how to use it.
42 turn off and unplug the projector wait 60 minutes remove dust filter grill remove dust filter security lock
Appendix
Projected image size
NOTE : Visit the Service section of our website for interactive image size calculators for the standard and optional lenses.
Table 1: Projection sizes: Standard lens (1.5 - 2.2:1 throw ratio)
Minimum Image Maximum Image
Diagonal
(feet/m)
1.7/0.52
Width
(feet/m)
1.46/.42
Diagonal
(feet/m)
2.5/0.76
Width
(feet/m)
1.82/0.55
Distance
(feet/m)
Min Distance
3/0.9
5/1.5
10/3.0
20/6.1
30/9.1
40/12.2
Max Distance
45.5/13.9
2.84/0.87
5.68/1.73
11.36/3.46
17.05/5.2
22.73/6.93
25.85/7.88
2.27/.69
4,46/1.36
9.09/2.77
13.64/4.16
4.17/1.27
8.33/2.54
16.67/5.08
25.0/7.62
18.18/5.54
33.33/10.16
20.68/6.20
37.92/11.56
4.55/1.39
6.56/2.00
13.33/4.06
20.0/6.10
26.67/8.13
30.33/9.25
The image offset range for the standard lens is 10:1 (100%) to 1:1 (50%).
43
LED Behavior
LED color/behavior
Power: blinking green
Temp: N/A
Lamp: N/A
Power: blinking green (once)
Temp: N/A
Lamp: N/A
Power: solid green
Temp: N/A
Lamp: N/A
Power: solid green
Temp: blinking red
Lamp: blinking red
Meaning
The power switch has been toggled on and the software is initializing, or the projector is powering down and the fans are running to cool the lamp.
Power Save or Screen Save.
Lamp has exceeded lamp hours limit.
The power switch has been toggled on and the software has initialized or the projector has been powered off via the remote.
If Temp and Lamp are flashing simultaneously, the filter hasn’t been cleaned in 100 hrs.
If Temp and Lamp are flashing simultaneously (twice), the cooling air filter
may be dusty. Please see “Cleaning the dust filter” on page 42.
If Temp and Lamp are flashing alternately, the projector is below temperature specifications. Please use the projector in an environment between
0
°
C/32
°
F to 35
°
C/95
°
F. Contact
Technical Support if the problem persists.
Power: solid red
Temp: N/A
Lamp: blinking red
Power: solid red
Temp: blinking red
Lamp: N/A
Power: solid red
Temp: solid red
Lamp: N/A
Power: solid red
Temp: N/A
Lamp: N/A
44
Lamp won’t strike (blinks one time)
Lamp has exceeded lamp hours limit
(blinks two times)
Lamp has failed (blinks three times)
Lamp door is open (blinks four times)
Turn off the projector and wait one minute, then turn the projector on again. If the projector has exceeded its lamp life limit, replace the lamp and reset the lamp timer. Please contact Technical Support if the problem persists.
Fan failure. Make sure the vents aren’t blocked. Contact Technical Support if the problem persists.
The projector is overheating. Make sure the vents aren’t blocked. Contact Technical Support if the problem persists.
Unidentified error. Please contact
Technical Support.
RS-232 commands
Communication Configuration
Visit our website for additional RS-232 settings and information.
To control this projector via RS-232, connect a null modem cable and set the control system serial port settings to match the following communication configuration:
Setting
Bits per second
Data bits
Parity
Stop bits
Flow control
Emulation
RS-232 Port Settings
Value
19,200
8
None
1
None
VT100
Command Format
All commands consist of 3 alpha characters followed by a request, all enclosed in parentheses. The request can be a read request (indicated by a
"?") or a write request (indicated by 1 to 4 ASCII digits).
A read request example:
(AAA?) where
( starts the command
AAA denotes the command
? denotes the read request
) ends the command
45
A read command returns the range and the current setting, for example:
Function
Brightness
Volume
Lamp Hours
Read Command Examples
Command
(BRT?)
(VOL?)
(LMP?)
Response
(96-160,128)
(0-32, 0)
(0-65534, 42)
A write request example:
(AAA####) where
(starts the command
AAA denotes the command
#### denotes the value to be written
(leading zeros not necessary)
) ends the command
Some commands have ranges, while others are absolute. If a number greater than the maximum range is received, it is automatically set to the maximum number for that function. If a command is received that is not understood, a
"?" is returned. With absolute settings, "0" is off, 1-9999 is on. The one exception is the Power command, where 0 is off and 1 is on.
To assure the projector can process a command, wait 3 seconds before entering the next command.
Function
Brightness
Power
Power
Write Command Examples
Command
(BRT140)
(PWRO)
(PWR1)
Response
Sets the brightness to 140
Turns power off
Turns power on
Error Conditions
Not all commands are supported for all projectors. If an unsupported command is issued, the command will be ignored. If a command is received that is not understood, a ‘?’ character will be returned indicating the command was not understood.
Limitations
The projector cannot respond to commands coming in at a high-rate. Therefore, a delay must occur between commands to ensure that the command gets properly executed. To assure the projector can process a command, wait 3 seconds before entering the next command.
Function
About
0: n/a
1: enable
Aspect Ratio
0: Native
1: 16:9
2: 4:3
Auto Image
0: n/a
1: enable
Auto Power
0: disable
1: enable
Auto Source
0: disable
1: enable
The Step column refers to increasing or decreasing the menu bar position since the On-screen Display is not an exact match of values. For example,
Step 2 changes the data by 2 through the CLI (Command Line Interface).
The menu bar is up (or down) by 1.
Blank
0: off
1: on
Blank Screen
0: black
1: blue
2: white
46
Command
ABT at W
Min
0
Max
1
Default
St e p
n/a
ARZ at RW 0 2 2
AIM at W 0
APO at RW 0
ASC at RW 0
BLK at RW 0
BSC at RW 0
1
1
1 n/a
0
1
100
1
50
0
1
2 1
Blue Gain
Brightness
Ceiling
0: disable
1: enable
Chime
0: disable
1: enable
Color
Color Space
0: RGB
1: SMPTE240
2: REC709
3: REC601
7: Auto
Color Temp
0: 9300K
1: 6500K
2: 7200K
3: User
Contrast
Display Messages
0: disable
1: enable
BCG at RW
BRT at RW
CEL at RW
ACE at RW
CLR at RW
CSM at RW
CON at RW
DMG at RW
0
96
0
0
65
0
TMP at RW 0
96
0
100
160
1
1
191
7
3
50
128
0
1
128
7
1
2
160
1
128
1
1
2
1
47
Effect
0: blank
1: mute
2: aspect ratio
3: source
4: auto image
5: freeze
6: zoom
7: about
8: PiP Source
Factory Reset
0: not reset
1: reset
Filter Reset
0: not reset
1: reset
Freeze
0: disable
1: enable
Green Gain
Horizontal Keystone
Horizontal Position
Internal Sound Enable
0: disable
1: enable
EFK at RW
RST at W
FRT at W
FRZ at RW
0
0
0
0
8
1
1
1
7 n/a n/a
0
GCG at RW 0
DKH at RW 78
HPS at RW
INT at RW def:-50
C440/
450;def
-128
C460
0
100
178 def: +50
C440/
450;def
-128
C460
1
50
128 auto
1
2
1
1
IR Receiver front
0: disable
1: enable
IR Receiver rear
0: disable
1: enable
IR Receiver top
0: disable
1: enable
IRF at RW
IRR at RW
IRT at RW
0
0
0
Language
0 = English
1 = French
2 = German
3 = Spanish
4 = Traditional Chinese
5 = Japanese
6 = Korean
7 = Portuguese
8 = Russian
9 = Norwegian
10 = Simplified Chinese
11 = Italian
Lamp Hours
Lamp Lit
0: not lit
1: lit
Lamp Reset
0: not reset
1: reset
LAN at RW 0
LMP at R
LML at R
LRT at W 0
0
0
1
1
1
11
1
1
0
0
32766
1
0 1
1 n/a
Number of Lamp
Resets
Lamp Total On Time
(All Bulbs)
Time In Hours Last
Bulb1 Lasted
Time In Hours Last
Bulb2 Lasted
Time In Hours Last
Bulb3 Lasted
Low Power
0: disable
1: enable
Magnify
Magnify Enable
0: disable
1: enable
Magnify Position Horizontal
Magnify Position Vertical
Menu
0: disable
1: enable
LMR at R
LMT at R
LB1 at R
LB2 at R
LB3 at R
LPE at RW
MPV at RW
0
0
0
0
0
0
MAG at RW 0
MGE at RW 0
MPH at RW 128
96
MNU at RW 0
48
1
896
672
1
32766 0
214748
3646
32766
0
0
32766 0
32766 0
1 0
0
0
1
512 1
384 1
0
48
Menu Navigation
0: up
1: down
4: select
Motorized Focus Far
NAV at W
MFF at W
Motorized Focus Near MFN at W
Motorized Vertical
Down
MVD at W
Motorized Vertical Up MVU at W
MZI at W
MZO at W
MTE at RW
Motorized Zoom In
Motorized Zoom Out
Mute
0: disable
1: enable
NND
0: disable
1: enable
Overscan
0: disable
1: enable
Phase
PiP Input
3: video 2
4: video 3
NND at RW
OVS at RW
MSS at RW
PIN at RW
0
0
0
0
3
0
0
0
0
0
0
0
4 n/a
100
100
100
1
100
100
100
0
0
0
0
0
0
0
1
1
1
1
1
1
1 1
1
31
4
0
16
3
1
PiP Position
0: upper left
1: upper right
2: lower left
3: lower right
4: user
PiP Size Selection
0: off
1: small
2: medium
3: large
Power
0: disable
1: enable
Power Save
0: disable
1: enable
Power-up Source
0: computer 1
1: computer 2
2: video 1
3: video 2
4: video 3
5: computer 3
PPO at RW 0
PSS at RW
PWR at RW
PSV at RW
DSC at RW
0
0
0
0
4 2
3
1
1
5
0
0
0
0
49
Presets
0: presentation
1: photography
2: film
3: video
10: user 1
11: user 2
12: user 3
Rear
0: disable
1: enable
Red Gain
Save User 1
0: not saved
1: saved
Save User 2
0: not saved
1: saved
Save User 3
0: not saved
1: saved
Screen Save
0: 5 minutes
1: 10 minutes
2: 15 minutes
3: 20 minutes
4: 25 minutes
5: 30 minutes
PST at RW 0 12 c: 0 v: 3
REA at RW 0
RCG at RW 0
US1 at W 0
US2 at W 0
US3 at W 0
SSV at RW 0
1
1
5
1 0
100
1
50 n/a
2 n/a n/a
0
Sharpness
5 = Sharpest
6 = Sharper
7 = Standard
8 = Softer
9 = Softest
Source
0: computer1
1: computer2
2: video 1
3: video 2
4: video 3
5: computer 3
Source 1
0: computer 1
1: computer 2
2: video 1
3: video 2
4: video 3
5: computer 3
Source 2
0: computer 1
1: computer 2
2: video 1
3: video 2
4: video 3
5: computer 3
50
SHP at RW 5 9 7
SRC at RW 0 5 0
SR1 at RW 0 5 0
SR2 at RW 0 5 1
Source 3
0: computer 1
1: computer 2
2: video 1
3: video 2
4: video 3
5: computer 3
Source 4
0: computer 1
1: computer 2
2: video 1
3: video 2
4: video 3
5: computer 4
Startup Logo
0: blank screen
1: default
2: captured
Tint
Tracking
SR3 at RW
SR4 at RW
DSU at RW
0
0
0
5
5
2
2
3
1
TNT at RW 114
MTS at RW def:
-128
142 def:
+128
128 auto
1
1
Video Standard
0: Auto
1: NTSC
2: PAL
3: SECAM
Volume
VSU at RW 0 3 0
VOL at RW 0 32 16 1
Unit Total Time On
Vertical Keystone
Vertical Position
ONL at R 0
DKC at RW 78
VPS at RW 0
214748
3646
178 def: auto x 2
0
128 auto
1
1
51
INDEX
Numerics
1024x768 resolution 5
A
About 37
Aspect Ratio 37 audio 28
Audio In connector 8, 14
Auto Image 37
Auto Power 35
Autosource 35
B
Blank 37
BNC 9, 15
BNC connectors 15
Brightness 13
C
Capture Position 36
Capture Start 36 changing the lens 39 cleaning the dust filter 42 cleaning the lens 39
Color 17 colors are incorrect 23 component cable connector 14 computer 9 computer connections optional 8 required 8 computer image optimize 29 troubleshooting 19 connector panel 6 contacting InFocus 25
Contrast 13, 17 custom logo startup screen 36
52
D
Default gateway 38
DHCP 38
Display Messages 35 displaying computer image 10
PiP 37 video image 16
Drivers 11
USB 12
Windows 98 12 dust filter, cleaning 42
E
Effect Key 37 elevator foot 13, 16
F
Factory Reset 38
Filter Reset 38 first time use driver installation 11 focus 13, 17
Freeze 37 fuzzy image 21
H
HDTV sources 14, 15
I image display computer 10 display video 16 size 7 image does not fit screen 22 image not centered 25 image not sharp 22 image not square 22 image reversed 23 image size matrix 43 image upside down 23
Info network 38
IP Address 38
IR Receivers 35
L lamp replacement 40
Lamp Reset 38 lamp won’t turn on 24
Language 38 laptop connecting 8 external video port 10
LED 18 blinking red 24 solid red 24 lens changing 39 cleaning 39
Logo Capture 36
Low Power 35
53
M
Magnify 37
Main menu 31 menu system 31
Monitor connector 9 mouse, using your 8
Mute 37
N
Network 38
Network connector 9
Network Info 38
NND 35 no computer image 20 no startup screen 19
O only startup screen appears 19
Overscan 34
P
Picture in Picture 37
Picture menu 32
PiP 37
Power button 16 power cable 8, 14
Power Save 35
Power-up Source 35 presentation features 29 projection distance 7 projector connector panel 6 customizing 30 positioning 7 setting up 7 shutdown 18 troubleshooting problems 18 projector height 13, 16 projector positioning 13, 16
R
Rear 35 remote 8 remote control 27 not working 21 replacing the lamp 40
RS-232 cable 9 connecting 6
S security lock 42
Serial connection 9 serial connection 6
Service 38
Service Code 38
Settings menu 35 shutdown projector 18 solid red 44
Source 37
Source troubleshooting 19
Sources 35
Subnet mask 38
S-video connector 14
T
Tint 17
Troubleshooting 19 troubleshooting 18
54
U
USB, using your mouse 8
V video 15
Video button 16 video connections optional 14 standard 14
Video connector 14 video images optimizing 30
Video Standard 34 volume adjustment 17
W warranty 25
Windows 2000 12
Windows 98 11
Windows ME, XP 12 wired 8 wired remote 8
X
XGA 5
Z zoom 13, 17
Limited Warranty
Subject to the Limitations, Exclusions and Disclaimers hereof, InFocus Corporation
(“InFocus”) warrants that the Projector, Lamps and Accessories (hereinafter collectively or individually referred to as “Product” as appropriate) purchased from InFocus, an InFocus distributor, or an InFocus reseller will conform to InFocus’ specifications and be free from defects in material or workmanship for the respective
Limited Warranty period provided below. This warranty statement applies only to the specific InFocus product purchased. InFocus products are compatible with many systems, however the specific functional implementation by the customers of the product may vary. The suitability of a product for a specific purpose or application must be determined by the customer and is not warranted by InFocus Corporation.
If the Product, while subject to this Limited Warranty, is defective in material or workmanship during the warranty period, then InFocus, at its option, will REPAIR or
REPLACE the Product.
All exchanged parts and Products replaced under this Limited Warranty will become property of InFocus. InFocus' sole obligation is to supply (or pay for) all labor necessary to repair the Product found to be defective within the Limited Warranty period and to repair or replace defective parts with new parts or, at the option of InFocus, serviceable used parts that are equivalent or superior to new parts performance. Limited Warranty periods are as follows:
• Projector Product Limited Warranty Period (Excluding Lamps): Two
(2) years from date of proof of purchase.
• Lamp Product Limited Warranty Periods : The original installed lamp shall have a ninety (90) day Limited Warranty Period from date of Projector proof of purchase, and replacement Lamps will have a ninety (90) day limited warranty from date of lamp proof of purchase, and replacement lamps purchased at the time of Projector Product purchase will have a ninety (90) day limited warranty from date of first use.
• Accessory Product Limited Warranty Period: ninety (90) days from date of purchase.
WARRANTY LIMITATION AND EXCLUSION
THIS WARRANTY SETS FORTH INFOCUS’ MAXIMUM LIABILITY FOR ITS
PRODUCT. THIS WARRANTY EXTENDS ONLY TO PRODUCTS PURCHASED
FROM INFOCUS OR AN INFOCUS AUTHORIZED RESELLER. InFocus shall have no further obligation under the foregoing Limited Warranty if the Product has been damaged due to abuse, improper ventilation, fire, water, disaster, mispackaging, shipping, lightning or other acts of nature, misuse, neglect, smoke exposure (cigarette or otherwise), accident, unusual physical or electrical stress and/or power surges, unauthorized modifications (including use of an unauthorized mount), tampering, alterations, service other than by InFocus or its authorized agents, or failure caused other than from ordinary use or failure to properly use the Product in the application for which said Product was intended. In addition, failure of the end-user to follow maintenance procedures as outlined in the product’s user guide where a schedule is specified for regular cleaning of certain parts (based on usage and environment), will not be covered under this Warranty. Finally, InFocus shall have no further obligation if the Product was subjected to operating conditions outside of the range specified in the user’s guide or in this Warranty. Normal operating conditions are defined as use not in excess of 16 hours continuously per day with a minimum 8 hour period of continuous rest in the powered off state. If a claimed defect cannot be identified or reproduced in service, you will be held responsible for the costs incurred. This Limited
Warranty excludes Product cleaning, removal or installation of the Product, repair, or replacement of plastics due to cosmetic damage and damage as a result of normal wear. Product repair outside of the terms of the Limited Warranty will be on a time and materials basis. InFocus will not be liable for any rental costs incurred in the event of a failure. The Warranty does not apply to cartons, carrying cases, shipping cases, external cabinets, accessories used in connection with the product, or cosmetic parts, knobs, or batteries. The Warranty period for LCD engines is either 2 years from the date of purchase of the projector or 2500 hours of projector usage, whichever comes first. If the LCD engine requires replacement and the projector has exceeded
2500 hours, but is otherwise eligible for Warranty, this Warranty will cover the cost of labor, but not the cost of parts that require replacement.
The Accessory Product Limited Warranty covers the accessory item only and excludes normal wear. The Lamp Product Limited Warranty excludes expected lamp degradation and InFocus will not be liable for normal decrease in lamp output over time or as lamp is consumed under the Limited Warranty.
Remanufactured Products and Software Products are exempt from the foregoing
Limited Warranty. Please refer to the appropriate Remanufactured Product Limited
Warranty or Software Product Limited Warranty for applicable Warranty informa-
55 tion.
DISCLAIMER OF UNSTATED WARRANTIES
THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO
THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUD-
ING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABIL-
ITY AND FITNESS FOR PARTICULAR PURPOSE ARE DISCLAIMED. THERE ARE
NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF AND THE FOREGOING WARRANTY SHALL NOT BE EXTENDED,
ALTERED OR VARIED EXCEPT BY WRITTEN INSTRUMENT SIGNED BY INFO-
CUS. SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG
AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS MAY NOT APPLY
TO YOU.
Limited Warranty Period
The Limited Warranty periods hereof commence on the date of proof of purchase by the end-user customer. These Limited Warranty provisions shall apply only to the end-user purchaser (first person or entity that purchased a new Product for personal or business use and not for the purpose of distribution or resale). SOME JURISDIC-
TIONS MAY GRANT YOU CONSUMER RIGHTS WITH MINIMUM WARRANTY
DURATION THAT DIFFER FROM THE DURATIONS PROVIDED HEREIN, AND
INFOCUS WILL HONOR ALL SUCH CONSUMER RIGHTS UPON PROOF OF
PURCHASE IN THAT JURISDICTION.
To Be Eligible For Limited Warranty Coverage
Any person exercising a claim under this Limited Warranty must establish to the satisfaction of InFocus both the date of purchase and that the Product was purchased new. The sales receipt or invoice, showing the date of purchase of the Product is the proof of the date of purchase.
To Obtain Warranty Service
During the Limited Warranty period, to exercise this Limited Warranty, the purchaser must first contact 1) InFocus, 2) a service facility authorized by InFocus or 3) the place of original purchase.
InFocus Customer Service in the Americas 1-800-799-9911 or 503-685-8888 or www.infocus.com/service , In Europe, Middle East, and Africa +31 (0) 20 579 2820, and in Asia Pacific +65 6353 9449.
For Warranty service, the purchaser will pay to return or deliver the defective Product and will pay all freight, duty, taxes, VAT, fees, incidental clearance and customs charges to ship the unit to an InFocus Service Center or to a service facility authorized
56 by InFocus. When returning Product to InFocus, a Return Material Authorization
Number (RMA #) is required and must be clearly displayed on the outside of the shipping carton or a similar package affording an equal degree of protection. InFocus or the service facility authorized by InFocus will return the repaired/replaced Product freight prepaid to the purchaser.
Products returned for Warranty service must be accompanied by a written letter that:
(i) explains the problem; (ii) provides proof of date of purchase; (iii) provides the dealer’s name; and (iv) provides the model and serial number of the Product. Upon request of InFocus Corporation or an authorized repair center for InFocus, proof of legal import must accompany the warranty repair Product, otherwise the Product must be returned to the place of original purchase, to the manufacturer (Purchaser must bear all tax, duty and freight), or the Purchaser must bear charges for the warranty repair.
No repair or replacement of Product or part thereof shall extend the Limited Warranty period as to the entire Product. Warranty on the repair part and workmanship shall only be effective for a period of ninety (90) days following the repair or replacement of that part or the remaining period of the Product Limited Warranty whichever is greater. InFocus’ or its authorized service center’s policies shall apply and the Consumer will be charged accordingly for product returned to an InFocus Authorized
Service Center after the expiration of the warranty period.
LIMITATION OF LIABILITY
IT IS UNDERSTOOD AND AGREED THAT INFOCUS’ LIABILITY SHALL NOT
EXCEED THE RETURN OF THE AMOUNT OF THE PURCHASE PRICE PAID BY
PURCHASER Where applicable national law prohibits the exclusion or limitation of liability, InFocus excludes or limits its liability to the maximum extent permitted by national law.
Limitation on Bringing Action - No action, regardless of form, arising out of the agreement to purchase the Product may be brought by purchaser more than one year after the cause of action has accrued.
Governing Law - Any action, regardless of form, arising out of the agreement to purchase the Product is governed by the laws of the state of Oregon, USA.
Mandatory Arbitration – Any action, regardless of form, arising out of the agreement to purchase the Product is subject to mandatory arbitration. THIS WARRANTY
DOES NOT AFFECT YOUR LEGAL RIGHTS UNDER APPLICABLE NATIONAL
LAWS RELATING TO THE SALE OF CONSUMER PRODUCTS.
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
