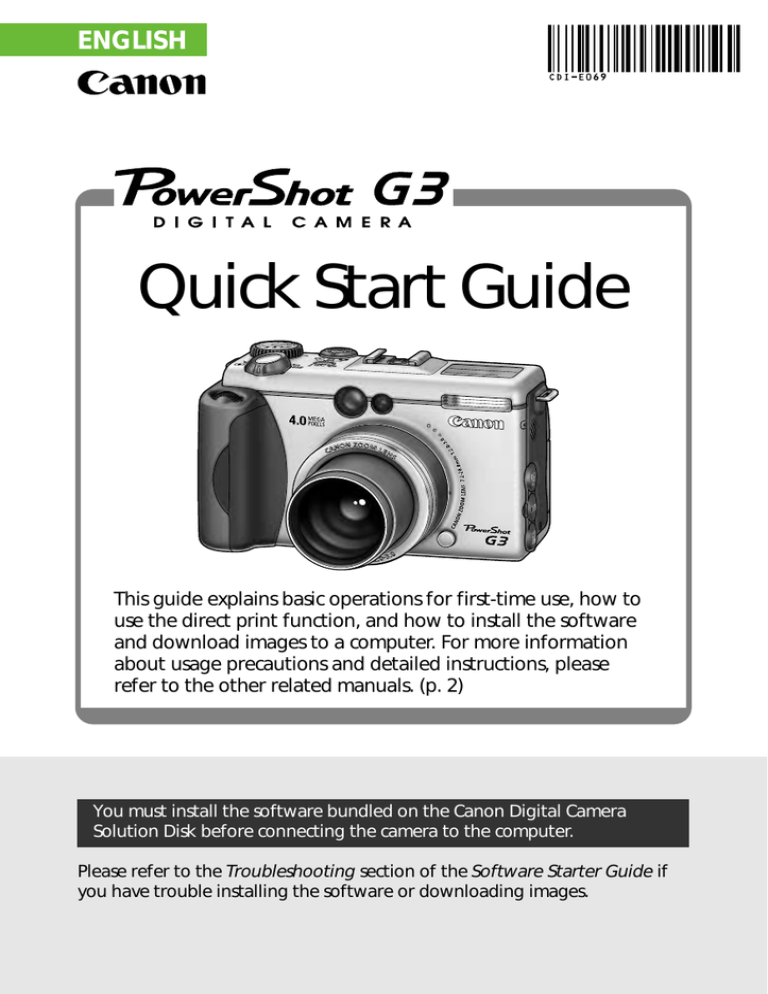

ENGLISH
Quick Start Guide
This guide explains basic operations for first-time use, how to
use the direct print function, and how to install the software
and download images to a computer. For more information
about usage precautions and detailed instructions, please
refer to the other related manuals. (p. 2)
You must install the software bundled on the Canon Digital Camera
Solution Disk before connecting the camera to the computer.
Please refer to the Troubleshooting section of the Software Starter Guide if
you have trouble installing the software or downloading images.
Content
For detailed instructions, see
the other manuals below.
▼
Preparing the Camera............................. 3
Shooting ................................................. 4
Reviewing an Image ............................... 5
Camera User Guide
Selecting Menus and Settings ................. 6
List of Menu Options .............................. 7
Printing Images by Connecting
the Camera Directly to a Printer ......... 15
Printer User Guide
(Included with your Canon
printer)
Downloading Images to a Computer
(Windows) ........................................... 18
Downloading Images to a Computer
(Macintosh) ......................................... 25
2
Software Starter
Guide
Preparing the Camera
Terminals
1
Slide the battery cover in the direction
of the arrows.
2
Press the battery lock while inserting
the Battery Pack BP-511 and close the
battery cover.
3
Charge the battery.
Battery lock
To power outlet
• The battery is approximately 90% charged
(adequate charge for use) when the orange
indicator beside the viewfinder stops blinking and
lights steadily.
• After charging, detach the compact power
Compact Power adapter's DC plug from the camera.
Indicator
Adapter CA-560
Slide the
card slot cover in the
4 direction
of the arrow and lift it open.
5
Install the CF card and close the
slot cover.
card
• Insert the CF card with the label facing out and
push the card in until the CF card eject button
fully extends.
CF card eject button
3
Shooting
1
Remove the lens cap and turn the
power on.
2
Turn the mode dial to
3
Set the date and time. (First time the
camera is powered on)
• Open the LCD monitor and turn the mode lever
to
(shooting) while pressing the release lever.
.
• The Set Date/Time menu will appear on the LCD
monitor.
• Select the items you wish to set using the B or A
arrow on the omni selector and set the value
using the C or D arrow on the omni selector.
• To put the settings into effect, press the
button.
4 Focus.
• Aim the camera and lightly press the shutter
button halfway. Two beeps will sound when the
autofocus is set.
4
5
Shoot.
• Press the shutter button all the way. You will hear
the sound of the shutter close when the shot is
complete.
• The recorded image appears in the LCD monitor
for approximately 2 seconds.
Reviewing an Image
Displays the recorded images on the LCD monitor.
1
Open the LCD monitor.
2
Turn the mode lever to
3
Move between images using the B or
A arrow on the omni selector.
• The LCD monitor can be freely opened to various
position.
.
• The camera powers up in Replay mode.
• The power/mode indicator lights green.
• The last recorded image appears.
To Immediately Delete the Displayed Image
1. Press the button while the image is displayed.
2. Confirm that [Erase] is selected and press the
button.
5
Selecting Menus and Settings
1
Press the
button.
2
Switch between menu tabs using the B
or A arrow on the omni selector.
3
Select a menu item using the C or D
arrow on the omni selector.
• In Shooting mode, the [ (Rec.)] menu appears.
In Replay mode, the [
(Replay)] menu appears.
setting contents using the B or
4 ASelect
arrow on the omni selector.
• Press the
button for items followed by an
ellipsis (...) then select a setting. Press the
button again to confirm the setting.
5
6
Press the
menu.
button to close the
List of Menu Options
Rec. Menu
Some items may not appear in certain Shooting modes.
Item
Menu Screen
*Default setting
Settings Content
Flash Sync
Sets the timing at which the flash fires.
• 1st-curtain*
• 2nd-curtain
Slow Synchro
Sets the slow synchro.
• On
• Off*
Flash Adjust
Sets whether or not the flash is adjusted
automatically.
• Auto*
• Manual
Red-eye
Sets whether or not the red-eye reduction
lamp fires.
• On*
• Off
Cont. Shooting
Sets the continuous shooting option.
•
(Standard)*
(High speed)
•
Self-timer
Sets the duration before the self-timer
releases the shutter once the shutter button
is pressed.
• 2 seconds
• 10 seconds*
7
*Default setting
Item
Menu Screen
Settings Content
Wireless Delay
Sets the duration before the self-timer
releases the shutter once the remote control
shutter button is pressed.
• 0 seconds
• 2 seconds*
• 10 seconds
Spot AE Point
Sets the Spot AE Point option, Center (the
AE point is fixed to the center) or AF Point
(the AE point corresponds to the AF point).
• Center*
• AF Point
ND Filter
Sets the ND filter.
• On
• Off*
MF-Point Zoom
Sets whether or not the focusing point is
magnified when using the manual focus.
• On*
• Off
AF Mode
Sets the frequency of autofocus activation.
When the LCD monitor is off, this setting
locks in single mode.
• Continuous*
• Single
AF-assist Beam
Sets the output of the AF-assist beam
according to shooting conditions when
using the auto focus.
• On*
• Off
8
Item
Menu Screen
Settings Content
Digital Zoom
Sets whether or not the digital zoom
combines with the optical zoom to zoom
images.
• On
• Off*
Review
Sets the duration images display on the LCD
monitor after the shutter button is released.
• Off
• 2 sec.* to 10 sec.
Intervalometer
Shoots automatically at set intervals.
Save Settings
Saves settings selected in the shooting
menu and the function menu to the mode
dial's
or
mode.
Replay Menu
Item
Menu Screen
Settings Content
Protect
Protects images from accidental erasure.
Rotate
Rotates images 90 or 270 degrees clockwise
in the display.
9
*Default setting
Item
Menu Screen
Settings Content
Erase all
Erases all images from a CF card (excluding
protected images).
Slide Show
Plays images in an automated slide show.
Print Order
Sets the images that will be printed on a
DPOF-compatible printer or at a photo lab
service, the number of copies and other
parameters.
Transfer Order
Sets the images that will be transferred with
your e-mail software.
Set up Menu
Item
Menu Screen
Settings Content
Beep
Sets whether or not the beep sounds when
the shutter button is pressed or when a
menu operation is performed.
• On*
• Off
(Still beeps to warn of an error even when
set to Off)
LCD Brightness
Sets the brightness level of the LCD
monitor.
•
(Normal)*
•
(Bright)
10
Item
Menu Screen
Settings Content
Auto Power Down
Sets whether or not the camera
automatically powers down after a specified
period of time elapses without something
being pressed.
• On*
• Off
Date/Time
Sets the date, time and date format.
Format
Formats (initializes) a CF card.
Shutter Volume
Adjusts the sound volume when the shutter
button is pressed all the way. There is no
shutter sound in Movie mode.
(Off)
•
•
(1)
•
(2)*
•
(3)
•
(4)
•
(5)
Playback Vol. (Replay)
Adjusts the sound volume when a sound
annotation or a movie is played.
(Off)
•
•
(1)
•
(2)*
•
(3)
•
(4)
•
(5)
11
*Default setting
Item
Menu Screen
Settings Content
Start-up Vol.
Adjusts the sound volume when the camera
powers up.
(Off)
•
•
(1)
•
(2)*
•
(3)
•
(4)
•
(5)
Operation Vol.
Adjusts the sound volume of the Operation
Sound.
(Off)
•
•
(1)
•
(2)*
•
(3)
•
(4)
•
(5)
Selftimer Vol.
Adjusts the sound volume of the Selftimer
Sound.
(Off)
•
•
(1)
•
(2)*
•
(3)
•
(4)
•
(5)
File No. Reset
Sets how file numbers are assigned to
images when new CF cards are inserted.
• On
• Off*
Auto Rotate
Sets whether or not images shot with the
camera on end are automatically rotated in
the display.
• On*
• Off
Distance Units
Sets the format of the MF indicator's
displayed distance units.
• m / cm*
• ft / in
12
Item
Menu Screen
Settings Content
Language
Sets the language used in the menus and
messages on the LCD monitor. The menu
may appear differently in some regions.
• English*
• Italiano
• Deutsch
• Norsk
• Français
• Svenska
• Nederlands • Español
• Dansk
• Chinese
• Suomi
• Japanese
You can change the language during image
button and
replay by holding the
pressing the
button. (Except when
the camera is connected to a printer)
Video System
Sets the video output signal standard.
• NTSC
• PAL
Communication
Sets the camera and computer
communication settings.
• Normal*
• PTP
My Camera Menu
Item
Menu Screen
Settings Content
Theme
Selects a common theme for each My
Camera settings item.
(Off)
•
•
*
•
•
Start-up Image
Sets the start-up image when you turn on
the camera.
•
(Off)
•
*
•
•
13
*Default setting
Item
Menu Screen
Settings Content
Start-up Sound
Sets the start-up sound when you turn on
the camera.
(Off)
•
•
*
•
•
Operation Sound
Sets the sound when the multicontroller or
any button other than the shutter button is
operated.
(Off)
•
*
•
•
•
Selftimer Sound
Sets the sound informing you that the
photo will be taken in 2 seconds.
(Off)
•
•
*
•
•
Shutter Sound
Sets the shutter sound when you depress
the shutter button. There is no shutter
sound while a movie is being shot.
(Off)
•
*
•
•
•
14
Printing Images by Connecting
the Camera Directly to a Printer
Printing with a Direct Print Compatible Printer
By connecting the camera with a single cable to a direct print function compatible
printer (optional), you can easily print your images with simple operations.
1
Load the ink cassette and the
paper cassette into the printer.
2
Connect the power cord to the
printer and connect the camera
to the printer.
Ink cassette
Paper cassette
• Open the LCD monitor.
• With the CP-10 printer, the printer’s power turns on automatically.
3
Press the printer’s ON/OFF button to turn on the power.
• appears on the camera’s LCD monitor and the power/mode indicator is lit in green.
• If you cannot use the camera's compact power adapter, please use a fully
charged battery pack.
To DIGITAL
Terminal
Canon Camera compatible
with the direct print function
Camera’s Compact Power
Adapter
To Power
Outlet
To Power
Outlet
Direct Interface Cable DIF-100
15
an image using the B or A
4 Choose
arrow on the omni selector and press
the
5
button.
Choose [Print] using the C, D, B or A
arrows on the omni selector and press
the
button.
• The image will start to print and, when it is
completely finished, the display will revert to
standard replay mode.
Printing with a Direct Print Function
Compatible Bubble Jet Printer
By connecting the camera with a single cable to a direct print function compatible BJ
printer (optional), you can easily print your images with simple operations.
1
Prepare the printer.
2
Turn the BJ printer's power on.
3
Connect the camera to the BJ
printer.
16
• For more information, please see the Quick Start Guide that came with your BJ
printer.
• Open the LCD monitor.
• Connect the camera to the printer using
the cable supplied with your BJ printer.
Power button
• The camera powers up and the
panel.
icon appears on the BJ printer's operation
Camera icon
•
appears on the camera’s LCD monitor and the power/mode indicator lights
green.
an image using the B or A
4 Choose
arrow on the omni selector and press
the
5
button.
Choose [Print] using the C, D, B or A
arrows on the omni selector and press
the
button.
• The image will start to print and, when it is
completely finished, the display will revert to
standard replay mode.
• We recommend the use of the compact power adapter CA-560 as the camera's
power source.
• Images cannot be printed through the BJ printer operation panel during the
camera connection.
• Please use the following procedures when you detach the cable from the printer
and the camera.
1. Detach the cable from the printer.
2. Turn off the camera power.
3. Detach the cable from the camera.
17
Downloading Images to a
Computer (Windows)
System Requirements
Computer Model
IBM PC/AT compatible
OS
Windows 98 (First or Second Edition)
Windows Millennium Edition (Windows Me)
Windows 2000
Windows XP
CPU
Windows 98 / Windows Me / Windows 2000 :
Pentium 150MHz or better
Windows XP : Pentium 300MHz or better
RAM
Windows 98 / Windows Me / Windows 2000 : 64MB or more
Windows XP : 128MB or more
Interface
USB: Only preinstalled Windows 98 / Windows Me / Windows 2000 /
Windows XP
• All procedures performed with a connection to a USB 2.0 compliant board are not
guaranteed.
Installing the Software
• Do not connect the camera to the computer before the software is
installed.
• The USB driver will start its installation procedures after the camera has
been connected to the computer.
• Users of Windows 2000 and Windows XP Professional must first log in as an
Administrator (computer system administrator) to install programs.
• Close any programs that are running.
1
18
Place the Canon Digital Camera Solution Disk into your
computer’s CD-ROM drive.
• The installer panel will display automatically.
• If the installer panel does not appear automatically, use the following
procedures to display it.
Windows XP
1.Click [My Computer] in the [Start] menu.
2.Right-click the CD-ROM icon and select [Open].
3.Double-click the [SETUP.exe]
icon.
Windows 2000, Windows Me and Windows 98
1.Double-click [My Computer] on the desktop.
2.Right-click the CD-ROM icon and select [Open].
3.Double-click the [SETUP.exe]
icon.
If the "exe" extension does not show, see the computer's manual for instructions on
showing file name extensions.
2
Click [Software Installation], and follow the onscreen
instructions by clicking [Next] or [Yes].
Installer panel
• In the next steps, you will select the installation destination, the software to be
installed and the name of your camera model.
3
Review the installation settings and click [Next].
The items displayed
here differ according to
the software installed.
19
• The installation starts.
• If you installed the WIA driver or the TWAIN driver, the following message will
appear once the installation is complete. Click [OK].
the installation is over, select [Yes, I want to restart my
4 When
computer now.] in the screen below and click [Finish].
• Remove the Canon Digital Camera Solution Disk once the installation is
complete and before you connect the camera to the computer so that the proper
driver can be installed.
Connecting the Camera to the Computer
1
Connect one end of the USB
cable to the computer’s USB
port.
USB port
USB cable
20
2
Connect the USB cable to the
camera’s Digital terminal.
• Open the terminal cover and
connect the cable.
1. Terminal cover
2. USB cable
Insert the connector
until it clicks.
Installing the Driver
■ Windows XP
1
Install the driver.
• After a few moments, the following dialog will appear at the bottom right of
the screen and the WIA driver will automatically install.
• After installation, the Event dialog will appear, allowing you to select an
application program to start.
2
Select an application to start.
• Select [Canon ZoomBrowser EX] and click [OK].
• With Windows XP, the Event dialog does not appear the first time the camera is
connected after computer start-up. If this happens, see Downloading and Saving
Images from the Camera on page 22.
21
■ Windows 2000/ Windows Me/ Windows 98
1
Install the driver.
2
Select an application to start.
• After a few moments, the Add New Hardware Wizard will appear and
automatically install the TWAIN driver (for Windows 98 and Windows 2000) or
the WIA driver (for Windows Me).
• After installation, the Event dialog will appear, allowing you to select an
application program to start.
• Select [Canon ZoomBrowser EX] and click [OK].
• ZoomBrowser EX starts; the Camera Window opens and displays the camera
images as thumbnails (small images).
Downloading and Saving Images from the Camera
1
Start ZoomBrowser EX.
2
Click [Camera & Memory Card] and [Browser & Download
Images].
22
• Double-click the [ZoomBrowser EX] icon on the desktop.
• This will display the Camera window. The images on the CF card will display in
the Camera window as thumbnails.
• Select the images you wish to download in the Camera window and click
[Download image].
Thumbnail
“RAW” displays on
RAW images.
The movie icon displays
on movie thumbnails.
• A Download Settings dialog allowing you to select the image destination folder
will display.
23
• Make sure the settings are the same as the following and click [OK].
• At this point the Camera window will close and the main window will open.
The downloaded images will appear in the main window.
24
Downloading Images to a
Computer (Macintosh)
System Requirements
Computer Model
Power Macintosh, PowerBook, iMac, iBook
OS
Mac OS 8.6-9.2, Mac OS X (Version 10.1)
CPU
PowerPC
RAM
Mac OS 8.6-9.2: 20 MB or more of application memory
Mac OS X (Version 10.1): 128 MB or more of RAM
Interface
USB: Only systems equipped with genuine Apple-brand built-in USB
interfaces
• All operations performed with a connection to a USB 2.0 compliant board are not
guaranteed.
Installing the Software
• Close any programs that are running.
1
Place the Canon Digital Camera Solution Disk into your
computer’s CD-ROM drive.
Mac OS 8.6-9.2
• Double-click the CD-ROM icon, followed by the [Mac OS 8/9] and [Canon
Digital Camera Installer] icons.
Mac OS X
• Double-click the CD-ROM icon, followed by the [Mac OS X] and [Canon Digital
Camera Installer] icons.
25
2
Click [Digital Camera Software Installation].
Installer panel
3
Select the programs you wish to install and follow the
instructions on the screen.
• The software required for the camera will be installed.
the installation is complete and the installer panel
4 Once
appears, click [Quit].
the Canon Digital Camera Solution Disk from the CD5 Remove
ROM drive.
Connecting the Camera to the Computer
1
Connect one end of the USB
cable to the computer’s USB
port.
USB port
USB cable
26
2
Connect the USB cable to the
camera’s Digital terminal.
• Open the terminal cover and
connect the cable.
1. Terminal cover
2. USB cable
Insert the connector
until it clicks.
Mac OS 8.6-9.2
• ImageBrowser will start and open the ImageBrowser Automation Wizard
dialog. Confirm that [Display Images] is selected and click the [OK] button.
Mac OS X
• Double-click the [Canon ImageBrowser] icon on the desktop. Once
ImageBrowser is started, click [Canon Camera] in the Explorer View section.
Set the communication settings (first time connection only)
The name of your camera
model appears here.
Mac OS 8.6-9.2 screen shot shown.
• Confirm that [USB Port] and your camera model name are selected and click
the [Set] button.
The Camera window will open and display the camera images.
27
Create a File Destination Folder
Mac OS 8.6-9.2
Mac OS X
• Select [Macintosh HD] in the
Explorer View section.
• Select the [your name] subfolder of
the [Users] folder in the startup disk.
Explorer View
1. Create a new folder for saving images from the camera.
• Click the [File] menu and select [New Folder]. A folder with the name
“Untitled” will be created. Click it to change the folder name as you wish.
2. In the Explorer View Section, click the newly created folder.
Mac OS 8.6-9.2
28
Mac OS X
Downloading and Saving Images from the Camera
Thumbnail
The movie icon displays
on movie thumbnails.
“RAW” displays on
RAW images.
• Select images in the Camera window and click the [Download] button. The
downloaded images are saved to the computer and appear in the Browser
area.
29
MEMO
30
31
CDI-E069-010
XXXXXXX
© 2002 CANON INC.
PRINTED IN JAPAN
