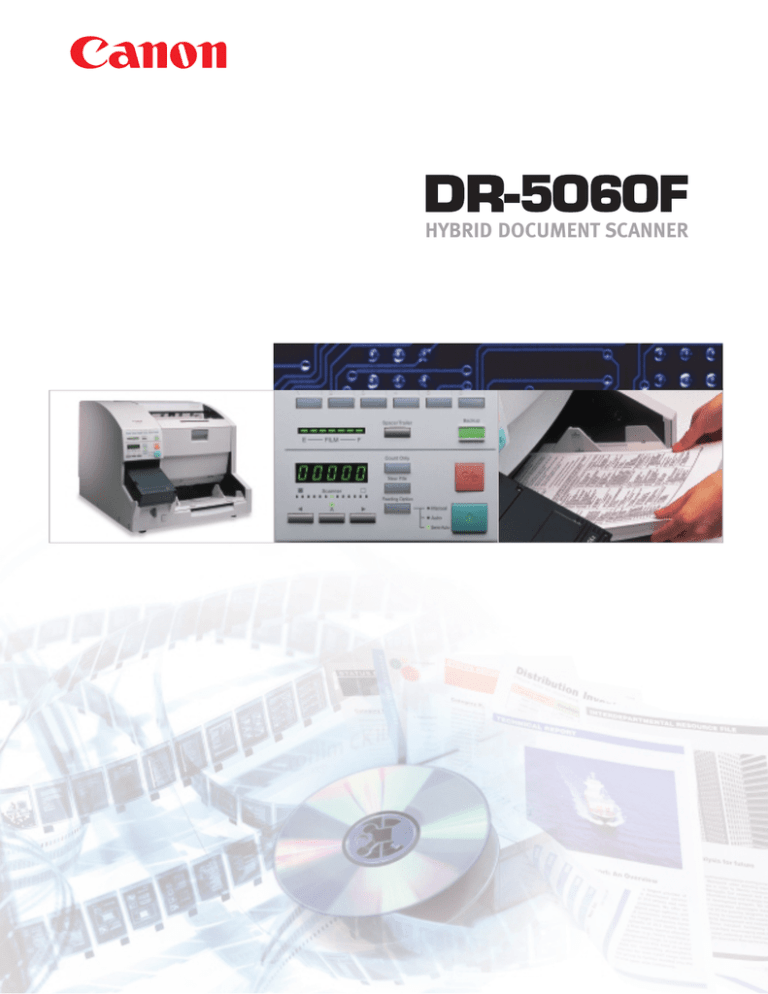

HYBRID DOCUMENT SCANNER

IT’S A JUNGLE

OUT THERE.

AND GUESS

WHAT’S ON THE

ENDANGERED LIST?

In today’s digital economy, businesses rely on advanced information technology to carry them into the future.

Unfortunately, even the most sophisticated data storage technology has a limited life-span—as little as five years.

Think about it, your businesscritical information could be facing extinction

sooner than you think.

The

scanner

with a

photographic memory.

WHAT TECHNOLOGY GIVES,

TECHNOLOGY TAKES AWAY.

Imagine the year 2010. All your important documents and records have been backed up and stored in a digital library. Problem is, when your new/upgraded computer system tries to retrieve them, all you get is a blank screen. With no established technology standards, and none on the horizon, one simple hardware or software upgrade could be enough to lock you out of your digital library for good.

Even if future technology is viable, your digital storage media might be unreadable due to aging and deterioration. It won’t take a major disaster, just simple human error, to render any file unrecoverable. At best, backing up information electronically is labor-intensive—stealing time from more productive work. Even the best migration strategies for updating archives are timeconsuming and error-prone, not to mention cost-prohibitive for most businesses.

BACKUP TO THE FUTURE.

No single technology, no single machine, has succeeded in handling all aspects of document capture, storage, and retrieval. Nothing, that is, until now.

Presenting a revolutionary innovation from

Canon—the DR-5060F. Representing a category of one, it’s the only high-speed, high-volume desktop scanner to combine the best of both digital and analog worlds, in one affordable, space-saving unit.

Only Canon’s DR-5060F Digital Scanner captures documents electronically, saving them simultaneously on obsolescence-proof microfilm. In one simple operation, you get the security and legal acceptability of microfilm storage. Plus, the digital convenience of high-speed, PC on-line access.

WHAT INTEGRATED IMAGING

WAS MEANT TO BE.

Thanks to Canon’s DR-5060F, business now has a cost-effective, front-end solution for high-volume document capture and storage.

Never has backing-up been so forwardthinking, or “long-term” so wise an investment, guaranteeing a permanent record of the past and a reliable link to the future. Canon doesn’t make safety an option. Neither should you.

THE NEXT MILLENIUM...

AND BEYOND.

Technology may change, but the DR-5060F will keep your important documents secure for at least 100 years. If anyone knows the secret to long life, Canon does. A world leader in imaging technology for over 40 years,

Canon’s superior reputation for reliability is very well documented.

FEATURES THAT UNDERSTAND,

“YOU’RE ONLY HUMAN.”

In today’s digital world, where zeros and ones equal words and ideas, and reality could be virtual or real, Canon’s commitment to “humanizing” technology is further defined by the

DR-5060F’s intuitive automatic features—one touch user-controls, automatic feeding and paper adjustment, pre-programmable scanning/setup modes, and more.

These “real-world” features maximize hands-off operation and virtually eliminate rescanning and pre-sorting. The DR-5060F is more than just a statement about productivity, it’s the exclamation point in your peace of mind!

PC

Scanned Microfilm Image

Microfilm

Reader/

Scanner

Electronic


Original Document

Microfilm

The DR-5060F workstation has been specifically designed to maximize operator comfort and enhance productivity. Available in three separate modules for installation flexibility, all components feature heavy-duty construction and locking castors. Workstation I

(for the DR-5060F main unit) is height-adjustable for operator comfort and easy access for those with disabilities. It includes a keyboard/mouse tray and CPU bracket, which may be used with either the left or right companion unit. A completely configured workstation provides space for a computer monitor, while maintaining ample room for document prep and desk accessories.

Workstation I

Workstation II

The

scanner

with a

photographic memory.

Workstation III

THE FAST TRACK HAS

A PASSING LANE.

Canon’s DR-5060F turns even the busiest imaging experts into smooth operators, thanks to incredible speeds of up to 100 pages per minute* for accelerated throughput. The assurance of high-quality text, graphics, and halftones—achieved through high-resolution image quality and 256levels of grayscale—as well as Canon’s renowned reliability, lets you breeze through virtually any application, from government records and insurance claims, to freight bills and financial transactions—just what you need to make work fly.

SUDDENLY, THE WEIGHT OF THE

WORKLOAD ISN’T SO HEAVY.

Enjoy smooth paper-handling and end the major cause of paper jams and misfeeds.

Automatic Skew Correction re-aligns any skewed pages prior to scanning, while

Double Feed Detection prevents overfeeding problems. The DR-5060F makes the scanning/filming process user-friendly to the max—one-touch user-controls, programmable function keys, and even the interface help eliminate guesswork and reduce human error. It’s enough to lighten everyone’s load.

HOW TO MAKE FOUR

FILE CABINETS FIT

INTO A 4-INCH SQUARE...

and other amazing feats performed by the Canon DR-5060F.

Discover the benefits of storing 6,400 pages of letter-sized documents or 16,500 checksized documents in a 4" x 4" x 1" space.

Providing a convenient microfilm depository for electronically stored images and longterm data archives, the DR-5060F helps you reduce storage costs to a mere $.0004 per page, and reclaim up to 98% of traditional storage space while freeing up day-to-day electronic storage space. Best of all, the

DR-5060F helps you envision the future, one with diminishing labor and operating costs.

EXTRA HELP FOR

THE “WAIT”-CONSCIOUS.

Spend less time processing information and you’ll have more time to use it. Canon’s

DR-5060F makes it easy to activate Scanning,

Filming, simultaneous Film/Scan Modes, or automatic two-sided Digital Scanning—with one simple touch. Quickly create 16mm filmbased archives for long-term storage, and digital files for on-line access from a wide range of applications. A variety of convenient indexing options are available to enhance image-retrieval. So don’t wait a minute longer, the Canon DR-5060F is finally here.

Canon’s DR-5060F is designed to work with your office systems and satisfy your business needs. Compatible with most software applications, the DR-5060F comes bundled with a Canon scanning utility as well as

ISIS ™ /TWAIN drivers, for Windows ® 95/98/

2000 or Windows NT ® 4.0. The standard

SCSI interface allows simple connection to leading controllers, while a variety of hardware options lets you configure the scanner with indexing capabilities for enhanced productivity.

* Letter-sized landscape @ 200 dpi high-speed mode

O P T I O N S

Canon Imprinter

Installed within the scanner, Canon’s Imprinter option uses an ink-jet cartridge to print userspecified information on the front of a document as it passes through the scanner, or electronically imprinted on corresponding image data.

Bar Code Decoder

Convenient for simple record-keeping tasks, this option enables the scanner to recognize bar-coded areas on scanned pages, automatically creating indexes for easy retrieval of individual files. Includes scan settings for the following bar-code formats:

UPC, EAN/JAN, Codabar, Code39, Code128, and ITF.

Canon Endorser

Fast and reliable endorsement stamping is provided by the Canon

Endorser, easily installed on top of the scanner. Compatible with a variety of materials, from checks to letter-sized documents, this option prints dates or other verification information on the back of each sheet after scanning.

A movable stamp feature makes it easy to position endorsements in the proper place.

Patch Code Detector

Designed to reduce operator-intervention and minimize user-error, the Patch Code Detector option automatically separates files whenever a patch code is detected. By sending a file separation signal directly to a PC, or to both PC and Filmer in Backup

Mode, this option further optimizes high-speed scanning and filming.

GENERAL SPECIFICATIONS

Type:

Document-feeding:

Document Size

Width:

Length:

Document Thickness:

Stacker Capacity (Letter):

Grayscale:

Scanning Element:

Light Source

Scanning:

Filming:

Scanning Speeds*

High-speed Modes (Interpolated):

Desktop Document Scanner with Microfilm Backup

Automatic or Manual

2.16" – 11.70" (55mm – 297mm)

2.78" – 17" (70mm – 432mm)

0.06mm – 0.15mm

500 Sheets (Stack Height: 45mm)

8-bit Maximum, Up to 256 Levels

Contact Image Sensor

LED

Fluorescent

200 x 100 dpi (200 dpi)

300 x 150 dpi (300 dpi)

Scan-Only Mode

Scanning Speeds*

Black and White:

Black and White (High Speed):

Grayscale (256 Levels):

Simplex

51 ppm

87 ppm

31 ppm

Duplex

102 ipm

174 ipm

45 ipm

Backup Mode (Scan/Film)

Scanning Speeds*

Black and White:

Black and White (High Speed):

Grayscale (256 Levels):

Simplex

51 ppm

87 ppm

21 ppm

Duplex

102 ipm

174 ipm

33 ipm

SCANNER SPECIFICATIONS

Scanning Resolutions:

Maximum Scanning Size:

Interface:

Output Mode

Binary:

Grayscale:

Scanner Drivers:

FILMER SPECIFICATIONS

Filming Modes:

Reduction Ratios:

Film Indexing:

Other Functions:

Power Requirements:

Power Consumption:

Dimensions ( H x W x D):

Weight

Main Unit:

Camera Unit:

Options:

Workstation Dimensions ( H x W x D):

Workstation I:

Workstation II/III:

Workstation Weight:

Workstation I:

Workstation II/III:

200 x 100 dpi/300 x 150 dpi/200 dpi/240 dpi/300 dpi/400 dpi

11.70" x 17"

SCSI-II or Fast SCSI

Simple Binary/Error Diffusion

2-bit, 4-bit, or 8-bit (4/16/256 Levels)

For Windows 95/98/2000/Me/XP, Windows NT 4.0: ISIS, TWAIN

Electronic

Filing

Systems

Scanners

Micrographic

Hybrid

Systems

Image Filing Systems Division

Authorized Full Line Dealer Network

Simplex/Duplex (selected via the corresponding camera unit)

24X (Simplex), 57X (Duplex)

2-level Blip Encoding

Color Dropout (Red, User-selectable)/Dynamic Skew Correction System/AE (Automatic Exposure)/

Automatic Paper Size Detection/Double Feed Detection

AC120V, 60Hz

220W

17.60" x 21.06" x 26.42" with Tray Closed

105 lb.

2.4 lb.

Endorser ED-600 (Ink Rollers: Black, Red, Purple, Green)/ Imprinter 5000/ Bar Code Decoder 5000/

Patch Code Detector/Camera Unit 24X (Simplex)/Camera Unit 57X (Duplex)/ Workstation Modules

24" to 34" x 22" x 27"

27" x 26.69" x 46.49"

79 lb.

95 lb.

*Examples based on typical settings, rated in pages/images per minute with letter-sized documents, portrait-feeding direction @ 200 dpi with AE off. Actual processing speeds may vary based on PC performance and application software.

ISIS is a trademark of Captiva Software Corporation, Inc. Windows and

Windows NT are registered trademarks of Microsoft Corporation in the

United States and/or other countries. CANON is a registered trademark of Canon Inc. in the United States and may also be a registered trademark or trademark in other countries. IMAGEANYWARE is a trademark of

Canon. All referenced product names and other marks are trademarks of their respective owners.

All specifications are subject to change without notice.
