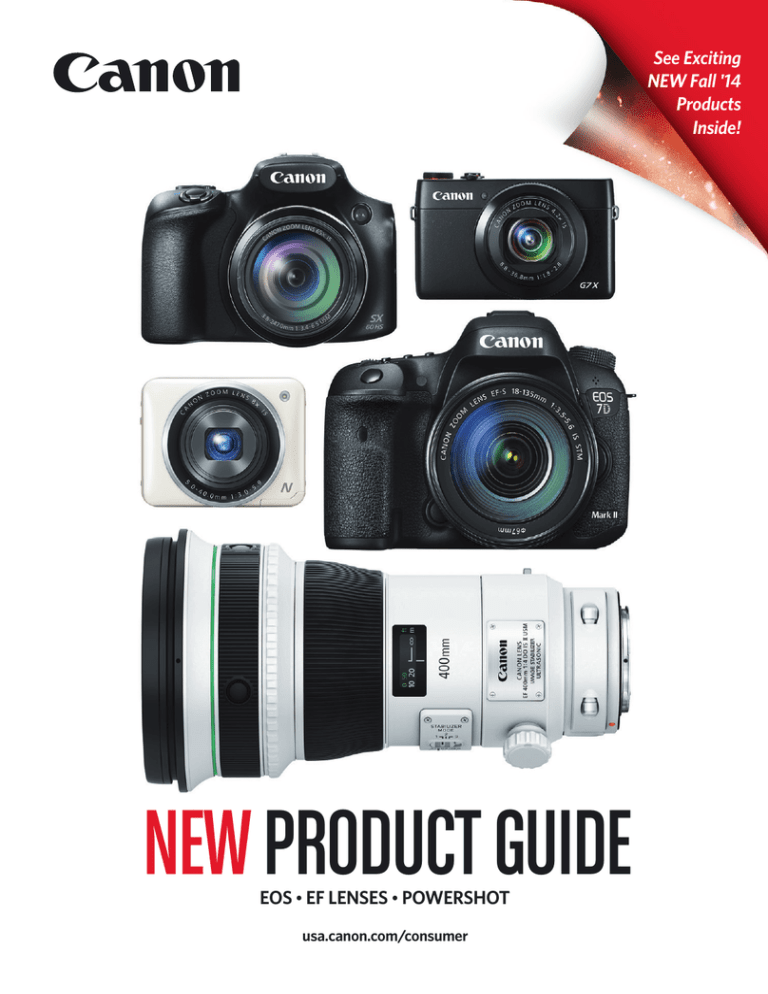

See Exciting
NEW Fall '14
Products
Inside!
NEW PRODUCT GUIDE
EOS • EF LENSES • POWERSHOT
usa.canon.com/consumer
NEW!
EOS Digital SLR
Camera
FUEL YOUR CREATIVE PASSION
Optimized to help make even the most challenging
photographic situations effortless, Canon’s
EOS 7D Mark II camera has a winning combination
of cutting-edge operations and a robust, ergonomic
design. A newly designed 20.2 Megapixel APS-C
6 Image Processors –
CMOS sensor, Dual
plus a host of new and refined capabilities make
the EOS 7D Mark II the perfect camera to bring
your imagination to reality.
2
Up to 10.0 fps Continuous Shooting
65-point* All Cross-type AF System
20.2 Megapixel CMOS Sensor
A new, rugged shutter designed for 200,000 cycles,
enables the EOS 7D Mark II camera to shoot up to
10.0 frames per second to capture all the action. Refined
mechanics like a newly designed, more efficient shutter
drive motor and a vibration dampened mirror drive help
deliver reliable, speedy performance for high caliber
image capture.
The advanced 65-point* all cross-type AF system helps ensure
precise and stable AF no matter the subject's or camera’s
orientation. These AF points are spread over a wide area of
the frame, enabling faster AF wherever the subject lies. With
a central dual cross-type AF point of f/2.8, AF is enhanced
with lenses faster than f/2.8. Also, this new system makes
AF possible in dim lighting as low as EV -3 (center point only).
A brand new 20.2 Megapixel sensor helps record high-resolution
image files with stunning detail. Redesigned specifically for
the EOS 7D Mark II camera, this impressive sensor captures
a new level of clarity with low noise and high sensitivity.
Phenomenal for stills, the camera’s sensor is equally impressive
for movies, offering Canon’s revolutionary Dual Pixel CMOS AF
for impressive and smooth AF performance.
* The number of available AF points, and whether single line or cross-type, varies depending on
the lens.
usa.canon.com/eos
3
EOS DIGITAL SLR NEW LINE-UP
NEW!
EOS iTR AF automatically switches AF point to optimize tracking.
Enhanced AF & Exposure
Canon’s Intelligent Tracking and Recognition system (iTR AF)
detects and tracks subjects, automatically switching the AF
point to optimize tracking. It recognizes faces and colors,
making the EOS 7D Mark II camera’s predictive Ai Servo AF III
effective (Ai Servo AF III assists in focus tracking subjects
continuously as they move). The Intelligent Subject Analysis
(iSA) system employs an independent RGB+IR light sensor
with approximately 150,000-pixel resolution for precise
accuracy. When combined with iTR AF, the EOS 7D Mark II
camera tracks subjects with significant success. The RGB+IR
sensor also enables Infrared-light detection and a flicker
detection system that compensates for flickering light
sources, taking shots only at peak light volume.
Dual
6 Image Processors
The EOS 7D Mark II camera’s sensor works
seamlessly with a pair of
6 Image
Processors for supercharged processing. These
Dual
6 Image Processors help the
EOS 7D Mark II camera capture up to 1090 JPEG/LARGE, 31
RAW, and 19 RAW+JPEG shots* in a single burst for amazing
action photography. They also enable the camera’s powerful
image processing on-the-fly: lens aberration, variances in
peripheral illumination, and image distortion can all be
corrected in real time with the Dual
6 Image Processors.
* Figures apply to a UDMA mode 7, CF card based on Canon's testing standards.
4
Full HD 60p Video Recording
The EOS 7D Mark II camera delivers refined and detailed EOS
movie image quality with Full HD 60p (59.94 fps NTSC), and
50.00 fps (PAL), recording at ISO values up to 16000 (Dual
Pixel CMOS AF is not available when shooting at 60p). At
these frame rates, even a fast-moving subject looks smooth in
HD, as does a slow motion playback.
Dual Pixel CMOS AF & Customizable
Movie Servo AF
Canon’s revolutionary Dual Pixel CMOS AF enables superb
HD video shooting. With the EOS 7D Mark II camera's
Dual Pixel CMOS AF, each pixel on the camera’s sensor
performs both phase-difference detection autofocus and
records light. Autofocus is achieved quickly, easily and smoothly
thanks to phase-difference detection AF. A new customizable
Movie Servo AF system is available thanks to its Dual Pixel
CMOS AF. AF points, AF speed, and tracking interval can all
be manually specified and tailored to the particulars of the
subject’s actions for continuous, smooth focus transitions.
Customizable AF parameters give videographers more
creative control, and opens up opportunities to create their
videos just the way they envision.
Fuel Your Creative Passion
• 20.2 Megapixel CMOS (APS-C) sensor and ISO 100–16000 (expandable
to H1: 25600, H2: 51200) for reduced noise at high ISOs and high
performance Dual
6 Image Processors for outstanding image
quality and processing speed.
• High speed continuous shooting up to 10.0 fps allows you to capture
fast action.
• 65-point† all cross-type AF system for high-performance, accurate subject
tracking with EV -3 sensitivity (center point) for focusing in extreme
low-light conditions.
• Canon’s innovative Dual Pixel CMOS AF enables you to shoot video like a
camcorder with smooth, fast, and accurate autofocus and lets you enjoy
instant and precise autofocus even when shooting stills.
Up to
Up to
ISO
Frames Per Sec.
20.2 16000 10.0
Megapixels
Built-in Interval & Bulb Timer
Built-in features make it easy and
convenient to achieve creative imagery
without additional accessories. The
interval timer takes from 1 to 99 shots
at preselected
intervals, while the
bulb timer keeps
the shutter open
for a designated
amount of time.
Bulb Timer Shooting
KIT CONTENTS
• Stunning Full HD video with Custom Movie Servo AF (speed and sensitivity)
for continuous focus tracking of moving subjects, multiple frame rates
including Full HD recording at 60p in MOV and MP4 formats and
uncompressed HDMI out.
††
†
The number of available AF points, and whether single line or cross-type, varies depending on the lens. †† In certain countries and regions, the use of
GPS may be restricted. Therefore be sure to use GPS in accordance with the laws and regulations of your country or region. Be particularly careful when
traveling outside your home country. As a signal is received from GPS satellites, take sufficient measures when using in locations where the use of
electronics is regulated. * Also available as optional accessory.
• EOS 7D Mark II
Digital SLR Body
• Eyecup Eg (not shown)*
• Wide Neck Strap
EW-EOS7DMARKII*
• USB Interface Cable
IFC-150U II*
• Cable Protector
• Battery Pack LP-E6N*
• Battery Charger LC-E6*
• EOS Digital Solution Disc
• Camera Instruction Manual
(not shown)
usa.canon.com/eos
5
EF LENS NEW LINE-UP
NEW!
NEW!
Standard Zoom Lens
EF 24–105mm f/3.5–5.6 IS STM
• The first standard zoom EF lens for full frame sensor cameras to include
a lead screw-type stepping motor (STM).
• The focusing mechanism employs an inner focus lens and a stepping
motor to support the Canon EOS Movie Servo AF function* and provides
smooth and quiet continuous AF during video recording, as well as
when shooting photos.
• Optical Image Stabilizer provides up to four shutter speed stops
of correction**.
• New 7-group zoom optics allows for a conveniently compact design and
outstanding optical performance.
* Cameras compatible with Movie Servo AF, as of August 2014: EOS 7D Mark II, EOS 70D, EOS Rebel T5i, EOS Rebel T4i, EOS Rebel SL1,
and EOS M (with Mount Adapter EF-EOS M). ** According to CIPA (Camera & Imaging Products Association) standards.
EF 400mm f/4 DO IS II USM • f/4.5 • 1/400 sec. • ISO 320
NEW!
NEW!
Super Telephoto Lens
Wide-Angle Lens
EF 400mm f/4 DO IS II USM
EF-S 24mm f/2.8 STM
• Compact, lightweight super telephoto lens that is ideal for sports and
wildlife photography.
• Wide-angle lens for Canon APS-C cameras (equivalent to 38mm on a
full-frame camera) offers an ultra-slim and lightweight design.
• Newly-developed gapless dual-layer diffractive optical elements
deliver improved image quality with reduced flare.
• Slimmest and lightest lens of the EF-S series (approx. lens width is
0.9 in, or slightly wider than a U.S. nickel).
• Large diameter ground aspherical lens and UD lens for even greater
optical performance.
• A stepping motor (STM) supports the Canon EOS Movie Servo AF
function to provide smooth and quiet continuous AF during video
recording, as well as when shooting photos.
Diffractive Optics (DO)
Stepping Motor (STM)
Canon diffractive optics technology make it possible to have high-performance lenses that are much
smaller and lighter than traditional lenses without it. The new super telephoto EF 400mm f/4 DO IS II
USM lens incorporates newly developed gapless dual-layered diffractive optical (DO) elements that help
improve optical performance while maintaining a compact, lightweight size.
Tech Icons
6
Canon EF lenses with stepping motor (STM) technology focus using a geared ring or a lead screw rotary
drive system for amazingly smooth and quiet AF. This can be beneficial during continuous AF shooting
when capturing HD video with Movie Servo AF.
UD Lens
Aspherical Lens
Diffractive Optics
Circular Aperture
Full-Time Manual Focusing
Subwavelength Coating
Optical Image Stabilizer
USM (Ultrasonic Motor)
STM (Stepping Motor)
Inner and Rear Focusing
AF Stop Feature
Dust- and Water-Resistant Construction
Fluorine Anti-Smear Coating
Focus Preset
usa.canon.com/eflenses
7
NEW!
Compact Digital
Cameras
PICTURE THE POSSIBILITIES
The Brilliance of Canon Optical Zoom
Big Sensor, Big Possibilities
Larger than most sensors found in digital point-and-shoot
cameras, the 1.0-inch CMOS sensor in the PowerShot G7 X
camera enhances its low-light shooting capabilities because
its larger sensor has bigger individual cells that capture more
light at the pixel level. The results are more dramatic images
with better detail, improved dynamic range, as well as less
noise and distortion, even at higher ISOs.
8
Sophisticated Lenses, Incredible Clarity
The PowerShot G7 X camera features an amazing Canon
zoom lens designed to complement its 1.0-inch CMOS sensor.
The lens has a bright maximum aperture for speed, low-light
performance and shallow depth-of-field. It offers a versatile
4.2x Optical Zoom with a range of 24–100mm. A wide-angle
equivalent of 24mm helps enable the camera to capture more
within the frame, while a 9-blade aperture provides beautiful
background blur for incredibly dramatic images.
Innovative lens construction has made it possible to incorporate
powerful optical zooms into compact, handheld designs.
PowerShot digital cameras offer an array of incredible zooms to
provide users the versatility needed to get high quality, steady
close-ups of faraway subjects. The new PowerShot SX60 HS
camera features a remarkable 65x Optical Zoom that’s ideal for
photographing from extreme distances. The impressive zoom is
complemented with Zoom Framing Assist, which helps make it
easier to track and retain focus on moving subjects at
maximum telephoto during video and still image capture.
Selfie to the Max
The sleek, distinct design of the PowerShot N2 camera
features a 2.8-inch, 180 degree tilt, capacitive touch
LCD screen and, in combination with the camera’s new
Self Portrait mode, makes this the ideal camera for taking
a spontaneous selfie.
usa.canon.com/powershot
9
POWERSHOT NEW LINE-UP
NEW!
NEW!
Powered to Inspire
• New 1.0-inch, 20.2 Megapixel## High-Sensitivity CMOS sensor combined
with Canon’s powerful
6 Image Processor creates the Canon
HS SYSTEM for outstanding low-light performance up to ISO 12800,
enhanced image quality, and fast operation.
• A bright f/1.8 (W) – f/2.8 (T), 4.2x Optical Zoom (24mm–100mm),
9-blade iris diaphragm and IS equipped lens enables you to capture
more in your frame, and is ideal for low-light conditions or using
shallow depth-of-field for dramatic, soft backgrounds. Focus range
starts at 2.0 in. for Macro and 1.3 ft. for Tele.
• Selfie-ready multi-angle capacitive 3.0" touch panel LCD with a screen
resolution of 1,040K dots for a sharp, clear display and easy operation
and sharing.
• High-Speed AF (0.14 sec.) greatly improves focus speed. 31 AF points
provide an expanded and more accurate focus area. Paired with
continuous shooting speeds of up to 6.5 fps and the removal of buffer
time, you can get your best shot in full resolution.
10
##
Image processing may cause a decrease in the number of pixels. * Also available as optional accessory.
20.2 4.2x 3.0"
Megapixels
CMOS
Optical Zoom Capacitive Touch
Panel LCD
31 AF Points
The PowerShot G7 X camera has 31
focus points, which enable the camera
to provide precise and accurate focus
even if the subject is off-center.
Zoom Like Never Before
• 65x Optical Zoom (21–1365mm) Wide Angle Lens with Optical Image
Stabilizer for outstanding optical performance and versatility for both
close-ups and wide shots.
• 16.1 Megapixel## High Sensitivity CMOS Sensor combined with the
6 Image Processor creates the Canon HS SYSTEM, which helps
to provide excellent low-light performance.
16.1 65x 3.0"
Megapixels
CMOS
Optical Zoom
Vari-angle LCD
65x Optical Zoom
The PowerShot SX60 HS camera’s
extreme 65x Optical Zoom makes it
possible to get close-ups of faraway
subjects easily with a compact camera.
• Capture stunning 1080p/60p Full HD video in MP4 format with a
dedicated movie button, fast and silent zoom, and focus while shooting
thanks to USM and VCM. The PowerShot SX60 HS is also the first
PowerShot model with external microphone input capability.
KIT CONTENTS
• For easy Wi-Fi® connectivity^, built-in NFC (Near Field Communication)
allows quick and simple pairing to a compatible Android™ device^^.
65x Optical Zoom
KIT CONTENTS
• Intelligent IS automatically chooses from eight different modes to
optimize image stabilization for virtually shake-free images in a wide
variety of conditions.
• PowerShot G7 X
• Battery Pack NB-13L*
• Battery Charger CB-2LH*
• Wrist Strap WS-DC12
• PowerShot SX60 HS
• Lens Cap (with Strap)
• Battery Pack NB-10L*
• Battery Charger CB-2LC*
(USB Interface Cable and Digital Camera Solution CD-ROM
are not included.)
(USB Interface Cable and Digital Camera Solution CD-ROM
are not included.)
##
Image processing may cause a decrease in the number of pixels. ^ Compatible with iOS versions 6.0/6.1/7.0/7.1, Android smartphone versions 2.3.3/4.0/4.1/4.2/4.3/4.4
and Android tablet versions 4.0/4.1/4.2/4.3/4.4. Data charges may apply. ^^ Compatible with Android devices version 4.0 or later. * Also available as optional accessory.
• Neck Strap NS-DC11
usa.canon.com/powershot
11
POWERSHOT NEW LINE-UP
NEW!
NEW!
Black
Red
Remarkable Zoom. Amazing Power.
• Canon’s powerful 42x Optical Zoom (24–1008mm) and 24mm
Wide-Angle lens with Optical Image Stabilizer help ensure outstanding
optical performance and versatility.
• 16.0 Megapixel## High-Sensitivity CMOS sensor combined with the
Canon
4+ Image Processor creates the Canon HS SYSTEM, which
helps to provide excellent low-light performance.
• Capture stunning 1080p Full HD video with a dedicated movie button
and zoom while shooting.
• Intelligent IS automatically chooses from eight different modes to
optimize image stabilization for virtually shake-free images in a wide
variety of conditions.
• Zoom Framing Assist makes it easy to track and capture subjects while
using the extreme telephoto. With this advanced feature your camera
will automatically zoom in or out while following the movement of your
subject and help ensure it remains in focus.
16.0 42x 3.0"
Megapixels
CMOS
Optical Zoom
LCD
Zoom Framing Assist
Zoom Framing Assist
makes it easier to keep
subjects in the frame until
you’re ready to shoot. You can also
choose the subject AF frame to offer
additional assistance and control.
Focus the
camera on the
subject that will
be moving.
Camera automatically
detects panning and
adjusts focal length
to a wider setting.
When panning
stops, the zoom
lens will return
to its original
position.
KIT CONTENTS
• PowerShot SX520 HS
• Lens Cap (with Strap)
• Battery Pack NB-6LH*
Power Zooming. Easy Shooting.
• Canon’s powerful 30x Optical Zoom (24–720mm) and 24mm
Wide-Angle lens with Optical Image Stabilizer help ensure outstanding
optical performance and versatility.
• 16.0 Megapixel## sensor combined with the Canon
Processor deliver brilliant image quality.
4+ Image
• Capture impressive 720p HD video with a dedicated movie button and
zoom while shooting.
• Intelligent IS automatically chooses from eight different modes to
optimize image stabilization for virtually shake-free images in a wide
variety of conditions.
• High Speed AF greatly helps improve focus speed so you can capture
every shot with ease.
##
Image processing may cause a decrease in the number of pixels. * Also available as optional accessory.
Megapixels
CCD
Optical Zoom
LCD
Intelligent IS
Camera shake is detected and
analyzed. The camera then
automatically selects the
proper image
stabilizer
mode to help
deliver steady
and clear
images.
KIT CONTENTS
• Smart AUTO intelligently selects the proper settings for the camera
based on predefined shooting situations to help ensure the best
possible image capture for stills or video.
• PowerShot SX400 IS
• Lens Cap (with Strap)
• Battery Pack NB-11LH*
• Battery Charger CB-2LF*
• Wrist Strap WS-DC12
• Battery Charger CB-2LY*
• Neck Strap NS-DC11
(USB Interface Cable and Digital Camera Solution CD-ROM
are not included.)
12
16.0 30x 3.0"
(USB Interface Cable and Digital Camera Solution CD-ROM
are not included.)
Image processing may cause a decrease in the number of pixels.
32 predefined shooting situations for still images, and 21 predefined
shooting situations for video. * Also available as optional accessory.
##
usa.canon.com/powershot
13
SERVICE & SUPPORT
POWERSHOT NEW LINE-UP
NEW!
COMMITTED TO SERVICE & SUPPORT EXCELLENCE
A true industry leader understands that reputations
are earned one customer at a time, which is why
Canon has at its foundation an uncompromising
dedication to product reliability, service and support.
From cutting-edge technology to industry-leading
response times, Canon U.S.A. takes pride in
delivering complete customer satisfaction.
White
Black
Show Off Your World – Remarkably
• Built-in Wi-Fi allows wireless transferring of images and video to
compatible mobile devices^, select social networking sites, a Wi-Fi®enabled computer, and lets you remotely shoot using your smartphone
or tablet^^.
®
• For easier Wi-Fi® connectivity, built-in NFC (Near Field Communication)
allows quick and simple pairing to a compatible Android device^^^.
• The convenient Mobile Device Connect Button allows you to connect to
your compatible Android™ or iOS® device^^ for quick and easy sharing.
• Selfie-ready multi-angle capacitive 2.8" touch panel LCD makes using
the new Self Portrait Mode simple and fun, and provides a sharp, clear
display and easy operation and sharing.
• Creative Shot mode uses composition, color and lighting from your
original image to create unique images with an artistic flair. Advanced
movie shooting feature automatically combines super slow motion movie
and quick motion movie with various filters and creates fantastic movies.
16.1 8x 2.8"
Megapixels
CMOS
Optical Zoom
KIT CONTENTS
• Unique symmetrical design is optimized to help users shoot horizontally
or vertically – ideal for new Self Portrait mode.
• PowerShot N2
• Battery Pack NB-9L*
• Battery Charger CB-2LB*
• Wrist Strap WS-800
• USB Interface Cable
IFC-400 PCU
(Digital Camera Solution CD-ROM is not included.)
14
^ Compatible with iOS versions 6.0/6.1/7.0/7.1, Android smartphone versions 2.3.3/4.0/4.1/4.2/4.3/4.4 and Android tablet versions 4.0/4.1/4.2/4.3/4.4. Data charges may apply. ^^ With the download of the free Canon CameraWindow
app. This software enables you to upload images to social network services. Before uploading images, please be aware that image files may contain privacy related information such as people and places. If necessary, please delete such
information. Canon does not obtain, collect or use such images or any information included in such images through this software. ^^^ Compatible with Android devices version 4.0 or later. * Also available as optional accessory.
Canon U.S.A. maintains a 100% U.S.-based call center staffed
with over 500 Canon employees. Whether by telephone, e-mail
or the Web, highly trained specialists stand ready to assist
Canon U.S.A. customers at every level of expertise. Committed
to quick and easy resolution of all support issues, our specialists
deliver industry-leading response
times and quality support. Canon
is further committed to continual
service improvement and
investment in customer
support technologies.
Service Offerings
Tilt, Capacitive
Touch Panel LCD
Self Portrait Mode
It’s easier than ever to
get flattering pictures
of yourself using
the convenient
Self Portrait mode.
Users can add
effects or adjust
settings for the flash
and self-timer when
viewing the LCD.
Customer Contact Center
National Service Network
The Marketing Engineering Technology Center (METC) provides
true factory-level service right here in the United States. Staffed
by Canon factory-trained technicians, our service operations
achieve industry-leading turnaround times and quality of repair.
Our state-of-the-art facilities include a precision lens center and
a climate- and particulate-controlled clean environment for the
handling of sensitive equipment. Our service operation extends
its reach through the Canon Regional Factory Service Centers and
the National Authorized Service Network located from coast to
coast. Canon supports a number of environmental and recycling
initiatives including a Zero Landfill
Product Re-use & Recycling Program.
Canon Maintenance Service (CMS)
Canon Maintenance Service will help
ensure your Canon EOS Digital SLR camera
and EF lenses maintain optimal condition and performance. Your
equipment will be serviced by Canon Factory Trained Technicians,
to help ensure excellent image quality. For more information,
visit : usa.canon.com/maintenance
Canon Professional Services (CPS)
Multiple membership levels are
available for individual, full-time working
professionals who use qualifying Canon equipment. Available
benefits include 24/7 technical support, expedited and discounted
repair service, on-site event support, loaner equipment and more.
For more information, visit: cps.usa.canon.com
Recognition for Excellence
PCMag.com Readers’ Choice Award for Service & Reliability
for Digital Cameras and Printers.
PCMag.com Readers’ Choice
Award logo is a trademark
of Ziff Davis, Inc. Used
under license. Reprinted
with permission.
©2014 Ziff Davis, Inc.
All rights reserved.
1-800-OK-CANON
usa.canon.com/satisfaction
15
EOS CAMERA SPECIFICATIONS CHART
EOS 5D Mark III
EOS 6D
EOS 7D Mark II
EOS 70D
EOS 60D
EOS Rebel T5i
EOS Rebel SL1
EOS Rebel T5
EOS
EOS-1D X
18.1
Image Size
22.3
Megapixels
20.2
20.2
Megapixels
20.2
Megapixels
Megapixels
18.0
Megapixels
18.0
Megapixels
18.0
Megapixels
18.0
Megapixels
Megapixels
Image Processor
ISO Range###
ISO 100–51200 Expandable
to ISO 204800
Expandable
(Video) ISO 100–25600 to ISO 204800
(Still)
ISO 100–25600 Expandable
to ISO 102400
Expandable
(Video) ISO 100–12800 to ISO 25600
(Still)
ISO 100–25600 Expandable
to ISO 102400
Expandable
(Video) ISO 100–12800 to ISO 25600
(Still)
ISO 100–16000 Expandable
to ISO 25600/51200
Expandable
(Video) ISO 100–16000 to ISO 25600
(Still)
ISO 100–12800 Expandable
to ISO 25600
Expandable
(Video) ISO 100–6400 to ISO 12800
(Still)
ISO 100–6400 Expandable
to ISO 12800
(Video) ISO 100–6400
(Still)
ISO 100–12800 Expandable
to ISO 25600
Expandable
(Video) ISO 100–6400 to ISO 12800
(Still)
ISO 100–12800 Expandable
to ISO 25600
Expandable
(Video) ISO 100–6400 to ISO 12800
(Still)
ISO 100–6400 Expandable
to ISO 12800
(Video) ISO 100–6400
(Still)
Video Recording
Number of
Focusing Points
Crop Factor /
Image Sensor (CMOS)
Maximum Frames
Per Second
Built-in Wi-Fi®
Compatible Lenses
Special Features
Recording Media
Shutter Speeds
1.0x
Full-frame
3.0 and 12.0 fps
14.0 fps (in Super High Speed Mode)
–
EF Lenses
• Built-in 3.2" (approx. 1.04 million dots)
Clear View LCD monitor II
• 31 Custom Functions in 6 Groups
• 2 Multi-controllers
• Dual Axis Electronic Level
• Simultaneous RAW and JPEG Image Capture
• Multiple Exposures (4 Modes)
• Intelligent Viewfinder
• Dioptric Adjustment
• Depth-of-field Preview
• FE Lock
• Mirror Lock
• In-camera RAW Processing
• Magnesium Alloy Body
• EOS Integrated Cleaning System
• Star Rating System
• USB 2.0 Hi-Speed Compatible
61
61 (Area AF Ellipse); 61 point selectable,
41 cross-type points (lens dependent), 5 diagonal
cross type points, improved AI Servo AF III
1.0x
11
11; 1 Central Cross-type point, 11 point selectable
(manually-selected AF point position used in
horizontal/vertical shooting can be set separately)
65
65; Each AF point has a cross-type sensor,
Center AF point also has additional, high-precision
dual cross-type sensor with f/2.8 or faster lenses
19
19; Each AF point has a cross-type sensor,
Center AF point also has additional, high-precision
dual cross-type sensor with f/2.8 or faster lenses
9
9
9
9
9; Each AF point has a cross-type sensor,
Center AF point also has additional, high-precision
dual cross-type sensor with f/2.8 or faster lenses
9; Each AF point has a cross-type sensor,
Center AF point also has additional, high-precision
dual cross-type sensor with f/2.8 or faster lenses
9; Center AF point is a high precision
cross-type, vertical-line sensitive at f/2.8
9; Center AF point is cross-type,
vertical-line sensitive at f/5.6
Full-frame
Full-frame
1.0x
1.6x
APS-C
1.6x
APS-C
1.6x
APS-C
1.6x
APS-C
1.6x
APS-C
1.6x
APS-C
3.0 and 6.0 fps
3.0 and 4.5 fps
3.0 and 10.0 fps
3.0 and 7.0 fps
3.0 and 5.3 fps
5.0 fps
4.0 fps
3.0 fps
–
–
–
–
–
EF Lenses
• Built-in 3.2" (approx. 1.04 million dots)
Clear View II LCD monitor
• 13 Custom Functions in 3 Groups
• Multi-controller and Quick Control Dial
• Dual Axis Electronic Level
• Simultaneous RAW and JPEG Image Capture
• HDR Shooting with 5 Effects
• Multiple Exposures (4 Modes)
• Intelligent Viewfinder
• Dioptric Adjustment
• Depth-of-field Preview
• FE Lock
• Mirror Lock
• In-camera RAW Processing
• Magnesium Alloy Body
• EOS Integrated Cleaning System
• Star Rating System
• USB 2.0 Hi-Speed Compatible
–
EF Lenses
• Built-in 3.0" (approx. 1.04 million dots)
Clear View LCD monitor
• Built-in Wi-Fi®
• Built-in GPS
• 20 Custom Functions in 3 Groups
• Simultaneous RAW and JPEG Image Capture
• HDR Shooting
• Multiple Exposures (2 Modes)
• Dioptric Adjustment
• FE Lock
• Mirror Lock
• Multi Shot Noise Reduction
• Lens Aberration Correction
• In-camera RAW Processing
• EOS Integrated Cleaning System
• Star Rating System
• USB 2.0 Hi-Speed Compatible
EF and EF-S Lenses
• Built-in 3.0" (approx. 1.04 million dots)
Clear View II LCD monitor
• Dual Pixel CMOS AF
• Built-in GPS
• 18 Custom Functions in 5 Groups
• HDR Shooting with 5 Effects
• Approx. 150,000-pixel RGB+IR Metering
Sensor
• Multiple Exposures
• Customizable Movie Servo AF
• Built-in Bulb Timer and Interval Timer
• Selectable AF Points
• Scene Intelligent Auto
• In-camera Chromatic Aberration Correction
• MOV and MP4 Video Formats Available
• USB 3.0 SuperSpeed-compatible
• Digital Compass
EF and EF-S Lenses
• Built-in 3.0" (approx. 1.04 million dots)
Vari-angle Touch Screen Clear View LCD
monitor II
• Dual Pixel CMOS AF
• Built-in Wi-Fi®
• 23 Custom Functions in 4 Groups
• Simultaneous RAW and JPEG Image Capture
• HDR Shooting
• Multiple Exposures (2 Modes)
• Intelligent Viewfinder
• Dioptric Adjustment
• FE Lock
• Mirror Lock
• Multi Shot Noise Reduction
• Creative Filters
• Movie Digital Zoom
• EOS Integrated Cleaning System
• Built-in Flash with Speedlite Transmitter
• USB 2.0 Hi-Speed Compatible
EF and EF-S Lenses
EF and EF-S Lenses
EF and EF-S Lenses
EF and EF-S Lenses
• Built-in 3.0" (approx. 1.04 million dots)
Vari-angle Color monitor
• 20 Custom Functions in 4 Groups
• Multi-controller
• Simultaneous RAW and JPEG Image Capture
• Dioptric Adjustment
• Mirror Lock
• Basic+
• In-camera RAW Processing
• Live View Function & Face Detection Live Mode
• EOS Integrated Cleaning System
• Built-in Flash with Speedlite Transmitter
• USB 2.0 Hi-Speed Compatible
• Built-in 3.0" (approx. 1.04 million dots)
Vari-angle Touch Screen Clear View LCD II
monitor
• 8 Custom Functions with 24 Settings
• Simultaneous RAW and JPEG Image Capture
• Hybrid CMOS AF
• FE Lock
• Mirror Lock
• Feature Guide
• Lens Aberration Correction
• Basic+
• Creative Filters
• EOS Scene Detection Technology,
Scene Intelligent Auto and Picture Style Auto
• Multiple Aspect Ratios
• Video Snapshot
• Built-in Flash with Speedlite Transmitter
• USB 2.0 Hi-Speed Compatible
• Built-in 3.0" (approx. 1.04 million dots)
Touch Screen Clear View LCD II monitor
• 8 Custom Functions with 24 Settings
• Simultaneous RAW and JPEG Image Capture
• Hybrid CMOS AF II
• FE Lock
• Mirror Lock
• Feature Guide
• Lens Aberration Correction
• Basic+
• Creative Filters
• EOS Scene Detection Technology,
Scene Intelligent Auto and Picture Style Auto
• Multiple Aspect Ratios
• Video Snapshot
• Built-in Flash
• USB 2.0 Hi-Speed Compatible
• Built-in 3.0" (approx. 460,000 dots)
Color monitor
• 11 Custom Functions with 33 Settings
• Simultaneous RAW and JPEG Image Capture
• FE Lock
• Dioptric Adjustment
• Feature Guide
• Basic+
• Peripheral Illumination Correction
• Creative Filters
• EOS Scene Detection Technology,
Scene Intelligent Auto and Picture Style Auto
• Multiple Aspect Ratios
• Video Snapshot
• Built-in Flash
• USB 2.0 Hi-Speed Compatible
2x UDMA CF/CF Cards (Type I or II)
1 UDMA CF/CF Card (Type I) and
1 SD/SDHC/SDXC Memory Card
SD/SDHC/SDXC and compatible
with UHS-I SD Memory Cards
1 UDMA CF Card (Type 1) and 1 SD/
SDHC/SDXC Memory Card and compatible
with UHS-I SD Memory Cards
SD/SDHC/SDXC and compatible
with UHS-I SD Memory Cards
SD/SDHC/SDXC Memory Cards
SD/SDHC/SDXC and compatible
with UHS-I SD Memory Cards
SD/SDHC/SDXC and compatible
with UHS-I SD Memory Cards
SD/SDHC/SDXC Memory Cards
30–1/8000 sec. & Bulb; manually
settable in 1/3-, 1/2-, 1-stop increments
30–1/8000 sec. & Bulb; manually
settable in 1/3- or 1-stop increments
30–1/4000 sec. & Bulb; manually
settable in 1/3- or 1/2-stop increments
30–1/8000 sec. & Bulb; manually
settable in 1/3- or 1/2-stop increments
30–1/8000 sec. & Bulb; manually
settable in 1/3- or 1/2-stop increments
30–1/8000 sec. & Bulb; manually
settable in 1/3- or 1/2-stop increments
30–1/4000 sec. & Bulb; manually
settable in 1/3- or 1/2-stop increments
30–1/4000 sec. & Bulb; manually
settable in 1/3- or 1/2-stop increments
30–1/4000 sec. & Bulb; manually
settable in 1/3- or 1/2-stop increments
LCD Size / Vari-angle
3.2" / –
3.2" / –
3.0" / –
3.0" / –
3.0" / Yes
3.0" / Yes
3.0" / Yes
3.0" / –
3.0" / –
Vewfinder Coverage
Approx. 100% horizontal /
vertical at 0.76x
Approx. 100% horizontal /
vertical at 0.71x
Approx. 97% horizontal /
vertical at 0.71x
Approx. 100% horizontal /
vertical at 1.0x
Approx. 98% horizontal /
vertical at 0.95x
Approx. 96% horizontal /
vertical at 0.95x
Approx. 95% horizontal /
vertical at 0.85x
Approx. 95% horizontal /
vertical at 0.87x
Approx. 95% horizontal /
vertical at 0.8x
Dimensions
Approx. 6.2 x 6.4 x 3.3 in. /
158 x 163.6 x 82.7 mm
Approx. 6.0 x 4.6 x 3.0 in. /
152 x 116.4 x 76.4 mm
Approx. 5.7 x 4.4 x 2.8 in. /
144.5 x 110.5 x 71.2 mm
Approx. 5.9 x 4.4 x 3.1 in. /
148.6 x 112.4 x 78.2 mm
Approx. 5.5 x 4.1 x 3.1 in. /
139.0 x 104.3 x 78.5 mm
Approx. 5.7 x 4.2 x 3.1 in. /
144.5 x 105.8 x 78.6 mm
Approx. 5.2 x 3.9 x 3.1 in. /
133.1 x 99.8 x 78.8 mm
Approx. 4.6 x 3.6 x 2.7 in. /
116.8 x 90.7 x 69.4 mm
Approx. 5.1 x 3.9 x 3.1 in. /
129.6 x 99.7 x 77.9 mm
Approx. 54.0 oz. / 1,530 g
Approx. 33.5 oz. / 950 g
Approx. 26.7 oz. / 755 g
Approx. 32.10 oz. / 910 g
Approx. 26.7 oz. / 755 g
Approx. 26.6 oz. / 755 g
Approx. 20.5 oz. / 580 g
Approx. 14.36 oz. / 407 g (Black color)
Approx. 14.46 oz. / 410 g (White color)
Approx. 16.9 oz. / 480 g
( W x H x D)
Weight
(CIPA Standard)
16
61
61 (Area AF Ellipse); 61 points selectable,
41 cross-type points (lens dependent), 5 diagonal
cross-type points, improved Al Servo AF III
Standard output sensitivity. Recommended exposure index. CIPA standard, includes battery and memory card. The maximum continuous shooting speed is restricted to 10 fps when the battery charge is less than
50% or when ISO speed is above 32000. If the camera’s internal temperature is low and ISO speed is above 20000, the maximum continuous shooting speed is restricted to 10 fps.
###
usa.canon.com/eos
17
EOS CAMERA ACCESSORIES CHART
Batteries
Battery Pack
LP-E4N
Battery Pack
LP-E6N
Battery Pack
LP-E6
•
•
•
•
•
•
•
•
•
•
Chargers
Battery Pack
LP-E8
Battery Pack
LP-E10
Battery Pack
LP-E12
Battery Charger
LC-E4N
Battery Charger
LC-E6
Battery Charger
LC-E8E
Adapters
Battery Charger
LC-E10
Battery Charger
LC-E12
AC Adapter Kit
ACK-E4
AC Adapter Kit
ACK-E6
AC Adapter Kit
ACK-E8
AC Adapter Kit
ACK-E10
AC Adapter Kit
ACK-E15
EOS
EOS CAMERAS
1D X
•
•
5D Mark III
6D
7D Mark II
70D
60D
•
Rebel T5i
•
Car Batteries
Car Battery Cable
CB-570
6D
•
•
•
7D Mark II
70D
60D
Speedlite
430EX II
Speedlite
320EX
Speedlite
270EX II
Speedlite
90EX
Wireless Controller
LC-5
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Rebel T5i
Rebel SL1
Rebel T5
Battery Grips
Battery Grip
BG-E11
Battery Grip
BG-E13
Battery Grip
BG-E16
Battery Grip
BG-E14
Battery Grip
BG-E9
Battery Grip
BG-E8
Wireless File
Transmitter
WFT-E7A (Ver. 2)
70D
60D
Rebel T5i
•
•
•
•
•
•
•
•
Rebel SL1
Rebel T5
18
•
•
•
•
•
•
•
Remote Switch
RS-80N3
•
•
•
•
•
•
•
•
The EOS 5D Mark III requires a firmware upgrade to be compatible with the GPS Receiver GP-E2.
The WFT-E7A requires a firmware update and Interface Cables IFC-40AB II or IFC-150AB II to work with the EOS 7D Mark II.
Firmware updates are available on each indvidual product's webpage on the Canon website. See usa.canon.com/consumer for our full line of products.
Remote Switch
RS-60E3
GPS Receiver
GP-E1
GPS Receiver
GP-E2
•
•
•
•
•
•
•
•
•
•
•
•
•
Bags and Cases
Wireless
File Transmitter
WFT-E6A
•
•
•
7D Mark II
Wireless Remote
Controller RC-6
GPS Accessories
Timer Remote
Controller
TC-80N3
Wireless File Transmitters
Wireless File
Transmitter
WFT-E7A
1D X
6D
•
Remote Controllers and Switches
Speedlite
600EX-RT
•
•
•
•
•
•
•
Speedlite Flashes
Car Battery Charger
CBC-E6
•
•
1D X
5D Mark III
5D Mark III
•
•
•
Rebel T5
EOS CAMERAS
•
•
•
•
•
•
Rebel SL1
EOS CAMERAS
•
•
•
•
•
•
Digital Gadget Bag
100DG
Digital Gadget Bag
200DG
Professional Gadget
Bag 1EG
Deluxe Gadget Bag
10EG
Gadget Bag
2400
Deluxe Back Pack
200EG
Custom Gadget Bag
100EG
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
usa.canon.com/eos
19
POWERSHOT CAMERA SPECIFICATIONS CHART
5x
Optical Zoom
Optical Zoom
PowerShot
G7 X
4.2x
Optical Zoom
PowerShot
G16
PowerShot
S120
5x
5x
Optical Zoom
Optical Zoom
PowerShot
SX60 HS
65x
Optical Zoom
PowerShot
SX520 HS
42x
Optical Zoom
30x
Optical Zoom
PowerShot
SX600 HS
18x
Optical Zoom
–
Built-in Wi-Fi®
Image Size/
Sensor Type
PowerShot
SX700 HS
12.8 13.1
Megapixels Megapixels
(3:2)
CMOS
(4:3)
20.2
12.1
12.1
16.1
16.0
16.1
16.0
PowerShot
SX400 IS
30x
PowerShot
D30
5x
Optical Zoom
Optical Zoom
–
–
16.0
12.1
PowerShot
N100
5x
Optical Zoom
12.1
PowerShot
N2
8x
Optical Zoom
16.1
PowerShot
ELPH 340 HS
12x
PowerShot
ELPH 150 IS
10x
Optical Zoom
16.0
PowerShot
ELPH 140 IS ELPH 135
8x
Optical Zoom
Optical Zoom
–
–
20.0
POWERSHOT
PowerShot
G1 X Mark II
16.0
Megapixels
Megapixels
Megapixels
Megapixels
Megapixels
Megapixels
Megapixels
Megapixels
Megapixels
Megapixels
Megapixels
Megapixels
Megapixels
Megapixels
CMOS
CMOS
CMOS
CMOS
CMOS
CMOS
CMOS
CCD
CMOS
CMOS
CMOS
CMOS
CCD
CCD
–
–
Image Processor
–
HS SYSTEM
ISO Range
ISO 100–12800*
ISO 125–12800^
ISO 80–12800*
ISO 80–12800*^
ISO 100–3200*^
ISO 100–3200*^
ISO 100–3200*^
ISO 100–3200*^
ISO 100–1600*^
ISO 100–3200*^
ISO 80–6400*^
ISO 100–3200*^
ISO 100–3200*^
ISO 100–1600*^
ISO 100–1600*^
1080p HD/720p HD/VGA
1080p HD/720p HD/VGA
1080p HD/720p HD/VGA
1080p HD/720p HD/VGA
1080p HD/720p HD/VGA
1080p HD/720p HD/VGA
1080p HD/720p HD/VGA
1080p HD/720p HD/VGA
720p HD/VGA
1080p HD/720p HD/VGA
1080p HD/720p HD/VGA
1080p HD/720p HD/VGA
1080p HD/720p HD/VGA
720p HD/VGA
720p HD/VGA
3.0"
3.0"
3.0"
3.0"
3.0"
3.0"
3.0"
3.0"
3.0"
2.8"
3.0"
2.7"
2.7"
Video Recording
Image Stabilization
LCD Size/Type
Smart AUTO/
Hybrid Auto
Tilt, Capacitive Touch Panel Tilt, Capacitive Touch Panel
58 scenes
Recording Media
Connectivity
58 scenes
58 scenes
32 scenes
32 scenes
32 scenes
32 scenes
24–120 mm
f/1.8–f/5.7
21–1365 mm
f/3.4–f/6.5
24–1008 mm
f/3.4–f/6.0
25–750 mm
f/3.2–f/6.9
25–450 mm
f/3.8–f/6.9
24–720 mm
f/3.4–f/5.8
28–140 mm
f/3.9–f/4.8
24–120 mm
f/1.8–f/5.7
28–224 mm
f/3.0–f/5.9
25–300 mm
f/3.6–f/7.0
24–240 mm
f/3.0–f/6.9
28–224 mm
f/3.2–f/6.9
SD/SDHC/SDXC
Memory Cards
(UHS-I compatible)
SD/SDHC/SDXC
Memory Cards
(UHS-I compatible)
SD/SDHC/SDXC
Memory Cards
(UHS-I compatible)
SD/SDHC/SDXC
Memory Cards
(UHS-I compatible)
SD/SDHC/SDXC
Memory Cards
(UHS-I compatible)
SD/SDHC/SDXC
Memory Cards
SD/SDHC/SDXC
Memory Cards
SD/SDHC/SDXC
Memory Cards
SD/SDHC/SDXC
Memory Cards
SD/SDHC/SDXC
Memory Cards
SD/SDHC/SDXC
Memory Cards
(UHS-I compatible)
microSD/microSDHC/
microSDXC Memory Cards
SD/SDHC/SDXC
Memory Cards
SD/SDHC/SDXC
Memory Cards
SD/SDHC/SDXC
Memory Cards
USB. 2.0 Hi-Speed
(PictBridge compatible);
AV Output (NTSC/PAL
selectable, MP4, Stereo
Audio), Mic Input,
Mini-HDMI Connector,
SD Memory Card Slot
USB. 2.0 Hi-Speed
(PictBridge compatible);
AV Output (NTSC/PAL
selectable, MOV, Stereo
Audio), Mic Input,
Mini-HDMI Connector,
SD Memory Card Slot
USB. 2.0 Hi-Speed
(PictBridge compatible);
microSD Memory Card Slot
USB. 2.0 Hi-Speed
(PictBridge compatible);
AV Output (NTSC/PAL
selectable, MP4, Monaural
Audio), Micro-HDMI Connector,
SD Memory Card Slot
USB. 2.0 Hi-Speed
(PictBridge compatible);
AV Output (NTSC/PAL
selectable, MOV, Monaural
Audio), SD Memory Card Slot
USB. 2.0 Hi-Speed
(PictBridge compatible);
AV Output (NTSC/PAL
selectable, MOV, Monaural
Audio), SD Memory Card Slot
15–1/2000 sec.
15–1/2000 sec.
15–1/2000 sec.
250–1/4000 sec.
250–1/2500 sec.
15–1/2000 sec.
15–1/2000 sec.
32 scenes
USB. 2.0 Hi-Speed
(PictBridge compatible);
AV Output (NTSC/PAL
selectable, MP4,
Stereo Audio),
Micro-HDMI Connector,
SD Memory Card Slot
15–1/3200 sec.
USB. 2.0 Hi-Speed
(PictBridge compatible);
AV Output (NTSC/PAL
selectable, MP4,
Monaural Audio),
Micro-HDMI Connector,
SD Memory Card Slot
15–1/2000 sec.
Normal: 2.0 in. (5 cm) –
infinity (W), 4.3 ft. (1.3 m) –
infinity (T); Auto/Manual:
0.0 in (0 cm) – infinity (W),
4.3 ft. (1.3 m) – infinity (T);
Macro: 0.0 in (0 cm) – 1.6 ft.
(50 cm) (W)
Auto: 0.4 in. (1 cm) – infinity (W),
4.6 ft. (1.4 m) – infinity (T); Normal:
2.0 in. (5 cm) – infinity (W),
4.6 ft. (1.4 m) – infinity (T); Macro:
0.4 in. – 1.6 ft. (1 – 50 cm); Sports:
3.3 ft. (1 m) – infinity (W),
26.0 ft. (8 m) – infinity (T)
Normal/Auto: 2.0 in. (5 cm) –
infinity (W), 3.3 ft. (1 m) –
infinity (T); Macro: 2.0 in. – 1.6 ft.
(5–50 cm) (W); Infinity: 9.8 ft.
(3 m) – infinity (W, T)
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Custom
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Custom,
Multi-area White Balance
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Custom
USB. 2.0 Hi-Speed
(PictBridge compatible);
AV Output (NTSC/PAL
selectable, MOV, Monaural
Audio), SD Memory Card Slot
15–1 sec.
58 scenes
58 scenes
USB. 2.0 Hi-Speed
USB. 2.0 Hi-Speed
(PictBridge compatible);
(PictBridge compatible);
AV Output (NTSC/PAL
AV Output (NTSC/PAL
selectable, MOV, Monaural selectable, MP4, Stereo Audio),
Audio), Mini-HDMI Connector,
Micro-HDMI Connector,
SD Memory Card Slot
SD Memory Card Slot
15–1/1600 sec.
15–1/2500 sec.
1–1/2000 sec.
15–1/2000 sec.
Normal: 2.0 in. (5 cm) –
infinity (W), 12 in. (30 cm) –
infinity (T); Macro: 12 in. –
1.6 ft. (30–50 cm) (T)
All: 0.4 in. (1 cm) – infinity
(W), 3.3 ft. (1 m) – infinity (T)
Normal: 2.0 in. (5 cm) –
infinity (W), 3.3 ft. (1 m) –
infinity (T); Auto: 0.4 in. (1 cm) –
infinity (W), 3.3 ft. (1 m) –
infinity (T); Macro: 0.4 in. –
1.6 ft. (1–50 cm) (W); Infinity:
9.8 ft. (3 m) – infinity (W, T)
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Custom,
Multi-area White Balance
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Custom
Auto: 0.4 in. (1 cm) – infinity
Auto: 0.4 in. (1 cm) – infinity
(W), 4.3 ft. (1.3 m) – infinity (T);
(W), 3.3 ft. (1 m) – infinity (T);
Normal: 2.0 in. (5 cm) – infinity Normal: 2.0 in. (5 cm) – infinity (W),
(W), 3.3 ft. (1 m) – infinity (T); 4.3 ft. (1.3 m) – infinity (T); Macro:
0.4 in. – 1.6 ft.
Macro: 0.4 in. – 1.6 ft. (1–50
(1–50 cm) (W); Infinity:
cm) (W); Infinity: 9.8 ft. (3 m) –
9.8 ft. (3 m) – infinity (W,T)
infinity (W,T)
Focus Range
Normal: 2.0 in. (5 cm) – infinity (W),
1.3 ft. (40 cm) – infinity (T); Auto/
Manual: 0.4 in. (1 cm) – infinity (W),
1.3 ft. (40 cm) – infinity (T); Macro/
Underwater Macro AF: 0.4 in. –
1.6 ft. (1–50 cm) (W); Quick: 4.9 –
66 ft. (1.5 – 20 m) (W, T)
White Balance
Control
Auto, Daylight, Shade, Cloudy,
Auto, Daylight, Shade, Cloudy, Tungsten,
Tungsten, Fluorescent,
Fluorescent, Fluorescent H, Flash, Underwater,
Fluorescent H, Flash,
Custom 1, Custom 2, Multi-area White
Underwater, Custom 1, Custom Balance, White Balance Correction (Underwater
2, Multi-area White Balance
mode), White Balance Correction
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Flash,
Underwater, Custom 1,
Custom 2
Viewfinder
Optional Electronic Viewfinder
EVF-DC1
–
Real-image
Optical Viewfinder
–
Electronic Viewfinder
–
–
–
–
–
–
–
–
–
–
RAW Mode
Yes (14-bit), multi aspect
Yes (12-bit), multi aspect
Yes (12-bit), multi aspect
Yes (12-bit), multi aspect
Yes (12-bit), multi aspect
–
–
–
–
–
–
–
–
–
–
Power Sources
Rechargeable Lithium-ion
Battery NB-12L,
AC Adapter Kit ACK-DC100
Rechargeable Lithium-ion
Battery NB-13L,
AC Adapter Kit ACK-DC110
Rechargeable Lithium-ion
Battery NB-10L,
AC Adapter Kit ACK-DC80
Rechargeable Lithium-ion
Battery NB-6LH, NB-6L,
AC Adapter Kit ACK-DC40
Rechargeable Lithium-ion
Battery NB-10L, AC Adapter
Kit ACK-DC80
Rechargeable Lithium-ion
Battery NB-6LH,
AC Adapter Kit ACK-DC40
Rechargeable Lithium-ion
Battery NB-6LH, NB-6L,
AC Adapter Kit ACK-DC40
Rechargeable Lithium-ion
Battery NB-6LH, NB-6L,
AC Adapter Kit ACK-DC40
Rechargeable Lithium-ion
Battery NB-11LH,
AC Adapter Kit ACK-DC90
Rechargeable Lithium-ion
Battery NB-6LH, NB-6L,
AC Adapter Kit ACK-DC40
Rechargeable Lithium-ion
Battery Pack NB-12L,
AC Adapter Kit ACK-DC100
Rechargeable Lithium-ion
Battery NB-9L,
AC Adapter Kit ACK-DC70
Rechargeable Lithium-ion
Battery NB-11LH, NB-11L,
AC Adapter Kit ACK-DC90
Rechargeable Lithium-ion
Battery NB-11LH, NB-11L,
AC Adapter Kit ACK-DC90
Rechargeable Lithium-ion
Battery NB-11LH, NB-11L,
AC Adapter Kit ACK-DC90
4.58 x 2.91 x 2.61 in. /
116.3 x 74.0 x 66.2 mm
Approx. 19.5 oz. / 553 g
4.06 x 2.38 x 1.59 in. /
103.0 x 60.4 x 40.4 mm
Approx. 10.7 oz. / 304 g
4.28 x 2.99 x 1.59 in. /
108.8 x 75.9 x 40.3 mm
Approx. 12.6 oz. / 356 g
3.94 x 2.32 x 1.14 in. /
100.2 x 59.0 x 29.0 mm
Approx. 7.65 oz. / 217 g
5.02 x 3.65 x 4.50 in. /
127.6 x 92.6 x 114.3 mm
Approx. 1.43 lb. / 650 g
4.72 x 3.22 x 3.62 in. /
120.0 x 81.7 x 91.9 mm
Approx. 15.6 oz. / 441 g
4.44 x 2.59 x 1.37 in. /
112.7 x 65.8 x 34.8 mm
Approx. 9.49 oz. / 269 g
4.09 x 2.40 x 1.02 in. /
103.8 x 61.0 x 26.0 mm
Approx. 6.63 oz. / 188 g
4.11 x 2.72 x 3.15 in. /
104.4 x 69.1 x 80.1 mm
Approx. 11.0 oz. / 313 g
4.31 x 2.68 x 1.08 in. /
109.4 x 68.0 x 27.5 mm
Approx. 7.69 oz. / 218 g
4.11 x 2.66 x 1.41 in. /
104.5 x 67.5 x 35.8 mm
Approx. 10.2 oz. / 289 g
3.19 x 2.44 x 1.27 in. /
80.9 x 62.0 x 32.3 mm
Approx. 7.09 oz. / 201 g
3.93 x 2.27 x 0.88 in. /
99.7 x 57.6 x 22.4 mm
Approx. 5.19 oz. / 147 g
3.75 x 2.24 x 0.93 in. /
95.3 x 56.8 x 23.7 mm
Approx. 5.01 oz. / 142 g
3.75 x 2.14 x 0.87 in. /
95.2 x 54.3 x 22.1 mm
* Standard output sensitivity.
^
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Flash,
Underwater, Custom 1,
Custom 2
Recommended exposure index. ✤ CIPA Standard-Including the battery & memory card.
Auto, Daylight, Shade, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Flash, Custom 1,
Custom 2, Multi-area White
Balance, White Balance Correction
Normal: 2.0 in. (5 cm) – infinity Auto: 0.4 in. (1 cm) – infinity (W);
(W), 4.6 ft. (1.4 m) – infinity (T); 3.3 ft. (1 m) – infinity (T); Macro/
AUTO: 0.0 in (0 cm) – infinity (W),
Underwater Macro: 0.4 in. –
4.6 ft. (1.4 m) – infinity (T); Macro:
1.6 ft. (1–50 cm) (W);
0.0 in (0 cm) – 1.6 ft. (50 cm) (W); Normal: 2.0 in. (5 cm) – infinity
Infinity: 9.8 ft. (3 m) – infinity (W),
(W), 3.3 ft. (1 m) – infinity (T);
9.8 ft. (3 m) – infinity (T)
Quick: 9.8 ft. (3 m) (W,T)
32 scenes
Normal/Auto: 2.0 in. (5 cm) –
Normal: 2.0 in (5 cm) – infinity (W),
infinity (W), 1.3 ft. (40 cm) – 1.3 ft. (40 cm) – infinity; Auto/Manual:
infinity (T); Macro/Underwater 2.0 in. (5 cm) – infinity (W), 1.3 ft. (40 cm)
Macro: 2.0 in. – 1.6 ft.
– infinity (T); Macro: 2.0 in. (5 cm) – 1.6
(5–50 cm) (W); Quick:
ft. (50 cm) (W); Underwater Macro: 2.0 in.
4.9–66 ft. (1.5–20 m) (W, T) (5 cm) – 1.6 ft. (50 cm) (W); Quick: 4.92 ft.
(1.50 m) – 65.62 ft. (20 m) (W, T)
Dimensions (W x H x D)
Weight ✤
Normal: 2.0 in. (5 cm) – infinity (W), Normal: 2.0 in. (5 cm) – infinity (W),
12 in. (30 cm) – infinity (T); Auto/
5.9 ft. (1.8 m) – infinity (T); Auto/
Manual: 1.2 in. (3 cm) – infinity (W), Manual: 0.0 in (0 cm) – infinity (W),
12 in. (30 cm) – infinity (T); Macro AF: 5.9 ft. (1.8 m) – infinity (T); Sports:
1.2 in. – 1.6 ft. (3–50 cm) (W),
3.3 ft. (1 m) – infinity (W), 49 ft.
12 in. – 1.6 ft. (30–50 cm) (T); Quick: (15 m) – infinity (T) Macro: 0.0 in.
4.9 –66 ft. (1.5 – 20 m) (W, T)
(0 cm) – 1.6 ft. (50 cm) (W)
58 scenes
Tilt, Capacitive Touch Panel Tilt, Capacitive Touch Panel
28–140 mm
f/1.8–f/2.8
60–1/4000 sec.
32 scenes
3.0"
24–100 mm
f/1.8–f/2.8
USB. 2.0 Hi-Speed
USB. 2.0 Hi-Speed
USB. 2.0 Hi-Speed
USB. 2.0 Hi-Speed
(PictBridge compatible);
(PictBridge compatible);
(PictBridge compatible);
(PictBridge compatible);
AV Output (NTSC/PAL
AV Output (NTSC/PAL
AV Output (NTSC/PAL
AV Output (NTSC/PAL
selectable, MP4, Stereo
selectable, MP4, Stereo
selectable, MP4, Stereo
selectable, MP4, Stereo
Audio), Micro-HDMI Connector, Audio), Micro-HDMI Connector, Audio), Mini-HDMI Connector, Audio), Mini-HDMI Connector,
SD Memory Card Slot
SD Memory Card Slot
SD Memory Card Slot
SD Memory Card Slot
Shutter Speed
20
58 scenes
Vari-angle
24–120 mm
f/2.0–f/3.9
Lens (in 35mm format)
58 scenes
3.0"
Capacitive Touch Panel
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Custom
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Underwater,
Custom
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Custom
Auto, Daylight, Cloudy,
Tungsten, Fluorescent,
Fluorescent H, Custom
Approx. 4.59 oz. / 130 g Approx. 4.48 oz. / 127 g
usa.canon.com/powershot
21
POWERSHOT CAMERA ACCESSORIES CHART
POWERSHOT
CAMERAS
Deluxe
Soft Case
PSC-6100
G1 X Mark II
G7 X
G16
S120
SX60 HS
SX520 HS
SX700 HS
SX600 HS
SX400 IS
D30
N100
N2
ELPH 340 HS
ELPH 150 IS
ELPH 140 IS/ELPH 135
•
Deluxe
Leather Case
PSC-5300
Strap
Deluxe
Soft Case
PSC-3300
Deluxe
Soft Case
PSC-4050
Deluxe
Soft Case
PSC-4200
Deluxe
Leather Case
PSC-5100
Deluxe
Leather Case
PSC-3200
Deluxe
Soft Case
PSC-2070
(Black/Red)
Deluxe
Soft Case
PSC-600
Deluxe
Leather Case
PSC-55
Metal Neck Strap 1
•
WP-DC54
•
WP-DC52
•
WP-DC51
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Waterproof up to 130 ft.
Remote Switch
G1 X Mark II
G7 X
G16
S120
SX60 HS
SX520 HS
SX700 HS
SX600 HS
SX400 IS
D30
N100
N2
ELPH 340 HS
ELPH 150 IS
ELPH 140 IS/ELPH 135
Waterproof Case
Weight
WW-DC1
•
•
Remarks
POWERSHOT
CAMERAS
Waterproof Case
WP-DC53
•
Batteries and Chargers
Underwater
Remote Switch
RS-60E3
USB Cable
IFC-400PCU
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Conversion Lenses and Adapters
Cables
Mini-HDMI Cable
HTC-100
AV Cable
Tele Converter
TC-DC58E
Conversion
Lens Adapter
LA-DC58L
Filter Adapter
FA-DC58E
Filter Adapter
FA-DC67A
•
AVC-DC400ST
Battery
Charger
AC Adapter Kit
NB-12L
CB-2LG
ACK-DC100
NB-13L
CB-2LH
ACK-DC110
NB-10L
CB-2LC
ACK-DC80
NB-6LH/NB-6L
CB-2LY
ACK-DC40
NB-10L
CB-2LC
ACK-DC80
NB-6LH/NB-6L
CB-2LY
ACK-DC40
NB-6LH/NB-6L
CB-2LY
ACK-DC40
NB-6LH/NB-6L
CB-2LY
ACK-DC40
NB-11LH/NB-11L
CB-2LF
ACK-DC90
NB-6LH/NB-6L
CB-2LY
ACK-DC40
NB-12L
CB-2LG
ACK-DC100
NB-9L
CB-2LB
ACK-DC70
NB-11LH/NB-11L
CB-2LF
ACK-DC90
NB-11LH/NB-11L
CB-2LF
ACK-DC90
NB-11LH/NB-11L
CB-2LF
ACK-DC90
Buoyancy adjustment weight
kit for waterproof cases.
Viewfinder
Filter Adapter
FA-DC58D
Battery
Pack
Speedlite Flashes
Lens Hood
Electronic
Viewfinder
EVF-DC1
Speedlite
EX Series
(600EX-RT/430EX II/
320EX/270EX II)
LH-DC80
•
•
•
•
•
•
•
Speedlite
Transmitter
ST-E2
High-Power
Flash
HF-DC1
High-Power
Flash
HF-DC2
•
•
•
•
AVC-DC400ST
•
•
•
•
AVC-DC400ST
•
•
•
AVC-DC400ST
AVC-DC400ST
AVC-DC400ST
•
•
LH-DC90
POWERSHOT
Cases
•
LH-DC60
AVC-DC400ST
AVC-DC400
AVC-DC400
•
AVC-DC400
•
AVC-DC400ST
AVC-DC400
AVC-DC400
AVC-DC400
•
•
•
•
•
•
•
•
Remarks
22
usa.canon.com/powershot
23
See what’s new on a
daily basis, and more.
facebook.com/CanonUSA
Stay up to date on the
latest videos from Canon.
youtube.com/CanonUSA
Follow us for news, product
launches, events and more.
twitter.com/CanonUSAimaging
Certain images and effects simulated. All data are based on Canon’s Standard
Test Method. Specifications and availability are subject to change without
notice. Weight and dimensions are approximate. Not responsible for
typographical errors.
©2014 Canon U.S.A., Inc. All rights reserved. Canon, the DiG!C logo, ELPH,
EOS, EOS Rebel and PowerShot are registered trademarks of Canon Inc.
in the United States and may also be registered trademarks or trademarks in
other countries. HDMI, the HDMI logo and High-Definition Multimedia Interface
are registered trademarks or trademarks of HDMI Licensing, LLC in the
United States and/or other countries. Wi-Fi and the Wi-Fi CERTIFIED logo are
registered trademarks of the Wi-Fi Alliance. The N Mark is a trademark or
registered trademark of NFC Forum, Inc. in the United States and in other
countries. Facebook is a trademark of Facebook Inc. Twitter is a registered
trademark of Twitter, Inc. Android and YouTube are trademarks of Google Inc.
iOS is a trademark or registered trademark of Cisco in the U.S. and other
countries and is used under license. All other product names, brand names
and logos are trademarks or service marks of their respective owners.
Canon makes no representations or warranties with respect to any third party
accessory or product mentioned herein.
Use of genuine Canon accessories is recommended; these products are
designed to perform optimally when used with genuine Canon accessories.
1-800-OK-CANON
Canon U.S.A., Inc.
One Canon Park
Melville, NY 11747 U.S.A.
Canon Hollywood
Professional Technology and Support Center
6060 Sunset Boulevard
Los Angeles, CA 90028 U.S.A.
Canon Canada, Inc.
6390 Dixie Road
Mississauga, Ontario L5T 1P7 Canada
Canon Latin America, Inc.
One Canon Park
Melville, NY 11747 U.S.A.
Canon Mexicana, S. de R.L. de C.V.
Blvd. Manuel Ávila Camacho No. 138, Piso 17
Col. Lomas de Chapultepec
C.P. 11000 México, D.F. México
Warning: Unauthorized recording of copyrighted materials may infringe on
the rights of copyright owners and be contrary to copyright laws.
0190W469 10/14
usa.canon.com/consumer
©2014 CANON U.S.A., INC. ALL RIGHTS RESERVED.
PRINTED IN U.S.A.
