Canon PowerShot SD20 User's Manual

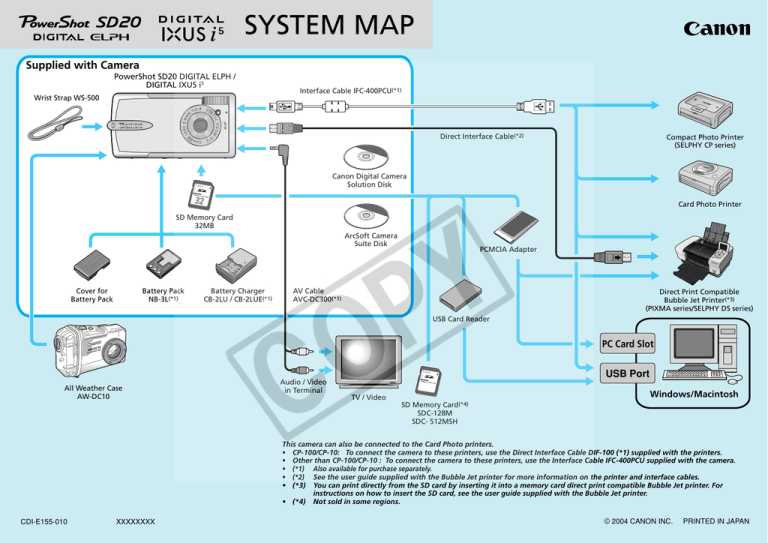

SYSTEM MAP
Supplied with Camera
PowerShot SD20 DIGITAL ELPH /
DIGITAL IXUS i5
Interface Cable IFC-400PCU(*1)
Wrist Strap WS-500
Direct Interface Cable(*2)
Compact Photo Printer
(SELPHY CP series)
Canon Digital Camera
Solution Disk
Card Photo Printer
SD Memory Card
32MB
ArcSoft Camera
Suite Disk
Battery Pack
NB-3L(*1)
Cover for
Battery Pack
Battery Charger
CB-2LU / CB-2LUE(*1)
PCMCIA Adapter
AV Cable
AVC-DC300(*1)
Direct Print Compatible
Bubble Jet Printer(*3)
(PIXMA series/SELPHY DS series)
USB Card Reader
PC Card Slot
USB Port
All Weather Case
AW-DC10
Audio / Video
in Terminal
Windows/Macintosh
TV / Video
SD Memory Card(*4)
SDC-128M
SDC- 512MSH
This camera can also be connected to the Card Photo printers.
• CP-100/CP-10: To connect the camera to these printers, use the Direct Interface Cable DIF-100 (*1) supplied with the printers.
• Other than CP-100/CP-10 : To connect the camera to these printers, use the Interface Cable IFC-400PCU supplied with the camera.
• (*1) Also available for purchase separately.
• (*2) See the user guide supplied with the Bubble Jet printer for more information on the printer and interface cables.
• (*3) You can print directly from the SD card by inserting it into a memory card direct print compatible Bubble Jet printer. For
instructions on how to insert the SD card, see the user guide supplied with the Bubble Jet printer.
• (*4) Not sold in some regions.
CDI-E155-010
XXXXXXXX
© 2004 CANON INC.
PRINTED IN JAPAN
Confirming the Package Contents
Your camera package includes all of the
following items. If any of these items are missing,
please contact the dealer for assistance.
• Digital Camera
• Wrist Strap WS-500
• Battery Charger CB-2LU/CB-2LUE
• Battery Pack NB-3L
• Cover for Battery Pack
• SD Memory Card (32MB)
• Interface Cable IFC-400PCU
• AV Cable AVC-DC300
• Canon Digital Camera Solution Disk
• ArcSoft Camera Suite Disk
• Quick Start Guide
• Camera User Guide
• Direct Print User Guide
• Software Starter Guide
• “For Windows® XP and Mac OS X Users” Leaflet
• System Map (this sheet)
• “Canon Customer Support” Leaflet
• Warranty Card
Optional Accessories
Direct Print Compatible Printers
The following camera accessories are sold separately.
Some accessories are not sold in some regions.
Power Supplies
• Battery Charger CB-2LU/CB-2LUE
An adapter for charging Battery Pack NB-3L.
• Battery Pack NB-3L
Rechargeable lithium-ion battery.
Connection Accessories
These connection accessories can be used with
computers equipped with the following OS.
Windows: Systems running preinstalled
Windows 98 Second Edition (SE)
only, Windows Me, Windows 2000
Service Pack 4 only, or Windows XP
(including Service Pack 1).
Macintosh: Mac OS X (v10.1.5 – v10.3)*
* Only systems equipped with genuine
built-in USB interfaces.
• Interface Cable IFC-400PCU
Use this cable to connect the camera to a
computer, Compact Photo Printer (SELPHY
series), Card Photo Printer (other than CP100/CP-10), or to a Bubble Jet printer (refer to
your Bubble Jet printer user guide).
Other Accessories
• SD Memory Card
SD memory cards are used to store images
recorded by the camera.
Canon brand cards are available in 128 MB
and 512 MB capacities.
• AV Cable AVC-DC300
Use this cable to connect the camera to a TV
set.
• All Weather Case AW-DC10
A waterproof case for the PowerShot SD20
DIGITAL ELPH / DIGITAL IXUS i5.
You can use this case to take underwater
shots at depths of up to 3 meters (9.8 feet),
and of course it’s ideal for taking worry-free
pictures in the rain, at the beach, or on the
ski slopes.
Canon offers the following separately sold
printers for use with the camera. You can
produce photo quality prints quickly and easily
by connecting them to the camera with a
single cable and operating the camera’s
controls.
• Compact Photo Printers (SELPHY series)
• Card Photo Printers
• Bubble Jet Printers
For more information, visit your nearest Canon
retailer.
