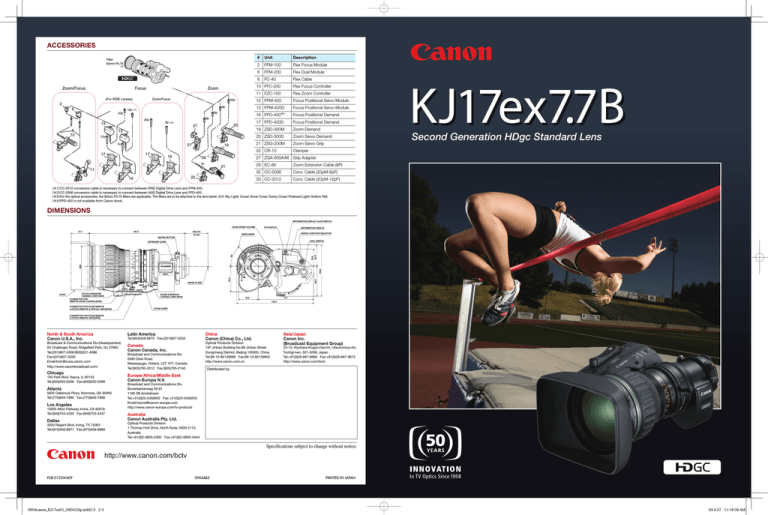

ACCESSORIES
'JMUFS
NN1
3
'PDVT
;PPN'PDVT
;PPN
'PS*34&-FOTFT
;PPN'PDVT
Q
Q
Q 1
Q
Q
Q
Q
Q
2
#
Unit
Description
2
FFM-100
Flex Focus Module
6
FFM-200
Flex Dual Module
8
FC-40
Flex Cable
10 FFC-200
Flex Focus Controller
11 FZC-100
Flex Zoom Controller
12 FPM-420
Focus Positional Servo Module
13 FPM-420D
Focus Positional Servo Module
16 FPD-400※4
Focus Positional Demand
17 FPD-400D
Focus Positional Demand
19 ZSD-300M
Zoom Demand
20 ZSD-300D
Zoom Servo Demand
21 ZSG-200M
Zoom Servo Grip
22 CR-10
Clamper
27 ZGA-500A/M
Grip Adapter
28 EC-80
Zoom Extension Cable (8P)
32 CC-2006
Conv. Cable (20pM-6pF)
33 CC-2012
Conv. Cable (20pM-12pF)
KJ17ex7.7B
Second Generation HDgc Standard Lens
(※1)CC-2012 conversion cable is necessary to connect between IRSE Digital Drive Lens and FPM-420.
(※2)CC-2006 conversion cable is necessary to connect between IASE Digital Drive Lens and FPD-400.
(※3)For the optical accessories, the 82mm P0.75 filters are applicable. The filters are to be attached to the lens barrel. (UV/ Sky Light/ Cross/ Snow Cross/ Sunny Cross/ Polarized Light/ Softon/ ND)
(※4)FPD-400 is not available from Canon stock.
DIMENSIONS
INFORMATION DISPLAY On/Off SWITCH
ZOOM SPEED VOLUME
197.8
37.7
MACRO BUTTON
48±0.03
(in air)
VTR SWITCH
INFORMATION DISPLAY
DIGITAL FUNCTION SELECTOR
INDEX MARK
AUX1 SWITCH
106.6
FOCUS OPERATION
CHANGE−OVER KNOB
ZOOM OPERATION
CHANGE−OVER KNOB
CONNECTOR FOR
REMOTE ZOOM CONTROL(8PIN)
62.3
52.9
IMAGE PLANE
HOOD
35.6
44.3
45°
131
60
30
16 11 8 5.6 4 2.8 1.8
15
C
7.7
2 2.5 3
0.6 0.7 0.8
1.0
85
4.5 6
12 50 ft
1.3 1.7 2.5 4 7 ∞ m
EXTENDER LEVER
40.6
115
159.3
CONNECTOR FOR ZOOM REMOTE
& FOCUS REMOTE & VIRTUAL UNIT(20PIN)
ZOOM LEVER
CONNECTOR FOR ZOOM REMOTE
& FOCUS REMOTE UNIT(20PIN)
North & South America
Canon U.S.A., Inc.
Latin America
China
Canon (China) Co., Ltd.
Tel:(954)349-6975 Fax:(201)807-3333
Broadcast & Communications Div.(Headquarters)
65 Challenger Road, Ridgefield Park, NJ 07660
Tel:(201)807-3300/(800)321-4388
Fax:(201)807-3333
Email:bctv@cusa.canon.com
http://www.canonbroadcast.com/
Chicago
100 Park Blvd. Itasca, IL 60143
Tel:(630)250-6236 Fax:(630)250-0399
Atlanta
5625 Oakbrook Pkwy. Norcross, GA 30093
Tel:(770)849-7890 Fax:(770)849-7888
Los Angeles
15955 Alton Parkway lrvine, CA 92618
Tel:(949)753-4330 Fax:(949)753-4337
Dallas
3200 Regent Blvd. lrving, TX 75063
Tel:(972)409-8871 Fax:(972)409-8869
Optical Products Division
15F Jinbao Building No.89 Jinbao Street
Dongcheng District, Beijing 100005, China
Tel:86-10-85139999 Fax:86-10-85139902
http://www.canon.com.cn
Canada
Canon Canada, Inc.
Broadcast and Communications Div.
6390 Dixie Road
Mississauga, Ontario, L5T 1P7, Canada
Tel:(905)795-2012 Fax:(905)795-2140
Asia/Japan
Canon Inc.
(Broadcast Equipment Group)
23-10, Kiyohara-Kogyo-Danchi, Utsunomiya-shi,
Tochigi-ken, 321-3298, Japan
Tel:+81(0)28-667-8669 Fax:+81(0)28-667-8672
http://www.canon.com/bctv
Distributed by
Europe/Africa/Middle East
Canon Europa N.V.
Broadcast and Communications Div.
Bovenkerkerweg 59-61
1185 XB Amstelveen
Tel:+31(0)20-5458905 Fax:+31(0)20-5458203
Email:tvprod@canon-europe.com
http://www.canon-europe.com/tv-products
Australia
Canon Australia Pty. Ltd.
Optical Products Division
1 Thomas Holt Drive, North Ryde, NSW 2113,
Australia
Tel:+61(0)2-9805-2000 Fax:+61(0)2-9805-2444
Specifications subject to change without notice.
http://www.canon.com/bctv
PUB.0132W409
0904canon_KJ17ex01_090422ip.indd2-3 2-3
0904AB5
PRINTED IN JAPAN
09.4.27 11:18:38 AM
Cost Effective HDTV Standard Lens
KJ17ex7.7B
Enhanced Digital Drive Unit
Newly Designed Ergonomic Drive Unit
Short M.O.D. 0.6m
(10mm with Macro)
New Rubber Roller
Information Display
Canon’s Philosophy :
Canon has always developed new technology with four basic philosophies, "High Quality of Picture", "Ease of
Operation", "High Specification" and "Minimize Environmental Impact". Canon's HDTV lenses are, so to speak,
a compilation of our basic philosophies. Now, Canon reassembles these philosophies in the launching of a
second generation HDgc lens series.
Zoom Speed Volume
in New Location
Canon’s 2nd Generation HDgc Series
New Rubber Grip
Support
The emergence of a new generation of cost-effective HDTV acquisition systems
spurred Canon to create a new category of portable lenses to better match the
price performance ratio of these cameras. This led to the introduction in 2006 of
the new HDgc lens series. Specifically targeted for HD ENG, these lenses retained the
optomechanical robustness and ergonomics of the high-end HDxs lens series as well
as the same digital drive units. Canon mobilized contemporary design tools and optical
materials that facilitated a significant cost reduction while still maintaining an impressive
overall HD imagining performance. In recognition of the continuing introduction of new improved 2/3-inch HD
acquisition systems and supported by a global experience, Canon is now introducing a second generation HDgc that
reflects further design optimizations. The first of these new lenses is the KJ17ex7.7B.
Main Features
Powerful ENG Lens for Cost Effective HD Productions
With the introduction of miniature 16-bit high resolution
Rotary Encoder Devices into the enhanced digital drive
unit, the lens features;
• Superior precision lens control.
• Precise repeatability in zoom, focus and iris control which
supports the creative digital operational functions.
• Simple integration into virtual digital studio systems
without any options.
• Dynamic zoom speed range of 0.5 sec. to over a 5
min. super slow zoom.
Moreover, Canon’s original Information Display is able
to customize the enhanced digital functions much more
easily and precisely.
(0.5sec-5min from wide end to tele end)
Newly Designed Hood Cover
Exceptional High Optical Performance
High MTF, Minimized Chromatic Aberrations and Countermeasures
against Ghosting and Flares
Shuttle Shot
By memorizing any two focal lengths, the Digital
Drive can automatically "shuttle" between the two
points, moving in either direction.
Frame Preset
An angle of view can be preset in either of two
memories and the lens will zoom at the highest speed
or in a preset zoom speed to the preset position by
pushing a simple button.
Improved Optical Performance
Starting Point
Frame 1
Frame 2
Information Display
KJ17ex7.7B
16:9
Coupled with innovations in optical performance, is a totally new design of the digital drive unit.
Refined by long-term market research and worldwide experience, Canon utilized the latest in 3D
CAD-CAM design to significantly improve the human tactile interface to the control of zoom, iris,
and focus. Canon’s research produced the following physical enhancements:
Built-in extender
1.0x
4:3
2.0x
Zoom Ratio
Ergonomic Design
Maximum Relative Aperture
a
b
Angular Field of View
15.4−262mm
7.7−131mm
15.4−262mm
1:1.8 at 7.7−102.5mm
1:2.3 at 131mm
1:3.6 at 15.4−205.0mm
1:4.6 at 262mm
1:1.8 at 7.7−102.5mm
1:2.3 at 131mm
1:3.6 at 15.4−205.0mm
1:4.6 at 262mm
63.9˚×38.6˚ at 7.7mm
4.20˚×2.36˚ at 131mm
34.6˚×19.9˚ at 15.4mm
2.10˚×1.18˚ at 262mm
59.5˚×46.4˚ at 7.7mm
3.85˚×2.89˚ at 131mm
31.9˚×24.2˚ at 15.4mm
1.92˚×1.44˚ at 262mm
Minimum Object Distance
Object Dimensions at M.O.D
0.6m(10mm with Macro)
68.5×38.5cm at 7.7mm
at 131mm
4.2×2.4cm
Approx. Size
The size and curvature size have been optimized
to more comfortably fit in the palm of the operator’
s hand(a). Newly developed coatings improve the
tactile interface between the user and the drive unit
(b) together with the new Rubber Grip Support (c).
2.0x
7.7−131mm
(M.O.D)
c
1.0x
17x
Range of Focal Length
0904canon_KJ17ex01_090422ip.indd4-5 4-5
Starting Point
SPECIFICATIONS
Improved Operability and Reduced Operator Fatigue
The spacing between the focus ring and drive unit
has been opened to avoid accidental interference
with the drive unit while manipulating the focus
control.
Preset Position
Zoom in same speed
Specially designed optical lens elements
By reducing the width of the drive unit, the palm of
the camera operator's hand is positioned closer to
the optical axis, thus reducing the degree of arm
bend which in turn lessens physical stress during
prolonged shooting.
Starting Point
Speed Preset
A specific zoom speed can be preset in memory and it
is possible to repeat the zoom speed as often as you
like by pushing a simple button.
Compared to its predecessor KJ16ex7.7B lens, the optical performance of the KJ17ex7.7B has
been improved on a number of fronts. Utilizing special optical materials such as “Fluorite” and
“Hi-UD” (high index ultra low dispersion) glasses, most of the lens elements and optical layout
were redesigned using Canon’s advanced computer-aided techniques to achieve a new level
of optimization. Of particular significance are improvements in monochromatic and chromatic
aberrations, producing enhanced image sharpness at picture center and picture extremities. New
aspheric lens element designs have helped to further diminish geometric distortion and flare.
Improved Ease of Operation
Dynamic Zoom Speed Range
Enhanced Digital Functions
The KJ17ex7.7B is specifically designed for users whose foremost priority is a lens that delivers
a generous range of focal lengths combined with a wide field of view in a lightweight mobile
package. The lens design is a fine compromise between the demands for ruggedness and mobility
in a handheld camera system and the high imaging performance requirements for HD News and
lower budget HD productions. An important aspect of this lens is the cost optimized design
concept. Customer recommendations combined with evolving optical design strategies and
materials produced a new definition in price performance ratio for HD ENG acquisition systems that
guided the design of the new KJ17ex7.7B.
Reduced Physical Stress
2.0x Extender
31.6×23.7cm at 15.4mm
at 262mm
1.9×1.5cm
W×H×L=159.3×106.6×197.8mm
Approx. Mass (IRSE/IASE)
KJ17ex7.7B IRSE……Zoom: Servo / Manual
KJ17ex7.7B IASE……Zoom: Servo / Manual
34.3×19.3cm at 15.4mm 63.1×47.3cm at 7.7mm
at 262mm 3.8×2.9cm
at 131mm
2.1×1.2cm
1.48Kg(3.26lbs)/1.56Kg(3.44lbs)
Focus: Manual
Focus: Servo / Manual
