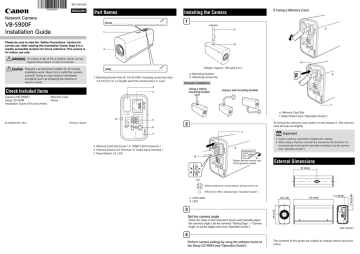

Canon VB-S900F Installation Guide

BIE-7003-000
ENGLISH
Part Names
Network Camera
Serial_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Installation Guide
1
a
1
Please be sure to read the “Safety Precautions” section for
correct use. After reading this Installation Guide, keep it in a
readily accessible location for future reference. This camera is
for indoor use only.
If Using a Memory Card
Installing the Camera
b
2
WARNING To reduce a risk of fire or electric shock, do not
expose this product to rain or moisture.
Caution Request a professional installer for all camera
installation work. Never try to install the camera
yourself. Doing so may result in unforeseen
accidents such as dropping the camera or
electric shock.
e
1. Mounting Screw Hole (A 1/4-20 UNC mounting screw less than
5.5 mm (2.2 in.) in length will fit the screw hole) / 2. Lens
Example installations
Using a ceiling
mounting bracket
4
Using a wall mounting bracket
Warranty Card
Notice
f
e. Memory Card Slot
f. Reset Switch (see “Operation Guide”)
6
To remove the memory card, push it in and release it. The memory
card will pop out slightly.
2
c
7
Important
•Insert a memory card before installing the camera.
•When using a memory card with the camera for the first time, it is
recommended to format the card after inserting it into the camera
(see “Operation Guide”).
3. Memory Card Slot Cover / 4. 100BT LAN Connector /
5. External Device I/O Terminal / 6. Audio Input Terminal /
7. Reset Switch / 8. LED
d
Please see the reverse side
of this guide for details.
External Dimensions
67 (2.64)
LED
: When powered on, during reboot, during normal use
: When [Turn Off] is selected (see “Operation Guide”)
c. LAN cable
d. LED
3
Set the camera angle
Check the video on the computer’s screen and manually adjust
the camera’s angle. Use the camera’s “Setting Page” > “Camera
Angle” to set the digital zoom (see “Operation Guide”).
32 (1.26)
114 (4.49)
11.4 (0.45)
13.6 (0.54)
5
Printed in Taiwan
54 (2.13)
8
© CANON INC. 2013
a. Mounting bracket
b. Mounting screw hole
3
Check Included Items
Camera (VB-S900F)
Setup CD-ROM
Installation Guide (This document)
Weight: Approx. 180 g (6.4 oz.)
MAC_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Unit : mm (in.)
4
Perform camera settings by using the software found on
the Setup CD-ROM (see “Operation Guide”).
The contents of this guide are subject to change without any prior
notice.
 External Device Output Terminals (OUT)
Specifications
Please refer to the installation procedures or Operation Guide for
specifications not listed below.
Camera
Lens
Viewing Angle
Fixed focal length lens (4x digital zoom)
Horizontal: 96.0°
Vertical: 60.5°
Interface
Network Terminal*
LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/
half-duplex)) * LAN cables are category 5 or
higher, with length 100 m or shorter.
Audio Input Terminal
3.5 mm ( 0.14 in.) mini-jack connector
(common for LINE IN & MIC IN) (monaural)
LINE IN x 1 (connect to an amplifier
microphone) or MIC IN x 1
External Device I/O Terminal
Input x 1, Output x 1
Memory Card
microSD Memory Card, microSDHC
Memory Card, microSDXC Memory Card
Compatible.
Others
Operating Environment
Temperature: -10°C – +50°C (+14°F –
+122°F)
Humidity: 5% – 85% (without condensation)
Storage Environment
Temperature: -30°C – +60°C (-22°F – +140°F)
Humidity: 5% – 90% (without condensation)
Power Supply
PoE: PoE power supply via LAN cable
(IEEE802.3af compliant)
Power ConsumptionMax. 4.3 W
Connecting the Camera
The external device output terminal consists of an OUT terminal and
a GND terminal. Controls from the viewer can be used to open and
close the circuit between the terminals. A MOSFET device is used
for the output terminal.
Rating range for load connected to output terminals.
Rating between output terminals:
Maximum voltage 50 V DC
Continuous load current at or below 100 mA
On resistance: Below 1 Ω
Adaptive wiring for external device cables
Rating Range: (same for contact input and output)
Conductor Size: 0.42 – 0.80 mm ( 0.017 – 0.031 in.) dia.
(AWG: No. 26 – 20)
Stripped cable length should be approximately 11 – 13 mm (0.43 –
0.51 in.)
Note
Power Supply
Internal Connection Diagram
See “Specifications” > “Others” > “Power Supply”.
1 kΩ
10 kΩ
•Check with your dealer for more information about PoE devices.
•Some PoE devices allow current limits for each port, but applying
limits may interfere with performance. If using this type of PoE
device, do not limit the operating current.
•Some PoE devices have total consumption current limits for ports,
which can interfere with performance when multiple ports are in use.
For more information, check the instruction guide for your PoE
device.
External Device I/O Terminals
 External Device Input Terminals (IN)
The external device input terminal consists of a positive terminal
(IN) and negative terminal (GND). Connecting cables to the
positive and negative terminals and opening or closing the circuit
notifies the Viewer.
Important
When connecting sensors and switches, use those that have terminals
which are isolated from internal power and GND.
10 kΩ
IN
Internal controller
Important
This Installation Guide uses the following marks to indicate important
information the user should know in order to use the product safely.
In this section, explanations are provided for each mark so that
readers will understand the level of importance for each. Be sure to
observe these items.
Warning
Failure to follow the instructions
accompanied by this symbol may result in
death or serious injury.
Caution
Failure to follow the instructions accompanied
by this symbol may result in injury.
Caution
Important
Note
•The External Device I/O Terminal consists of three terminals (IN, OUT,
and GND). The GND terminal serves as both the external device input
GND and the external device output GND.
•The GND terminal is connected to the camera interior GND.
•When using the external device input and output at the same time,
couple the GND wire from the input cable with the GND wire from the
output cable, conforming to the rating range, and connect it to the
GND terminal.
•Do not push the external device I/O terminal button with too much
force. Doing so may cause the button to remain pushed-in.
0.1 µF
Input terminal
GND
OUT
Output terminal
GND
Audio Input Terminals
Camera has single audio input system supporting two types of
microphone input: LINE IN and MIC IN. Before use, change [Audio
Input] on the Setting Page (see “Operation Guide”). LINE IN is
selected by default.
•Dynamic MIC IN
Input impedence: 20 kΩ – 40 kΩ
•Condenser MIC IN
Input impedence (microphone bias resistance): 2.2 kΩ ±20%
Microphone power supply: plug-in power (voltage: 2.3 V)
*Supported microphones: Condenser microphones with plug-in
power support
•LINE IN
Input level: up to 1 Vp-p
* Use a microphone with an amplifier.
Caution
Symbols Indicating Safety Precautions
Failure to follow the instructions accompanied
by this symbol may result in property damage.
This symbol indicates important or
restricted items.
Contains reference information for
operation or additional explanations.
Safety Precautions
Installation Precautions
Warning
Do not install in the following places:
•Places in strong direct sunlight, near heat-generating
objects, or subject to high temperatures
•Places near fire sources or flammable solvents (alcohol,
thinner, fuel, etc.)
•Humid or dusty places
•Places subject to oily smoke or steam
•Places subject to sea air
•Confined or enclosed places
Fire or electric shock may result.
Precautions for the LAN (power) cable:
•Do not set any heavy objects on the LAN cable.
•Do not pull, forcibly bend, scratch, or modify the LAN cable.
Fire or electric shock may result.
Caution
For installation or inspection of this camera, consult the
dealer where you purchased the product.
•This installation should be made by a qualified service
person and should conform to all local codes.
•When installing on a ceiling, make sure the surface is capable
of withstanding the total weight of the ceiling mount cover
and the camera, and is sufficiently reinforced if necessary.
•Be sure to use installation screws designed for the type of
ceiling the camera is to be installed.
•Periodically check the parts and screws for rust and to
see if they have loosened, in order to prevent injuries and
equipment damage due to falling items.
•Do not install in unstable places, places subject to
significant vibration or impact, or places subject to salt
damage or corrosive gas.
Failure to do so may result in the camera falling or other
accidents.
•Be careful not to trap your fingers during installation of the
camera.
Injury may result.
•Do not install the camera on an unstable or inclined
surface.
•After turning off the power, do not turn the power on again
for at least 5 seconds.
•Take measures to remove static electricity before
performing any procedures.
Malfunction may result.
•Take care not to damage wiring or pipes in the room.
Damage to peripheral items may result.
Precautions for Use
Warning
•If you discover defective conditions such as smoke,
strange sounds, heat or strange odors, immediately stop
using the camera and contact your nearest dealer.
Fire or electric shock may result from continued use of the
product.
•Do not disassemble or modify the camera.
•Do not damage the connecting cable.
•Do not spill water or other liquid inside the camera, spray
the camera with water, or otherwise make it wet.
•Do not insert foreign objects into the camera.
•Do not use flammable sprays near the camera.
•Do not leave LAN cables connected when the camera is
not in use for long periods.
•Do not use flammable solvents such as alcohol, paint
thinner or benzine when cleaning the camera.
Fire or electric shock may result.
Only for European Union and EEA (Norway, Iceland and
Liechtenstein)
These symbols indicate that this product is
not to be disposed of with your household
waste, according to the WEEE Directive
(2012/19/EU), the Battery Directive
(2006/66/EC) and/or national legislation
implementing those Directives.
If a chemical symbol is printed beneath the symbol shown
above, in accordance with the Battery Directive, this indicates
that a heavy metal (Hg = Mercury, Cd = Cadmium, Pb = Lead)
is present in this battery or accumulator at a concentration
above an applicable threshold specified in the Battery
Directive.
This product should be handed over to a designated collection
point, e.g., on an authorized one-for-one basis when you buy
a new similar product or to an authorized collection site for
recycling waste electrical and electronic equipment (EEE) and
batteries and accumulators. Improper handling of this type of
waste could have a possible impact on the environment and
human health due to potentially hazardous substances that are
generally associated with EEE. Your cooperation in the correct
disposal of this product will contribute to the effective usage of
natural resources.
For more information about the recycling of this product, please
contact your local city office, waste authority, approved scheme
or your household waste disposal service or visit www.canoneurope.com/weee, or www.canon-europe.com/battery.
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
CANON EUROPA N.V.
Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands
