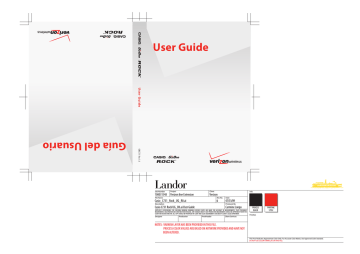

TM
User Guide
TM
User Guid e
OMC731 Ver.1.0
TM
Job Number
Project
100031348 Verizon line Extension
Client
Inks
Verizon
Rev No.
File Name
Casio_C731_Rock_UG_R0.ai
0
Description
Date
07/31/09
Produced By
Casio C731 Rock UG_R0.ai User Guide
Carmine Longo
SUPPLIER IS RESPONSIBLE FOR CHECKING WORKING DRAWINGS BEFORE PLATES ARE MADE FOR ACCURACY IN MEASUREMENTS, PLATE TOLERANCE
REQUIREMENTS, REGISTRATION AND CONSTRUCTION DETAILING. ANY CHANGES MADE TO SUIT PRODUCTION REQUIREMENTS SHOULD BE APPROVED BY BOTH THE
CLIENT AND DESIGN DIRECTOR. ALL COPY SHOULD BE PROOFREAD BY CLIENT AND LEGAL REQUIREMENTS CHECKED BY CLIENT’S LEGAL DEPARTMENT.
Designer
Production
Proofreader
Client Services
PROCESS
BLACK
PANTONE
1795C
Finishes
NOTES: VARNISH LAYER HAS BEEN PROVIDED IN THIS FILE.
PROCESS COLOR VALUES ARE BASED ON ARTWORK PROVIDED AND HAVE NOT
BEEN ALTERED.
This Proof Indicates Approximate Color Only. For Accurate Color Match, Use Approved Color Standard.
DO NOT USE COLOR FORMULAS ON THIS FILE.
Guía del Usuario
Contents
Getting Started with Your Phone ............................ 4
Phone Overview...........................................................................4
Menu Overview ............................................................................9
Icon Reference ..........................................................................13
Feature Overview .......................................................................17
The Battery ................................................................................21
Turning the Phone On and Off ...................................................27
Making a call .............................................................................27
Answering a call ........................................................................28
Menu Access .............................................................................28
Using a Memory Card ...............................................................29
Connecting to the Headset Jack ...............................................33
Quick Access to Convenient Features ................. 34
Vibrate Mode .............................................................................34
Mute Function ............................................................................34
Volume Quick Adjustment .........................................................34
Speakerphone ...........................................................................35
Flashlight ...................................................................................35
Motion Detection........................................................................35
Touch Keys ................................................................................37
Entering and Editing Information.......................... 38
Text Input ...................................................................................38
Text Input Modes .......................................................................39
RECENT CALLS ....................................................... 42
Accessing the Recent Calls submenu ......................................42
Making a Call from Recent Calls ...............................................43
Viewing Recent Call History ......................................................43
View Timers................................................................................44
CONTACTS .............................................................. 45
Adding a new Contact from idle mode ......................................45
Adding a Phone Number to an Existing Contact .......................47
Phone Numbers with Pauses.....................................................48
Accessing the Contacts submenu ............................................49
1
Contents
New Contact ..............................................................................49
Contact List................................................................................50
Groups .......................................................................................52
New PTT Contact .......................................................................53
PTT Contact List ........................................................................53
PTT Groups ................................................................................54
Temp PTT Group ........................................................................55
Backup Assistant .......................................................................56
Speed Dials ...............................................................................56
In Case of Emergency (ICE) ......................................................59
My Name Card...........................................................................60
Push to Talk .............................................................61
About Push to Talk .....................................................................61
Making a PTT Call......................................................................62
Incoming PTT Call .....................................................................65
MEDIA CENTER ....................................................... 67
Music & Tones ...........................................................................67
Picture & Video ..........................................................................73
Games .......................................................................................86
Mobile Web ................................................................................86
Browse & Download ..................................................................87
Extras .........................................................................................88
Info .............................................................................................88
MESSAGING ............................................................ 89
Accessing the Messaging submenu .........................................89
New Message Alert ...................................................................89
New Message ............................................................................89
Inbox ..........................................................................................94
Sent............................................................................................96
Drafts .........................................................................................97
Voicemail ...................................................................................98
Mobile IM ...................................................................................98
Email ..........................................................................................98
Chat ...........................................................................................99
2
Message Settings ......................................................................99
Message Erase ........................................................................101
SETTINGS & TOOLS ..............................................102
My Verizon ...............................................................................102
Tools.........................................................................................102
USB Mass Storage ..................................................................111
G’zGEAR™ ..............................................................................112
Bluetooth..................................................................................121
Keyguard Settings ...................................................................127
Sounds Settings.......................................................................128
Display Settings .......................................................................132
Phone Settings.........................................................................139
Call Settings.............................................................................149
Memory ....................................................................................153
USB Mode ...............................................................................155
Phone Info................................................................................156
Set-up Wizard ..........................................................................158
Safety .................................................................... 160
TIA Safety Information .............................................................160
Safety Information for FCC RF Exposure .................................163
FDA Information .......................................................................166
Emergency Calls .....................................................................174
Compliance with Other FCC Regulations ................................176
General Safety .........................................................................176
Games .....................................................................................182
Camera ....................................................................................183
Accessibility.............................................................................184
RECYCLE YOUR CELL PHONE! .............................................188
12 MONTH LIMITED WARRANTY ......................... 190
Index...................................................................... 194
3
Getting Started with Your Phone
Getting Started with Your Phone
Phone Overview
1. Earpiece
2. Main Display
11. Directional Key
12. Center Select Key
3. Microphone
13. Right Soft Key
4. Left Soft Key
14. Speakerphone/
5. Camera/Video Key
Flashlight Key
6. Send Key
15. End/Power Key
7. Voicemail Key
16. Alphanumeric
8. Clear/Voice
Commands Key
Keypad
17. Vibrate Mode Key
9. Shift Key
10. Next Key
18. One-touch Open Button
19. Charging Terminals
21. Headset Jack
22. Top Side Key/
PTT Key
20. Charging/Data Port
23. Volume Keys
24. Bottom Side Key
4
25. Speaker
27. Front Display
28. Rewind Key
30. Secondary
Microphone
31. Fast Forward Key
32. Play/Pause Key
29. Temperature
Sensor
Getting Started with Your Phone
26. Charge Indicator
33. Internal Antenna
Area*
34. Camera/
Camcorder Lens
35. Screw Type
37. Camera Flash/
Flashlight
Battery Cover
Lock
38. Memory Card Slot
36. Battery Cover
33. Internal Antenna
Area*
* For best performance, do not touch these areas when using your
handset.
5
1. Earpiece
2. Main Display
Getting Started with Your Phone
3. Microphone
4. Left Soft Key
Press to display the Messaging menu, or to access the function
listed above the key.
5. Camera/Video Key
With the flip open, press to access the built-in camera. Press and
hold to access the camcorder.
6.
Send Key
Press to place or answer a call, or from idle mode press to access
the All Calls list.
7. Voicemail Key
From idle mode, press and hold to connect to your voicemail.
8. Clear/Voice Commands Key
From idle mode, press to access Voice Commands or press and
hold to access the Sound Recorder function. When entering text
or a phone number, press to delete a single space or character, or
press and hold to delete an entire word. Within a menu, press to
return to the previous menu.
9. Shift Key
Press to enter an asterisk (*) character for calling features. When
entering text, press to change the character input type. When
making an international call, press and hold to enter a “+” sign for
international dialing.
10. Next Key
In T9 Word mode, press to display other matching words.
11. Directional Key
Allows you to scroll through phone menu options and provides a
shortcut to phone functions from idle mode.
6
12. Center Select Key
Press to access the MENU in idle mode. It also allows you to
accept choices when navigating through a menu.
Press to display Contacts, or to access the function listed above
the key.
14. Speakerphone/Flashlight Key
From idle mode, press to turn the Speakerphone on or off. Press
and hold to activate/dectivate the Flashlight.
15.
End/Power Key
Press and hold to turn your handset on/off or press to end a call or
Getting Started with Your Phone
13. Right Soft Key
browser session. Within a menu, press to return to idle mode.
16. Alphanumeric Keypad
Use to enter numbers, letters and symbols, and to select menu
items.
17. Vibrate Mode Key
From idle mode, press and hold to activate/deactivate vibrate
mode. Press to enter the (#) character for calling features. In text
entry mode, press and hold to accept a word and add a space.
18. One-touch Open Button
Push to open up the flip when it is closed.
19. Charging Terminals
20. Charging/Data Port
Plug in the Wall Charger or USB Cable (sold separately).
21. Headset Jack
2.5mm connector port
22. Top Side Key/PTT Key
In PTT Mode, press to access the PTT Contact List or press and
hold to make a PTT Call. When not in PTT Mode, press to access
the selected shortcut application.
7
23. Volume Keys
From idle mode with the flip open, press to adjust the master
Getting Started with Your Phone
volume. During a call, press to adjust voice volume.
24. Bottom Side Key
From idle mode, press to launch the G’zGEAR™ application.
25. Speaker
26. Charge Indicator
Appears red when charging. When charging completes, the red
indicator turns off.
27. Front Display
28.
Rewind Key
With the flip closed and music playing, touch and hold to rewind
music. Tap to go to a previous song.
29. Temperature Sensor
30. Secondary Microphone
31.
Fast Forward Key
With the flip closed and music playing, touch and hold to fast
forward music. Tap to go to the next song.
32.
Play/Pause Key
With the flip closed and music playing, tap to play or pause a
song.
33. Internal Antenna Area
34. Camera/Camcorder Lens
35. Screw Type Battery Cover Lock
36. Battery Cover
37. Camera Flash/Flashlight
38. Memory Card Slot
Insert a microSD™ memory card (purchased separately) to
increase memory capacity.
8
Menu Overview
Contacts
Recent Calls
1. Missed
2. Contact List
2. Received
3. Groups
3. Dialed
4. New PTT Contact*
4. Blocked***
5. PTT Contact List*
5. All
6. PTT Groups*
6. View Timers
7. Backup Assistant
8. Speed Dials
9. In Case of Emergency
My Ringtones
Getting Started with Your Phone
1. New Contact
1. Get New Applications
10. My Name Card
Media Center
Messaging
1. New Message
2. Inbox**
1. Music & Tones
1. V CAST Music |
Rhapsody
3. Sent**
2. Get New Ringtones
4. Drafts
3. My Ringtones
5. Voicemail
4. My Music
6. Mobile IM
5. My Sounds
7. Email
8. Chat
6. Sync Music
2. Picture & Video
1. V CAST Videos
* These options are available only when the PTT feature is turned on.
** When By Contacts is selected for Messages View in Message
Settings, the Messages folder will appear in the Messaging
submenu instead of the Inbox folder and Sent folder.
*** Blocked appears only when Contacts Only or Block All is selected
for Calls under MENU > Settings & Tools > Phone Settings >
Security > Restrictions > Calls > Incoming Calls.
9
2. Get New Pictures
3. My Pictures
Getting Started with Your Phone
4. My Videos
5. Take Picture
9. USB Mass Storage
10. G’zGEAR
3. Bluetooth
1. Add New Devices
6. Record Video
4. Keyguard Settings
7. Online Album
1. Keyguard Timer
3. Games
1. Get New Applications
2. Unlock Options
5. Sounds Settings
4. Mobile Web
1. Easy Set-up
5. Browse & Download
2. Call Sounds
1. Get New Applications
6. Extras
1. Get New Applications
1. Call Ringtone
2. Call Vibrate
3. Caller ID Readout
3. Alert Sounds
My Pictures
1. TXT Message
2. Media Message
VZ Navigator
3. Voicemail
4. Emergency Tone
Bluetooth
1. Add New Devices
5. Missed Call
6. PTT Alert
4. Keypad Volume
Settings & Tools
1. My Verizon
2. Tools
1. Voice Commands
2. Calculator
3. Calendar
6. Service Alerts
1. ERI
2. Minute Beep
3. Call Connect
7. Power On/Off
4. Alarm Clock
1. Power On
5. Stop Watch
2. Power Off
6. Countdown Timer
7. World Clock
8. Notepad
10
5. Digit Dial Readout
6. Display Settings
5. Location
1. Easy Set-up
6. Current Country
2. Banner
7. Security
2. ERI Banner
3. Backlight
1. Display
2. Keypad
4. Wallpaper
1. My Pictures
2. My Videos
3. Fun Animations
5. Display Themes
6. Main Menu Settings
1. Menu Layout
1. Edit Codes
1. Phone Only
2. Calls & Services
2. Restrictions
1. Location Setting
2. Calls
3. Messages
4. Dial-Up Modem
3. Phone Lock Setting
4. Lock Phone Now
5. Restore Phone
8. System Select
2. Replace Menu Items
9. NAM Selection
3. Position Menu Items
10. Motion Detection
4. Reset Menu Settings
1. G’zGEAR
7. Dial Fonts
2. My Pics/Videos
8. Menu Font Size
3. Music Play
9. Clock Format
1. Main Clock
2. Front Clock
7. Phone Settings
1. Airplane Mode
2. Set Shortcuts
4. Rotation Silencer
8. Call Settings
1. Answer Options
2. Auto Retry
3. TTY Mode
4. One Touch Dial
1. Set My Shortcuts
5. Voice Privacy
2. Set Directional Keys
6. PC Connections
3. Set Side Keys
7. DTMF Tones
3. Voice Commands
Settings
Getting Started with Your Phone
1. Personal Banner
8. PTT Mode
9. Assisted Dialing
4. Language
11
9. Memory
1. Save Options
Getting Started with Your Phone
1. Pictures
2. Videos
3. Sounds
2. Phone Memory
1. Memory Usage
2. My Pictures
3. My Videos
4. My Ringtones
5. My Music
6. My Sounds
7. My Contacts
8. Move All To Card
3. Card Memory
10. USB Mode
11. Phone Info
1. My Number
2. SW/HW Version
3. Icon Glossary
4. Software Update
12. Set-up Wizard
12
Icon Reference
Screen Icons
When the handset is turned on, the top line of the main display
Digital indicator. Digital service is available.
3G service indicator. 3G service is available.
1x service indicator. 1x service is available.
Airplane Mode
Battery Strength indicator. Indicates battery level. The
more bars, the stronger the charge.
In Call State. A call is in progress.
* No icon shows when the handset is in idle mode.
Getting Started with Your Phone
displays icons indicating the status of the handset.
Data Session
Location On Mode
E911 Only Mode
No Service indicator.
Indicates the handset cannot receive a signal from the
system.
Voice Privacy
Roaming indicator. The handset is outside of the home
service area.
SSL (Secure Sockets Layer) is a protocol developed
by Netscape Communications that uses encryption to
secure data through the public Internet from client to
server.
TTY mode On
Indicates Bluetooth® mode is active.
Indicates Bluetooth® is connected to another device.
Bluetooth® Discovery Mode
Voice Commands (Active)
13
Voice Commands (Listening)
1x and PTT services are available.
Getting Started with Your Phone
3G and PTT services are available.
PTT in use. A PTT call is in progress.
Alarm Only
Vibrate Only
Sound Off
Appears when an alarm is set.
Appears when a Calendar event is set.
Indicates you have missed calls.
Indicates you have a new message.
Indicates you have a new voicemail.
Indicates Speakerphone mode is active.
Recent Call Icons
The following icons are displayed in the Recent Calls lists (Missed,
Received, Dialed, and All):
Indicates a dialed call.
Indicates a received call.
Indicates a missed call.
Mobile 1
2
Mobile 2
Home
Work
Email 1
Email 2
14
Group
Ringtone
AIM
Yahoo!
WL Messenger
Address
In Case of Emergency
Getting Started with Your Phone
IM Screen Name
Message Icons
The following icons are displayed in the Inbox message list:
New/Unread Text or Web Messages
Opened/Read Text or Web Messages
New/Unread Picture/Video/Voice Notifications
Opened/Read Picture/Video/Voice Notifications
Unread Downloaded Picture/Video/Voice Messages
Opened/Read Downloaded Picture/Video/Voice
Messages
Priority
Locked Messages
The following icons are displayed in the Sent message list:
Sent Messages
Delivered Messages
Sent failed Messages
Incomplete Delivery Messages
Pending Messages
15
The following icons are displayed in the Drafts message list:
Draft Text
Getting Started with Your Phone
Draft Pictures/Videos/Voices
PTT Screen Icons
The following icons are displayed on the incoming/outgoing PTT call
screen or the PTT calls in the Recent Calls list:
Received calls list - individual
Received calls list - group
Dialed calls list - individual
Dialed calls list - group
[Number of ] Missed calls
Connecting to [individual name]
Connected to [individual name]
Connecting to [group name]
Connected to [group name]
Talking to [individual name]
Talking to [group name]
Listening to [individual name]
Listening to [group name]
Alerting [individual name]
PTT Individual available
PTT Group available
PTT unavailable
16
Bluetooth ® Icons
When an audio device is paired with your handset
When a PDA is paired with your handset
When another handset is paired with your handset
When successfully connected, the following icons may appear:
When a headset is connected with your handset
When a device is paired with your handset
Getting Started with Your Phone
When a PC is paired with your handset
Feature Overview
Water Resistance
The ROCK™ is water resistant. It provides reliable performance for
outdoor activities, and in wet conditions such as driving rain or high
humidity.
The tested device meets the requirements of the MIL-STD-810F (Rain
& immersion 1m, 30min) standard.
Warning!
The Water Resistance feature does not guarantee protection
against the usage of this device under the water. Do not use the
handset under the water.
17
NOTE
To maintain water resistance:
Getting Started with Your Phone
• Securely fasten the Charging/Data Port cover and the Headset
Jack cover.
• Completely close the battery cover and rotate the screw type
battery cover lock to the LOCK position.
Shock Resistance
The rugged construction of the ROCK™ provides outstanding shock
and vibration resistance. The tested device meets the requirements of
the MIL-STD-810F (Drop 1.5m) standard.
Warning!
The shock and vibration resistance features do not guarantee
protection against every type of shock and vibration. Your handset
may be damaged or malfunction depending on the severity of
received shock or vibration.
Dust Resistance
For additional peace of mind, the ROCK™ is also dust resistant. The
device was tested using silica flour at a temperature of 95F and meets
the MIL-STD-810F (Dust) standard.
18
NOTES
• Your handset can be rinsed with clean water when dirty. To
ensure water resistance, make sure that all covers are securely
Terminals with a dry cloth or cotton swab. Dust may cause some
electrical connection problems. Avoid wiping with excessive
force, which can damage the terminals.
Battery
Charging Terminals
Getting Started with Your Phone
closed before rinsing.
• Periodically, clean the Charging Terminals and the Battery
Battery Terminals
Warning!
• Do not clean terminals inside the handset, or they may be
damaged.
• If mud or sand has adhered to the handset, do not use it until
wiping completely.
• Do not place the handset directly on a sand beach. If sand gets
into the Earpiece or Speaker, sounds may be difficult to hear.
Sand getting into the handset’s hinge can cause mechanical
failures such as heat generation.
19
One-touch Open Button
Pressing the One-touch Open Button with the flip closed opens the
Getting Started with Your Phone
flip.
One-touch Open Button
NOTES
• Release the One-touch Open Button as soon as you press it. If
you keep pressing the button, the flip may not be fully opened by
the friction between your finger and the button.
• Be sure to fully open the flip after opening it with the One-touch
Open Button. If you do not fully open the flip, it may be hard to
close.
Device Lock Tool
The screw type battery cover lock can be locked or unlocked
by inserting the tip of the corner of the Device Lock Tool into its
groove and rotating to the FREE position or the LOCK position. For
instructions on how to close or open the battery cover, see page 21.
Device Lock Tool
20
The Battery
The handset comes with a rechargeable battery.
• Use only approved batteries for the ROCK™. Wipe your handset
before opening the battery cover to prevent moisture or dust from
entering.
• Failure to follow the below directions for installing/removing the
battery could result in product failure.
• Fully charge the battery before using the handset for the first time.
Getting Started with Your Phone
Warning!
Installing the Battery
Warning!
Do not install the battery where water or liquid may fall directly on
the handset or battery or in a humid place such as a bathroom.
Otherwise, the electrical circuits may short or erode and cause the
handset to malfunction.
1. Insert the tip of the corner of the Device
Lock Tool into the groove of the screw type
battery cover lock and rotate in the direction
indicated . Rotate the screw type battery
cover lock as far as it will go towards the
FREE position.
2. Insert your finger in the groove and pull up
on the battery cover in the direction of the
arrow .
21
3. Slide the battery into the slot by aligning the
contacts and tabs and press down until
Getting Started with Your Phone
you hear the “click”.
4. Insert the battery cover tabs into the slots and press the battery cover in the direction of
the arrow .
5. Press down firmly on the side of the battery
cover at each arrow point, as shown to the
right.
6. Insert the tip of the corner of the Device Lock
Tool into the groove of the screw type battery
lock and rotate in the direction indicated .
Rotate the battery lock as far as it will go
towards the LOCK position.
22
Warning!
• Do not twist the battery cover as shown in
the figure to the right. Doing so can damage
the battery cover tabs running over the
handset because you may damage the
battery cover tabs.
• If you are using a wrist strap (sold separately), be careful not to
get it caught between the battery cover and the handset, in order
to maintain waterproofing.
Getting Started with Your Phone
the handset and the battery cover.
• Do not press hard on the battery cover with
Removing the battery
1. Insert the tip of the corner of the Device Lock
Tool into the groove of the screw type battery
cover lock and rotate in the direction indicated
. Rotate the screw type battery cover lock
as far as it will go towards the FREE position.
2. Insert your finger in the groove and pull up
on the battery cover in the direction of the
arrow .
3. Remove the battery by pulling up on the
tab .
23
Warning!
Do not leave the removed battery near heat sources such as
Getting Started with Your Phone
a flame, stove, or in direct sunlight. Otherwise, it may burst,
24
malfunction, or ignite -causing fire. Do not hit, or exert excessive
shock on the battery, as it can ignite or break.
Charging the Battery
To charge your battery:
1. Connect the Wall Charger to the Handset Charging Cradle
(included in box).
2. Plug the Wall Charger power plug into an electrical outlet.
3. Insert the handset into the Handset Charging Cradle.
Warning!
• Hold the Wall Charger power plug horizontally and carefully insert
it into the Handset Charging Cradle.
removing it from the Handset Charging Cradle,
hold the cradle steady as shown in the figure
to the right. Slide the handset along the guides
on the charging cradle’s back for support.
• The Charge Indicator turns red while
charging. Even if the handset is inserted
in the Handset Charging Cradle, the handset
Getting Started with Your Phone
• Whenever placing the handset into or
will not charge if the Charge Indicator does not illuminate. Firmly
insert the handset into the Handset Charging Cradle until you see
the Charge Indicator illuminate.
• Do not connect the Wall Charger to the Charging/Data Port when
a handset is charging in the charging cradle. Damage or
overheating may result.
Charging the battery by directly connecting the Wall
Charger
You can also charge the battery by directly connecting the Wall
Charger to the handset’s Charging/Data Port and plugging the power
plug into an electrical outlet.
1. To open the Charging/Data Port cover,
insert your finger tip into the notch and
open the cover.
2. Plug the Wall Charger power plug into
an electrical outlet and the Wall
Charger connector into the Charging/
Data Port.
25
3. After the handset is completely
charged, unplug the Wall Charger
Getting Started with Your Phone
connector and close the Charging/
Data Port cover.
4. Make sure the port cover is completely closed.
Warning!
• Do not forcibly insert the Wall Charger power plug into the
Charging/Data Port. Hold it horizontally and carefully insert it into
the Charging/Data Port.
• Failure to completely reseal the Charging/Data Port cover after
charging may allow liquids to enter the casing, and damage the
handset.
Battery Level
The battery level icon appears at the top of the main display. When
the battery level becomes low, the low battery sensor alerts you in
three ways: an audible tone will sound, the battery icon will begin to
blink, and BATTERY LOW will appear on the display. If the battery
level becomes too low, the phone automatically powers off and any
function in progress will not be saved.
Fully Charged
Fully Depleted
NOTE
Charging time varies depending upon the battery level.
26
Turning the Phone On and Off
Turning the Phone On
1. Press and hold the End/Power Key until the main display lights up.
Avoid any unnecessary contact with the internal antenna area while
your handset is on.
Turning the Phone Off
1. Press and hold the End/Power Key until the main display turns off.
Getting Started with Your Phone
NOTE
Making a call
1. From idle mode, enter the phone number (include the area code if
needed).
2. Press the Send Key to make the call.
3. Press the End/Power Key to end the call.
Correcting Dialing Mistakes
If you make a mistake while dialing a number, press the Clear Key
once to erase the last digit entered, or press and hold the Clear
Key to delete all digits.
Redialing Call
1. Press the Send Key twice to redial the last number you dialed.
27
Answering a call
Getting Started with Your Phone
NOTES
• The default answer option is set to Flip Open and Any Key so
you can directly answer an incoming call by simply opening
the handset or pressing a key on the alphanumeric keypad. For
information on how to select an answer option, see page 149.
• Caller ID displays the number of the person calling when your
phone rings. If the caller’s identity is stored in Contacts, the name
appears on the screen.
1. When the phone rings or vibrates, press the Send Key to answer
the incoming call.
2. Press the End/Power Key to end the call.
Call Waiting
If you are on a call and you receive another incoming call, you will
hear two beeps. With Call Waiting, you may put the active call on hold
while you answer the incoming call. To use Call Waiting:
1. To answer another call while on the phone, press the Send Key.
This places the first call on hold.
2. To switch back to the first caller, press the Send Key again.
Menu Access
To display the Main Menu from idle mode, press the Center Select
Key [MENU].
To use the menu:
• Press the Directional Key up, down, left or right to select your
desired menu item then press the Center Select Key [OK].
• Or enter the number that corresponds to the menu or submenu item.
There are three Main Menu types: Tab, List, and Grid.
28
NOTES
• All directions in this manual assume that Main Menu Settings
are set to Grid and Communicator, and Display Themes is set to
or themes are set, navigating the phone’s menus may be different.
• For information about how to switch between Main Menu types,
see page 136.
Grid Menu
The Grid Menu has nine items.
1. From idle mode, press the Center Select Key [MENU].
2. Press the Directional Key up, down, left or right to select your
Getting Started with Your Phone
Polyhedral Rock, which are the default settings. If other settings
desired menu option then press the Center Select Key [OK].
NOTE
When navigating within menus and submenus or when configuring
your handset’s settings, you can return to the previous screen or
step by pressing the Clear Key . To return to idle mode, press
the End/Power Key.
Using a Memory Card
The ROCK™ supports the use of a microSD™ memory card as a
source of external memory.
NOTE
The microSD™ memory card is sold separately.
29
Installing a Memory Card
Getting Started with Your Phone
Warning!
• Whenever installing or removing a memory card, make sure the
handset is turned off and that the Wall Charger is not connected.
• When installing or removing a memory card, avoid touching the
memory card contacts and avoid damaging the memory card.
Either can cause malfunction or loss of data.
• The front and back of the memory card look
different. When inserting the memory card, make
sure the correct side is facing up. If not, the
memory card may not fit in the memory card slot,
or the memory card and/or memory card slot
Insert like this.
may be damaged.
• Do not forcibly insert the memory card into the memory card slot.
Hold it with the contacts facing down and carefully insert it.
• Failure to completely reseal the battery cover after installing may
result in damage if the handset is exposed to water.
1. Insert the tip of the corner of the Device Lock
Tool into the groove of the screw type battery
cover lock and rotate in the direction
indicated . Rotate the screw type battery
cover lock as far as it will go towards the
FREE position.
2. Insert your finger in the groove and pull up
on the battery cover in the direction of the
arrow .
30
3. Remove the battery by pulling up on the tab .
locks into place.
5. Install the battery and replace the battery
cover ensuring that you rotate the battery
Getting Started with Your Phone
4. Carefully press the memory card into the memory card slot until it
lock as far as it will go towards the LOCK
position.
Removing a Memory Card
Warning!
• Never remove a memory card from the handset while it is being
accessed. Doing so can damage the memory card or the data
stored on it.
• The memory card is very small. Make sure you do not drop it.
• Failure to completely reseal the battery cover after removing may
result in damage if the handset is exposed to water.
1. Insert the tip of the corner of the Device Lock
Tool into the groove of the screw type battery
cover lock and rotate in the direction
indicated . Rotate the screw type battery
cover lock as far as it will go towards the
FREE position.
31
2. Insert your finger in the groove and pull up
on the battery cover in the direction of the
Getting Started with Your Phone
arrow .
3. Remove the battery by pulling up on the
tab .
4. Gently press the memory card inward, until
it pops out. Remove the memory card.
5. Install the battery and replace the battery cover ensuring that
you rotate the battery lock as far as it will go towards the LOCK
position.
32
Connecting to the Headset Jack
You can connect a compatible device equipped with a standard
2.5mm plug to your handset for safe, convenient, hands-free
1. To open the Headset Jack cover,
insert your finger tip into the notch and
open the cover.
2. Plug the connector into the Headset
Jack.
Warning!
Getting Started with Your Phone
conversations.
• Do not forcibly insert/remove the connector into/from the Headset
Jack. Carefully insert/remove it.
• Failure to completely reseal the Headset Jack cover after use may
result in damage if the handset is exposed to water.
33
Quick Access to Convenient
Features
Vibrate Mode
Quick Access to Convenient Features
Vibrate Mode mutes key tones and activates an alert for an incoming
call or message.
To activate and deactivate Vibrate Mode:
1. To activate Vibrate Mode from idle mode, press and hold .
2. To deactivate Vibrate Mode, press and hold again.
Mute Function
If you activate the mute function during a call, the person you are
speaking with cannot hear you or any sounds from your handset.
However, you are still able to hear them. To activate Mute:
1. During a call, press the Left Soft Key [Mute].
2. To unmute, press the Left Soft Key [Unmute].
Volume Quick Adjustment
1. With the flip open, press the Volume Keys up or down
to select from: All Sounds Off, Alarm Only, Vibrate Only, Low,
Medium Low, Medium, Medium High and High.
2. Press the Center Select Key [OK] to save.
NOTES
• With the flip open, press and hold the Volume Key Down to
enable Sounds Off mode. Sounds Off mode turns off all phone
sounds. Press and hold the Volume Key Up to revert to
Normal Mode.
• The keypad volume is adjusted through the Menu. For more
details, see page 131.
34
Speakerphone
To activate and deactivate the speakerphone:
1. To activate, press the Speakerphone/Flashlight Key to turn
SPEAKER ON.
turn SPEAKER OFF.
Flashlight
To activate and deactivate the flashlight:
1. To activate from idle mode, press and hold the Speakerphone/
Flashlight Key to turn FLASH ON.
2. To deactivate, press and hold the Speakerphone/Flashlight Key
again to turn FLASH OFF.
Quick Access to Convenient Features
2. To deactivate, press the Speakerphone/Flashlight Key again to
Motion Detection
Using the Motion Detection function, you can control your handset just
by shaking it.
By default, the Motion Detection function is available only for Rotation
Silencer. To use the Motion Detection function for features other than
Rotation Silencer:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Motion Detection.
2. Select one of the following settings, then press the Center Select
Key [OK].
G’zGEAR / My Pics/Videos / Music Play / Rotation Silencer
3. Select On or Off, then press the Center Select Key [OK].
35
When shaking the handset, be sure to
hold the handset firmly as shown in the figure
to the right and shake it from right to left or
Quick Access to Convenient Features
vice versa.
NOTE
When shaking the handset, make sure you do not hit the handset
against nearby objects.
Rotation Silencer
Using the Rotation Silencer function, you can stop the sound and
vibration of incoming call alerts, new message alerts, alarms, or
scheduled alarms by simply turning the handset that is placed
horizontally on a desk or table upside-down.
NOTES
• The Rotation Silencer function is enabled only when the handset
is closed and in a horizontal position.
• The Rotation Silencer will function by half-rotating the handset
in the lengthwise direction, either from front to back side or vice
versa.
• When the handset is loose in your pocket or bag with the
Rotation Silencer function turned ON, the Rotation Silencer may
be activated by an accidental movement to stop the sound and
vibration such as incoming call alert.
36
Touch Keys
You can control your handset without opening it by using the touch
keys (Rewind Key
, Play/Pause Key
, Fast Forward Key
)
around the front display.
or Fast Forward Key
while using a G’zGEAR™ tool to switch to
another tool. For more information on G’zGEAR™, see page 112.
• My Music: Use the touch keys while playing music with My Music to
go to the next/previous song, rewind/fast forward a song, or start/
stop playback. For more information on My Music, see page 70.
NOTES
• Touch keys can be used only when the front display is active with
Quick Access to Convenient Features
• G’zGEAR™: With your handset closed, tap the Rewind Key
the flip closed.
When any application (such as G’zGEAR™ or music) is active and
the front display is inactive, activate the front display by touching
and holding any touch key or by pressing the Bottom Side Key.
• Touch keys respond to light touch or tap. Using unnecessary
force may damage the touch keys or front display.
• If the handset is wet, touch keys may not function nor respond to
your touch quickly. Use them when the handset is dry.
• If you put the handset in your pocket or place it on a metallic
material with the front of the handset facing down when the
G’zGEAR™ or My Music functions are active, the touch keys may
malfunction. To prevent the touch keys from malfunctioning, set
the Keyguard Settings, see page 127.
• Touch keys may not function correctly under some environments.
37
Entering and Editing Information
Text Input
You can input and edit your Banner, Schedule, Contacts, and
Entering and Editing Information
Messages.
To perform the Text Input operation described in this chapter with
your handset, open the text entry screen following the steps below to
create the new Text Massage:
1. From idle mode, press the Left Soft Key [Message], press New Message.
2. Press TXT Message.
3. Press the Center Select Key [OK] to go to the Text field.
Key Functions
Left Soft Key: Press to select one of the following text input
modes:
T9 Word/Abc/ABC/123/Palabra/Symbols/Add Quick Text
Shift: Press to change case.
T9 Word: T9 Word m T9 WORD m T9 word
Abc text: Abc m ABC m abc
Palabra: Palabra m PALABRA m palabra
Next: When in T9 Word or Palabra mode, press to display
other words. Pressing after pressing displays other
punctuation and symbols.
Space: Press to complete a word and insert a space.
Clear: Press to delete a single space or character. Press and
hold to delete entire words.
38
Text Input Modes
There are five modes for entering text, numbers, symbols, and
punctuation.
Using Abc (Multi-tap) Text Input
until the desired letter appears. It can also be used to add words to
the T9 database.
Example: From the text entry screen, in Abc mode, press
, wait one second, then press
. “Vzw” is displayed.
NOTES
Entering and Editing Information
To enter words in this mode, you need to press each key repeatedly
• Abc is the default text entry mode.
• Press and hold the alphanumeric key to enter the number in Abc
mode.
Using T9 Word Mode Text Input
T9 Word mode incorporates a built-in-dictionary to determine a word
based on the entered characters. A word is entered more quickly
because you only need to press each key once per character.
To type the message “Call the office.” follow these steps from the text
entry screen:
1. Press the Left Soft Key, select T9 Word, then press the Center
Select Key [OK].
2. Press .
3. Press to complete the word and add a space.
4. Press .
“Call the office.” is displayed.
39
NOTES
• After you have finished entering a word, if the word displayed
is not the one you want, press the Next Key to display
additional word choices.
Entering and Editing Information
• Pressing after pressing to input a period displays other
punctuation and symbols.
Adding Words to the T9 Database
If a word is not in the T9 database, add it by using Abc (Multi-tap)
mode text entry. To add a new word, follow these steps from the text
entry screen:
1. From the text entry screen, in Abc mode, press
. “Kop” is displayed.
2. Press the Left Soft Key, select T9 Word, then press the Center
Select Key [OK].
3. Press and hold the Clear Key to erase the existing word.
4. Press . “Kop” is displayed.
5. Press to accept your choice and add a space.
Using 123 (Numbers) Text Input
To type numbers using one keystroke per number, follow these steps
from the text entry screen:
1. Press the Left Soft Key, select 123, then press the Center Select
Key [OK].
2. Press . “5551212” is displayed.
40
Using Symbol Text Input
To insert symbols or punctuation, follow these steps from the text
entry screen:
1. Press the Left Soft Key, select Symbols, then press the Center
Select Key [OK].
Soft Key [Prev] to view the previous 12 symbols.
3. Select the symbol you want to insert, then press the Center Select
Key [OK] to select it.
Using Palabra Mode Text Input
The Palabra mode is a T9 mode for Spanish input.
To type the message “Llame la oficina.” follow these steps from the
Entering and Editing Information
2. Press the Right Soft Key [Next] to view the next 12 symbols or Left
text entry screen:
1. Press the Left Soft Key, select Palabra, then press the Center
Select Key [OK].
2. Press .
3. Press to complete the word and add a space.
4. Press “Llame la oficina.” is displayed.
41
RECENT CALLS
The Recent Calls menu is a list of the last phone numbers or Contact
entries for calls (including PTT calls) you placed, accepted, missed,
or blocked. It is continually updated as new numbers are added to
the beginning of the list and the oldest entries are removed from the
RECENT CALLS
bottom of the list.
Accessing the Recent Calls submenu
1. From idle mode, press the Center Select Key [MENU], select
Recent Calls, then press the Center Select Key [OK].
2. Select a submenu.
Missed: Displays a list of the 90 most recently missed calls.
Received: Displays a list of the 90 most recently received calls.
Dialed: Displays a list of the 90 most recently dialed calls.
Blocked*: Displays a list of the 90 most recently blocked calls.
All**: Displays a list of the 270 most recent calls.
View Timers: Displays the duration of selected calls.
• If you select Blocked, enter the four-digit Lock Code, then press
the Center Select Key [OK]. The default Lock Code is the last 4
digits of your phone number.
* Blocked appears only when Contacts Only or Block All is
selected for Calls under MENU > Settings & Tools > Phone
Settings > Security > Restrictions > Calls > Incoming Calls. For
information about how to configure this setting, see page 145.
** Blocked calls are not displayed in the All Calls list.
NOTE
Pressing the Send Key from idle mode takes you to the All Calls list.
42
Making a Call from Recent Calls
1. From the Recent Calls submenu, select one of the following call
lists:
Missed/Received/Dialed/Blocked/All
2. Scroll to an entry, then press the Send Key to make a call.
1. From the Recent Calls submenu, select one of the following call
lists:
Missed/Received/Dialed/Blocked/All
2. Scroll to a call entry, then:
RECENT CALLS
Viewing Recent Call History
• Press the Center Select Key [OPEN] to view the entry.
• If you selected a non-PTT Contact, press the Right Soft Key
[Options] to select:
Save to Contacts: Stores the phone number in your Contacts.
Save to PTT Contacts: Stores the phone number in your PTT
Contacts.
Details: Displays the entry content.
Erase: Erases the entry from the call list.
Lock/Unlock: Locks or unlocks the entry in the call list.
Erase All: Erases all the entries in the selected call list.
View Timers: Displays the duration of the call.
• Press the Left Soft Key [Message] to select:
New TXT Message/New Picture Message/New Video
Message/New Voice Message
• If you selected a PTT Contact, press the Right Soft Key
[Options] to select:
New TXT Message/New Picture Message/New Video
Message/New Voice Message/Save to Contacts/Save to PTT
Contacts/Erase/Lock (Unlock)/Erase All/View Timers
43
• If you selected a PTT Group or Temp PTT Group from the Missed
or Received Calls list, press the Right Soft Key [Options] to
select:
New TXT Message/New Picture Message/New Video
Message/New Voice Message/Save to Contacts/Save to PTT
Contacts/Erase/Lock (Unlock)/Erase All/View Timers
RECENT CALLS
• If you selected a PTT Group or Temp PTT Group from the Dialed
Calls list, press the Right Soft Key [Options] to select:
Erase/Lock (Unlock)/Erase All/View Timers
View Timers
To view the duration of selected calls:
1. From the Recent Calls submenu, select View Timers, then press
the Center Select Key [OK].
2. Scroll to a call list. Call timers include:
Last Call/All Calls/Received Calls/Dialed Calls/Roaming
Calls/Transmit Data/Received Data/Total Data/Last Reset/
Lifetime Calls/Lifetime Data Counter
• Press the Left Soft Key [Reset] to reset the highlighted timer.
• Press the Right Soft Key [Reset All] to reset all timers.
44
CONTACTS
The Contacts menu allows you to store names, phone numbers and
other information in your handset’s memory. You may store up to 500
entries.
Adding a new Contact from idle mode
1. From idle mode, enter the phone number (up to 48 characters) you
CONTACTS
want to register.
2. Press the Left Soft Key [Save].
NOTE
Pressing the Right Soft Key [Options] allows you to access the
following options:
Add 2-Sec Pause: Inserts a 2-sec Pause into the number.
Add Wait: Inserts a Wait pause into the number.
Add From Contact: Adds a phone number which is stored in the
Contact List.
Add From Recent Call: Adds a phone number which is stored in
the Recent Calls.
New TXT Message: Sends a text message to the entered phone
number.
New Picture Message: Sends a picture message to the entered
phone number.
New Video Message: Sends a video message to the entered
phone number.
New Voice Message: Sends a voice message to the entered
phone number.
Assisted Dialing: Sets the Assisted Dialing setting. For more
detail, see page 152.
45
3. Press Add New Contact.
4. Select the type of phone number you want to save, then press the
Center Select Key [OK].
Mobile 1/Mobile 2/Home/Work
5. Scroll to the information field you want to enter. These fields
include:
Name/Mobile 1/Home/Work/Email 1/Group/Picture/Ringtone/
CONTACTS
Mobile 2/IM Screen Name/Email 2/Street/City/State/Zip Code/
Country
• To add the name, scroll to the Name field, then enter a name for
the contact (up to 32 characters).
• To add the phone number, scroll to the Mobile 1, Home, Work,
or Mobile 2 field, then enter the phone number (up to 48
characters).
• To add an e-mail address, scroll to the Email 1 or Email 2 field,
then enter an e-mail address (up to 48 characters).
• To add the Contact entry into a group, scroll to the Group field,
then press the Left Soft Key [Set]. Select the Group, press the
Center Select Key [MARK], then press the Left Soft Key [Done].
• To assign the Picture ID, scroll to the Picture field, then press the
Left Soft Key [Set]. Select a picture, then press the Center Select
Key [OK].
• To assign the call ringtone, scroll to the Ringtone field, then
press the Left Soft Key [Set]. Select a ringtone, then press the
Center Select Key [OK].
• To add the IM Screen Name, scroll to the IM Screen Name field,
then press the Left Soft Key [Set]. Select a service provider, then
press the Center Select Key [OK]. Enter the IM Screen Name,
then press the Center Select Key [OK].
• To add a street address, scroll to the Street, City, State, Zip
Code, or Country field then enter the street, city, state, zip code,
or country.
46
6. Select the entered phone number field and press the Right Soft
Key [Options] to select one of the following options:
Set Speed Dial/Set As Default/Add 2-Sec Pause/Add Wait
• To add the Contact entry to the Speed Dial list, press Set
Speed Dial. Select the desired Speed Dial digit by using the
keypad or by scrolling to highlight it, then press the Center Select
Key [SET]. Press the Center Select Key [OK] to select Yes.
• To set the phone number as the Default Number, press Set
Pause or Add Wait.
CONTACTS
As Default, then press the Center Select Key [OK] to select Yes.
• To add a pause to an existing number, press Add 2-Sec
NOTE
The initial phone number entered when the new Contact is created
becomes the Default Number. If more than one number is entered
for the Contact entry, another number can be selected as the
Default Number.
7. After entering the information as necessary, press the Center
Select Key [SAVE] to save.
8. CONTACT SAVED appears on the display. The phone number
reappears on screen. Press the End/Power Key to exit, or press the
Send Key to make a call to the displayed phone number.
Adding a Phone Number to an Existing
Contact
1. From idle mode, enter the phone number (up to 48 characters) you
want to register.
2. Press the Left Soft Key [Save], then press Update Existing.
3. Scroll to the existing Contact entry you want to update, then press
the Center Select Key [OK].
47
4. Select the phone number type, then press the Center Select Key
[OK].
Mobile 1/Mobile 2/Home/Work
If a phone number is already assigned to the field you selected,
Entry is already assigned. Overwrite? appears on the display.
Select Yes to overwrite, then press the Center Select Key [OK].
5. Complete any additional fields and press the Center Select Key
CONTACTS
[SAVE] to update the contact entry. CONTACT UPDATED appears
on the display. The phone number reappears on screen. Press the
End/Power Key to exit, or press the Send Key to make a call to the
displayed phone number.
Phone Numbers with Pauses
Pauses are used for automated systems (e.g. voicemail or calling
cards). Insert a pause after a set of numbers then enter another set.
The second set of numbers is dialed after the pause. This feature
is useful for dialing into systems that require a code. There are two
different types of pauses you can use when registering a phone
number:
• Wait (W): The handset stops dialing until you press the Left Soft
Key [Release] to advance to the next number.
• 2-Sec Pause (P): The handset waits 2 seconds before
automatically dialing the next set of numbers.
Registering a Phone Number with Pauses
1. From idle mode, enter the phone number.
2. Press the Right Soft Key [Options], then press Add 2-Sec
Pause or Add Wait.
3. Enter the additional number(s) (e.g. PIN number or credit card
number).
4. Press the Left Soft Key [Save], then press Add New Contact.
48
5. Complete any additional fields and press the Center Select Key
[SAVE].
Accessing the Contacts submenu
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK].
2. Select a submenu:
New Contact/Contact List/Groups/New PTT Contact/PTT
Case of Emergency/My Name Card
CONTACTS
Contact List/PTT Groups/Backup Assistant/Speed Dials/In
NOTE
From idle mode, pressing the Right Soft Key [Contacts] functions
as a hot key to access the Contact List.
New Contact
To add a new number to your Contact List:
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press New
Contact.
2. Complete all the desired fields and press the Center Select Key
[SAVE] to create the contact entry.
NOTE
Using this submenu, the number is saved as a new Contact. To
save the number into an existing Contact, edit the Contact entry.
49
Contact List
To view your Contact List:
NOTE
Your handset is able to perform a dynamic search of the contents
in your handset’s memory. A dynamic search compares entered
letters or numbers against the entries in your Contact List, and
CONTACTS
displays matches in alphabetical order. You can then select a
number from the list to call or edit. You may locate a contact by:
• Searching by Letter
• Scrolling Alphabetically
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press Contact List.
Or, press the Right Soft Key [Contacts] from idle mode. The list of
names in your contacts is displayed alphabetically.
2. Searching by Letter: Enter a name or beginning letters of a name in
the Go To Field at the bottom of the screen.
Scrolling Alphabetically: Press the Directional Key " up or down
to scroll through your Contact List. You can select one of the
following options:
• To view the contact information, press the Center Select Key
[VIEW].
• To edit the entry, press the Left Soft Key [Edit].
• Press the Right Soft Key [Options] to select one of the following
options:
New Contact/Erase/New TXT Message/New Picture
Message/New Video Message/New Voice Message/Send IM/
Set As ICE Contact (Unassigned ICE contact)/Call/Manage
Contacts/Send Name Card/Save To PTT Contacts
50
Making a Call from Your Contacts
Once you have registered phone numbers into your Contact List, you
can make calls to those numbers quickly and easily.
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press Contact List.
2. Select the Contact entry, then press the Center Select Key [VIEW].
3. Select the phone number, then press the Send Key to make the
NOTE
CONTACTS
call.
Selecting the Contact entry and then pressing the Send Key will
dial the Default Number of the Contact entry automatically. If
multiple numbers are saved in the Contact entry, select the number
you want to dial, then press the Send Key.
Editing a Contact Entry
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press Contact List.
2. Select the Contact entry, then press the Left Soft Key [Edit].
3. Edit the contact information as necessary, then press the Center
Select Key [SAVE] to update the contact entry.
Erasing a Contact Entry
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press Contact List.
2. Select the Contact entry, then press the Center Select Key [VIEW].
3. Press Left Soft Key [Erase], then press the Center Select Key [OK]
to select Yes.
51
Groups
Groups allow you to classify phone entries into groups with up to 10
numbers in each group.
To view your grouped Contacts, add a new group, change the name
of a group, delete a group, or send a message to everyone in the
selected group:
1. From idle mode, press the Center Select Key [MENU], select
CONTACTS
Contacts, then press the Center Select Key [OK]. Press Groups.
2. You can select one of the following options:
• To add a new group to the Groups list, press the Left Soft Key
[New], enter the group name, then press the Center Select Key
[SAVE].
• To view your grouped Contacts, select a group, then press the
Center Select Key [VIEW].
• To access the options menu, select a group, then press the Right
Soft Key [Options]. These options include:
New TXT Message/New Picture Message/New Video
Message/New Voice Message/Rename/Erase Group/Add
• To add Contacts to the group, select the existing group where
you want to add the contact, then press the Right Soft Key
[Options]. Press Add, then your contact entries will be
displayed in alphabetical order. Select the contact you want to
add then press the Center Select Key [MARK]. When you have
added the desired contact(s), press the Left Soft Key [Done].
• To change the group name, select the existing group name that
you want to change, then press the Right Soft Key [Options].
Press Rename, edit the group name, then press the Center
Select Key [SAVE].
• To erase the group, select the existing group that you want to
erase, then press the Right Soft Key [Options]. Press Erase
Group, then press the Center Select Key [OK] to select Yes.
52
New PTT Contact
NOTE
You must first enable the PTT feature in order to see the PTT
Contact List (see page 62).
To add a new Push To Talk (PTT) Contact:
1. From idle mode, press the Center Select Key [MENU], select
2. Enter the name, then press the Directional Key down.
3. Enter the 10-digit phone number of the Verizon Wireless PTT
CONTACTS
Contacts, then press the Center Select Key [OK]. Press New
PTT Contact.
subscriber, then press the Directional Key down.
4. To add the new PTT Contact as a member of an existing PTT
Group, press the Left Soft Key [Add], select the PTT Group,
press the Center Select Key [MARK], then press the Left Soft Key
[Done].
5. Press the Center Select Key [SAVE].
PTT Contact List
To view your PTT Contact entries:
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press PTT
Contact List.
2. Select the PTT Contact entry. You can select one of the following
options:
• To place the barge PTT call to the selected individual, press and
hold the Top Side Key/PTT Key .
• To place the alert PTT call to the selected individual, press the
Left Soft Key [Alert]. Then press and release the Top Side Key/
PTT Key .
53
• Press the Right Soft Key [Options] to select one of the following
options:
New PTT Contact/Copy To Contacts/Temp PTT Group/
Erase/Edit/Call/New TXT Message/New Picture Message/
New Video Message/New Voice Message/Sort
NOTE
CONTACTS
From idle mode, pressing the Top Side Key/PTT Key functions as a hot key to access the PTT Contact List.
PTT Groups
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press PTT
Groups.
2. You can select one of the following options:
• To add a new PTT Group to the PTT Groups list, press the Left
Soft Key [New], enter the PTT group name, then press the
Center Select Key [SAVE].
• To view the PTT contacts included in the group, select a PTT
Group, then press the Center Select Key [VIEW].
• To access the options menu, select a PTT Group, then press the
Right Soft Key [Options]. These options include:
Rename/Erase/Add/Sort
• To change the PTT Group name, select the existing PTT
Group that you want to change, then press the Right Soft Key
[Options]. Press Rename, edit the PTT Group name, then
press the Center Select Key [SAVE].
• To erase the PTT Group, select the existing group that you want
to erase, then press the Right Soft Key [Options]. Press Erase, then press the Center Select Key [OK] to select Yes.
54
• To add PTT Contacts to the PTT Group, select the existing PTT
Group where you want to add the PTT Contact, then press
the Right Soft Key [Options]. Press Add, then your PTT
Contact entries will be displayed in alphabetical order. Select the
PTT Contact you want to add, then press the Center Select Key
[MARK]. Press the Left Soft Key [Done].
Temp PTT Group
contacts on a single PTT call. Temp PTT Groups can be created
directly on your phone and are not permanently saved to your PTT
CONTACTS
A Temp PTT Group allows you to quickly communicate with multiple
Group list (unless you choose to save it).
The following operation assigns a PTT Contact to the Temp PTT
Group. When assigned, displaying the Temp PTT Group and holding
down the Top Side Key/PTT Key will initiate a Barge Call.
Adding PTT Contacts
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press PTT
Contact List.
2. Press the Right Soft Key [Options], then press Temp PTT
Group.
3. Press the Center Select Key [ADD], select a PTT Contact entry,
press the Center Select Key [MARK], then press the Left Soft Key
[Done].
Viewing Temp PTT Group Members
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press PTT
Contact List.
2. Press the Right Soft Key [Options], then press Temp PTT
Group.
55
3. Select the PTT Contact entry. You can select one of the following
options:
• Press the Left Soft Key [Remove] to remove the entry.
• Press the Right Soft Key [Options] to select one of the following
options:
Remove All/New TXT Message/New Picture Message/New
CONTACTS
Video Message/New Voice Message/Save As PTT Group
Backup Assistant
Backup Assistant safeguards your handset’s contacts and
automatically saves a copy of the names, phone numbers, and email
addresses stored in your handset. You can view, print, add, delete, or
edit your contacts online.
To set Backup Assistant on your handset:
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press Backup Assistant.
Backup Assistant launches, and the Welcome screen appears.
2. Follow the on-screen prompts.
Speed Dials
Speed Dialing is a convenient feature that allows you to make phone
calls quickly and easily. Assign your Contacts to Speed Dial numbers
to use this calling feature.
NOTE
You will need to activate One-Touch Dialing to use Speed Dialing.
See page 151.
56
Setting a Speed Dial
To view the Speed Dials list and assign a phone number entered in
your Contacts to a Speed Dial number:
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press Speed Dials.
2. Select or enter the Speed Dial number, then press the Center
Select Key [SET].
Dial number, then press the Center Select Key [OK]. “Set Speed
CONTACTS
3. Select the Contact, then press the Center Select Key [OK].
4. Select the phone number you want to assign to the selected Speed
Dial to Contact?” appears on screen.
5. Press the Center Select Key [OK] to select Yes.
A confirmation message appears.
NOTE
“Speed Dial is already assigned. Overwrite?” will appear on screen
if you are selecting a speed dial location that is already assigned.
Select Yes or No and press the Center Select Key [OK].
Resetting a Speed Dial
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press Speed Dials.
2. Select or enter the Speed Dial number, then press the Right Soft
Key [Remove].
3. Press the Center Select Key [OK] to select Yes.
A confirmation message appears.
57
Single-Digit Speed Dialing
1. From idle mode, press and hold the Speed Dial digit.
2. Your handset recalls the phone number from your Contacts,
displays it briefly, and then dials it.
NOTE
CONTACTS
1 : Speed Dial entry 1 (Voicemail), is already assigned.
Double-Digit Speed Dialing
1. From idle mode, press the first Speed Dial digit, then press and
hold the key of the last Speed Dial digit.
2. Your handset recalls the phone number from your Contacts,
displays it briefly, and then dials it.
NOTE
95, 96, 97, 98 and 99 : Speed Dial entries 95(#Warranty Center),
96(#DATA), 97(#BAL), 98(#MIN) and 99(#PMT) are already
assigned to Verizon Wireless Account Information.
Triple-Digit Speed Dialing
1. From idle mode, press the first and second Speed Dial digits, then
press and hold the key of the last Speed Dial digit.
2. Your handset recalls the phone number from your Contacts,
displays it briefly, and then dials it.
NOTES
• 411 : Speed Dial entry 411 (Directory Assistance) is already
assigned.
• If the three digits you input are not registered for Speed Dial, your
handset dials the number you input.
58
In Case of Emergency (ICE)
Follow the procedure below to register a Contact to be contacted in
case of emergency, or to register a medical record number or other
personal info. Up to three different Contacts can be registered to ICE.
NOTE
Even when the handset is locked, the Contact or personal info
registered as ICE can be viewed without unlocking the handset by
Adding a Contact to ICE
CONTACTS
pressing the Left Soft Key [ICE].
To register to ICE:
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press In
Case of Emergency.
2. Select Contact 1, Contact 2, or Contact 3, then press the Center
Select Key [ADD].
3. To select from the Contact List, press From Contacts, select
the Contact entry, then press the Center Select Key [OK].
To add a new Contact, press New Contact, enter the contact
information, then press the Center Select Key [SAVE].
NOTES
• For details about adding a new Contact, see page 45.
• The contact name assigned as the ICE contact is displayed in red
font in the Contact List.
59
Entering Personal Info
To register a Medical Record Number or other information that may be
used in case of an emergency:
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press In
Case of Emergency.
CONTACTS
2. Select Personal Info, then press the Center Select Key [VIEW].
3. Select Note 1, Note 2, or Note 3, then press the Center Select Key
[ADD].
4. Enter the information, then press the Center Select Key [SAVE].
5. The information you entered now appears in place of Note 1, Note
2, or Note 3.
My Name Card
To register a name, telephone number, and e-mail address to My
Name Card:
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK]. Press My
Name Card.
2. Enter the name, then scroll to the information field you want to
enter. Information fields include:
Mobile 1/Home/Work/Email 1/Mobile 2/IM Screen Name/
Email 2
3. After entering the necessary information, press the Center Select
Key [SAVE].
NOTE
My Name Card can be added to a message. See page 92.
60
Push to Talk
The Push to Talk (PTT) feature on your phone allows you to use your
phone like a walkie-talkie to communicate with an individual or group
of individuals who are also Verizon Wireless Push to Talk subscribers.
NOTES
• PTT Mode is Off by default, which means you are not able to send
or receive PTT calls and alerts. See page 62 for instructions on
from idle mode with the flip open or closed displays the
Push to Talk
how to turn on PTT Mode.
• When PTT mode is ON, pressing the Top Side Key/PTT Key
PTT contact list.
• When PTT mode is ON, pressing and holding the Top Side Key/
PTT Key from idle mode initiates a barge call to the last
number from which you sent/received the last call.
About Push to Talk
Push to Talk calls may only be made with other Verizon Wireless
Push to Talk subscribers and only from the National Enhanced
Services Rate and Coverage Area. The Push to Talk feature can be
added to calling plans with a monthly access fee of $34.99 or higher
(or to Family SharePlan secondary lines). For optimal Push to Talk
performance, all callers on a Push to Talk session must have an EVDO Rev. A-capable device and be receiving EV-DO service. A Push
to Talk call is terminated by pressing or will automatically time out
after ten (10) seconds of inactivity. While you are on a Push to Talk
call, voice calls received will go directly to Voice Mail. When you are
on a voice call, you cannot receive a Push to Talk call. You cannot
prevent others who have your wireless phone number from entering
you into their Push to Talk contact list. Only one person can speak at
61
a time during Push to Talk calls. When using your phone keypad to
make a Push to Talk call, you must enter the ten-digit phone number
of the called party. Presence information may not be available for all
Push to Talk contacts. The timeliness of presence information may be
impacted by the network registration status of a Push to Talk contact.
Your Push to Talk service cannot be used for any applications that
tether your phone to computers or other devices for any purpose.
If you add the Push to Talk feature, coverage for your data services
Push to Talk
will be limited to the National Enhanced Services Rate and Coverage
Area.
Making a PTT Call
You can make two types of PTT calls:
• A barge call automatically connects to the other party. The called
party does not have the option to ignore the call.
• An alert call is a call to notify a called party that the calling party
wants to talk using a tone. The called party has the option to answer
or ignore the call.
NOTE
You must first enable the PTT feature in order to see the PTT icons
and menus.
PTT Mode
You can use the following procedure to turn the PTT feature On or Off.
When PTT is turned on, you will be able to send and receive PTT calls
or alerts.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Call Settings, PTT Mode.
2. Select On or Off, then press the Center Select Key [OK].
62
NOTE
The 3G or 1x service indicator icon on the top line of the main
display is highlighted to indicate that the PTT service is available.
Calling from PTT Contact List (Barge)
1. From idle mode, press the Top Side Key/PTT Key to access
your PTT Contact List.
2. Scroll to the PTT Contact entry you wish to call.
3. Press and hold the Top Side Key/PTT Key . Wait until the “OK
display. Speak while holding the Top Side Key/PTT Key .
4. Release the Top Side Key/PTT Key to let the other party talk.
5. Press the End/Power Key to end the call.
Push to Talk
to Talk” tone sounds and the message “Talking to” appears on the
Calling from PTT Contact List (Alert)
You can send an alert to any user with Verizon Wireless PTT service.
The user may answer or ignore the alert.
1. From idle mode, press the Top Side Key/PTT Key to access
your PTT Contact List.
2. Scroll to the PTT Contact entry you wish to call.
3. Press the Left Soft Key [Alert]. The message “Press Top Side
Key/PTT Key to Alert” will appear on the display.
4. Press and release the Top Side Key/PTT Key to alert the
selected individual.
The “PTT Outgoing Alert” tone will sound, and “Alerting” will
appear on the display.
5. If the called party answers the alert, “Listening to” appears on the
display and you will hear the called party speaking.
If the called party chooses to ignore the alert, or if the phone is
unavailable to accept a PTT call, an “Unavailable” message will
appear on your display.
63
6. When the called party finishes speaking, you will hear the “Floor
Available” tone and the “Connected to” screen will appear on your
display.
7. Press and hold the Top Side Key/PTT Key to talk.
8. Release the Top Side Key/PTT Key to let the other party talk.
9. Press the End/Power Key to end the call.
Calling from Temp PTT Group (Barge)
Push to Talk
1. From idle mode, press the Top Side Key/PTT Key to access
your PTT Contact List.
2. Press the Right Soft Key [Options], then press Temp PTT
Group.
3. Press and hold the Top Side Key/PTT Key . Wait until the “OK
to Talk” tone sounds and the message “Talking to” appears on the
display. Speak while holding the Top Side Key/PTT Key .
4. Release the Top Side Key/PTT Key to let the other party talk.
5. Press the End/Power Key to end the call.
Calling from Keypad (Barge)
1. From idle mode, enter the 10-digit phone number of the Verizon
Wireless PTT subscriber you wish to contact.
2. Press and hold the Top Side Key/PTT Key . Wait until the “OK
to Talk” tone sounds and the message “Talking to” appears on the
display. Speak while holding the Top Side Key/PTT Key .
If the phone number you entered has already been registered in
your PTT Contact List, the contact name will replace the phone
number entered on the display when you initiate the call by
pressing the Top Side Key/PTT Key .
3. Release the Top Side Key/PTT Key to let the other party talk.
4. Press the End/Power Key to end the call.
64
Calling from Keypad (Alert)
1. From idle mode, enter the 10-digit phone number of the Verizon
Wireless PTT subscriber you wish to alert.
2. Press the Left Soft Key [Alert].
3. Press and release the Top Side Key/PTT Key to alert the
individual.
The “PTT Outgoing Alert” tone will sound, and “Alerting” will
appear on the display.
If the phone number you entered has already been registered in
number entered on the display when the alert is initiated.
4. If the called party answers the alert, “Listening to” appears on the
Push to Talk
your PTT Contact List, the contact name will replace the phone
display and you will hear the called party speaking.
If the called party chooses to ignore the alert, or if the phone is
unavailable to accept a PTT call, an “Unavailable” message will
appear on your display.
5. When the called party finishes speaking, you will hear the “Floor
Available” tone and the “Connected to” screen will appear on your
display.
6. Press and hold the Top Side Key/PTT Key to talk.
7. Release the Top Side Key/PTT Key to let the other party talk.
8. Press the End/Power Key to end the call.
Incoming PTT Call
Incoming PTT (Barge)
1. When you receive a barge call, you will hear the calling party
speaking through the speakerphone. The calling party’s phone
number will appear on your display. If the calling party’s number
has already been registered in your PTT Contact List, the contact
name will replace the phone number on the display.
2. Press and hold the Top Side Key/PTT Key to talk.
65
3. Release the Top Side Key/PTT Key to let the other party talk.
4. Press the End/Power Key to end the call.
Incoming PTT (Alert)
1. When you receive an alert, you will hear the “PTT Alert” tone. The
message “Incoming Alert” will be displayed with the phone number
or contact name of the calling party. The PTT Alert tone repeats
every 1 seconds until you answer or ignore the call. If you do not
Push to Talk
answer an incoming alert within 10 seconds, the PTT call will be
automatically disconnected.
2. Answer or ignore the alert:
To answer the alert, press and hold the Top Side Key/PTT Key
and begin talking.
To ignore the alert, press the Right Soft Key [Ignore].
3. Release the Top Side Key/PTT Key to let the other party talk.
4. Press the End/Power Key to end the call.
66
MEDIA CENTER
Media Center provides customizable service right on your handset
that lets you access ringtones, play games, surf the web, get up-tothe-minute information and more.
You can use Media Center and download applications anywhere on
the Verizon Wireless network, as long as you have a digital signal
available for your handset.
Music & Tones
can select from a wide variety of genres.
Accessing the Music & Tones submenu
1. From idle mode, press the Center Select Key [MENU], select
MEDIA CENTER
You can personalize your phone’s ringtones and download music. You
Media Center, then press the Center Select Key [OK].
2. Press Music & Tones.
3. Select a submenu.
V CAST Music | Rhapsody/Get New Ringtones/My Ringtones/
My Music/My Sounds/Sync Music
V CAST Music with Rhapsody ®
V CAST Music with Rhapsody ® is a digital music service that lets you
listen to millions of songs from thousands of artists. Discover new and
old favorites in an extensive music catalog. Download
V CAST Music with Rhapsody ® to sync tracks, albums, and playlists to
your new compatible phone, while managing your existing PC music
library all in one place.
67
I Purchase songs on your V CAST Music with
Rhapsody ® capable device*
When you purchase music from your V CAST Music with Rhapsody ®
capable device, you also get a second copy that can be downloaded
to your PC from the V CAST Music with Rhapsody ® software.
* Per-song charges apply.
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Music & Tones, V CAST Music | Rhapsody.
MEDIA CENTER
2. Browse and search the V CAST Music catalog, and select the song
you want.
3. To purchase the selected song, press the Center Select Key [Buy].
4. The CONFIRM PURCHASE screen appears with the price and the
title of the song being purchased. To agree to the purchase, press
the Center Select Key [Buy].
5. Press the Center Select Key [OK] at the Download now? screen.
Choose to either save the song to phone memory or the memory
card, then press the Center Select Key [OK]. You will be able to
play the saved song by pressing the Left Soft Key [My Music] or
by pressing the Right Soft Key [Play].
NOTE
You may be charged for each track you download. You must be
within the Coverage Area to use V CAST. V CAST may not be
available in all areas.
Get New Ringtones
To connect to MEDIA CENTER and download various ringtones:
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press
Music & Tones, Get New Ringtones, Get New
Applications.
68
2. Follow the on screen prompts to download.
My Ringtones
To select a desired ringtone, or download a new ringtone:
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Music & Tones, My Ringtones.
2. Scroll to a ringtone. You can select the following options:
• Press the Center Select Key [PLAY] to play the ringtone and
press the Center Select Key [STOP] to stop playing the ringtone.
Ringtone: A confirmation message appears.
Contact ID: The SET AS CONTACT ID screen appears. Select
the Contact you want to assign the ringtone to, then press the
Center Select Key [OK].
MEDIA CENTER
• Press the Left Soft Key [Set As] to access the following options:
Alert Sounds: Press the corresponding number key to set the
ringtone for one of the following:
All Messages/TXT Message/Media Message/Voicemail/PTT
Alert
• Press the Right Soft Key [Options] to access the following
options (These options are only available for a downloaded
ringtone.):
Erase: Erases the current ringtone from your phone.
Rename: Allows you to rename the ringtone’s title.
Lock/Unlock: Locks or unlocks the current ringtone in your
phone.
Erase All: Erases all the ringtones in your phone.
File Info: Displays information on the selected ringtone.
69
My Music
To play back and manage music stored in your phone’s memory or on
a memory card (purchased separately):
I Playing Music with the Flip Closed
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Music & Tones, My Music.
MEDIA CENTER
2. Close the flip.
3. To play songs, tap the Rewind Key
or the Fast Forward Key
to select one of the following menu options, then tap the Play/Pause
Key
.
Play All/Shuffle/Playlists
• If you select Playlists, the first song of the first playlist will start
playing.
4. With music playing, you can use the touch keys to perform the
following:
• Rewind Key
: Touch and hold to rewind music. Tap to go to the
previous song.
• Play/Pause Key
• Fast Forward Key
: Tap to play or pause a song.
: Touch and hold to fast forward music. Tap
to go to the next song.
I Playing Music with the Flip Open
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Music & Tones, My Music.
2. A Music Library screen will appear with all of the music stored in
your phone’s memory or on the memory card. Select one of the
following menu options:
Play All/Shuffle/Songs/Playlists/Albums/Artists/Genres/
Alerts
70
NOTE
Using the Motion Detection function, you can play the next song,
return to the beginning of the song, or return to the previous
song just by shaking your handset with the flip open. For more
information on Motion Detection function, see page 35.
My Sounds
To select a desired sound:
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press 2. Scroll to a sound, then press the Center Select Key [PLAY] to hear
the sound. Press the Center Select Key [STOP] to stop playing the
sound.
3. Press the Right Soft Key [Options] to access the following options:
MEDIA CENTER
Music & Tones, My Sounds.
For DOWNLOADED or RECORDED SOUNDS:
Send: Sends the selected sound via Picture Message.
To Online Album: Uploads the selected sound to Online Album
storage.
Rename: Allows you to rename the sound’s title.
Move: Moves the selected sound to the memory card. (Only when
a memory card is loaded in the phone)
Lock/Unlock: Locks or unlocks the selected sound in your phone.
Erase: Erases the selected sound.
Erase All: Erases all the sounds in your phone.
File Info: Displays information about the selected sound.
For PRELOADED SOUNDS:
Send: Sends the selected sound via Picture Message.
To Online Album: Uploads the selected sound to Online Album
storage.
File Info: Displays information about the selected sound.
71
I Recording New Sounds
To record a new sound:
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Music & Tones, My Sounds, Record New.
2. Press the Center Select Key [OK] to begin recording. When done,
press the Center Select Key [STOP] to finish recording. The
recording is automatically saved to your My Sounds list.
3. Your recording is saved with a number. To rename your recording,
MEDIA CENTER
scroll to it with the Directional Key, then press the Right Soft Key
[Options].
4. Press Rename.
5. Press and hold the Clear Key to erase the number.
6. Enter the new name for your recording, then press the Center
Select Key [OK].
NOTE
Press and hold the Clear Key while in idle mode to directly
access the Sound Recorder function.
I Erase Sound
To erase a sound:
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Music & Tones, My Sounds.
2. Select the sound you want to erase, then press the Right Soft Key
[Options].
3. Select Erase, then press the Center Select Key [OK]. “Erase
Sound?” will appear on your display.
4. Press the Center Select Key [OK] to select Yes. A confirmation
message appears.
72
NOTE
Your handset comes with 5 preloaded sounds: clapping, crowd
roar, happy birthday, rainforest, and train. These cannot be erased.
Sync your music from your PC to your V CAST Music
with Rhapsody ® wireless device
This option allows you to transfer music files from your PC. In order
to use this option, you must install V CAST Music with Rhapsody ® on
your PC.
1. Open V CAST Music with Rhapsody®. Don’t have V CAST MUSIC
www.verizonwireless.com/music.
2. Plug in the USB cable (purchased separately) to your handset and
connect it to a USB port on your PC.
3. From idle mode, the SYNC MUSIC V CAST MOBILE PHONE
MEDIA CENTER
with Rhapsody ®? Download it for free at
display appears. Your phone should display the message:
Connected.
4. Drag and drop the song(s) you want to sync from My Library, to
your V CAST Music with Rhapsody ® handset, listed under the
Sources tab.
Once synchronization is complete, press the End/Power Key and
disconnect the USB cable.
NOTE
A compatible USB cable (sold separately) is required for
synchronizing.
Picture & Video
You can view, take and trade your digital pictures and video right from
your wireless phone.
73
Accessing the Picture & Video submenu
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK].
2. Press Picture & Video.
3. Select a submenu.
V CAST Videos/Get New Pictures/My Pictures/My Videos/Take
Picture/Record Video/Online Album
V CAST Videos
MEDIA CENTER
Get news and entertainment on your wireless device with streaming
video clips.
NOTE
Application fees may apply. You must be within the Coverage Area
to use V CAST. V CAST may not be available in all areas.
I Browsing, Selecting, and Playing Video Clips
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, V CAST Videos.
2. Select one of the video clip categories.
3. Select the content provider then press the Center Select Key [OK]
to open the selected category.
4. If subcategory selection is allowed, select a subcategory then
press the Center Select Key [OK].
5. After reading the description of the video clip, press the Center
Select Key [SAVE].
6. Select Yes then press the Center Select Key [OK] to start
transferring the video clip. (The confirmation screen does not
appear for every video clip.)
7. The video clip is played back in streaming video.
74
I Downloading a Video Clip
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, V CAST Videos.
2. Browse and search the V CAST Video catalog, and select the video
you want.
3. After reading the description of the video clip, press the Right Soft
Key [Options].
4. Press Save Video.
5. Select Yes then press the Center Select Key [OK] to start
Play Video Now?” will appear on your phone’s display.
7. Select Yes to play the video clip.
8. The video clip is automatically stored in the My Videos folder.
MEDIA CENTER
downloading the video clip.
6. After download is complete, the message “Download Complete
NOTE
There is no guarantee you will be able to download any particular
video clip to your phone.
I Deleting Video Clips
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, My Videos.
2. Select the video you want to delete, then press the Left Soft Key
[Erase].
3. Press the Center Select Key [OK] to select Yes.
I Configuring Alerts for New Video Clips
To configure alerts that will be sent whenever new clips matching a
preference become available:
75
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, V CAST Videos.
2. Browse and search the V CAST Video catalog, and select the video
you want.
3. After reading the description of the video clip, press the Right Soft
Key [Options].
4. Select Alerts and then press the Center Select Key [OK].
5. Select Configure alerts and then press the Center Select Key
MEDIA CENTER
[OK].
6. Select the type of alert you want and then press the Center Select
Key [OK].
7. Using the Directional Key, highlight Save and press the Center
Select Key [OK] to sign up for the selected alert.
NOTE
Alerts are displayed as incoming TXT Messages.
Get New Pictures
To connect to MEDIA CENTER and download a variety of Pictures
(images):
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press
Picture & Video, Get New Pictures, Get New
Applications.
Media Center will launch and take you to the download menu.
2. Follow the on-screen prompts.
NOTE
The downloaded application will be included in the list displayed
when you access: MENU > Media Center > Picture & Video >
Get New Pictures.
76
My Pictures
In My Pictures you can view all the pictures you have taken, store
selected images in your phone, send pictures to the Online Album,
delete images and access additional picture options.
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, My Pictures.
2. Select your desired picture, then press the Right Soft Key
[Options].
3. Select one of the following options:
Album/Via Bluetooth)
Set As: Assigns the selected picture to display for specific tasks.
(Wallpaper/Picture ID)
Take Picture: Takes a new picture.
MEDIA CENTER
Send: Sends the selected picture. (Picture Message/To Online
Get New Pictures: Downloads various pictures.
Manage Pictures: Allows you to manage the pictures stored in
the My Pictures folder. (Erase/Lock/Unlock/Move To Card/Move To
Phone).
Rename: Allows you to rename the selected picture.
File Info: Displays information about the selected picture. (File
Name/Date/Time/Resolution/Size)
Print Via Bluetooth: Prints the selected picture via Bluetooth®.
NOTE
Using the Motion Detection function, while displaying a picture you
can display the next picture or the previous picture just by shaking
your handset. For more information on Motion Detection function,
see page 35.
77
I Rotate
You can rotate the pictures stored in the My Pictures folder.
NOTES
• The rotated picture is stored in the My Pictures folder as a
separate file.
• Some images cannot be rotated due to copyright protection,
image size, or other reasons.
MEDIA CENTER
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, My Pictures.
2. Select your desired picture, then press the Center Select Key
[VIEW].
3. Press the Right Soft Key [Options], then press Rotate.
4. Press the Right Soft Key [Rotate(R)] or the Left Soft Key
[Rotate(L)], then press the Center Select Key [SAVE]. The rotated
picture is stored in the My Pictures folder.
I Zoom
You can zoom into the pictures stored in the My Pictures folder.
NOTE
Only pictures taken with your handset can be zoomed.
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, My Pictures.
2. Select your desired picture, then press the Center Select Key
[VIEW].
3. Press the Right Soft Key [Options], then press Zoom.
78
4. Press the Right Soft Key [Zoom+] or the Left Soft Key [Zoom-].
Press the Directional Key up, down, left or right while zooming
to scroll the display.
I Resize
You can resize the pictures stored in the My Pictures folder.
NOTES
• The resized picture is stored in the My Pictures folder as a
separate file.
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, My Pictures.
MEDIA CENTER
• Only pictures taken with your handset can be resized.
2. Select your desired picture, then press the Center Select Key
[VIEW].
3. Press the Right Soft Key [Options], then press Resize.
4. Select one of the following sizes, then press the Center Select Key
[OK].
160 × 120 / 320 × 240 / 640 × 480 / 1280 × 960*
* The selectable size depends on the size of the image you are
editing.
The resized picture is stored in the My Pictures folder.
I Crop
You can crop the pictures stored in the My Pictures folder.
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, My Pictures.
2. Select your desired picture, then press the Center Select Key
[VIEW].
79
3. Press the Right Soft Key [Options], then press Crop.
4. Select one of the following sizes, then press the Center Select Key
[OK].
160 × 120 / 120 × 160 / 320 × 240 / 240 × 320 / 640 × 480 / 480 ×
640 / 1280 × 960*
* The selectable size depends on the size of the image you are
editing.
5. Select the area to crop by pressing the Directional Key up,
down, left or right and press the Center Select Key [SAVE]. The
MEDIA CENTER
cropped picture is stored in the My Pictures folder.
NOTES
• The cropped picture is stored in the My Pictures folder as a
separate file.
• Only pictures taken with your handset can be cropped.
I Erase Picture
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, My Pictures.
2. Select the picture you want to erase, then press the Left Soft Key
[Erase]. “Erase Picture from My Pictures and Settings?” will appear
on your display.
3. Press the Center Select Key [OK] to select Yes. A confirmation
message appears.
I Erase All Pictures
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, My Pictures.
2. Press the Right Soft Key [Options].
3. Press Manage Pictures, Erase.
80
4. Press the Right Soft Key [Mark All], then press the Left Soft Key
[Done]. “Erase pictures?” will appear on your display.
5. Press the Center Select Key [OK] to select Yes. A confirmation
message appears.
My Videos
In My Videos, you can view all the videos you have taken, store the
selected videos in your phone, send a video to the Online Album,
delete videos, and access additional video options.
1. From idle mode, press the Center Select Key [MENU], select
2. Select your desired video, then press the Center Select Key
[PLAY] to play. While the video is playing, use the following keys to
control the video:
MEDIA CENTER
Media Center, then press the Center Select Key [OK]. Press Picture & Video, My Videos.
• Volume Keys : Volume adjustment (lower/higher)
• Left Soft Key [Mute/Unmute] : Mute/Unmute
• Right Soft Key [File Info/Options] : File Info or Options
• Center Select Key : Pause/Play
• Directional Key ( up: Show full screen view/normal screen view
• Directional Key down: Stop
• Directional Key & right: Fast Forward (while held down)
• Directional Key $ left: Rewind (while held down)
NOTES
• Using the Motion Detection function, while displaying video
thumbnails you can display the next page or the previous page
just by shaking your handset. For more information on Motion
Detection function, see page 35.
• When you press the Right Soft Key [Options] after selecting a
video in My Videos, you can select the following options:
81
Send: Sends the selected video. (Video Message/To Online
Album/Via Bluetooth)
Record Video: Records a new video.
V CAST Videos: Accesses V CAST Videos.
Set As Wallpaper: Sets the selected video as wallpaper.
Manage Videos: Allows you to manage the videos stored in the
My Videos folder. (Erase/Lock/Unlock/Move To Card/Move To
Phone)
Rename: Allows you to rename the selected video.
MEDIA CENTER
File Info: Displays information about the selected video. (Name/
Date/Time/Duration/Size)
View: Switches the view of the video list. (Thumbnail View/List
View)
I Erase Video
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, My Videos.
2. Select the video you want to erase, then press the Left Soft Key
[Erase]. “Erase Video from My Videos?” will appear on your
display.
3. Press the Center Select Key [OK] to select Yes. A confirmation
message appears.
I Erase All Videos
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, My Videos.
2. Press the Right Soft Key [Options].
3. Press Manage Videos, Erase.
4. Press the Right Soft Key [Mark All], then press the Left Soft Key
[Done]. “Erase videos?” will appear on your display.
82
5. Press the Center Select Key [OK] to select Yes. A confirmation
message appears.
Take Picture
In Take Picture mode, you can take pictures with a picture size up to
1600 × 1200 pixels.
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, Take Picture.
subject when the resolution is 1280 × 960, 640 × 480, 320 × 240 or
160 × 120.
4. Press the Right Soft Key [Options] to change the following
settings:
MEDIA CENTER
2. Press the Directional Key " up or down to set the brightness.
3. Press the Directional Key ' left or right to zoom in or out on the
Resolution: Select a picture size. (1600 × 1200, 1280 × 960, 640
× 480, 320 × 240, 160 × 120)
Self Timer: Select the camera’s timer interval. (Off / 3 Seconds / 5
Seconds / 10 Seconds)
Flash: Select a flash setting. (Off/On/Only This Shot)
Brightness: Adjust the brightness level. (–5 to +5)
White Balance: Select a white balance setting. (Auto/Sunny/
Cloudy/Tungsten/Fluorescent)
Shutter Sound: Select a shutter sound. (Shutter/Silent)
Color Effects: Select a color effect. (Normal/Black & White/
Negative/Sepia/Green/Aqua)
Multishot: Select whether or not to take four consecutive pictures
at 320 × 240 resolution with a single shot. (Off/On)
Night Mode: Select Night mode. (Off/On).
Viewfinder: Select the main display or front display as the
viewfinder. (Main Display/Front Display)
Memory: Select the location to save the picture. (Phone/Card)
83
5. To take the picture, press the Center Select Key [TAKE].
6. Perform one of the following operations:
• Press the Left Soft Key [Save] to save the picture in the My
Pictures folder.
• Press the Center Select Key [SEND] to save the picture in the My
Pictures folder and create a Picture Message.
• Press the Right Soft Key [Erase] to shoot again without saving
the picture.
MEDIA CENTER
NOTES
• From idle mode, pressing the Camera/Video Key functions as
a hot key to Take Picture.
• When using the flash, take the Picture within about 14˝ to 20˝ from
the subject.
• From Take Picture mode, you can change to Record Video mode
by pressing the Camera/Video Key .
Record Video
In Record Video mode you can record video at 320 × 240 size with
sound.
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, Record Video.
2. Press the Directional Key " up or down to set the brightness.
3. Press the Directional Key ' left or right to zoom in or out on the
moving subject.
4. Press the Right Soft Key [Options] to adjust the following settings:
Recording Light: Select a lighting setting. (Off/On/Only This Shot)
Brightness: Adjust the brightness within the range. (–5 to +5)
White Balance: Select a white balance setting. (Auto/Sunny/
Cloudy/Tungsten/Fluorescent)
Shutter Sound: Adjust the shutter sound setting. (On/Off)
84
Recording Time: Set the duration limit to 60 Seconds for Video
Message or 60 Minutes for Save.
Call Interruption: Select to block or allow interruption by an
incoming call, alert, etc. while recording. (Allow/Block)
Viewfinder: Select the main display or front display as the
viewfinder. (Main Display/Front Display)
Memory: Select the location to save the video. (Phone/Card)
5. To begin recording, press the Center Select Key [REC]. To finish
recording, press the Center Select Key [STOP].
6. Perform one of the following operations:
folder.
• Press the Center Select Key [SEND] to save the video in the My
Videos folder and create a Video Message.
• Press the Right Soft Key [Erase] to record again without saving
MEDIA CENTER
• Press the Left Soft Key [Save] to save the video in the My Videos
the video.
NOTES
• From idle mode, pressing and holding the Camera/Video Key functions as a hot key to Record Video.
• From Record Video mode, you can change to Take Picture mode
by pressing the Camera/Video Key .
Online Album
To access the Online Album:
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK]. Press Picture & Video, Online Album.
The browser launches, and the Online Album sign-on screen
appears.
2. Follow the on-screen prompts.
85
Games
To download games and applications from the MEDIA CENTER
server:
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK].
2. Press Games, Get New Applications.
3. Choose the software you want from the list displayed on the
screen. Follow the on-screen prompts to download.
MEDIA CENTER
Playing Downloaded Games
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK].
2. Press Games.
3. Select the application, then press the Center Select Key [PLAY].
4. Follow the on-screen prompts.
Removing a Downloaded Game
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK].
2. Press Games.
3. Select the application you want to delete, then press the Right Soft
Key [Options].
4. Press Erase.
5. Select Yes, then press the Center Select Key [OK] to delete.
Mobile Web
Find the news you want or let it come to you. Now, a few seconds is all
it takes to get up-to-the-minute information.
Starting the Dashboard
1. From idle mode, press the Directional Key ( up to launch the
Dashboard.
86
2. Select Mobile Web or Get Channels and press the Center Select
Key [OK]. Follow the on-screen prompts.
Starting the Mobile Web
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK].
2. Press Mobile Web. The Dashboard screen launches.
3. Select Mobile Web and press the Center Select Key [OK].
The browser launches.
End a Browser session by pressing the End/Power Key.
Browse & Download
To download tools that can help you navigate to entertainment spots,
MEDIA CENTER
Ending a Browser Session
restaurants, and provide you with up-to-date weather information:
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK].
2. Press Browse & Download.
3. Press Get New Applications. Follow the on-screen prompts.
VZ NavigatorSM
Now you can find the address of a great restaurant or the nearest
ATM. Check movie times. Discover the latest hot spots. And know
exactly how to get where you’re going. VZ Navigator puts all the
advanced features of the latest GPS devices and systems on your
wireless device — at a fraction of the price.
1. From idle mode, press the Center Select Key [MENU], select VZ
Navigator, then press the Center Select Key [OK].
2. Follow the on-screen prompts.
87
NOTES
• To use VZ Navigator, you must set Location to Location On. See
page 143.
• Download, subscription, and airtime required for use; only in
National Enhanced Services Coverage Area; accuracy and
completeness of information is not guaranteed; information about
the location of the device will be used to deliver service.
MEDIA CENTER
Extras
To download applications:
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK].
2. Press Extras.
3. Press Get New Applications. Follow the on-screen prompts.
Info
To view App. Memory, Phone Memory, View Log, and Help
information:
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK].
2. Press the Right Soft Key [Info].
3. Select one of the following settings, then press the Center Select
Key [OK].
App. Memory/Phone Memory/View Log/Help
88
MESSAGING
Accessing the Messaging submenu
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK].
2. Select a submenu.
New Message/Inbox/Sent/Drafts/Voicemail/Mobile IM/Email/
Chat
NOTES
• From idle mode, pressing the Left Soft Key [Message] functions
Key during a message check.
• When By Contacts is selected for Messages View in Message
MESSAGING
as a hot key to access the Messaging submenu.
• You can make a call to the callback number by pressing the Send
Settings, the Messages folder will appear in the Messaging
submenu instead of the Inbox folder and Sent folder.
By Time is the default setting. If By Contacts is selected,
navigating the phone’s Messaging menu will be different.
New Message Alert
There are two ways your handset alerts you to new messages:
1. The handset displays a message on the screen.
2. The message icon ( ) appears on the idle screen. In the case of
an urgent message, the icon will flash.
New Message
Allows you to send messages (Text, Picture, Video, and Voice). Each
message has a destination (Address) and information (Message).
These are dependent upon the type of message you want to send.
89
Sending a Text Message
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Press New Message, TXT Message.
2. Enter the phone number or e-mail address of the recipient.
By pressing the Right Soft Key [Add] in the To field you can
choose from the following:
From Contacts: Search for a phone number or e-mail address
which is stored in the Contact List.
Recent Calls: Search for the phone number stored in Recent
MESSAGING
Calls.
Groups: Search for a group which is stored in your Contacts.
To Online Album: Send pictures to Online Album storage. (This
option only appears for a Picture/Video/Voice Message)
To Contacts: Stores the phone number in the Contact List.
To PTT Contacts: Stores the phone number in the PTT Contact
List.
3. Press the Center Select Key [OK].
4. Type your message.
5. Press the Center Select Key [SEND].
A sending screen appears.
NOTE
If you send a Text message to a phone without Text capabilities,
you will still be notified that the message was sent, however the
message will not be received.
Sending a Picture Message
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Press New Message, Picture Message.
2. Enter the phone number or e-mail address of the recipient.
90
3. Press the Center Select Key [OK].
4. Type your message in the Text: field.
5. Scroll to the Picture field, then press the Left Soft Key [My Pics].
6. Select the picture you want to include in your message, then press
the Center Select Key [OK].
7. Scroll to and edit any additional fields as desired.
8. Press the Center Select Key [SEND].
A sending screen appears.
Sending a Video Message
1. From idle mode, press the Center Select Key [MENU], select
New Message, Video Message.
2. Enter the phone number or e-mail address of the recipient.
3. Press the Center Select Key [OK].
4. Type your message in the Text: field.
5. Scroll to the Video field and press the Left Soft Key [My Video].
6. Select the video you want to attach to your message, then press
MESSAGING
Messaging, then press the Center Select Key [OK]. Press the Center Select Key [OK].
7. Scroll to and edit any additional fields as desired.
8. Press the Center Select Key [SEND].
A sending screen appears.
Sending a Voice Message
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Press New Message, Voice Message.
2. The RECORD NEW screen appears. Press the Center Select Key
[OK] to record a voice message. Press the Center Select Key
[STOP] to finish recording.
3. Enter the phone number or e-mail address of the recipient.
4. Press the Center Select Key [OK].
91
5. Type your message in the Text: field.
6. Scroll to and edit any additional fields as desired.
7. Press the Center Select Key [SEND].
A sending screen appears.
Customizing the Message Using Options
You can customize a new Text Message, Picture Message, Video
Message or Voice Message, by pressing the Right Soft Key [Options]
to access the following features.
MESSAGING
NOTE
These options vary depending on the type of message you are
sending.
Insert Quick Text: Inserts Quick Text into a message.
Add: Allows you to add a Graphic, Animation, Sound, Signature,
Name Card or Contact.
(The Add option only appears for a Text Message. The Signature
option appears only when Signature is set to Custom in Message
Settings and “No” is selected for the confirmation message “Insert
Signature for all Messages?”.)
Preview: Displays the Picture/Video message as it would appear at
the recipient. (This option only appears for a Picture/Video Message)
Review: Plays back the recorded sound to hear the Voice message
as it would be heard by the recipient. (This option only appears for a
Voice Message)
Save Quick Text: Saves the text to the Quick Text list. Quick Text can
save up to 100 characters per phrase.
Format Text: Allows you to change the look of the text.
Alignment/Font Size/Font Style/Text Color/Background
(This option only appears for a Text Message)
Save As Draft: Saves the message into the Drafts folder.
92
Add Slide: Inserts multiple pictures into a message. (This option only
appears for a Picture Message)
Add Signature: Inserts the signature text into a message.
(This option only appears for a Picture/Video/Voice Message, and
only when Signature is set to Custom in Message Settings and “No”
is selected for the confirmation message “Insert Signature for all
Messages?”.)
Priority Level: Assigns a priority to the message. (High/Normal)
Callback #: Inserts a pre-programmed callback number in your
message. (Off/On/Edit)
(This option only appears for a Text Message)
(This option only appears for a Picture Message)
Remove Sound: Removes the sound from the message.
(This option only appears for a Picture Message)
MESSAGING
Remove Picture: Removes the picture from the message.
Remove Slide: Removes the slide from the message.
(This option only appears for a Picture Message)
Remove Video: Removes the video from the message.
(This option only appears for a Video Message)
Remove Recording: Removes the recorded voice message. (This
option only appears for a Voice Message)
Cancel Message: Cancels message editing and returns to the
Messaging submenu.
Using Contacts to Send a Message
To select an entry saved in your Contacts as the recipient instead of
manually entering the address:
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Press New Message.
2. Press TXT Message or Picture Message or Video Message or Voice Message.
93
3. Press the Right Soft Key [Add].
4. Press From Contacts.
5. Scroll to the Contact entry containing the destination, then press
the Center Select Key [MARK].
6. Press the Left Soft Key [Done] then press the Center Select Key
[OK] to go to the Text field.
NOTE
MESSAGING
You can send a message to up to ten people at a time.
7. Scroll to and edit any additional fields as desired.
8. Press the Center Select Key [SEND].
A sending screen appears.
Inbox
Your handset alerts you in the following 3 ways when you receive a
new Text, Picture, Video, or Voice message:
• By displaying a message notification on the screen.
• By sounding a beep or vibrating (if Vibrate Mode is set).
• A blinking
Icon appears. (Only when you get a high priority
message)
Received messages are displayed from newest to oldest.
To display received messages:
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Press Inbox.
2. Select a received message. You can select one of the following
options:
• To view contents of the selected message, press Center Select
Key [OPEN].
• To erase the selected message, press the Left Soft Key [Erase].
94
• Press the Right Soft Key [Options] to select one of the following
options:
Reply: Replies to the selected message. (TXT Message/Picture
Message/Video Message/Voice Message)
Reply w. Copy: Replies to the Text message with the original
message attached.
Forward: Forwards a received message.
Add To Contacts: Stores the callback number, e-mail address,
or numbers from the received message into your Contacts.
Add To PTT Contacts: Stores the callback number from the
received message into the PTT Contact List.
message and save them to your Contacts.
Message Info: Allows you to check information on the received
message.
MESSAGING
Extract Addresses: Allows you to extract addresses from the
Manage Inbox: Allows you to manage the messages. (Erase/
Lock/Unlock)
Sort By Sender: Sorts the messages by sender.
Sort By Time: Sorts the messages by time.
Sort By Size: Sorts the messages by size.
95
NOTES
• Locked messages cannot be deleted using Erase Inbox and
Erase All functions.
• If the memory is full, no more messages can be received until
enough memory space becomes available.
If the memory is over 80% full, one of the following warning
messages will appear.
Text
MEMORY FULL
TEXT MSG xx% FULL
Pictures/Videos
MEMORY FULL
MESSAGING
MEDIA MSG xx% FULL
Pictures/Videos Notification
MEMORY FULL
MEDIA NOTI xx% FULL
• Storage space may be affected by the combined size and content
of all messages.
Sent
To display sent messages:
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Press Sent.
2. Select a sent message. You can select one of the following options:
• To view contents of the selected message, press the Center
Select Key [OPEN].
• To erase the selected message, press the Left Soft Key [Erase].
• Press the Right Soft Key [Options] to select one of the following
options:
Forward: Forwards a sent message.
Resend: Allows you to resend the selected message.
96
Lock (Unlock): Locks or unlocks the selected message. Locked
messages cannot be deleted by the Erase Sent and Erase All
functions.
Add To Contacts: Stores the callback number, e-mail address,
or numbers from the sent message into your Contacts.
Add To PTT Contacts: Stores the callback number from the
sent message into the PTT Contact List.
Erase Sent: Deletes all messages except locked messages.
Message Info: Allows you to check information on the sent
message.
To display draft messages:
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Select Drafts
MESSAGING
Drafts
and then press the Center Select Key [OK].
2. Select a draft message. You can select one of the following
options:
• To edit the selected message, press the Center Select Key
[EDIT].
• To erase the selected message, press the Left Soft Key [Erase].
• Press the Right Soft Key [Options] to select one of the following
options:
Send: Allows you to send the selected message.
Lock (Unlock): Locks or unlocks the selected message. Locked
messages cannot be deleted by the Erase Drafts and Erase All
functions.
Add To Contacts: Stores the callback number, e-mail address,
or numbers from the draft message into your Contacts.
Add To PTT Contacts: Stores the callback number from the
draft message into the PTT Contact List.
Erase Drafts: Deletes all messages except locked messages.
97
Voicemail
Your handset will alert you when you receive new voicemail.
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Select
Voicemail and then press the Center Select Key [OK].
2. Perform either of the following operations:
• Press the Left Soft Key [Clear] to clear the voicemail counter.
Select Yes, then press the Center Select Key [OK].
• Press the Send Key or the Center Select Key [CALL] to listen to
the message(s).
MESSAGING
• If you have no messages, press the Center Select Key [OK] to
return to the Messaging menu.
Mobile IM
Instant message with AIM, WL Messenger or Yahoo!
To send and receive an Instant Message:
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Select Mobile
IM and then press the Center Select Key [OK].
Mobile IM launches.
2. Press the Left Soft Key [Accept] to accept the terms & conditions.
3. Press the Directional Key ' left or right to select your instant
message community, then press the Center Select Key [OK].
4. To send and receive an instant message, follow the on-screen
prompts and functions.
Email
To read and send e-mail from your e-mail accounts:
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Select Email
and then press the Center Select Key [OK].
98
2. Select one of the following options, then press the Center Select
Key [OK].
Mobile Email/Mobile Web Mail
3. To send an e-mail, follow the on-screen prompts and functions.
Chat
To chat with Internet Messenger users:
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Select Chat
and then press the Center Select Key [OK].
The browser launches.
Select Key [OK].
3. To chat with Internet Messenger users, follow the on-screen
prompts and functions.
MESSAGING
2. Select one of the displayed chat rooms, then press the Center
Message Settings
To configure message settings:
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Press the Left
Soft Key [Settings].
2. You can set option on the following settings:
Messages View: Select By Time or By Contacts. Selecting the
By Time option will display all messages in the Inbox sorted by
message reception time. Selecting the By Contacts option will
group together all messages sent to and received by Contacts.
Entry Mode: Select the default input method. (T9 Word/Abc/
ABC/123/Palabra)
Auto Save Sent: Selecting On automatically saves the sent text
messages in the Sent folder. (On/Off/Prompt)
99
Auto Erase Inbox: Selecting On automatically erases the read/
unlocked messages in the Inbox when the storage capacity
reaches the limit. (On/Off)
Messaging Font Size: Select the font size for the message.
(Small/Normal/Large)
TXT Auto View: Selecting On will automatically display the
message content from idle mode upon receiving a message.
(On/Off)
Media Auto Receive: Selecting On will automatically download the
content upon receiving a Picture/Video/Voice message. (On/Off)
MESSAGING
Quick Text: You can use these registered text phrases frequently
to facilitate message creation.
Voicemail #: Allows you to manually enter the access number for
Voicemail Service (VMS). This feature should only be used when a
VMS access number is not provided by your network.
Callback #: Automatically sends a designated callback number
when you send a text message. (Off/On)
Signature: Allows you to make/edit a signature to automatically
send with your Text messages. (None/Custom)
Delivery Receipt: Requests to receive a Delivery
Acknowledgement or Delivery Report for all sent messages.
(On/Off)
NOTE
The entry mode you select is also applied to the Notepad and the
Calendar.
100
Message Erase
To erase all messages stored in your Inbox, Drafts or Sent folders:
1. From idle mode, press the Center Select Key [MENU], select
Messaging, then press the Center Select Key [OK]. Press Right
Soft Key [Options], to access the following options:
• Press Erase Inbox to erase all messages stored in the
Inbox. Then select All (read and unread) Messages or Only
Read Messages, then press the Center Select Key [OK].
• Press Erase Sent to erase all messages stored in the Sent
Folder. Select Yes and press the Center Select Key [OK].
• Press Erase Drafts to erase all messages stored in the
Sent, and Drafts folders. Then select All Messages Including
Unread or All Except Unread Messages, and press the Center
MESSAGING
Drafts folder. Select Yes and press the Center Select Key [OK].
• Press Erase All to erase all messages stored in the Inbox,
Select Key [OK].
2. A confirmation message appears.
NOTE
Locked, Unread and MMS notification messages cannot be erased.
101
SETTINGS & TOOLS
The Settings & Tools menu has options to customize your handset.
My Verizon
Allows you to access your account information.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press My Verizon.
The browser will launch.
3. To exit the browser at any time and return to the idle screen, press
SETTINGS & TOOLS
the End/Power Key.
NOTES
• From idle mode, you can directly access the My Verizon feature
by pressing the Directional Key $ left.
• Airtime is free when accessing My Verizon.
Tools
Accessing the Tools submenu
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Tools.
3. Select a submenu:
Voice Commands/Calculator/Calendar/Alarm Clock/Stop
Watch/Countdown Timer/World Clock/Notepad/USB Mass
Storage/G’zGEAR
102
Voice Commands
The Voice Commands tool allows you to make a phone call quickly
and easily by verbal command. Your handset recalls the number from
your Contacts, displays it briefly, and then dials it.
NOTES
• From idle mode, you can access the Voice Commands function
by pressing the Voice Commands Key .
• Press the Left Soft Key [Info] or say the word “Information” and a
detailed explanation about the currently selected voice command
displays and is read out (when Readout is selected as the
Prompts mode).
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, Voice Commands.
2. Follow the prompts to use voice command(s).
The following is a list of functions that you can perform using the
SETTINGS & TOOLS
1. From idle mode, press the Center Select Key [MENU], select
Voice Commands tool.
Call <Name or Number>: To make a call, say “Call,” and the
command system will prompt you for the name or number. If the
contact has more than one number, the system will prompt you for
the number type. You can state the name and number type of the
contact (for example, “Call John Work”) to access the contact’s
phone number directly.
Send <Message Type>: To create a message, say “Send,” and
the command system will prompt you for the type of message you
want to send: Text, Picture, Video or Voice. You can state the name
and number of the contact, the message type, and the contact
name, number, or group (for example, “Send text message to Bob”)
and the message will automatically start.
103
Go To <Menu>: The “Go To” command allows you to access a
menu within the handset (for example, “Go to Contacts”). If no
menu option is stated, a list of options will be provided. Choose
from the following: Alarm Clock, Bluetooth Menu, Calculator,
Calendar, Call Settings, Contacts, Display Settings, Media Center,
Games, Messaging, Missed Calls, Mobile Web, Music & Tones,
My Music, My Verizon, My Pictures, My Ringtones, My Sounds, My
Videos, New Contact, New Picture Message, New TXT Message,
New Video Message, Phone Settings, Recent Calls, Settings &
Tools, Sound Settings, Tools, and V CAST Videos.
Check <Item>: The “Check” command allows you to access
device information including the Status, Voicemail, Messages,
SETTINGS & TOOLS
Missed Calls, Time, Signal Strength, Battery Level, Volume, and
Minutes (for example, “Check Battery”). If no menu option is stated,
a list of options will be provided.
Contact <Name>: The “Contact” command allows you to access
information for a contact. For example, saying, “Contact Bob
Smith,” will provide all entered information for that contact.
Redial: The “Redial” command allows you to make a call to the last
number that you called.
Play <All Songs/Playlist Name>: The “Play” command allows
you to play all your songs by stating “Play All Songs,” or play
individual playlists by saying “Play” followed by the playlist name.
My Verizon: The “My Verizon” command allows you to access
information about your Verizon Wireless account (for example,
balance, minutes, usage, and payment information).
Help: Help displays general information about how to use Voice
Commands.
104
I Voice Commands Settings
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, Voice Commands.
2. Press the Right Soft Key [Settings].
3. Select one of the following options:
Confirm Choices: Automatic/Always Confirm/Never Confirm
Sensitivity: More Sensitive/Automatic/Less Sensitive
Adapt Voice: Adapts digit dialing and name dialing to your voice.
Prompts: Mode/Audio Playback
For Mode, set Prompts/Readout + Alerts/Readout/Tones Only.
For Audio Playback, set Speakerphone/Earpiece.
Info: Displays version information, etc.
The Calculator allows you to perform simple mathematical
calculations.
1. From idle mode, press the Center Select Key [MENU], select
SETTINGS & TOOLS
Calculator
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, Calculator.
2. You can input arithmetic operators using the following keys.
• Directional Key ( up: +
• Directional Key & right: ×
• Directional Key $ left: ÷
• Directional Key down: −
• Center Select Key : =
105
NOTE
To insert a decimal, press . To insert ±, press . For
example:
1. Press , the Directional Key ( up, , then the
Directional Key down, , . “10+5-(-5)” is displayed.
2. Press the Center Select Key [=], the answer “20” will be
displayed.
Calendar
The Calendar tool provides easy and convenient access to your
schedule.
SETTINGS & TOOLS
Simply store your events and your handset will alert you to them.
NOTE
From idle mode, you can directly access the Calendar feature by
pressing the Directional Key down.
I Adding a New Event
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, Calendar.
2. Scroll to the scheduled day.
3. Press the Left Soft Key [Add].
4. Scroll to the information field you want to enter. These fields
include:
Event: Use the keypad to enter an appointment in your schedule.
Start Date & Time: Press the Left Soft Key [Set], then use the
keypad to enter the start date & time and press the Directional
Key " up or down for am/pm. Then press the Center Select Key
[SET].
End Date & Time: Press the Left Soft Key [Set], then use the
keypad to enter the start date & time and press the Directional
106
Key " up or down for am/pm. Then press the Center Select Key
[SET].
Time Zones: Press the Left Soft Key [Set], then select from the
following: GMT/UTC, EST, EDT, CST, CDT, MST, MDT, PST, PDT,
AKST, AKDT, HAST, or HADT. Then press the Center Select Key
[SET].
Recurrence: Press the Left Soft Key [Set], then select from the
following: Once, Daily, Weekly, Monthly, Yearly. Then press the
Center Select Key [SET].
Alert: Press the Left Soft Key [Set] to select a new ringtone.
Highlight a ringtone type, from the following, then press the Center
Select Key [SET]:
Tone - Select the desired ringtone and press the Center Select
Vibrate - Select On or Off and press the Center Select Key
[SET].
Reminder - Select Once, Every 2 Minutes, Every 15 minutes,
or Off and press the Center Select Key [SET].
SETTINGS & TOOLS
Key [SET].
Alert Time: Press the Left Soft Key [Set], then select from the
following: None/On time / 5 minutes before / 10 minutes before /
15 minutes before / 30 minutes before / 1 hour before / 3 hours
before /5 hours before / 1 Day Before. Then press the Center
Select Key [SET].
5. Press the Center Select Key [SAVE] after setting all of the
applicable Event Fields.
I Viewing and Editing Event Details
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, Calendar.
2. Scroll to the day on which an event is registered, then press the
Center Select Key [VIEW].
107
3. Scroll to an event, then press the Center Select Key [VIEW].
4. If you need to edit event details, press the Center Select Key
[EDIT]. To erase an event, press the Left Soft Key [Erase]. With
Yes highlighted, press the Center Select Key [OK] to erase the
calendar event.
Alarm Clock
The Alarm Clock tool allows you to set up to three alarms.
When you set an alarm, the current time is displayed. When the alarm
goes off, Alarm 1 (or 2 or 3, as applicable) will be displayed on the
screen and the alarm will sound.
SETTINGS & TOOLS
NOTE
From idle mode, you can directly access the Alarm Clock feature
by pressing the Directional Key & right and pressing Alarm
Clock.
I Setting an Alarm
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, Alarm Clock.
2. Select an Alarm (1, 2, or 3), then press the Center Select Key [OK].
3. Scroll to the information field you want to enter. These fields include:
On/Off: Press the Left Soft Key [Set], select On or Off, and press
the Center Select Key [SET].
Time: Press the Left Soft Key [Set], then use the keypad to enter
the time and press the Directional Key " up or down for am/pm.
Then press the Center Select Key [SET].
Frequency: Press the Left Soft Key [Set], then select from the
following: Once, Daily, Mon - Fri, or Weekends. Then press the
Center Select Key [SET].
108
Ringer: Press the Left Soft Key [Set] then select the desired
ringtone and press the Center Select Key [SET].
4. Press the Center Select Key [SAVE] after setting all of the
applicable Alarm Fields.
I Disabling an alarm before it sounds
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, Alarm Clock.
2. Select an alarm, then press the Right Soft Key [Options].
3. Select one of the following options, then press the Center Select
Key [OK].
Turn Off: Turns off the highlighted alarm.
Reset All: Resets all of the alarms.
Stop Watch
1. From idle mode, press the Center Select Key [MENU], select
SETTINGS & TOOLS
Reset Alarm: Resets the highlighted alarm.
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, Stop Watch.
2. Press the Center Select Key [START] to start the stop watch.
• Press the Center Select Key [STOP] to stop the watch.
• Press the Right Soft Key [Lap] to record the lap time.
• Press the Left Soft Key [Reset] to reset the time.
Countdown Timer
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, Countdown Timer.
2. Select a countdown timer, then press the Right Soft Key [Edit].
3. Edit the countdown time, then press the Center Select Key [SET].
109
4. Press the Center Select Key [START] to start the countdown timer.
• Press the Center Select Key [STOP] to stop the countdown timer.
• Press the Left Soft Key [Reset] to reset the countdown timer.
World Clock
To determine the current time in another time zone or country:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, World Clock.
2. Press the Directional Key ' left or right to view the time in different
cities. To view a list of the cities, press the Right Soft Key [Cities],
select the desired City and press the Center Select Key [OK]. The
SETTINGS & TOOLS
world map appears with the city, its date and time.
NOTE
Press the Left Soft Key [Set DST], to apply Daylight Savings Time.
Notepad
Your handset includes an internal notepad that can be used to
compose and store reminders and notes.
I Adding a New Note
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, Notepad.
2. Press the Left Soft Key [Add] to write a new note. When you are
done, press the Center Select Key [SAVE].
I Viewing and Editing a Note
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, Notepad.
110
2. Select a note, then press the Center Select Key [VIEW].
3. If you need to edit the note, press the Center Select Key [EDIT].
4. Edit the note. When you are done, press the Center Select Key
[SAVE].
NOTE
You can erase the note by pressing the Left Soft Key [Erase] in
step 3. Select Yes, then press the Center Select Key [OK].
USB Mass Storage
Allows you to transfer data from your handset to your PC or vice versa
when your handset is connected to your PC with a compatible USB
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, USB Mass Storage.
2. Plug in the USB cable connector to the Charging/Data port of your
SETTINGS & TOOLS
cable (purchased separately).
handset and the other side connector to a USB port on your PC.
Follow the on-screen prompts.
NOTES
• Mac OS operating systems are not supported.
• You can select this menu only when a memory card is inserted in
the handset.
• When using USB Mass Storage with the USB cable connected to
a PC, you will not be able to answer or make a phone call. Unplug
the USB cable connector from your handset to enable calls.
111
G’zGEAR™
G’zGEAR™ provides six useful tools for outdoor activities.
Warning!
Do not use G’zGEAR™ while engaging in any dangerous sports.
NOTE
When the Bottom Side Key is set to G’zGEAR™ (default) for
Set Shortcuts from the Phone Settings, pressing the Bottom Side
Key from idle mode activates the G’zGEAR™ with the flip
either open or closed.
SETTINGS & TOOLS
Earth Compass
In Compass mode, the direction measured with the built-in electronic
compass is displayed.
In World Nature mode, the compass and natural objects in the
direction the handset is facing are displayed on the screen.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, G’zGEAR, Earth Compass.
2. The following keys are available in the Earth Compass:
• Directional Key ' left or right: Switches the mode.
• Directional Key " up or down: Selects the natural object in the
direction the handset is facing to measure the distance to that
object. (Only in World Nature mode)
• Center Select Key [GPS]: Measures the current position with
GPS. (Only in World Nature mode)
• Right Soft Key [Options]: Displays the following options:
About: Displays the description of the Earth Compass tool.
Compass: Switches to Compass mode.
World Nature: Switches to World Nature mode.
Update GPS Data: Measures the current position with GPS.
112
Calibration: Calibrates the electronic compass.
• Left Soft Key [Home]: Returns to G’zGEAR™ Home menu.
NOTES
• The Earth Compass cannot be used while the handset is being
charged.
• When using the electronic compass, orient the handset so its
keypad is horizontal. The direction measurement error increases
when the keypad of the handset is tilted.
• Any of the following actions can create accuracy issues with the
electronic compass. If any of these occur, perform the calibration
as soon as possible.
- Opening and closing the flip immediately after starting up the
- Leaving the handset for a long time in an area with extreme
temperature change.
- Allowing the handset to become magnetized.
SETTINGS & TOOLS
electronic compass.
- Using the handset near a strong magnet.
• To calibrate the electronic compass,
hold the handset firmly and move the
handset in the shape of a large figure
eight as shown in the illustration to the
right for about five seconds.
• Calibrate the electronic compass with the handset open before
using it with the handset open.
• Calibrate the electronic compass with the handset closed before
using it with the handset closed.
• The electronic compass uses the Earth’s magnetic field to
determine direction. The direction readings produced by the
electronic compass can be different from actual compass
readings due to environment and temperature conditions.
113
• Direction readings taken in any of the following locations may
result in a large margin of error.
- Near buildings (especially ferro-concrete structures), large
metal objects (trains, motor vehicles, etc.), high-voltage power
lines, or overhead wires
- Near metal objects (desks, lockers, etc.), household appliances
(TVs, computers, speakers, etc.), or permanent magnets
(magnetic necklaces, etc.)
If you suspect a reading error, move away from the above
locations and try again.
Walking Counter
SETTINGS & TOOLS
In Pedometer mode, the number of steps you walked in a day is
measured with the pedometer to display the distance you walked and
the estimated amount of calories you burned.
In Virtual Trek mode, the amount of trail you traveled is displayed
based on the distance calculated from the number of steps. The
current position on the trail, the achieved percentage, and the
milestones on the trail are displayed on the screen.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, G’zGEAR, Walking Counter.
2. The following keys are available in the WALKING COUNTER:
• Directional Key ' left or right: Switches the mode.
• Directional Key " up or down: Selects the date.
• Center Select Key [WEEK/MONTH/DAY]: Switches to display
the total number of steps walked by weeks, months or days.
(Only in Pedometer mode)
• Right Soft Key [Options]: Displays the following options:
About: Displays the description of the Walking Counter tool.
Pedometer: Switches to Pedometer mode.
Virtual Trek: Switches to Virtual Trek mode.
114
Trail Selection: Selects the trail to walk in Virtual Trek mode.
Delete Pedometer Data: Deletes today’s data or all past data
measured with the pedometer.
Pedometer Settings: Enter your height, weight, age, and
gender to calculate the traveled distance and burned calories
from your steps.
Pedometer On/Off Settings: Set whether to count your steps
with the pedometer.
• Left Soft Key [Home]: Returns to G’zGEAR™ Home menu.
NOTES
• The pedometer counts your steps while the handset power is ON.
You do not need to activate G’zGEAR™ to count your steps.
• The pedometer detects the small vibrations generated when you
are walking or jogging and counts them as steps. The error of the
count increases if your steps cannot be detected normally or if
vibration other than from walking or jogging is detected.
SETTINGS & TOOLS
• Your steps are counted every day from midnight for 24 hours.
• The steps counted by the pedometer may differ from the actual
number of your steps. Use the counted result only as a guide.
• The length between points displayed in Virtual Trek mode is not
accurately scaling down the actual distance between points.
Thermometer
The Thermometer displays the current temperature in Fahrenheit and
Celsius.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, G’zGEAR, Thermometer.
2. The following keys are available in the Thermometer:
• Right Soft Key [Options]: Displays the following option:
About: Displays the description of the Thermometer tool.
115
• Left Soft Key [Home]: Returns to G’zGEAR™ Home menu.
NOTES
• The Thermometer cannot be used while the handset is being
charged.
• Expose the handset to open air and wait until it reaches the same
temperature as open air, which may take about 30 minutes.
• The temperature sensor is influenced by factors such as your
body temperature, heat of the handset itself, direct sunlight, and
moisture. Use it under conditions that are not influenced by heat
other than air temperature.
• The measurable temperature range is from −30 to 60°C (−22 to
SETTINGS & TOOLS
140°F).
• The handset may be heated after it is used for voice or data
communication or charged, which may cause error in temperature
measurement.
Tides
The time of ebb and flood tide are displayed.
The One-day View mode displays the tidal graph for a single day.
The Current View mode displays the current tide and the time
appropriate for fishing.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, G’zGEAR, Tides.
2. The following keys are available in the Tides:
• Directional Key ' left or right: Switches the mode.
• Directional Key " up or down: Changes the date for displaying
the information.
• Center Select Key [LOCATION]: Changes the location for
displaying the information. Continue by pressing the Right Soft
116
Key [GPS] to measure the current location and select the nearest
site.
• Right Soft Key [Options]: Displays the following options:
About: Displays the description of the Tides Tool.
One-day View: Switches to One-day View mode.
Current View: Switches to Current View mode.
Select Your Location: Same as the key [LOCATION] above.
• Left Soft Key [Home]: Returns to G’zGEAR™ Home menu.
NOTES
• The tidal information is subject to error.
• The Tides tool can display the information between July 1, 2009
and December 31, 2014.
Sunrise Sunset
The time of sunrise and sunset are displayed.
The Tracking mode displays the position of the sun.
SETTINGS & TOOLS
• Do not use it for navigation.
The Day/Night mode displays the ratio of day and night in numeric
and graphic form.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, G’zGEAR, Sunrise Sunset.
2. The following keys are available in the Sunrise Sunset:
• Directional Key ' left or right: Switches the mode.
• Directional Key " up or down: Changes the date for displaying
the information.
• Center Select Key [LOCATION]: Changes the location for
displaying the information. Continue by pressing the Right Soft
Key [GPS] to measure the current location and select the nearest
site.
117
• Right Soft Key [Options]: Displays the following options:
About: Displays the description of the Sunrise Sunset tool.
Tracking: Switches to Tracking mode.
Day/Night: Switches to Day/Night mode.
Select Your Location: Same as the key [LOCATION] above.
• Left Soft Key [Home]: Returns to G’zGEAR™ Home menu.
NOTES
• The Sunrise Sunset tool can display the information between
January 1, 2009 and December 31, 2020.
• The altitude of the sun in the Tracking mode has a margin of error.
The orbit of the sun displayed on the front display is not accurate
SETTINGS & TOOLS
and is only an imagery orbit.
Astro Calendar
The moon’s age and days until full moon and new moon are
displayed.
Lunar Phase mode displays the phase of the moon.
Cosmic View mode displays the location of sun, earth and moon.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, G’zGEAR, Astro Calendar.
2. The following keys are available in the Astro Calendar:
• Directional Key ' left or right: Switches the mode.
• Directional Key " up or down: Changes the date for displaying
the information.
• Right Soft Key [Options]: Displays the following options:
About: Displays the description of the Astro Calendar tool.
Lunar Phase: Switches to Lunar Phase mode.
Cosmic View: Switches to Cosmic View mode.
• Left Soft Key [Home]: Returns to G’zGEAR™ Home menu.
118
NOTES
• The Astro Calendar tool can display the information between
January 1, 2009 and December 31, 2020.
• The moon’s age displayed by the Astro Calendar tool is at noon
of the day.
• The sun, moon and earth displayed by the Astro Calendar tool are
only imagery pictures.
• The location of the sun, moon and earth in Cosmic View mode is
approximate and not exactly the same as actual location.
• The astronomical information displayed may have a margin of
error depending on date.
Using the G’zGEAR™ with the Flip Closed
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, G’zGEAR.
2. Close the flip.
3. To change the tool displayed on the front display, tap the Rewind
Key
or the Fast Forward Key
SETTINGS & TOOLS
1. From idle mode, press the Center Select Key [MENU], select
. To accept the tool, press the
Bottom Side Key .
4. To end G’zGEAR™ mode, press and hold the Bottom Side Key
.
119
NOTES
• If the handset is closed while displaying the G’zGEAR™ tool on
the main display, the tool will be displayed on the front display.
• On the front display, the following information is displayed for
each tool:
Earth Compass: Compass
Walking Counter: Steps, burned calories
Thermometer: Temperature in Celsius and Fahrenheit
Tides: Time of flood tide, time of ebb tide
Sunrise Sunset: Time of sunrise, time of sunset
Astro Calendar: Phase of the moon
• G’zGEAR™ automatically ends after 40 seconds of inactivity with
SETTINGS & TOOLS
the flip closed.
Set Up
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, G’zGEAR, Set Up.
2. Select one of the following options:
G_Switch: Enables switching of tools by shaking the handset
to the left with the flip open. See page 35 for information on the
Motion Detection function. (On/Off)
Save Last Mode: Displays the previously displayed mode when
starting a tool. (On/Off)
Backlight: Keeps the display backlight on while G’zGEAR™ is
active. (On/Off)
Pedometer: Counts your steps with the pedometer. (On/Off)
Calibration: Calibrates the electronic compass.
Restore Defaults: Returns G’zGEAR™ settings to initial value.
120
How To Use
You can display how to use G’zGEAR™.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Tools, G’zGEAR, How To Use.
Bluetooth
Your handset supports the following Bluetooth® profile services
and protocols: Headset, Handsfree, Dial Up Networking, Stereo,
Phonebook Access, Basic Printing, and Object Push (for vCard
and vCalendar).* You can create and store 20 pairings within the
handset but connect to only one device at a time. The approximate
communication range for Bluetooth® wireless technology is up to 25
* Your handset is based on the Bluetooth® specification, but it is
not guaranteed to work with all devices enabled with Bluetooth®
wireless technology. This handset does not support all Bluetooth ®
SETTINGS & TOOLS
feet.
OBEX Profiles. For vehicle/accessory (sold separately)
compatibility go to www.verizonwireless.com/bluetoothchart.
NOTE
Read the user guide of each Bluetooth® accessory that you are
trying to pair with your handset because the instructions may differ.
Power
To toggle Bluetooth® power On/Off:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Bluetooth.
3. Press the Left Soft Key [Turn On].
121
NOTES
• By default, your handset’s Bluetooth® functionality is turned off.
• From idle mode, you can toggle Bluetooth® power on or off
by pressing the Directional Key & right and pressing Bluetooth on/off.
Add New Devices
“Pairing” is the process that allows the handset to locate, establish,
and register a 1-to-1 connection with the target device.
To pair the handset with a new Bluetooth® device:
1. From idle mode, press the Center Select Key [MENU], select
SETTINGS & TOOLS
Settings & Tools, then press the Center Select Key [OK].
2. Press Bluetooth.
3. Press Add New Devices.
NOTE
If the Bluetooth® power is switched off, the following message will
appear on the main display: Turn Bluetooth power on?
Press the Center Select Key [OK] to select Yes. BLUETOOTH
POWER ON will appear on the display.
4. The handset will prompt you with the following message on the
main display: PLACE DEVICE YOU ARE CONNECTING TO IN
DISCOVERABLE MODE. Press the Center Select Key [OK].
5. The device will appear in the ADD NEW DEVICE menu. Select
the device you wish to pair with, then press the Center Select Key
[PAIR].
6. The handset may prompt you for the passkey. Consult the
Bluetooth® accessory instructions for the appropriate passkey
(typically “0000”—4 zeroes). Enter the passkey, then press the
Center Select Key [OK].
122
NOTE
You do not need to input the passkey for pairing when the passkey
of the Bluetooth® Headset or hands-free kit is 0000.
7. The handset will prompt you with the following message on the
main display: Before Connecting To [Device Name]. If you would
like to always confirm before connecting to the Bluetooth® device,
select Always Ask, then press the Center Select Key [OK]. The
handset will prompt you with the message Connect to [Device
Name]. Select Yes, then press the Center Select Key [OK]. If
you do not wish to confirm every time before connecting to the
Bluetooth® device, select Always Connect, then press the Center
Select Key [OK].
Menu and the Bluetooth® device connected icon
will appear at
the top of the main display.
NOTES
SETTINGS & TOOLS
8. Once connected, you will see the device listed in the Bluetooth
• In the Bluetooth Menu, you can disconnect the connected device
with an icon
by pressing the Center Select Key [DROP].
Conversely, you can reconnect by pressing the Center Select Key
[OK] again.
• When an audio device is connected, you can select another
device and the connection is automatically transferred from the
one to the other.
• If multiple devices are displayed, select the device to which you
want to connect.
123
Bluetooth Settings
I Settings for Your Handset
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Bluetooth.
3. Press the Right Soft Key [Options] to select one of the following
options:
• To edit the Bluetooth® name of your phone, press My Phone
Name. Enter a new custom name and then press the Center
Select Key [OK] to save and exit.
• To set whether your handset is able to be searched for by other
Bluetooth® devices in the area, press Discovery Mode.
SETTINGS & TOOLS
Select On or Off, then press the Center Select Key [OK].
• To view brief descriptions of the profiles supported by the phone,
press Supported Profiles. Select one of the profiles, then
press the Center Select Key [VIEW].
I Settings for Paired Device
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Bluetooth.
3. Select the paired device, then press the Right Soft Key [Options].
4. Select one of the following options:
Remove Device: Removes a device from the pairing list.
Rename Device: Allows you to rename the paired device.
Incoming Security: Set whether or not to confirm (Always Ask/
Always Connect) before connecting to the paired device upon
receiving an incoming connection request from it.
Service Discovery: Searches for services supported by the
selected device.
Device Info: Displays the paired device information.
124
Sending and Receiving Name Cards
Use the following procedures to send and receive a Name Card via
Bluetooth®.
I Sending a Name Card
To send a name card to the paired device via Bluetooth®:
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK], press Contact List.
Or, press the Right Soft Key [Contacts] from idle mode.
2. Select the Contact then press the Right Soft Key [Options].
3. Select Send Name Card, then press the Center Select Key [OK].
4. Your contact entries will be displayed in alphabetical order. Select
[MARK].
5. Press the Left Soft Key [Done].
6. Select the receiving device and then press the Center Select Key
[OK].
SETTINGS & TOOLS
the contact you want to send, then press the Center Select Key
I Sending My Name Card
To send My Name Card to the paired device via Bluetooth®:
NOTE
Register My Name Card before performing the following steps.
For information about how to register My Name Card, see page 60.
1. From idle mode, press the Center Select Key [MENU], select
Contacts, then press the Center Select Key [OK].
2. Press My Name Card.
3. Press the Right Soft Key [Options] then Exchange Name
Card.
4. Select the receiving device then press the Center Select Key [OK].
125
I Pulling a Name Card
You can use the following procedure to request a name card from
another Bluetooth® device and add the received name card to your
Contact List.
NOTE
Register My Name Card before performing the following steps.
For information about how to register My Name Card, see page 60.
1. From idle mode, press the Center Select Key [MENU], select
SETTINGS & TOOLS
Contacts, then press the Center Select Key [OK].
2. Press My Name Card.
3. Press the Right Soft Key [Options] then Pull Name Card.
4. Select the device and then press the Center Select Key [OK].
I Receiving a Name Card
To save a Name Card received via Bluetooth® to your Contact List:
1. The message “Receive data from [Device Name]?” will appear on
your handset’s display when another Bluetooth® device sends your
handset a name card.
2. Select Yes, then press the Center Select Key [OK].
Sending and Receiving Images
To send and receive an image via Bluetooth®:
I Sending an Image
To send an image saved on your handset to the paired device via
Bluetooth®:
1. From idle mode, press the Center Select Key [MENU], select
Media Center, then press the Center Select Key [OK].
2. Press Picture & Video, My Pictures.
126
3. Select the image you want to send, then press the Right Soft Key
[Options].
4. Press Send and then Via Bluetooth.
5. Highlight the image and press the Center Select Key [MARK],
when finished, press the Left Soft Key [Done].
6. Select the receiving device and then press the Center the Select
Key [OK].
I Receiving an Image
To receive and save an image sent from the paired device via
Bluetooth®:
1. The message “Receive data from [Device Name]?” will appear on
your handset’s display when another Bluetooth® device sends an
Keyguard Settings
Keyguard Timer
SETTINGS & TOOLS
image to your handset.
2. Select Yes, then press the Center Select Key [OK].
The Keyguard Timer feature locks the side keys and touch keys to
prevent them from being pressed accidentally in your bag or pocket.
Set the period of time since the last key operation is made with the flip
closed until this feature locks the side keys and touch keys.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Keyguard Settings, Keyguard Timer.
3. Select one of the following settings, then press the Center Select
Key [SET].
Always Off / 7 seconds / 15 seconds / 30 seconds
127
NOTES
• When you open the flip, the side keys will unlock.
• When G’zGEAR™ or My Music is active with the flip closed, the
side keys and touch keys will not lock.
• Even when locked, the side keys are valid in the following cases:
- When the alarm and schedule sounds.
- When the handset receives an incoming call.
- During a call.
- When the handset receives a PTT incoming call.
- During a PTT call.
Unlock Options
SETTINGS & TOOLS
Select how to temporarily unlock the side keys and touch keys with
the flip closed.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Keyguard Settings, Unlock Options.
3. Select one of the following settings, then press the Center Select
Key [SET].
Press Once: Temporarily release the lock by pressing the Bottom
Side Key once with the flip closed.
Press Twice: Temporarily release the lock by pressing the Bottom
Side Key then the Volume Key down with the flip
closed.
Sounds Settings
Provides options to customize the handset’s sounds.
Accessing the Sounds Settings submenu
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Sounds Settings.
128
3. Select a submenu:
Easy Set-up / Call Sounds / Alert Sounds / Keypad Volume /
Digit Dial Readout / Service Alerts / Power On/Off
Easy Set-up
You can set the Call Sounds, Keypad Volume, Text Message Alert,
Media Message Alert, and Voicemail Message Alert all at once using
the Wizard.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Sounds Settings, Easy Set-up.
2. Follow the on screen prompts to set sounds settings.
CALL SOUNDS: Select Ring Only, Vibrate Only, Ring&Vibrate
KEYPAD VOLUME: Adjust the volume by pressing the Directional
Key " up or down, then press the Center Select Key [SET] to
save the setting or press the Right Soft Key [Skip] to go to the next
SETTINGS & TOOLS
or Be Silent then press the Center Select Key [SET] to save the
setting or press the Right Soft Key [Skip] to go to the next setting.
setting.
TEXT MESSAGE ALERT: Select Ring Only, Vibrate Only,
Ring&Vibrate or Be Silent then press the Center Select Key
[SET] to save the setting or press the Right Soft Key [Skip] to go to
the next setting.
MEDIA MESSAGE ALERT: Select Ring Only, Vibrate Only,
Ring&Vibrate or Be Silent then press the Center Select Key
[SET] to save the setting or press the Right Soft Key [Skip] to go to
the next setting.
VOICEMAIL MSG ALERT: Select Ring Only, Vibrate Only,
Ring&Vibrate or Be Silent then press the Center Select Key
[SET] to save the setting or press the Right Soft Key [Skip] to
complete set-up.
129
Call Sounds
To set ringtones for types of incoming calls:
I Call Ringtone
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Sounds Settings, Call Sounds, Call Ringtone.
2. Select a ringtone, then press the Center Select Key [SET] to save
the sound. To play the ringtone, press the Left Soft Key [Play].
I Call Vibrate
1. From idle mode, press the Center Select Key [MENU], select
SETTINGS & TOOLS
Settings & Tools, then press the Center Select Key [OK]. Press
Sounds Settings, Call Sounds, Call Vibrate.
2. Select On or Off, then press the Center Select Key [SET].
I Caller ID Readout
1. From idle mode, press the Center Select Key [MENU], select Settings
& Tools, then press the Center Select Key [OK]. Press Sounds
Settings, Call Sounds, Caller ID Readout.
2. Select one of the following settings, then press the Center Select
Key [SET].
Ring Only/Caller ID + Ring/Name Repeat
Alert Sounds
To select the alert type for a new message:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Sounds Settings, Alert Sounds.
2. Select TXT Message/Media Message/Voicemail/Emergency
Tone/Missed Call/PTT Alert, then press the Center Select Key
[OK].
130
3. Select Tone/Vibrate/Reminder, then press the Center Select Key
[OK].
Tone: Select a ringer, then press the Center Select Key [SET]. To
play the alert tone, press the Left Soft Key [Play].
Vibrate: Select On or Off, then press the Center Select Key [SET].
Reminder: Select Once/Every 2 Minutes/Every 15 Minutes/Off,
then press the Center Select Key [SET].
NOTES
• Emergency Tone has the following settings: Alert/Vibrate/Off.
• PTT Alert has only two settings: Tone/Vibrate.
Keypad Volume
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Sounds Settings, Keypad Volume.
2. Adjust the volume by pressing the Directional Key " up or down,
SETTINGS & TOOLS
To set the keypad volume:
then press the Center Select Key [SET] to save the setting.
Digit Dial Readout
To set whether to read out the numbers being entered when dialing a
phone number:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Sounds Settings, Digit Dial Readout.
2. Select On or Off, then press the Center Select Key [SET].
Service Alerts
To set any of the three Alert options to either On or Off:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
131
Sounds Settings, Service Alerts.
2. Select one of the following options, then press the Center Select
Key [OK].
ERI: Alerts you to the status of cellular service.
Minute Beep: Alerts you every minute during a call in progress.
Call Connect: Alerts you when the call is connected.
3. Select On or Off, then press the Center Select Key [SET].
Power On/Off
To set the handset to sound a tone when the handset is powered on/off:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
SETTINGS & TOOLS
Sounds Settings, Power On/Off.
2. Press Power On or Power Off.
3. Select On or Off, then press the Center Select Key [SET].
Display Settings
Provides options to customize the handset’s display screen.
Accessing the Display Settings submenu
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Display Settings.
3. Select a submenu:
Easy Set-up/Banner/Backlight/Wallpaper/Display Themes/
Main Menu Settings/Dial Fonts/Menu Font Size/Clock Format
Easy Set-up
You can set the Personal Banner, Main Display Backlight, Keypad
Backlight, Main Wallpaper, Display Themes, Main Menu Settings, Dial
Fonts, Main Clock Format, and Front Clock Format all at once using
the Wizard.
132
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Easy Set-up.
2. Follow the on screen prompts to set display settings.
PERSONAL BANNER: Enter in the desired banner text, then press
the Center Select Key [SET] to save the setting or press the Right
Soft Key [Skip] to go to the next setting.
MAIN DISPLAY BACKLIGHT: Select 7 seconds, 15 seconds, 30
seconds, or Always On, then press the Center Select Key [SET]
to save the setting or press the Right Soft Key [Skip] to go to the
next setting.
KEYPAD BACKLIGHT: Select 7 seconds, 15 seconds, 30
seconds, or Always On, then press the Center Select Key [SET]
next setting.
MAIN WALLPAPER: Select the desired picture, then press the
Center Select Key [SET] to save the setting or press the Right Soft
Key [Skip] to go to the next setting.
SETTINGS & TOOLS
to save the setting or press the Right Soft Key [Skip] to go to the
DISPLAY THEMES: Select White, Surfing, Metal, or Polyhedral
Rock, then press the Center Select Key [SET] to save the setting
or press the Right Soft Key [Skip] to go to the next setting.
MENU LAYOUT: Select Tab, List, or Grid, then press the Center
Select Key [SET] to save the setting or press the Right Soft Key
[Skip] to go to the next setting.
MENU TYPE: Select Communicator or Productivity, then press
the Center Select Key [SET] to save the setting or press the Right
Soft Key [Skip] to go to the next setting.
DIAL FONTS: Select Normal or Large, then press the Center
Select Key [SET] to save the setting or press the Right Soft Key
[Skip] to go to the next setting.
MAIN CLOCK FORMAT: Select Analog, Large Analog, Digital
133
12, Large Digital 12, Digital 24, Large Digital 24 or Off, then
press the Center Select Key [SET] to save the setting or press the
Right Soft Key [Skip] to go to the next setting.
FRONT CLOCK FORMAT: Select Digital, Analog or Off, then
press the Center Select Key [SET] to save the setting or press the
Right Soft Key [Skip] to complete set-up.
Banner
To set your Personal or ERI banner:
I Personal Banner
The Personal Banner can be up to 16 characters and is displayed on
SETTINGS & TOOLS
the idle screen.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Banner, Personal Banner.
2. Enter your banner text (up to 16 characters) then press the
Directional Key down to advance to the Text Color field.
3. Press the Directional Key ' left or right to choose the desired
color, then press the Center Select Key [SET].
I ERI Banner
If you use ERI Service, ERI Text is shown on the sub banner.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Banner, ERI Banner.
2. Select On or Off, then press the Center Select Key [SET].
Backlight
I Display
To set the duration and brightness of backlight illumination for the
main display:
134
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Backlight, Display.
2. Select one of the following settings, then press the Center Select
Key [OK].
Duration: Select 7 seconds, 15 seconds, 30 seconds, Always
On, or Always Off, then press the Center Select Key [SET].
Brightness: Press the Directional Key ' left or right to set the
brightness to Low, Medium Low, Medium, Medium High, or
High, then press the Center Select Key [SET].
I Keypad
To set the duration of backlight illumination for the Keypad:
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Backlight, Keypad.
2. Select one of the following settings, then press the Center Select
Key [SET].
SETTINGS & TOOLS
1. From idle mode, press the Center Select Key [MENU], select
7 seconds / 15 seconds / 30 seconds / Always On
NOTES
• Even if Always On is selected for the Backlight setting, the
backlight will turn off when the flip is closed.
• If Always On and/or High are selected for the Backlight setting,
the battery life may be reduced.
Wallpaper
To choose the background to be displayed on the handset:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Wallpaper.
135
2. Select one of the following options, then press the Center Select
Key [OK].
My Pictures/My Videos/Fun Animations
3. Select from the available screens, then press the Center Select Key
[SET].
NOTE
Files larger than 5MB can not be set as Wallpaper.
Display Themes
To choose the color of the background screen:
1. From idle mode, press the Center Select Key [MENU], select
SETTINGS & TOOLS
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Display Themes.
2. Select one of the following settings, then press the Center Select
Key [SET].
White/Surfing/Metal/Polyhedral Rock
Main Menu Settings
I Menu Layout
To change Main Menu layout and type:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Main Menu Settings, Menu
Layout.
2. Select one of the following layouts, then press the Center Select
Key [SET].
Tab/List/Grid
3. If you selected List or Grid, select one of the following types, then
press the Center Select Key [SET].
Communicator/Productivity
136
NOTE
All directions in this manual assume that Main Menu Settings are
set to Grid and Communicator, and Display Themes is set to
Polyhedral Rock, which are the default settings.
I Replace Menu Items
Main Menu items can be replaced only when Menu Layout is set to
List or Grid.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Main Menu Settings, Replace
Menu Items.
2. Select the item you want to replace, then press the Center Select
Select Key [SET].
4. Press the Left Soft Key [Done].
SETTINGS & TOOLS
Key [EDIT].
3. Select the item you want to replace it with, then press the Center
I Position Menu Items
The Position of Main Menu items can be changed only when Menu
Layout is set to List or Grid.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Main Menu Settings, Position
Menu Items.
2. Select the item you want to move, then press the Center Select Key
[MOVE].
3. If the current Main Menu Layout is List, press the Directional Key
" up or down to change the position of this item, then press the
Center Select Key [SET].
If the current Main Menu Layout is Grid, press the Directional Key
137
up, down, left or right to highlight desired position, then press
the Center Select Key [SWAP].
4. Press the Left Soft Key [Done].
I Reset Menu Settings
Main Menu Settings can be reset when Menu Layout is set to List or
Grid by using the following procedure.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Main Menu Settings, Reset
Menu Settings.
2. Select one of the following options, then press the Center Select
SETTINGS & TOOLS
Key [OK].
Menu Layout: Reactivates the initial Main Menu Layout (Grid and
Communicator).
Menu Items: Reactivates the initial content of the Menu.
Item Positions: Reorders Main Menu Items to their initial positions.
All: Reactivates all your initial Main Menu settings.
NOTE
When Menu Layout is set to Tab, Menu Layout settings can be
defaulted to Grid and Communicator by pressing Main Menu
Settings, Reset Menu Layout from the Display Settings
submenu.
Dial Fonts
To set the font size:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Dial Fonts.
2. Select Normal or Large, then press the Center Select Key [SET].
138
Menu Font Size
To set the menu font size:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Menu Font Size.
2. Select Normal or Large, then press the Center Select Key [SET].
Clock Format
To choose the kind of clock to be displayed on the main display and
the front display:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Display Settings, Clock Format.
Key [SET].
Main Clock: Analog/Large Analog/Digital 12/Large Digital 12/
Digital 24/Large Digital 24/Off
SETTINGS & TOOLS
2. Press Main Clock or Front Clock.
3. Select one of the following settings, then press the Center Select
Front Clock: Digital/Analog/Off
Phone Settings
The Phone Settings menu allows you to set your handset’s system.
Accessing the Phone Settings submenu
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Phone Settings.
3. Select a submenu:
Airplane Mode/Set Shortcuts/Voice Commands Settings/
Language/Location/Current Country/Security/System Select/
NAM Selection/Motion Detection
139
Airplane Mode
In Airplane Mode, all menu functions can be accessed except making
calls, receiving calls, data connection and Bluetooth®.
Activating Airplane Mode will disable all wireless communications.
In Airplane Mode, services that support Location On functions are
temporarily disabled.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Airplane Mode.
2. Select On or Off, then press the Center Select Key [SET].
SETTINGS & TOOLS
Set Shortcuts
I Set My Shortcuts
Your handset offers you the option of assigning four shortcuts for
favorite or often-used functions.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Set Shortcuts, Set My
Shortcuts.
2. Select Shortcut 1, Shortcut 2, Shortcut 3, or Shortcut 4, then
press the Center Select Key [SET].
3. Select a function, then press the Center Select Key [SET].
NOTES
• From idle mode, you can display the MY SHORTCUTS screen by
pressing the Directional Key & right.
• On the MY SHORTCUTS screen, you can select a function and
then press the Center Select Key [OK] to access the function.
• On the MY SHORTCUTS screen, you can relocate a function by
pressing the Right Soft Key [Move], pressing the Directional Key
" up or down, then pressing the Center Select Key [SAVE].
140
I Resetting My Shortcuts
To return My Shortcuts to their original defaults:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Set Shortcuts, Set My
Shortcuts.
2. Select Shortcut 1, Shortcut 2, Shortcut 3, or Shortcut 4, then
press the Right Soft Key [Options].
3. Press Reset Shortcut ([1], [2], [3], or [4]), or Reset My
Shortcuts.
4. Select Yes, then press the Center Select Key [OK].
I Set Directional Keys
Directional Key ! up, down or left from idle mode.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Set Shortcuts, Set Directional
SETTINGS & TOOLS
You can specify the function that is accessed when you press the
Keys.
2. Select UP Directional Key, LEFT Directional Key, or DOWN
Directional Key, then press the Center Select Key [SET].
3. Select a function, then press the Center Select Key [SET].
I Resetting the Directional Key Settings
Use the following procedure to specify the default Directional Key
settings.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Set Shortcuts, Set Directional
Keys.
2. Select UP Directional Key, LEFT Directional Key, or DOWN
Directional Key, then press the Right Soft Key [Options].
141
3. Press Reset ([UP], [LEFT] or [DOWN]) Key, or Reset
Directional Keys.
4. Select Yes, then press the Center Select Key [OK].
I Set Side Keys
You can specify the function that is accessed when you press the
Bottom Side Key and the Top Side Key/PTT Key from
idle mode.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Set Shortcuts, Set Side Keys.
2. Select Bottom Side Key or Top Side Key, then press the Center
SETTINGS & TOOLS
Select Key [SET].
3. Select a function, then press the Center Select Key [SET].
NOTES
• When the function that is not available with the flip closed is
selected for Set Side Keys, that function will be activated when
the flip is opened after the Side Key is pressed.
• When PTT mode is ON, the Top Side Key submenu does not
appear, and nothing can be changed.
I Resetting the Side Key Settings
Use the following procedure to specify the default side key settings.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Set Shortcuts, Set Side Keys.
2. Select Bottom Side Key or Top Side Key, then press the Right
Soft Key [Options].
3. Press Reset ([Bottom Side] or [Top Side]) Key, or Reset Side Keys.
4. Select Yes, then press the Center Select Key [OK].
142
Voice Commands Settings
To configure prompts and call alert for voice commands:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Voice Commands Settings.
2. Select one of the following options and then press the Center
Select Key [OK].
Confirm Choices/Sensitivity/Adapt Voice/Prompts/Info
Language
To set the bilingual feature for either English or Spanish:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
2. Select English or Español, then press the Center Select Key
[SET].
Location
SETTINGS & TOOLS
Phone Settings, Language.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Location.
2. Select one of the following settings, then press the Center Select
Key [SET].
Location On: Your location is now available to the network.
E911 Only: Your location will be hidden from the network and
applications, except for 911.
NOTE
In Airplane Mode, services that support Location On functions are
temporarily disabled.
143
Current Country
To change the handset settings to reflect the Country where you are
currently located:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Current Country.
2. Select the country where you are currently located, then press the
Center Select Key [SET].
NOTE
To assure that your handset works properly while you travel, please
verify the country of your current location, so the correct country
SETTINGS & TOOLS
code can be applied.
Security
The Security menu allows you to electronically secure the handset.
I Edit Codes
To set a new Lock Code:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Security.
2. Enter the four-digit Lock Code, then press the Center Select Key
[OK].
3. Press Edit Codes.
4. Select one of the following settings, then press the Center Select
Key [OK].
Phone Only: Allows you to edit the Lock Code for the handset
only.
Calls & Services: Allows you to edit the Lock Code for all Calls &
Services.
144
5. Enter the new four-digit code in the Enter New Code field.
If you selected Calls & Services in step 4, you would also need to
enter the current code before entering the new code.
6. Press the Directional Key down to advance to the Re-enter
New Code field.
7. Enter the new four-digit code again as confirmation.
8. Press the Center Select Key [SET].
NOTES
• The default Lock Code is the last 4 digits of your phone number.
• There are two Lock Codes: Phone Only and Calls & Services.
I Restrictions
Messages, and Dial-Up Modem restrictions.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Security.
SETTINGS & TOOLS
Use the following procedure to configure Location Setting, Calls,
2. Enter the four-digit Lock Code, then press the Center Select Key
[OK]. The default Lock Code is the last 4 digits of your mobile
telephone number.
3. Press Restrictions.
4. Enter the four-digit Lock Code, then press the Center Select Key
[OK].
5. Select one of the following setting and then press the Center Select
Key [OK].
Location Setting: Unlock Setting/Lock Setting
Calls: Incoming Calls/Outgoing Calls
For Incoming Calls, set Allow All/Contacts Only/Block All.
For Outgoing Calls, set Allow All/Contacts Only/Block All.
145
Messages: Incoming Messages/Outgoing Messages
For Incoming Messages, set Allow All/Block All.
For Outgoing Messages, set Allow All/Block All.
Dial-Up Modem: Allow/Block
To set any of the submenus, press the Center Select Key [SET].
I Phone Lock Setting
This setting specifies whether the handset should be locked
whenever it is turned on.
Lock Mode prevents the unauthorized use of your handset. Once
the handset is locked, it is in restricted mode until the Lock Code is
entered. When in Lock Mode, you can only receive a phone call, make
SETTINGS & TOOLS
a 911 call, or call an (In Case of Emergency) ICE contact. You can
change the Lock Code using the Security menu.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Security.
2. Enter the four-digit Lock Code, then press the Center Select Key
[OK]. The default Lock Code is the last 4 digits of your phone
number.
3. Press Phone Lock Setting.
4. Select one of the following settings, then press the Center Select
Key [SET].
Unlocked: Your handset is unlocked.
On Power Up: Your handset will be locked when it is turned on.
I Lock Phone Now
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Security.
146
2. Enter the four-digit Lock Code, then press the Center Select Key
[OK]. The default Lock Code is the last 4 digits of your phone
number.
3. Press Lock Phone Now.
NOTE
To unlock the handset, press the Right Soft Key [Unlock] from idle
mode, enter the four-digit Lock Code then press the Center Select
Key [OK].
I Restore Phone
To delete all User Data and restore all settings to their initial defaults:
1. From idle mode, press the Center Select Key [MENU], select
2. Enter the four-digit Lock Code, then press the Center Select Key
[OK].
3. Press Restore Phone.
4. After reading the warning message that appears, select Yes and
SETTINGS & TOOLS
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Security.
press the Center Select Key [OK].
5. After reading the message that appears, select Yes and press the
Center Select Key [OK].
6. Enter the four-digit Lock Code, then press the Center Select
Key [OK]. The handset will turn off and then back on again
automatically.
System Select
You can set your handset to search or roam for another network when
you are not in your home area.
Leave this setting as default unless you want to alter the system
selection as instructed by your service provider.
147
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, System Select.
2. Select one of the following settings, then press the Center Select
Key [SET].
Home Only: Only within your home area or home affiliated area.
Automatic: Scan radio channels based on the Automatic setting.
NOTES
• After you purchase your handset but before you activate it by
obtaining a phone number, the available settings will be Home
Only, Automatic A, and Automatic B.
SETTINGS & TOOLS
After the handset is activated by obtaining a phone number,
Home Only and Automatic settings will be available.
• When PTT mode is on, you cannot change this setting.
NAM Selection
To select the handset’s NAM (Number Assignment Module) if the
handset is registered with multiple service providers:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, NAM Selection.
2. Select NAM 1 or NAM 2, then press the Center Select Key [SET].
NOTE
When PTT mode is on, you cannot change this setting.
148
Motion Detection
To turn the Motion Detection feature On or Off:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Settings, Motion Detection.
2. Select one of the following settings, then press the Center Select
Key [OK].
G’zGEAR / My Pics/Videos / Music Play / Rotation Silencer
3. Select On or Off, then press the Center Select Key [OK].
Call Settings
The Call Setup menu allows you to designate how the handset
handles both incoming and outgoing calls.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Call Settings.
3. Select a submenu:
SETTINGS & TOOLS
Accessing the Call Settings submenu
Answer Options/Auto Retry/TTY Mode/One Touch Dial/Voice
Privacy/PC Connections/DTMF Tones/PTT Mode/Assisted
Dialing
Answer Options
To set how to answer an incoming call:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Call Settings, Answer Options.
2. Select Flip Open, Any Key, or Auto w/Handsfree, press the
Center Select Key [MARK], then the Left Soft Key [Done].
“ANSWER OPTIONS SET” will appear on the display.
149
NOTES
• The Auto w/Handsfree Mode will function after about five seconds.
• When the handset is closed, the Auto w/Handsfree Mode will not
function, except when connected to a headset.
When the handset is open, the Auto w/Handsfree Mode will only
function when the Speakerphone is on.
• Flip Open and Any Key are the default settings.
Auto Retry
To set the length of time the handset waits before automatically
redialing a number when the attempted call fails:
1. From idle mode, press the Center Select Key [MENU], select
SETTINGS & TOOLS
Settings & Tools, then press the Center Select Key [OK]. Press
Call Settings, Auto Retry.
2. Select the following settings, then press the Center Select Key
[SET].
10 seconds / 30 seconds / 60 seconds / Off
TTY Mode
You can attach a TTY device to your handset enabling you to
communicate with other parties using a TTY device.
A phone with TTY support is able to translate typed characters to
voice. Voice can also be translated into characters and then displayed
on the TTY.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Call Settings, TTY Mode.
2. A warning message “Enabling TTY will disable headset audio.”
appears on the display. Press the Center Select Key [OK].
3. Select one of the following settings, then press the Center Select
Key [SET].
TTY Full/TTY+Talk/TTY+Hear/TTY Off
150
One Touch Dial
To initiate a speed dial call by holding down the speed dial digit:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Call Settings, One Touch Dial.
2. Select On or Off, then press the Center Select Key [SET].
NOTE
If One Touch Dial is disabled, Speed Dial numbers designated in
your Contacts will not function.
Voice Privacy
To turn the voice privacy feature On or Off:
Settings & Tools, then press the Center Select Key [OK]. Press
Call Settings, Voice Privacy.
2. Select On or Off, then press the Center Select Key [SET].
SETTINGS & TOOLS
1. From idle mode, press the Center Select Key [MENU], select
PC Connections
Allows you to use wireless data communication services, which
use subscriber terminals for access to the internet with personal
computers or laptops. The connection speed depends on your
carrier’s network and other variables. Contact communication
information specifications must match the network.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Call Settings, PC Connections.
2. Select one of the following settings, then press the Center Select
Key [SET].
USB/Bluetooth/Close
151
NOTE
If you select Bluetooth, you cannot change PTT mode.
DTMF Tones
To set the Key Tone length and touch tone playback speed:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Call Settings, DTMF Tones.
2. Select one of the following settings, then press the Center Select
Key [SET].
Normal: Sends out a tone for a fixed period of time even if you
continue to press the key.
SETTINGS & TOOLS
Long: Sends out a continuous tone for the duration the key is
pressed and held.
PTT Mode
You can use the following procedure to turn the PTT feature On or Off.
When PTT is turned on, you will be able to send and receive PTT calls
or alerts.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Call Settings, PTT Mode.
2. Select On or Off, then press the Center Select Key [OK].
NOTE
The 3G or 1x service indicator icon on the top line of the main
display is highlighted to indicate that the PTT service is available.
Assisted Dialing
Assisted Dialing allows easy dialing of international calls while
roaming in another country. First, set Reference Country to your home
location.
152
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Call Settings, Assisted Dialing.
2. Press the Directional Key ' left or right to select On or Off.
3. Select the Reference Country field, then press Left Soft Key [Set]
to select country.
4. Select the desired country, then press the Center Select Key [OK].
If you want to edit details, press Left Soft Key [Details] to edit and
save the Country Code, International Dialing Digits (IDD) Prefix,
the National Dialing Digits (NDD) Prefix, Area/City Code, and
the National Number Length, then press the Center Select Key
[SAVE].
5. Press the Center Select Key [OK].
You can view details about the information stored in your handset’s
internal memory and on a memory card inserted in the handset.
SETTINGS & TOOLS
Memory
Accessing the Memory submenu
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Memory.
3. Select a submenu:
Save Options/Phone Memory/Card Memory
Save Options
To select whether to save to Phone Memory or to Card Memory when
saving a file:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Memory, Save Options.
153
2. Select one of the following settings, then press the Center Select
Key [OK].
Pictures/Videos/Sounds
3. Select Phone Memory or Card Memory, then press the Center
Select Key [SET].
Phone Memory and Card Memory
Select this option to display Phone or Card Memory information, and
to delete or move files saved in Phone or Card Memory.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Memory, Phone Memory or Card Memory
SETTINGS & TOOLS
2. Select one of the following settings, then press the Center Select
Key [OK].
Memory Usage/My Pictures/My Videos/My Ringtones/My
Music/My Sounds/My Contacts/Move All to Card(Move All to
Phone)
3. Press the Right Soft Key [Options].
4. Select Erase if you want to delete a file or Move if you want to
move a file to Card or Phone Memory, then press the Center Select
Key [OK].
5. Select a file or a contact, press the Center Select Key [MARK] or
the Right Soft Key [Mark All], then press the Left Soft Key [Done].
6. Select Yes, then press the Center Select Key [OK].
154
NOTES
• Selecting Memory Usage in step 2 displays the available
memory capacity, used capacity, and total capacity.
• Selecting Move All To Card in step 2 moves all the files stored in
Phone Memory to Card Memory.
• Selecting Move All To Phone in step 2 moves all the files stored
in Card Memory to Phone Memory.
• Do not remove the memory card from the handset while files are
being transferred.
• To view Card Memory, a memory card (sold separately) must be
inserted in your handset.
Your handset has the ability to automatically detect connection of a
USB cable (purchased separately) from the handset to your PC.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
SETTINGS & TOOLS
USB Mode
2. Press USB Mode.
3. Select one of the following settings, then press the Center Select
Key [SET].
Media Sync Mode/Modem Mode/Ask On Plug
NOTES
• Before connecting the handset to your PC with a USB cable,
check that your handset is not locked.
• While a USB cable is connected to your handset, if you select
Media Sync Mode or Modem Mode, all calls and Bluetooth®
functions will be temporarily disabled. Unplug the USB cable from
your handset to be able to make or receive calls, and to enable
Bluetooth® function.
155
Phone Info
Accessing the Phone Info submenu
To display information about your handset:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Phone Info.
3. Select a submenu and press the Center Select Key [OK].
My Number/SW/HW Version/Icon Glossary/Software Update
My Number
To view your handset’s Mobile Device Number (MDN), Mobile
Identifications Number (MIN), and other device information:
SETTINGS & TOOLS
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Info, My Number.
SW/HW Version
To view the Software, PRL, ERI, Browser, Media Center, MSUI and
HW versions, and MEID, Software Update Client, BT Mac Address,
Warranty Date Code:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Info, SW/HW Version.
Icon Glossary
To view all the icons and their meanings:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Info, Icon Glossary.
NOTE
For more information on the icons, see page 13.
156
Software Update
I Status
To check the status of a Software Update:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Info, Software Update, Status.
I Check new
To check for and execute a Software Update:
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Info, Software Update, Check New.
wait for three minutes to execute the Software Update.
Warning!
You cannot make phone calls including 911 emergency calls, nor
SETTINGS & TOOLS
2. If there is a new Software Update, it will be downloaded.
3. After download is complete, press the Center Select Key [OK] or
answer calls while a Software Update is in progress.
NOTES
• After the software download is complete, you can press the Left
Soft Key [Info] to check the content of the downloaded Software
Update.
• After the software download is complete, you can press the
Right Soft Key [Options] and then Defer to set a time when
Software Update should start.
• After the software download is complete, you can press the Right
Soft Key [Options], then Reject to reject the Software
Update.
157
I Install Deferred SW
When there is a Software Update that has been deferred, the “Check
New” item changes to “Install Deferred SW.” Selecting this option
installs the deferred Software Update.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK]. Press
Phone Info, Software Update, Install Deferred
SW.
2. Select Yes, then press the Center Select Key [OK].
Set-up Wizard
You can set the Call Sounds, Display Themes, Main Menu Settings,
SETTINGS & TOOLS
Main Clock Format, and Front Clock Format all at once using the
Wizard.
1. From idle mode, press the Center Select Key [MENU], select
Settings & Tools, then press the Center Select Key [OK].
2. Press Set-up Wizard.
3. Follow the on screen prompts to the above settings.
CALL SOUNDS: Select Ring Only, Vibrate Only, Ring&Vibrate
or Be Silent then press the Center Select Key [SET] to save the
setting or press the Right Soft Key [Skip] to go to the next setting.
DISPLAY THEMES: Select White, Surfing, Metal, or Polyhedral
Rock, then press the Center Select Key [SET] to save the setting
or press the Right Soft Key [Skip] to go to the next setting.
MENU LAYOUT: Select Tab, List, or Grid, then press the Center
Select Key [SET] to save the setting or press the Right Soft Key
[Skip] to go to the next setting.
MENU TYPE: Select Communicator or Productivity, then press
the Center Select Key [SET] to save the setting or press the Right
Soft Key [Skip] to go to the next setting.
MAIN CLOCK FORMAT: Select Analog, Large Analog, Digital
12, Large Digital 12, Digital 24, Large Digital 24 or Off, then
158
press the Center Select Key [SET] to save the setting or press the
Right Soft Key [Skip] to go to the next setting.
FRONT CLOCK FORMAT: Select Digital, Analog or Off, then
press the Center Select Key [SET] to save the setting or press the
Right Soft Key [Skip] to complete set-up.
SETTINGS & TOOLS
159
Safety
TIA Safety Information
The following is the complete TIA Safety Information for wireless
handheld phones.
I Tips on Efficient Operation
Do not touch the antenna unnecessarily when the phone is in use.
Contact with the antenna affects call quality and may cause the
phone to consume more power than otherwise needed.
I Driving
Talking on the phone while driving is extremely dangerous and is
Safety
illegal in some states. Remember, safety comes first. Check the laws
and regulations on the use of phones in the areas where you drive.
Always obey them.
If you must use your phone while driving, please:
• Give full attention to driving. Driving safely is your first responsibility.
• Use hands-free operation and/or one-touch, speed dialing, and auto
answer modes.
• Pull off the road and park before making or answering a call.
An air bag inflates with great force. DO NOT place objects, including
either installed or portable wireless equipment, in the area over the air
bag or in the air bag deployment area.
If in-vehicle wireless equipment is improperly installed and the air bag
inflates, serious injury could result.
Warning!
Failure to follow these instructions could lead to serious personal
injury and possible property damage.
160
I Electronic Devices
Your wireless handheld portable telephone is a low power radio
transmitter and receiver. When it is ON, it receives and also sends out
radio frequency (RF) signals.
Most modern electronic equipment is shielded from RF energy.
However, certain electronic equipment may not be shielded against
the RF signals from your wireless phone. Therefore, use of your phone
must be restricted in certain situations.
Pacemakers
The Health Industry Manufacturers Association recommends that
a minimum separation of six (6) inches be maintained between
a handheld wireless phone and a pacemaker to avoid potential
interference with the pacemaker. These recommendations are
Wireless Technology Research.
Safety
consistent with the independent research by and recommendations of
Never come closer than six (6) inches to a person with a heart
pacemaker implant when using your phone. Doing so could result in
interference with the function of the pacemaker.
Persons with pacemakers:
• ALWAYS keep the phone more than six (6) inches from your
pacemaker when the phone is turned on.
• Do not carry the phone in a breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for
interference.
• If you have any reason to suspect that interference is taking place,
turn your phone OFF immediately.
Hearing Aids
Some digital wireless phones may interfere with some hearing aids. In
the event of such interference, you may want to consult your service
provider (or call the customer service line to discuss alternatives).
161
Other Medical Devices
If you use any other personal medical device, consult the
manufacturer of your device to determine if they are adequately
shielded from external RF energy. Your physician may be able to
assist you in obtaining this information.
Hospitals and Health Care Facilities
Turn your phone OFF in health care facilities when any regulations
posted in these areas instruct you to do so. Hospitals or health care
facilities may be using equipment that could be sensitive to external
RF energy.
I Vehicles
Safety
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles. Check with the manufacturer or
its representative regarding your vehicle. You should also consult the
manufacturer of any equipment that has been added to your vehicle.
I Posted Facilities
Turn your phone OFF where posted notices so require.
I Aircraft
FCC regulations prohibit using your phone while in the air. Turn your
phone OFF before boarding an aircraft.
Always request and obtain prior consent and approval of an
authorized airline representative before using your phone aboard an
aircraft. Always follow the instructions of the airline representative
whenever using your phone aboard an aircraft, to prevent any
possible interference with airborne electronic equipment.
162
I Blasting Areas
To avoid interfering with blasting operations, turn your phone OFF
when in a “blasting area” or in areas posted “Turn off two-way radio”.
Obey all signs and instructions.
I Potentially Explosive Atmospheres
Turn your phone OFF when in any area with a potentially explosive
atmosphere and obey all signs and instructions. Sparks in such areas
could cause an explosion or fire resulting in bodily injury or even
death.
Areas with a potentially explosive atmosphere are often, but not
always, clearly marked. They include fueling areas such as gas
stations; below deck on boats; fuel or chemical transfer or storage
facilities; vehicles using liquefied petroleum gas (such as propane or
grain, dust, or metal powders; and any other area where you would
Safety
butane); areas where the air contains chemicals or articles, such as
normally be advised to turn off your vehicle’s engine.
Safety Information for FCC RF Exposure
Warning!
Read this information before using.
In August 1996 the Federal Communications Commission (FCC)
of the United States with its action in Report and Order FCC 96326 adopted an updated safety standard for human exposure to
radio frequency electromagnetic energy emitted by FCC regulated
transmitters. Those guidelines are consistent with the safety standard
previously set by both U.S. and international standards bodies. The
design of this phone complies with the FCC guidelines and these
international standards.
163
I Body-Worn Operation
This device was tested for typical body-worn operations with the back
of the phone kept 2.0 cm from the body. To maintain compliance with
FCC RF exposure requirements, use only belt-clips, holsters or similar
accessories that maintain a 2.0 cm separation distance between the
user’s body and the back of the phone, including the antenna. The
use of belt-clips, holsters and similar accessories should not contain
metallic components in its assembly. The use of accessories that do
not satisfy these requirements may not comply with FCC RF exposure
requirements, and should be avoided.
I SAR information
THIS MODEL PHONE MEETS THE GOVERNMENT’S
Safety
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits
for exposure to radiofrequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits
are part of comprehensive guidelines and establish permitted
levels of RF energy for the general population. The guidelines are
based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety margin designed
to assure the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The
SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted
with the phone transmitting at its highest certified power level in
all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone while
operating can be well below the maximum value. This is because
the phone is designed to operate at multiple power levels so as to
164
use only the power required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the power
output. Before a phone model is available for sale to the public, it
must be tested and certified to the FCC that it does not exceed the
limit established by the government adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g., at
the ear and worn on the body) as required by the FCC for each model.
The highest SAR value for this model phone when tested for use at
the ear is 1.18 W/Kg and when worn on the body, as described in
this guide, is 0.455 W/Kg. (Body-worn measurements differ among
phone models, depending upon available accessories and FCC
requirements). While there may be differences between the SAR
levels of various phones and at various positions, they all meet the
government requirement for safe exposure.
phone with all reported SAR levels evaluated as in compliance with
Safety
The FCC has granted an Equipment Authorization for this model
the FCC RF exposure guidelines. SAR information on this model
phone is on file with the FCC and can be found under the Display
Grant section of
http://www.fcc.gov/oet/ea/fccid after searching on TYKNX9270.
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications & Internet Association
(CTIA) web-site at http://www.ctia.org.
* In the United States and Canada, the SAR limit for mobile phones
used by the public is 1.6 watts/kg (W/kg) averaged over one gram
of tissue. The standard incorporates a substantial margin of safety
to give additional protection for the public and to account for any
variations in measurements.
This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
165
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. if this equipment does cause harmful
interference to television reception, which can be determined by
turning the equipment off and on the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected
Safety
• Consult the dealer or an experienced radio/TV technician for help.
FDA Information
U.S. Food and Drug Administration
Cell Phone Facts
Consumer Information on Wireless Phones
I What kinds of phones are the subject of this
update?
The term “wireless phone” refers here to hand-held wireless phones
with built-in antennas, often called “cell,”“mobile,” or “PCS” phones.
These types of wireless phones can expose the user to measurable
radiofrequency energy (RF) because of the short distance between
the phone and the user’s head. These RF exposures are limited by
Federal Communications Commission safety guidelines that were
developed with the advice of FDA and other federal health and safety
agencies. When the phone is located at greater distances from the
user, the exposure to RF is drastically lower because a person’s RF
exposure decreases rapidly with increasing distance from the source.
166
The so-called “cordless phones,” which have a base unit connected
to the telephone wiring in a house, typically operate at far lower
power levels, and thus produce RF exposures well within the FCC’s
compliance limits.
I Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health
problems are associated with using wireless phones. There is no
proof, however, that wireless phones are absolutely safe. Wireless
phones emit low levels of radiofrequency energy (RF) in the
microwave range while being used. They also emit very low levels
of RF when in the stand-by mode. Whereas high levels of RF can
produce health effects (by heating tissue), exposure to low level RF
that does not produce heating effects causes no known adverse
level RF exposures have not found any biological effects. Some
Safety
health effects. Many studies of low
studies have suggested that some biological effects may occur, but
such findings have not been confirmed by additional research. In
some cases, other researchers have had difficulty in reproducing
those studies, or in determining the reasons for inconsistent results.
I What is FDA’s role concerning the safety of wireless
phones?
Under the law, FDA does not review the safety of radiation-emitting
consumer products such as wireless phones before they can be sold,
as it does with new drugs or medical devices. However, the agency
has authority to take action if wireless phones are shown to emit
radiofrequency energy (RF) at a level that is hazardous to the user. In
such a case, FDA could require the manufacturers of wireless phones
to notify users of the health hazard and to repair, replace or recall the
phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory
167
actions, FDA has urged the wireless phone industry to take a number
of steps, including the following:
• Support needed research into possible biological effects of RF of
the type emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to
the user that is not necessary for device function; and
• Cooperate in providing users of wireless phones with the best
possible information on possible effects of wireless phone use on
human health
FDA belongs to an interagency working group of the federal agencies
that have responsibility for different aspects of RF safety to ensure
coordinated efforts at the federal level. The following agencies belong
Safety
to this working group:
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency
working group activities, as well.
FDA shares regulatory responsibilities for wireless phones with the
Federal Communications Commission (FCC). All phones that are sold
in the United States must comply with FCC safety guidelines that limit
RF exposure. FCC relies on FDA and other health agencies for safety
questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks
rely upon. While these base stations operate at higher power than
do the wireless phones themselves, the RF exposures that people
get from these base stations are typically thousands of times lower
than those they can get from wireless phones. Base stations are
168
thus not the primary subject of the safety questions discussed in this
document.
I What are the results of the research done already?
The research done thus far has produced conflicting results, and
many studies have suffered from flaws in their research methods.
Animal experiments investigating the effects of radiofrequency
energy (RF) exposures characteristic of wireless phones have
yielded conflicting results that often cannot be repeated in other
laboratories. A few animal studies, however, have suggested that low
levels of RF could accelerate the development of cancer in laboratory
animals. However, many of the studies that showed increased tumor
development used animals that had been genetically engineered
or treated with cancer-causing chemicals so as to be pre-disposed
exposed the animals to RF for up to 22 hours per day. These
Safety
to develop cancer in the absence of RF exposure. Other studies
conditions are not similar to the conditions under which people use
wireless phones, so we don’t know with certainty what the results of
such studies mean for human health.
Three large epidemiology studies have been published since
December 2000. Between them, the studies investigated any possible
association between the use of wireless phones and primary brain
cancer, glioma, meningioma, or acoustic neuroma, tumors of the
brain or salivary gland, leukemia, or
other cancers. None of the studies demonstrated the existence of any
harmful health effects from wireless phone RF exposures. However,
none of the studies can answer questions about long-term exposures,
since the average period of phone use in these studies was around
three years.
169
I What research is needed to decide whether RF
exposure from wireless phones poses a health
risk?
A combination of laboratory studies and epidemiological studies of
people actually using wireless phones would provide some of the
data that are needed. Lifetime animal exposure studies could be
completed in a few years. However, very large numbers of animals
would be needed to provide reliable proof of a cancer promoting
effect if one exists. Epidemiological studies can provide data that
is directly applicable to human populations, but 10 or more years’
follow-up may be needed to provide answers about some health
effects, such as cancer. This is because the interval between the
time of exposure to a cancer-causing agent and the time tumors
Safety
develop—if they do—may be many, many years. The interpretation
of epidemiological studies is hampered by difficulties in measuring
actual RF exposure during day-to-day use of wireless phones. Many
factors affect this measurement, such as the angle at which the phone
is held, or which model of phone is used.
I What is FDA doing to find out more about the
possible health effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with
groups of investigators around the world to ensure that high priority
animal studies are conducted to address important questions about
the effects of exposure to radiofrequency energy (RF).
FDA has been a leading participant in the World Health Organization
International Electromagnetic Fields (EMF) Project since its
inception in 1996. An influential result of this work has been the
development of a detailed agenda of research needs that has driven
the establishment of new research programs around the world.
The Project has also helped develop a series of public information
documents on EMF issues.
170
FDA and the Cellular Telecommunications & Internet Association
(CTIA) have a formal Cooperative Research and Development
Agreement (CRADA) to do research on wireless phone safety.
FDA provides the scientific oversight, obtaining input from experts
in government, industry, and academic organizations. CTIAfunded research is conducted through contracts to independent
investigators. The initial research will include both laboratory studies
and studies of wireless phone users.
The CRADA will also include a broad assessment of additional
research needs in the context of the latest research developments
around the world.
I What steps can I take to reduce my exposure to
radiofrequency energy from my wireless phone?
know that there is—it is probably very small.
Safety
If there is a risk from these products—and at this point we do not
But if you are concerned about avoiding even potential risks, you can
take a few simple steps to minimize your exposure to radiofrequency
energy (RF). Since time is a key factor in how much exposure a
person receives, reducing the amount of time spent using a wireless
phone will reduce RF exposure.
• If you must conduct extended conversations by wireless phone
every day, you could place more distance between your body and
the source of the RF, since the exposure level drops off dramatically
with distance. For example, you could use a headset and carry
the wireless phone away from your body or use a wireless phone
connected to a remote antenna.
Again, the scientific data do not demonstrate that wireless phones
are harmful. But if you are concerned about the RF exposure from
these products, you can use measures like those described above to
reduce your RF exposure from wireless phone use.
171
I What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless
phones, including children and teenagers. If you want to take steps
to lower exposure to radiofrequency energy (RF), the measures
described above would apply to children and teenagers using
wireless phones. Reducing the time of wireless phone use and
increasing the distance between the user and the RF source will
reduce RF exposure.
Some groups sponsored by other national governments have advised
that children be discouraged from using wireless phones at all. For
example, the government in the United Kingdom distributed leaflets
containing such a recommendation in December 2000. They noted
that no evidence exists that using a wireless phone causes brain
Safety
tumors or other ill effects. Their recommendation to limit wireless
phone use by children was strictly precautionary; it was not based on
scientific evidence that any health hazard exists.
I Do hands-free kits for wireless phones reduce risks
from exposure to RF emissions?
Since there are no known risks from exposure to RF emissions from
wireless phones, there is no reason to believe that hands-free kits
reduce risks. Hands-free kits can be used with wireless phones for
convenience and comfort. These systems reduce the absorption of
RF energy in the head because the phone, which is the source of the
RF emissions, will not be placed against the head.
On the other hand, if the phone is mounted against the waist or other
part of the body during use, then that part of the body will absorb
more RF energy. Wireless phones marketed in the U.S. are required to
meet safety requirements regardless of whether they are used against
the head or against the body. Either configuration should result in
compliance with the safety limit.
172
I Do wireless phone accessories that claim to shield
the head from RF radiation work?
Since there are no known risks from exposure to RF emissions from
wireless phones, there is no reason to believe that accessories
that claim to shield the head from those emissions reduce risks.
Some products that claim to shield the user from RF absorption
use special phone cases, while others involve nothing more than
a metallic accessory attached to the phone. Studies have shown
that these products generally do not work as advertised. Unlike
“hands-free” kits, these so-called “shields” may interfere with proper
operation of the phone. The phone may be forced to boost its power
to compensate, leading to an increase in RF absorption. In February
2002, the Federal Trade Commission (FTC) charged two companies
that sold devices that claimed to protect wireless phone users from
FTC, these defendants lacked a reasonable basis to substantiate their
Safety
radiation with making false and unsubstantiated claims. According to
claim.
I What about wireless phone interference with
medical equipment?
Radiofrequency energy (RF) from wireless phones can interact with
some electronic devices. For this reason, FDA helped develop a
detailed test method to measure electromagnetic interference (EMI)
of implanted cardiac pacemakers and defibrillators from wireless
telephones.
This test method is now part of a standard sponsored by the
Association for the Advancement of Medical Instrumentation (AAMI).
The final draft, a joint effort by FDA, medical device manufacturers,
and many other groups, was completed in late 2000. This standard
will allow manufacturers to ensure that cardiac pacemakers and
defibrillators are safe from wireless phone EMI.
FDA has tested hearing aids for interference from handheld wireless
173
phones and helped develop a voluntary standard sponsored by the
Institute of Electrical and Electronic Engineers (IEEE). This standard
specifies test methods and performance requirements for hearing
aids and wireless phones so that no interference occurs when a
person uses a “compatible” phone and a “compatible” hearing aid at
the same time. This standard was approved by the IEEE in 2000.
FDA continues to monitor the use of wireless phones for possible
interactions with other medical devices. Should harmful interference
be found to occur, FDA will conduct testing to assess the interference
and work to resolve the problem.
For more information, please visit the FDA website at
http://www.fda.gov/cellphones.
Safety
Emergency Calls
Never rely solely upon your wireless phone for essential
communications (e.g., medical emergencies), if it can be
avoided, since a wireless phone requires a complex combination of
radio signals, relay stations and landline networks for its operation.
Consequently, emergency calls may not always be possible
under all conditions on all wireless phone systems. Your wireless
phone, however, may sometimes be the only available means
of communication at the scene of an accident. When making an
emergency call, always give the recipient all necessary information as
accurately as possible. Never terminate an emergency call until you
have received clearance to do so.
I FCC Enhanced 911 (E911) Rules
Background
The Federal Communications Commission (FCC) requires wireless
carriers to transmit specific latitude and longitude location (Automatic
Location Identification = ALI) information as well as “911” calls to
Public Safety Answering Points (PSAPs) to identify the location of
174
the caller in case of emergency. Generally, the rules require that
carriers identify an E911 caller’s location within 50 meters of the actual
location for 67 percent of calls and within 150 meters of the actual
location for 95 percent of calls.
I Casio G’zOne Rock™’s ALI Capability
The Rock™ is an ALI-capable phone equipped with a GPS (Global
Positioning System) receiver supporting a satellite-based GPS ALIcapable network to comply with the FCC’s ALI requirements.
The network compliance with the above FCC requirements is
dependent on: (a) the use of digital technology by the wireless
network; (b) GPS satellite signals being able to reach the handset
(such transmissions do not always work indoors, for example); and (c)
handset signals reaching wireless “base stations” (atmospheric and
signal strength).
Safety
environmental conditions may cause variations in handset receiving
Also the transmission of the ALI information is subject, in part, to
system constraints within the wireless network to which the E911
signal is transmitted and over which PCD has no control.
Finally, customers are advised that the Rock™’s ALI capability is to be
used for E911 purposes only.
911 in Lock Mode
The “911” call service is available even in the lock mode.
1. Enter “911” then press the Send Key.
2. The call connects.
3. The phone exits the Lock Mode for 5 minutes.
4. To exit emergency mode, press the End/Power Key.
911 Using Any Available System
1. Enter “911” then press the Send Key.
2. The call connects.
175
3. The phone remains in Emergency Mode for 5 minutes.
4. To exit emergency mode, press the End/Power Key .
Compliance with Other FCC Regulations
I Operating Procedures
Never violate any of the following Rules and Regulations of the FCC
when using your Cellular Phone. Such violations are punishable by
fine, imprisonment or both.
• Never use obscene, indecent, or profane language.
• Never use your Cellular Phone to send false distress calls.
• Never wiretap or otherwise intercept a phone call, unless you have
first obtained the consent of the parties participating in the call.
• Never make any anonymous calls to annoy, harass, or molest other
Safety
people.
• Never charge another account without authorization, to avoid
payment for service.
• Never willfully or maliciously interfere with any other radio
communications.
• Never refuse to yield the line when informed that it is needed for an
Emergency Call. Also, never take over a line by stating falsely that it
is needed for an emergency.
General Safety
I Precautions
Your Handheld Portable Telephone is a high quality piece of
equipment. Before operating, read all instructions and cautionary
markings on the product, battery and adapter/charger.
Failure to follow the directions below could result in serious bodily
injury and/or property damage due to battery liquid leakage, fire or
rupture.
DO NOT use or store this equipment in a place where it will be
exposed to high temperatures, such as near an open flame or heat-
176
emitting equipment.
DO NOT drop your device or subject it to severe shock. When not
using, lay down the unit to avoid possible damage due to instability.
DO NOT expose this equipment to rain or spilled beverages.
DO NOT use unauthorized accessories.
DO NOT disassemble the phone or its accessories. If service or repair
is required, return unit to an authorized PCD cellular service center. If
unit is disassembled, the risk of electric shock or fire may result.
DO NOT place this equipment inside the microwave or pressurized
container. It may cause the explosion, product failure and fire.
DO NOT throw device into the fire or heat. It may cause the explosion
or fire.
DO NOT short the terminal. Also, protect the terminal so that the
conductive objects, such as metal piece and pencil lead, do not
failure.
Safety
touch or get caught into the terminal. It may cause the fire or product
When plugging the AC-Adapter, do not expose the metal strap or
accessory to the electric plug. It may cause the fire, electric shock,
injury or product failure.
To avoid the risk electric shock, do not use device while lightning
outside.
The device is not water-proof. By placing it under faucet or shower
and adding water-pressure, or submerging it inside water for a long
time, the warranty will be invalid because the device will become
non-repairable. If, by an accident, you spill the fluid, such as water, on
device, turn off the power, remove the battery pack and wipe off the
fluid with dry, clean cloth. By using device with fluid attached to it, it
may cause heat generation, fire, product failure and electric shock.
The device is not heat-resistant. Do not place it into hot bath or liquid
soap. Never touch device’s charging terminal with hand or finger. It
may cause electric shock, injury or product failure. If device does not
finish recharging within the specified timeframe, stop recharging. It
177
may cause leakage, heat generation, explosion or fire.
If device is damaged by dropping and the internal parts are
exposed, do not touch the exposed parts. You might get electric
shock or injured from damaged parts. Call the customer service for
assistance.
Do not place device on unstable area, such as wobbly stool or slanted
places. Device may drop and cause injury. Also watch for shocks,
particularly during vibrator mode.
DO NOT place device around child. They may accidentally swallow
device and suffocate.
Stop using device, if it starts to smoke, smell, make abnormal sound
or generate heat. If abnormality starts to happen while recharging,
remove AC-Adapter or DC-Adapter from the plug or cigar lighter
Safety
adapter, check that device has cooled down, turn off the power,
remove the battery pack and call the customer service for assistance.
Also, if device has been damaged by dropping or getting wet,
discontinue using device and call the customer service.
Never try to repair device yourself. It is highly dangerous.
Do not touch device, battery pack or battery charging device
for a long time while it is being recharged. It may cause the lowtemperature burn.
If you are using the metal strap, be sure that it does not touch the
handset charging cradle or the charging terminal, especially the
plug, while recharging. It may cause the electric shock, fire, injury or
product failure.
To avoid falling or getting into a traffic accident, check for your
safety and the safety around you while placing a call, messaging,
taking picture or playing game using device.
To avoid injury, do not use device as the earpiece magnet picks up
metal objects such as pins.
Never bring device near a floppy disk, magnetic card, magnetic tape,
MOs, MDs, prepaid card, or other similar objects. It may destroy or
178
corrupt these data.
Never press or poke display with your finger or other object. It may
cause damage to display.
Never twist device. It may cause product failure.
DO NOT put stickers on LCD screen or keypad. these stickers may
touch and press keys when the Flip Top is closed. This may cause
improper operating of the phone.
I Antenna Safety
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could
impair call quality, damage the phone, or result in violation of FCC
regulations. Please contact your local dealer for replacement antenna.
Do not use the phone with a damaged antenna. If a damaged
Please contact your local dealer for replacement antenna.
Safety
antenna comes into contact with the skin, a minor burn may result.
I Battery Safety
Your device uses a removable and rechargeable lithium ion battery.
Please contact customer service for assistance should you need a
replacement battery.
DOs
• Only use Casio branded batteries specific to your phone model.
• Use only the Wall charger provided with the phone. Using any
charger other than the one included with the phone may damage
your phone or battery.
• Only use the battery and charger approved by the manufacturer.
• Only use the battery for its original purpose.
• Try to keep batteries in a temperature between 41°F (5°C) and 95°F
(35°C).
179
• If the battery is stored in temperatures above or below the
recommended range, give it time to warm up or cool down before
using.
• Completely drain the battery before recharging. It may take one to
four days to completely drain.
• When the device is not used for long period, remove the battery
from the device.
• Store the discharged battery in a cool, dark, and dry place.
• Purchase a new battery when its operating time gradually decreases
after fully charging.
• Properly dispose of the battery according to local regulations.
DON’Ts
Safety
• Don’t attempt to disassemble the battery—it is a sealed unit with no
serviceable parts.
• Don’t expose the battery terminals to any other metal object (e.g., by
carrying it in your pocket or purse with other metallic objects such
as coins, clips and pens).
This can short circuit and critically damage the battery, and may
cause the fire or injury.
• Don’t leave the battery in hot or cold temps.
Otherwise, it could significantly reduce the capacity and lifetime of
the battery.
• Don’t dispose of the battery into a fire.
• Don’t short the positive electrode and negative electrode on battery
pack.
• Don’t nail, hit with hammer, or step on battery pack.
It may cause fire or damage.
• Don’t use the battery pack with damage or leak.
Lithium ion batteries are recyclable. When you replace your built-in
battery, please request the repair center to recycle the battery in
accordance with RBRC standards. When disposing of the battery by
180
yourself, please call RBRC at (800) 822-8837 for proper disposal tips.
Never touch any fluid that might leak from the built-in battery. Such
liquid when in contact with the eyes or skin, could cause injury to the
skin or eyes. Should the liquid come into contact with the eyes, irrigate
the eyes thoroughly with clean water and immediately seek medical
attention. In the event the liquid comes into contact with the skin or
clothing, wash it away immediately with clean water.
I Charger
The Wall Charger and Desktop Charger designed by PCD for this unit
both require the use of a standard 120 V AC power source for their
operation.
Never attempt to disassemble or repair a wall charger or desktop
charger. Never use a wall charger or desktop charger if it has
authorized service center, if repair or replacement is required.
Safety
a damaged or worn power cord or plug. Always contact a PCD
Never alter the AC cord or plug on your wall charger or desktop
charger. If the plug will not fit into the available outlet, have a proper
outlet installed by a qualified electrician.
Never allow any liquids or water to spill on the wall charger or desktop
charger when it is connected to an AC power source.
Always use the authorized PCD wall charger or desktop charger to
avoid any risk of bodily injury or damage to your cellular phone or
battery.
Never attempt to connect or disconnect the wall charger or
desktop charger with wet hands. Always unplug the wall charger
or desktop charger from the power source before attempting any
cleaning. Always use a dry, soft cloth dampened with water to clean
the equipment, after it has been unplugged.
Handling the cord on this product or cords associated with
accessories sold with this product, will expose you to lead, a chemical
known to the State of California to cause birth defects or other
181
reproductive harm. Wash hands after handling.
Always disconnect the wall charger or desktop charger from the
power source when it is not in use.
Move the charger away from fire if it starts to leak or smell. The
leaked liquid may catch the fire, which causes fire or explosion. If the
plug is not be inserted completely, it may cause electric shock, heat
generation or fire. Do not use damaged AC-Adapter or loosened plug.
Do not touch the charging terminal with your hand or finger while it is
conducting electricity. It may cause electric shock, injury or product
failure.
Do not touch the electric plug when starts lightning. It may cause the
electric shock from thunderbolt.
Do not overload a power outlet with too many devices.
Safety
Do not connect another Wall Charger to the Charging/Data Port
(either directly or through the Headset Adapter), when charging the
phone inserted in the Handset Charging Cradle. Damage or overheat
may result.
Games
I Seizures/Blackouts
Warning
A very small percentage of individuals may experience epileptic
seizures when exposed to certain light patterns or flashing lights.
Exposure to certain patterns or backgrounds on a computer screen,
or while playing video games, may induce an epileptic seizure
in these individuals. Certain conditions may induce previously
undetected epileptic symptoms even in persons who have no history
of prior seizures or epilepsy.
If you, or anyone in your family, have an epileptic condition, consult
your physician prior to playing. If you experience any of the following
symptoms while playing a video or computer game—dizziness,
altered vision, eye or muscle twitches, loss of awareness,
182
disorientation, any involuntary movement, or convulsions—
IMMEDIATELY discontinue use and consult your physician before
resuming play.
I Repetitive Motion Injuries
When you play games on your phone, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts
of your body. Follow these instructions to avoid problems such
as tendonitis, carpal tunnel syndrome, or other musculoskeletal
disorders:
• Take a minimum 15-minute break every hour of game playing.
• If your hands, wrists, or arms become tired or sore while playing,
stop and rest for several hours before playing again.
• If you continue to have sore hands, wrists, or arms during or after
Safety
play, stop playing and see a doctor.
Camera
Do not aim your camera at the sun. The sunlight passing through the
Camera/Camcorder Lens may cause damage to the camera.
Do not use your camera’s flash close to a person’s eyes. This may
cause the person to lose eyesight temporarily and result in an
accident.
Do not expose the Camera/Camcorder Lens to the direct sunlight for
a long period of time. It may cause explosion or fire from light-focus
action.
Do not use flash toward the automobile driver. It may startle the driver
and will not be able to drive, which may cause an accident.
183
Accessibility
I Hearing Aid Compatibility (HAC) for Wireless
Telecommunications Devices
PCD’s Commitment
PCD believes that all of our customers should be able to enjoy
the benefits of digital wireless technologies. We are committed to
providing a selection of compatible devices for our customers who
wear hearing aids.
THIS PHONE HAS HAC RATINGS OF M4/T4
What is Hearing Aid Compatibility?
The Federal Communications Commission has implemented rules and
a rating system designed to enable people who wear hearing aids to
Safety
more effectively use these wireless telecommunications devices. The
standard for compatibility of digital wireless phones with hearing aids
is set forth in American National Standard Institute (ANSI) standard
C63.19. There are two sets of ANSI standards with ratings from one to
four (four being the best rating): an “M” rating for reduced interference
making it easier to hear conversations on the phone when using the
hearing aid microphone, and a “T” rating that enables the phone to be
used with hearing aids operating in the telecoil mode thus reducing
unwanted background noise.
How will I know which wireless phones are Hearing
Aid Compatible?
The Hearing Aid Compatibility rating is displayed on the wireless
phone box.
A phone is considered Hearing Aid Compatible for acoustic coupling
(microphone mode) if it has an “M3” or “M4” rating. A digital wireless
phone is considered Hearing Aid Compatible for inductive coupling
(telecoil mode) if it has a “T3” or “T4” rating.
184
How will I know if my hearing aid will work with a
particular digital wireless phone?
You’ll want to try a number of wireless phones so that you can decide
which works the best with your hearing aids.
You may also want to talk with your hearing aid professional about the
extent to which your hearing aids are immune to interference, if they
have wireless phone shielding, and whether your hearing aid has a
HAC rating.
For more information about hearing aids and digital wireless
phones:
• FCC Hearing Aid Compatibility and Volume Control
http://www.fcc.gov/cgb/dro/hearing.html
• Hearing Loss Association of America
• CTIA
Safety
http://www.hearingloss.org/learn/cellphonetech.asp
http://www.accesswireless.org/hearingaid/
• Gallaudet University, RERC
http://tap.gallaudet.edu/voice
I Teletypewriter (TTY) Devices
You can use an optional teletypewriter (TTY) device with your phone
to send and receive calls. You must plug the TTY device into the
phone’s headset connector and set the phone to operate in one of
three TTY modes.
A TTY is a communication device used by people who are hard of
hearing or have a speech impairment. TTY does not work from mobile
phone to mobile phone. Use a TSB-121 compliant cable (provided
by the TTY manufacturer) to connect the TTY device to your phone.
Your phone has a 2.5mm jack. Set the phone to Medium volume level
for proper operation. If you experience a high number of incorrect
185
characters, adjust the volume as needed to minimize the error rate.
For optimal performance, your phone should be at least 12 inches (30
centimeters) from the TTY device. Placing the phone too close to the
TTY device may cause high error rates.
I Avoid potential hearing loss.
Prolonged exposure to loud sounds (including music) is the most
common cause of preventable hearing loss. Some scientific research
suggests that using portable audio devices, such as portable music
players and cellular telephones, at high volume settings for long
durations may lead to permanent noise-induced hearing loss. This
includes the use of headphones (including headsets, earbuds and
Bluetooth or other wireless devices). Exposure to very loud sound
Safety
has also been associated in some studies with tinnitus (a ringing in
the ear), hypersensitivity to sound and distorted hearing. Individual
susceptibility to noise-induced hearing loss and other potential
hearing problems varies.
The amount of sound produced by a portable audio device varies
depending on the nature of the sound, the device, the device settings
and the headphones. You should follow some common sense
recommendations when using any portable audio device:
• Set the volume in a quiet environment and select the lowest volume
at which you can hear adequately.
• When using headphones, turn the volume down if you cannot hear
the people speaking near you or if the person sitting next to you can
hear what you are listening to.
• Do not turn the volume up to block out noisy surroundings. If you
choose to listen to your portable device in a noisy environment,
use noise-cancelling headphones to block out background
environmental noise.
186
• Limit the amount of time you listen. As the volume increases, less
time is required before your hearing could be affected.
• Avoid using headphones after exposure to extremely loud noises,
such as rock concerts, that might cause temporary hearing loss.
Temporary hearing loss might cause unsafe volumes to sound
normal.
• Do not listen at any volume that causes you discomfort.If you
experience ringing in your ears, hear muffled speech or experience
any temporary hearing difficulty after listening to your portable audio
device, discontinue use and consult your doctor.
I You can obtain additional information on this
subject from the following sources:
American Academy of Audiology
Reston, VA 20190
Safety
11730 Plaza American Drive, Suite 300
Voice: (800) 222-2336
Email: info@audiology.org
Internet: www.audiology.org
National Institute on Deafness and Other Communication
Disorders
National Institutes of Health
31 Center Drive, MSC 2320
Bethesda, MD USA 20892-2320
Voice: (301) 496-7243
Email: nidcdinfo@nih.gov
Internet: http://www.nidcd.nih.gov/health/hearing
187
National Institute for Occupational Safety and Health
Hubert H. Humphrey Bldg.
200 Independence Ave., SW
Washington, DC 20201
Voice: 1-800-35-NIOSH (1-800-356-4674)
Internet: http://www.cdc.gov/niosh/topics/noise/default.html
RECYCLE YOUR CELL PHONE!
Carriers marketing this cell phone have an in-store phone take-back
program. Consumers can drop off their used wireless devices to
specified carrier retail outlets for recycling purposes. For a list of
carrier members and collection sites, visit the cellular industry’s
recycling website
Safety
www.recyclewirelessphones.com.
To mail in your old wireless device to PCD Personal Communications
for recycling purposes, simply package your old wireless device
and any accessories (including discharged batteries) in appropriate
shipping materials and mail to:
For Recycling PCD Personal Communications LLC 555 Wireless Blvd.
Hauppauge, NY 11788
Wireless phones also can be donated to the Wireless Foundation’s
DONATE A PHONE® CALL TO PROTECT® campaign. This
charitable cause collects wireless phones to benefit victims of
domestic violence.
All donated phones are tax deductible. You may mail the phone to:
CALL TO PROTECT
2555 Bishop Circle
West Dexter, MI 48130
-ORDrop the phone off at a local collection center. For a list of collection
centers, visit
www.wirelessfoundation.org/CalltoProtect/dropoff.cfm
188
Before returning any wireless device for recycling purposes, please
remember to terminate your service on the device, clear the device
of any stored information and remove the device’s SIM card, if it has
one (please contact your wireless provider to find out if your device
contains a SIM card and for assistance on how to remove it).
Safety
189
12 MONTH LIMITED WARRANTY
Personal Communications Devices, LLC. (the “Company”) warrants
to the original retail purchaser of this handheld portable cellular
telephone, that should this product or any part thereof during normal
consumer usage and conditions, be proven defective in material
or workmanship that results in product failure within the first twelve
(12) month period from the date of purchase, such defect(s) will be
repaired or replaced (with new or rebuilt parts) at the Company’s
option, without charge for parts or labor directly related to the
defect(s).
The antenna, keypad, display, rechargeable battery and battery
charger, if included, are similarly warranted for twelve (12) months
12 MONTH LIMITED WARRANTY
from date of purchase.
This Warranty extends only to consumers who purchase the product
in the United States or Canada and it is not transferable or assignable.
This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions, accident,
mishandling, neglect, unauthorized alteration, misuse, improper
installation or repair or improper storage;
(b) Product whose mechanical serial number or electronic serial
number has been removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive
temperatures or extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or
other product not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items
such as framing and non-operative parts;
190
(f) Product damaged from external causes such as fire, flooding, dirt,
sand, weather conditions, battery leakage, blown fuse, theft or
improper usage of any electrical source.
The Company disclaims liability for removal or reinstallation of the
product, for geographic coverage, for inadequate signal reception by
the antenna or for communications range or operation of the cellular
system as a whole.
When sending your wireless device to Personal Communications
Devices for repair or service, please note that any personal data or
software stored on the device may be inadvertently erased or altered.
Therefore, we strongly recommend you make a back up copy of all
data and software contained on your device before submitting it
for repair or service. This includes all contact lists, downloads (i.e.
and any other data added to your device. In addition, if your wireless
device utilizes a SIM or Multimedia card, please remove the card
before submitting the device and store for later use when your device
is returned, Personal Communications Devices is not responsible
for and does not guarantee restoration of any third-party software,
personal information or memory data contained in, stored on, or
integrated with any wireless device, whether under warranty or not,
12 MONTH LIMITED WARRANTY
third-party software applications, ringtones, games and graphics)
returned to Personal Communications Devices for repair or service.
To obtain repairs or replacement within the terms of this Warranty, the
product should be delivered with proof of Warranty coverage (e.g.
dated bill of sale), the consumer’s return address, daytime phone
number and/or fax number and complete description of the problem,
transportation prepaid, to the Company at the address shown below
or to the place of purchase for repair or replacement processing.
In addition, for reference to an authorized Warranty station in your
191
area, you may telephone in the United States (800) 229-1235, and in
Canada (800) 465-9672 (in Ontario call 416-695-3060).
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS
WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S
LAIBILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER
FOR THE PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION
OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH
OF ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD
OF 18 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN
12 MONTH LIMITED WARRANTY
NO CASE SHALL THE COMPANY BE LIABLE FOR AN SPECIAL
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH
OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED,
WHATSOEVER. THE COMPANY SHALL NOT BE LIABLE FOR
THE DELAY IN RENDERING SERVICE UNDER THIS WARRANTY
OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING
REPAIRED OR REPLACED.
No person or representative is authorized to assume for the Company
any liability other than expressed herein in connection with the sale of
this product.
Some states or provinces do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of incidental or
consequential damage so the above limitation or exclusions may not
apply to you. This Warranty gives you specific legal rights, and you
may also have other rights, which vary from state to state or province
to province.
192
IN USA:
Personal Communications Devices, LLC.
555 Wireless Blvd.
Hauppauge, NY 11788
(800) 229-1235
IN CANADA:
PCD Communications Canada Ltd.
5535 Eglinton Avenue West
Suite# 234
Toronto, ON M9C 5K5
(800) 465-9672
12 MONTH LIMITED WARRANTY
193
Index
12 MONTH LIMITED
WARRANTY ......................190
A
Index
Accessibility ......................184
Add New Devices .............122
Airplane Mode ...................140
Alarm Clock .......................108
Alert Sounds......................130
All (RECENT CALLS) ..........42
Answer Options .................149
Answering a call ..................28
Assisted Dialing ................152
Auto Retry..........................150
B
Backlight ...........................134
Backup Assistant ................56
Banner ...............................134
Battery .................................21
Battery Level .......................26
Blocked ...............................42
Bluetooth® .........................121
Bluetooth® Icons..................17
Bluetooth Settings .............124
Browse & Download ............87
C
Calculator ..........................105
Calendar............................106
194
Call Ringtone .....................130
Call Settings ......................149
Call Sounds .......................130
Call Vibrate ........................130
Call Waiting .........................28
Caller ID ..............................28
Caller ID Readout ..............130
Card Memory ....................154
Charging the Battery ...........24
Chat .................................... 99
Clock Format .....................139
Compliance with other
FCC Regulations ...............176
Connecting to the Headset
Jack .....................................33
Contact List .........................50
CONTACTS ........................ 45
Countdown Timer ..............109
Current Country.................144
D
Device Lock Tool .................20
Dial Fonts ..........................138
Dialed ..................................42
Digit Dial Readout .............131
Display Settings ................132
Display Themes.................136
Drafts ...................................97
DTMF Tones ......................152
Dust Resistance ..................18
E
Easy Set-up ...............129, 132
Edit Codes.........................144
Email ....................................98
Emergency Calls ............... 174
ERI Banner ........................134
Extras ..................................88
Keypad Volume .................131
L
Language ..........................143
Location.............................143
Lock Phone Now ...............146
M
F
FCC Regulations ...............176
FDA Information ................166
Flashlight .............................35
G
I
Icon Glossary ....................156
Icon Reference ....................13
In Case of Emergency
(ICE) ....................................59
Inbox....................................94
Incoming PTT Call .............. 66
Info.......................................88
K
Keyguard Settings.............127
Index
Games .................................86
General Safety ..................176
Get New Pictures ................76
Get New Ringtones .............68
Groups ................................52
G’zGEAR™........................ 112
Main Menu Settings ..........136
Making a Call ......................27
Making a PTT Call ...............62
MEDIA CENTER ..................67
Memory .............................153
Memory Card ......................29
Menu Access ......................28
Menu Font Size..................139
Menu Overview .....................9
Message Erase .................101
Message Icons ....................15
Message Settings .............. 99
MESSAGING .......................89
Missed .................................42
Mobile IM.............................98
Mobile Web .........................86
Motion Detection .........35, 149
Music & Tones .....................67
Mute Function......................34
My Music .............................70
My Name Card ................... 60
My Number........................156
My Pictures..........................77
My Ringtones ......................69
195
My Sounds ..........................71
My Verizon .........................102
My Videos............................81
PTT Mode ....................62, 152
PTT Screen Icons................16
Push to Talk .........................61
N
R
NAM Selection ..................148
New Contact................. 45, 53
New Message .....................89
New Message Alert .............89
New PTT Contact ................53
Notepad ............................ 110
Received .............................42
Recent Call Icons ................14
RECENT CALLS ..................42
Record Video ......................84
RECYCLE YOUR CELL
PHONE! .............................188
Redialing Call ......................27
Restore Phone ...................147
Restrictions........................145
O
Index
One Touch Dial.................. 151
One-touch Open Button......20
Online Album.......................85
P
Palabra Mode ......................41
Pauses .................................48
PC Connections ................ 151
Personal Banner ................134
Phone Info .........................156
Phone Lock Setting ...........146
Phone Memory ..................154
Phone Overview ....................4
Phone Settings ..................139
Picture & Video....................73
Picture Message ................ 90
Power On/Off.....................132
PTT Contact List..................53
PTT Groups .........................54
196
S
Safety ................................160
Safety Information for FCC
RF Exposure......................163
Save Options .....................153
Screen Icons .......................13
Security .............................144
Sending and Receiving
Images ..............................126
Sending and Receiving
Name Cards ......................125
Sent .................................... 96
Service Alerts ....................131
Set Directional Keys .......... 141
Set My Shortcuts ...............140
Set Shortcuts .....................140
Set Side Keys ....................142
SETTINGS & TOOLS.........102
Set-up Wizard....................158
Shock Resistance ...............18
Software Update ...............157
Sounds Settings ................128
Speakerphone .....................35
Speed Dials .........................56
Stop Watch ........................109
SW/HW Version .................156
Sync music from PC............73
System Select....................147
T
V CAST Music with
Rhapsody ® ..........................67
V CAST Videos ....................74
Vibrate Mode .......................34
Video Message ...................91
View Timers ........................ 44
Voice Commands ......103, 143
Voice Message....................91
Voice Privacy ..................... 151
Voicemail .............................98
Volume Quick Adjustment ...34
VZ NavigatorSM ....................87
W
Wallpaper ..........................135
Warranty ............................190
Water Resistance ................17
World Clock ....................... 110
Index
T9 Word Mode.....................39
Take Picture .........................83
Temp PTT Group .................55
Text Input .............................38
Text Input Modes ................39
TIA Safety Information .......160
Tools ..................................102
Touch Keys ..........................37
TTY Mode..........................150
Turning the Phone On and
Off........................................27
TXT Message ..................... 90
V
U
USB Mass Storage ............ 111
USB Mode .........................155
Using a Memory Card .........29
197
Your wireless device can determine its (and your) physical,
geographical location (“Location Information”). Certain software
applications are capable of accessing, collecting and using Location
Information and disclosing the information to the application
provider and other people. You should use caution and discretion
when determining whether or not Location Information should be
made available to them. To limit potential unauthorized access to
your Location Information, Verizon Wireless devices are preset to
“E911 ONLY” which will only allow authorized emergency response
personnel to locate you if you dial 9-1-1 from your wireless device.
By changing the setting on the device to “LOCATION ON” you are
enabling third party access to Location Information through software,
widgets or peripheral components you choose to download, add or
attach to your wireless device. Verizon Wireless encourages you
to check your wireless device periodically and only use software,
Index
widgets and peripheral components that are obtained from reliable
sources. When you use your mobile browser or other services and
applications, you authorize Verizon Wireless to collect, use and
disclose your Location Information as appropriate to provide you
with any location services that you enabled. Verizon Wireless does
not retain Location Information longer than necessary to provide
the services to you. We will not knowingly disclose your Location
Information to third parties without your consent. You should carefully
review the privacy policies of application providers and third parties
who you allow access to your Location Information, and you should
know that significant risks can be associated with disclosing your
Location Information to others.
THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL
PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER FOR (i) ENCODING
VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD
198
(“MPEG4-VIDEO”) AND/OR (ii) DECODING MPEG-4 VIDEO THAT
WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL
AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED
FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE
MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED
FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING
THAT RELATING TO PROMOTIONAL, INTERNATIONAL AND
COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM
MPEG LA, LLC. SEE
HTTP://WWW.MPEGLA.COM.
This Product contains Adobe ® Flash® Lite™ player software under
license from Adobe Systems Incorporated, Adobe Flash Lite
Copyright © 2003-2007 Adobe Systems Incorporated. All rights
reserved.
Adobe, Flash and Flash Lite are trademarks of Adobe Systems
This Product contains WMDRM software to access WMDRM-
Index
Incorporated in the United States and other countries.
protected content.
If the WMDRM software fails to protect the content, content owners
may ask Microsoft Corporation to revoke the software’s ability to use
WMDRM to play or copy protected content.
T9 Text Input is covered by U.S. Pat. 5,818,437, U.S. Pat. 5,953,541,
U.S. Pat. 6,011,554, 6,307,548, U.S. Pat. 6,286,064, U.S. Pat.
6,307,549 and other patents pending.
This Product incorporates technology from Nuance Communications,
Inc.
The PTT of this Product incorporates technology from Core Mobility,
Inc.
199
microSD is a registered trademark of the SD Card Association.
ACCESS and NetFront are trademarks or registered trademarks of
ACCESS CO., LTD. in Japan and other countries.
Copyright © 1996 - 2006 ACCESS CO., LTD.
Purple Labs, the Purple Labs logo and the family of terms carrying
the “Purple Labs” prefix are trademarks of Purple Labs SA. All other
trademarks and registered trademarks are the properties of their
respective owners.
Copyright© 2001-2009 Purple Labs SA. All Rights Reserved.
The Bluetooth® word mark and logos are owned by the Bluetooth
Index
SIG, Inc. and any use of such marks by Casio Computer Co.,Ltd. is
under license. Other trademarks and trade names are those of their
respective owners.
ROCK and G’zGEAR are trademarks of Casio Hitachi Mobile
Communications Co., Ltd.
G’zOne is a trademark of Casio Computer Co., Ltd.
200
