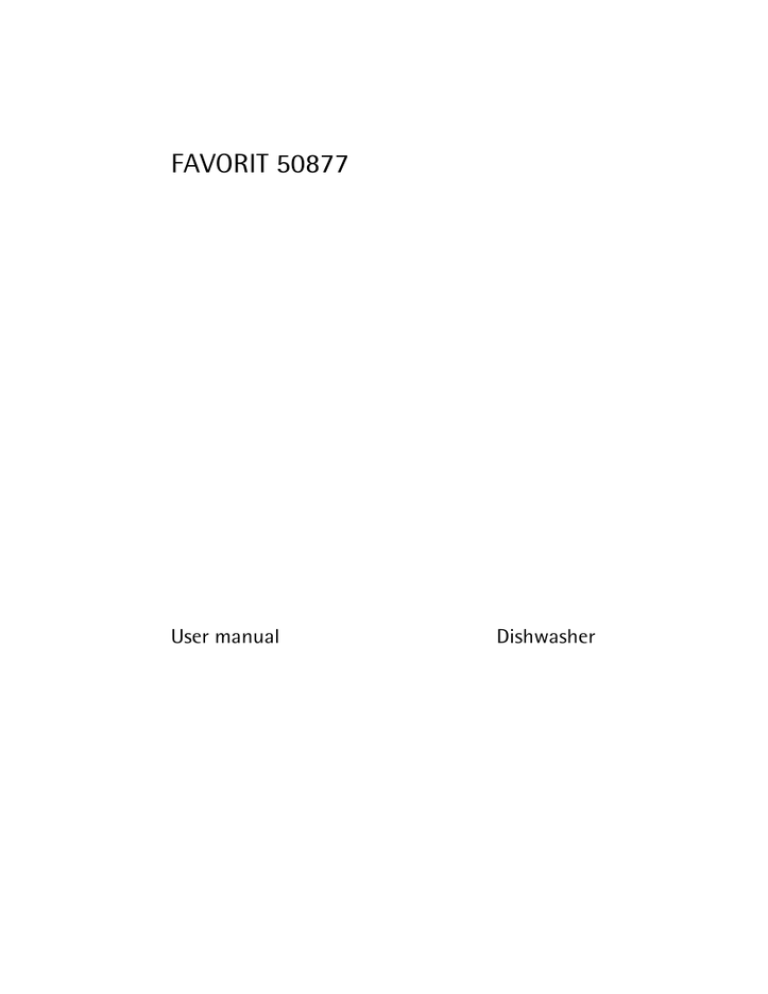

FAVORIT 50877
User manual
Dishwasher
2
Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best
performance and control - indeed we are setting the highest standards of
excellence.
In addition to this you find environmental and energy saving aspects as an integral
part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
Important information concerning your personal safety and information on how
to avoid damaging the appliance.
General information and tips
Environmental information
Contents
3
117970660-12022008
Contents
Operating instructions
5
Safety information
Correct use
General safety
Child safety
Installation
5
5
6
6
6
Product description
7
Control panel
The digital display
Function buttons
Setting mode
To cancel a set programme or a programme in progress
8
9
9
9
10
First use
10
Set the water softener
Setting manually
Setting electronically
10
11
12
Use of dishwasher salt
12
Use of rinse aid
Adjusting the dosage of rinse aid
13
14
Daily use
14
Load cutlery and dishes
The lower basket
The cutlery basket
The upper basket
Adjusting the height of the upper basket
15
16
17
18
19
Use of detergent
Fill with detergent
20
20
Multi-tab function
Activation/deactivation of the Multitab function
21
22
Washing programmes
23
4
Contents
Select and start a washing programme
24
Unloading the dishwasher
26
Care and cleaning
Cleaning the filters
Cleaning the spray arms
External cleaning
Internal cleaning
Prolonged periods of non-operation
Frost precautions
Moving the machine
26
26
28
28
28
28
28
28
What to do if…
29
Technical data
31
Hints for test institutes
32
Installation instructions
34
Installation
Fitting under a counter (kitchen worktop or sink)
Levelling
34
34
35
Water supply connections
Water outlet hose connection
35
35
36
Electrical connection
37
Environment concerns
Packaging material
38
38
Subject to change without notice
Safety information
5
Operating instructions
Safety information
In the interest of your safety and to ensure the correct use, before installing and
first using the appliance, read this user manual carefully, including its hints and
warnings. To avoid unnecessary mistakes and accidents, it is important to ensure
that all people using the appliance are thoroughly familiar with its operation and
safety features. Save these instructions and make sure that they remain with the
appliance if it is moved or sold, so that everyone using it through its life will be
properly informed on appliance use and safety.
Correct use
• This dishwasher is only intended for washing household utensils suitable for
machine washing.
• Do not put any solvents in the dishwasher. This could cause an explosion.
• Knives and other items with sharp points must be loaded in the cutlery basket
with their points down or placed in a horizontal position in the upper basket.
• Only use products (detergent, salt and rinse aid) suitable for dishwashers.
• Avoid opening the door whilst the appliance is in operation, hot steam may
escape.
• Do not take any dishes out of the dishwasher before the end of the dishwashing
cycle.
• After use, isolate the appliance from the power supply and turn off the water
supply.
• This product should be serviced only by an authorised service engineer, and only
genuine spare parts should be used.
• Under no circumstances should you attempt to repair the machine yourself.
Repairs carried out by inexperienced persons will cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine
spare parts.
6
Safety information
General safety
• Dishwasher detergents can cause chemical burns to eyes, mouth and throat.
Could endanger life! Comply with the safety instructions of the dishwasher detergent manufacturer.
• The water in your dishwasher is not for drinking. Detergent residues may still be
present in your machine.
• Ensure that the door of the dishwasher is always closed when it is not being
loaded or unloaded. In this way you will avoid anybody tripping over the open
door and hurting themselves.
• Do not sit or stand on the open door.
Child safety
• This appliance is designed to be operated by adults. Don’t allow children to use
the dishwasher unsupervised.
• Keep all packaging well away from children. There is risk of suffocation.
• Keep all detergents in a safe place out of children’s reach.
• Keep children well away from the dishwasher when the door is open.
Installation
• Check your dishwasher for any transport damage. Never connect a damaged
machine. If your dishwasher is damaged contact your supplier.
• All packaging must be removed before use.
• Any electrical and plumbing work required to install this appliance must be
carried out by a qualified and competent person.
• For safety reasons it is dangerous to alter the specifications or attempt to modify
this product in any way.
• Never use the dishwasher if the electrical supply cable and water hoses are
damaged; or if the control panel, work top or plinth area are damaged such that
the inside of the appliance is freely accessible. Contact your local Service Force
centre, in order to avoid hazard.
• All sides of the dishwasher must never be drilled to prevent damage to hydraulic
and electric components.
Product description
WARNING!
For electrical and water connection carefully follow the instructions given in
specific paragraphs.
Product description
1
2
3
4
5
6
7
8
9
Upper basket
Water hardness dial
Salt container
Detergent dispenser
Rinse aid dispenser
Rating plate
Filters
Lower spray arm
Upper spray arm
7
8
Control panel
10 Worktop
Control panel
D
1
2
3
4
5
6
E
On/off button
Programme selection buttons
Delay start button
Indicator lights
Digital display
Function buttons
Indicator lights
Programme in progress
Illuminates when a washing programme is set
and remains illuminated for all the duration of
the washing programme.
MULTITAB
Indicates the activation/deactivation of the
MULTITAB function (see MULTITABfunction)
Control panel
9
Indicator lights
Salt
Illuminates when the special salt has run out. 1)
Rinse aid
Illuminates when the rinse aid has run out. 1)
1) The salt and rinse aid indicator lights are never illuminated while a washing programme is running even if filling
with salt and/or rinse aid is necessary.
The digital display
The digital display indicates:
• the level of hardness to which the water softener is set,
• the approximate remaining time of the running programme,
• activation/deactivation of the rinse aid dispenser (ONLY with Multi-tab function
active),
• the end of a washing programme (a zero will appear in the digital display),
• the countdown of the delay start,
• fault codes concerning malfunction of the dishwasher.
Function buttons
The following functions can be set with the help of these buttons:
• setting of the water softener,
• cancel a washing programme or a delay start in progress,
• activation/deactivation of the Multi-tab function,
• activation/deactivation of the rinse aid dispenser when Multi-tab function is
active.
Setting mode
The appliance is in setting mode when ALL programme button lights are illuminated.
10
First use
Always remember that when performing the following operations:
– selecting a washing programme,
– setting the water softener,
– activating/deactivating the rinse aid,
the appliance MUST be in setting mode.
If a programme button light is illuminated, the last performed or selected programme is still set. In this case, to return to setting mode, the programme has to
be cancelled.
To cancel a set programme or a programme in progress
Simultaneously press and hold the two RESET buttons (B and C) until all the programme button lights illuminate. The programme has been cancelled and the
machine is now in setting mode.
First use
Before using your dishwasher for the first time:
• Ensure that the electrical and water connections comply with the installation
instructions
• Remove all packaging from inside the appliance
• Set the water softener
• Pour 1 litre of water inside the salt container and then fill with dishwasher salt
• Fill the rinse aid dispenser
If you want to use combi detergent tablets such as: "3 in 1", "4 in 1", "5 in 1" etc...
set the Multitab function (see "Multitab function").
Set the water softener
The dishwasher is equipped with a water softener designed to remove minerals and
salts from the water supply, which would have a detrimental or adverse effect on
the operation of the appliance.
Set the water softener
11
The higher the content of these minerals and salts, the harder your water is. Water
hardness is measured in equivalent scales, Clarke degrees, French degrees (°TH) and
mmol/l (millimol per litre - international unit for the hardness of water).
The softener should be adjusted according to the hardness of the water in your
area. Your local Water Authority can advise you on the hardness of the water in
your area.
Water hardness
Adjusting the water hardness
setting
Use of salt
Clarke
°TH
mmol/l
manually
electronically
64 - 88
91 - 125
9,1 - 12,5
2
level 10
yes
53 - 63
76 - 90
7,6 - 8,9
2
level 9
yes
46 - 52
65 - 75
6,51 - 7,5
2
level 8
yes
36 - 45
51 - 64
5,1 - 6,4
2
level 7
yes
28 - 35
40 - 50
4,0 - 5,0
2
level 6
yes
23 - 27
33 - 39
3,3 - 3,9
2
level 5
yes
18 - 22
26 - 32
2,61 - 3,2
1
level 4
yes
13 - 17
19 - 25
1,9 - 2,5
1
level 3
yes
5 - 12
7 - 18
0,71 - 1,8
1
level 2
yes
<5
<7
< 0,7
1
level 1
no
The water softener must be set in both ways: manually, using the water hardness
dial and electronically.
Setting manually
The dishwasher is factory set at position 2.
1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.
3. Turn the water hardness dial to position 1 or 2 (see table).
4. Replace the lower basket.
12
Use of dishwasher salt
Setting electronically
The dishwasher is factory set at level 5.
1. Press the On/Off button. The dishwasher must be in setting mode.
2. Press simultaneously and keep pressed buttons B and C, until the lights of
buttons A, B and C start flashing.
3. Press button A, the lights of buttons B and C turn off while the light of button
A goes on flashing. In the digital display is visible the current level.
Examples:
displayed = level 5
displayed = level 10
4. To change the level, press button A. Each time the button is pressed the level
changes (for the selection of the new level see the chart).
Examples: if the current level is 5, by pressing button A once, level 6 is selected.
if the current level is 10, by pressing button A once, level 1 is selected.
5. To memorise the operation, switch off the dishwasher by pressing the On/Off
button.
Use of dishwasher salt
WARNING!
Only use salt specifically designed for use in dishwashers. All other types of salt not
specifically designed for use in a dishwasher, especially table salt, will damage the
water softener. Only fill with salt just before starting one of the complete washing
programmes. This will prevent any grains of salt or salty water, which may have
been spilt, remaining on the bottom of the machine for any period of time, which
may cause corrosion.
To fill:
1. Open the door, remove the lower basket and unscrew the cap of the salt
container by turning it anticlockwise.
2. Pour 1 litre of water inside the container (this is necessary only before filling
with salt for the first time) .
Use of rinse aid
13
3. Using the funnel provided, pour in
the salt until the container is full.
4. Replace the cap making sure that
there is no trace of salt on the screw
thread or on the gasket.
5. Replace the cap tightly turning it
clockwise until it stops with a click.
Do not worry if water overflows from the
unit when filling with salt, this is quite
normal.
The salt indicator light on the control panel can remain illuminated for 2-6 hours
after the salt has been replenished, assuming the dishwasher remains switched on.
If you are using salts that take longer to dissolve then this can take longer. The
function of the machine is not affected.
Use of rinse aid
WARNING!
Only use branded rinse aid for dishwashers.
Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Rinse aid ensures thorough rinsing, and spot and streak free drying.
Rinse aid is automatically added during the last rinse.
1. Open the container by pressing the
release button (A).
14
Daily use
2. Add the rinse aid in the container. The
maximum level for filling is indicated
by "max".
The dispenser holds about 110 ml of
rinse aid, which is sufficient for between 16 and 40 dishwashing cycles,
depending upon the dosage setting.
3. Ensure that the lid is closed after every
refill.
Clean up any rinse aid spilt during filling
with an absorbent cloth to avoid excess
foaming during the next wash.
Adjusting the dosage of rinse aid
According to the finish and drying results obtained, adjust the dose of rinse aid by
means of the 6 position selector (position 1= minimum dosage, position 6= maximum dosage).
The dose is factory set in position 4.
Increase the dose if there are drops of water
or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on
the dishes or a bluish film on glassware or
knife blades.
Daily use
• Check if it's necessary to refill with dishwasher salt or rinse aid.
• Load cutlery and dishes into the dishwasher.
Load cutlery and dishes
15
• Fill with dishwasher detergent.
• Select a wash programme suitable for the cutlery and dishes.
• Start the wash programme.
Load cutlery and dishes
Sponges, household cloths and any object that can absorb water may not be washed
in the dishwasher.
• Before loading the dishes, you should:
– Remove all left over food and debris.
– Soften remnants of burnt food in pans
• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses, pans, etc. with the opening downwards so that water cannot collect in the container or a deep base.
– Dishes and items of cutlery must not lie inside one another, or cover each
other.
– To avoid damage to glasses, they must not touch.
– Lay small objects in the cutlery basket.
• Plastic items and pans with non stick coatings have a tendency to retain water
drops; these items will not dry as well as porcelain and steel items.
• Light items (plastic bowls etc.) must be loaded in the upper basket and arranged
so they do not move.
16
Load cutlery and dishes
For washing in the dishwasher the following cutlery and dishes
are not suitable:
are of limited suitability:
• Cutlery with wooden, horn, china or mother- • Only wash stoneware in the dishwasher if it
of-pearls handles.
is specially marked as being dishwasher-safe
by the manufacturer.
• Plastic items that are not heat resistant.
• Glazed patterns may fade if machine washed
• Older cutlery with glued parts that are not
frequently.
temperature resistant.
• Silver and aluminium parts have a tendency
• Bonded cutlery items or dishes.
to discolour during washing: Residues, e.g.
• Pewter or copper items.
egg white, egg yolk and mustard often cause
• Lead crystal glass.
discolouring and staining on silver. Therefore
• Steel items prone to rusting.
always clean left-overs from silver
• Wooden platters.
immediately, if it is not to be washed straight
after use.
• Items made from synthetics fibres.
Open the door and slide out the baskets to load the dishes.
The lower basket
Load larger and heavily soiled dishes and pans
in the lower basket.
Load cutlery and dishes
17
To make it easier to load larger dishes, all rear
plate racks in the lower basket can be folded
down.
The cutlery basket
WARNING!
Long bladed knives stored in an upright position are a potential hazard. Long and/
or sharp items of cutlery such as carving knives must be positioned horizontally in
the upper basket. Take care when loading or unloading sharp items such as knives.
To ensure that all items of cutlery in the cutlery basket can be reached by the water,
you should:
1. Place the grid insert on the cutlery
basket.
18
Load cutlery and dishes
2. Place forks and spoon in the cutlery
basket with their handles pointing
downwards.
For larger utensils, such as whisks,
leave off one half of the cutlery grid.
The upper basket
Load smaller, fragile crockery and long, sharp
cutlery in the upper basket.
• Arrange items of crockery on and under the
folding cup racks so that they are offset
from each other and water can reach all
items.
• The cup racks can be folded up out of the
way for tall crockery items.
• Lay or hang wine and brandy glasses in
the slots in the cup racks.
Load cutlery and dishes
• For glasses with long stems, fold the
glass rack to the right, otherwise fold it
away to the left.
• The row of spikes on the left of the upper
basket is also in two parts and can be
folded away.
Spikes not folded away: place glasses,
mugs etc. in the upper basket.
Spikes folded away: more room for serving dishes.
Adjusting the height of the upper basket
Maximum height of the dishes in:
the upper basket
the lower basket
With upper basket raised
22 cm
30 cm
With upper basket lowered
24 cm
29 cm
The height of the upper basket can also be adjusted when it is loaded.
Raising / lowering the upper basket:
19
20
Use of detergent
1. Pull out the upper basket completely.
2. Holding the upper basket by the handle, raise it as far as it will go and then
lower it vertically.
The upper basket will latch into the
lower or the upper position.
WARNING!
After loading your machine always close
the door, as an open door can be a hazard.
Before closing the door, ensure that the spray arms can rotate freely.
Use of detergent
Only use detergents specifically designed for use in dishwashers.
Please observe the manufacturer's dosing and storage recommendations as stated
on the detergent packaging.
Using no more than the correct amount of detergent contributes to reducing pollution.
Fill with detergent
1. Open the lid.
Multi-tab function
21
2. Fill the detergent dispenser (1) with
detergent. The marking indicates the
dosing levels:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent.
3. All programmes with prewash need
an additional detergent dose (5/10 g)
that must be placed in the prewash
detergent chamber (2).
This detergent will take effect during
the prewash phase.
4. When using detergent tablets, place
the tablet in compartment (1)
5. Close the lid and press until it locks in
place.
Detergent tablets
Detergent tablets from different manufactures dissolve at different rates. For this
reason, some detergent tablets do not attain their full cleaning power during short
washing programmes. Therefore, please
use long washing programmes when using detergent tablets, to ensure the complete removal of detergent residuals.
Multi-tab function
This appliance is equipped with the "Multitab function", that allows the use of the
"Multitab" combi detergent tablets.
These products are detergents with a combined cleaning, rinsing and salt functions.
They can also contain other different agents depending on which kind of tablets
you choose ("3 in 1", "4 in 1", "5 in 1" etc...).
Check whether these detergents are suitable for your water hardness. See the
manufacturers instructions.
This function can be selected with all washing programmes. With the selection of
this function the inflow of rinse aid and salt from each respective supply container
22
Multi-tab function
is automatically deactivated and also the indicator lights for salt and rinse aid are
deactivated.
Select the "Multitab function " before the start of a washing programme.
Once this function is selected (indicator light illuminated) it will remain active also
for the following washing programmes.
With the use of the "Multitab function", the cycle durations may change. In this
case, in the digital display, the indication of the running time of the programme is
automatically updated.
Once the programme is running, the "Multitab function " can NO longer be changed.
If you want to exclude the "Multitab function " you have to cancel the programme
setting and then deactivate the "Multitab function ".
In this case you have to set a washing programme (and desired options) again.
Activation/deactivation of the Multitab function
Simultaneously press and hold the two Multitab buttons (D and E), until the
"Multitab function" indicator light illuminates. This means that the function is active.
To deactivate the function press the same buttons again until the "Multitab function" indicator light turns off.
If the drying results are not satisfactory we suggest that you:
1. Fill up the rinse aid dispenser with rinse aid.
2. Activate the rinse aid dispenser.
3. Set the rinse aid dosage to position 2.
• The activation/deactivation of the rinse aid dispenser can only be possible with
the "Multitab function" active.
Activation/deactivation of the rinse aid dispenser
1. Press the On/Off button. The dishwasher must be in setting mode.
2. Press simultaneously buttons B and C, until the lights of buttons A , B, and C
start flashing.
3. Press button B, the lights of buttons A and C turn off while the light of button
B goes on flashing. The digital display indicates the current setting:
= Rinse aid dispenser deactivated.
Washing programmes
23
= Rinse aid dispenser activated.
4. To change the setting, press button B again, the digital display indicates the
new setting.
5. To memorise the operation, switch off the dishwasher by pressing the On/Off
button.
If you decide to turn back to the use of standard detergent system we advise that
you:
1. Deactivate the "Multitab function".
2. Fill up the salt container and the rinse aid dispenser again.
3. Adjust the water hardness setting to the highest setting and perform 1 normal
washing programme without loading any dishes.
4. Adjust the water hardness setting according to the hardness of the water in
your area.
5. Adjust the rinse aid dosage.
Washing programmes
Water (litres)
Crockery
and cutlery
0,9
9
INTENSIV
CARE 70°
Heavy soil
Crockery,
cutlery,
pots and
pans
16 - 18
12 - 23
Energy (kWh)
Light soil
1,5 -1,7
1,1 - 1,7
Duration (minutes)
90 - 130
30 MIN3)
30
Drying
Final rinse
Consumption values 1)
140 - 150
AUTOMATIC2) Mixed nor- Crockery,
mal and
cutlery,
heavy soil pots and
pans
Intermediate rinse
Programme description
1/2x
Type of
load
Main wash
Degree of
soil
Prewash
Programme
1,0 - 1,1
12 - 13
Normal
soil
Delicate
crockery
and glassware
0,8 -0,9
14 - 15
Water (litres)
Crockery
and cutlery
Energy (kWh)
Normal
soil
150 - 160
Consumption values 1)
Duration (minutes)
ECO 50°4)
Drying
Programme description
Final rinse
Type of
load
Intermediate rinse
Degree of
soil
Main wash
Programme
60 - 70
Select and start a washing programme
Prewash
24
1) The consumption values are intended as a guide and depends on the pressure and the temperature of the water
and also by the variations of the power supply and the amount of dishes.
2) During the Auto washing programme the amount of soil on the dishes is determined by how cloudy the water
is. The programme duration, water and energy consumption levels can vary; this depends upon if the appliance
is fully or partially loaded and if the dishes are lightly or heavily soiled. The temperature of the water is
automatically adjusted between 45° C and 70° C.
3) Ideal for washing a partially loaded dishwasher. This is the perfect daily programme, made to meet the needs
of a family of 4 persons who only wish to load breakfast and dinner crockery and cutlery.
4) Test programme for test institutes.
Select and start a washing programme
Select the washing programme and delay start with the door slightly opened. The
start of the programme or the countdown of the delay start will occur only after
the closure of the door. Until then it is possible to modify the settings.
1. Check that the baskets have been loaded correctly and that the spray arms are
free to rotate .
2. Check that the water tap is opened.
3. Press the On/Off button: all the programme lights illuminate (setting mode).
4. Press the button corresponding to the required programme (see "Washing
programmes" chart).
When a programme has been selected the corresponding light will illuminate.
Close the dishwasher's door, the programme starts automatically.
Select and start a washing programme
25
Setting and starting the programme with "delay start"
1. After having selected the washing programme, press the delay start button
until the flashing number of hours for the delay start will appear in the digital
display. You can choose from 1 to 19 hours of delay.
2. Close the dishwasher's door, the countdown starts automatically.
The number in the display is no longer flashing but fixed with static light.
3. The countdown will decrease with steps of 1 hour.
4. The opening of the door will interrupt the countdown.
5. Once the delay start has elapsed the programme will start automatically.
With the delay start function set, the programme in progress indicator light is
off. Once the countdown of the delay start has elapsed, the washing programme
will start automatically and the programme in progress indicator light will illuminate.
The selection of the washing programme and delay start can also occur with the
door closed. Keep in mind that in this way, once a washing programme button is
pressed you have ONLY 3 seconds in which you can choose another programme
or select a delay start, after which the selected programme will start automatically.
Cancelling the "delay start" and / or a washing programme
• To cancel a delay start in progress you have to reset the dishwasher.
• Cancelling a delay start involves also the cancelling of the washing programme
set. In this case you have to set the washing programme again. If a new washing
programme is to be selected, check that there is detergent in the detergent
dispenser.
WARNING!
Interrupt or cancel a washing programme in progress ONLY if it's absolutely
necessary. Attention! Hot steam may escape when the door is opened. Open the
door carefully.
Interrupt a washing programme in progress:
• Open the dishwasher door; the programme will stop. Close the door; the programme will start from the point at which it was interrupted.
• Press the On/Off button, all lights will turn off. Press the On/Off button again;
the programme will start from the point at which it was interrupted.
End of the washing programme
• The dishwasher will automatically stop.
26
Unloading the dishwasher
•
•
1.
2.
The light of the programme just ended will remain on.
In the digital display appears a zero.
Switch off the dishwasher by pressing the On/Off button.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes; in this way they will be cooler and the drying will be
improved.
Unloading the dishwasher
• Hot dishes are sensitive to knocks.
The dishes should therefore be allowed to cool down before removing from the
appliance.
• Empty the lower basket first and then the upper one; this will avoid water dripping from the upper basket onto the dishes in the lower one.
• Water may appear on the sides and the door of the dishwasher as the stainless
steel will eventually become cooler than the dishes.
CAUTION!
When the washing programme has finished, it is recommended that the dishwasher
is unplugged and the water tap turned off.
Care and cleaning
Cleaning the filters
The filters must be checked and cleaned from time to time. Dirty filters will degrade
the washing result.
WARNING!
Before cleaning the filters ensure that the machine is switched off.
1. Open the door, remove the lower basket.
Care and cleaning
27
2. The dishwasher filter system comprises a coarse filter (A), a microfilter
(B) and a flat filter. Unlock the filter
system using the handle on the microfilter, and remove the filter system.
3. Turn the handle about 1/4 a turn anticlockwise and remove the filter system.
4. Take hold of the coarse filter (A) by the
handle with the hole and remove
from the microfilter (B).
5. Clean all filters thoroughly under running water.
6. Remove the flat filter from the base
of the washing compartment and
clean both faces thoroughly.
7. Put the flat filter back in the base of
the washing compartment and ensure that it fits perfectly.
8. Place the coarse filter (A) in the microfilter (B) and press together.
9. Put the filter combination in place
and lock by turning the handle clockwise to the stop. During this process
ensure that the flat filter does not protrude above the base of the washing
compartment.
WARNING!
NEVER use the dishwasher without filters. Incorrect repositioning and fitting of
the filters will produce poor washing results and may result in damage to the
appliance.
28
Care and cleaning
Cleaning the spray arms
NEVER try to remove the spray arms.
If residues of soil have clogged the holes in the spray arms, remove them with a
cocktail stick.
External cleaning
Clean the external surfaces of the machine and control panel with a damp soft
cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene etc....).
Internal cleaning
Ensure that the seals around the door, the detergent and rinse aid dispensers are
cleaned regularly with a damp cloth.
We recommend every 3 months to run the wash programme for heavy soiled dishes
using detergent but without dishes.
Prolonged periods of non-operation
If you are not using the machine for any prolonged period of time you are advised
to:
1. Unplug the appliance and then turn off the water.
2. Leave the door ajar to prevent the formation of any unpleasant smells.
3. Leave the inside of the machine clean.
Frost precautions
Avoid placing the machine in a location where the temperature is below 0°C. If this
is unavoidable, empty the machine, close the appliance door, disconnect the water
inlet pipe and empty it.
Moving the machine
If you have to move the machine (moving house etc....):
1. Unplug it.
2. Turn the water tap off.
What to do if…
29
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
What to do if…
The dishwasher will not start or stops during operation. Certain problems are due
to the lack of simple maintenance or oversights, which can be solved with the help
of the indications described in the chart, without calling out an engineer.
Switch off the dishwasher and carry out the following suggested corrective actions.
Fault code and malfunction
appears in the digital display.
The dishwasher does not fill with water.
Possible cause and solution
• The water tap is blocked or furred with limescale.
Clean the water tap.
• The water tap is turned off. Turn the water tap
on.
• The filter (where present) in the threaded hose
fitting at the water inlet valve is blocked.
Clean the filter in the threaded hose.
• The water inlet hose has not been correctly
laid or it is bent or squashed.
Check the water drain hose connection.
appears in the digital display.
The dishwasher will not drain.
• The sink spigot is blocked.
Clean out the sink spigot.
• The water drain hose has not been correctly
laid or it is bent or squashed.
Check the water drain hose connection.
appears in the digital display.
Anti-flood device is activated.
• Close the water tap and contact your local
Service Force Centre.
30
What to do if…
Fault code and malfunction
The programme does not start.
Possible cause and solution
• The dishwasher’s door has not been properly
closed. Close the door.
• The main plug is not plugged in. Insert the
main plug.
• The fuse has blown out in the household fuse
box.
Replace the fuse.
• Delay start has been set.
If dishes are to be washed immediately, cancel
the delay start.
Once these checks have been carried out, switch on the appliance: the programme
will continue from the point at which it was interrupted.
If the malfunction or fault code reappears contact the Service Force Centre.
For other fault codes not described in the above chart, please contact your local
Service Force Centre, quoting the model (Mod.), product number (PNC) and serial
number (S.N.).
This information can be found on the rating plate located on the side of the
dishwasher door.
So that you always have these numbers at hand, we recommend you to make a
note of them here:
Mod. : . . . . . . . . . . . . . . . . . . . . . . .
PNC :. . . . . . . . . . . . . . . . . . . . . . . .
S.N. : . . . . . . . . . . . . . . . . . . . . . . . .
Technical data
31
The wash results are not satisfactory
The dishes are not clean
• The wrong washing programme has been selected.
• The dishes are arranged in such a way as to
stop water reaching all parts of the surface.
The baskets must not be overloaded.
• The spray arms do not rotate freely due to
incorrect arrangement of the load.
• The filters in the base of the washing compartment are dirty or incorrectly positioned.
• Too little or no detergent has been used.
• Where there are limescales deposits on the
dishes; the salt container is empty or the incorrect level of the water softener has been
set.
• The drain hose connection is not correct.
• The salt container cap is not properly closed.
The dishes are wet and dull
• Rinse aid was not used.
• The rinse aid dispenser is empty.
There are streaks, milky spots or a bluish coating • Decrease rinse aid dosing.
on glasses and dishes
Water drops have dries onto glasses and dishes
• Increase rinse aid dosing.
• The detergent may be the cause. Contact the
detergent manufacturer’s consumer care line.
If after all these checks, the problem persists, contact your local Service Force Centre.
Technical data
Dimension
Width - height - depth (cm)
60 x 85 x 63,5
Electrical connection - Voltage Information on the electrical connection is given on the rating
- Overall power - Fuse
plate on the inner edge of the dishwasher's door
Water supply pressure
Minimum - Maximum (MPa)
0,05 - 0,8
Capacity
Place settings
12
Max. weight
kg
45
32
Hints for test institutes
Hints for test institutes
Testing in accordance with EN 60704 must be carried out with appliance fully
loaded and using the test programme (see "Washing programmes").
Test in accordance with EN 50242 must be carried out when the salt container
and rinse aid dispenser have been filled with salt and rinse aid respectively and
using the test programme (see "Washing programmes").
Full load: 12 standard place settings
Amount of detergent required:
5 g + 25 g (Type B)
Rinse aid setting:
position 4 (Type III)
Hints for test institutes
Example loading arrangements:
Upper basket 1)
Lower basket with cutlery basket
Cutlery basket
1) If there are cup racks in place on the lefthand side, remove them.
33
34
Installation
Installation instructions
Installation
WARNING!
Any electrical and/or plumbing work required to install this appliance should be
carried out by a qualified electrician and/or plumber or competent person.
Remove all packaging before positioning the machine.
If possible, position the machine next to a water tap and a drain.
Fitting under a counter (kitchen worktop or sink)
By removing the machine's worktop, you can install it under a close fitting sink
unit or a pre-existing top, providing the dimensions of the recess correspond to
those shown in the picture.
Proceed as follows:
1. Remove the machine's worktop by
unscrewing the two rear retaining
screws, pull the worktop from the
back of the machine and slide out the
front slots, lifting the worktop.
2. Insert the machine after adjusting the
levelling with the adjustable feet.
35
When inserting the machine, ensure that the water inlet and drain hoses are not
kinked or squashed.
During all operations that involve accessibility to internal components the
dishwasher has to be unplugged.
Be sure that once the appliance has been installed, it is easily accessible for the
service engineer in the event that a repair is required.
If the dishwasher is later used as a free-standing appliance, the original worktop
must be re-mounted.
The plinth on free-standing appliances is not adjustable.
Levelling
Good levelling is essential for correct closure and sealing of the door. When the
appliance is correctly levelled, the door will not catch on either side of the cabinet.
If the door does not close correctly, loosen or tighten the adjustable feet until the
machine is perfectly level.
Water supply connections
Connection to a cold water supply is advised. If connection is made to a hot water
supply the maximum permissible temperature is 60°C. A hot water supply is not
always efficient with very soiled crockery as it shortens the washing programmes
a lot.
For making the connection itself, the coupling nut fitted to the machine's supply
hose is designed to screw onto a 3/4" gas thread spout or to a purpose made quickcoupling tap such as the Press-block.
The water pressure must be within the limits given in the "Technical specifications".
Your local Water Authority will advise you on the average mains pressure in your
area.
The water inlet hose must not be kinked, crushed, or entangled when it is being
connected.
The dishwasher features fill and drain hoses which can be turned either to the left
or the right to suit the installation by means of the locknut.
The locknut must be correctly fitted to avoid water leaks.
36
(Attention! NOT all models of dishwashers have fill and drain hoses provided with
locknut. In this case, this kind of facility is not possible). If the machine is connected
to new pipes or pipes which have not been used for a long time, you should run
the water for a few minutes before connecting the inlet hose.
DO NOT use connection hoses which have previously been used for an old
appliance.
This appliance has been fitted with safety features which will prevent the water
used in the appliance from returning back into the drinking water system. This
appliance complies with the applicable plumbing regulations.
Water outlet hose connection
The end of the drain hose can be connected in the following ways:
1. To the sink outlet spigot, securing it to the underside of the work surface. This
will prevent waste water from the sink running into the machine.
2. To a stand pipe provided with vent-hole, minimum internal diameter 4 cm.
The waste connection must be at a height of
between 30 cm (minimum) and 100 cm
(maximum) from the bottom of the
dishwasher.
The drain hose can face either to the right or
left of the dishwasher.
Ensure the hose is not bent or squashed as
this could prevent or slow down the discharge
of water.
The sink plug must not be in place when the machine is draining as this could cause
the water to syphon back into the machine.
If you use a drain hose extension it must be no longer than 2 metres and its internal
diameter must be no smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used for connections to the waste
outlet must be no smaller than the diameter of the hose provided.
Electrical connection
37
When connecting the drain hose to an under
sink trap spigot, the entire plastic membrane (A) must be removed. Failure to remove all the membrane will result in food
particles building up over time eventually
blocking the dishwasher drain hose spigot.
Our appliances are supplied with a security
device to protect against the return of dirty
water back into the machine. If the spigot of
your sink has a "no return valve" incorporated this can prevent the correct draining
of your dishwasher. We therefore advise you to remove it.
To avoid water leakage after installation make sure that the water couplings are
tight.
Electrical connection
WARNING!
Safety standards require the appliance to be earthed.
Prior to using the appliance for the first time, ensure that the rated voltage and
type of supply on the rating plate match that of the supply where the appliance is
to be installed.
The fuse rating is also to be found on the rating plate.
Always plug the mains plug into a correctly installed shockproof socket. Multi-way
plugs, connectors and extension cables must not be used.
This could constitute a fire hazard through overheating.
If necessary, have the domestic wiring system socket replaced. In case that the
electrical cable has to be replaced, contact your local Service Force centre.
The plug must be accessible after the appliance has been installed.
Never unplug the appliance by pulling on the cable. Always pull the plug.
The manufacturer accepts no liability for failure to observe the above safety precautions.
38
Environment concerns
Environment concerns
The symbol
on the product or on its packaging indicates that this product may
not be treated as household waste. Instead it should be taken to the appropriate
collection point for the recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local
council, your household waste disposal service or the shop where you purchased
the product.
Packaging material
The packaging materials are environmentally friendly and can be recycled. The
plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose
of the packaging materials in the appropriate container at the community waste
disposal facilities.
WARNING!
When a unit is no longer being used:
• Pull the plug out of the socket.
• Cut off the cable and plug and dispose of them.
• Dispose of the door catch. This prevents children from trapping themselves inside
and endangering their lives.
39
117970660-12022008
www.electrolux.com
