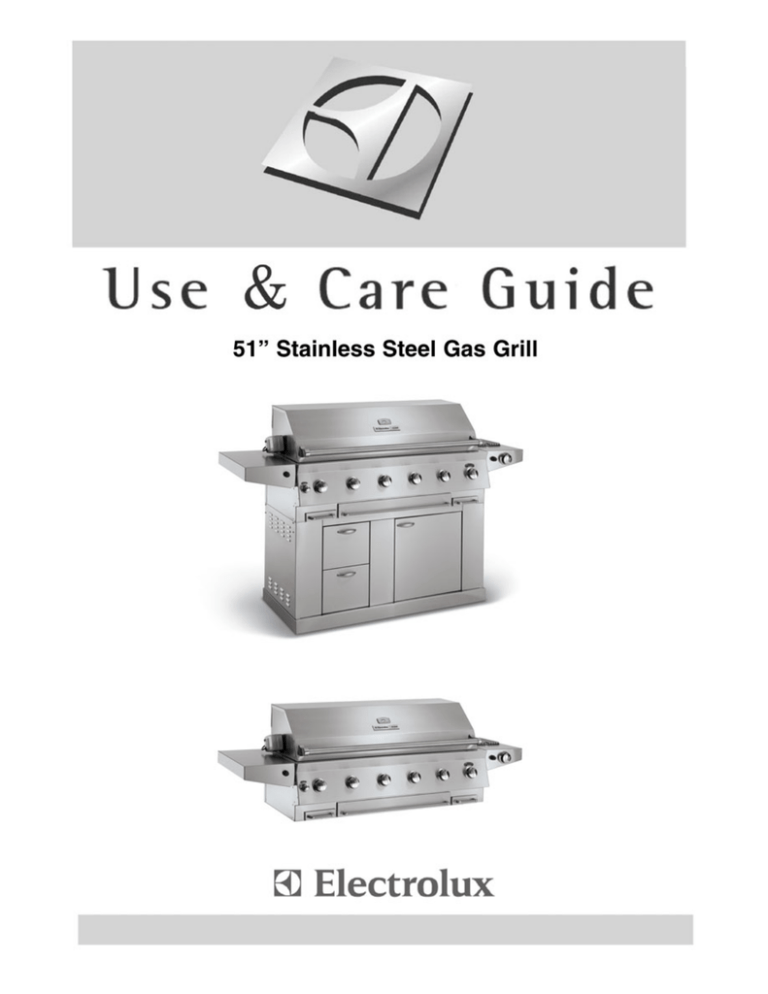

Electrolux 51" Stainless Steel Gas Grill User's Manual

1
Welcome & Congratulations
Congratulations on your purchase of a new grill! We at Electrolux Home Products are very proud of
our product and we are completely committed to providing you with the best service possible.
Your satisfaction is our #1 priority.
Please read this Use & Care Manual very carefully. It contains valuable information on how to
properly maintain your new grill.
We know you’ll enjoy your new grill and thank you for choosing our product. We hope you consider
us for future purchases.
PLEASE READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual provides specific operating instructions for your model. Use your grill only
as instructed in this manual. These instructions are not meant to cover every possible condition and
situation that may occur. Common sense and caution must be practiced when installing, operating
and maintaining any appliance.
Please record your model and serial numbers below for future reference. This information is found
on the serial plate located on the back of the built-in grill or on the inside of the cart door for
complete grill & cart model.
Questions?
1-800-320-0859
www.electroluxusa.com
Please record grill information for future reference and service work:
Model #: ________________________________________________________
Serial #: ________________________________________________________
Date of Purchase:
Gas Type:
________________________________________________
______________________________________________________
TABLE OF CONTENTS
Welcome/Product Registration ......................................................................1
General Safety Instructions ..........................................................................2
Grill Features & Components ......................................................................3-4
Grill Assembly/Built-In Instructions ............................................................5-8
Gas Requirements/Leak Testing ................................................................9-11
Lighting the Grill ............................................................................................12
Using the Grill (Rotisserie/Side Burner Usage)........................................13-15
Care & Maintenance ......................................................................................16
Troubleshooting Your Grill ........................................................................17-18
Warranty ..........................................................................................................19
Please retain this manual for future reference
© 2004 Electrolux Home Products, Inc
All rights reserved
General Safety Instructions
2
IMPORTANT SAFETY INFORMATION
- Read this manual carefully before using your grill to reduce the risk
of fire, burn hazard or other injury.
- Extreme care should be used because of the high temperatures
produced by this appliance. CHILDREN SHOULD NOT BE LEFT
UNATTENDED IN AN AREA WHERE THE GRILL IS BEING OPERATED.
- This appliance must be kept clear from combustible materials, gasoline or other flammable vapors
and liquids. Do not allow flammable materials to come in contact with grate, burner or hot surfaces.
- Use only outdoors and provide good ventilation to avoid carbon monoxide build-up which could result
in injury or death.
- Do not repair or replace any part of this appliance unless it is specifically recommended in this manual.
A qualified service technician should conduct all other service.
- Follow the installation and servicing instructions provided with this product. Have your grill installed
by a qualified service technician.
- Locate the main gas supply valve so that you know how to shut the gas off to your grill.
- If you smell gas, make sure all gas connections are tight before operation. If you continue to smell
gas call a qualified technician.
- When lighting a burner, always pay close attention to what you are doing and be certain you are
pushing the igniter that lights the burner you intend on using.
- Always keep your face and body as far away as from the grill as possible when lighting to reduce the
risk of burn.
- Extinguish all flames and do not smoke while engaging gas and igniting the grill.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open grill hood.
4. If odor continues, immediately
call your gas supplier.
CALIFORNIA PROPOSITION 65 - WARNING:
The burning of gas cooking fuels generates some by
products which are on the list of substances which
are known by the State of California to cause cancer
or reproductive harm. California law requires businesses to warn customers of potential exposure to
such substances. To minimize exposure to these
substances, always operate this unit according to the
use and care manual, provide good ventilation when
cooking with gas.
This appliance is not intended to be
installed in or on recreational
vehicles or boats.
FOR OUTDOOR USE ONLY
TESTED IN ACCORDANCE WITH ANSI
Z21.58b-2002/CGA 1.6b-M02 STANDARD FOR
OUTDOOR COOKING GAS APPLIANCES.
THIS GRILL IS FOR OUTDOOR USE ONLY.
Check your local building codes for the proper
method of installation. In the absence of local
codes, this unit should be installed in accordance
with the National Fuel Gas Code No. Z223.1-2002
and the National Electrical Code ANSI/NFPA
No. 70-1990
FOR YOUR SAFETY
DO NOT store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP cylinder not connected for use shall not be stored in
the vicinity of this or any other appliance.
WARNING
DO NOT try lighting this appliance without reading
the “LIGHTING INSTRUCTIONS” section of
this manual.
3
Grill Features: E51
7
1
8
2
9
13
3
16
14
4
10
15
5
6
11
12
1. Roll top grill hood
10. Electronic igniter: bottom infrared
and side burner
2. Grilling/cooking surface
11. Cart with doors and drawers
3. Side shelf
12. Drip pans
4. Control knob: back infrared burner
13. Side burner
5. Control knobs: main burners
14. Control knob:side burner
6. Warming drawer
15. Control knob: bottom infrared burner
7. Hood handle
8. Warming shelf
16. Electronic igniter: main burners and
back infrared
9. Infrared back burner
NOTE: Cart, side burner and side shelf are not included with the head only units.
5
Grill Assembly
IMPORTANT: Remove all protective plastic
film from stainless steel parts prior to
assembly/use. This film is installed at the
factory to prevent damage that could
occur during shipment and handling.
Fig. 1
SIDE SHELF ATTACHMENT
1. Loosen the bolts on the side of the grill and attach
the shelf by allowing the bolt heads to fall through
the large opening in the bottom of the keyhole
slots. Then slide the shelves downward until the
bolts are resting against the top of the key hole
slots. Tighten all of the shelf bolts. (See Fig. 1-2)
2. Attach the four (4) wires coming out from the left
side of the grill to the igniter terminals. (See Fig. 3)
Fig. 2
Note: It does not matter which wire goes to which
terminal on the electronic igniter
INTERIOR PARTS INSTALLATION
1. Install the bottom flavor grids in the lower cutouts
and around the igniters. (See Fig. 4)
2. Insert the top row of flavor grids with the 90
degree angled heat shield (bottom side of flavor
grid) facing the rear of the unit into cutouts with triangle ridges facing up. (See Fig. 5-6)
Fig. 3
Note: The right side of one flavor grid is extended. This goes on the far right main burner, next to
the bottom infrared burner.
3. Install cooking grates on the ledges provided on the
grill to create your cooking surface. (See. Fig. 7)
4. Place warming shelf on support brackets by setting it flat across brackets allowing the two holes
to line up with the holes on each bracket. (See
Faces the back of
the grill
Fig. 4
Fig. 6
Bottom flavor grids
in between burners
Fig. 5
Cooking Grates
Warming Shelf
Fig. 7
Side Burner Assembly
Fig. 7)
SIDE BURNER PARTS ASSEMBLY
1. Loosen the bolts on the side of the grill and
attach the side burner by allowing the bolt
heads to fall through the large opening in the
bottom of the keyhole slots. Then slide the
side burner downward until the bolts are
resting against the top of the key hole slots.
Tighten all of the shelf bolts. (See Fig. 8-9)
Fig. 8
2. Install burner and cap. (See Fig. 10-11)
3. Install grate over burner. (See Fig. 12)
4. Attach the wire coming out of the grill and the
side burner wire to the igniter terminals .
(See Fig. 13-14)
Fig. 9
Note: It does not matter which wire goes to
which terminal on the electronic igniter
Fig. 10
Front of side burner.
Fig. 13
Fig. 11
Fig. 14
Fig. 12
6
7
Built-In Instructions
The Electrolux Icon Grill can be installed as a built-in grill. If installed
as a built-in grill, the outdoor cooking center must be constructed of
non-combustible material.
PLANNING AND DESIGN
Start by identifying the number and size of components you want to include in your outdoor cooking
center. Countertops must be constructed of non-combustible, outdoor-safe materials. Consider outdoor
lighting to illuminate after-dark grilling. For assistance in designing and building your outdoor cooking
center, contact a landscape architect or general contractor. Review the drawings on the following
pages to determine the exact dimensions and items needed for an outdoor cooking center. Keep in
mind that the gas line hook-up is on the right hand side of the main built in-grill. The structure, grill
and support items must be kept level throughout the installation to ensure proper operation.
LOCATION
Take into account convenience and visual impact as well as traffic flow, wind exposure, and the site’s
structural suitability. The grill should never be placed in an enclosed area without an approved ventilation
system, or beneath a combustible overhang. Because the grill exhausts to the rear, it should never be
located in front of a window or less than 12” from hard-to-clean surfaces. We recommend keeping
your gas supply lines as short as possible for best performance. To ensure a perfect fit, we strongly
recommend that you have all components on hand prior to final construction.
CLEARANCE TO NON-COMBUSTIBLE CONSTRUCTION
For your safety a minimum of 3” clearance from the back of the grill to non-combustible construction
is required. You should allow at least 6” side clearance to non-combustible construction. The side
vents on this unit can be covered for built in installations without danger of fire or without impairing
the operation of the grill.
OUTBOARD IGNITER PLATE INSTALLATION (SEE DRAWING ON FOLLOWING PAGE)
The electronic igniters require a standard size deep electrical box, (available at a local hardware
store), with a minimum depth of 2.5” to be mounted in the structure. It should be placed on the front
or sides of the outdoor cooking center, with the center of the igniter buttons no more than 3” - 5” from
the grill. The igniter plates (included with the built-in grills) fit over the standard electrical box once
mounted in the structure. (See drawing on following page). If there is a ground wire for the igniter, it
needs to be grounded to a metal structure in order for the igniter to work.
UTILITIES
For natural gas grills, consult your local gas utility company for hook-up requirements. All gas connections should be made by a certified technician or a gas supply company. For natural gas installation,
the supply line must be at least 1/2” diameter. The rotisserie requires a 110/120 volt electric supply
and GFI receptacle. (6.5 amp min.) that should be installed by a qualified electrical technician. If your
plan includes a sink, arrange for a certified plumbing technician to run a water line to the site.
ELECTRICAL GROUNDING INSTRUCTIONS
The rotisserie kit is equipped with a three-prong (grounding) plug for your protection against shock
hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut
or remove the grounding prong from this plug.
Built-In Instructions
Note: Make Sure To Use Non-Combustible Material For Construction
Note A: Wire Cutout
Left & Right Side
6” x 4” Opening Minimum
GFI electrical outlet for
rotisserie motor
(6.5 Amp Min.)
Note A*
.75
3/4”
Top
2.00
2”
Required igniter
Cutouts
4”
A
6”
C
Front
Left & Right Side cutout view
B
Required igniter
Cutouts
Open space
Minimum clearance
to open hood 5”
1.50”
35.5”
Max
2
Mi 7 1/
nim 2”
um
0.75”
Max
0.75
Max
1.440
Max
Top View
E51 Electrolux Icon Grill Built-In Dimensions
With trim kit
Without trim kit
A
B
C
51 3/8”
25 1/4”
13 1/16”
A
B
C
51 1/2”
25 5/8”
13 1/16”
Additional Requirements:
• If using a backsplash apron or rear wall, locate electrical service on the left hand side for rotisserie
motor construction.
• A minimum clearance of 12” from the back of the outdoor cooking center must be maintained
between the grill and any combustible construction such as wood siding of residence, 3” minimum
for non-combustible construction.
• The side vents on this unit can be covered for built in installations without danger of fire or without
impairing the operation of the grill.
8
9
Gas Requirements
GENERAL INFORMATION
Never attach an unregulated gas line to the appliance. Connection to an unregulated gas line can cause excessive heat or fire.
Verify the type of gas supply to be used, either Natural Gas (N.G.) or Liquid Propane (L.P.), and make sure
the serial plate agrees with that of the supply. Conversion kits are available separately for an additional cost
which will enable you to convert your grill from L.P. to N.G. or to convert your grill from N.G. to L.P. Please
see your local dealer for more information.
NOTE: Always have a qualified service technician perform difficult conversions or modifications.
For natural gas installations, an installer must supply a gas shutoff valve that is easily accessible to the grill.
All installer supplied parts must conform to local codes, or in the absence of local codes, with the National
Electrical Code, ANSI/NFPA 70-1990, and the National Fuel Gas Code, ANSI Z223.1-1998.
All pipe sealants must be an approved type and resistant to the actions of L.P. gases. Never use pipe
sealant on flare fittings. All gas connections should be made by a competent qualified service technician and
in accordance with local codes and ordinances. In the absence of local codes, the installation must comply
with the National Fuel Gas Code, ANSI Z223.1-1998. Gas conversions kits may be purchased separately.
When ordering gas conversion kits, have the model number, and the type of gas (N.G. or L.P.) used for
your grill.
This grill and its individual shut off valve must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 1/2 PSIG (3.5 kPa.).
This grill must be isolated from the gas supply piping system by closing its individual manual shut-off valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 PSIG
(3.5 kPa.).
The installation of this grill must conform with local codes, or in the absence of local codes, with National
Fuel Code, ANSI Z223.1a-1998.
Installation in Canada must be in accordance with the Standard Can1-b149.1 and or .2 (installation code for
gas burning appliances and equipment) and local codes.
NATURAL GAS INSTALLATION
The gas inlet supply pressure should be between 5” and 14” water column,(w.c.) A step down regulator is
required if the line pressure is in excess of 14” w.c. Inlet pressure must not exceed 14” water column (1/2
PSIG)
Check your local gas utility company or with local codes for instructions on installing gas supply lines. Be
sure to check on type and size of run, and how deep to bury the line. If the gas supply line is too small, the
grill will not operate correctly.
Any joint sealant used must be an approved type and be resistant to chemical breakdown resulting from the
reaction with N.G.
Attach the natural gas regulator (supplied with your grill) to the brass fitting coming out the bottom, right side
of the grill (be sure the arrow on the regulator is pointing up towards the grill). Attach your gas line to the
3/8” flare fitting coming out of the natural gas regulator under the grill.
NOTE: The gas line connection and the gas fitting must be the same diameter.
Installer supplied shut-off valve (not included) - Place the shut-off valve in an accessible location to enable the
gas supply to be cut off to the unit.
NOTE: A flexible natural gas line is not included with Electrolux Icon grills. Natural gas flex line
must be purchased separately based on the distance of your grill location from the natural gas line.
Please be sure to check the size of your home’s natural gas line fitting to make sure you get the
right size connection for your particular application. If you have questions, please consult your local
natural gas distributor or qualified service technician.
Gas Requirements
L.P. GAS INSTALLATION
Electrolux Icon Gas Grills that are set to operate with L.P. gas come with a high capacity hose and
regulator assembly. (Note: Only use the pressure regulator and hose assembly supplied with
the grill or a replacement pressure regulator and hose assemblies specified by Electrolux).
This assembly is designed to connect directly to a standard 20 lb. L.P. cylinder. L.P. Cylinders are
not included with the grill. L.P. Cylinders can be purchased separately at an independent dealer.
LP hose/
regulator
supplied
with head
only grill.
LP hose/
regulator
supplied
with complete grill
and cart.
(Type 1
connector)
(Type 1
connector)
L.P. TANK INFORMATION
Never use a dented or rusted L.P. tank or cylinder with a damaged valve.
L.P. cylinders are equipped with an O.P.D (Overfilling Prevention Device). The device shuts off the
flow of gas to a cylinder after 80% capacity is reached. This limits the potential for release of gas
when the cylinder is heated, averting a fire or possible injury.
The L.P. cylinder must have a shut-off valve terminating in an L.P. gas supply cylinder outlet specified,
as applicable, for connection No. 510 in the standard for compressed gas cylinder valve outlet and
inlet connection ANSI/CGA-V-1. Cylinders must not be stored in a building, garage, or any other
enclosed area. (The L.P. cylinder must have an overfill protection device, OPD, on it.)
The L.P. gas supply cylinder must be constructed and marked in accordance with the specifications
for L.P. gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of
Canada, CAN/CAS-B339, “Cylinders, Spheres and Tubes for the Transportation of Dangerous
Goods.”
L.P. TANK USE
• When turning the L.P. tank on, make sure to open the valve SLOWLY two (2) complete turns
to insure proper gas flow. Most gas tanks now come equipped with a leak detector mechanism
internal to the tank, when gas is allowed to escape rapidly it shuts off the gas supply. Opening
the valve rapidly may simulate a gas leak, causing the safety device to activate, restricting
gas flow causing low flames. Opening the valve slowly will insure this safety feature is not
falsely triggered.
• When not in use, gas supply cylinder valve is to be in the “OFF” position.
• The tank supply system must be stored upright to allow for vapor withdrawal.
• The regulator and hose assembly must be inspected before each use of the grill. If there is excessive
abrasion or wear or if the hose is cut, it must be replaced prior to the grill being used again.
• Cylinders must be stored outdoors out of the reach of children and must not be stored in a building,
garage or any other enclosed area.
• Only a qualified gas supplier should refill the L.P. tank.
• Do not store a spare L.P. gas cylinder under or near the grill.
10
11 Pre Operation Leak Testing
GENERAL INFORMATION
Although all gas connections on the grill are leak tested prior to shipment, a complete gas tightness
check must be performed at the installation site due to possible shifting during shipment, installation or
excessive pressure unknowingly being applied to the unit. Periodically check the whole system for
leaks and immediately check the system if the smell of gas is detected.
BEFORE TESTING
Do not smoke while leak testing. Extinguish all open flames. Never leak test with an open flame.
Mix a solution of equal parts mild detergent or liquid soap and water.
TESTING
1. Turn off the burner control knobs.
2. Turn the top knob of the fuel supply cylinder counterclockwise (right to left) two (2) rotations to open.
3. Apply the soap solution to connections of the fuel supply assembly. If no soap bubbles appear, there
is no gas leak. If bubbles form at the connections, a leak is detected. If a leak is detected, immediately
turn off the gas supply, tighten any leaking fittings, turn gas on, and repeat steps 1-3.
4. Turn off the knob on the fuel supply cylinder.
5. Turn on the burner control knobs for a moment to release the pressure in the hose, then turn the
control knobs back off.
6. Wash off soapy solution with cold water and towel dry.
Check all gas supply fittings before each use and each time the gas supply cylinder is connected to
the regulator. Have a qualified service technician leak test the grill any time a part of the gas system is
replaced.
Also it is recommended to perform a leak test at least once a year whether or not the L.P. gas supply
cylinder has been disconnected.
NOTE: When leak testing this appliance, make sure to test and tighten all loose connections, including
the side burner. A slight leak in the system can result in a low flame, or hazardous condition. Most
L.P. gas tanks now come equipped with a leak detector mechanism internal to the tank, when gas
is allowed to escape rapidly it shuts off the gas supply. A leak may significantly reduce the gas
flow making the grill difficult to light or causing low flames.
NOTE: If you cannot stop a gas leak turn off the gas supply and call your local gas company or
the dealer you purchased the appliance from. If necessary, replace the faulty part with the
manufacturer’s recommended replacement part. A slight leak could cause a fire.
Lighting the Grill 12
Back
Knob
Infrared
#6
Knob
#5
Knob
#4
Knob
#3
Knob
#2
Knob
#1
Do not attempt to
“Light” the grill if the
odor of gas is present!!
Left electronic igniter
for main burners #2, #3,
#4, #5, #6 and back
infrared burner
Right electronic igniter for
bottom infrared burner
(knob #1) and side burner
BEFORE LIGHTING
Important! Before Lighting...
Check the gas supply line for cuts, wear or abrasion.
Fig. 15
Always keep your face and body as far away from the
grill as possible when lighting.
GRILL BURNER LIGHTING
This unit comes equipped with (2) electronic igniters.
The electronic igniter located on the right shelf lights
the side burner and bottom infrared burner. The electronic igniter on the left shelf lights the main burners,
which are controlled by knobs 2, 3, 4, 5, 6 and the
back infrared burner.
Fig. 16
LIGHTING THE GRILL WITH ELECTRONIC IGNITERS
Always open the lid before attempting lighting. Push
and turn one of the control knobs counter clockwise to
the “HIGH” position and immediately press the electronic igniter button. You’ll hear a snapping sound. It
may be necessary to hold the electronic starter button
for about 4 seconds. If the burner does not light in 4
seconds, turn the knob to OFF and wait 5 minutes
before trying again. Repeat above steps to light
remaining burners. (See Fig. 15)
Crossover Burner
Fig. 17
MATCH LIGHTING
If by chance the electronic igniter does not light the
burner, the burner may be lit with a match. Attach the
match to the match extender, located inside the right
cart door.
Keep your face as far away from the grill surface as possible and pass the match extender through the spaces
in the grill grates to the ports of the back crossover
burner between the flavor grids. Position the match
near the burner ports, then push and turn the control
knob counter clockwise to the “HIGH” position. (See Fig.
16-17)
NOTE: If the grill will not light after several attempts
see the trouble-shooting section of this manual. Turn
the control knobs to the OFF position when not in use.
CONTROL KNOB LAYOUT:
The control knob bezel has
stamped markings for the HIGH
and LOW settings. Turning the
knob so the arrow faces the left
is the HIGH setting. Turning the
knob so the arrow faces down
is the LOW setting.
H
L
13 Using the Grill
GRILL LOCATION
Do not use the grill in garages, breezeways, sheds or any enclosed area. Never
operate the grill in enclosed areas as this could lead to a carbon monoxide
buildup, which could result in injury or death. Place the grill on a level surface.
Avoid moving the grill while it is in operation.
NOTE: The grill will operate best if it is not facing directly into the wind.
Clearance to combustible construction - A minimum of 12” from the sides and back must be maintained
from the gas grill above and below the cooking surface to adjacent vertical combustible construction.
Clearance to non-combustible construction - A minimum of 5” clearance from the back of the grill to
non-combustible construction is required for the lid to fully open.
Storage of an outdoor gas cooking appliance indoor is permissible only if the cylinder is disconnected
and removed from the appliance.
GENERAL RULES
Do not leave the grill unattended while cooking!
1. Make sure the grill has been leak tested and is properly located.
2. Light the grill burners using the instructions provided in this manual.
3. Turn the control knobs to desired temperature “High, Medium, or Low” and preheat the grill for
10 minutes before cooking.
4. Adjust heat settings to meet your cooking needs for desired results.
5. Allow grill to cool down, wipe off any splatters or grease and clean the drip tray as needed.
6. Do not put a cover on the grill while it is still hot as it could start a fire.
!
Keep any electrical supply cords and the fuel supply hose away
from any heated surfaces.
Using the Rotisserie & Side Burners
14
The grill rotisserie system is designed to cook items from the back using infrared heat. The rotisserie
burner is an infrared type which provides intense searing radiant heat. Preferred by chefs over other
cooking methods, this intense heat sears in the natural juices and nutrients found in quality cuts of
meats.
!
Remove the warming rack from the grill when using the rotisserie to prevent
warping from the intense heat of the infrared unit.
NOTE: The rotisserie spit rod is centered between the grill hood and the burners. It may be
necessary to remove the grates and flavor grids when cooking larger portions of meat on the
rotisserie. This is by design, since this configuration gives you the most possible room above
and below the rod for larger pieces of meat.
Once lit, the rotisserie burner will reach cooking temperature in 1 minute. The orange/red glow will
even out in about 5 minutes. The rotisserie motor is equipped with metal gears and is capable of
turning up to 20 lbs. of food. The motor is mounted on a bracket on the left side of the grill by sliding
the motor over the bracket with the cord facing the back of the grill. Make sure the rotisserie motor is
completely seated on the bracket prior to operating. Make sure the rotisserie cord is away from any
hot surfaces.
Electrical Grounding Instructions
This appliance (rotisserie motor) is equipped with a three-prong (grounding)
plug for your protection against shock hazard and should be plugged directly
into a properly grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug.
ATTACHING THE ROTISSERIE
The motor is mounted on a bracket on the left
side of the grill by sliding the motor over the
bracket with the cord facing the back of the grill.
With the rotisserie motor in place and plugged
into an electrical outlet, it is now ready to operate. Slide one of the meat forks onto the rod
(prongs facing away from the rounded end. Push
the rod through the center of the food, then slide
the second meat fork onto the rod (prongs toward
the food). Center the food to be cooked on the
rod, then push the meat forks firmly together.
Tighten the thumb screws. It may also be necessary to wrap food with butcher’s string, (never use
nylon or plastic string) to secure loose portions.
Once the food is secure, insert the pointed end of
the rotisserie rod into the motor assembly and
rest the other end on the support on the righthand side of the grill. (If needed, remove the
cooking grates for more room). Turn the power
switch to the “On” position to start the rotisserie
motor.
Pointed End Of Rod
NOTE: Remove the rotisserie when not in use
and store the unit indoors. Remove warming
shelf when using rotisserie.
Do not use the rotisserie
in the rain.
15 Using the Rotisserie & Side Burners
ROTISSERIE LIGHTING
Open the lid. Push and turn the control knob for the rotisserie counter clockwise to the “HIGH” position. Wait 5
seconds. Then press and hold the electronic igniter
button. You’ll hear a snapping sound. If the burner does
not light in 4 seconds, turn the control knob to OFF and
wait 5 minutes before trying again. Once lit, turn the
control knob to the desired setting. (See Fig. 18)
MATCH LIGHTING
Fig. 18
If by chance the electronic igniter does not light the
burner, the burner may be lit with a match. Attach the
match to the match extender, located inside the right
cart door.
Keep your face as far away from the grill surface as possible and hold a match, attached to the match extender, to
the burner, then push and turn the control knob counter
clockwise to the “HIGH” position. (See Fig. 19)
NOTE: After the first use the stainless steel around
the burner will darken. This is a normal reaction of
premium stainless steel to heat and is not a defect.
The infrared panel will also darken after initial use.
This is also a normal occurrence.
!
Fig. 19
NOTE: Do not operate the main
burners and infrared back burner
at the same time. This can cause
warping of the roll top grill hood.
SIDE BURNER LIGHTING
Push and turn the control knob to the “HIGH” position
and immediately press and hold the electronic igniter
button. You’ll hear a snapping sound. It may be necessary to hold the electronic starter button for about 4
seconds. If the burner does not light in 4 seconds, turn
the knob to the “OFF” position and wait 5 minutes
before trying again. Repeat above steps to light
remaining burners. (See Fig. 20)
MATCH LIGHTING
If by chance the electronic igniter does not light the
burner, the burner may be lit with a match. Attach the
match to the match extender, located inside the right
cart door.
Keep your face as far away from the grill surface as
possible and hold a match, attached to the match
extender, near the burner ports, then push and turn the
control knob counter clockwise to the “HIGH” position.
Fig. 20
Care and Maintenance
DRIP TRAY
The drip trays, located on the bottom left and right of the grill, should be cleaned periodically to
prevent heavy buildup of debris.
NOTE: Allow the drip trays to cool before attempting to clean.
Important: Do not leave the grill outside during inclement weather unless it is covered (cover
sold separately). Rain water can collect inside of the grill, the grill cart or the drip tray if left
uncovered. If the drip tray is not cleaned after use and the grill is left uncovered, the drip tray
will fill with water causing grease and water to spill into the grill cart. We recommend cleaning
and storing the drip tray after every use.
COOKING GRATES
The cooking grates can be cleaned immediately after cooking is completed and after turning off the grill.
Wear a barbecue mitt and scrub the cooking grates with a damp cloth. If the grill is allowed to cool
down, cleaning the grates will be easier if removed from the grill and cleaned with a mild detergent.
STAINLESS STEEL
After initial usage, areas of the grill may discolor from the intense heat given off by the burners,
this is normal.
Purchase a mild stainless steel cleaner and rub in the direction of the grain of the metal. Specks of
grease can gather on the surface of the stainless steel and bake on to the surface and give a worn
appearance. For removal, use an non-abrasive oven cleaner in conjunction with a stainless cleaner.
NOTE: Always scrub in the direction of the grain.
IGNITER ACCESS (UNDER SIDE BURNER & SIDE SHELF):
To remove igniter, unscrew igniter push button and locking nut from front
panel of the side burner and igniter will fall out through the bottom
IGNITER ASSEMBLY:
1. The battery, spring and igniter cap must be installed before using.
2. Install the battery, positive side first.
3. Slide spring assembly over battery.
4. Screw igniter cap onto igniter.
REAR INFRARED BURNER:
Light and burn the rear infrared burner at least once a month to ensure there is not a build-up of
debris or grease on the burner. This will ensure the ceramic burner will continue to operate as it
should.
16
17 Troubleshooting Your Grill
GENERAL TROUBLE SHOOTING
You should inspect the burners at least once a year or immediately if any of the following conditions
occur:
• The smell of gas.
• Flames appearing mostly yellow. (some yellow at the tips is OK)
• The grill will not get hot enough.
• Burners make a snapping noise.
• The grill heats unevenly.
SPIDER AND INSECT WARNING
Spider and insects can nest in the burners of this or any other grill and cause the gas to flow from the
front of the burner. This is very dangerous condition which can cause a fire to occur behind the valve
panel, thereby damaging the grill and making it unsafe to operate. We recommend you check the grill
and remove any spiders, insects and webs at least once a year to reduce this risk.
BEFORE CALLING CUSTOMER SERVICE
If the grill does not function properly, use the following checklist.
PROBLEM
SOLUTION
Grill will not light when the igniter button is
pushed.
Is your gas supply turned on ?
If this is an L.P. grill, is there gas in your tank ?
Check your gas level.
Is one of your burners turned on? Allow up to four
seconds of gas flow to ignite.
Is your igniter working?
- You should hear a snapping sound when
you press the igniter?
- If you hear a snapping sound can you see a
spark at the electrodes?
Note - You will need to remove your cooking
grates and flavor grids to see the electrodes.
Are you pushing the correct electronic igniter for
the burner you are trying to light?
See diagram on page #12.
Check your igniter battery and replace if needed.
Check for loose wire connections to the igniter or
electrodes.
Check to see if debris is blocking the electrodes.
If the igniter is not working can you light the grill
with a match?
Troubleshooting Your Grill 18
PROBLEM
SOLUTION
Grill will not light with a match or low heat
with dial set to "High" position.
• Is your gas supply fully turned on?
• If this is an L.P. grill is there gas in your tank ?
Check your gas level.
• If this is an L.P. grill, shut off gas supply, disconnect gas line at tank, reconnect the line to
the tank.
• Make sure all the knobs are in the off position,
then open the gas supply valve on the L.P. tank
very slowly 1/4 turn, then open fully (at least
two full turns). Check flame height again.
• Check to insure the gas supply line or hose is
not kinked.
• If only one burner appears low, check and
clean the burner ports if clogged or dirty.
• Check for leaks.
Note - Pre-Heating time can take from 5 to 10
minutes.
Flame is erratic
• Check gas connection
- look for kinked hose.
- make sure gas supply valve is fully open.
• Gas level may be low.
• Grill may be in need of cleaning.
Flare-ups
• Check flavor grids and cooking grates for
excess food or grease build-up.
• Ensure grill is not placed directly in the path of
wind.
• Be sure drip trays are clean, (do not use aluminum foil on drip trays.)
Note: Some flare-ups may be inevitable if
cooking greasy foods.
Burner flame is mostly yellow or orange, possibly in conjunction with smell of gas.
• Check the burner inlet for obstructions.
Particularly at air inlets for each burner.
• Grill may be in an area that is too windy.
19 Warranty
LIMITED LIFETIME WARRANTY
Electrolux Icon Grills have a limited lifetime warranty on all stainless steel panels, a limited 3 year warranty on
stainless steel burners, including labor within one year of the date of purchase; and a limited 1 year warranty on
all other parts, labor included.
In the U.S.A., your appliance is warranted by Electrolux Home Products North America. We authorize no person to change or add to
any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by an authorized
Electrolux Home Products North America qualified service technician.
WARRANTY
PERIOD:
THROUGH OUR AUTHORIZED SERVICERS,
WE WILL:
THE CONSUMER WILL BE RESPONSIBLE FOR:
LIMITED ONE YEAR
WARRANTY *
One Year from
original purchase
date
Pay all costs for repairing or replacing any parts
of this appliance which prove to be defective in
materials or workmanship.
Cost of service calls that are listed under NORMAL
RESPONSIBILITIES OF THE CONSUMER.
LIMITED 3 YEAR
WARRANTY ON
STAINLESS STEEL
BURNERS *
2nd through 3rd
years from original
purchase date
Provide a replacement for any defective stainless
steel burner which prove to be defective in
materials or workmanship.
Diagnostic and any transportation and labor costs
which are required because of service.
All of the provisions of the full and limited warranties
above and the exclusions listed below apply.
Costs of the technicians travel to the home and any
costs for pick up and delivery of the appliance required
because of service.
From original date
LIMITED LIFETIME
WARRANTY ON
of purchase
STAINLESS PANELS *
* Some restrictions apply
NORMAL
RESPONSIBILITIES
OF THE CUSTOMER
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items
listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance
and in accordance with all local plumbing, electrical and/or gas codes.
3. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc.,which
are not a part of the appliance when it was shipped from the factory.
4. Damages to finish after installation.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by servicers other than Electrolux Home Products North America or its authorized
servicers; use of parts other than genuine Electrolux Home Products parts or parts obtained from persons other than
authorized servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
5. All other warranties, including implied warranties of merchantability and fitness for a particular purpose, which are expressly
excluded. consequential or incidental damages resulting from breach of warranty which are expressly excluded.
6. This limited warranty does not cover corrosion or discoloring due to lack of maintenance, misuse, hostile environments,
alterations, accidents or abuse or neglect.
7. This limited warranty does not cover any scratches, dents, corrosion or discoloring by heat, abrasive and chemical cleaners
nor any components used in the installation of the appliance.
IF YOU NEED
SERVICE
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty
period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This
written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service
under this warranty must be obtained by contacting Electrolux Home Products.
This warranty only applies in the 50 states of the U.S.A., Puerto Rico, and Canada. Product features or specifications as
described or illustrated are subject to change without notice. In the U.S. A., all warranties are made by Electrolux Home
Products North America. In Canada, your appliance is warranted by Electrolux Canada Corp.
If you have any other questions, please contact the Customer Service Hotline at
1-800-320-0859
Because of continuing product improvement, these specifications are subject to change without notice
RMP-122-E51IM
11/2004
