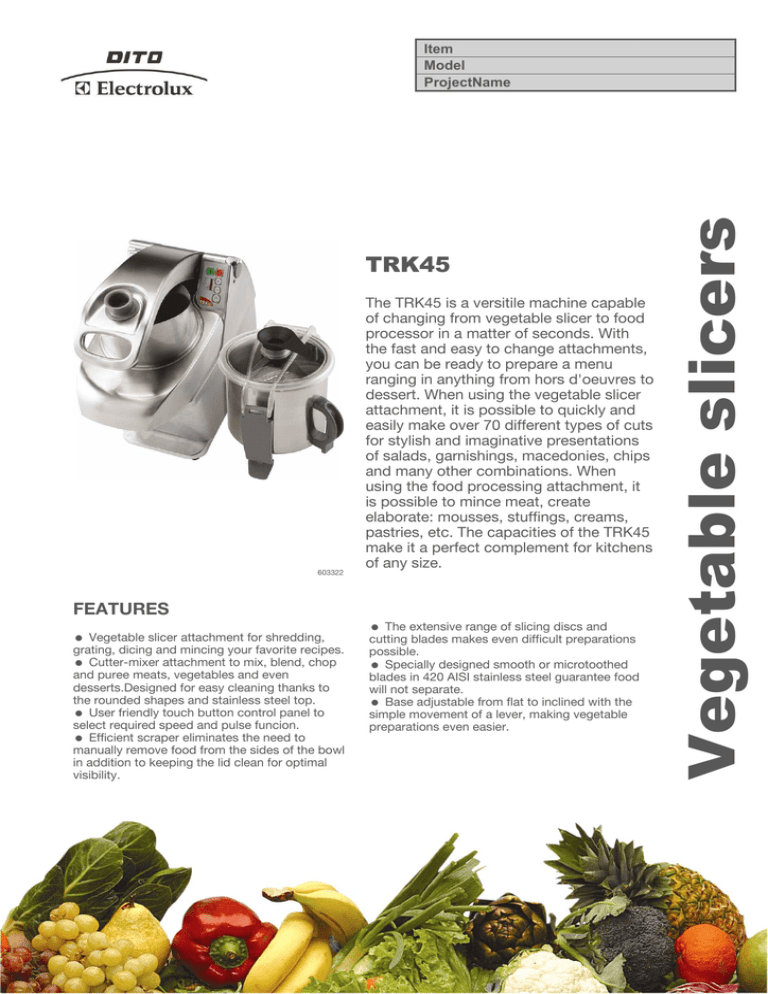

TRK45
603322
The TRK45 is a versitile machine capable
of changing from vegetable slicer to food
processor in a matter of seconds. With
the fast and easy to change attachments,
you can be ready to prepare a menu
ranging in anything from hors d'oeuvres to
dessert. When using the vegetable slicer
attachment, it is possible to quickly and
easily make over 70 different types of cuts
for stylish and imaginative presentations
of salads, garnishings, macedonies, chips
and many other combinations. When
using the food processing attachment, it
is possible to mince meat, create
elaborate: mousses, stuffings, creams,
pastries, etc. The capacities of the TRK45
make it a perfect complement for kitchens
of any size.
FEATURES
V Vegetable slicer attachment for shredding,
grating, dicing and mincing your favorite recipes.
V Cutter-mixer attachment to mix, blend, chop
and puree meats, vegetables and even
desserts.Designed for easy cleaning thanks to
the rounded shapes and stainless steel top.
V User friendly touch button control panel to
select required speed and pulse funcion.
V Efficient scraper eliminates the need to
manually remove food from the sides of the bowl
in addition to keeping the lid clean for optimal
visibility.
V The extensive range of slicing discs and
cutting blades makes even difficult preparations
possible.
V Specially designed smooth or microtoothed
blades in 420 AISI stainless steel guarantee food
will not separate.
V Base adjustable from flat to inclined with the
simple movement of a lever, making vegetable
preparations even easier.
Vegetable slicers
Item
Model
ProjectName
V Specially designed smooth or microtoothed
V Designed for easy cleaning thanks to the rounded
shapes and stainless steel top.
V User friendly touch button control panel to select
required speed and pulse funcion.
V Efficient scraper eliminates the need to manually
remove food from the sides of the bowl in addition to
keeping the lid clean for optimal visibility.
blades in 420 AISI stainless steel guarantee food will
not separate.
V Thanks to its wide versatility, the machine always
allows to select the correct slicing/processing speed,
according to the accessory being used.
Specifications
MODEL
External dimensions - mm
width
depth
height
Cutting capacity - kg/h
carrots
chips
dicing
Chopping capacity - kg/cycle
condiments
Mincing capacity - kg/cycle
meats
Preparation mayonnaise/sauces - kg/cycle
mayonnaise
Pastry preparation - kg/cycle
Power - kW
installed-electric
Net weight - kg.
Supply voltage
TRK45VV
603322
252
485
505
250
500
450
1.3
1.5
2
1.3
1
27.4
200...240 V, 1N, 50/60
Included accessories
CODE
653589
653588
653580
DESCRIPTION
4.5 LITRE S/S BOWL FOR CUTTER-MIXER
LID+BOWL SCRAPER FOR 4,5LT CUTTER-MIXER
MICROTOOTH BLADE ROTOR-4,5L CUTTER-MIXER
1
1
1
Optional accessories
CODE
653589
653568
653569
653570
653566
653567
653122
653123
653126
653111
653511
653112
653113
653115
653162
653163
653164
653167
653498
653008
653170
653573
653571
653572
653594
653588
653580
653283
653214
653153
653154
653289
653565
653101
653110
653185
653102
653103
653106
653108
653579
653180
DESCRIPTION
4.5 LITRE S/S BOWL FOR CUTTER-MIXER
DICING GRID 10 MM FOR VEGETABLE SLICER
DICING GRID 12 MM FOR VEGETABLE SLICER
DICING GRID 20 MM FOR VEGETABLE SLICER
DICING GRID 5 MM FOR VEGETABLE SLICER
DICING GRID 8 MM FOR VEGETABLE SLICER
DISC WITH CORRUGATED BLADES 2 MM
DISC WITH CORRUGATED BLADES 3 MM
DISC WITH CORRUGATED BLADES 6 MM
DISC WITH CURVED BLADES 1 MM
DISC WITH CURVED BLADES 10 MM
DISC WITH CURVED BLADES 2 MM
DISC WITH CURVED BLADES 3 MM
DISC WITH CURVED BLADES 5 MM
GRATING DISC 2 MM
GRATING DISC 3 MM
GRATING DISC 4 MM
GRATING DISC 7 MM
GRATING DISC 9 MM
GRATING DISC FOR KNODELN AND BREAD
GRATING DISC FOR PARMESAN AND BREAD
GRID FOR CHIPS 10MM FOR VEGETABLE SLICER
GRID FOR CHIPS 6MM FOR VEGETABLE SLICER
GRID FOR CHIPS 8MM FOR VEGETABLE SLICER
KIT VEG .SLICER FOR VAR.SP.CUTTER-MIXERS
LID+BOWL SCRAPER FOR 4,5LT CUTTER-MIXER
MICROTOOTH BLADE ROTOR-4,5L CUTTER-MIXER
S/S WORK TABLE+FOLDING SHELVES+DISK RACK
SHREDDING DISC 2X2 MM
SHREDDING DISC 3X3 MM
SHREDDING DISC 4X4 MM
SLICING BLADES VARIABLE DEPTH 1MM-7MM
SLICING DISC FOR MOZZARELLA 10 MM
SLICING DISC WITH STRAIGHT BLADES 1 MM
SLICING DISC WITH STRAIGHT BLADES 10 MM
SLICING DISC WITH STRAIGHT BLADES 14 MM
SLICING DISC WITH STRAIGHT BLADES 2 MM
SLICING DISC WITH STRAIGHT BLADES 3 MM
SLICING DISC WITH STRAIGHT BLADES 6 MM
SLICING DISC WITH STRAIGHT BLADES 8 MM
SMOOTH BLADE ROTOR-4,5L CUTTER-MIXER
TABLE+SHELF+GN 1/1 POLYCARBONATE TRAY
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Installation drawings
725
202
224
320
490
505
685
I
I
410
252
252
485
TRK45VV
603322
200...240 V, 1N, 50/60
MODEL
I - Electrical connection
The manufacturer reserves the right to modify and make improvements to the products without
giving prior warning. Dimensions, illustrations, technical data, weights, etc. are given as an
indication only.
