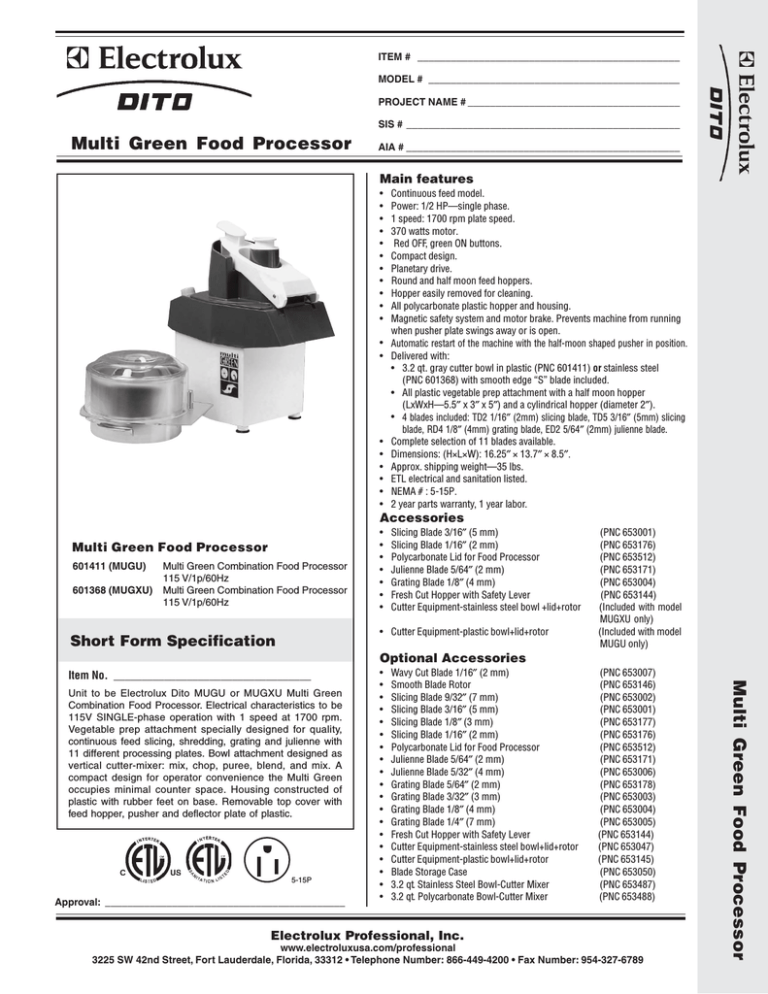

Electrolux Dito 601368 User's Manual

ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________
SIS # _________________________________________________
Multi Green Food Processor
AIA # _________________________________________________
Main features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Continuous feed model.
Power: 1/2 HP—single phase.
1 speed: 1700 rpm plate speed.
370 watts motor.
Red OFF, green ON buttons.
Compact design.
Planetary drive.
Round and half moon feed hoppers.
Hopper easily removed for cleaning.
All polycarbonate plastic hopper and housing.
Magnetic safety system and motor brake. Prevents machine from running
when pusher plate swings away or is open.
Automatic restart of the machine with the half-moon shaped pusher in position.
Delivered with:
• 3.2 qt. gray cutter bowl in plastic (PNC 601411) or stainless steel
(PNC 601368) with smooth edge “S” blade included.
• All plastic vegetable prep attachment with a half moon hopper
(LxWxH—5.5″ x 3″ x 5″) and a cylindrical hopper (diameter 2″).
• 4 blades included: TD2 1/16″ (2mm) slicing blade, TD5 3/16″ (5mm) slicing
blade, RD4 1/8″ (4mm) grating blade, ED2 5/64″ (2mm) julienne blade.
Complete selection of 11 blades available.
Dimensions: (H×L×W): 16.25″ × 13.7″ × 8.5″.
Approx. shipping weight—35 lbs.
ETL electrical and sanitation listed.
NEMA # : 5-15P.
2 year parts warranty, 1 year labor.
Accessories
Multi Green Food Processor
601411 (MUGU)
601368 (MUGXU)
Multi Green Combination Food Processor
115 V/1p/60Hz
Multi Green Combination Food Processor
115 V/1p/60Hz
•
•
•
•
•
•
•
Slicing Blade 3/16″ (5 mm)
Slicing Blade 1/16″ (2 mm)
Polycarbonate Lid for Food Processor
Julienne Blade 5/64″ (2 mm)
Grating Blade 1/8″ (4 mm)
Fresh Cut Hopper with Safety Lever
Cutter Equipment-stainless steel bowl +lid+rotor
• Cutter Equipment-plastic bowl+lid+rotor
Short Form Specification
(PNC 653001)
(PNC 653176)
(PNC 653512)
(PNC 653171)
(PNC 653004)
(PNC 653144)
(Included with model
MUGXU only)
(Included with model
MUGU only)
Optional Accessories
Unit to be Electrolux Dito MUGU or MUGXU Multi Green
Combination Food Processor. Electrical characteristics to be
115V SINGLE-phase operation with 1 speed at 1700 rpm.
Vegetable prep attachment specially designed for quality,
continuous feed slicing, shredding, grating and julienne with
11 different processing plates. Bowl attachment designed as
vertical cutter-mixer: mix, chop, puree, blend, and mix. A
compact design for operator convenience the Multi Green
occupies minimal counter space. Housing constructed of
plastic with rubber feet on base. Removable top cover with
feed hopper, pusher and deflector plate of plastic.
5-15P
Approval: ___________________________________________
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Wavy Cut Blade 1/16″ (2 mm)
Smooth Blade Rotor
Slicing Blade 9/32″ (7 mm)
Slicing Blade 3/16″ (5 mm)
Slicing Blade 1/8″ (3 mm)
Slicing Blade 1/16″ (2 mm)
Polycarbonate Lid for Food Processor
Julienne Blade 5/64″ (2 mm)
Julienne Blade 5/32″ (4 mm)
Grating Blade 5/64″ (2 mm)
Grating Blade 3/32″ (3 mm)
Grating Blade 1/8″ (4 mm)
Grating Blade 1/4″ (7 mm)
Fresh Cut Hopper with Safety Lever
Cutter Equipment-stainless steel bowl+lid+rotor
Cutter Equipment-plastic bowl+lid+rotor
Blade Storage Case
3.2 qt. Stainless Steel Bowl-Cutter Mixer
3.2 qt. Polycarbonate Bowl-Cutter Mixer
(PNC 653007)
(PNC 653146)
(PNC 653002)
(PNC 653001)
(PNC 653177)
(PNC 653176)
(PNC 653512)
(PNC 653171)
(PNC 653006)
(PNC 653178)
(PNC 653003)
(PNC 653004)
(PNC 653005)
(PNC 653144)
(PNC 653047)
(PNC 653145)
(PNC 653050)
(PNC 653487)
(PNC 653488)
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
Multi Green Food Processor
Item No. ___________________________________
Multi Green Food Processor
Electric
Supply voltage:
Front View
601411 (MUGU)
115 V/1p/60Hz – 6.3A - 1/2HP
601368 (MUGXU) 115 V/1p/60Hz – 6.3A - 1/2HP
Key Information
Uses of Food Processor
Types of Cuts
Top View
• TD slicing blades: straight cuts from 2 to 7 mm.
• WD slicing blades: crinkle cuts of 2 mm.
- Vegetables: potatoes, carrots, celery, red and white
cabbages, mushrooms, cucumbers, chicory, onions, leeks,
radishes, etc.
- Fruits: almonds, bananas, lemons, oranges, apples, etc.
• RD Grating blades: grating from 2 mm diameter to 7 mm
diameter.
- Vegetables: carrots, grated celery, beets, horseradish, etc.
- Other: mozzarella, walnuts, almonds, breadcrumbs,
chocolate, etc.
• ED shredding blades: for shredding.
- Thin 2 x 2 mm: doorstep potatoes, celery, and carrots.
- Medium 3 x 3 mm: matchstick potatoes, carrots, etc.
Uses of Food Processor
MEAT
Rough mincing
Pates
Small sausages
Large sausages
Minced meat
Fine mincing
Stuffing
Mousses
PASTRY
Shortcrust
Cold water paste
Flan
POWDER
Almonds
Hazelnuts
FRUITS AND VEGETABLES
Purees
Mousses
Syrups
CHOPPING
Parsley
Onions
Multi Green Food Processor
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
6-29-09
