Electrolux Dito 601372 User's Manual

ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________
SIS # _________________________________________________

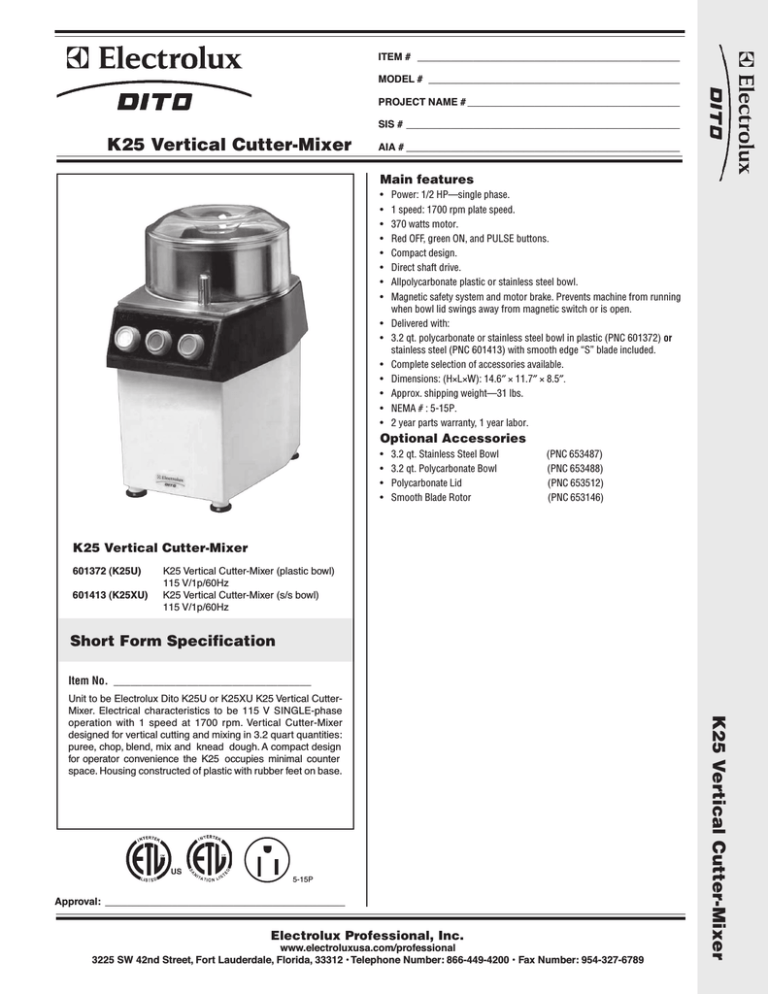

K25 Vertical Cutter-Mixer
AIA # _________________________________________________
Main features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Power: 1/2 HP—single phase.
1 speed: 1700 rpm plate speed.
370 watts motor.
Red OFF, green ON, and PULSE buttons.
Compact design.
Direct shaft drive.
Allpolycarbonate plastic or stainless steel bowl.
Magnetic safety system and motor brake. Prevents machine from running
when bowl lid swings away from magnetic switch or is open.
Delivered with:
3.2 qt. polycarbonate or stainless steel bowl in plastic (PNC 601372) or
stainless steel (PNC 601413) with smooth edge “S” blade included.
Complete selection of accessories available.
Dimensions: (H×L×W): 14.6″ × 11.7″ × 8.5″.
Approx. shipping weight—31 lbs.
NEMA # : 5-15P.
2 year parts warranty, 1 year labor.
Optional Accessories
•
•
•
•
3.2 qt. Stainless Steel Bowl
3.2 qt. Polycarbonate Bowl
Polycarbonate Lid
Smooth Blade Rotor
(PNC 653487)
(PNC 653488)
(PNC 653512)
(PNC 653146)
K25 Vertical Cutter-Mixer
601372 (K25U)
601413 (K25XU)
K25 Vertical Cutter-Mixer (plastic bowl)
115 V/1p/60Hz
K25 Vertical Cutter-Mixer (s/s bowl)
115 V/1p/60Hz
Short Form Specification
Item No. ___________________________________
5-15P
Approval: ___________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
K25 Vertical Cutter-Mixer
Unit to be Electrolux Dito K25U or K25XU K25 Vertical CutterMixer. Electrical characteristics to be 115 V SINGLE-phase
operation with 1 speed at 1700 rpm. Vertical Cutter-Mixer
designed for vertical cutting and mixing in 3.2 quart quantities:
puree, chop, blend, mix and knead dough. A compact design
for operator convenience the K25 occupies minimal counter
space. Housing constructed of plastic with rubber feet on base.
K25 Vertical Cutter-Mixer
Front View
Electric
Supply voltage:
601372 (K25U)
115 V/1p/60Hz - 1/2HP – 6.3A
601413 (K25XU)
115 V/1p/60Hz - 1/2HP – 6.3A
Key Information
Uses of Food Processor
MEAT
Rough mincing
Pates
Small sausages
Large sausages
Minced meat
Fine mincing
Stuffing
Mousses
PASTRY
Shortcrust
Top View
Cold water paste
Flan
POWDER
Almonds
Hazelnuts
FRUITS AND VEGETABLES
Purees
Mousses
Syrups
CHOPPING
Parsley
Onions
Side View
K25 Vertical Cutter-Mixer
The company reserves the right to make modifications to the products
without proir notice. All information correct at time of printing.
4-6-06
