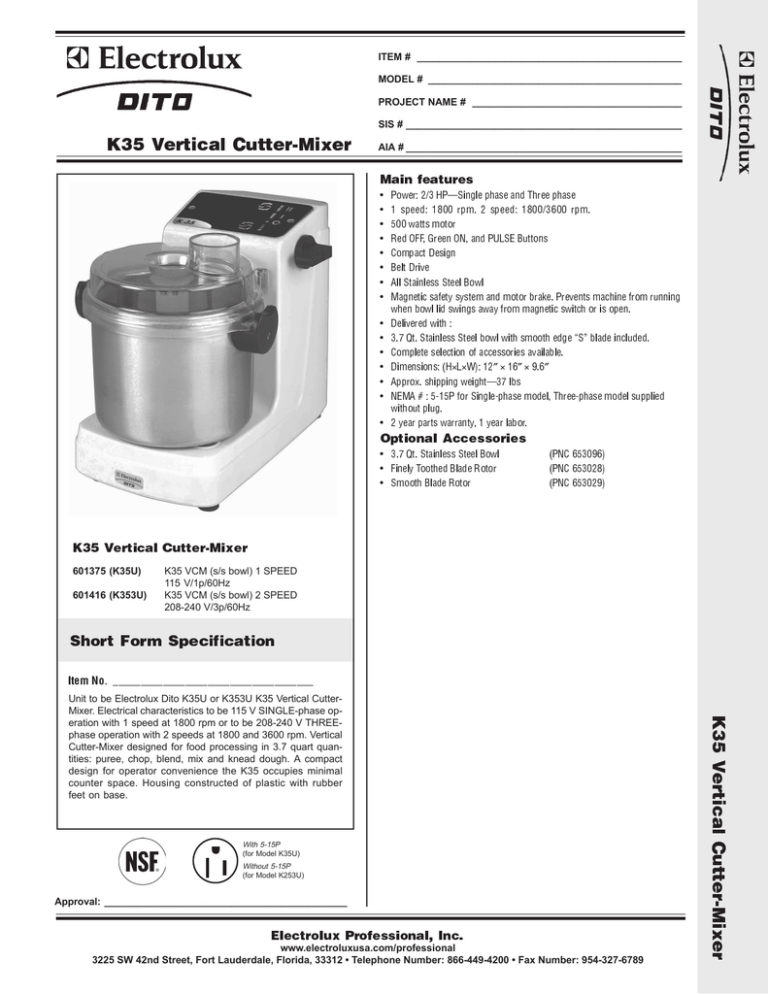

K35 Vertical Cutter-Mixer
SIS # __________________________________________________
AIA # __________________________________________________
Main features

Power: 2/3 HP—Single phase and Three phase

1 speed: 1800 rpm. 2 speed: 1800/3600 rpm.

500 watts motor

Red OFF, Green ON, and PULSE Buttons

Compact Design

Belt Drive

All Stainless Steel Bowl

Magnetic safety system and motor brake. Prevents machine from running

Delivered with :
when bowl lid swings away from magnetic switch or is open.

3.7 Qt. Stainless Steel bowl with smooth edge “S” blade included.

Complete selection of accessories available.

Dimensions: (H×L×W): 12″ × 16″ × 9.6″

Approx. shipping weight—37 lbs

NEMA # : 5-15P for Single-phase model, Three-phase model supplied

2 year parts warranty, 1 year labor.

3.7 Qt. Stainless Steel Bowl
(PNC 653096)

Finely Toothed Blade Rotor
(PNC 653028)

Smooth Blade Rotor
(PNC 653029)
without plug.
Optional Accessories
K35 Vertical Cutter-Mixer
601375 (K35U)
601416 (K353U)
K35 VCM (s/s bowl) 1 SPEED
115 V/1p/60Hz
K35 VCM (s/s bowl) 2 SPEED
208-240 V/3p/60Hz
Short Form Specification
Item No. ____________________________________
With 5-15P
(for Model K35U)
Without 5-15P
(for Model K253U)
Approval: ____________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
K35 Vertical Cutter-Mixer
Unit to be Electrolux Dito K35U or K353U K35 Vertical CutterMixer. Electrical characteristics to be 115 V SINGLE-phase operation with 1 speed at 1800 rpm or to be 208-240 V THREEphase operation with 2 speeds at 1800 and 3600 rpm. Vertical
Cutter-Mixer designed for food processing in 3.7 quart quantities: puree, chop, blend, mix and knead dough. A compact
design for operator convenience the K35 occupies minimal
counter space. Housing constructed of plastic with rubber
feet on base.
K35 Vertical Cutter-Mixer
Front View
Electric
Supply voltage:
601375 (K35U)
115 V/1p/60Hz - 2/3HP – 7.1A
601416 (K353U)
208-240 V/3p/60Hz - 2/3HP – 2.9A
Key Information
Uses of Food Processor
MEAT
Rough mincing
 Pates
 Small sausages
 Large sausages
 Minced meat
 Shellfish (with Finely Toothed Blade Rotor)
Fine mincing
 Stuffing
Top View
 Mousses
PASTRY
 Shortcrust
 Cold water paste
 Flan
POWDER
 Almonds
 Hazelnuts
FRUITS AND VEGETABLES
 Purees
 Mousses
 Syrups
CHOPPING
Side View
 Parsley
 Onions
K35 Vertical Cutter-Mixer
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
4-6-06
