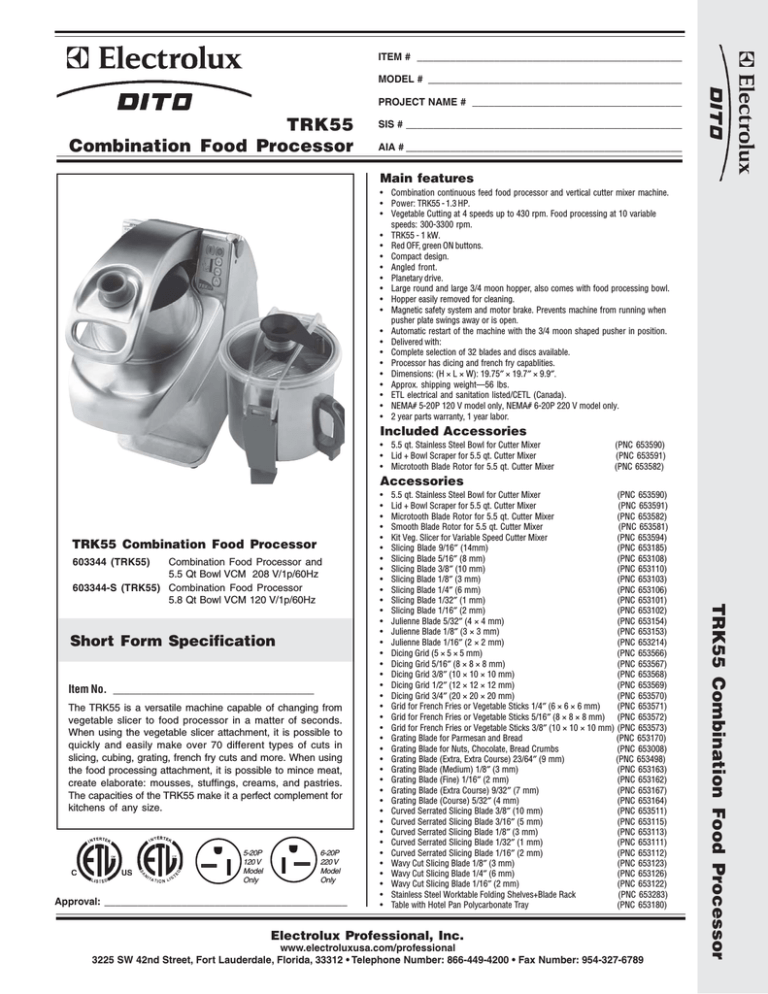

Electrolux Dito 603344-S User's Manual

ITEM # ________________________________________________
MODEL # ______________________________________________
PROJECT NAME # ______________________________________
TRK55
Combination Food Processor
SIS # __________________________________________________
AIA # __________________________________________________
Main features
• Combination continuous feed food processor and vertical cutter mixer machine.
• Power: TRK55 - 1.3 HP.
• Vegetable Cutting at 4 speeds up to 430 rpm. Food processing at 10 variable
speeds: 300-3300 rpm.
• TRK55 - 1 kW.
• Red OFF, green ON buttons.
• Compact design.
• Angled front.
• Planetary drive.
• Large round and large 3/4 moon hopper, also comes with food processing bowl.
• Hopper easily removed for cleaning.
• Magnetic safety system and motor brake. Prevents machine from running when
pusher plate swings away or is open.
• Automatic restart of the machine with the 3/4 moon shaped pusher in position.
• Delivered with:
• Complete selection of 32 blades and discs available.
• Processor has dicing and french fry capablities.
• Dimensions: (H × L × W): 19.75″ × 19.7″ × 9.9″.
• Approx. shipping weight—56 lbs.
• ETL electrical and sanitation listed/CETL (Canada).
• NEMA# 5-20P 120 V model only, NEMA# 6-20P 220 V model only.
• 2 year parts warranty, 1 year labor.
Included Accessories
• 5.5 qt. Stainless Steel Bowl for Cutter Mixer
• Lid + Bowl Scraper for 5.5 qt. Cutter Mixer
• Microtooth Blade Rotor for 5.5 qt. Cutter Mixer
(PNC 653590)
(PNC 653591)
(PNC 653582)
Accessories
TRK55 Combination Food Processor
603344 (TRK55)
Short Form Specification
Item No. ____________________________________
The TRK55 is a versatile machine capable of changing from
vegetable slicer to food processor in a matter of seconds.
When using the vegetable slicer attachment, it is possible to
quickly and easily make over 70 different types of cuts in
slicing, cubing, grating, french fry cuts and more. When using
the food processing attachment, it is possible to mince meat,
create elaborate: mousses, stuffings, creams, and pastries.
The capacities of the TRK55 make it a perfect complement for
kitchens of any size.
5-20P
120 V
Model
Only
6-20P
220 V
Model
Only
Approval: ____________________________________________
5.5 qt. Stainless Steel Bowl for Cutter Mixer
(PNC 653590)
Lid + Bowl Scraper for 5.5 qt. Cutter Mixer
(PNC 653591)
Microtooth Blade Rotor for 5.5 qt. Cutter Mixer
(PNC 653582)
Smooth Blade Rotor for 5.5 qt. Cutter Mixer
(PNC 653581)
Kit Veg. Slicer for Variable Speed Cutter Mixer
(PNC 653594)
Slicing Blade 9/16″ (14mm)
(PNC 653185)
Slicing Blade 5/16″ (8 mm)
(PNC 653108)
Slicing Blade 3/8″ (10 mm)
(PNC 653110)
Slicing Blade 1/8″ (3 mm)
(PNC 653103)
Slicing Blade 1/4″ (6 mm)
(PNC 653106)
Slicing Blade 1/32″ (1 mm)
(PNC 653101)
Slicing Blade 1/16″ (2 mm)
(PNC 653102)
Julienne Blade 5/32″ (4 × 4 mm)
(PNC 653154)
Julienne Blade 1/8″ (3 × 3 mm)
(PNC 653153)
Julienne Blade 1/16″ (2 × 2 mm)
(PNC 653214)
Dicing Grid (5 × 5 × 5 mm)
(PNC 653566)
Dicing Grid 5/16″ (8 × 8 × 8 mm)
(PNC 653567)
Dicing Grid 3/8″ (10 × 10 × 10 mm)
(PNC 653568)
Dicing Grid 1/2″ (12 × 12 × 12 mm)
(PNC 653569)
Dicing Grid 3/4″ (20 × 20 × 20 mm)
(PNC 653570)
Grid for French Fries or Vegetable Sticks 1/4″ (6 × 6 × 6 mm)
(PNC 653571)
Grid for French Fries or Vegetable Sticks 5/16″ (8 × 8 × 8 mm) (PNC 653572)
Grid for French Fries or Vegetable Sticks 3/8″ (10 × 10 × 10 mm) (PNC 653573)
Grating Blade for Parmesan and Bread
(PNC 653170)
Grating Blade for Nuts, Chocolate, Bread Crumbs
(PNC 653008)
Grating Blade (Extra, Extra Course) 23/64″ (9 mm)
(PNC 653498)
Grating Blade (Medium) 1/8″ (3 mm)
(PNC 653163)
Grating Blade (Fine) 1/16″ (2 mm)
(PNC 653162)
Grating Blade (Extra Course) 9/32″ (7 mm)
(PNC 653167)
Grating Blade (Course) 5/32″ (4 mm)
(PNC 653164)
Curved Serrated Slicing Blade 3/8″ (10 mm)
(PNC 653511)
Curved Serrated Slicing Blade 3/16″ (5 mm)
(PNC 653115)
Curved Serrated Slicing Blade 1/8″ (3 mm)
(PNC 653113)
Curved Serrated Slicing Blade 1/32″ (1 mm)
(PNC 653111)
Curved Serrated Slicing Blade 1/16″ (2 mm)
(PNC 653112)
Wavy Cut Slicing Blade 1/8″ (3 mm)
(PNC 653123)
Wavy Cut Slicing Blade 1/4″ (6 mm)
(PNC 653126)
Wavy Cut Slicing Blade 1/16″ (2 mm)
(PNC 653122)
Stainless Steel Worktable Folding Shelves+Blade Rack
(PNC 653283)
Table with Hotel Pan Polycarbonate Tray
(PNC 653180)
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
TRK55 Combination Food Processor
Combination Food Processor and
5.5 Qt Bowl VCM 208 V/1p/60Hz
603344-S (TRK55) Combination Food Processor
5.8 Qt Bowl VCM 120 V/1p/60Hz
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
TRK55
Combination Food Processor
Front View
Electric
Supply voltage:
603344 (TRK55)
208 V/1p/60Hz – 6A - 1.3 HP
603344-S (TRK55) 120 V/1p/60Hz - 6A - 1.3HP
EC
28.54″
725 mm
Key Information
NEW FEATURES
EC
26.97″
685 mm
12.59″
320 mm
8.82″
224 mm
7.95″
202 mm
•
Wide range of functions: slicing, mincing, grating,
shredding and cutting into chips or cubes of all sizes.
•
Plate speed at 430 rpm for precise cutting, slicing and
dicing.
•
Large round hopper (85″) allows food of greater
dimension to be processed.
•
Feeding arm with integrated long-vegetable hopper (tube
pusher), 60 mm in diameter. Ideal for carrots, zucchini
and cucumbers.
•
Base inclined at 20° provides easy loading and
discharging.
•
High discharge zone permits the use of deep GN containers
(up to 8 inches in height).
•
Feeding arm and hopper are made entirely in stainless
steel. Aluminum motor housing.
•
Plates and ejector may be removed in seconds by opening
the cover.
•
All parts that come into contact with the food are in
stainless steel or plastic, can be removed for easy cleaning
and are dishwasher safe.
•
IPX5 (IP55) flat panel touch-control, waterproof panel.
•
Green button indicates ON, red button indicates OFF.
•
Pulse control for precise slicing.
•
Asynchronous industrial motor with no brushes for high
reliability and quiet functioning. Stainless steel motor shaft.
•
Two separate safety switches stop the machine in order to
protect the operator from potentially dangerous conditions.
•
IP24 throughout entire machine.
Top View
19.09″
485 mm
16.14″
410 mm
EC
= Electrical connection
Side View
19.88″
505 mm
19.29″
490 mm
TRK55 Combination Food Processor
9.92″
252 mm
9.92″
252 mm
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
6-25-09
