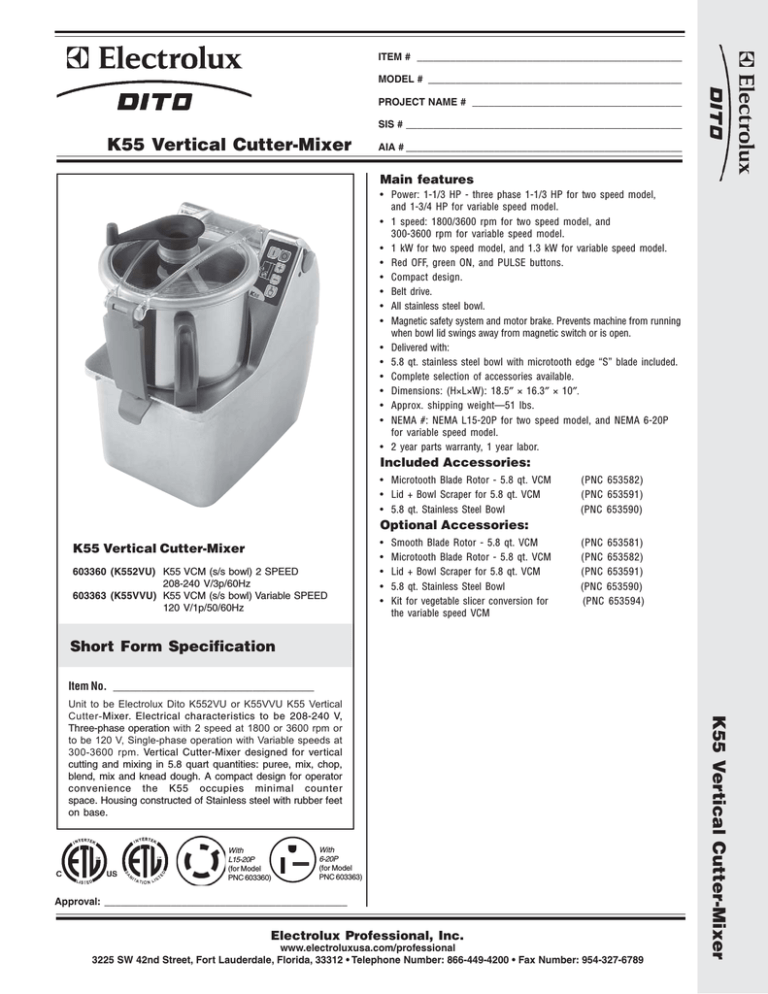

K55 Vertical Cutter-Mixer
AIA # __________________________________________________
Main features
• Power: 1-1/3 HP - three phase 1-1/3 HP for two speed model,
and 1-3/4 HP for variable speed model.
• 1 speed: 1800/3600 rpm for two speed model, and
300-3600 rpm for variable speed model.
• 1 kW for two speed model, and 1.3 kW for variable speed model.
• Red OFF, green ON, and PULSE buttons.
• Compact design.
• Belt drive.
• All stainless steel bowl.
• Magnetic safety system and motor brake. Prevents machine from running
when bowl lid swings away from magnetic switch or is open.
• Delivered with:
• 5.8 qt. stainless steel bowl with microtooth edge “S” blade included.
• Complete selection of accessories available.
• Dimensions: (H×L×W): 18.5″ × 16.3″ × 10″.
• Approx. shipping weight—51 lbs.
• NEMA #: NEMA L15-20P for two speed model, and NEMA 6-20P
for variable speed model.
• 2 year parts warranty, 1 year labor.
Included Accessories:
• Microtooth Blade Rotor - 5.8 qt. VCM
• Lid + Bowl Scraper for 5.8 qt. VCM
• 5.8 qt. Stainless Steel Bowl
(PNC 653582)
(PNC 653591)
(PNC 653590)
Optional Accessories:
K55 Vertical Cutter-Mixer
603360 (K552VU) K55 VCM (s/s bowl) 2 SPEED
208-240 V/3p/60Hz
603363 (K55VVU) K55 VCM (s/s bowl) Variable SPEED
120 V/1p/50/60Hz
•
•
•
•
•
Smooth Blade Rotor - 5.8 qt. VCM
Microtooth Blade Rotor - 5.8 qt. VCM
Lid + Bowl Scraper for 5.8 qt. VCM
5.8 qt. Stainless Steel Bowl
Kit for vegetable slicer conversion for
the variable speed VCM
(PNC 653581)
(PNC 653582)
(PNC 653591)
(PNC 653590)
(PNC 653594)
Short Form Specification
Item No. ____________________________________
With
L15-20P
(for Model
PNC 603360)
With
6-20P
(for Model
PNC 603363)
Approval: ____________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
K55 Vertical Cutter-Mixer
Unit to be Electrolux Dito K552VU or K55VVU K55 Vertical
Cutter-Mixer. Electrical characteristics to be 208-240 V,
Three-phase operation with 2 speed at 1800 or 3600 rpm or
to be 120 V, Single-phase operation with Variable speeds at
300-3600 rpm. Vertical Cutter-Mixer designed for vertical
cutting and mixing in 5.8 quart quantities: puree, mix, chop,
blend, mix and knead dough. A compact design for operator
convenience the K55 occupies minimal counter
space. Housing constructed of Stainless steel with rubber feet
on base.
K55 Vertical Cutter-Mixer
Front View
Electric
Supply voltage:
18.50
603360 (K552VU)
208-240 V/3p/60Hz – 4.2A
603363 (K55VVU)
120 V/1p/50/60Hz – 6A
Key Information
470 mm
Uses of Food Processor
MEAT
Rough mincing
Pates
Small sausages
10.08
Large sausages
256 mm
Minced meat
Side View
Shellfish
Fine mincing
Stuffing
Mousses
PASTRY
Shortcrust
Cold water paste
16.34
Flan
415 mm
POWDER
Almonds
Hazelnuts
FRUITS AND VEGETABLES
Purees
Mousses
Top View
Syrups
CHOPPING
Parsley
Onions
27.0
685 mm
EC
7.95
202 mm
K55 Vertical Cutter-Mixer
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
