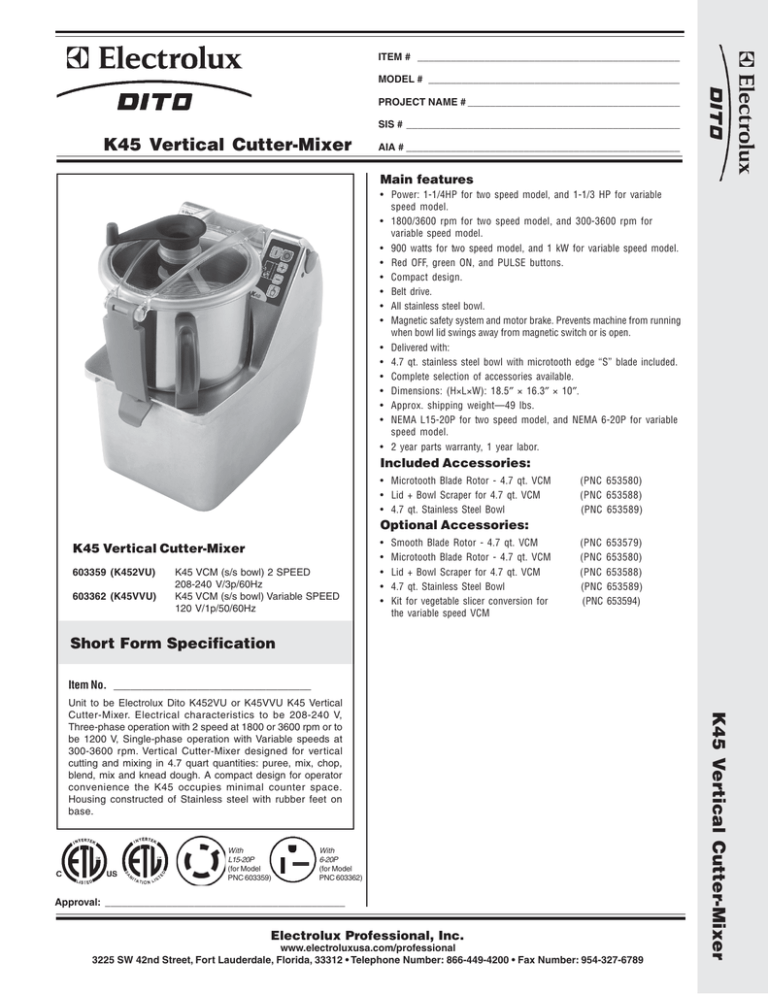

K45 Vertical Cutter-Mixer
AIA # _________________________________________________
Main features
• Power: 1-1/4HP for two speed model, and 1-1/3 HP for variable
speed model.
• 1800/3600 rpm for two speed model, and 300-3600 rpm for
variable speed model.
• 900 watts for two speed model, and 1 kW for variable speed model.
• Red OFF, green ON, and PULSE buttons.
• Compact design.
• Belt drive.
• All stainless steel bowl.
• Magnetic safety system and motor brake. Prevents machine from running
when bowl lid swings away from magnetic switch or is open.
• Delivered with:
• 4.7 qt. stainless steel bowl with microtooth edge “S” blade included.
• Complete selection of accessories available.
• Dimensions: (H×L×W): 18.5″ × 16.3″ × 10″.
• Approx. shipping weight—49 lbs.
• NEMA L15-20P for two speed model, and NEMA 6-20P for variable
speed model.
• 2 year parts warranty, 1 year labor.
Included Accessories:
• Microtooth Blade Rotor - 4.7 qt. VCM
• Lid + Bowl Scraper for 4.7 qt. VCM
• 4.7 qt. Stainless Steel Bowl
(PNC 653580)
(PNC 653588)
(PNC 653589)
Optional Accessories:
K45 Vertical Cutter-Mixer
603359 (K452VU)
603362 (K45VVU)
K45 VCM (s/s bowl) 2 SPEED
208-240 V/3p/60Hz
K45 VCM (s/s bowl) Variable SPEED
120 V/1p/50/60Hz
•
•
•
•
•
Smooth Blade Rotor - 4.7 qt. VCM
Microtooth Blade Rotor - 4.7 qt. VCM
Lid + Bowl Scraper for 4.7 qt. VCM
4.7 qt. Stainless Steel Bowl
Kit for vegetable slicer conversion for
the variable speed VCM
(PNC
(PNC
(PNC
(PNC
(PNC
653579)
653580)
653588)
653589)
653594)
Short Form Specification
Item No. ___________________________________
With
L15-20P
(for Model
PNC 603359)
With
6-20P
(for Model
PNC 603362)
Approval: ___________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
K45 Vertical Cutter-Mixer
Unit to be Electrolux Dito K452VU or K45VVU K45 Vertical
Cutter-Mixer. Electrical characteristics to be 208-240 V,
Three-phase operation with 2 speed at 1800 or 3600 rpm or to
be 1200 V, Single-phase operation with Variable speeds at
300-3600 rpm. Vertical Cutter-Mixer designed for vertical
cutting and mixing in 4.7 quart quantities: puree, mix, chop,
blend, mix and knead dough. A compact design for operator
convenience the K45 occupies minimal counter space.
Housing constructed of Stainless steel with rubber feet on
base.
K45 Vertical Cutter-Mixer
Front View
Electric
Supply voltage:
18.50
603359 (K452VU)
208-240 V/3p/60Hz – 3.8A
603362 (K45VVU)
120 V/1p/50/60Hz – 5A
Key Information
470 mm
Uses of Food Processor
MEAT
Rough mincing
Pates
Small sausages
10.08
Large sausages
256 mm
Minced meat
Side View
Shellfish
Fine mincing
Stuffing
Mousses
PASTRY
Shortcrust
Cold water paste
16.34
Flan
415 mm
POWDER
Almonds
Hazelnuts
FRUITS AND VEGETABLES
Purees
Mousses
Top View
Syrups
CHOPPING
Parsley
Onions
27.0
685 mm
EC
7.95
202 mm
K45 Vertical Cutter-Mixer
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
