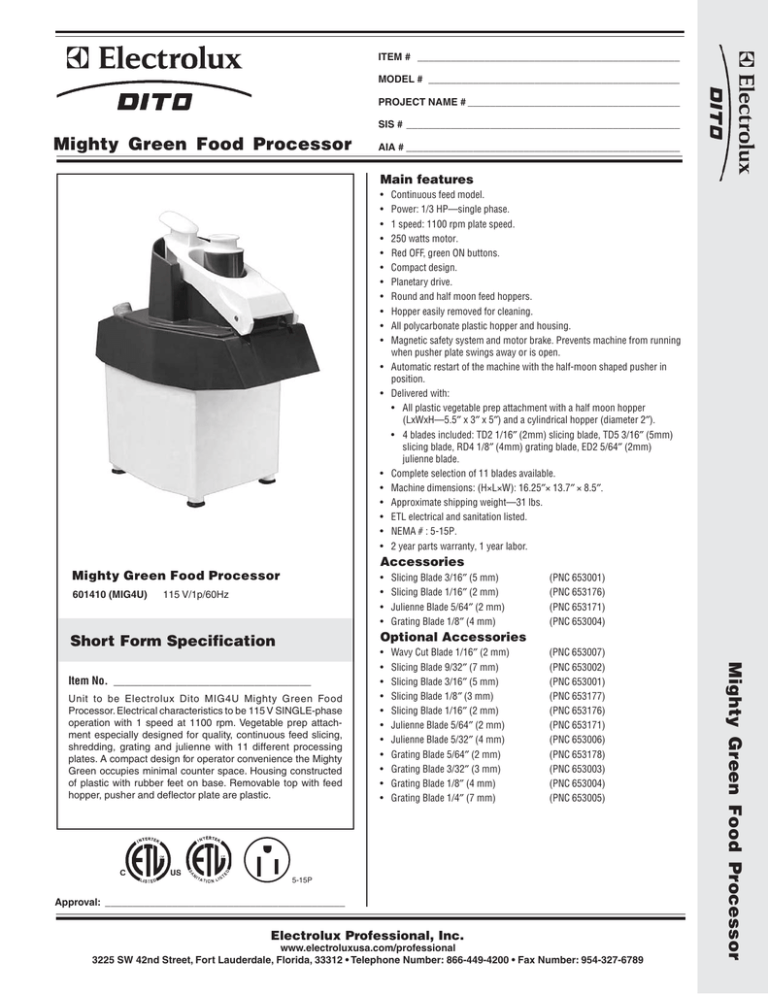

Electrolux Dito MIG4U User's Manual

ITEM # _______________________________________________
MODEL # _____________________________________________
PROJECT NAME # ______________________________________
SIS # _________________________________________________
Mighty Green Food Processor
AIA # _________________________________________________
Main features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Continuous feed model.
Power: 1/3 HP—single phase.
1 speed: 1100 rpm plate speed.
250 watts motor.
Red OFF, green ON buttons.
Compact design.
Planetary drive.
Round and half moon feed hoppers.
Hopper easily removed for cleaning.
All polycarbonate plastic hopper and housing.
Magnetic safety system and motor brake. Prevents machine from running
when pusher plate swings away or is open.
Automatic restart of the machine with the half-moon shaped pusher in
position.
Delivered with:
• All plastic vegetable prep attachment with a half moon hopper
(LxWxH—5.5″ x 3″ x 5″) and a cylindrical hopper (diameter 2″).
• 4 blades included: TD2 1/16″ (2mm) slicing blade, TD5 3/16″ (5mm)
slicing blade, RD4 1/8″ (4mm) grating blade, ED2 5/64″ (2mm)
julienne blade.
Complete selection of 11 blades available.
Machine dimensions: (H×L×W): 16.25″× 13.7″ × 8.5″.
Approximate shipping weight—31 lbs.
ETL electrical and sanitation listed.
NEMA # : 5-15P.
2 year parts warranty, 1 year labor.
Accessories
Mighty Green Food Processor
601410 (MIG4U)
•
•
•
•
115 V/1p/60Hz
Slicing Blade 3/16″ (5 mm)
Slicing Blade 1/16″ (2 mm)
Julienne Blade 5/64″ (2 mm)
Grating Blade 1/8″ (4 mm)
(PNC 653001)
(PNC 653176)
(PNC 653171)
(PNC 653004)
Optional Accessories
Short Form Specification
Unit to be Electrolux Dito MIG4U Mighty Green Food
Processor. Electrical characteristics to be 115 V SINGLE-phase
operation with 1 speed at 1100 rpm. Vegetable prep attachment especially designed for quality, continuous feed slicing,
shredding, grating and julienne with 11 different processing
plates. A compact design for operator convenience the Mighty
Green occupies minimal counter space. Housing constructed
of plastic with rubber feet on base. Removable top with feed
hopper, pusher and deflector plate are plastic.
Wavy Cut Blade 1/16″ (2 mm)
Slicing Blade 9/32″ (7 mm)
Slicing Blade 3/16″ (5 mm)
Slicing Blade 1/8″ (3 mm)
Slicing Blade 1/16″ (2 mm)
Julienne Blade 5/64″ (2 mm)
Julienne Blade 5/32″ (4 mm)
Grating Blade 5/64″ (2 mm)
Grating Blade 3/32″ (3 mm)
Grating Blade 1/8″ (4 mm)
Grating Blade 1/4″ (7 mm)
(PNC 653007)
(PNC 653002)
(PNC 653001)
(PNC 653177)
(PNC 653176)
(PNC 653171)
(PNC 653006)
(PNC 653178)
(PNC 653003)
(PNC 653004)
(PNC 653005)
5-15P
Approval: ___________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
Mighty Green Food Processor
Item No. ___________________________________
•
•
•
•
•
•
•
•
•
•
•
Mighty Green Food Processor
Electric
Supply voltage:
Front View
601410 (MIG4U)
115V/1ph/60Hz – 3.6A - 1/3HP
Key Information
Uses of Food Processor
Types of Cuts
• TD slicing blades: straight cuts from 2 to 7 mm.
• WD slicing blades: crinkle cuts of 2 mm.
- Vegetables: potatoes, carrots, celery, red and white
cabbage, mushrooms, cucumbers, chicory, onions, leeks,
radishes, etc.
- Fruits: almonds, bananas, lemons, oranges, apples, etc.
• RD grating blades: grating from 2 mm diameter to
7 mm diameter.
- Vegetables: carrots, grated celery, beets, horseradish, etc.
- Other: mozzarella, walnuts, almonds, breadcrumbs,
chocolate, etc.
• ED shredding blades: for shredding.
- Thin 2 x 2 mm: doorstep potatoes, celery, and carrots.
Top View
- Medium 3 x 3 mm: matchstick potatoes, carrots, etc.
Mighty Green Food Processor
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
6-29-09
