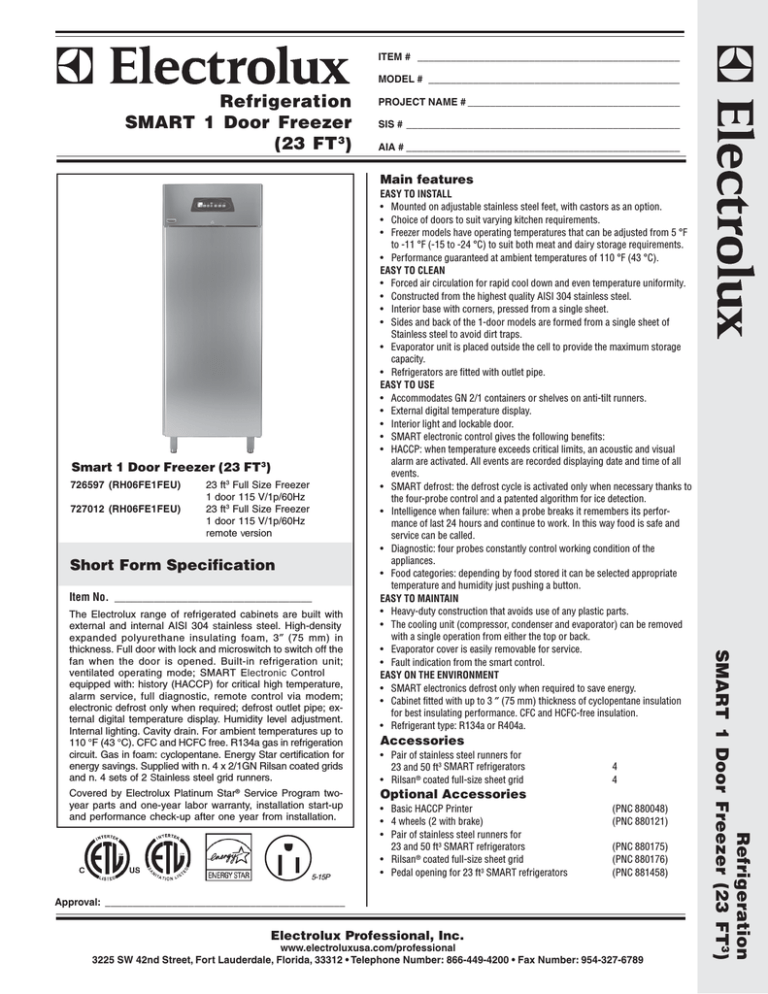

Electrolux SMART 726597 User's Manual

ITEM # _______________________________________________
MODEL # _____________________________________________
Refrigeration
SMART 1 Door Freezer
(23 FT 3)
PROJECT NAME # ______________________________________
SIS # _________________________________________________
AIA # _________________________________________________
Main features
Smart 1 Door Freezer (23 FT3)
726597 (RH06FE1FEU)
727012 (RH06FE1FEU)
23 ft3 Full Size Freezer
1 door 115 V/1p/60Hz
23 ft3 Full Size Freezer
1 door 115 V/1p/60Hz
remote version
Short Form Specification
Item No. ___________________________________
Covered by Electrolux Platinum Star® Service Program twoyear parts and one-year labor warranty, installation start-up
and performance check-up after one year from installation.
5-15P
Accessories
• Pair of stainless steel runners for
23 and 50 ft3 SMART refrigerators
• Rilsan® coated full-size sheet grid
4
4
Optional Accessories
• Basic HACCP Printer
• 4 wheels (2 with brake)
• Pair of stainless steel runners for
23 and 50 ft3 SMART refrigerators
• Rilsan® coated full-size sheet grid
• Pedal opening for 23 ft3 SMART refrigerators
(PNC 880048)
(PNC 880121)
(PNC 880175)
(PNC 880176)
(PNC 881458)
Approval: ___________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
Refrigeration
SMART 1 Door Freezer (23 FT3)
The Electrolux range of refrigerated cabinets are built with
external and internal AISI 304 stainless steel. High-density
expanded polyurethane insulating foam, 3″ (75 mm) in
thickness. Full door with lock and microswitch to switch off the
fan when the door is opened. Built-in refrigeration unit;
ventilated operating mode; SMART Electronic Control
equipped with: history (HACCP) for critical high temperature,
alarm service, full diagnostic, remote control via modem;
electronic defrost only when required; defrost outlet pipe; external digital temperature display. Humidity level adjustment.
Internal lighting. Cavity drain. For ambient temperatures up to
110 °F (43 °C). CFC and HCFC free. R134a gas in refrigeration
circuit. Gas in foam: cyclopentane. Energy Star certification for
energy savings. Supplied with n. 4 x 2/1GN Rilsan coated grids
and n. 4 sets of 2 Stainless steel grid runners.
EASY TO INSTALL
• Mounted on adjustable stainless steel feet, with castors as an option.
• Choice of doors to suit varying kitchen requirements.
• Freezer models have operating temperatures that can be adjusted from 5 °F
to -11 °F (-15 to -24 °C) to suit both meat and dairy storage requirements.
• Performance guaranteed at ambient temperatures of 110 °F (43 °C).
EASY TO CLEAN
• Forced air circulation for rapid cool down and even temperature uniformity.
• Constructed from the highest quality AISI 304 stainless steel.
• Interior base with corners, pressed from a single sheet.
• Sides and back of the 1-door models are formed from a single sheet of
Stainless steel to avoid dirt traps.
• Evaporator unit is placed outside the cell to provide the maximum storage
capacity.
• Refrigerators are fitted with outlet pipe.
EASY TO USE
• Accommodates GN 2/1 containers or shelves on anti-tilt runners.
• External digital temperature display.
• Interior light and lockable door.
• SMART electronic control gives the following benefits:
• HACCP: when temperature exceeds critical limits, an acoustic and visual
alarm are activated. All events are recorded displaying date and time of all
events.
• SMART defrost: the defrost cycle is activated only when necessary thanks to
the four-probe control and a patented algorithm for ice detection.
• Intelligence when failure: when a probe breaks it remembers its performance of last 24 hours and continue to work. In this way food is safe and
service can be called.
• Diagnostic: four probes constantly control working condition of the
appliances.
• Food categories: depending by food stored it can be selected appropriate
temperature and humidity just pushing a button.
EASY TO MAINTAIN
• Heavy-duty construction that avoids use of any plastic parts.
• The cooling unit (compressor, condenser and evaporator) can be removed
with a single operation from either the top or back.
• Evaporator cover is easily removable for service.
• Fault indication from the smart control.
EASY ON THE ENVIRONMENT
• SMART electronics defrost only when required to save energy.
• Cabinet fitted with up to 3 ″ (75 mm) thickness of cyclopentane insulation
for best insulating performance. CFC and HCFC-free insulation.
• Refrigerant type: R134a or R404a.
Refrigeration
SMART 1 Door Freezer (23 FT3)
Front View
Electric
Supply voltage:
726597 (RH06FE1FEU)
727012 (RH06FE1FEU)
115 V/1p/60Hz - 12A
115 V/1p/60Hz - 12A
Key Information
LEGEND
C - Water Drain
1/2″ (12.7 mm)
I – Electrical Connection
115 V/1p/60Hz
TECHNICAL DATA
Operating temperature min.:
5 °F (-15 °C)
Operating temperature max.:
-11 °F (-24 °C)
Built-in Compressor and Refrigeration Unit
External Dimensions:
Top View
Side View
Width:
29-1/2″ (750 mm)
Depth:
31-7/8″ (810 mm)
Depth (with doors open)
57-1/2″ (1463 mm)
Height:
80-11/16″ (2050 mm)
Min/Max internal humidity % :
75/ 90
Number and type of doors:
1 Full
Door hinges:
Right
Number and type of grids (included):
4, GN 2/1
Compressor power:
1/2 HP
Refrigerant type:
R404a
Refrigerant quantity:
250g
Refrigerant Power:
1471W
Power:
780 watts
Net weight:
304 lbs (138 kg)
Refrigeration
SMART 1 Door Freezer (23 FT 3)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
7-2-09
