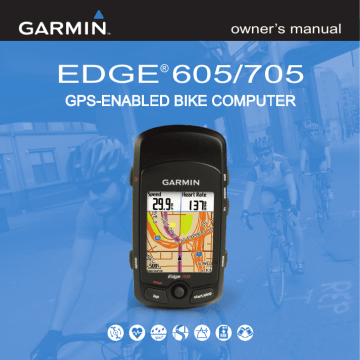

owner’s manual Edge® 605/705 GPS-ENABLED BIKE COMPUTER MB © 2008 Garmin Ltd. or its subsidiaries Garmin International, Inc. Garmin (Europe) Ltd. 1200 East 151st Street, Liberty House, Olathe, Kansas 66062, Hounsdown Business Park, USA Southampton, Hampshire, SO40 9RB Tel. (913) 397.8200 or UK (800) 800.1020 Tel. +44 (0) 870.8501241 (outside the Fax (913) 397.8282 UK) 0808 2380000 (within the UK) Fax +44 (0) 870.8501251 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization October 2008 Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin® is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Garmin Training Center®, Auto Pause®, Auto Lap®, Virtual Partner®, Edge®, Garmin Connect™, GSC™10, Dynastream™, ANT™, and ANT+Sport™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. microSD™ is a trademark of The SD Card Association. Windows® is a registered trademark of Microsoft Corporation in the United States and/or other countries. Mac® is a registered trademark of Apple Computer, Inc. Other trademarks and trade names are those of their respective owners. Part Number 190-00813-00 Rev. C Printed in Taiwan Preface Thank you for purchasing the Garmin® Edge® 605/705 bike computer. Warning: Always consult your physician before you begin or modify any exercise program. See the Important Safety and Product Information guide in the product box for product warnings and other important information. Product Registration Help us better support you by completing our online registration today. Go to http://my.garmin.com. Keep the original sales receipt, or a photocopy, in a safe place. Edge 605/705 Owner’s Manual Contact Garmin Preface Contact Garmin Product Support if you have any questions while using your Edge. In the USA, go to www.garmin.com/support, or contact Garmin USA by phone at (913) 397‑8200 or (800) 800‑1020. In the UK, contact Garmin (Europe) Ltd. by phone at 0808 2380000. In Europe, go to www.garmin.com /support and click Contact Support for in‑country support information, or contact Garmin (Europe) Ltd. by phone at +44 (0) 870.8501241. Free Garmin Software Go to www.garmin.com/edge to download the Garmin Connect™ Web-based software or the Garmin Training Center® computer software. Use this software to store and analyze your ride data. Preface Table of Contents Preface.................................. i Product Registration................. i Contact Garmin.......................... i Free Garmin Software .............. i Getting Started..................... 1 Buttons...................................... 1 Resetting the Edge................... 2 Clearing User Data.................... 2 Edge Backlight.......................... 2 Icons.......................................... 3 Step 1: Charge the Battery....... 3 Step 2: Install the Edge............ 5 Step 3: Turn on Your Edge....... 6 Step 4: Acquire Satellite Signals................................. 7 Step 5: Save Your Home Location (Optional)............. 7 Step 6: Set Up Sensors (Optional)............................. 8 Step 7: Set Your Profiles.......... 8 Step 8: Go for a Ride!............. 10 ii Step 9: Download Free Software............................. 10 Step 10: Transfer History to Your Computer.................. 10 Where To.............................11 Follow History......................... 11 Saved Rides............................ 11 Options for Saved Rides..... 12 Back To Start........................... 12 Find Places.............................. 12 Find Favorites..................... 13 Find Addresses................... 14 Find Points of Interest......... 14 Stop Navigating...................... 14 Training............................... 15 Auto Pause® ........................... 15 Auto Lap® . .............................. 15 Alerts........................................ 17 Using Time and Distance Alerts............................. 17 Using Speed Alerts.............. 18 Using Heart Rate Alerts....... 18 Edge 605/705 Owner’s Manual Preface Using Cadence Alerts.......... 19 Using Power Alerts.............. 20 Virtual Partner® ...................... 21 Workouts: Simple, Interval, and Advanced .......................... 22 Using Workouts................... 22 Simple Workouts................. 22 Interval Workouts................ 23 Advanced Workouts............ 25 Courses................................... 29 Creating Courses................ 29 Course Data Pages............. 30 Using the Map.................... 32 Marking and Finding Locations........................... 32 Additional Maps...................... 34 Satellite Page.......................... 34 Using Accessories............ 35 Heart Rate Monitor.................. 35 Heart Rate Zones................ 36 Heart Rate Monitor Battery........................... 38 GSC 10..................................... 38 Training with Cadence......... 41 GSC 10 Battery................... 41 Power Meter............................ 42 Power Calibration................ 42 Power Zones....................... 42 History................................ 43 Viewing History....................... 43 Transferring History to Your Computer........................... 44 Deleting History...................... 44 Data Management.............. 45 Loading Files........................... 45 Step 1: Insert a MicroSD Card (Optional).............. 45 Step 2: Connect the USB Cable............................. 45 Step 3: Transfer Files to Your Computer ............. 46 Step 4: Eject and Unplug the USB Cable............... 46 Deleting Files ......................... 46 Garmin Folders....................... 47 Edge 605/705 Owner’s Manualiii Preface Transferring Files to Another Edge (705 Only) ................ 47 Settings.............................. 48 Custom Data Fields................ 48 Edge Data Fields................. 49 System..................................... 54 Map........................................... 54 Routing.................................... 55 Car/Motorcycle Settings...... 55 Bicycle and Pedestrian Settings.......................... 55 Profile and Zones.................... 55 User and Bike Profiles......... 55 Speed Zones....................... 56 Heart Rate and Power Zones (Edge 705).......... 56 Display..................................... 56 Units......................................... 57 Time.......................................... 57 Data Recording....................... 57 ANT+Sport............................... 58 Accessories......................... 58 Receive and Transfer Data............................... 59 iv Appendix............................ 60 Optional Accessories............. 60 Battery Information................. 60 Heart Rate Monitor Battery........................... 60 GSC 10 Battery................... 61 Specifications......................... 62 Edge.................................... 62 Bike Mount.......................... 62 Heart Rate Monitor.............. 63 GSC 10............................... 63 Barometric Altimeter.............. 64 Tire Size and Circumference................... 64 Declaration of Conformity...... 66 Troubleshooting...................... 67 Index................................... 69 Edge 605/705 Owner’s Manual Getting Started Getting Started ➊ power • Press and hold to turn the Edge on/off. • Press to turn the backlight on/off. Buttons ➋ mode ➊ ➐ ➋ ➏ ➌ ➎ ➍ Edge 605/705 Owner’s Manual • Press to return to the previous page. • Press and hold to switch bike profiles. ➌ reset/lap • Press and hold to reset the timer. • Press to create a new lap. ➍ thumb stick/enter • Move the thumb stick to scroll through menus, options, and data fields. • Press in the thumb stick to select options and to acknowledge messages. Getting Started ➎ start/stop Press to start/stop the timer. ➏ menu • Press to open the menu page. • Press and hold to lock/unlock the Edge buttons. ➐ in/out Press to zoom in/out on the map page and the altimeter page. Resetting the Edge If your Edge is locked up/frozen, press mode and reset/lap simultaneously to reset the Edge. This does not erase any of your data or settings. Clearing User Data Caution: This deletes all user‑entered information. 1. Turn off the Edge. 2. Press and hold mode and until the message appears. 3. Select Yes to clear all user data. Edge Backlight Press to turn on the backlight. Use the thumb stick to adjust the backlight level. Edge 605/705 Owner’s Manual Getting Started Icons Battery charge level Battery charging Satellite icon changes from blank to 3D when receiving satellite signals. Heart rate sensor active Cadence sensor active Power sensor active Keylock active Edge 605/705 Owner’s Manual Step 1: Charge the Battery Warning: This product contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for important battery safety information. The Edge is powered by a built-in lithium-ion battery that you can recharge using the AC charger included in the product box. You can also charge the Edge using the USB cable and your computer. Charge the Edge for at least three hours before you begin using it. Getting Started note: To prevent corrosion, thoroughly dry the mini-USB port, weather cap, and surrounding area before charging or connecting to a computer. TIP: The Edge will not charge when outside the temperature range of 32°F–122°F (0°C–50°C). To charge the Edge: 1. On the back of the Edge, pull up the weather cap from the mini-USB port. 2. Plug the mini-USB end of the AC or USB cable into the mini-USB port on the back of the Edge. Mini-USB port under weather cap 3. Plug the other end into a standard wall outlet (AC) or an available USB port on your computer (USB). A fully charged battery can run for approximately 15 hours before it must be recharged. For more battery information, see page 62. Edge 605/705 Owner’s Manual Step 2: Install the Edge For the best GPS reception, position the bike mount so the front of the Edge is oriented toward the sky. You can install the bike mount on the stem or the handlebars. The stem installation (shown here) provides a more sturdy location. The optional wedge should be used under the mount for a better viewing angle. To install the Edge on your bike stem: 1. Place the wedge on the bike stem, and then place the bike mount on the wedge. Make sure the release lever is on the left. Getting Started Release lever Wedge (optional) Bike mount For horizontal bars: Separate and remove the top part of the mount, turn it 90 degrees, and replace it. Continue with step 2. For bars with a diameter less than 1 in (25.4 mm): Place the additional rubber pad under the bike mount to increase the diameter of the bar. The rubber pad also prevents the mount from slipping. Continue with step 2. 2. Attach the bike mount securely using two cable ties. Make sure the cable ties are threaded through both parts of the bike mount. Edge 605/705 Owner’s Manual Getting Started 3. Align the Edge with the bike mount so that the Edge is parallel to the stem. Release lever Top View of the Edge Being Mounted on a Horizontal Bar Release lever Cable ties 4. Slide the Edge to the left until it snaps into place. To release the Edge: Press down on the release lever, and slide the Edge to the right. Step 3: Turn on Your Edge Press and hold to turn on your Edge. Follow the on-screen configuration instructions. Edge 605/705 Owner’s Manual Step 4: Acquire Satellite Signals Before you begin using the Edge, you must acquire GPS satellite signals. It may take 30–60 seconds to acquire signals. 1.Go outdoors to an open area. For the best reception, make sure the front of the Edge is oriented toward the sky. 2. Wait while the Edge searches for satellites. Stand still in an open area, and do not begin moving until the locating satellite page disappears. Getting Started Step 5: Save Your Home Location (Optional) You can set a home location for the place you return to most often. 1. Press menu > select Where To > Find Places > Favorites > Go Home. 2. Follow the on-screen instructions. Note: To turn off the GPS receiver and use the Edge indoors, see page 54. Edge 605/705 Owner’s Manual Getting Started Step 6: Set Up Sensors (Optional) If your Edge included a heart rate monitor or GSC™ 10 speed and cadence sensor, the ANT+Sport™ sensors are already paired with your Edge. Press menu. The and icons stop flashing when the sensors are paired. If you purchased an accessory separately, see page 58. For instructions on using the heart rate monitor, see page 35. For instructions on using the GSC 10, see page 38. Step 7: Set Your Profiles The Edge uses information that you enter about yourself and your bike to calculate accurate ride data. To set your user profile: 1. Press menu > select Settings > Profile & Zones > User Profile. 2. Enter your gender, birth date, and weight. TIP: When finished selecting options or entering values on your Edge, press mode to exit the field or page. Edge 605/705 Owner’s Manual Getting Started Use the thumb stick to change the field values. To set your bike profile: 1. Press menu > select Settings > Profile & Zones > Bike Profile. Edge 605/705 Owner’s Manual 2. Select a bike profile. You can set up to three profiles. 3. Enter your bike information. 4. (Edge 705 only) If you have a GSC 10 speed and cadence sensor, select the Cadence check box. If you have a thirdparty power meter, select the Power check box. For more accessory information, see pages 35–42. 5. In the Wheel Size field, select Auto to have the GSC 10 automatically detect your tire size using GPS data, or select Custom to enter your wheel size. For a table of sizes and circumferences, see page 64. Getting Started Step 8: Go for a Ride! 1. Press mode to view the bike computer page. 2. Press start to start the timer. 3. After completing your ride, press stop. 4. Press and hold lap/reset to save your ride data and reset the timer. Step 9: Download Free Software 1.Go to www.garmin.com/edge. 2. Follow the on-screen instructions to download Garmin Training Center or Garmin Connect. 10 Step 10: Transfer History to Your Computer 1. Plug the small end of the USB cable into the mini-USB port on the back of the Edge (under the weather cap). 2. Connect the larger end of the USB cable to an available USB port on your computer. 3. Open Garmin Connect or Garmin Training Center. Follow the upload instructions included with the software. Edge 605/705 Owner’s Manual Where To Use the Where To features to navigate rides from history, rides from an external source, back to your starting point, to Favorites, and to points of interest. Note: You must start the timer to save your current ride to Edge history. Follow History You can navigate any ride saved in your Edge history. 1. Press menu > select Where To > Follow History. 2. Select a ride from the list. The Edge calculates the route, including directions from your current location to the starting point of the ride. Saved Rides Where To You can also navigate a ride uploaded to your Edge from an external source. For example, you found a great trail ride on the Internet or another Edge owner created a route for you. Note: Track or route files must be saved with the *.gpx extension. 1. Upload the *.gpx file to the Garmin\GPX folder on your Edge memory. For more information about uploading files to your Edge, see pages 45–47. 2. Press menu > select Where To > Saved Rides. 3. Select a ride from the list. 4. Select Navigate. Edge 605/705 Owner’s Manual11 Where To Options for Saved Rides 1. Press menu > select Where To > Saved Rides. 2. Select a ride from the list. 3. Select an option: • Navigate—start navigating the saved ride. • Map Setup—view and edit the map settings. Select Show on Map to show the track on the map. Selecting more tracks to show on the map uses up more memory and may slow down some functions of your Edge. • Copy to Device—copy the saved ride to the device memory. OR Copy to Card—copy the saved ride to your microSD card. 12 • Delete—delete the saved ride from your device. To delete files from your microSD card, see page 46. Back To Start Note: You must start the timer in order to use the Back To Start feature. After you have reached your destination or finished your ride, press menu > select Where To > Back To Start. The Edge navigates you back to your starting point. Find Places You can search for saved waypoints (locations) and recent finds in your Favorites. With optional map data, you can also search for addresses and points of interest. Edge 605/705 Owner’s Manual Find Favorites Where To My Favorites Go Home If you have not saved your home location yet, see page 7. Press menu > select Where To > Find Places > Favorites > Go Home. The Edge automatically calculates your route home. 1. Press menu > select Where To > Find Places > Favorites > My Favorites. Recent Finds Your Edge stores the last 50 of your recent finds. The most recently viewed locations appear at the top of the list. Press menu > select Where To > Find Places > Favorites > Recent Finds. 2. Select a place from the list. Note: You can save, edit, and delete from Recent Finds. TIP: Use the on-screen keyboard to narrow the search. Select OK to view the entire list. 3. Select Go To. Edit My Favorites 1. Press menu > select Where To > Find Places > Favorites > My Favorites. 2. Select a place from the list. 3. Edit the information as needed. 4. Press mode to exit. Note: Your changes are automatically saved when you exit this page. Edge 605/705 Owner’s Manual13 Where To Delete My Favorites 1. Press menu > select Where To > Find Places > Favorites > My Favorites. Find Points of Interest 1. Press menu > select Where To > Find Places. 2. Select Delete. 2. Select a category and a subcategory, if necessary. 3. Select Yes to confirm. 3. Select a place from the list. Find Addresses 1. Press menu > select Where To > Find Places > Addresses. 2. Enter the region, city, number, and street name. 4. Select Go To. Stop Navigating Press menu > select Where To > Stop Navigation. 3. Select an address from the list of matches. 4. Select Go To. 14 Edge 605/705 Owner’s Manual Training The Edge offers several training features and optional settings. Use your Edge to set goals and alerts, train with a Virtual Partner®, program workouts, and plan courses based on existing history. Auto Pause® You can set the Edge to pause the timer automatically during your ride when you stop moving or your speed drops below a specified value. This setting is helpful if your course includes stop lights or other places where you need to slow down or stop. When you turn on Auto Pause, the Edge stores any paused time as Rest Time and any paused distance as Rest Distance. To add these data fields to a custom page, see page 48. Training Note: Rest time and distance for Auto Pause are not stored in history. Auto Lap® You can use Auto Lap to automatically mark the lap at a specific position or after you have traveled a specific distance. This setting is helpful for comparing your performance over different parts of a ride (every 10 miles or major hill, for example). To set Auto Pause/Lap: 1. Press menu > select Training > Auto Pause/Lap. 2. In the Auto Timer Pause field, select When Stopped or Custom Speed to enter a value. Edge 605/705 Owner’s Manual15 Training • Mark And Lap—triggers the lap counter at a specific GPS location marked before the ride and at any locations during the ride where you pressed lap. 3. In the Auto Lap Trigger field, select By Distance to enter a value or By Position to choose an option: • Lap Press Only—triggers the lap counter each time you press lap and each time you pass any of those locations again. • Start And Lap—triggers the lap counter at the GPS location where you press start and at any locations during the ride where you pressed lap. 16 Note: During courses, use the By Position option to trigger laps at all of the lap positions marked in the course. Edge 605/705 Owner’s Manual Alerts Training Use Edge alerts to train toward certain time, distance, speed, heart rate, cadence, and power goals. Using Time and Distance Alerts Time and distance alerts are useful for long workouts when you want to train for a certain amount of time or distance. When you reach your goal, the Edge beeps and displays a message. 2. In the Time Alert field, select Once or Repeat. 3. Enter a time in the Alert At field. To set a time or distance alert: 1. Press menu > select Training > Alerts > Time/Dist Alert. Edge 605/705 Owner’s Manual17 Training 4. In the Distance Alert field, select Once or Repeat. 5. Enter a distance in the Alert At field. Using Speed Alerts Speed alerts notify you if you exceed or drop below a custom speed setting during your ride. The speed alert allows you to use speed zones stored in the Edge. For more information about speed zones, see page 56. To set a speed alert: 1. Press menu > select Training > Alerts > Speed Alert. 2. In the Fast Speed Alert field, select a speed zone or select Custom to enter your own alert value. 18 3. Repeat for the Slow Speed Alert field. Using Heart Rate Alerts note: To use heart rate alerts, you must have an Edge 705 and a heart rate monitor. The heart rate alert notifies you if your heart rate exceeds or drops below a specific number of beats per minute (bpm). Heart rate alerts can also notify you if your heart rate exceeds or drops below a certain heart rate zone—a range of beats Edge 605/705 Owner’s Manual per minute. The five commonly accepted heart rate zones can help you determine the intensity of your workout. For more about heart rate zones, see page 36. To set a heart rate alert: 1. Press menu > select Training > Alerts > HR Alert. 2. In the Max HR Alert field, select a zone or select Custom to specify your own alert value. The maximum value allowed is 235 bpm. Training 3. Repeat for the Min HR Alert field. The minimum value allowed is 35 bpm. note: When entering custom heart rate values, you must set the minimum and maximum alerts at least 5 bpm apart. Using Cadence Alerts note: To use cadence alerts, you must have an Edge 705 and a GSC 10. The cadence alert notifies you if your cadence exceeds or drops below a specific number of revolutions of the crank arm per minute (rpm). For more information about training with cadence, see page 41. Edge 605/705 Owner’s Manual19 Training To set a cadence alert: 1. Press menu > select Training > Alerts > Cadence Alert. 2. In the Fast Cadence Alert field, select On. 3. Enter a value in the Alert Above field. The maximum value allowed is 255. 4. Repeat for the Slow Cadence Alert field. There minimum value is 0. Using Power Alerts note: To use power alerts, you must have an Edge 705 and a third-party power meter. The power alert notifies you if your power level exceeds or drops below a specific value in watts or % FTP (functional threshold power). For more information about using thirdparty power meters, see page 42. 20 Edge 605/705 Owner’s Manual To set a power alert: 1. Press menu > select Training > Alerts > Power Alert. 2. In the Max PWR Alert field, select a zone or select Custom to specify your own alert value. Virtual Partner Training ® Your Virtual Partner is a unique tool designed to help you meet your training goals. The Virtual Partner competes with you during simple workouts and courses. To see Virtual Partner data: 1. Set up a simple workout or course. 2. Press start. 3. Press enter to view Virtual Partner data. 3. Repeat for the Min PWR Alert field. Virtual Partner You Edge 605/705 Owner’s Manual21 Training To turn off Virtual Partner: Press menu > select Training > Virtual Partner > Off. To end a workout early: Press menu > select Training > Stop Workout. Workouts: Simple, Interval, and Advanced To end an interval or advanced workout step early: Press the lap/reset button. Press menu > select Training > Workouts to choose the type of workout right for you. Simple and interval workouts are replaced each time you create a workout of the same type. You can save and edit advanced workouts. For information about transferring workouts to and from your Edge, see page 10. Using Workouts Simple Workouts For simple workouts, enter your time, distance, or pace goals, and the Edge displays the Virtual Partner to help you achieve them. It is easy to set up one of the following simple workouts with your Edge: • Distance and time • Time and speed • Distance and speed During your workout, press mode to see the workout data page. When you complete all steps in your workout, the “Workout Finished” message appears. 22 Edge 605/705 Owner’s Manual To set up a simple workout: 1. Press menu > select Training > Workouts > Simple Workouts. 2. Select the type of simple workout. 3. Enter values in the first and second fields. The third field is calcuated by the Edge. 4. Select Done. Interval Workouts Training You can create interval workouts with your Edge based on the following criteria: • Ride a certain distance and rest for a certain amount of time. • Ride for a certain distance and rest for a certain distance. • Ride for a certain amount of time and rest for a certain amount of time. • Ride for a certain amount of time and rest for a certain distance. To create an interval workout: 1. Press menu > select Training > Workouts > Interval. 5. Press start. Edge 605/705 Owner’s Manual23 Training 2. Select the type of interval workout. 3. Enter distance or time values into the appropriate fields. 4. In the Reps field, enter number of times you want to repeat each interval. 5. Select Warmup & Cooldown (optional). 6. Select Done. If you selected Warmup & Cooldown, press lap at the end of your warmup lap to start your first interval. At the end of your last interval, the Edge automatically starts a cooldown lap. When you are finished cooling down, press lap to end your workout. As you approach the end of each lap, an alarm sounds, and a message appears, counting down the time until a new lap begins. At any time during the interval workout, you can press lap to end a step early. 7. Press start. 24 Edge 605/705 Owner’s Manual Advanced Workouts Use the Edge to create and save advanced workouts that include goals for each workout step and varied distances, times, and rest laps. After you create and save a workout, you can use the Garmin Training Center or Garmin Connect to schedule the workout for a particular day. You can plan workouts in advance and store them on your Edge. Training Creating Advanced Workouts Garmin recommends that you use the Garmin Training Center or Garmin Connect to create workouts and transfer them to your Edge. However, you can also create and save an advanced workout directly on your Edge. You cannot use the Edge to schedule workouts; you must use Garmin Training Center or Garmin Connect. note: If you create a workout on the Edge, be sure to transfer it to Garmin Training Center or Garmin Connect. Otherwise, the workout will be overwritten when you load workouts to the Edge. Edge 605/705 Owner’s Manual25 Training To create an advanced workout using the Edge: 1. Press menu > select Training > Workouts > Advanced > <Create New>. 2. Enter a descriptive workout name in the top field (for example, 40KHILLS). 3. Select 1. Open No Target > Edit Step. can end the step during your workout by pressing lap. 5. In the Target field, select your goal during the step (Speed, Heart Rate, Cadence, Power, or None). note: Heart rate, cadence, and power targets are for the Edge 705 only. 6. (Optional) Select a target zone and range. For example, if your target is heart rate, select a heart rate zone or enter a custom range. 7. If this is a rest lap, select Yes in the Rest Lap field. 8. Press mode to continue. 4. In the Duration field, select how long you want the step to last. If you select Open, you 26 9. To enter another step, select <Add New Step>. Then repeat steps 4–8. Edge 605/705 Owner’s Manual Training To repeat steps: 1. Select <Add New Step>. 2. In the Duration field, select Repeat. 3. In the Back To Step field, select the step you want to repeat. 4. In the Number Of Reps field, enter the number of repetitions. Starting Advanced Workouts 1. Press menu > select Training > Workouts > Advanced. 2. Select the workout. 3. Select Do Workout. 4. Press start. note: Press enter to view more data. 5. Press mode to continue. Edge 605/705 Owner’s Manual27 Training After you begin an advanced workout, the Edge displays each step of the workout, including the name of the step, the goal (if any), and current workout data. An audible alarm sounds when you are about to finish a workout step. A message appears, counting down the time or distance until a new step begins. At any time during the advanced workout, press lap to end a step early. Editing Advanced Workouts You can edit workouts within Garmin Training Center, Garmin Connect, or directly in the Edge. If you edit workouts in the Edge, your changes may be temporary. Garmin Training Center or Garmin Connect serve as the “master list” of advanced workouts: if you edit a workout in the Edge, the changes 28 will be overwritten the next time you transfer workouts from Garmin Training Center or Garmin Connect. To make a permanent change to a workout, edit the workout in Garmin Training Center or Garmin Connect and then transfer it to your Edge. To edit an advanced workout: 1. Press menu > select Training > Workouts > Advanced. 2. Select the workout. 3. Select Edit Workout. 4. Select the step. 5. Select Edit Step. 6. Make any necessary changes, and press mode to continue. 7. Press mode to exit. Edge 605/705 Owner’s Manual To delete an advanced workout: 1. Press menu > select Training > Workouts > Advanced. 2. Select the workout. 3. Select Delete Workout > Yes. Courses Another way you can use the Edge for custom training is to create and edit courses based on a previously recorded activity. You can follow the course trying to match or exceed previously set goals. You can also race against the Virtual Partner when training with courses. To turn on Virtual Partner, see page 21. Creating Courses Training Garmin recommends that you use Garmin Training Center or Garmin Connect to create courses and course points. Then you can transfer them to your Edge. You can also create a course (without course points) on your Edge. To create a course on your Edge: note: You must have history with GPS track data saved to the Edge in order to create a new course. 1. Press menu > select Training > Courses > <Create New>. 2. From the list of rides, select a previous ride on which to base your course. Edge 605/705 Owner’s Manual29 Training 3. Enter a descriptive course name in the top field (for example, 44KTT). Course Data Pages 4. Press mode to exit. Adding Course Points You can mark course points, or places on your course that you want to remember, such as water stops or distance goals. You must use Garmin Training Center or Garmin Connect to add course points to any course. To start a course: 1. Press menu > select Training > Courses. 2. Select a course from the list. 3. Select Do Course. 4. Press start. History is recorded even if you are not on the course. The “Course Complete” message appears when you finish. 30 From the course page, press mode and enter to view additional course data including the course map, elevation graph, compass page, and Virtual Partner data. Off Course Options You can include a warmup before you begin your course. Press start to begin the course, and then warm up as normal. Be sure to stay away from your course path as you warm up. When you are ready to begin, head toward your course. When you are on Edge 605/705 Owner’s Manual any part of the course path, the Edge displays an “On Course” message. note: As soon as you press start, your Virtual Partner starts the course and does not wait for you to finish a warmup. If you stray away from the course, the Edge displays an “Off Course” message. Use the compass page or map page to find your way back to the course. Training 4. Edit the course name. 5. Press mode to exit. To delete a course: 1. Press menu > select Training > Courses. 2. Select the course you want to delete. 3. Select Delete Course. 4. Select Yes to delete the course. 5. Press mode to exit. To end a course manually: Press menu > select Training > Stop Course. To edit a course name: 1. Press menu > select Training > Courses. 2. Select the course you want to change. 3. Select Edit Course. Edge 605/705 Owner’s Manual31 Using the Map Using the Map Warning: See the Important Safety and Product Information guide in the product box for warnings regarding safe and proper map usage. Press mode to view the map page. When you start the timer and begin to move, a tiny dotted line appears on the map, showing you exactly where you have traveled. This dotted line is called a track. Press in/out to zoom on the map. Move the thumb stick to view additional position data. You can also add custom data fields to the map page. See page 48. 32 Map pointer Zoom level You Marking and Finding Locations A location is a waypoint on the map that you can save as a Favorite. If you want to remember landmarks or return to a certain spot, mark the point on the map. The location appears on the map with a name and symbol. You can find, view, and return to locations at any time. Edge 605/705 Owner’s Manual To mark your current location: 1.Go to a place where you want to mark a location. 2. Press menu > Save Location. 3. Select a symbol, and enter a descriptive name. 4. Make other changes as necessary, and select OK. To mark a known location using coordinates: Using the Map To mark a location on the map: 1. Press mode to access the map page. 2. Use the thumb stick to move the map pointer to the location you want to save. 3. Press enter. 4. Select Yes to save the waypoint. 5. Select a symbol, and enter a descriptive name. 1. Press menu > Save Location. 2. Use the on-screen keyboard to enter the coordinates and elevation. 3. Make other changes as necessary, and select OK. 6. Press mode to continue. Edge 605/705 Owner’s Manual33 Using the Map Additional Maps To purchase preloaded maps on microSD cards, go to http://buy .garmin.com or contact your Garmin dealer. To determine the versions of the maps that are loaded on your Edge, press menu > select Settings > Map. Satellite Page The satellite page displays information about the GPS signals the Edge is currently receiving. Press menu > select Satellite. 34 On the satellite page, the available satellites are flashing while the Edge searches for satellite signals. Acquired satellites and each corresponding bar below change to solid. The GPS accuracy and coordinates appear at the top of the page. For more information about GPS, go to www.garmin.com/aboutGPS. Edge 605/705 Owner’s Manual Using Accessories This section describes accessories that are compatible with the Edge 705: • Heart rate monitor • GSC 10 speed and cadence sensor • Power meter For information about purchasing additional accessories, go to http://buy.garmin.com. Using Accessories Heart Rate Monitor The heart rate monitor is on standby and ready to send data. Wear the heart rate monitor directly on your skin, just below your breastplate. It should be snug enough to stay in place during your ride. 1. Push one tab on the strap through the slot in the heart rate monitor. Press the tab down. 2. Wet both electrodes on the back of the heart rate monitor Tab Heart Rate Monitor Strap Slot Heart Rate Monitor (Front) Electrodes Heart Rate Monitor (Back) Edge 605/705 Owner’s Manual35 Using Accessories to create a strong connection between your chest and the transmitter. 3. Wrap the strap around your chest and attach it to the other side of the heart rate monitor. Heart Rate Zones Press menu > select Settings > Profile & Zones > HR Zones. note: The Garmin logo should be right-side up. 4. Turn on the Edge and bring it within range (3 m) of the heart rate monitor. The heart rate icon appears on the menu page. 5. To customize data fields, see page 48. 6. If heart rate data does not appear or if you have erratic heart rate data, you may have to tighten the strap on your chest or warm up for 5–10 minutes. If the problem persists, you may have to pair the sensors. See page 58. 36 Caution: Consult your physician to specify heart rate zones/targets that are appropriate for your fitness level and health condition. Many athletes are using heart rate zones to measure and increase their cardiovascular strength and improve their level of fitness. A heart rate zone is a set range of heartbeats per Edge 605/705 Owner’s Manual Using Accessories Zone % of Max. Heart Rate Perceived Exertion Benefits 1 50–60% Relaxed, easy pace; rhythmic breathing Beginning-level aerobic training; reduces stress 2 60–70% Comfortable pace; slightly deeper breathing, conversation possible Basic cardiovascular training; good recovery pace 3 70–80% Moderate pace; more difficult to hold conversation Improved aerobic capacity; optimal cardiovascular training 4 80–90% Fast pace and a bit uncomfortable; breathing forceful Improved anaerobic capacity and threshold; improved speed 5 90–100% Sprinting pace, unsustainable for long period of time; labored breathing Anaerobic and muscular endurance; increased power minute. The five commonly accepted heart rate zones are numbered from 1–5 according to increasing intensity. Generally, heart rate zones are calculated based on percentages of your maximum heart rate. How Do Heart Rate Zones Affect Your Fitness Goals? Knowing your heart rate zones can help you measure and improve your fitness by understanding and applying these principles: Edge 605/705 Owner’s Manual37 Using Accessories • Your heart rate is a good measure of exercise intensity. • Training in certain heart rate zones can help you improve cardiovascular capacity and strength. • Knowing your heart rate zones can prevent you from overtraining and decrease your risk of injury. If you know your maximum heart rate, you can enter it and allow the Edge to calculate your heart rate zones based on the percentages shown in the table on page 37. If you do not know your maximum heart rate, use one of the calculators available on the Internet. Heart Rate Monitor Battery For battery information, see page 60. 38 GSC 10 Your Edge 705 is compatible with the GSC 10 speed and cadence sensor for bikes. Cadence data from the GSC 10 is always recorded. If there is no GSC 10 paired, GPS data is used to calculate the speed and distance. Both magnets must be aligned with their respective indication lines for the Edge to receive data. To install the GSC 10: 1. Place the GSC 10 on the rear chain stay (on the side opposite the drive train). Loosely attach the GSC 10 using two cable ties. 2. Attach the pedal magnet to the crank arm using the adhesive mount and a cable tie. The pedal magnet must be within 5 mm of the GSC 10, and the indication line on the Edge 605/705 Owner’s Manual Using Accessories Indication line Reset button Cable ties GSC 10 on Rear Chain Stay Cable tie Indication line Pedal Magnet on Crank Arm Edge 605/705 Owner’s Manual39 Using Accessories Spoke magnet GSC 10 Pedal magnet Sensor arm indication line GSC 10 and Magnet Alignment pedal magnet must line up with the indication line on the GSC 10. 3. Unscrew the spoke magnet from the plastic piece. Place the spoke in the groove of the plastic piece and tighten slightly. The magnet can face away from the GSC 10 if there is not enough room between the sensor arm and the spoke. 40 The magnet must be aligned with the sensor arm indication line. 4. Loosen the screw on the sensor arm and move it to within 5 mm of the spoke magnet. You can also tilt the GSC 10 closer to either magnet for improved alignment. Edge 605/705 Owner’s Manual Using Accessories 5. Press the Reset button on the GSC 10. The LED turns red, then green. Pedal to test the sensor alignment. The red LED blinks each time the crank arm passes the sensor, and the green LED blinks each time the wheel magnet passes the sensor arm. note: The LED blinks for the first 60 passes after a reset. Press Reset again if you require additional passes. 6. When everything is aligned and working correctly, tighten the cable ties, sensor arm, and spoke magnet. Training with Cadence Cadence is your rate of pedaling or “spinning” measured by the number of revolutions of the crank arm per minute (rpm). There are two sensors on the GSC 10: one for cadence and one for speed. For information about cadence alerts, see page 19. For information about speed zones, see page 56. GSC 10 Battery For GSC 10 battery information, see page 61. Edge 605/705 Owner’s Manual41 Using Accessories Power Meter For a list of third-party power meters that are compatible with the Edge 705, go to www.garmin .com/edge. Power Calibration Press menu > select Settings > ANT+Sport > Accessories > Calibrate Power. For calibration instructions specific to your power meter, refer to the manufacturer’s instructions and www.garmin.com/edge. Power Zones Press menu > select Settings > Profile & Zones > Power Zones. 42 You can set seven custom power zones (1=lowest, 7=highest). If you know your FTP (functional threshold power) value, you can enter it, and allow the Edge to calculate your power zones automatically. You can also enter your power zones manually. To change your power units, see page 57. Edge 605/705 Owner’s Manual History Your Edge automatically saves history when the timer is started. The Edge has approximately 500 MB of available space. When the Edge memory is full, your oldest history is overwritten. Upload your history to Garmin Training Center or Garmin Connect periodically to keep track of all of your bike data. For information about Edge data recording, see page 57. History includes time, distance, calories, average speed, maximum speed, altitude, detailed lap information, and a map view. Edge 705 history can also include heart rate, cadence, and power. note: History is not recorded while the timer is stopped. History note: Edge memory does not include the separate microSD™ card drive. See Data Management on page 45. Viewing History After you have finished a ride, you can view the history data on your Edge by day, week, or totals. To view history by day: 1. Press menu > select History > By Day. Edge 605/705 Owner’s Manual43 History 2. Use the thumb stick to scroll through the list. As you scroll, summary information appears below the list. 3. Select an entry to view details of the entire ride or each lap. 4. Select View Map to see your ride on the map. 5. Press in/out to zoom on the map. When you are finished viewing the lap, select Next to view the next lap. 6. Press mode to exit. Transferring History to Your Computer For information about transferring workouts to and from your Edge, see page 10. 44 Deleting History After you have transferred your workouts to Garmin Training Center or Garmin Connect, you may want to delete the history from your Edge. To delete history: 1. Press menu > select History > Delete. 2. Select Keep 1 Month, Keep 3 Months, or Delete All. 3. Select Yes to confirm. To delete laps or entire rides from history: 1. Press menu > select History > By Day. 2. Select a lap or ride. 3. Select Delete. 4. Select Yes to confirm. Edge 605/705 Owner’s Manual Data Management Data Management You can use the Edge as a USB mass storage device, and you can purchase a separate microSD card for additional external memory. note: The Edge is not compatible with Windows® 95, 98, Me, or NT. It is also not compatible with Mac® OS 10.3 and earlier. This is a common limitation of most USB mass storage devices. Loading Files Step 1: Insert a MicroSD Card (Optional) 1. Remove the microSD card door on the back of the Edge. 2. To insert the card, press it in until it clicks. Step 2: Connect the USB Cable 1. Plug the small end of the USB cable into the mini-USB port on the back of the Edge (under the weather cap). Edge 605/705 Owner’s Manual45 Data Management 2. Connect the larger end of the USB cable to an available USB port on your computer. The Edge is now in USB mass storage mode. Your Edge and microSD card appear as removable drives in My Computer on Windows computers and as mounted volumes on Mac computers. Step 3: Transfer Files to Your Computer 1. Browse your computer for the file you want to copy. 2. Highlight the file, and select Edit > Copy. 3. Open the “Garmin” or microSD card drive/volume. 4. Select Edit > Paste. 46 Step 4: Eject and Unplug the USB Cable When you are finished transferring files, click the Eject icon in your system tray, or drag the volume icon to the Trash on Mac computers. Unplug your Edge from your computer. Deleting Files Open the Garmin or SD card drive/ volume. Highlight the file, and press the Delete key on your computer’s keyboard. Caution: If you are not sure about a file’s purpose, do not delete it. Your Edge memory contains important system files that should not be deleted. Edge 605/705 Owner’s Manual Data Management Garmin Folders Transferring Files to Another Edge (705 Only) Garmin drive/volume Garmin Courses GPX* History Profile Workouts * The GPX folder contains waypoints and saved rides. You can wirelessly transfer files from one Edge to another using ANT+Sport wireless technology. 1. Turn on both Edge units, and bring them within range (3 m) of each other. 2. Press menu > select Settings > ANT+Sport. 3. Select Receive Data on the Edge that is receiving files. 4. Select Transfer Data on the Edge that is sending files. Follow the on-screen instructions. Edge 605/705 Owner’s Manual47 Settings Settings You can customize data fields, map settings, routing, bike and user profiles, training zones, display, units, time, data recording, and wireless setup. Press menu > select Settings. note: When finished selecting options or entering values, press mode to exit. For a list of available data fields, see pages 49–53. To set data fields: 1. Press menu > select Settings > Data Fields. 2. Select one of the pages listed. 3. Select the number of data fields you want to see on this page. Custom Data Fields You can set up custom data fields for the following Edge pages: • Bike Computer 1 • Bike Computer 2 • Map • Workouts • Courses 48 4. Use the thumb stick to change the data fields. Press mode when done. 5. Repeat for each page you wish to customize. Edge 605/705 Owner’s Manual Settings Edge Data Fields The following table lists all of the Edge data fields and descriptions. * Denotes a field showing statute or metric units. Data Field Description Edge 605 Edge 705 Accuracy Of GPS * Margin of error for your exact location. For example, your GPS location is accurate to within +/- 19 ft. ● ● Ascent - Total * Total elevation gain for the current ride. Bearing Direction of your destination. Cadence Revolutions of the crank arm per minute. ● Cadence – Avg Average cadence for the duration of your current ride. ● Cadence – Lap Average cadence for the current lap. ● Calories Amount of calories burned. Descent - Total * Total elevation lost for the current ride. Dist – Lap * Distance traveled in the current lap. ● ● ● ● ● ● ● ● Edge 605/705 Owner’s Manual49 Settings Data Field Description Edge 605 Edge 705 Dist – Last Lap * Distance of the last completed lap. ● ● Dist – Paused * Distance covered while the timer was in Auto Pause. ● ● Distance * Distance traveled on the current ride. ● ● Distance To Dest Distance until you reach your destination. ● ● Distance To Next Distance until you reach the next turn. ● ● ETA At Destination Estimated arrival time at your destination. ● ● ETA At Next Estimated arrival time at the next turn. ● ● Elevation * Distance above/below sea level. ● ● Grade Calculation of rise over run. For example, if for every 10 feet you climb (elevation) you travel 200 feet (distance), your grade is 5%. ● ● Heading Current direction you are traveling. ● ● Heart Rate Heart beats per minute (bpm). 50 ● Edge 605/705 Owner’s Manual Settings Data Field Description Heart Rate – Avg Average heart rate for the ride. ● Heart Rate – Lap Average heart rate in the current lap. ● Heart Rate Zone Current range of heart rate (1–5). The default zones are based on your maximum heart rate and user profile. ● Laps Amount of laps completed. Power Current power output in watts or % FTP. ● Power – Avg Average power output for the duration of your current ride. ● Power – KiloJoules Total (cumulative) amount of power output in kilojoules. ● Power – Lap Average power output in the current lap. ● Power – Max Top power achieved during the current ride. ● Power Zone Current range of power output (1–7) based on your FTP or custom settings. ● Edge 605/705 Owner’s Manual Edge 605 ● Edge 705 ● 51 Settings Data Field Description Pwr – Last Lap Max Top power achieved during the last full lap. Speed * Current speed. ● ● Speed – Avg * Average speed for the ride. ● ● Speed – Lap * Average speed in the current lap. ● ● Speed – Last Lap * Average speed during the last full lap. ● ● Speed – Maximum * Top speed achieved during the current ride. ● ● Speed Zone Current range of speed based on default or custom settings: Climb 1–4, Flat 1–3, Descent, Sprint, and Max Speed. ● ● Sunrise Time of sunrise based on your GPS position. ● ● Sunset Time of sunset based on your GPS position. ● ● Time Stopwatch time. ● ● Time – Avg Lap Average time to complete the laps so far. ● ● Time – Lap Amount of time in the current lap. ● ● 52 Edge 605 Edge 705 ● Edge 605/705 Owner’s Manual Settings Data Field Description Edge 605 Edge 705 Time – Last Lap Amount of time to complete the last full lap. ● ● Time – Paused Time elapsed while the timer was in Auto Pause. ● ● Time To Destination Estimated amount of time until you reach your destination. ● ● Time To Next Estimated amount of time until you reach the next turn. ● ● Time of Day Current time of day based on your time settings (format, time zone, and daylight saving time). ● ● Waypoint At Dest Name of the final waypoint in the route. ● ● Waypoint At Next Name of the next waypoint in the route. ● ● Edge 605/705 Owner’s Manual 53 Settings System Press menu > select Settings > System. GPS mode–Normal, GPS Off (for indoor use), or Demo Mode (for route simulation). note: When GPS is off, speed and distance data are not available, unless you are using the Edge 705 with the GSC 10. The next time you turn on the Edge, it will search for satellite signals again. Text Language—change the on‑screen text language. Changing the text language does not change the language of the map or user-entered data. 54 Tones—set audible tones to Key and Message, Message Only, or Off. Page Mode Options—turn on to display the map in the cycle of pages shown when mode is pressed. About Edge—view your software version, GPS version, and unit ID. Map Press menu > select Settings > Map. Detail—adjust the amount of detail shown on the map. The map redraws more slowly when detail is added. Orientation—change the perspective of the map. • North Up—display the map with North at the top of the page. • Track Up—display the map with your direction of travel at the top of the page. Edge 605/705 Owner’s Manual Auto Zoom—turn on automatic zooming on the map for optimal viewing. Lock On Road—turn on to lock the map pointer on the nearest road, compensating for variances in map position accuracy. Map Name—select which loaded maps you want to use. Routing Press menu > select Settings > Routing. Calculate Routes for—select Car/ Motorcycle, Bicycle, or Pedestrian to optimize routes. Recalculate—set your offroute recalculation preference to Prompted, Automatic, or Off. Settings Car/Motorcycle Settings Follow Road Method—set your routing preference to Prompted, Faster Time, or Shorter Distance. Avoid—select to avoid unpaved roads, highways, toll roads, and u-turns in your routes. Bicycle and Pedestrian Settings Guidance Method—set your routing preference to Prompted, Follow Road, or Off Road. Avoid—select to avoid unpaved roads. Profile and Zones Press menu > select Settings > Profile & Zones. User and Bike Profiles See page 8. Edge 605/705 Owner’s Manual 55 Settings Speed Zones Press menu > select Settings > Profile & Zones > Speed Zones. Your Edge contains several different speed zones, ranging from very slow (Climb 4) to very fast (Max Speed). The values for these speed zones are entered by default and may not match your personal abilities. After you enter appropriate speed zones, you can use these zones to set your speed alerts or use them as targets in advanced workouts. For more about alerts, see pages 17–21. For more about advanced workouts, see pages 25–29. Heart Rate and Power Zones (Edge 705) See pages 35-42 (Using Accessories). 56 Display Press menu > select Settings > Display. Backlight Timeout—select the amount of time the backlight stays on. TIP: Use a short backlight timeout setting to conserve battery power. Backlight Level—use the thumb stick to adjust the brightness of the backlight. Display Mode—select Daytime for a bright background. Select Nighttime for a black background. Select Auto to automatically switch between the two based on the time of day. Trim Color—select a color scheme for the Edge pages. Edge 605/705 Owner’s Manual Units Press menu > select Settings > Units. Position Format—select the type of coordinates. Because different maps and charts use different position formats, the Edge allows you to select the correct coordinate format for the type of map you are using. Distance and Elevation—select Statute or Metric. Heart Rate—select Beats per Minute or % Max HR for your heart rate data. For more information on heart rate data, see pages 35–38. Power—select Watts or % FTP. For more information on power meters, see page 42. Edge 605/705 Owner’s Manual Time Settings Press menu > select Settings > Time. Time Format—select 12- or 24-hour time format. Time Zone—select your time zone or a nearby city. Daylight Saving Time—select Yes, No, or Auto. The Auto setting automatically adjusts the time for daylight saving based on your time zone. Data Recording Data recording controls how the Edge records detailed data for your rides. Press menu > select Settings > Data Recording. 57 Settings Smart Recording—records key points where you change direction, speed, or heart rate. TIP: For long rides, reset your timer every 12 hours to avoid overwriting history data. Every Second—records points every second. It creates the most accurate record possible of your ride. However, with Every Second recording, the Edge can only record up to 4.5 hours of history data. TIP: For long rides, reset your timer every 4 hours to avoid overwriting history data. 58 ANT+Sport Press menu > select Settings > ANT+Sport. Accessories If you purchased a sensor (with ANT+Sport wireless technology) separately, you need to pair it with your Edge. What Is Pairing? Pairing is the connecting of sensors, such as your heart rate monitor with your Edge. After you pair the first time, your Edge automatically recognizes your sensor each time it is activated. This process occurs automatically when you turn on the Edge and only takes a few seconds when the sensors are activated and functioning correctly. When paired, your Edge only receives data from your sensor, and you can go near other sensors. Edge 605/705 Owner’s Manual Settings To pair accessories: 1. Move away (10 m) from other sensors while the Edge is trying to pair with your sensor for the first time. Bring your sensor within range (3 m) of the Edge. 2. Press menu > select Settings > ANT+Sport. 3. For each accessory you have, select Yes > Restart Scan. NOTE: For information about using accessories, zones, and calibration, see pages 35-42. Receive and Transfer Data See Data Management on page 45. Edge 605/705 Owner’s Manual 59 Appendix Appendix Optional Accessories For more information about optional accessories including preloaded maps on microSD cards, go to http://buy.garmin.com or contact your Garmin dealer Battery Information Note: Contact your local waste disposal department to properly dispose of batteries. Heart Rate Monitor Battery The heart rate monitor contains a user-replaceable CR2032 battery. 2. Use a coin to twist the cover counter-clockwise so the arrow on the cover points to OPEN. 3. Remove the cover and replace the battery with the positive side facing up. Note: Be careful not to damage or lose the O-ring gasket on the cover. 4. Use a coin to twist the cover clockwise so the arrow on the cover points to CLOSE. To replace the battery: 1. Locate the circular battery cover on the back of the heart rate monitor. 60 Edge 605/705 Owner’s Manual GSC 10 Battery The GSC 10 contains a userreplaceable CR2032 battery. To replace the battery: 1. Locate the circular battery cover on the side of the GSC 10. Battery cover Appendix 3. Remove the cover and replace the battery with the positive side facing up. Note: Be careful not to damage or lose the O-ring gasket on the cover. 4. Use a coin to twist the cover back into place (arrow points to locked). Battery cover Unlocked CR2032 battery 2. Use a coin to twist the cover counter-clockwise until it is loose enough to remove (arrow points to unlocked). Edge 605/705 Owner’s Manual Arrow Locked 61 Appendix Specifications Edge • Physical size: 2.0 in. × 4.3 in. × 1 in. (51.3 mm × 109.2 mm × 25.4 mm) • Weight: 3.7 oz. (105 g) • Display: 2.2 in. (55.9 mm) color display, with backlight • Water Resistance: IPX7 • Data storage: approximately 500 MB available space on Edge (~500 hours of workout history at 1 MB per hour). 100 user waypoints. 16,383 track points. • Computer interface: USB 62 • Battery type: 1200 mAh rechargeable, built-in, lithium-ion battery • Battery life: 15 hours, depending on usage • Operating temperature range: 5°F–122°F (-15°C–50°C) • Radio frequency/protocol: 2.4 GHz/Dynastream ANT+Sport wireless communications protocol • Antenna: internal patch • Receiver: high-sensitivity integrated GPS receiver by SiRF Bike Mount • Physical size: 1.1 in. × 1.1 in. × 0.6 in. (28.5 mm × 28.5 mm × 15.6 mm • Weight: 0.3 oz. (8 g) Edge 605/705 Owner’s Manual Heart Rate Monitor • Physical size: 13.7 in. × 1.3 in. × 0.4 in. (34.7 cm × 3.4 cm × 1.1 cm) • Weight: 1.6 oz. (44 g) • Water Resistance: 32.9 ft. (10 m) • Transmission range: approximately 9.8 ft. (3 m) • Battery: user-replaceable CR2032 (3 volts) • Battery Life: approximately 3 years (1 hour per day) • Operating temperature: 14°F–122°F (-10°C–50°C) Note: In cold conditions, wear appropriate clothing to keep the heart rate monitor near your body temperature. Edge 605/705 Owner’s Manual Appendix • Radio frequency/protocol: 2.4 GHz/Dynastream ANT+Sport wireless communications protocol Accuracy may be degraded by poor sensor contact, electrical interference, and receiver distance from transmitter. GSC 10 • Physical size: 2.0 in × 1.2 in × 0.9 in (5.1 cm × 3.0 cm × 2.3 cm) • Weight: 0.9 oz. (25 g) • Water Resistance: IPX7 • Transmission range: approximately 9.8 ft. (3 m) • Battery: user-replaceable CR2032 (3 volts) • Battery life: approximately 1.4 years (1 hour per day) 63 Appendix • Operating temperature range: 5°F–158°F (-15°C–70°C) • Radio frequency/protocol: 2.4 GHz/Dynastream ANT+Sport wireless communications protocol Accuracy may be degraded by electrical interference, receiver distance from transmitter, and extreme temperatures. For a complete list of specifications, see www.garmin.com/edge. Barometric Altimeter The Edge 705 contains a barometric altimeter for extremely accurate elevation change and vertical profile data. After you start the timer and begin to move, press mode to view the altimeter page. Elevation is plotted in green on the grid. If you are using Virtual Partner, your current position 64 is shown with a black dot, and the Virtual Partner is shown with a grey dot. To change the zoom level, press the in and out buttons. At the top of the altimeter page, your elevation and total ascent data appears. Tire Size and Circumference The tire size is marked on both sides of the tire. To modify your bike profile, see page 9. Tire Size L (mm) 12 × 1.75 935 14 × 1.5 1020 14 × 1.75 1055 16 × 1.5 1185 16 × 1.75 1195 18 × 1.5 1340 18 × 1.75 1350 Edge 605/705 Owner’s Manual Appendix Tire Size L (mm) Tire Size L (mm) 20 × 1.75 1515 26 × 1.40 2005 20 × 1-3/8 1615 26 × 1.50 2010 22 × 1-3/8 1770 26 × 1.75 2023 22 × 1-1/2 1785 26 × 1.95 2050 24 × 1 1753 26 × 2.00 2055 24 × 3/4 Tubular 1785 26 × 2.10 2068 24 × 1-1/8 1795 26 × 2.125 2070 24 × 1-1/4 1905 26 × 2.35 2083 24 × 1.75 1890 26 × 3.00 2170 24 × 2.00 1925 27 × 1 2145 24 × 2.125 1965 27 × 1-1/8 2155 26 × 7/8 1920 27 × 1-1/4 2161 26 × 1(59) 1913 27 × 1-3/8 2169 26 × 1(65) 1952 650 × 35A 2090 26 × 1.25 1953 650 × 38A 2125 26 × 1-1/8 1970 650 × 38B 2105 26 × 1-3/8 2068 700 × 18C 2070 26 × 1-1/2 2100 700 × 19C 2080 Edge 605/705 Owner’s Manual 65 Appendix Tire Size L (mm) 700 × 20C 2086 700 × 23C 2096 700 × 25C 2105 700 × 28C 2136 700 × 30C 2170 700 × 32C 2155 700C Tubular 2130 700 × 35C 2168 700 × 38C 2180 700 × 40C 2200 66 Declaration of Conformity Hereby, Garmin declares that this Edge product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. To view the full Declaration of Conformity, see the Garmin Web site for your Garmin product: www.garmin.com/edge. Edge 605/705 Owner’s Manual Troubleshooting Problem The buttons don’t respond. How do I reset the Edge? My Edge never gets satellite signals. The battery gauge does not seem accurate. Appendix Solution/Answer Press mode and lap/reset simultaneously to reset the Edge software. This does not erase any of your data or settings. Take your Edge out of parking garages and away from tall buildings and trees. Remain stationary for several minutes. Allow the Edge to fully discharge, and then fully charge it (without interrupting the charge cycle). • Stay 10 m away from other ANT sensors while pairing. • Bring the Edge within range (3 m) of the heart rate monitor while pairing. • If the problem persists, replace the battery. The heart rate monitor A smaller elastic strap is sold separately. Go to strap is too big. http://buy.garmin.com. When your Edge is in USB mass storage mode, a picture of an How do I know my Edge connected to a computer is shown. Also, you should see Edge is in USB mass two new removable disk drives in My Computer on Windows storage mode? computers and mounted volumes on Mac computers. If you have several network drives mapped on your computer, I cannot see any new Windows may have trouble assigning drive letters to your removable drives in Garmin drives. See the Help file for your operating system to my list of drives. learn how to map/assign drive letters. The heart rate monitor, GSC 10, or power meter will not pair with the Edge. Edge 605/705 Owner’s Manual 67 Appendix Problem The heart rate data is inaccurate or erratic. 68 Solution/Answer • Make sure the heart rate monitor is snug against your body. • Warm up for 5–10 minutes. If the problem persists, continue with the following suggestions: • Reapply moisture to the electrodes. Use water, saliva, or electrode gel. Clean the electrodes. Dirt and sweat residue on the electrodes can interfere with heart rate signals. • Synthetic fabrics that rub or flap against the heart rate monitor can create static electricity that interferes with heart rate signals. Wear a cotton shirt or wet your shirt if suitable for your activity. • Position the heart rate monitor on your back instead of your chest. • Strong electromagnetic fields and some 2.4 GHz wireless sensors can interfere with your heart rate monitor. Sources of interference may include very high voltage power lines, electric motors, microwave ovens, 2.4 GHz cordless phones, and wireless LAN access points. After you move away from the source of interference, your heart rate data should return to normal. Edge 605/705 Owner’s Manual Index A accessories 8, 35–42, 58, 60 addresses 14 advanced workouts 25 alerts 17 cadence 19 distance 17 heart rate 18 power 20 speed 18 time 17 altimeter 64 Auto Lap 15 Auto Pause 15 B backlight 1, 2, 56 back to start 12 barometric altimeter 64 battery 60–63 charging 3 bike mount 5 buttons 1 C cadence alerts 19 data fields 49 sensor 9, 38 training 41 calories 49 charging the battery 3 computer connection 10, 45 contacting Garmin i courses 29 creating 29 deleting 31 editing 31 starting 30 custom data fields 48 Edge 605/705 Owner’s Manual D Index data fields 48, 49 data recording 57 data uploading 10, 45 deleting advanced workouts 29 courses 31 Favorites 14 files 47 history 44 distance alerts 17 data fields 50 downloading software i, 10 E elevation barometric altimeter 64 data fields 49, 50 69 Index F Favorites 13 files deleting 46 loading 45 transferring 47 finding addresses 14 points of interest 14 waypoints (locations) 12 G Garmin Connect i, 25, 28, 29, 43 Garmin Product Support i Garmin Training Center i, 25, 28, 29, 43 GPS 54 accuracy 49 grade 50 GSC 10 8, 38, 63 battery 61 70 H heart rate alerts 18 data fields 50 zones 36 heart rate monitor 8, 35 battery 60 history 43 deleting 44 viewing 43 I icons 3 indoor use 54 installing Edge 5 GSC 10 38 interval workouts 23 L language 54 lap button 1 lithium-ion battery 3, 62 locations (waypoints) 12, 32, 62 M map 2, 32, 44, 48 settings 54 microSD card 45 mode button 1 mount 5 P pairing sensors 8, 58 pedal magnet 38 points of interest 14 power alerts 20 calibration 42 meter 42 zones 42 power button 1 Edge 605/705 Owner’s Manual product registration i product support i R recent finds 13 registration i reset button 1 reset Edge 2, 67 rest time 15 S satellite page 34–35 satellite signals acquiring 7 SD card 45 sensors, pairing 8, 58 simple workouts 22 software downloads i, 10 software version 54 specifications 62 speed alerts 18 data fields 52 zones 52, 56 speed and cadence sensor 8, 38, 63 spoke magnet 40 T technical specifications 62 time alerts 17 data fields 52 tire size 9, 64 tones 54 training 15 transferring data 10, 45 troubleshooting 67 W Index waypoints (locations) 12, 32, 62 wheel size 9, 64 workouts 22 advanced 25 interval 23 simple 22 Z zones heart rate 36 power 42 speed 56 U unit ID 54 uploading data 10 USB 3, 10, 45 eject 46 V Virtual Partner 21, 22, 29 Edge 605/705 Owner’s Manual 71 For the latest product information and accessories, visit the Garmin Web site at www.garmin.com. © 2008 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA Garmin (Europe) Ltd. Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9RB UK Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Part Number 190-00813-00 Rev. C
