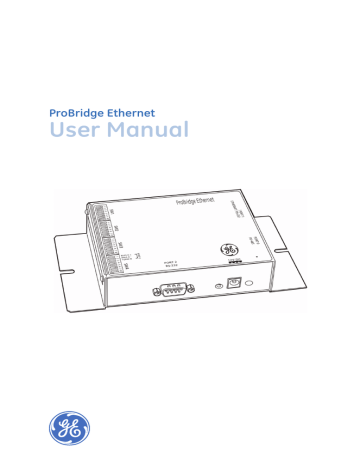

ProBridge Ethernet
User Manual
ii ATM ProBridge
User Manual
Copyright
Disclaimer
Trademarks and patents
Intended use
FCC compliance
Regulatory
Copyright © 2006, GE Security Inc. All rights reserved.
This document may not be copied or otherwise reproduced, in whole or in part, except as specifically permitted under US and international copyright law, without the prior written consent from GE.
Document number/ 0150-0315A (March 2006).
THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. GE ASSUMES NO RESPONSIBILITY FOR INACCURACIES OR OMISSIONS
AND SPECIFICALLY DISCLAIMS ANY LIABILITIES, LOSSES, OR RISKS, PERSONAL OR
OTHERWISE, INCURRED AS A CONSEQUENCE, DIRECTLY OR INDIRECTLY, OF THE
USE OR APPLICATION OF ANY OF THE CONTENTS OF THIS DOCUMENT. FOR THE
LATEST DOCUMENTATION, CONTACT YOUR LOCAL SUPPLIER OR VISIT US ONLINE
AT WWW.GESECURITY.COM.
This publication may contain examples of screen captures and reports used in daily operations. Examples may include fictitious names of individuals and companies. Any similarity to names and addresses of actual businesses or persons is entirely coincidental.
GE and the GE monogram are registered trademarks of General Electric.
PBe product and logo are trademarks of GE Security.
Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
Use this product only for the purpose it was designed for; refer to the data sheet and user documentation. For the latest product information, contact your local supplier or visit us online at www.gesecurity.com.
R
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
You are cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Operation of this equipment in a residential area may cause interference, in which case the user is required to take all measures that are necessary, at the user's expense, to correct the interference
Contents
Conventions used in this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Required DIP switch information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
HyperTerminal configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Manual DIP switch configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Accessing the Webserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Contacting technical support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
iv ProBridge Ethernet
User Manual
Introduction
This is the GE ProBridge Ethernet User Manual for model PBe.
This document includes detailed instructions explaining:
• how to setup and install the PBe ProBridge and
• how to connect to single or multiple ATM sites.
There is also information describing how to contact technical support if you have questions. To use this document effectively, you should meet the following minimum qualifications:
• a basic knowledge of CCTV systems and components; and
• a basic knowledge of electrical wiring and low-voltage electrical connections.
Read these instructions and all ancillary documentation entirely before installing or operating this product.
Note: A qualified service person, complying with all applicable codes, should perform whatever hardware installation is required.
1
2 ProBridge Ethernet
User Manual
Conventions used in this document
The following conventions are used in this document:
Bold
Italic
Blue italic
Monospace
Menu items and buttons.
Emphasis of an instruction or point; special terms.
File names, path names, windows, panes, tabs, fields, variables, and other GUI elements.
Titles of books and various documents.
(Electronic version.) Hyperlinks to cross-references, related topics, and URL addresses.
Text that displays on the computer screen.
Programming or coding sequences.
Safety terms and symbols
These terms may appear in this manual:
CAUTION: Cautions identify conditions or practices that may result in damage to the equipment or other property.
WARNING: Warnings identify conditions or practices that could result in equipment damage or serious personal injury.
Overview
The PBe is a specific ProBridge unit for interfacing the DVR family of digital video multiplex/recorders to financial institution automated teller machines (ATMs). The PBe supports Ethernet network communications.
Note: The PBe operates in an NTSC environment (120 VAC/60 Hz) or a PAL environment (220 VAC/50 Hz) provided the correct unit is ordered.
Compatibility
The PBe is compatible with all of the following DVR products:
• DVMRe, version 3.07 and above.
• DVMR-eZ, version 3.20 and above.
• Triplex, version 4.00 and above.
• Triplex-eZ, version 4.03 and above.
• WaveReader, version 3.6 and above.
Disclaimer
The PBe components identified within this document provide means of capturing transaction data for use by the DVR family of digital video recording/transmission products. The PBe components translate the data into a usable format by the DVR and permits associating transaction data with specific cameras.
GE assumes no responsibility for the amount and type of information available, the operation, non-operation, or erroneous operation of these third-party transaction products.
3
4 ProBridge Ethernet
User Manual
Product contents
The PBe system consists of the ProBridge unit, this manual, an
Ethernet cable, a PBe to DVR cable, a PBe to PC cable, and a
power supply, as shown in Figure 1.
Figure 1. Product contents
4310-0040
Ethernet cable
PBe
ProBridge
4310-0034B
PB3 to DVR cable
Power
Supply
0150-0315
ProBridge Manual
4310-0061A
PBe to PC cable
Inspect the package and contents for visible damage. If any components are damaged or missing, do not use the unit; contact the supplier immediately. If you need to return the unit, you must ship it in the original box.
Other required equipment
You might also need the following:
• A PC to program the PBe.
Installation environment
Power. Ensure that the installation site’s AC power is stable and within the rated voltage of the external power supply.
If the site’s AC power is likely to have spikes or DIPs, use power line conditioning or an uninterruptible power supply.
Temperature. Observe the unit’s ambient temperature specifications when choosing a location for the unit.
Extremes of heat or cold beyond the specified operating temperature limits may cause the unit to fail. Do not install this unit on top of other hot equipment.
Moisture. Do not expose the unit to rain or moisture.
Moisture can damage internal components. Do not install this unit near sources of water.
RS-232 limitations. Cable length between the POS device and the PBe is limited to 50 ft. (15.24 m) Cable length between the PBe unit and the DVR is also limited to 50 ft. (15.24 m). If the supplied cables are replaced by custom made cables to address distances between components, ensure the cable is manufactured to ANSI standards for RS-232 communication.
Power specifications
The PBe is furnished with a power supply (110 or 240 VAC). Do not use any other power supply with this product. The manufacturer accepts no responsibility for damage caused by the use of any other power supply.
Make sure installation is complete and all connections are made before applying power to the unit.
5
6 ProBridge Ethernet
User Manual
4310-0007 120 VAC power supply
Power supply input
• Voltage: 120 VAC
• Tolerance: ± 10%
• Frequency: 60 Hz
Power supply output
• Voltage: 12 VDC
• Current: 110 mA
• Power: 1.3 watts
• Connector: 2.1 mm female barrel. Center positive.
4310-0008 220VAC power supply
Power supply input
• Voltage: 220 VAC
• Tolerance: ± 10%
• Frequency: 50 Hz
Power supply output
• Voltage: 12 VDC
• Current: 110 mA
• Power: 1.3 watts
• Connector: 2.1 mm female barrel. Center positive.
Installation
Before installation, please familiarize yourself with the PBe and its typical system layout.
PBe components
Figure 2. PBe landmarks
7
Power connection
Port 2/RS-232
Connects to the PC
Port 0/RS-485
Connects multiple PBes together
Port 1/RS-232
Ethernet Port
8 ProBridge Ethernet
User Manual
Typical system layout
The following figure shows a typical multiple ATM layout.
Figure 3. Multiple ATM system layout
RS232 port
PBe
4310-0034B
RJ45 to RJ45 cable
4310-0040
Ethernet cable
Ethernet
Hub
Existing ATMs
Installation overview
The basic steps required to install the PBe are:
1. Physically connect the PBe interface to the network switch or hub and the DVR using the supplied cables.
2. Program monitor mode to on by setting SW1 switches 1
to 4. See SW1 switches 1 to 4 on page 20 for the switch
settings.
3. Program the camera number to be associated with the
ATM’s transaction data to the PBe. See
SW1 switches 5 to 8 on page 21.
4. Program the DVR to record in the way desired for your specific site.
Required information
The following information is required for a successful PBe installation. This information is used to configure the PBe. You will need to contact the customer’s ATM network administrator for answers to these questions.
Ethernet device type
• Generic interface
• Native ATM messages (FC)
• Verifone POS
• Ethernet data analyzer
9
10 ProBridge Ethernet
User Manual
Required DIP switch information
Important switch assignments
Table 1.
Important switch assignments
SW1
SW1
SW3
1-4 Special functions
5-8 Camera assignment
1-8 Device type
Default switch settings
6
7
4
5
8
1
2
3
Table 2.
Default switch settings
SW1
Up
Up
Up
Up
Up
Up
Up
Up
6
7
4
5
8
1
2
3
SW2
Up
Up
Up
Up
Up
Up
Up
Up
6
7
4
5
8
1
2
3
SW3
Up
Up
Up
Up
Up
Up
Up
Up
6
7
4
5
8
1
2
3
SW4
Up
Up
Up
Up
Up
Up
Down
Up
Installation steps
1. Select the camera number (1-16) on the DVR on which to associate the ATM transaction text. This is done by
setting switches 5-8 on SW1. See SW1 switches 5 to 8 on page 21.
2. Connect the PBe to the network switch or hub using the supplied 4310-0040 Ethernet cable.
3. Connect the PBe to the DVR using the supplied 4310-
0034 cable. Plug one end into port 1 of the PBe and the other end into the RS-232/2 port of the DVR.
4. Program the DVR for the desired recording functions based upon the presence of transaction text. In addition, make sure the RS-232/2 port is set for a 57600 baud rate.
See the DVR manual for more information.
5. Apply power to the PBe using the supplied power supply.
11
12 ProBridge Ethernet
User Manual
Programming
After you install the PBe, you need to program the ProBridge for operation. This is accomplished by using HyperTerminal or manually setting the DIP switches.
HyperTerminal configuration
You will need the following equipment to program the PBe using
HyperTerminal:
• A PC or laptop computer with a COM port and Windows
98/NT/200/XP installed and operational.
• The supplied 4310-0061A PB3 to PC (DB9F to DB9F) cable.
To program the PBe with HyperTerminal, do the following:
1. Remove power and disconnect the PBe from the DVR.
2. Plug the 4310-0061A cable into Port 2 of the PBe and a free COM port on your PC, typically COM1.
3. Launch HyperTerminal, found in
Start\Programs\Accessories\Communications\
HyperTerminal.
Figure 4. Laptop connected to PBe
4. The Connection Description dialog box will display.
Type in a name for this session (PBe) and click OK.
5. The Connect To dialog box display. Select the COM port you are connected to in the Connect Using drop-down list.
6. The COMx Properties dialog box will display. Select the following settings to complete the HyperTerminal setup:
• Bits per second = 57600
• Data bits = 8
• Parity = none
• Stop bits = 1
• Flow control = none
7. Click OK.
To program the PBe do the following:
1. Power up the PBe by plugging in the power supply. The
window shown in Figure 5 will appear confirming that
you are in HyperTerminal programming mode.
13
14 ProBridge Ethernet
User Manual
Figure 5. HyperTerminal programming mode
2. Press the Enter key twice to bring up the Main Menu.
Figure 6. Main menu
Main Menu
There are five menu selections on the Main Menu:
• Exit - Exits the maim menu and saves any changes.
• PBe Set-up - provides IP address setup and Ethernet device selection.
• Terminal IP/Camera Set-up - Enables or disables the IP camera and provides addressing options.
• Monitor Mode - Toggles Ethernet monitoring On or Off.
• Toggle Analyzer Mode - Used for Technical support only.
PBe Set-up menu
Selecting option #2 from the main menu launches the PBe Set-up
menu.
Figure 7. The PBe Set-up menu
15
We recommend that you do not change the IP addresses from the
defaults shown in Figure 7. The Ethernet Device option is the
only option in this menu that you should change. To change the
Ethernet device press 5 and then the enter key. The next device on
16 ProBridge Ethernet
User Manual the list will be selected. The PBe supports the following Ethernet devices:
• Generic interface
• Native ATM messages (FC)
• Verifone POS
• Ethernet data analyzer
Note:
The Ethernet device can also be selected by DIP switch. See SW3 switches 1 to 8 on page 22.
Terminal IP/Camera Set-up menu
Selecting option #3 from the main menu launches the Terminal
IP/Camera Set-up menu.
Figure 8. The terminal IP/camera set-up menu
Option #2 lets you associate cameras to terminals by the camera number and the terminals IP address. To associate a camera to a specific terminal do the following:
1. Press #2 and the enter key to display the camera/terminal list.
2. Enter the camera number that you want and the enter key.
3. Type in the IP address of the terminal to associate to the camera and press the enter key.
4. The camera/terminal will redisplay with the new information.
5. Pressing the enter key will terminate the camera/terminal
IP set-up and return you to the previous menu.
Figure 9. The camera/terminal IP table
17
Option #3 lets you enable/disable the Use IP for Camera command. When set to Enabled the PBe will search the incoming UDP and TCP packets for a match of IP addresses.
Depending on the Device setting the PBe will parse the data received in that packet and send it to the associated camera number.
The Monitor Mode menu
The fourth selection on the Main Menu is the Monitor Mode on/ off toggle. This selection will toggle between off and on when 4
18 ProBridge Ethernet
User Manual ins entered followed by the enter key. Changing the selection to on allows the PBe to monitor the incoming Ethernet packets.
Note: Monitor mode should be turned off before upgrading the PBe.
In some cases whenever SW3 is used to select the Ethernet
Device, monitor mode will automatically be turned on.
Analyzer Mode menu
This menu is used for troubleshooting only. Do not use unless requested by a qualified technician.
Exiting HyperTerminal
To exit HyperTerminal do the following:
1. Enter the number 1 and the enter key until the message
“Exiting menus Ready!” is displayed.
2. Close the HyperTerminal screen. You do not need to save the session for your changes to take effect.
1. Remove the RS-232 cable and reconnect the PBe to the
DVR.
Manual DIP switch configuration
The Ethernet Device and Camera Selection can also be selected manually by changing the DIP switch setting see
DIP switch settings on page 20. Follow the steps below to change the DIP
switches:
1. Disconnect power from the PBe
2. Disconnect the PBe from the DVR.
3. Set the DIP switches per the tables in
DIP switch settings on page 20 to match the changes desired.
4. Reconnect the PBe to the DVR.
5. Reapply power to the PBe.
19
20 ProBridge Ethernet
User Manual
DIP switch settings
This chapter deals in detail with the DIP switch settings. The PBe must be re initialized before any changes to the switch settings will be recognized.
SW1 switches 1 to 4
Switches 1 to 4 on SW1 are for turning monitor mode on or off.
Table 3.
SW1 switches 1 to 4 - monitor mode
Function
Monitor OFF
Monitor ON
SW1
1
U
D
2
U
U
3
U
U
4
U
U
SW1 switches 5 to 8
Switches 5 to 8 on SW1 are for associating a specific camera on the DVR to the PBe.
12
13
14
15
16
8
9
10
11
6
7
4
5
2
3
Camera number
1
Table 4.
SW1 switches 5 to 8 - Camera number selection
D
D
D
D
U
D
U
U
SW1
5
U
U
U
U
U
D
D
D
D
D
U
D
D
U
U
D
U
D
D
U
D
U
U
6
U
U
D
D
U
D
U
D
D
U
U
D
D
U
U
D
7
U
D
U
D
U
D
D
U
D
U
D
U
D
U
D
U
8
U
21
22 ProBridge Ethernet
User Manual
SW3 switches 1 to 8
The switch positions on SW3 are for selecting the Ethernet device type.
Table 5.
SW3 switches 1 to 8 - Device type
Switch function
Ethernet Analyzer
Generic
Native ATM
Verifone POS
1
U
U
U
U
U
U
U
2
SW3
3
U U
U
U
U
U
U
4
U
U
U
U
5
U
U
U
U
6
U
U
U
D
7
U
D
D
U
8
U
D
These switches are reserved for technical support. Do not use.
SW4 switches 7 and 8
Switches 7 and 8 on switch 4 control the communication protocol between the PBe at port 1 and the DVR or PC. Normally this is set at RS-232.
Table 6.
SW4 switches 7 and 8 - communication protocol
SW4
Communication protocol
RS-232
RS-485
7
D
U
8
U
D
Accessing the Webserver
The PBe has a built-in webpage for simple configuration changes and remote upgrade. To access the webpage do the following:
1. Obtain the IP addresses for the PBe. The default address are:
• IP Address: 3.112.55.79
• Subnet mask: 255.255.254.0
• Gateway address: 3.112.54.1
2. Connect an Ethernet cable from the Ethernet port on the
PBe to a PC or hub.
3. Launch a WebBroswer program like Microsoft Explorer.
4. Enter the IP address of the PBe in the address bar of the browser.
5. The Enter Password dialog box will appear. The default log in and password for the PBe are:
• admin
• admin
6. Click the OK button and the Webpage will display.
23
24 ProBridge Ethernet
User Manual
Figure 10. The PBe home page
Click on any of the hyperlinked text to navigate to that feature’s page.
Troubleshooting
Use the table below to solve some of the most common problems
Table 7.
Troubleshooting table
Problem
No red LEd
No text on DVR text box
Not capturing data from switch
Probable cause
Fuse is bad
No Power
DVR baud rate incorrect
Cable not connected on PBe port #1
SPAN port not configured to echo data
Solution
Replace fuse
Check Power Supply
Change DVR baud rate to 57600
Check cable connections
Consult your IS group leader for this network
25
26 ProBridge Ethernet
User Manual
Technical specifications
PBe
General
Housing:
Dimensions:
Weight:
Color:
Metal enclosure
4 x 7 x 1.5 in. (100 x 175 x 38 mm)
5.2 oz. (161 g)
Black
Environmental
Operating temperature: 0 to 40º C.
Relative humidity: 10 to 80%. Storage: 10 to 95%
Electrical
AC power:
Voltage range:
Current:
DC power:
Power supply voltage:
Current:
Power consumption:
Included external power supply
110 to 240 VAC
±
10%
200 mA
DC jack, positive center
12 VDC
110 mA
1.5 watts max.
Cable Specifications
PBe to DVR
Part number:
Communication type:
Connector type:
Length:
4310-0034B
RS-232
RJ45
5 ft. (1.52 m)
Figure 11. 4310-0034B cable
Pin 1
Pin 1
27
28 ProBridge Ethernet
User Manual
PBe to PC
Part number:
Communication type:
Connector type:
Length:
4310-00061
RS-232/Null Modem
DB9-F, DB9-F
6 ft. (1.82 m)
Figure 12. 4310-0061 cable
PBe Ethernet cable
Part number:
Communication type:
Connector type: length:
4310-0040
Ethernet
RJ45, RJ45
6 ft. (1.83 m)
Figure 13. 4310-0040 PBe Ethernet
29
30 ProBridge Ethernet
User Manual
Contacting technical support
For assistance installing, operating, maintaining, and troubleshooting this product, refer to this document and any other documentation provided. If you still have questions, you may contact technical support during normal business hours (Monday through Friday, excluding holidays, between 6 a.m. and 5 p.m.
Pacific Time).
Table 8.
Sales and support contact information
Phone
Fax
Sales Technical support
Toll-free: 888.GESECURity (888.437.3287 in the US, including
Alaska and Hawaii; Puerto Rico; Canada).
Outside the toll-free area: 503.885.5700. [email protected]
800.483.2495
541.752.9096 (24 hours/day)
Note: Be ready at the equipment before calling for technical support.
Online publication library
Another great resource for assistance with your GE product is our online publication library, available to all of our customers. To access the library, go to our website at the following location: http://www.gesecurity.com
In the Tools area at the top, click the Publication Library link.
After you register and log on, you may search through our online library for the documentation you need.
1
1.
Many GE documents are provided as PDFs. To read these documents, you will need Adobe Acrobat Reader, which can be downloaded free from Adobe’s website at www.adobe.com.
advertisement
Related manuals
advertisement
Table of contents
- 5 Introduction
- 6 Conventions used in this document
- 6 Safety terms and symbols
- 7 Overview
- 7 Compatibility
- 7 Disclaimer
- 8 Product contents
- 8 Figure 1. Product contents
- 8 Other required equipment
- 9 Installation environment
- 9 Power specifications
- 11 Installation
- 11 PBe components
- 11 Figure 2. PBe landmarks
- 12 Typical system layout
- 12 Figure 3. Multiple ATM system layout
- 13 Installation overview
- 13 Required information
- 14 Required DIP switch information
- 14 Table 1. Important switch assignments
- 14 Table 2. Default switch settings
- 14 Installation steps
- 16 Programming
- 16 HyperTerminal configuration
- 17 Figure 4. Laptop connected to PBe
- 18 Figure 5. HyperTerminal programming mode
- 18 Figure 6. Main menu
- 19 Figure 7. The PBe Set-up menu
- 20 Figure 8. The terminal IP/camera set-up menu
- 21 Figure 9. The camera/terminal IP table
- 22 Manual DIP switch configuration
- 24 DIP switch settings
- 24 SW1 switches 1 to 4
- 24 Table 3. SW1 switches 1 to 4 - monitor mode
- 25 SW1 switches 5 to 8
- 25 Table 4. SW1 switches 5 to 8 - Camera number selection
- 26 SW3 switches 1 to 8
- 26 Table 5. SW3 switches 1 to 8 - Device type
- 26 SW4 switches 7 and 8
- 26 Table 6. SW4 switches 7 and 8 - communication protocol
- 27 Accessing the Webserver
- 28 Figure 10. The PBe home page
- 29 Troubleshooting
- 29 Table 7. Troubleshooting table
- 30 Technical specifications
- 30 PBe
- 31 Cable Specifications
- 31 Figure 11. 4310-0034B cable
- 32 Figure 12. 4310-0061 cable
- 33 Figure 13. 4310-0040 PBe Ethernet
- 34 Contacting technical support
- 34 Table 8. Sales and support contact information
- 34 Online publication library
