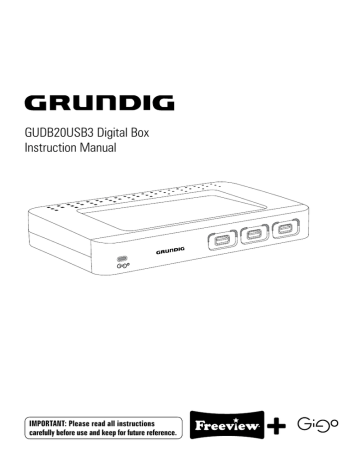

GUDB20USB3 Digital Box Instruction Manual IMPORTANT: Please read all instructions carefully before use and keep for future reference. Contents Digital TV IMPORTANT: Use of any electrical equipment should be undertaken with care. Please read the safety section on page 43 before using your Digital Box. This appliance is for household use only. 01 Your Digital Box........................ 4 Front panel Rear panel 02 Your remote control................. 5 A Digital Box lets you access the free digital channels that are broadcast in the UK. It uses a digital signal, received through your normal aerial and lets you watch it through your existing television. The Freeview+ digital TV recorder gives you up to 48 digital TV channels which you can pause, record and rewind at the touch of a button (requires a USB stick not supplied). And the real plus is that there is no subscription or contract in sight. For more information on FREEVIEW, and to check reception in your area please visit www.freeview.co.uk What’s in the box? Digital box Remote control 2 batteries (AA/LR06) OK SCART cable RF (coaxial) cable 1 2 4 5 6 7 8 9 3 0 User guide Quick-start guide AC mains adaptor 03 Connecting up.......................... 6 Getting connected Other connections 04 Getting started...................... 7-8 Install batteries in remote Using your digital box for the first time Inserting USB flash devices 05 Basic features................... 10-19 Using standby Changing channels Volume control Programme guide Now and next information Pause live TV Instant record Record live TV Managing clashes Alternative recording Record using the programme guide Series record Split programme Play Fast-forward a recording Rewind a recording Skip Pause playback Stop playback Delete a recording Schedule record summary Schedule reports Using audio description Using subtitles Using digital text Help pages 06 Advanced features............ 21-31 Favourites Parental control Censorship Accessibility set-up Using the main menu Recording schedules Using a VCR/DVD with your digital box Managing your recorded programmes Recorded programme icons Copy Search recorded programmes Sort by name or by date Rename a recording Channel organiser TV set-up Setting the viewing standard General set-up 07 Device management......... 32-34 Free Space Capacity Status Formatting Compatible devices and formats Lights on the front of the digital box 08 Retuning instructions....... 35-36 Retune channels 09 Troubleshooting................ 37-41 Understanding the messages on your digital box General problem solving 10 Specifications........................ 42 Digital TV switchover 01 Your digital box Your remote control Front panel Power On/Off LED flashes green and red when remote control is activated USB •• Green LED On when ready, flashes when playing USB • Green LED On when ready, flashes when playing USB ••• Green LED On when ready, flashes when playing 02 [�] Switches the receiver on and off (into standby). [HELP] Enters and exits the [MUTE] Turns the digital box volume off and on. [TEXT] Gives digital teletext, help screen. where available. [SWAP] Switches between the channel you’re watching and the channel you were previously watching. HELP channels. [VOL + –] Increases or lowers the digital box volume. [P + –] Goes up and down [pqtu] Moves [OK] Selects the options on the channel list. around the on-screen menus. USB • Red LED On when recording, flashes when copying USB ••• Red LED On when recording, flashes when copying USB •• Red LED On when recording, flashes when copying Aerial Input. Connect the aerial to this socket [MENU] Enters and exits the main menu screen. [INFO] Gives programme information on the TV screen. [•] Selects USB1 port. Instant record to USB device in port 1. [GUIDE] Shows the TV guide, also called electronic Programme guide (EPG). [••] Selects USB2 port. Instant record to USB device in port 2. [EXIT] Exits the menu system and goes back to the last programme you were watching. AUX Scart for connection to a VCR or a DVD Recorder 5 Volt DC Input [•••] Selects USB3 port. Instant record to USB device in port 3. 1 2 3 [®] [RECORD] Opens the ‘select device’ menu to record current programme. [ ] [STOP] Stops a 4 5 6 [u] [PLAY] Opens the 7 8 9 [0 to 9] Selects channels and enters your PIN. [AD] Switches audio description on and off. RF output. Connect the supplied RF cable to the TV. [ ] [FAST FORWARD] Forward search through a recorded programme. [ ] [PAUSE] Pauses live TV and starts recording. Pauses a recording or playback. recording or playback. the on-screen menu. OK [ ] [REWIND] Backward search through a recorded programme. Rear panel [TV/AV] Selects the TV input 0 recorded programmes list. [RGYB BUTTONS] The red, green, yellow and blue buttons change or go to different options when on the digital text pages. Also used for menu navigation. [SUB] Switches subtitles on and off. TV Scart Connection to TV 03 Connecting up Getting started Getting connected 1 Install batteries in remote Remove the battery cover. Insert two size AA batteries so that the ‘+’ and ‘-’ marks on the batteries match the ‘+’ and ‘-’ marks inside the unit. Replace the battery cover. Connecting to the TV with SCART TV Aerial lead 04 SCART cable RF cable 2 Plug in and switch on Insert the Digital Box mains plug into a mains socket. The standby light on the front will come on. Switch your TV on. Other connections Connecting to the TV and DVD recorder with SCART SCART cable TV Aerial lead SCART cable* RF cable DVD/RECORDER RF cable* 3 Using your digital box for the first time Press [�] on the remote control. The green power light should light up on the front panel of the digital box. Press [OK] on your remote control to begin searching for digital channels. If you cannot see the picture, go to the trouble shooting section of this guide. * Not included in the box You will then be asked to select your television type – normal or wide screen. 1. Use [t] and [u] to select. 2. Press [OK] to accept. 3. If your aerial has been correctly inserted. Press [OK] to continue. 04 Getting started Usually, the search will take between two and five minutes, depending on the digital TV service in your area. In some areas it may take longer (five to seven minutes). As channels are found, their names are listed on the TV screen. When the scan has finished, the digital box will automatically switch to the first channel in the list. Getting started 4 04 Inserting USB flash devices You can insert a USB device at any time. Recommended USB flash device: USB2.0 HS (high speed) formatted as FAT32 is compatible and should be used to ensure the best user experience. Please insert a suitable device. Read the ‘Compatible devices and formats’ section on page 33. The receiver may pick up channels from more than one region and you will be asked to select the region you want to watch channels from. Insert the flash device into one of the USB ports labelled [•], [••] and [•••]. Look at the image below for guidance. • Press [p] and [q] to select and [OK] to choose. After a few seconds the green light next to the port should turn on indicating the USB device has been inserted correctly and is in ‘ready’ status. You can now explore and enjoy the channels available on your digital TV service. You can now record, play and copy to this device. First make sure the digital box is positioned over a stable and even surface. If the light does not turn on, the device is faulty, unformatted or is not a suitable device. Don’t Forget! When inserting a USB device you may want to place one hand on top of the digital box to ensure it doesn’t move. 05 Basic functions Basic functions Using standby Changing channels Programme guide When you’re not watching TV, you should set your digital box to standby. 1. Press [CH+] or [CH-] on your remote control to move through the channels. To do this The [SWAP] button lets you keep an eye on two TV channels by switching between the programme you are watching and the programme you were previously watching. So you can ‘hop’ between the two channels. The Programme guide shows a full list of channels and programmes that are available for the next eight days. 1. Press [�] to switch between on (green light on) and standby (red light on). If no recordings are scheduled in the next 2 hours after 10 seconds the digital box will go into low power mode. This is to save energy. The red light will turn off. 1. To come out of low power mode press [�]. Whilst the box wakes up you will see the following message. This takes a few seconds. The box will automatically wake from low power mode every 2 hours and check for scheduled recordings. The red light will be on during this time. After 2 hrs. 59 min. of inactivity the box will automatically go into low power mode. 10 Don’t Forget! Press and hold [p] or [q] to move a page up and a page down. 2. To highlight a channel press [p] or [q]. Reminder 3. Press [OK] to view. The reminder feature makes sure you never miss your favourite programmes. Using the programme guide 1. Press one of the buttons [0] to [9] then press [OK]. 1. Press the [guide] button. To select two or three digit channels (10 to 999), press the number buttons you need after each other, then press [OK]. 3. To move through the programmes press [t] and [u]. A message will appear on screen before this occurs. To cancel press [RED]. If you plan to leave your digital box unattended for a long time, put the digital box on standby and wait 20 seconds before switching it off at the mains. Volume control Don’t Forget! Scheduled recordings will not take place if the box is switched off at the mains. 2. To watch a current programme, highlight the programme and press [OK]. 1. Press [OK] when watching live TV to display list of all channels. If you do not press [OK], the digital box will change to the selected channel after about one second. 1. To set a reminder, highlight a future programme and press [green]. 3. To exit the programme guide without changing channel, press [exit], [guide] or the [red] button. To view a channels list To choose a particular channel The green light will turn on and so will the digital box. 05 1. Press [Vol+] to raise the volume and [Vol-] to lower the volume of your digital box. 2. Press [p] or [q] to move through the list of channels. 4. To move forwards one day, press [blue]. To move backwards, press [yellow]. 5. To preview a current programme in the small inset screen, highlight the programme and press [info]. 6. To see a favourites list, press [green]. When you set a reminder for a programme, there will be a reminder message on screen when the programme starts. To set a reminder 1. Press the [guide] button. 2. To set a reminder, highlight a future programme and press [green]. The programme will be highlighted in green. To watch a reminder programme When the reminder message appears press the [red] button to cancel or [OK] to watch it. 7. To record the selected programme press the [®] button. 8. To select a device press [•], [••] or [•••] or use [t] and [u] then press [OK]. The programme will be highlighted in red. 11 05 Basic functions Basic functions Now and next information Pause live TV Instant record Record live TV Now and next gives you information on the current and next programmes on each channel. Pause live TV, lets you pause a programme that you are watching and continue watching it later. Instant record, lets you record the channel you’re watching at the touch of a button. To record a programme that you’re watching or that is about to start. 1. To open the now and next menu press [info]. This shows information on the programme showing now. To pause live TV Press [•], [••] or [•••] to start recording. 1. Press the [®] button. The ‘device selection’ menu will open. If subtitles are available the sub icon will appear. 1. While watching TV, press [PAUSE]. This will freeze the picture and sound. 1. To see information on the programme showing next, press [u]. 2. To change the channel you want information for press [p] or [q]. 3. To watch the highlighted channel press [OK]. 4. To exit the now and next menu without changing channel press [exit]. The ‘Recorded programme’ banner will be displayed, indicating how long the programme has been paused. The remainder of the programme is automatically recorded onto the USB device inserted with the most available free space. To continue watching a paused programme 1. Press [PLAY]. To go back to watching live TV 1. Press [STOP]. To show the name and duration of the programme showing now. 1. Press [u] when watching live TV. Follow the on screen instructions -as above - to view information on other channels or watch another channel. 12 05 Paused programmes will appear on the ‘recorded programmes list’ like all other recordings. The programme will be recorded onto the device selected. If no device is inserted or the device selected does not have enough free space for the recording the ‘device selection’ menu will open. 1. To select a device press [•], [••] or [•••] or use [p] and [q] then press the [OK] button to begin recording. Don’t Forget! While recording it is also possible to watch a previously recorded programme. 2. To select a device press [•], [••] or [•••] or use [p] and [q] then press the [OK] button to begin recording. 3. To cancel press [RED] If [OK] is not pressed within 30 seconds, the recording menu will clear and the recording will be cancelled. To stop/cancel a recording 1. Press the [STOP] button and follow the on-screen instructions. Don’t Forget! When watching a paused programme. Fast-forwarding through the adverts is a good way of catching up with the live broadcast. 13 05 Basic functions Basic functions Managing clashes Record using the programme guide Series record If the programme you want to record clashes with another programme or series scheduled the ‘recording clash’ screen will show the clash. The easiest way to schedule a recording is by using the programme guide. This lets you review 8 days of programmes and quickly choose the ones you wish to record. If the programme you want to record is part of a series you can set to record the entire series when setting a recording. 05 In the ‘Recorded library’ the programme will appear split - as more than one recording. Play 1. Press [GREEN] to record an entire series. To watch a recorded programme The S icon will show a series schedule is booked. 1. Press [PLAY]. The ‘schedule screen’ will show any clashes in your schedule over the next 8 days and allow you to save your schedule. 1. Use [p] and [q] to select. 2. Press [RED] to cancel the recording you are scheduling. 3. Press [BLUE] to cancel the clashing schedule. 4. When you have cancelled the clash press [OK] to schedule.. Don’t Forget! If the programme you want to record clashes with a scheduled series, pressing [BLUE] will cancel recording all the episodes in the series schedule.. Alternative recording If the programme you want to record clashes at the time you are setting the recording but is free at another time, possibly on another channel, the recording will be scheduled. The A icon will show an alternative schedule is booked. 14 Record using the programme guide 1. Press the [GUIDE] button. 2. To select a device press [•], [••] or [•••] or use [t] and [u]. 2. Press [p, q, t, u] to highlight the programme you want to record. 3. Press [•], [••] or [•••] to set a recording on the selected device. or 1. Press the [®] button. The ‘device selection’ bar will be displayed. 1. To select a device press [•], [••] or [•••] or use [t] and [u] then press the [OK] button to set a recording. The chosen programme will be highlighted in red, marked R and will be added to your ‘Recording schedule’. 1. To cancel press [RED]. 1. Use [p] and [q] to select. 3. Use [p] or [q] to select the programme you want to watch. 2. Press [RED] to cancel the recording you are scheduling. 3. Press [BLUE] to cancel the clashing schedule. 4. Press [OK] to save the schedule. 4. Press [OK] or [PLAY] to start playback. Split programme 5. Use [p] or [q] to select a play option. If the programme you are scheduling is split, for example either side of the news, the schedule will be set to record after the break. 6. Press [OK] or [PLAY] to start playback. icon will indicate the rest of the The recording is scheduled. 15 05 Basic functions 05 Fast-forward a recording Skip Delete a recording Schedule record summary While watching a recording, you can fastforward through the programme. Whilst watching a recording you can skip forward (through adverts for example) in 30 second, 1, 2, 3, 5 and 10 minute blocks. 1. Press [PLAY] to enter the ‘recorded library’ The ‘Schedule record summary’ works out how many recordings you have scheduled with in a time frame and how much recording space is needed for each USB device. It allows you to view 24 hrs. and 8 days of scheduled recordings. To fast-forward 1. Press [FAST-FORWARD]. 2. Press [FAST-FORWARD] again to step up through the fast-forward speeds (x3, x6, x12, x24, x48). 3. Slow down the speed of fast-forward by pressing the [REWIND] button. 4. Fast-forward will continue until you press [PLAY], [PAUSE] or [STOP] or until you reach the end of the recording. When you reach the end of the recording, the ‘Recorded library’ will open. To set the Skip duration: 1. Press [MENU], highlight ‘System set-up’ and press [OK]. 2. Highlight ‘Recorded programme’ option and press [OK]. 3. Highlight ‘Skip duration’ and press [OK]. 4. Use [t] and [u] to change the skip duration. To skip 2. Press [•], [••] or [•••] or use [t] and [u] to select a device. 3. Use [p] and [q] to highlight the recording you want to delete and then press [BLUE]. The DELETE icon will appear next to the recording you want to delete. 1. Press [OK]. The ‘Confirm Delete’ menu will open. 1. To cancel deletion, press [RED]. 2. To confirm deletion, press [BLUE]. If you are fast forwarding a paused programme, when you reach the end you will go back to watching live TV. 1. Press [u] once to skip forward by the set ‘Skip duration’. (If, for example, you set the record duration to 2 minutes it will skip forward by 2 minutes. Alternatively, press [t] once to skip back by 2 minutes. 1. Press [MENU]. Rewind a recording 2. Press [u] twice to skip forward 4 minutes and so on. 2. Press [q] to highlight ‘Recording planner’ and press [OK]. Pause playback 3. Press [q] to highlight ‘Schedule record summary’ and press [OK]. While watching a recording, you can rewind through the programme. To rewind 1. Press [REWIND]. 2. Press [REWIND] again to step up through the rewind speeds (x3, x6, x12, x24, x48). 3. Slow down the speed of rewind by pressing the [FAST-FORWARD] button. 4. Rewind will continue until you press [PLAY], [PAUSE] or [STOP] or until you reach the beginning of the recording, when it will pause. 16 Basic functions 1. To pause a recording you are watching press [PAUSE]. You can then press [PLAY] to resume playback, or choose one of the other playback options: fast-forward, rewind or stop. Using the Schedule Record Summary 4. Press [t] and [u] to select the time period you want to view. 2. During pause press [BLUE] to use slowmotion. Stop playback 1. To stop a recording you are watching press [STOP]. 17 05 Basic functions Basic functions 05 Schedule reports Using audio description Using subtitles The ‘schedule reports’ screen lists any scheduled recordings that have not been booked because of a clash. It list future and past attempted schedules. Many programmes are broadcast with audio description. Many programmes are broadcast with subtitles. Your digital box gives you access to digital text and teletext. To set-up audio description To set-up subtitles 1. Press [menu]. 1. Press [menu]. 2. Press [3] or use [q] to highlight ‘Accessibility set-up’ and press [OK]. 2. Press [3] or use [q] to highlight ‘Accessibility set-up’ and press [OK]. Digital text and teletext services vary depending on the country and channel. Check with your retailer or TV guide for more information about the services available. 3. Use [q] to highlight ‘Audio description’. 3. Use [q] to highlight ‘Subtitles’. 4. Use [t] and [u] to select the language you want, then press [OK]. 4. Use [t] and [u] to select the language you want, then press [OK]. To view the ‘schedule reports’ screen: Using digital text OK To switch subtitles on2 and 3off 1 1. Press [sub] on 4 your5 remote 6 control. 1. Press [MENU]. 2. Press [q] to highlight ‘Recording planner’ and press [OK]. 3. Press [q] to highlight ‘Schedule reports’ and press [OK]. 4. Press [p] and [q] to select a programme. Information about why the recording did or will not happen will appear above. 5. Press [RED] to exit. Freeview Plus checks schedules and if possible fixes clashes on a regular basis. When a clash occurs Freeview Plus will attempt to find an alternative showing for the schedule or clashing programme. 7 8 9 0 Some programmes are broadcast in more than one language. When alternative languages are available, they will be displayed in the ‘audio’ menu. 1. To see the text service on the channel you OK are watching, press [text]. 2. Depending on the service, you can see these pages by typing in the page number or by using the coloured buttons on your remote control. See the on-screen instructions for which buttons to press. Interactive digital text lets you interact with some TV programmes and channels. If a programme is interactive, the broadcaster’s interactive symbol will be on the screen. On some channels digital text is used as well as, or instead of a picture. In this case, you might need to wait a few 1 2 more 3 seconds for the information to load. 4 5 6 9 not work Don’t Forget! 7Digital 8text does when recording. 0 If an alternative is found a recording will be scheduled and marked A . If no alternative is found the schedule attempt will appear in the ‘schedule reports’. 18 19 05 Basic functions Advanced functions Help pages Favourites Editing your list The help pages give you advice and information on many of the features of this digital box. The favourites list lets you move up and down a list of channels, ignoring the channels you rarely or never watch. 1. Press [menu]. 1. To get to the help pages press the [help] button. To watch a channel that is not on your favourites list, you must type its number using the number buttons, or disable the favourites list, because [p] and [q] will skip over any channels that are not in the favourites list you are watching. Creating your favourites list 1. Press [menu]. 2. Press [4] or use [q] to highlight the ‘Favourites’ option and press [OK]. 06 2. Press [4] or use [q] to highlight the ‘Favourites’ option and press [OK]. To delete a channel from your favourites list 1. Highlight the favourites list and then press the [yellow] button. 2. Use [u] to select the stored favourite channels and [p] and [q] to highlight the channel you want to delete. 3. Press the [blue] button to delete the channel. 3. Press [green] to create a new list. 2. To select a help topic press one of the buttons [1] to [8]. 3. To go back to the index page press [0]. 4. To go to the screen being described on the help pages press [blue]. 4. Press [yellow] to edit the list. 5. Use [p] and [q] to highlight the channels you want to add and press [OK] to add each channel. You can have up to 20 channels in your favourites list. To switch Favourites On 5. To go back to the help page press the [help] button. 1. Press [menu]. 6. To go back to the previous screen you were on in the menu press the [red] button. 3. At the next screen again highlight favourites and press [OK]. 7. To exit the help pages press the [exit] button. 2. Highlight Favourites and press [OK]. Favourites are now enabled. To change the order of a list of favourite channels To switch Favourites Off 1. Highlight the favourites list and press the [yellow] button. Repeat above operation but select OFF then press the [OK] button. Favourites will be switched off. 2. Use [u] to select the stored favourite channels and [p] and [q] to highlight the channel you want to move. 3. Press the [green] button. 20 21 06 Advanced functions Advanced functions 4. Use [p] and [q] to move the highlighted channel up or down the favourite list. Censorship 5. Press [OK] to confirm the change. 1. Highlight ‘Parental control’. To delete your favourites list 2. Press [1] or use [t] and [u] to change the censorship level. 1. Highlight the list and press [blue]. Parental control Parental control options will block all channels. In the parental control menu These settings affect the whole service on your digital box. ‘4 to 18’ will block programmes with an age rating of and over what you have selected. Off will not block any channels. When a programme is blocked by the parental control set-up, you can watch the programme by entering your PIN. The parental control feature allows you to lock or unlock programmes or change the censorship options (where available) using a PIN. 06 Changing your PIN In the ‘Parental control’ menu 1. Highlight ‘Change PIN’ and press [OK]. 2. Follow the on-screen instructions. Lock and unlock individual channels In the parental control menu 1. Highlight ‘Lock and unlock channels’ and press [OK]. 2. Use [p] or [q] to highlight the channel you want to lock or unlock. 3. Press [OK] to move between the lock and unlock settings. To enter the Parental control menu 1. Press [menu] to open the main menu. 2. Press [5] or use [q] to highlight the ‘System set-up’ option and press [OK]. 3. Press [2] or use [q] to highlight ‘Channel set-up’ then press [OK]. 4. Press [2] or use [q] to highlight ‘Parental control’ then press [OK]. Don’t Forget! The censorship option only works when the broadcaster gives censorship information. 5. Type in your PIN (the default PIN is 0000). 22 Don’t Forget! To lock a channel again, switch your digital box to standby and then turn it back on. If you forget your PIN, please read the general problem solving section of this document. 23 06 Advanced functions Advanced functions Accessibility set-up Using audio language Using the main menu Accessibility set-up lets you select and change the settings of subtitles and the audio language or the current programme. Some programmes are broadcast in more than one language. You can set your preferred audio language in the ‘audio language’ menu. The main menu lets you choose and change a wide range of your digital box’s features. To set-up audio language 1. Press [menu]. 2. Press [3] or use [q] to highlight ‘Accessibility set-up’ and press [OK]. 06 Don’t Forget! The quickest way to get to the submenus is by pressing the number buttons [1 - 5] on your remote control. 1. To go to the main menu, press [menu]. 2. Use [p] or [q] to highlight a submenu. 3. Press [OK] to enter. 3. Press [4] or use [q] to highlight ‘audio language’. Using button press beep When button press beep is switched on, the digital box will beep once every time a button is pressed. 4. Use [t] and [u] to select the language you want, then press [OK]. Don’t Forget! If your selected audio language is not available, the broadcast default language will be used. The menu options To set-up button press beep 1. Press [menu]. Using audio description volume 2. Press [3] or use [q] to highlight ‘Accessibility set-up’ and press [OK]. To adjust the volume level of audio description. 3. Press [3] or use [q] to highlight ‘Button press beep’. 1. Press [menu]. 4. Use [t] and [u] to switch button press beep off or choose a volume level (low, medium or high), then press [OK]. The volume keys will not beep when ‘Button press beep’ is activated. 24 2. Press [3] or use [q] to highlight ‘Accessibility set-up’ and press [OK]. 3. Use [q] or press [5] to highlight ‘audio description volume’. 4. Use [t] and [u] to choose a volume level (-5 to 5), then press [OK]. 1 Recorded library – lets you save, rename, delete or watch your recorded programmes. 2 Recording planner – lets you schedule a recording and view a schedule record summary. 3 Accessibility set-up – lets you select and change the settings of subtitles and the audio language or the current programme. 4 Favourites – helps you move quickly between your favourite TV channels. You can have up to 10 favourites lists. 5 System set-up – lets you change how programmes are displayed on your TV, organise channels, set controls on what channels you can watch, check important information about the quality of the signal and manage your USB devices. 25 06 Advanced functions Advanced functions 06 Recording schedules Using a VCR/DVD with your digital box Managing your recorded programmes Recorded programme icons 1. Press [MENU]. To record and watch a digital channel 2. Press [q] to highlight ‘Recording planner’ and press [OK]. 1. Select the digital channel you want to record. Icons may be displayed to the right of the programmes in the ‘Recorded library’. 3. Press [q] to highlight ‘Recording schedules’ and press [OK]. 2. Select the digital box channel on your VCR or DVD, and press record or set your recording timer. Recordings are managed in the ‘Recorded library’. Your digital box lists the recordings on the devices inserted. It gives information about each programme, its duration and when it was recorded. To view the Recorded library This recording has been marked for deletion. 4. Press [q] to highlight a schedule. Don’t Forget! Your digital box must be on the channel you want to record for the full length of the recording. 1. Press [MENU], highlight ‘Recorded library’ and press the [OK] button. This is what they mean The recording is currently playing. This recording has been marked for copy. This programme is being recorded. The horizontal bar at the bottom of the ‘Recorded library’ shows how much recording time has been used on the device, and how many hours or minutes are still available. Copy You can copy programmes from one inserted device to another by using the copy feature. 5. Press [BLUE] to delete a scheduled recording. 6. Press [INFO] to view the ‘Schedule info’. This shows the next 8 days of scheduled recordings and any clashes. 2. To select a device press [•], [••] or [•••] or use [t] and [u]. Don’t Forget! A quick way to open the ‘Recorded library’ is to press [PLAY]. Don’t Forget! To exit the ‘Recorded library’ at any time press [EXIT]. 7. To return to the previous menu, press [RED]. 8. To exit to TV, press [EXIT]. 9. Press and hold [p] or [q] to page up and page down. In the ‘Recorded library’ 1. Press [•], [••] or [•••] or use [t] and [u] to select a device. 2. Use [p] or [q] to select the programme you want to copy and press [RED]. 26 3. Use [p] or [q] to select other 27 06 Advanced functions Advanced functions programmes you want to copy and press [RED] to highlight them. 4. Press [•], [••] or [•••] or use [t] and [u] to select the device you want to copy onto. Press [OK]. The confirm copy screen will appear. 2. Press [BLUE] to start copying. The copy progress screen will appear. The ‘Recorded library’ will re-open displaying a list of genre specific recordings. 1. Press [RED] to return to the ‘Recorded library’ (copying will continue). 1. Highlight the recording you want to watch and press [OK]. 2. Press [GREEN] to cancel copying. 2. Or press [YELLOW] to search another genre. 3. Press [EXIT] to watch TV. Copying will continue. To return to the ‘Copy progress’ screen at any time. 1. Press [PLAY] to enter the ‘recorded library’. 2. Press [RED] to view progress screen. Search recorded programmes The search facility lets you sift through your recorded programmes by genre, making it easy to find the recording you want to watch. Rename a recording Channel organiser 1. Press [MENU], highlight ‘System set-up’ and press [OK]. The Channel organiser lists the channels available on your digital TV service. 2. Highlight ‘Recorded programme set-up’ and press [OK]. To organise your channels 3. Highlight ‘Rename recorded programme’ and press [OK]. 1. Press [RED] to cancel copying. 06 The ‘Edit’ screen will open. 1. To select a device press [•], [••] or [•••] or use [t] and [u]. 2. Use [p] or [q] to select the programme you want to rename and press [OK]. 1. Press [menu] to open the main menu. 2. Press [5] or use [q] to highlight the ‘System set-up’ option and press [OK]. 3. Press [2] or use [q] to highlight ‘Channel set-up’. Press [OK]. 4. Highlight ‘Channel organiser’ and press [OK]. 3. Use the on-screen keyboard to rename the recording and press [GREEN] to save. Sort by name or by date You can arrange your recordings by name/ date. 1. From the ‘Recorded library’, use [swap] to toggle between sort by name and sort by date. To delete a channel 1. Press [blue]. (You will be asked for a PIN – the default is 0000.) To search your recorded programmes 1. From the ‘Recorded library’, press [YELLOW]. 2. Use [p] and [q] to skip through the different genres. 3. Highlight the genre you want to search and press [OK]. 28 29 06 Advanced functions 06 To change the order of a channel TV set-up Setting the viewing standard General set-up 1. Press [green] and then move it using [p] and [q]. To save its position, press [OK]. Television type To change the viewing standard Television type lets you tell the digital box whether you have a standard or widescreen TV. In the ‘TV set-up’ menu. If you choose to disable the low power mode and the inactivity features on your box you can do this in the general set-up menu. To rename a channel Advanced functions 1. Use [q] to highlight ‘standard’. 1. Highlight the channel you want to rename and press [yellow]. 1. Press [menu] to open the main menu. 2. Rename the channel using the on-screen keyboard. 2. If you have an RCA connector, set the standard to CVBS. 2. Press [5] or use [q] to highlight the ‘System set-up’ option and press [OK]. 3. Press [green] to save. 3. If your TV supports S-Video, set the standard to S-video. 3. Press [OK] to select the ‘TV set-up’ option. Press and hold [p] or [q] to move to a page up and a page down. 4. To change the television-type setting use the [t] or [u] buttons. Don’t Forget! Your digital box is always searching for new channels and channels that no longer broadcast programmes. Channels that no longer broadcast programmes will be marked ‘DEL’ and you should delete them. To delete a channel see the channel set-up and channel organiser sections. If you have a widescreen TV choose ‘16:9 widescreen’. If you have a normal 4:3 TV choose ‘4:3’. You can then select the widescreen option of letter box or centre cut-out. 1. Press [q] to highlight widescreen and use the [t] or [u] buttons to select. Letter box – shows a black border on the top and the bottom of the screen when you are watching a widescreen broadcast on a 4:3 TV. 1. Press [menu]. 2. Press [5] or use [q] to highlight the system set-up option and press [OK]. 3. Press [4] or use [q] to highlight the general set-up option and press [OK]. Don’t Forget! The default standard is RGB. If you’re using a normal SCART lead, this setting gives you the best picture quality. 4. Use [t] and [u] to change between on and off. 5. Press [red] to return to the previous menu. Don’t Forget! Low power mode saves energy. It is recommended you always have it set to ‘on’. Centre cut-out – trims the left and right edges of the picture. 4:3 Letter box 30 4:3 Centre cut-out 31 07 Device management The ‘Device management’ menu gives information about the devices inserted. It shows their free space, capacity and status. To view the ‘Device management’ menu 1. Press [menu]. 2. Press [5] or use [q] to highlight the ‘system set-up’ option and press [OK]. 3. Press [4] or use [q] to highlight ‘device management’. Press [OK]. Device management Recording: the device is recording. Compatible devices and formats Copying: the device is copying to or from another device. This product allows you to record your favourite programmes onto USB “Flash drives”, sometimes know as a “thumbdrive” or “pendrive”. Unformatted: the digital box cannot read the device. Format the device; this should leave all compatible devices in ‘ready’ status. If no device is inserted the message ‘Please insert a device’ will appear. Formatting Formatting erases all the contents from a UBS device and leaves it in ‘ready’ status. To format a device on the ‘Device management’ menu. 1. Use [p] or [q] to select a device. 2. To format a device press [BLUE]. Free Space This shows space available on a device, in hours and minutes. Capacity This shows total capacity of a device in hours and minutes. Status This shows the current status of a device. These are: 3. To stop formatting at any time press [GREEN]. You can turn the box into stand-by and formatting will continue. Don’t Forget! Formatting will clear the device of all recordings plus any other files stored in the device. There are many kinds of USB flash drives but not all are compatible with this product. What USB device do I use? USB2.0 HS (high speed) is compatible and should be used to ensure the best user experience. Avoid FS (Full speed) or LS (low speed) devices as they will not work with this product. USB1.1 devices are not recommended. What format should it have? FAT32 - Most USB2.0 HS flash drives will be formatted as FAT32. If you insert a USB2.0 HS flash drive and it is unformatted you can format it. Please refer to Formatting on page 28 for details. USB Hard disk drives can also be used, provided they are FAT32 and are self powered (ie have an external power supply). Don’t Forget! Some flash drives are partitioned and have secure areas. These devices cannot be read by the box and must be re partitioned on a computer. 07 Don’t Forget! The use of the ports for other types of devices (such as charging mobile phones) is not recommended and may cause the box to fail. Download and Playback on a PC/Mac Once you have recorded onto a USB device you can download the content on your computer (PC or MAC) to archive or watch it. Download The download process is the same as with all files on USB. Recordings will be stored in MPEG2-TS format. Playback To playback your recordings on your computer you will need to view them on a media player that reads MPEG2-TS format. Archiving When archiving files on your computer you can change the name of the files but do not change the .MPG ending to the file. Don’t Forget! The box cannot read files that are in folders or that are encrypted. Make sure the programmes you would like to view are stored in the root directory of the USB device. Ready: the device is inserted correctly and ready to play, record or copy. 32 Playing: the device is playing back a recording. 33 07 Device management Retuning instructions Lights on the front of the digital box Retune channels If the light on the left of the box is red the digital box is in standby. When the digital box is turned on the light will be green. It also indicates the remote control is working by flickering between green and red. If you are missing channels, channel information or would like to search for new channels available, you should scan at any time. 1. Press [menu]. What the lights on USB ports mean: 2. Press [5] or use [q] to highlight the ‘System set-up’ 3. Press [2] or use [q] to highlight ‘Channel set-up’ When the USB device is playing or copying to another device the relevant green light shall flash. 4. Press [3] or use [q] to highlight ‘Channel Tuning: Full scan’ option to start a full scan and replace all existing channels. When the USB device is recording the relevant red light shall be lit. ‘Channel tuning: full scan’ scans for new channels and adds them to your line-up. It then deletes all channels that are no longer broadcast. If you cancel this scan part way through, you will keep your existing channels. When the USB device is being copied to by another device the relevant red light shall flash. 1. Press [p] and [q] to select and [OK] to choose. To retune channels Each USB port on the front of the digital box has two lights, one green and one red. When the USB device has been inserted correctly and is in ready status the green light shall be lit. 08 The receiver may pick up channels from more than one region and you will be asked to select the region you want to watch channels from. 34 35 08 Retuning instructions Troubleshooting Auto retune and associated messages Auto retune messages A signal is sent out by the broadcaster when channels change or new ones are available. Auto retune (assisted retune) picks up this signal and automatically scans for new channels. This can happen at any time and may happen more than once during the digital switchover. You can adjust this so the retune starts with or without your permission. You can also receive messages about changes that are happening in the future. There are three types of message. Message Possible cause No channels. No channels have been stored on The digital box needs to be tuned the digital box. into the available broadcasts. See the channel set-up section of this document. Minor – retune information, user action is not needed. Encrypted channel. The channel may have been encrypted by the broadcaster. Try switching to a different channel. Information – other broadcast information, not needing a retune. No signal. Your TV aerial may not be connected properly. The signal from your aerial may be too high, too low or distorted by something between your aerial and the digital box. Check your aerial and any connections between the aerial and the digital box. Try re-scanning the channels (see section –channel tuning). You may need to speak to an aerial installer No channel. No channels added. Your digital box was not able to find and decode any digital channels while it was setting up. Check all of the aerial connections. Check that the digital signal is available in your area. For more information about digital TV reception, please visit www.freeview.co.uk Censored channel. Locked channel. The channel has been censored or locked by the parental-control settings. Type in your PIN to watch a channel. Don’t Forget! You may see retune messages more than once before a retune. Adjusting the auto retune messages 1. Select ‘Auto retune’. 2. Use [t] and [u] to change the auto retune settings. 3. Press [OK] to accept. Always ask – a ‘confirm retune screen’ will appear before a retune. Always start – retune starts automatically, warning you during the retune. You can choose how the messages will appear on your receiver. In the channel set-up menu 1. Select ‘Auto retune messages’. 2. Use [t] and [u] to change the auto retune messages settings. All – shows all types of messages. No minor – shows ‘information’ and ‘major’ messages. Information only – shows ‘information’. None – no messages will be shown unless auto retune is set to ‘Always ask’, when ‘major’ messages will be shown. 36 Understanding the messages on your digital box Major – retune information and user action is needed. In the channel set-up menu 09 What to do Unable to complete An unknown error has occurred copy due to an error. when copying. Try copying again onto another device. Unable to continue with the copy due to the device being removed. The device was removed during the copy process. Re insert the device and start copy again. Unable to copy any more due to the device running out of space. The device being copied to has run out of space during the copy process. Insert another device and start copy again. 37 09 Troubleshooting Troubleshooting 09 General problem solving (USB1, USB2 or USB3) is now full. The current recording has stopped. The device being recorded to has run out of space during the record process. Insert another device and press [®]. You will lose some of the programme. The recording will be split over the 2 devices. A recording has not started due to no device present in (USB1, USB2 or USB3). A USB device was not inserted in the correct slot when the recording was scheduled to start Insert a device and re schedule the recording. (USB1, USB2 or USB3) has been removed. The current recording has stopped. The USB device was removed when recording therefore the recording has stopped. Re insert the device and re schedule the recording. A recording has not started as (USB1, USB2 or USB3) is full. The USB device inserted in the slot when the recording was scheduled to start was full. Device is too slow to use. The device inserted does not meet the required specification and will not work well with this product. Remove the full device. Insert a device with free space and re schedule the recording. What happens What to do You cannot see the opening picture (Press OK to start) from the digital box. Select the AV channel using the button on your TV remote control marked AV, EXT, TV/AV, O/E or a symbol, or read your TV manual. Make sure both ends of your SCART cable are firmly connected to the relevant sockets. Make sure you followed the instructions for setting up your digital box correctly. Your remote control isn’t working. Make sure you are pointing the remote control directly at your digital box and that nothing is in the way. Check that the remote-control light works when you press a button. Check the batteries are in the right way round. Try replacing the batteries. Subtitles do not appear although they are set to ‘on’. Some programmes broadcast without subtitles. The digital box does not seem to work and there is nothing shown on the TV. Is the green power light on? If the light is not on: 1. press the [�] button on your remote control; 2. make sure that all cables are firmly connected to the digital box and TV/VCR; and Use the ‘Schedule record summary’ to check how much free space is needed for scheduled recordings. 3. check that the digital box is properly plugged into the power supply. Insert a compatible device. Please refer to the ‘Compatible devices and formats’ section on page 33. 1. check you have the correct channel and input selected on your TV; If the light is on: 2. check that all cables are correctly attached; 3. make sure the VCR/DVD is switched off if it is connected to the digital box; and 4. check if your VCR/DVD is causing the problem by disconnecting the VCR/DVD. The picture appears to be ‘squashed’ or ‘cut off’. Make sure your TV settings are correct. Please refer to page 30 of this guide. I forgot to plug in the aerial Switch off your digital box at the mains supply. Plug in the when I set up the digital aerial. Switch the digital box mains supply back on. Please read box. section about channel tuning. 38 39 09 Troubleshooting The picture or sound keep breaking up. Troubleshooting There are several possible causes of this type of problem. Your signal may be weak, you may have an old, lowperformance or damaged aerial, or the cable between your aerial and TV may be damaged. Check for any obvious damage to the aerial and cables and make sure that the connectors are properly fitted. If this does not work, get a professional to check installation – your aerial may provide a better signal if it is moved somewhere else. Please remember that older aerials and indoor aerials aren’t as effective as new outdoor and roof aerials. Or, try using a signal amplifier or booster to improve the reception. Check the digital TV coverage in your area. For more information about digital TV reception, please visit www.freeview.co.uk No channels were found when searching for channels. I am missing some channels. 40 Some TV channels are not available in every area. For more information about digital TV reception, see the general information section. Your signal may be weak. Get a professional to check your installation – your aerial may provide a better signal if it is moved somewhere else. Please remember that older aerials and indoor aerials aren’t as effective as new outdoor and roof aerials. Or, try using a signal amplifier or booster to improve reception. You may need to scan the digital channels again. Please read the section about channel tuning. I cannot see digital channels after I have moved the digital box to a different house. Scan for channels again. Please read the section about channel tuning. It is possible that the aerial at your new house is not able to receive digital TV or that there is a poor signal in your area. For more information about digital TV reception, please visit www.freeview.co.uk I have forgotten my PIN. Press [menu]. Press [5] or use [q] to highlight ‘System set-up’ and press [OK]. Select ‘software reset’ and press [OK]. You will see the PIN screen. Type in 8500. Press [OK] again to reset the software. When the digital box shuts down, switch it off at the mains and leave it for 10 seconds before switching it back on. After you switch the digital box on, press [OK] when you are asked to and the digital box will automatically scan for channels. Please remember You will lose all your previous settings when you reset the software. 09 The digital box is behaving in an unusual way, for example, the wrong information is on the screen. Press the [�] button on your remote control to turn the box off and then on again. If there is no improvement, put the box on standby, switch it off at the mains and leave it for 10 seconds before switching it back on. If this does not work, reset the software Press [menu]. Press [5] or use [q] to highlight ‘System set-up’ and press [OK]. Select ‘software reset’ and press [OK]. You will see the PIN screen. Type in your PIN. Press [OK] again to reset the software. When the digital box shuts down, switch it off at the mains and leave it for 10 seconds before switching it back on. After you switch the digital box on, press [OK] when you are asked to and the digital box will automatically scan for channels. Please remember you will lose all your previous settings when you reset the software, your favourites list and recording schedules will be cleared. I set 5 recordings to a device but only 3 were recorded. This could have happened for various reasons: The USB device could have been removed during recording. The USB device could have been run out of space when recording. To avoid this problem in future refer to the ‘Schedule record summary’. This helps you view scheduled recordings in periods of 24 hrs., 1 week, 2 weeks or 4 weeks. Make sure you have USB devices with enough free space inserted when a recording is scheduled. The green light is not turned on when the USB device is inserted. Press [PLAY] to view the ‘Recorded programmes list’. The screen will show one of the following messages - unformatted or device is too slow to use. Format the device or insert a compatible device. Need extra help? Need a spare part? Don’t worry we are just the other end of the phone. If you’re experiencing problems using your new product, before returning it to the retailer just call 0871 230 1777 or visit www.grundig.co.uk In the unlikely event of requiring spare parts, please contact our spare parts department on: 0871 230 0790 41 10 Specifications Tuner and channel Warnings • RF input connector (IEC-TYPE, IEC169-2, female) • RF output connector (IEC-TYPE, IEC169-2, male) • Frequency range: 470MHz ~862MHz (UHF) Decoder • Transport stream MPEG-2 ISO/IEC 13818 • Profile level MPEG-2 Main profile @main level • Input rate MAX. 15Mbit/s • Video format 4:3/16:9 Switchable • Audio format MPEG Layer I & II, 32 / 48KHz • Video output RGB, CVBS Connection • Mains Plug top type • Tuner Antenna input • Video RGB and composite video output, twin scart • Audio Stereo audio output on SCART • Data port Triple USB 2.0 HS Power supply • Input voltage AC 230V ~50Hz • Power consumption MAX. 10W/standby <4.5W • Unqualified attempts to repair this Digital Box will invalidate the warranty. • Refer repairs to this Digital Box to a qualified service personnel only. • Do not disassemble this Digital Box. • There are dangerous-voltage parts inside that may cause electric shock even after power is disconnected. • Store your Digital Box in a clean, dry environment. • Unplug the Digital Box immediately if it gets wet, and consult a servicing technician. • Always unplug the Digital Box before cleaning it. • Wipe dust off the cabinet of the Digital Box with a clean, dry and soft cloth. • Do not place any objects on top of the Digital Box. • Avoid exposing your Digital Box directly to sunlight or other heat sources. Safety Tips If smoke, abnormal noise or odour comes out of this Digital Box, unplug from the mains supply immediately and contact the retailer. Never try to repair the Digital Box on your own. Always contact the dealer for repairs. Note This manual contains for-reference-only graphics and information that are subject to change without notice. WEEE This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. • Put your Digital Box in a well-ventilated area away from high humidity. • Do not expose this Digital Box to rain or moisture, dripping or splashing. IMPORTANT: Due to continual revision and improvements to our products design, specifications are subject to change without notice. • For stubborn stains use a damp (not dripping) cloth. • Do not use any cleaning solutions on this Digital Box. 42 43 44 Digital TV switchover 45 Retune channels If you are missing channels, channel information or would like to search for new channels available, you should scan at any time. To retune channels 1. Press [menu]. 2. Press [5] or use [q] to highlight the ‘System set-up’ 3. Press [2] or use [q] to highlight ‘Channel set-up’ 4. Press [3] or use [q] to highlight ‘Channel Tuning: Full scan’ option to start a full scan and replace all existing channels. The receiver may pick up channels from more than one region and you will be asked to select the region you want to watch channels from. 1. Press [p] and [q] to select and [OK] to choose. ‘Channel tuning: full scan’ scans for new channels and adds them to your line-up. It then deletes all channels that are no longer broadcast. If you cancel this scan part way through, you will keep your existing channels. For other ways to retune please read the ‘Retune Instructions’ section of this guide. 46 Kev058701 Rev141209 www.grundig.co.uk 0871 230 1777
