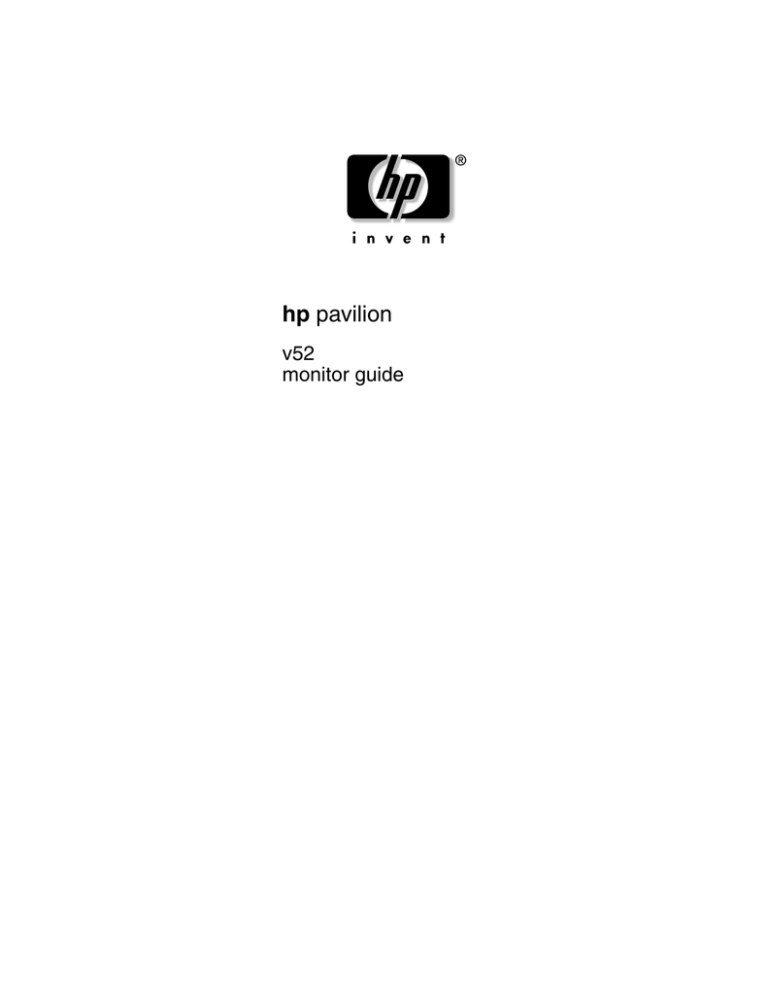

hp pavilion
v52
monitor guide
© 2003 Hewlett-Packard Company. All rights reserved.
Hewlett-Packard is a registered trademark of Hewlett-Packard Company in the United States of America
and other countries/regions.
Other brand or product names are trademarks of their respective holders.
The information in this document is subject to change without notice.
Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not
limited to, the implied warranties of merchantability and fitness for a particular purpose.
HP shall not be liable for errors contained herein or for incidental or consequential damages in connection
with the furnishing, performance, or use of this material.
HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished
by HP.
This document contains proprietary information that is protected by copyright. All rights are reserved.
No part of this document may be photocopied, reproduced, or translated to another language without the
prior written consent of HP.
Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015-4010
USA
Å
WARNING: Text set off in this manner indicates that failure to follow directions could
result in bodily harm or loss of life.
Ä
CAUTION: Text set off in this manner indicates that failure to follow directions could result
in damage to equipment or loss of information.
set off in this manner indicates important information the user should make
✎ Text
note of.
Contents
Introduction
Kit Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Safety and Maintenance Guidelines
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Power Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Important Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Removing the Monitor Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3
Installation
Monitor Base Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
Monitor Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2
Speaker Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3
Operation
Information Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
Installing Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3
On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4
On-Screen Display Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5
Monitor Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
No Signal Message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
Out of Frequency Range Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7
Using the Energy Saver Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8
Troubleshooting
Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–1
Preparing to Call Technical Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3
Technical Specifications
HP Pavilion v52/15" Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1
v52 Monitor Guide
iii
Contents
Agency Regulatory Notices
Federal Communications Commission Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Declaration of Conformity for Products
Marked with FCC Logo, United States Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
European Union Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EPA Energy Star Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Cord Set Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
iv
C–1
C–1
C–1
C–2
C–2
C–2
C–2
C–3
C–3
v52 Monitor Guide
1
Introduction
Your microprocessor-based, digitally controlled color monitor is a high-performance and
easy-to-use product. It employs the latest on-screen menu technology.
Kit Contents
Your monitor kit should contain:
■
CRT monitor
■
Monitor Base (pre-attached on selected models)
■
AC power cord
■
Speakers
■
Speaker power adapter
■
Documentation kit
v52 Monitor Guide
1–1
Introduction
1–2
v52 Monitor Guide
2
Safety and Maintenance Guidelines
Safety Guidelines
Power Requirements
Refer to the “Power Cord Set Requirements” section in “Agency Regulatory Notices,” for
information on the correct power cord set for this device.
Important Safety Information
Å
WARNING: To reduce the risk of electric shock or damage to your equipment, do not disable
the power cord grounding feature. This equipment is designed to be connected to a grounded
(earthed) power outlet that is easily accessible to the operator. The grounding plug is an important
safety feature.
Å
WARNING: For your safety, be sure that the power outlet you plug the power cord into is easily
accessible and located as close to the equipment as possible. When you need to disconnect the
power to the equipment, unplug the power cord from the power outlet by grasping the plug firmly.
Never pull on the cord.
Ä
CAUTION: For the protection of your monitor, as well as your computer, connect all power cords
for your computer and its peripheral devices (such as a monitor, printer, scanner) to some form of
surge protection device such as a power strip or Uninterruptible Power Supply (UPS). Not all
power strips provide surge protection; the power strips must be specifically labeled as having this
ability. Use a power strip whose manufacturer offers a Damage Replacement Policy so you can
replace your equipment if surge protection fails.
Maintenance Guidelines
To enhance the performance and extend the life of your monitor, follow these guidelines:
■
Do not open your monitor cabinet or attempt to service this product yourself. If your
monitor is not operating properly, or has been dropped or damaged, first unplug from
power outlet, and then contact your authorized dealer, reseller, or service provider.
■
Adjust only those controls that are discussed in the operating instructions.
■
Place your monitor at least 3 inches (76 mm) away from walls or other enclosures.
■
Use only a power source and connection appropriate for this monitor, as indicated on
the label/back plate of the monitor.
v52 Monitor Guide
2–1
Safety and Maintenance Guidelines
Ä
2–2
■
Be sure the total ampere rating of the products connected to the outlet does not exceed
the current rating of the electrical outlet, and the total ampere rating of the products
connected to the cord does not exceed the rating of the cord. Look on the power label
to determine the ampere rating (AMPS or A) for each device.
■
Install your monitor near an outlet that you can easily reach. Disconnect the monitor by
grasping the plug firmly and pulling it from the outlet. Never disconnect the monitor by
pulling the cord.
■
Turn your monitor off when not in use. You can substantially increase the life of your
monitor by using a screen saver program and turning off the monitor when not in use.
■
Unplug your monitor from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning. If the screen requires additional
cleaning, use an antistatic CRT screen cleaner.
CAUTION: Do not use benzene, thinner, ammonia, or any other volatile substances to clean your
monitor or the screen. These chemicals may damage the cabinet finish as well as the screen.
■
Slots and openings in the cabinet are provided for ventilation. These openings must not
be blocked or covered. Never push objects of any kind into cabinet slots or other
openings.
■
Do not place plants on top of your monitor. Water or dirt from the plant may get into
the vents.
■
Do not drop your monitor or place it on an unstable surface.
■
Do not allow anything to rest on the power cord. Do not walk on the cord.
■
Keep your monitor in a well-ventilated area, away from excessive light, heat, or
moisture. Keep your monitor away from high-capacity transformers, electric motors,
and other devices with strong magnetic fields.
■
In a two-monitor system, place your monitors as far apart from one another as possible
to lessen interference between them.
■
Do not place the monitor face down. Damage could result to the front panel controls or
the monitor screen.
v52 Monitor Guide
Safety and Maintenance Guidelines
Removing the Monitor Base
In the event that you need to disassemble the base from the monitor, follow these
instructions:
1. If you must remove the base attachment, release the catch and slide the base toward
the back of your monitor.
2. Lift the base up and away from your monitor.
v52 Monitor Guide
2–3
Safety and Maintenance Guidelines
2–4
v52 Monitor Guide
3
Installation
Monitor Base Installation
On some monitors, the base must be attached prior to monitor installation. If you need
to attach the base, follow these steps:
1. Align the hooks on the base with the sockets on the bottom of the monitor, and
attach the base.
2. Push the base toward the front of the monitor until it stops.
v52 Monitor Guide
3–1
Installation
Monitor Installation
Before installing your monitor, place it in a convenient, well-ventilated location near your
computer.
1. Turn off the power to your computer and other peripheral devices.
2. Connect the video cable (blue connector) 1 from the back of the monitor to the blue
15-pin connector on the back of the computer. Tighten the cable screws to secure the
cable to the connector.
Ä
CAUTION: To
avoid damaging the video cable, ensure that the cable aligns with the
15-pin connector. Do not force the cable onto the connector.
3. Connect the power cord 2 to the back of the monitor, and then connect the power cord
to a power outlet.
4. Power on your computer and monitor.
✎
If your monitor fails to function properly, refer to “Troubleshooting.”
5. If necessary, adjust the front panel monitor controls according to your personal
preference. See “Front Panel Controls” for detailed information.
Your monitor installation is now complete.
3–2
v52 Monitor Guide
Installation
Speaker Installation
Selected monitors come with speakers that must be installed. If you need to install your
speakers, follow these steps:
1. Place the control speaker 1 and the other speaker 2 on either side of your monitor.
2. Attach the speaker power cable 3 to the black connector on the back of the control
speaker 1, and then connect the AC adapter 4 into an electrical wall outlet.
3. Attach the green connector 5 from the control speaker 1 to the green port on the back
of your computer.
4. Turn on the PC, turn on the monitor, and then turn the control speaker power knob
clockwise to turn on the speakers.
1
2
5
4
3
v52 Monitor Guide
3–3
Installation
3–4
v52 Monitor Guide
4
Operation
Information Files
The CD-ROM included with this monitor contains two data files that must be installed onto
your computer: An .INF file and an .ICM file.
The .INF file designates software and defines monitor resources used by Microsoft Windows
to ensure monitor compatibility with the graphics adapter in your computer.
The .ICM file provides color matching consistency between your monitor screen and your
printer. Once installed, this file is activated by graphics programs that have this
color-matching feature.
To install these files on your computer:
1. Insert the CD-ROM disc that came with the monitor in your computer’s optical drive.
2. Perform the steps to install the drivers. See “Installing Drivers,” and choose the steps for
your operating system.
3. To get the latest .INF and .ICM files, download them from the HP Web site. Access
http://www.hp.com and follow the links to the Support page for monitors to download the
appropriate files.
Installing Drivers
The HP monitor comes with driver software allowing you to take advantage of the Plug and
Play feature of the Windows Me, Windows 2000, or Windows XP operating system. This
software enables the computer to communicate with the monitor and use all the monitor
features.
✎
HP computers may come with the Plug and Play drivers preinstalled. If you have an older
computer, these drivers may not be preinstalled and you may need to install the drivers from
the CD-ROM disc that came with the monitor.
If the installation procedure for the operating system is different, or if you need more
detailed installation information, please refer to the Microsoft Windows information that
came with the computer.
Windows 2000 users
✎
The procedure for installing the driver for your operating system may vary.
To install the driver for the v52 monitor:
1. Click Start, select Settings, and then click Control Panel.
2. Double-click Display.
v52 Monitor Guide
4–1
Operation
3. Click the Settings tab.
4. Click Advanced Properties or Advanced, and select the Monitor tab.
5. Click Properties.
6. Click the Driver tab.
7. Click Update Driver and click Next.
8. Select the recommended option, and then click Next.
9. Select the Specify a Location box.
10. Find and open the hp_v52.inf file on the CD-ROM disc in the Drivers directory, and
click OK.
11. Click Next to install the monitor driver.
Windows Me users
✎
The procedure for installing the driver for your operating system may vary.
To install the driver for the v52 monitor:
1. Click Start, select Settings, and then click Control Panel.
2. Double-click Display.
3. Click the Settings tab.
4. Click the Advanced button.
5. Select the Monitor tab.
6. Click the Change button.
7. Select the Specify a Location box.
8. Find and open the hp_v52.inf file on the CD-ROM disc in the Drivers directory, and
click OK.
9. Click Next to install the monitor driver.
Windows XP users
✎
The procedure for installing the driver for your operating system may vary.
To install the driver for the v52 monitor:
1. Click Start.
2. Click Control Panel.
3. Click Appearance and Themes.
4. Click Display.
5. Select the Settings tab.
6. Click the Advanced button.
4–2
v52 Monitor Guide
Operation
7. Select the Monitor tab.
8. Click Properties.
9. Select the Driver tab.
10. Click Update Driver and click Next.
11. Select the recommended option, and then click Next.
12. Select the Specify a Location box.
13. Find and open the hp_v52.inf file on the CD-ROM disc in the Drivers directory, and
click OK.
14. Click Next to install the monitor driver.
Front Panel Controls
Front Panel Controls
Item
Icon
Name
Function
Select
Launches on-screen displays, selects functions and
adjustments, and exits menus and On-Screen Display.
Left Adjustment
Moves backward through menu options or decreases
adjustment levels.
Right Adjustment
Moves forward through menu options or increases
adjustment levels.
Power/LED
Controls power to the monitor. The LED on the power button
indicates the state of the monitor.
1
2
3
4
v52 Monitor Guide
4–3
Operation
On-Screen Display
The On-Screen Display (OSD) adjusts the screen image based on your viewing preferences.
To access the OSD, do the following:
1. If the monitor is not already on, press the Power button to turn on the monitor.
2. Press the Select button to display the On-Screen Display menu. A screen similar to this
one appears. For a description of the icons that appear on the screen, see “On-Screen
Display Functions” later in this chapter.
✎
Not all OSD features are available on all models. The OSD for your monitor may be
different. See “On-Screen Display Functions” for a features list for your model.
3. To move to a function, press the Right-Adjustment or Left-Adjustment button on the
front panel of your monitor until the function is highlighted.
4. Press the Select button on the monitor to choose the function.
5. The adjustment window is displayed. Press the Right-Adjustment or Left-Adjustment
buttons to increase (Right) or decrease (Left) the level of adjustment.
6. Press Select to save the new adjustment.
7. To exit the On-Screen Display, select the Exit icon and press the Select button once.
4–4
v52 Monitor Guide
Operation
On-Screen Display Functions
Use the Right-Adjustment and Left-Adjustment buttons found on the front control panel
of your monitor to adjust these functions.
✎
The shaded area indicates that this function is available in the model indicated.
On-Screen Display Icons and Functions
Icon
v52 Monitor Guide
Function
Description
v52
Contrast
Right-Adjustment increases the contrast, and
Left-Adjustment decreases the contrast.
Brightness
Right-Adjustment increases the brightness,
and Left-Adjustment decreases the
brightness.
Horizontal
Position
Right-Adjustment moves the image to the
right, and Left-Adjustment moves the image
to the left.
Horizontal
Size
Right-Adjustment increases the horizontal
size, and Left-Adjustment decreases the
horizontal size.
Vertical
Position
Right-Adjustment moves the image up, and
Left-Adjustment moves the image down.
Vertical Size
Right-Adjustment increases the vertical
size, and Left-Adjustment decreases the
vertical size.
Pincushion
Right-Adjustment makes the image sides
convex, and Left-Adjustment makes the
image concave.
Trapezoid
Right-Adjustment adjusts the image so the
top is larger, and Left-Adjustment adjusts the
image so that the bottom is larger.
Not
available
Pin Balance
Right-Adjustment moves the top and bottom
of the image to the right, and Left-Adjustment
moves the top and bottom of the image to
the left.
Not
available
Parallelogram
Right-Adjustment tilts the sides of the image
to the right, and Left-Adjustment tilts the
sides of the image to the left.
Tilt (Rotation)
Right-Adjustment tilts the sides of the image
to the right, and Left-Adjustment tilts the
sides of the image to the left.
Not
available
Moire
Right-Adjustment increases the Moire
correction, and Left-Adjustment decreases
the Moire correction.
Not
available
4–5
Operation
On-Screen Display Icons and Functions (Continued)
Icon
Function
Description
Degauss
This control demagnetizes the screen to
reduce color impurities.
v52
HP suggests you not degauss more than
once within a 30-minute period of time.
Color Temp
Right-Adjustment selects the color
temperature to the right and Left-Adjustment
selects the color temperature to the left.
Reset
This control resets the monitor to factory
default values.
Exit
This control exits the OSD menu.
Not
available
Monitor Messages
No Signal Message
If a No Signal message is displayed on your monitor, check to be sure your video cable
is properly connected and ensure that your computer is powered on.
4–6
v52 Monitor Guide
Operation
Out of Frequency Range Message
If an Out of Frequency Range message is displayed on your monitor, your video resolution
and/or refresh rate are set higher than the levels your monitor supports.
To change the video resolution or refresh rate on your monitor, follow these steps:
1. Restart your computer.
2. Enter Safe Mode on your computer. Refer to your computer’s operating system Help
for instructions on entering Safe Mode.
3. Change your display settings to a supported setting (see “Technical Specifications”).
4. Restart your computer so that the new settings take effect.
v52 Monitor Guide
4–7
Operation
Using the Energy Saver Mode
Your monitor is designed to meet strict Environmental Protection Agency (EPA) Energy Star
requirements for reduced power consumption. Using a combination of hardware and
software functions, this energy-saving feature allows your computer to control your
monitor’s power consumption and reduce your monitor’s power state when not in use.
Power Management Status for v52/15" Monitors
✎
State
LED
Color
Power
Consumption
Description
On
Green
< 80 watts
Normal Operation
Sleep
Amber
< 5 watts
Monitor screen is blank. High voltage is off. Heater voltage
is off. There is a brief warm-up period before returning to full
power mode.
Your monitor’s energy saver feature works only when your monitor is connected to a
computer that also has energy saver features.
The Energy Saver utility, with its energy saving features, is available with all Microsoft
Windows operating systems. Some features are also available in DOS. Refer to your
computer’s user guide for instructions on setting energy saver features (also referred to
as power management features).
4–8
v52 Monitor Guide
A
Troubleshooting
Solving Common Problems
The following table lists possible problems, the possible cause of each problem, and the
recommended solutions.
Problem
Possible Cause
Solution
Screen is blank.
Power cord is disconnected.
Connect the power cord.
Power switch is off.
Turn on power.
Video cable is improperly
connected.
Connect video cable properly.
Screen blanking utility is
active.
Depress any key on the
keyboard or move the mouse.
Image appears
blurred, indistinct, or
too dark.
Brightness and contrast are
too low.
Press the SELECT button
to access the On-Screen
Display. Select the Brightness
and/or Contrast icons to
adjust as needed.
Color is abnormal.
A magnetic object may be
nearby.
Move the object farther away.
Monitor may have been
moved or inadvertently
bumped.
Press the SELECT button
to access the On-Screen
Display. Select Degauss
to activate.
HP suggests you not degauss
more than once within a
30-minute period of time.
Image is too large or
too small.
v52 Monitor Guide
Horizontal width may need
adjustment.
Press the SELECT button
to access the On-Screen
Display. Select H. Size to
adjust as needed.
Vertical height may need
adjustment.
Press the SELECT button
to access the On-Screen
Display. Select V. Size to
adjust as needed.
A–1
Troubleshooting
Problem
Possible Cause
Solution
Image is not
centered.
Horizontal position may need
adjustment.
Press the SELECT button
to access the On-Screen
Display. Select H. Position
to adjust as needed.
Vertical position may need
adjustment.
Press the SELECT button
to access the On-Screen
Display. Select V. Position
to adjust as needed.
“No Signal” is
displayed on screen.
Monitor video cable is
disconnected.
Connect the 15-pin monitor
video cable to the computer.
Be sure that the computer
power is on.
“Out of Frequency” is
displayed on screen.
Video resolution and/or
refresh rate are set higher
than what your monitor
supports.
Restart your computer and
enter Safe Mode. Change
your settings to a supported
setting (see “Technical
Specifications”). Restart your
computer so that the new
settings take effect.
No speaker power.
Speaker power cord is
disconnected.
Check all speaker power
connections and make sure
they are properly connected.
Power button on right-side
speaker may be off.
Turn the power button
clockwise on the side of the
right-side speaker. Speaker
LED should illuminate.
Speaker audio plug may be
disconnected from the back
of the computer.
Make sure your audio input
jack (green connector) is
plugged into the back of your
computer.
Mute button may be
activated.
Select the Speaker icon on
your computer screen, and
deselect Mute.
Volume may be too low.
Increase volume by using
keyboard volume control or
clicking on the Speaker icon
on your computer screen and
increasing the volume level.
Volume may also be adjusted
on the speaker.
No sound from
speakers.
A–2
v52 Monitor Guide
Troubleshooting
Problem
Possible Cause
Solution
No sound from left
speaker.
Speaker audio cable is
disconnected.
Make sure the speaker
connection from the left-side
speaker is connected to the
rear of the right-side speaker.
Left speaker balance may
need to be adjusted.
Select the Speaker icon
located on your Windows
desktop, and adjust the
left-right balance accordingly.
There is not enough air space
to allow proper ventilation.
Leave at least 3 inches
(76 mm) of ventilation space
around the monitor, and do
not place objects on top of
the monitor.
Monitor is
overheating.
Preparing to Call Technical Support
If you cannot solve a problem using the troubleshooting tips in this section, you may need
to call technical support. Have the following information available when you call:
■
The monitor
■
Monitor model number
■
Serial number for the monitor
■
Purchase date on invoice
■
Conditions under which the problem occurred
■
Error messages received
■
Hardware configuration
■
Hardware and software you are using
v52 Monitor Guide
A–3
Troubleshooting
A–4
v52 Monitor Guide
B
Technical Specifications
HP Pavilion v52/15" Monitor
v52
Screen Size
15" (38 cm) visual diagonal
Viewable screen size 13.8" (35 cm)
Dot Pitch
0.28 mm (Diagonal)
Display Area Default
199 × 265 (mm) typical
Display Colors
Infinite
Display Resolutions
640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600
1024 x 768
Refresh Rates
60 Hz
75 Hz
85 Hz
70 Hz
75 Hz
85 Hz (preferred resolution)
60 Hz (maximum resolution)
Synchronization (Horizontal)
30 to 54 KHz
Synchronization (Vertical)
50 to 120 Hz
Max Pixel Clock
70 MHz Max.
Input Signal
Video RGB Analog Sync. TTL Separate
Video Cable
15-pin D-sub connector
Power Input Voltage Frequency
100 to 240V AC
50 +3 to 60 +3 Hz
Inrush Current
30 amps @ 120V
60 amps @ 220V
Power Consumption
80 W (Max.)
Dimension (W × H × D) Unpacked
w/attached base
14.4 × 15.7 × 16.5 inches (maximum)
365 × 400 × 418 mm (maximum)
Weight
29 lb Max.
13 kg Max.
v52 Monitor Guide
B–1
Technical Specifications
v52
B–2
Operating Temperature
50° F to 95° F
10° C to 35° C
Storage Temperature
–22° F to 140° F
–30° C to 60° C
Humidity
20% to 80% (non-condensing)
Altitude
Up to 10,000 ft./3048 meters
MPRII
Some models meet MPRII
Plug and Play
Yes
v52 Monitor Guide
C
Agency Regulatory Notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and the receiver.
■
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
■
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this
device that are not expressly approved by Hewlett-Packard Company may void the user’s
authority to operate the equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI
connector hoods to maintain compliance with FCC Rules and Regulations.
v52 Monitor Guide
C–1
Agency Regulatory Notices
Declaration of Conformity for Products
Marked with FCC Logo, United States Only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
For questions regarding your product, contact:
Hewlett-Packard Company
P.O. Box 69200, Mail Stop 510101
Houston, Texas 77269-2000
USA
Or, call (+1) (208) 472-4357
For questions regarding this FCC declaration, contact:
Hewlett-Packard Company
P.O. Box 69200, Mail Stop 510101
Houston, Texas 77269-2000
USA
Or, call (+1) (281) 514-3333
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
European Union Notice
Products bearing the CE marking comply with the EMC Directive (89/336/EEC) and the
Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community,
and if this product has telecommunication functionality, the R&TTE Directive (1999/5/EC).
Compliance with these directives implies conformity to the following European Norms (in
parentheses are the equivalent international standards and regulations):
C–2
■
EN 55022 (CISPR 22) — Electromagnetic Interference
■
EN55024 (IEC61000 - 4-2,3,4,5,6,8,11) — Electromagnetic Immunity
■
EN61000-3-2 (IEC61000-3-2) — Power Line Harmonics
■
EN61000-3-3 (IEC61000-3-3) — Power Line Flicker
■
EN 60950 (IEC60950) — Product Safety
v52 Monitor Guide
Agency Regulatory Notices
EPA Energy Star Compliance
Monitors that are marked with the Energy Star Logo meet the requirements of the EPA
Energy Star program. As an Energy Star Partner, Hewlett-Packard Company has determined
that this product meets the Energy Star guidelines for energy efficiency. Specific details on
using the Energy Saving features can be found in the energy saver or power management
section of the computer manual.
Power Cord Set Requirements
The power cord used with your monitor must be rated for the product and for the voltage and
current marked on the product’s electrical ratings label. The voltage and current rating of the
cord should be greater than the voltage and current rating marked on the product. In addition,
the cross section of the wire must be a minimum of 0.75 mm or 18AWG, and the length of
the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the
type of power cord to use, contact your HP authorized service provider.
A power cord should be routed so that it is not likely to be walked on or pinched by items
placed upon it or against it. Particular attention should be paid to the plug, electrical outlet,
and the point where the cord exits from the product. The monitor power supply is provided
with Automatic Line Switching (ALS). This feature allows the monitor to operate on input
voltages between 100–120V or 220–240V.
The power cord set (flexible cord or wall plug) received with the monitor meets the
requirements for use in the country/region where you purchased the equipment. For more
information on power cord set requirements, contact your HP authorized dealer, reseller or
service provider.
v52 Monitor Guide
C–3
Agency Regulatory Notices
C–4
v52 Monitor Guide
