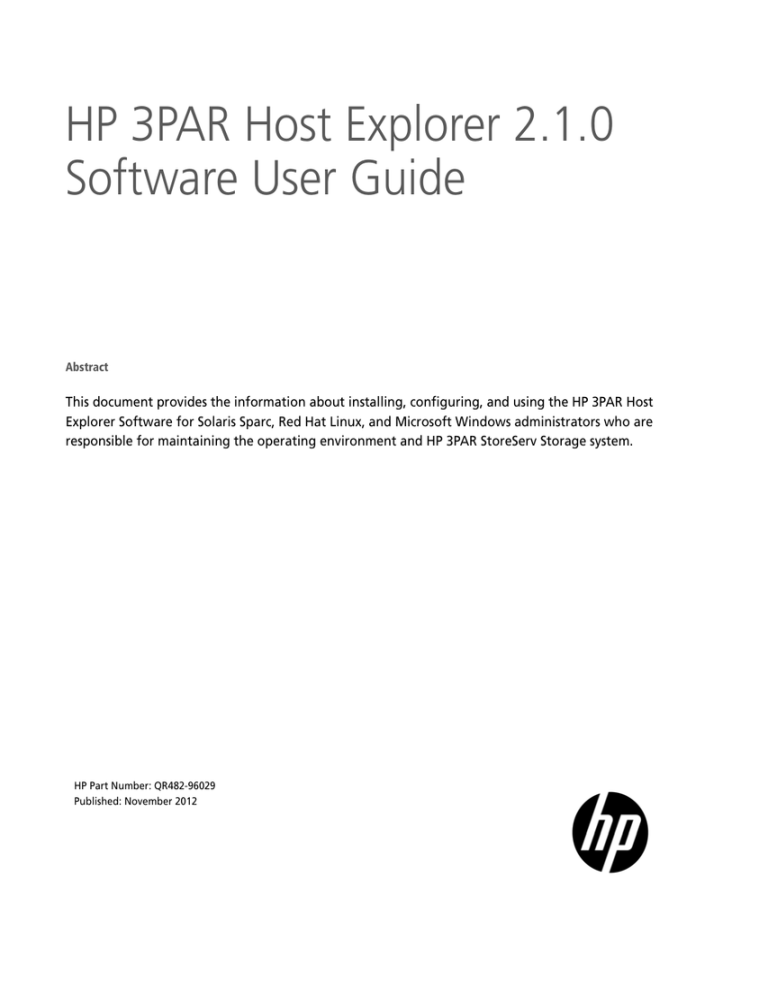

HP 3PAR Host Explorer 2.1.0

Software User Guide

Abstract

This document provides the information about installing, configuring, and using the HP 3PAR Host

Explorer Software for Solaris Sparc, Red Hat Linux, and Microsoft Windows administrators who are responsible for maintaining the operating environment and HP 3PAR StoreServ Storage system.

HP Part Number: QR482-96029

Published: November 2012

© Copyright 2012 Hewlett-Packard Development Company, L.P.

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and

12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Acknowledgments

Microsoft, Windows, XP, and Windows NT are U.S. registered trademarks of Microsoft Corporation.

Adobe® and Acrobat® are trademarks of Adobe Systems Incorporated.

Java and Oracle are registered trademarks of Oracle and/or its affiliates.

UNIX® is a registered trademark of The Open Group.

Intel®, Itanium®, Pentium®, Intel Inside®, and the Intel Inside logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

For the latest version of this document, go to http://www.hp.com/go/3par/, navigate to your product page, click Support for your product, and then click Manuals.

HP 3PAR Host Explorer User Guide

Table of Contents

1 Introduction

1.1

HP 3PAR Host Explorer

1.2

Related Documentation

2 Installation and Deinstallation

2.1

Installation and Verification

2.1.1

Installation on Microsoft Windows Server Systems

2.1.2

Verifying the Installation on Microsoft Windows Server

2.1.3

Installation on Red Hat Linux Systems

2.1.4

Verifying the Installation on Red Hat Linux Systems

2.1.5

Installation on Oracle Solaris Sparc Systems

2.1.6

Verifying the Installation on Solaris Sparc Systems

2.2

Deinstallation

2.2.1

Deinstallation on Microsoft Windows Server

2.2.2

Deinstallation on Red Hat Linux Systems

2.2.3

Deinstallation on Solaris Sparc Systems

3 Using the Host Explorer

3.1

Verifying the Host Explorer Package is Installed

3.2

Verifying the Host Explorer Process is Running

3.3

Stopping the Host Explorer Process

1.1

1.2

2.2

2.2

2.2

2.2

2.3

2.3

2.3

2.4

2.4

2.4

2.4

3.1

3.1

3.2

Table of Contents v

HP 3PAR Host Explorer User Guide

3.4

Starting the Host Explorer Process

3.5

Supporting Multiple Storage Systems on a Single Host

3.6

Supporting VMware Virtual Machines with iSCSI

3.7

The Host Explorer Enclosure Device LUN

3.7.1

Storage System Upgrades and Enclosure Devices

4 TpdHostAgent Command

4.1

TpdHostAgent Command

3.2

3.2

3.2

3.3

3.3

4.1

vi

Table of Contents

HP 3PAR Host Explorer User Guide

1

Introduction

This guide provides information about installing and uninstalling the HP 3PAR Host Explorer on the following platforms:

■ Microsoft Windows Server 2003 and 2008, 32 bit and 64 bit

■ Red Hat Linux systems running RHEL 4 Update 6 or later; RHEL 5 and RHEL 6

■ Sparc systems running Solaris 10

This guide is for Microsoft Windows, Red Hat Enterprise Linux, and Oracle Solaris (Sparc) administrators who are responsible for maintaining the operating environment and who understand the HP 3PAR StoreServ Storage system. Also, this guide provides reference information on the Command Line Interface (CLI) utility TpdHostAgent , which allows management of the HP 3PAR Host Explorer on the hosts.

1.1 HP 3PAR Host Explorer

The HP 3PAR Host Explorer is a program that runs on a host connected to an HP 3PAR StoreServ

Storage system. The Host Explorer is an agent that runs as a service on Windows and as a daemon on Linux and Solaris operating systems. No license is required to use the HP 3PAR Host

Explorer.

The Host Explorer communicates with the storage system over an FC or iSCSI connection and enables the host to send detailed host configuration information to the storage system. The information gathered from the Host Explorer is visible for uncreated hosts and assists with host creation and diagnosing host connectivity issues.

Introduction

1.1

HP 3PAR Host Explorer User Guide

When a host is created on the storage system, unassigned WWNs or iSCSI names are presented to the storage system. Without the Host Explorer running on the attached hosts, the storage system is unable to determine which host the WWN or iSCSI names belongs to and you must manually assign each WWN or iSCSI name to a host. With Host Explorer running, the storage system automatically groups WWNs or iSCSI names for the host together, assisting with creating the host.

The Host Explorer collects the following information and sends it to the storage system:

■ Host operating system and version.

■ Fibre Channel and iSCSI HBA details.

■ Multipath driver and current multipath configuration.

■ Cluster configuration information.

■ Device and path Information.

See Chapter 2, Installation and Deinstallation to install the HP 3PAR Host Explorer.

Refer to the HP 3PAR OS Configuration Matrix for a list of supported host operating systems.

1.2 Related Documentation

The following documents also provide information related to HP 3PAR StoreServ Storage systems and the HP 3PAR OS:

For information about… Read the…

Supported hardware and software platforms

Locating HP 3PAR documents

HP 3PAR StoreServ Storage system concepts and terminology

Detailed HP 3PAR Command Line

Interface (CLI) descriptions and usage

The Single Point of Connectivity

Knowledge for HP

Storage Products (SPOCK) website: http://www.hp.com/storage/spock

The HP 3PAR product website: http://www.hp.com/go/3par

HP 3PAR StoreServ Storage Concepts

Guide

HP 3PAR Command Line Interface

Reference

1.2

Related Documentation

HP 3PAR Host Explorer User Guide

For information about…

Using the HP 3PAR Command Line

Interface (CLI) to configure and administer storage systems

Using the HP 3PAR Management Console

(GUI) to configure and administer HP

3PAR StoreServ Storage systems

Read the…

HP 3PAR Command Line Interface

Administrator’s Manual

HP 3PAR Management Console Online

Help

Related Documentation 1.3

HP 3PAR Host Explorer User Guide

1.4

Related Documentation

HP 3PAR Host Explorer User Guide

2

Installation and

Deinstallation

This chapter describes how to install, verify, and deinstall the HP 3PAR Host Explorer agent on the following platforms:

■ Microsoft Windows Server 2003 and 2008, 32-bit and 64-bit

■ Red Hat Linux systems running RHEL 4 Update 6 or later; RHEL 5 and RHEL 6

■ Sparc systems running Oracle Solaris 10

NOTE: In order for the HP 3PAR StoreServ Storage system to dynamically discover host devices, you must follow specific configuration instructions for the host operating system and HBA. See the HP 3PAR Implementation Guides for recommended practices and detailed configuration information about using your specific host devices with the storage system.

NOTE: Each host connected to the HP 3PAR StoreServ Storage system must use a host persona with the SCSI Enclosure Services LUN (SESLun) enabled, or the Host

Explorer agent cannot communicate with the HP 3PAR StoreServ Storage system.

If you upgraded from a version of the HP 3PAR OS released before 2.3.1, you must convert your legacy personas to new host personas. For information about configuring host personas, see the HP 3PAR Command Line Interface

Administrator’s Manual or the HP 3PAR Management Console Online Help.

Installation and Deinstallation

2.1

HP 3PAR Host Explorer User Guide

2.1 Installation and Verification

This section describes how to install and verify installation of the HP 3PAR Host Explorer agent on the following systems. You must have the HP 3PAR Host Explorer <Version> Software CD

(current version) to install the HP 3PAR Host Explorer.

2.1.1 Installation on Microsoft Windows Server Systems

To install the Host Explorer agent on a Microsoft Windows Server 2003 or 2008 system:

1 Log into the host as the System Administrator.

2 Insert the HP 3PAR Host Explorer CD into a CD-ROM drive.

3 Open a Windows Explorer window.

4 Select Start > All Programs > Accessories > Windows Explorer.

5 Double-click the CD-ROM drive to expand the files.

6 Double-click the appropriate file:

◆ For x86-32 platforms: HostExplorerX86.msi

◆ For x86-64-bit platforms: HostExplorerX64.msi

2.1.2 Verifying the Installation on Microsoft Windows Server

To verify the installation for the Microsoft Windows Server 2003 or 2008 system:

1 Log on as the System Administrator.

2 Select Start > Control Panel > Add/Remove Programs.

Result: The Add/Remove Programs window appears.

3 Verify HP 3PAR Host Explorer for Windows appears under the Currently installed

programs column.

2.1.3 Installation on Red Hat Linux Systems

To install the Host Explorer agent on a Red Hat Linux system:

1 Log on as the root user.

2 Insert the HP 3PAR Host Explorer CD into a CD-ROM drive.

2.2

Installation and Verification

HP 3PAR Host Explorer User Guide

3 Change directory to the CD-ROM drive.

4 Issue the following command:

# rpm -ivh HostExplorer-<release_number>.i386.rpm

2.1.4 Verifying the Installation on Red Hat Linux Systems

Verify the installation for the Red Hat Linux system:

1 Log on as the System Administrator.

2 Issue the following command: rpm -qa | grep HostExplorer

2.1.5 Installation on Oracle Solaris Sparc Systems

To install the Host Explorer agent on an Oracle Solaris (Sparc) system:

1 Log in as the root user.

2 Insert the HP 3PAR Host Explorer CD into a CD-ROM drive.

3 Change to the CD-ROM drive.

4 Issue the following command:

# pkgadd -d HostExplorer-sparc.pkg

2.1.6 Verifying the Installation on Solaris Sparc Systems

Verify the installation for the Red Hat Linux system:

1 Log on as the System Administrator.

2 Issue the following command:

# pkginfo -l HostExplorer

Installation and Verification 2.3

HP 3PAR Host Explorer User Guide

2.2 Deinstallation

This section describes how to deinstall the HP 3PAR Host Explorer agent on:

■ Microsoft Windows Server 2003 and 2008, 32-bit and 64-bit

■ Red Hat Linux systems running RHEL 4 Update 6 or later; RHEL 5 and RHEL 6

■ Sparc systems running Oracle Solaris 10

2.2.1 Deinstallation on Microsoft Windows Server

To deinstall the Host Explorer agent from a Microsoft Windows Server 2003 or 2008 system:

1 Log on as the System Administrator.

2 Select Start > Settings > Control Panel > Add/Remove Programs.

Result: The Add/Remove Programs window appears.

3 Select HP 3PAR Host Explorer for Windows.

4 Click Remove.

2.2.2 Deinstallation on Red Hat Linux Systems

To deinstall the Host Explorer agent from a Red Hat Linux system:

1 Log on as the root user.

2 Issue the following command: rpm -e HostExplorer-<release_number>

2.2.3 Deinstallation on Solaris Sparc Systems

To deinstall the Host Explorer agent from a Solaris Sparc system:

1 Log on as the root user.

2 Issue the following command: pkgrm HostExplorer

2.4

Deinstallation

HP 3PAR Host Explorer User Guide

3

Using the Host Explorer

The chapter provides instructions for using the HP 3PAR Host Explorer.

3.1 Verifying the Host Explorer Package is Installed

To verify that the Host Explorer package has been installed correctly, see the appropriate section below:

To find out if the product is installed on a Solaris system, see Verifying the Installation on

Solaris Sparc Systems on page 2.3.

To find out if the product is installed on a Linux system, see Verifying the Installation on

Red Hat Linux Systems on page 2.3.

To find out if the product is installed on a Windows system, see: Verifying the Installation

on Microsoft Windows Server on page 2.2.

3.2 Verifying the Host Explorer Process is Running

 To verify that the Host Explorer process is running, issue the TpdHostAgent status command.

Using the Host Explorer

3.1

HP 3PAR Host Explorer User Guide

Example output:

Printing the status of 3PAR Host Explorer daemon:

3PAR Host Explorer is running..

The current time interval values are:

Value is PushInterval=86400

 default

Value is RefreshInterval=60

 default

3.3 Stopping the Host Explorer Process

By default, the Host Explorer process starts at every reboot of the host.

 If you do not want the process running on the host, issue the TpdHostAgent stop command.

3.4 Starting the Host Explorer Process

 To start the Host Explorer process, issue the TpdHostAgent start command.

3.5 Supporting Multiple Storage Systems on a Single Host

The HP 3PAR Host Explorer reports the information it collects to every HP 3PAR StoreServ

Storage system attached to the host. If a storage system is added or removed after the initial installation of the HP 3PAR Host Explorer, a refresh is needed.

 To refresh the Host Explorer process, issue the TpdHostAgent refresh command.

3.6 Supporting VMware Virtual Machines with iSCSI

The HP 3PAR Host Explorer supports VMware Virtual Machines connected to HP 3PAR StoreServ

Storage systems with iSCSI connections. For information about supported operating systems on

VMware Virtual Machines, refer to the HP 3PAR OS Configuration Matrix available on SPOCK.

3.2

Stopping the Host Explorer Process

HP 3PAR Host Explorer User Guide

3.7 The Host Explorer Enclosure Device LUN

When a host is connected to an HP 3PAR StoreServ Storage system, an enclosure device with

LUN ID 254 is automatically defined for the host. The HP 3PAR Host Explorer uses this enclosure device to exchange information about the host with the storage system. The LUN with ID 254 acts as both a data LUN and an enclosure service LUN. You can use LUN ID 254 for any application with limited impact on performance. The level of impact on performance depends on the application. The LUN with ID 254 is presented to the host even when no virtual volumes are exported to the host, or when the host is not configured on the storage system.

3.7.1 Storage System Upgrades and Enclosure Devices

If you upgraded from a version of the HP 3PAR Operating System (OS) released before 2.3.1, you must consider the following notes about LUNs with ID 254.

■ If you had a LUN with ID 254 before you upgraded the HP 3PAR OS, the host persona for the host is set to the Generic-Legacy persona number 6 during the upgrade process. The port persona number must be reset to Generic persona number 1 before the Host Explorer can communicate with the storage system.

1) Use the HP 3PAR Command Line Interface (CLI) sethost –persona 1 <host name> command to set the host persona number to 1.

2) Use the controlport offline command to take the HP 3PAR StoreServ Storage system port the host is connected to offline.

3) Use the controlport rst command to reset the HP 3PAR StoreServ Storage system port connected to the host.

Alternatively, if you reboot the host after resetting the persona number as described in

step 1, the Host Explorer automatically discovers the enclosure device on LUN ID 254 and

sends the information to the storage system. For more information about CLI commands, see the HP 3PAR Command Line Interface Administrator’s Manual .

■ If you add a host after you upgraded the InForm OS, the host persona number for the host must be set to 1. For more information about creating and modifying hosts, see the HP

3PAR Command Line Interface Administrator’s Manual .

You can also use the HP 3PAR Management Console to configure and administer hosts connected to the storage systems. For more information, see the HP 3PAR Management

Console Online Help .

The Host Explorer Enclosure Device LUN 3.3

HP 3PAR Host Explorer User Guide

3.4

The Host Explorer Enclosure Device LUN

HP 3PAR Host Explorer User Guide

4

TpdHostAgent Command

The TpdHostAgent is a simple command line interface for maintaining and managing the various options to be used in conjuction with the Host Explorer daemon.

This command must be run as Superuser/Administrator from the host where it is installed.

4.1 TpdHostAgent Command

COMMAND

TpdHostAgent

DESCRIPTION

Command line utility for management of a HP 3PAR Host Explorer.

SYNTAX

TpdHostAgent [options]

OPTIONS

-start

Starts the Host Explorer process.

-stop

Stops the Host Explorer process.

TpdHostAgent Command

4.1

HP 3PAR Host Explorer User Guide

-refresh

Stops, then restarts the Host Explorer process.

-status

Lists the status of a Host Explorer process, i.e. whether the daemon/service is running.

-list

Lists the contents of all host configuration information (Host Explorer tokens) that has been gathered by the Host Explorer.

-push

Immediately sends the latest Host Explorer token information to the HP 3PAR

StoreServ Storage system.

-set <RefreshInterval>|<PushInterval>

Changes the default time intervals (RefreshInterval = 60 seconds, PushInterval =

86,400 seconds) used by the daemon to send token information to the HP 3PAR

StoreServ Storage system.

◆ RefreshInterval - The interval that the Host Explorer process collects the data and compares it to the last known state for any changes. If there are changes, the Host

Explorer pushes the new set of data to the HP 3PAR StoreServ Storage system.

◆ PushInterval - The interval that the Host Explorer process pushes data to HP 3PAR

StoreServ Storage system.

-settrace <1-5>

This option is only available on the Windows operating system.

◆ 1 - Displays error messages.

◆ 2 - Display warning messages and all messages below this level.

◆ 3 - Displays information messages and all messages below this level.

◆ 4 - Displays verbose messages and all messages below this level.

◆ 5 - Displays debug messages and all messages below this level.

SPECIFIERS

None.

4.2

TpdHostAgent Command

HP 3PAR Host Explorer User Guide

RESTRICTIONS

None.

EXAMPLES

Starting the Host Explorer deamon.

# TpdHostAgent start

Starting the HP 3PAR Host Explorer daemon ..

Starting HP 3PAR Host Explorer: [ OK ]

Checking the status of the Host Explorer deamon.

# TpdHostAgent status

Printing the status of HP 3PAR Host Explorer daemon:

HP 3PAR Host Explorer is running ...

The current time interval values are:

Value is PushInterval=86400

Value is RefreshInterval=60

Stopping the Host Explorer deamon.

# TpdHostAgent stop

Stopping the HP 3PAR Host Explorer daemon..

Stopping HP 3PAR Host Explorer: [ OK ]

Sending the latest Host Explorer token information to the HP 3PAR StoreServ Storage system.

# TpdHostAgent push

Sending the token information immediately

Listing the contents of all host configuration information (Host Explorer tokens) gathered by the Host Explorer.

TpdHostAgent list

Listing the Token information.

-------------------------------

TpdHostAgent Command 4.3

HP 3PAR Host Explorer User Guide

TPDAGENTVER=2.1.0-0

HNAME=he13.ind.hp.com

HOSTID=9a0f0d34

OS=Linux

OSVER=2.6

OSPATCH=18-238.el5

ARCH=x86_64

IP=11.1.0.153

MPSW=device-mapper

MPSWVER=0.4.7-42.el5

HBA0WWN=10000000c9af018c

HBA0VEN=Emulex

HBA0MODEL=AJ763A/AH403A

HBA0DRVR=lpfc

HBA0DRVRVER=8.2.0.87.1p

HBA0FIRMWARE=1.11A5 (U3D1.11A5), sli-3

HBA0SPEEDCURRENT=4 Gbit

HBA1WWN=10000000c9af018d

HBA1VEN=Emulex

HBA1MODEL=AJ763A/AH403A

HBA1DRVR=lpfc

HBA1DRVRVER=8.2.0.87.1p

HBA1FIRMWARE=1.11A5 (U3D1.11A5), sli-3

HBA1SPEEDCURRENT=4 Gbit

HBA2WWN=iqn.1994-05.com.redhat:d29583fa2e2b

HBA2VEN=ISCSI

HBA2DRVRVER=2.6.18-238.el5

DEVICE0WWN=60002ac00000000000000b7800001515

4.4

TpdHostAgent Command

DEVICE0NAME=mpath21

DEVICE0IOPOLICY=round-robin

DEVICE0FPMPOLICY=path_checker

DEVICE0FPMINTERVAL=no_path_retry

DEVICE0TOTPATHCNT=2

DEVICE0GDPATHCNT=2

DEVICE0PATH0HWWN=10000000c9af018d

DEVICE0PATH0TWWN0=22510002ac000f50

DEVICE0PATH0TWWN0STATE=OK

DEVICE0PATH1HWWN=10000000c9af018c

DEVICE0PATH1TWWN0=23510002ac000f50

DEVICE0PATH1TWWN0STATE=OK

DEVICE1WWN=60002ac00000000000000b7800004242

DEVICE1NAME=mpath20

DEVICE1IOPOLICY=round-robin

DEVICE1FPMPOLICY=path_checker

DEVICE1FPMINTERVAL=no_path_retry

DEVICE1TOTPATHCNT=2

DEVICE1GDPATHCNT=2

DEVICE1PATH0HWWN=10000000c9af018d

DEVICE1PATH0TWWN0=22510002ac000f50

DEVICE1PATH0TWWN0STATE=OK

DEVICE1PATH1HWWN=10000000c9af018c

DEVICE1PATH1TWWN0=23510002ac000f50

DEVICE1PATH1TWWN0STATE=OK

HP 3PAR Host Explorer User Guide

TpdHostAgent Command 4.5

HP 3PAR Host Explorer User Guide

4.6

TpdHostAgent Command

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals
