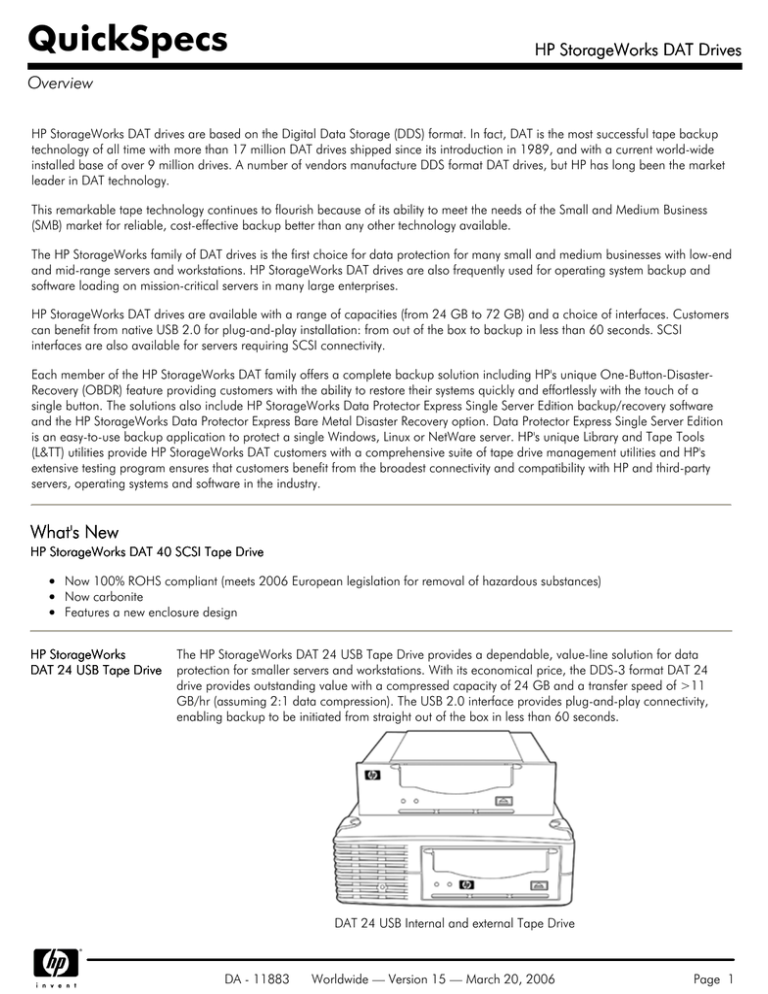

QuickSpecs
HP StorageWorks DAT Drives
Overview
HP StorageWorks DAT drives are based on the Digital Data Storage (DDS) format. In fact, DAT is the most successful tape backup
technology of all time with more than 17 million DAT drives shipped since its introduction in 1989, and with a current world-wide
installed base of over 9 million drives. A number of vendors manufacture DDS format DAT drives, but HP has long been the market
leader in DAT technology.
This remarkable tape technology continues to flourish because of its ability to meet the needs of the Small and Medium Business
(SMB) market for reliable, cost-effective backup better than any other technology available.
The HP StorageWorks family of DAT drives is the first choice for data protection for many small and medium businesses with low-end
and mid-range servers and workstations. HP StorageWorks DAT drives are also frequently used for operating system backup and
software loading on mission-critical servers in many large enterprises.
HP StorageWorks DAT drives are available with a range of capacities (from 24 GB to 72 GB) and a choice of interfaces. Customers
can benefit from native USB 2.0 for plug-and-play installation: from out of the box to backup in less than 60 seconds. SCSI
interfaces are also available for servers requiring SCSI connectivity.
Each member of the HP StorageWorks DAT family offers a complete backup solution including HP's unique One-Button-DisasterRecovery (OBDR) feature providing customers with the ability to restore their systems quickly and effortlessly with the touch of a
single button. The solutions also include HP StorageWorks Data Protector Express Single Server Edition backup/recovery software
and the HP StorageWorks Data Protector Express Bare Metal Disaster Recovery option. Data Protector Express Single Server Edition
is an easy-to-use backup application to protect a single Windows, Linux or NetWare server. HP's unique Library and Tape Tools
(L&TT) utilities provide HP StorageWorks DAT customers with a comprehensive suite of tape drive management utilities and HP's
extensive testing program ensures that customers benefit from the broadest connectivity and compatibility with HP and third-party
servers, operating systems and software in the industry.
What's New
HP StorageWorks DAT 40 SCSI Tape Drive
Now 100% ROHS compliant (meets 2006 European legislation for removal of hazardous substances)
Now carbonite
Features a new enclosure design
HP StorageWorks
DAT 24 USB Tape Drive
The HP StorageWorks DAT 24 USB Tape Drive provides a dependable, value-line solution for data
protection for smaller servers and workstations. With its economical price, the DDS-3 format DAT 24
drive provides outstanding value with a compressed capacity of 24 GB and a transfer speed of >11
GB/hr (assuming 2:1 data compression). The USB 2.0 interface provides plug-and-play connectivity,
enabling backup to be initiated from straight out of the box in less than 60 seconds.
DAT 24 USB Internal and external Tape Drive
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 1
QuickSpecs
HP StorageWorks DAT Drives
Overview
HP StorageWorks
The HP StorageWorks DAT 40 SCSI Tape Drive is a dependable entry-level backup solution for smaller
DAT 40 SCSI Tape Drive servers and workstations. This DDS-4 tape drive stores 40 GB of compressed data on a single cartridge
at a rate of 23 GB/hr (assuming 2:1 data compression), providing an ideal balance between capacity
and performance.
DAT 40 SCSI Array Module
HP StorageWorks
DAT 40 USB Tape Drive
DAT 40 SCSI External Tape Drive
The HP StorageWorks DAT 40 USB Tape Drive is a dependable entry-level backup solution for smaller
servers and workstations. This DDS-4 tape drive stores 40 GB of compressed data on a single cartridge
at a rate of 23 GB/hr (assuming 2:1 data compression), providing an ideal balance between capacity
and performance. The USB 2.0 interface provides plug-and-play connectivity, enabling backup to be
initiated from straight out of the box in less than 60 seconds.
DAT 40 USB Internal Tape Drive
DAT 40 USB External Tape Drive
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 2
QuickSpecs
HP StorageWorks DAT Drives
Overview
HP StorageWorks
DAT 72 SCSI Tape Drive
The industry leading HP StorageWorks DAT 72 SCSI tape drive provides an optimum balance of
dependable backup capacity and low cost of ownership for small and medium businesses, remote
offices, and workgroups. The DAT 72 delivers a capacity of 72 GB on a single data cartridge and
a transfer rate of 23 GB/hr (assuming a 2:1 compression ratio).
Now 100% ROHS compliant (meets 2006 European legislation for removal of hazardous
substances) and available with SCSI-3 Ultra 160 interface.
DAT 72 SCSI-2 Array Module and
DAT 72 SCSI-2 External Tape Drive
HP StorageWorks
DAT 72 USB Tape Drive
DAT 72 SCSI-3 Internal Tape Drive
DAT 72 SCSI-3 External Tape Drive
The HP StorageWorks DAT 72 USB tape drive provides an optimum balance of dependable backup
capacity and low cost of ownership for small and medium businesses, remote offices, and workgroups.
The DAT 72 delivers a capacity of 72 GB on a single data cartridge and a transfer rate of 23 GB/hr
(assuming a 2:1 compression ratio) and the USB 2.0 interface provides plug-and-play connectivity,
enabling backup to be initiated from straight out-of-the-box in less than 60 seconds.
DAT 72 USB Internal Tape Drive
DAT 72 USB External Tape Drive
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 3
QuickSpecs
HP StorageWorks DAT Drives
Overview
Models
DAT 24 USB Tape Drive
DAT 40 SCSI Tape Drive
DAT 40 USB Tape Drive
DAT 72 SCSI Tape Drive
DAT 72 USB Tape Drive
Key Features
DAT 24 Internal Tape Drive
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 24 External Tape Drive
DAT 40 SCSI Internal Tape Drive
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 40 SCSI External Tape Drive
DAT 40 SCSI Array Module
NOTE: DAT 40 array modules fit into the HP Tape Array 5300 (C7508A).
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DW069A
DAT 40 USB Internal Tape Drive (Carbonite)
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 40 USB External Tape Drive (Carbonite)
DAT 72 SCSI Internal Tape Drive
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 SCSI External Tape Drive
DAT 72 SCSI Array Module Field-integrated
NOTE: DAT 72 array modules fit into the HP Tape Array 5300 (C7508A).
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 USB Internal Tape Drive
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 USB External Tape Drive
DW022A
DW070A
C5686C
C5687D
C7497C
DW023A
Q1522B
Q1523B
Q1524C
DW026A
DW027A
Based on industry-standard DDS technology -- the most popular server backup technology of all
time, providing customers will all the benefits of an open standard including better pricing, wider
availability and faster development cycles
Proven reliability -- HP has increased reliability specifications for HP DAT drives based on real field
data. Mean-Time-Between-Failure rates (MTBF) are now more than 1 million hours at a typical
duty cycle of 12%
Low-cost of ownership - Lowest media price (in $/GB) of any tape backup technology
Up to 36 GB native capacity on a single tape -- 72 GB at 2:1 compression -- with DAT 72 tape
drive
Up to 3.2 MB/s** native data transfer rate -- 6.4 MB/s** with 2:1 compression -- with DAT 40 and
72 tape drives * Where 1KB = 1,000 Bytes
Plug and play -- USB 2.0 interface available for on all drives provides universal native plug-andplay capability and enabling customers to be ready for backup in less than 60 seconds straight out
of the box
SCSI interface also available to enable SCSI system connectivity if required
Flexibility of solutions through a wide choice of models - internal, external, USB, SCSI hot-plug,
offline hot-swap array module, and rack-mount configurations
Small size drives and media for easy physical storage -- small, half-height 3.5-inch form-factor
Low ongoing maintenance -- automatic head cleaning minimizes the need for cleaning. Intelligent
cleaning monitors the performance of the drive and cleans accordingly when a cleaning tape is
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 4
QuickSpecs
HP StorageWorks DAT Drives
Overview
loaded
Dependable disaster recovery -- HP StorageWorks One-Button Disaster Recovery (OBDR) restores
your entire system at the touch of a button
Supporting tools -- HP StorageWorks Library and Tape Tools included with the drive to make
installation, performance tuning and trouble-shooting even easier
Broad compatibility with a wide range of servers, operating systems, and backup software
Includes HP StorageWorks Data Protector Express Single Server Edition backup/recovery software
and the HP StorageWorks Data Protector Express Bare Metal Disaster Recovery option.
Customer Benefits
Dependable:
Dependable a long track record of proven reliability
Easy:
Easy supports One-Button Disaster Recovery, simply the easiest way to restore data in the event of
a disaster
Affordable: inexpensive media contributes to an exceptionally low cost of ownership
Manageable:
Manageable includes superior management capabilities that makes it easy to install, use and
support
Low-maintenance:
Low-maintenance automatic head cleaning system reduces the need for cleaning
Well-connected:
Well-connected compatible with leading operating systems, backup software and servers
Future-proof:
Future-proof the tape technology with an illustrious past also has a solid roadmap for the future
Complete:
Complete comes with an easy-to-use backup solution that includes disaster recovery capabilities
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 5
QuickSpecs
HP StorageWorks DAT Drives
Product Highlights
DDS Technology
Within the tape market there is a wide range of tape technologies, the question for SMB customers is
which one to choose. The answer is clear - DDS/DAT continues to be the unit volume leader in the tape
drive market for small and medium businesses with a current installed base of over 6 million and over
15 million DAT drives shipped since its introduction in 1989. This remarkable tape technology continues
to flourish because it meets the needs of the SMB market for cost-effective, reliable backup better than
any other technology available. Of the 3.5 million backup tape drives shipped in 2003, Gartner
Dataquest estimates that approximately 50% were DAT drives.
Unlike AIT, VXA, ADR, SLR, DLT and SDLT, DDS/DAT is based on an open standard format for data
interchange. The influential DAT manufacturers group presides over this open standard with verification
processes that ensure compliance. With multiple manufacturers developing and shipping DDS/DAT
products, customers benefit from increased competition, which leads to better prices, faster development
and more choice.
DDS format for DAT is a helical scan format where data is written diagonally across the width of the
tape. The advantage is that, by allowing subsequent tracks to have different writing angles and to
overlap, a much greater capacity can be achieved for a given length of tape because no guard bands
are necessary. The data format also allows for fast location of tracks and data. To achieve this, the
rotating drum is tilted at a slight angle (6°) from the vertical. The drum has four heads (two write heads
and two read heads), located at 90° intervals. For each rotation of the drum, two tracks are written. The
read heads verify the data that has been written (recorded) and the drive rewrites if necessary. The
straightness with which the track is written to tape is referred to as the linearity of the track and is critical
in ensuring the data is always recoverable.
HP has been involved in the design and development of DDS drives since the beginning and applies
these many years of experience to its current line of DDS products. Not only does an investment in DDS
technology provide the security of a format with a history of outstanding reliability, the legacy of
backward compatibility also provides the potential for future expansion without compromising your
investment in the technology.
The target market for DDS/DAT continues to be direct-attach backup. In small and medium sized
businesses cost of ownership, ease of use and a proven history (i.e. low risk) are paramount. DDS
technology provides the capacity and performance needed in a tape backup solution for workstations
and entry-level servers.
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 6
QuickSpecs
HP StorageWorks DAT Drives
Product Highlights
Backwards Compatibility HP DAT tape drives are backward read-write compatible with two previous generations, thus:
DAT 72 also reads and writes DDS-4 and DDS-3
DAT 40 also reads and writes DDS-3 and DDS-2*
DAT 24 also reads and writes DDS-2 and DDS-1**
*NOTE:
NOTE: The DAT 40 hot-plug drive is an exception. This drive is read-write compatible with DDS-3 and
read compatible with DDS-2.
**NOTE:
NOTE: The DAT 24 USB drive does not read or write DSS-1
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 7
QuickSpecs
HP StorageWorks DAT Drives
Product Highlights
Proven Reliability
HP DDS drives have proven to be exceptionally reliable backup devices. Hardware reliability is typically
measured by MTBF (mean time between failures) quoted in a number of hours at a particular duty cycle.
Duty cycle is a measure of average usage per day. For example, a 12% duty cycle means the device is
used an average of 3 hours per day, whereas a 100% duty cycle means that it is used 24 hours per day.
A drive's predicted MTBF is calculated from a series of tests done on a large population of drives both
before and after product launch.
HP's ongoing reliability improvements have recently resulted in an increase in reliability specifications for
HP DAT drives based on real field data. By completing an analysis of actual MTBF using the years of
data captured about HP DAT products, HP discovered that our DDS-4 and DAT 72 tape drives deliver
even better reliability than was initially predicted and documented in our specifications.
The DAT QuickSpecs have now been revised to reflect the new figures:
The old specifications were:
MTBF: 400,000 hours at a 12% duty cycle
Unrecoverable error rate: 1 bit in 10-15
The new specifications are:
MTBF: 125,000 hours at a 100% duty cycle or 1 million hours at a 12% duty cycle
Unrecoverable error rate: 1 bit in 10-17
DAT's MTBF is now typically expressed with a 100% duty cycle to make it simpler to compare to other
tape formats; for example, HP's enterprise-level LTO Ultrium drives have an MTBF of 250,000 hours at a
100% duty cycle. In practice, however, unlike Ultrium drives (used 24x7 as the most popular choice for
large tape libraries), few DAT drives would ever be used 24 hours a day. Using a 12% duty cycle that we
believe is more typical for a DAT drive, the figure becomes an impressive 1 million hours at a 12% duty
cycle.
Automated Head
Cleaning/Intelligent
cleaning
HP DDS drives benefit from an automatic head cleaning "sweeper" that can be used during the write or
read recovery procedure to dislodge debris from the tape path and recording heads and drive. This
feature reduces the need to use a DDS cleaning cartridge for manual cleaning.
Intelligent cleaning determines the cleaning provided by a cleaning cartridge when loaded by monitoring
the drive performance when in use. If the drive is performing well, a routine maintenance clean is
performed. If the drive has degraded performance the cleaning is automatically made more robust to
recover the drive to optimum performance.
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 8
QuickSpecs
HP StorageWorks DAT Drives
Product Highlights
USB 2.0 Interface
HP DAT drives are available with a choice of interfaces: the standard SCSI interface where SCSI
connectivity is required and the newly introduced USB 2.0 interface.
The USB (Universal Systems Bus) interface was conceived out of a need to simplify computer peripheral
device connection. It has been so successful that the majority of computer systems and servers shipped
today offer multiple native USB 2.0 ports.
HP is the first company to develop a native USB DDS/DAT tape drive. Where other "USB tape drives" rely
on a USB converter, HP's USB interface is fully integrated with the drive and uses the SCSI command set
within the USB payload. The benefit of this implementation is that it gives the drive full SCSI functionality
and the flexibility of USB without the additional cost of a converter.
By offering native USB 2.0 DAT drives, HP aims to provide customers with a number of benefits:
Greater usability
Plug-and-play connectivity- the system automatically detects and configures the tape drive.
The DAT drive is installed and ready to backup in less than 60 seconds.
Microsoft fully supports USB devices natively in their operating systems providing robust,
secure configuration and installation wizards.
Cables are easily identifiable, easy to attach without the need for thumb-screw and robust
enough to ensure reliable retention.
Resource abundance
Native USB ports are universally available in systems and servers
Multiple ports ensure that port resources are widely available, reducing the conflict between
devices over scarce connectors.
Port expansion is easy, USB hubs can be installed to add additional ports supporting up to
127 devices on a system
Low cost, reliable connectivity
By providing native USB DDS/DAT drives there is no need for customers to purchase
additional host-bus adapters
HP's USB 2.0 implementation benefits from the built-in reliability and failure recovery
inherent in the underlying SCSI protocol
USB 2.0 has multiple levels of physical error detection and recovery which ensure reliability
on a par with SCSI and Fibre-channel interfaces.
USB 2.0 compliance certification provides thorough, ongoing reliability and quality control.
A well implemented USB network should use only USB 2.0 compliant components,
including USB 2.0 certified cables.
Sustainable performance
In HP tests it has been shown that USB 2.0 can sustain the performance of an HP DDS/DAT
drive at around 30MB/sec, a bandwidth that would sustain the HP DAT 72 drive operating
with a compression ratio of 9:1!
USB 2.0 performance provides sufficient bandwidth to support all future generations of
DDS/DAT drives specified on the DAT Manufacturers Group Roadmap
Compression
DDS uses built-in hardware compression using the 'DCLZ' data compression algorithm. Data
compression is host-selectable with the default that compression is turned on. Typical data compression
is 2:1, but actual compression depends on the type of data being compressed and can be more or less
than 2:1.
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 9
QuickSpecs
HP StorageWorks DAT Drives
Product Highlights
SCSI Hot-Plug and
Offline Hot-Swap
Technology
NOTE: this feature is available for SCSI products. USB variants of HP DAT drives already benefit from
hot-plug capability through the USB 2.0 interface.
The HP StorageWorks DAT SCSI drives come in two variants that increase your uptime: hot-plug and
offline hot-swap. With these configurations, you never have to take down your system to replace a failed
or non-responding tape device.
Hot-plug tape drives are supported on all HP ProLiant and AlphaServers that have the universal drive
bay built in to the server. These drives can be inserted or removed without disassembling the server, thus
enabling the system to be operational 24x7. This configuration also provides the ability to mix tape
drives and 1" hot-plug hard drives on the same SCSI bus without slowing down the performance of the
system (supported on the HP Smart Array 5300 controller family and integrated Smart Array controller
and selected HP AlphaServer host bus adapters).
The HP StorageWorks Tape Array 5300 supports "offline hot-swap" (sometimes referred to as "warmswap") array modules, including DAT drives. This means the drives can be removed and replaced with
the power on and the SCSI cables attached to the server. Because the array's SCSI buses are not
buffered, however, drive replacement should only take place while the SCSI bus is quiescent (no SCSI
activity from the tape drive or any other device on the same bus). This is similar to HP hot-plug DAT
drives, though the hot-plug drives are not affected by other devices on the bus.
With the HP StorageWorks DAT hot-plug tape drives or array modules, the server does not need to be
taken offline to install the tape drive. Simply insert the tape drive into the server's hot-plug bay or the
Tape Array 5300's drive bay and install or configure the backup software.
Rack-Mount Tape
Options
HP DAT SCSI drives are supported on the HP StorageWorks 1U and 3U Rack-Mount Kits and the HP
StorageWorks Tape Array 5300. The 3U Rack-Mount Kit and the Tape Array 5300 allow up to four
internal DAT drives to be installed in 3U of rack space, while the 1U Rack-Mount Kit holds two DAT
drives in 1U of space. Both the 1U and 3U rack-mount kits use standard internal DAT SCSI drives for a
low-cost solution, while the Tape Array 5300 uses DAT array modules that provide offline hot-swap
capabilities and redundant components for high-availability environments.
Either of these rack enclosures can be configured with separate SCSI buses (channels) for each drive or
two or more drives per bus using the optional cable kits.
NOTE: Please refer to the QuickSpecs for HP StorageWorks Rack-Mount Kits at
http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.html
or the HP StorageWorks Tape Array 5300 web page at
http://www.hp.com/products1/storage/products/tapebackup/tapearrays/tapearray5300/index.html
for further information.
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 10
QuickSpecs
HP StorageWorks DAT Drives
Product Highlights
HP StorageWorks OBDR With HP One-Button Disaster Recovery, you can quickly, reliably and simply restore your entire system
(One-Button Disaster
just by inserting the most recent backup tape and pushing one button on the tape drive. Your HP
Recovery)
StorageWorks DAT drive will restore your operating system, configuration, applications, drivers and data
files. There's no longer a need to search for software disks and manuals. And with downtime reduced,
the costs of recovery are minimized too. There's no need to make a new set of disaster recovery disks
each time the network configuration is altered or a peripheral is added. Recovering from a disaster
manually at a stressful time makes for an error-prone process. The sheer simplicity of HP One-Button
Disaster Recovery means less human error. Backup and disaster recovery preparation -- previously two
separate tasks -- become one process. OBDR is simply the best disaster recovery product for small to
medium systems. For a current list of servers, workstations, and software that support OBDR, check the
tape backup compatibility pages at: http://www.hp.com/go/connect
Software in the Box
The HP StorageWorks DDS/DAT tape drives include HP StorageWorks Data Protector Express Single
Server Edition backup/recovery software and the HP StorageWorks Data Protector Express Bare Metal
Disaster Recovery option. Data Protector Express Single Server Edition is an easy-to-use backup
application to protect a single Windows, Linux or NetWare server. The Data Protector Express Bare Metal
Disaster Recovery (BMDR) option provides automated system recovery of that server following a major
hardware or software failure. The fastest method to recovery the server is to use the Data Protector
Express BMDR option and the One Button Disaster Recovery feature of the HP StorageWorks DDS/DAT
tape drives.
As well as getting the Data Protector Express Single Server Edition software as part of the HP
StorageWorks DDS/DAT tape drives solution, purchasers can also upgrade to the class-leading Data
Protector Express backup/recovery software. This is a special SKU, only available for new customers of
HP StorageWorks tape products that gives a significant discount off Data Protector Express to recognise
the value of the in-box software. Upgrading to Data Protector Express allows network backup of servers
and Windows desktops, extends the disk-to-disk backup capacity and capability and permits the
additions of agents and extensions to increase scale and performance of the backup infrastructure. For
more information about the the in-box software please visit
http://www.hp.com/go/dataprotectorexpress/sse.
If the HP StorageWorks DDS/DAT tape drive is for a large environment that requires UNIX support
and/or enterprise class application and feature support then HP OpenView Storage Data protector is the
recommended backup/recovery software. For more information and evaluation software please visit
http://www.hp.com/go/dataprotector.
HP StorageWorks Library HP StorageWorks DAT drives are supported on HP's industry-leading diagnostic tool -- HP StorageWorks
and Tape Tools (L&TT)
Library and Tape Tools (L&TT). L&TT is a single, convenient program that's a snap to install and simple to
operate. L&TT's intuitive user interface eliminates the need for training and deploys in less than five
minutes. This robust diagnostic tool is designed for both the experienced professional and the untrained
administrator. It ensures product integrity through self-diagnostics and fast resolution to device concerns.
Additional information on L&TT plus download information can be found at:
http://www.hp.com/support/tapetools
HP DDS Media
HP's test program for HP DAT media is probably the most thorough and comprehensive in the industry.
HP data cartridges must satisfy an exhaustive battery of additional tests that relate directly to real life
situations, where real data and real businesses are at stake. Over 1 million test hours on media and
drives per year ensure that HP data cartridges will always offer maximum reliability even in the most
extreme conditions. HP recommends that customers always use HP branded media to ensure stress-free
backup and complete peace of mind.
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 11
QuickSpecs
HP StorageWorks DAT Drives
Compatibility
HP's extensive compatibility testing program assures that HP StorageWorks DAT drives work with leading servers, operating systems,
and backup applications -- and not just those sold by HP. HP DAT drives work seamlessly in many environments, making them
especially suitable if you have a mixed system environment. For the latest list of servers, workstations, operating systems, and backup
software that support HP DAT drives, check the tape backup compatibility pages at: http://www.hp.com/go/connect.
HP Server and
HP StorageWorks DAT SCSI drives are compatible with HP ProLiant servers, HP 9000 servers, Integrity
Workstation Compatibility Servers, AlphaServers and HP Workstations, as well as many third-party servers. HP StorageWorks DAT
with SCSI drives
drives are supported on the following classes of HP systems:
HP ProLiant DL servers
HP ProLiant ML servers
HP AlphaServers
HP 9000 servers
HP Integrity servers
HP Personal and RISC Workstations
For details of which tape drive models work with which systems, including third-party systems, visit
http://www.hp.com/go/connect for the latest hardware compatibility information.
HP Server Compatibility
with
USB drives
HP StorageWorks DAT USB drives are compatible with HP ProLiant servers and HP workstations, as well
as many third-party servers. HP StorageWorks DAT drives are supported on the following classes of HP
systems:
HP ProLiant DL servers
HP ProLiant ML servers
HP Personal Workstations
For details of which tape drive models work with which systems, including third-party systems, visit
http://www.hp.com/go/connect for the latest hardware compatibility information.
NOTE: HP recommends that no more than one DAT USB tape drive be connected to a system at a time.
OS Support for SCSI DAT Microsoft® Windows®, Novell NetWare, HP-UX, Linux (various distributions), HP Tru64, HP OVMS, IBM
drives
AIX, Sun Solaris, and other operating systems
NOTE: Please visit http://www.hp.com/go/connect for the latest compatibility information.
OS Support for USB DAT Microsoft Windows, Linux (various distributions)
drives
NOTE: Please visit http://www.hp.com/go/connect for the latest compatibility information.
Backup Software Support HP OpenView Storage Data Protector, HP StorageWorks Data Protector Express, VERITAS Backup Exec,
for SCSI drives
Veritas Netbackup BrightStor ARCServe Backup, Yosemite Technologies TapeWare, Legato Networker,
Dantz Retrospect, Tivoli Storage Manager, NovaBackup, and other backup applications
NOTE: Please visit http://www.hp.com/go/connect for the latest compatibility information.
Backup Software Support HP StorageWorks Data Protector Express, Yosemite Technologies TapeWare, VERITAS Backup Exec
for USB drives
Additional third party backup software support will be available in 2006
NOTE: Please visit http://www.hp.com/go/connect for the latest compatibility information.
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 12
QuickSpecs
HP StorageWorks DAT Drives
Service and Support, HP Care Pack, and Warranty Information
Supporting your Adaptive HP Services helps you make the Adaptive Enterprise real for your organization. The breadth, depth, and
Enterprise journey
quality of HP hardware and software support services can help you improve the performance of your IT
support processes and resolve the complex software and hardware problems that tax user productivity.
HP Care Pack services help you increase IT environment stability,
stability efficiency, and agility from the desktop
to the data center, and improve the productivity of your employees.
Warranty and Services
Included with the HP
StorageWorks DAT
Products
Hewlett-Packard provides a 1-year, next-day, parts exchange, limited warranty, for the StorageWorks
DAT 24 USB Tape Drive, plus 9x5 phone support for the duration of the warranty.
For more information about HP's Global Limited Warranty and Technical Support, visit:
ftp://ftp.compaq.com/pub/products/storageworks/warranty/EN_321708-008.pdf
Hewlett-Packard provides a 3-year, next-day, parts exchange, limited warranty, for all other
StorageWorks DAT Tape Drives, plus 9x5 phone--support for the duration of the warranty.
For more information about HP's Global Limited Warranty and Technical Support, visit:
ftp://ftp.compaq.com/pub/products/storageworks/warranty/EN_321708-008.pdf
HP Care Pack Services
HP Care Pack Services offer upgraded service levels to extend and expand your standard product
warranty with easy to buy, easy to use support packages that help you make the most of your hardware
and software investments. They let you choose the support levels that meet your business requirements,
from basic to mission-critical. They help you contain total cost of ownership.
HP Care Pack warranty extensions can be purchased along with HP products to cost-effectively upgrade
or extend your warranty. For many products, post-warranty HP Care Pack Services are available when
your original warranty has expired.
Why purchase an HP
Care Pack service?
Your standard warranty protects against product defects. HP Care Pack Services help you guard against
unplanned downtime, which can reduce your productivity and profitability. These convenient service
packages:
Protect your investment in HP products
Provide consistent, predictable levels of support across your entire department or business
Ease budget planning with fixed-cost support that includes parts and labor
Give you direct access to proven technical and problem-solving expertise
Offer a choice of response-time and repair-time commitments
Deliver prompt, measurable results
Are available whenever and wherever you do business
HP Care Pack availability may vary by country and product.
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 13
QuickSpecs
HP StorageWorks DAT Drives
Service and Support, HP Care Pack, and Warranty Information
Recommended
Services
In order to maximize ROI and product uptime, and minimize the cost of ownership, Hewlett Packard
recommends:
3 years 24 x 7 Hardware Support
Guards against downtime, which reduces productivity and profitability
Eases budget planning with fixed-cost support that includes parts and labor
Direct access to proven technical and problem-solving expertise
3 years 24 x 7 Software Support
Improve the productivity of system managers and operators
Improve system performance and reduce downtime due to software defects
Expedite problem resolution through expert-level technical resources
Enjoy consistent service coverage across geographically dispersed sites
Update HP and selected third-party software at a predictable cost
Take advantage of subscription savings on software updates
Keep your license compliancy up-to-date
Available HP Care Pack Extend your product warranty with a wide choice of cost-saving support packages.
Services
HP Care Pack services are sold by HP and HP authorized enterprise and commercial resellers. Services
for customers purchasing via direct and enterprise resellers are quoted using HP order configuration
tools. Additional information about HP Care Pack service features and benefits is available at
http://www.hp.com/hps/carepack/services/.
Key for HP Care Pack service availability in the table below:
E = Service available for customers purchasing direct and via enterprise resellers
C = Service available for customers purchasing via commercial resellers
N/A = Service not applicable
HP Care Pack Services
Deployment and Per Event Services
HP Installation
HP Installation & Startup
HP Implementation
Service Available
E/C
N/A
N/A
For more information about deployment and per event services for HP storage products, visit
http://www.hp.com/hps/storage/.
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 14
QuickSpecs
HP StorageWorks DAT Drives
Service and Support, HP Care Pack, and Warranty Information
HP Care Pack Services
Availability Services
HP Next Day Hardware Support
HP 4 Hr, 9x5 Hardware Support
HP 4 Hr, 13x5 Hardware Support
HP 4 Hr, 24x7 Hardware Support
HP 6 HR Call-to-Repair Hardware Support
HP Software Support
HP Software Support 24x7
HP Support Plus
HP Support Plus 24
HP Proactive Essentials 9x5, 10 Software
Incidents
HP Proactive Essentials 9x5, 25 Software
Incidents
HP Proactive Essentials 9x5 Unlimited
HP Proactive Essentials 24x7, 25 Software
Incidents
HP Proactive Essentials 24x7, 50 Software
Incidents
HP Proactive Essentials 24x7 Unlimited
HP Proactive 24 Service*
HP Critical Service*
1 yr
3 yr
4 yr
5 yr
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
E/C
C
C
C
C
C
C
C
C
E/C
C
C
C
C
C
C
C
C
E/C
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
NA
E/C
E/C
NA
E/C
E/C
NA
NA
NA
NA
NA
NA
*NOTE:
NOTE: Both Proactive 24 & Critical Service only relate to 'reactive elements'. 'Proactive elements' are
available on time & materials basis. (SW is supported separately per package).
HP Care Pack Service
Product Numbers
Enterprise & Commercial Purchased Care Packs
('A' stands for physical Care Pack, 'E' for electronic Care Pack)
For DAT 40 USB, DAT 40 SCSI, DAT 72 USB and DAT 72 SCSI
Product Number
U2090A/E
H3155A/E
H4616A/E
U2068A/E
U6358A/E
U9338A/E
U9339A/E
U9340A/E
U9341A/E
UA450PE
UA451PE
UA452PE
UA453PE
DA - 11883
Product Description
Tape Installation Hardware Installation Only
Hardware, "3-year", "Next Business Day", "9x5", "on-site"*
Hardware, "3-year", "4-hour", "13x5", "on-site"
Hardware, "3-year", "4-hour", "24x7", "on-site"
Hardware, "3-year", "6hr Call-to-Repair", "24x7", "on-site"
Hardware, "4-year", "4-hour", "13x5", "on-site"
Hardware, "4-year", "4-hour", "24x7", "on-site"
Hardware, "5-year", "4-hour", "13x5", "on-site"
Hardware, "5-year", "4-hour", "24x7", "on-site"
Hardware, "1-year", "Next Business Day", "9x5", "on-site", "Post Warranty"
Hardware, "1-year", "4-hour", "13x5", "on-site", "Post Warranty"
Hardware, "1-year", "4-hour", "24x7", "on-site", "Post Warranty"
Hardware, "1-year", "6hr Call-to-Repair", "24x7", "on-site", Post Warranty"
Worldwide — Version 15 — March 20, 2006
Page 15
QuickSpecs
HP StorageWorks DAT Drives
Service and Support, HP Care Pack, and Warranty Information
For DAT 24 USB only
Product Number
U2090A/E
UD061E
UD062E
UD063E
UD064A/E
UD065A/E
UD066A/E
HC248A/E
UD067E
UD068E
UD069E
UD070E
UD071PE
HC245PE
HC246PE
HC247PE
Product Description
Tape Installation HW Installation Only
HW, "1-year", "NBD", "9x5", "on-site"
HW, "1-year", "4-hour", "13x5", "on-site
HW, "1-year", "4-hour", "24x7", "on-site"
HW, "3-year", "NBD", "9x5", "on-site"
HW, "3-year", "4-hour", "13x5", "on-site"
HW, "3-year", "4-hour", "24x7", "on-site"
HW, "3-year", "6hr CTR", "24x7", "on-site"
HW, "4-year", "4-hour", "13x5", "on-site"
HW, "4-year", "4-hour", "24x7", "on-site"
HW, "5-year", "4-hour", "13x5", "on-site"
HW, "5-year", "4-hour", "24x7", "on-site"
HW, "1-year", "NBD", "9x5", "on-site", "Post Wty"
HW, "1-year", "4-hour", "13x5", "on-site", "Post Wty"
HW, "1-year", "4-hour", "24x7", "on-site", "Post Wty"
HW, "1-year", "6hr CTR", "24x7", "on-site", Post Wty"
Enterprise Purchased Care Packs
For DAT 40 USB, DAT 40 SCSI, DAT 72 USB and DAT 72 SCSI
Product Number
HA113A1
HA101A3
HA103A3
HA104A3
HA105A3
HA106A3
HA107A3
HA109A3
HA110A3
HA111A3
HA112A3
DA - 11883
Product Description
Tape Installation Hardware Installation
Only
Hardware, "3-year", "next-day", "13x5",
"on-site"
Hardware, "3-year", "4-hour", "13x5",
"on-site"
Hardware, "3-year", "4-hour", "24x7",
"on-site"
Hardware, "3-year", "6hr Call-toRepair", "24x7", "on-site"*
SW, "3-year", "Phone-in", "9x5"
SW, "3-year", "Phone-in", "24x7"
Hardware Only, Support Plus, "3-year",
"13x5"
Hardware Only, Support Plus 24, "3year", "24x7"
Hardware Only, Proactive 24, "3-year",
"24x7"*
Hardware Only, Critical Service, "3year", "24x7"*
Worldwide — Version 15 — March 20, 2006
Drive Band
N/A
Install Band
596
455
N/A
455
N/A
455
N/A
455
N/A
N/A
N/A
455
N/A
N/A
N/A
455
N/A
455
N/A
455
N/A
Page 16
QuickSpecs
HP StorageWorks DAT Drives
Service and Support, HP Care Pack, and Warranty Information
For DAT 24 USB only
Product Number
Product Description
HA113A1
Tape Installation Hardware Installation
Only
Hardware, "3-year", "next-day", "13x5",
"on-site"
Hardware, "3-year", "4-hour", "13x5",
"on-site"
Hardware, "3-year", "4-hour", "24x7",
"on-site"
Hardware, "3-year", "6hr Call-toRepair", "24x7", "on-site"*
SW, "3-year", "Phone-in", "9x5"
SW, "3-year", "Phone-in", "24x7"
Hardware Only, Support Plus, "3-year",
"13x5"
Hardware Only, Support Plus 24, "3year", "24x7"
Hardware Only, Proactive 24, "3-year",
"24x7"*
Hardware Only, Critical Service, "3year", "24x7"*
HA101A3
HA103A3
HA104A3
HA105A3
HA106A3
HA107A3
HA109A3
HA110A3
HA111A3
HA112A3
DAT24 USB
Band
N/A
DAT24 USB
80B
N/A
80B
N/A
80B
N/A
80B
N/A
N/A
N/A
80B
N/A
N/A
N/A
80B
N/A
80B
N/A
80B
N/A
596
NOTE:
*Both Proactive 24 & Critical Service only relate to 'reactive elements', 'proactive elements' are available
on time & materials basis. (SW is supported separately per package).
The Care Pack information quoted above relates to 3 year offerings only, 1yr / 4yr & 5yr packs are
available for each offering (replace A3 with A1, A4 or A5).
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit http://www.hp.com/support.
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 17
QuickSpecs
HP StorageWorks DAT Drives
Service and Support, HP Care Pack, and Warranty Information
HP Education Services
For more information about HP Education Services for Storage and SAN, visit
http://education.hp.com/curr-storsan.html
Additional Services
Information
For more information about Deployment, Per Event, Consulting and Education services for HP Storage,
visit: http://www.hp.com/hps/storage/
For more information about HP Care Pack services for storage products, visit:
http://www.hp.com/hps/carepack/storage/cp_networked.html
For more information about HP storage software, services and updates, visit:
http://h18006.www1.hp.com/storage/software.html
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP" http://www.hp.com/
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 18
QuickSpecs
HP StorageWorks DAT Drives
Kit Contents
HP StorageWorks DAT 24 Tape Drives
Description
Model
DAT 24 USB Internal Tape Drive, installation poster, HP StorageWorks CD (containing
DAT 24 USB Internal
electronic user's guide, drivers, and HP Library and Tape Tools software diagnostics),
HP StorageWorks Data Protector Express Single Server Edition backup/recovery
software CD and the HP StorageWorks Data Protector Express Bare Metal Disaster
Recovery option, standard USB cable, USB cable for internal ProLiant connect, cable
routing kit (for connection to external USB 2.0 ports), screws, HP DDS-3 data
cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 24 USB External Tape Drive, installation poster, HP StorageWorks CD
DAT 24 USB External
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP StorageWorks Data Protector Express Single Server Edition
backup/recovery software CD and the HP StorageWorks Data Protector Express Bare
Metal Disaster Recovery option, integral USB cable, power cord, HP DDS-3 data
cartridge.
HP StorageWorks DAT 40 Tape Drives
Description
Model
DAT 40 SCSI Internal Tape Drive, installation guide, HP StorageWorks CD (containing
DAT 40 SCSI Internal
electronic user's guide, drivers, and HP Library and Tape Tools software diagnostics),
HP StorageWorks Data Protector Express Single Server Edition backup/recovery
software CD and the HP StorageWorks Data Protector Express Bare Metal Disaster
Recovery option, SCSI ribbon cable, power extender cable, screws, HP DDS-4 data
cartridge, HP DDS cleaning cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 40 SCSI External Tape Drive, installation guide, HP StorageWorks CD
DAT 40 SCSI External
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics, HP StorageWorks Data Protector Express Single Server Edition
backup/recovery software CD and the HP StorageWorks Data Protector Express Bare
Metal Disaster Recovery option, SCSI cable (68-pin HD to 68-pin VHD, LVD/SE
Ultra2, 2.5m), LVD/SE SCSI multi-mode terminator, power cord, HP DDS-4 data
cartridge, HP DDS cleaning cartridge.
DAT 40 SCSI Hot-plug Tape Drive, installation guide, HP StorageWorks CD
DAT 40 SCSI Hot-Plug
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP StorageWorks Data Protector Express Single Server Edition
backup/recovery software CD and the HP StorageWorks Data Protector Express Bare
Metal Disaster Recovery option, HP DDS-4 data cartridge, HP DDS cleaning
cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 40 SCSI Array Module, installation guide, HP StorageWorks CD (containing
DAT 40 Array Module
for Tape Array 5300
electronic user's guide, drivers, and HP Library and Tape Tools software diagnostics),
HP StorageWorks Data Protector Express Single Server Edition backup/recovery
software CD and the HP StorageWorks Data Protector Express Bare Metal Disaster
Recovery option, HP DDS-4 data cartridge, HP DDS cleaning cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DA - 11883
Worldwide — Version 15 — March 20, 2006
Part Number
DW069A
DW070A
Part Number
C5686C
C5687D
Q1546A
C7497C
Page 19
QuickSpecs
HP StorageWorks DAT Drives
Kit Contents
DAT 40 USB Internal
DAT 40 USB External
DAT 40 USB Internal Tape Drive, installation poster, HP StorageWorks CD (containing
electronic user's guide, drivers, and HP Library and Tape Tools software diagnostics),
HP StorageWorks Data Protector Express Single Server Edition backup/recovery
software CD and the HP StorageWorks Data Protector Express Bare Metal Disaster
Recovery option, standard USB cable, USB cable for internal ProLiant connect, cable
routing kit (for connection to external USB 2.0 ports), screws, HP DDS-4 data
cartridge, HP DDS cleaning cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 40 USB External Tape Drive, installation poster, HP StorageWorks CD
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP StorageWorks Data Protector Express Single Server Edition
backup/recovery software CD and the HP StorageWorks Data Protector Express Bare
Metal Disaster Recovery option, integral USB cable, power cord, HP DDS-4 data
cartridge, HP DDS cleaning cartridge.
HP StorageWorks DAT 72 Tape Drives
Description
Model
DAT 72 SCSI Internal 100% ROHS Compliant Tape Drive, installation poster, HP
DAT 72 SCSI Internal
StorageWorks CD (containing electronic user's guide, drivers, and HP Library and
Tape Tools software diagnostics), HP StorageWorks Data Protector Express Single
Server Edition backup/recovery software CD and the HP StorageWorks Data Protector
Express Bare Metal Disaster Recovery option, SCSI ribbon cable (68-pin wide HD
LVD), HP DAT 72 data cartridge, HP DDS cleaning cartridge
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 SCSI External 100 % ROHS Compliant Tape Drive, installation poster, HP
DAT 72 SCSI External
StorageWorks CD (containing electronic user's guide, drivers, and HP Library and
Tape Tools software diagnostics), HP StorageWorks Data Protector Express Single
Server Edition backup/recovery software CD and the HP StorageWorks Data Protector
Express Bare Metal Disaster Recovery option, SCSI cable (68-pin Wide VHD-HD LVD),
LVD/SE SCSI multi-mode terminator, power cord, HP DAT 72 data cartridge, HP DDS
cleaning cartridge.
DAT 72 SCSI 100% ROHS Compliant Array Module, installation poster, HP
DAT 72 SCSI Array
Module for Tape Array
StorageWorks CD (containing electronic user's guide, drivers, and HP Library and
5300
Tape Tools software diagnostics), HP StorageWorks Data Protector Express Single
Server Edition backup/recovery software CD and the HP StorageWorks Data Protector
Express Bare Metal Disaster Recovery option, HP DAT 72 data cartridge, HP DDS
cleaning cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 SCSI Hot-plug Tape Drive, installation guide, HP StorageWorks CD
DAT 72 SCSI Hot-Plug
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP StorageWorks Data Protector Express Single Server Edition
backup/recovery software CD and the HP StorageWorks Data Protector Express Bare
Metal Disaster Recovery option, HP DAT 72 data cartridge, HP DDS cleaning
cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DA - 11883
Worldwide — Version 15 — March 20, 2006
DW022A
DW023A
Part Number
Q1522B
Q1523B
Q1524C
Q1529A
Page 20
QuickSpecs
HP StorageWorks DAT Drives
Kit Contents
DAT 72 USB Internal
DAT 72 USB External
DAT 72 USB Internal Tape Drive, installation poster, HP StorageWorks CD (containing
electronic user's guide, drivers, and HP Library and Tape Tools software diagnostics),
HP StorageWorks Data Protector Express Single Server Edition backup/recovery
software CD and the HP StorageWorks Data Protector Express Bare Metal Disaster
Recovery option, standard USB cable, USB cable for internal ProLiant connect, cable
routing kit (for connection to external USB 2.0 ports), screws, HP DAT 72 data
cartridge, HP DDS cleaning cartridge.
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
DAT 72 USB External Tape Drive, installation poster, HP StorageWorks CD
(containing electronic user's guide, drivers, and HP Library and Tape Tools software
diagnostics), HP StorageWorks Data Protector Express Single Server Edition
backup/recovery software CD and the HP StorageWorks Data Protector Express Bare
Metal Disaster Recovery option, integral USB cable, power cord, HP DAT 72 data
cartridge, HP DDS cleaning cartridge.
DA - 11883
Worldwide — Version 15 — March 20, 2006
DW026A
DW027A
Page 21
QuickSpecs
HP StorageWorks DAT Drives
Options
NOTE: This is a list of related options. Some may be discontinued.
64-Bit/133-MHz Single-Channel Ultra320 SCSI Adapter
Host Bus Adapters and
Controllers for ProLiant
64-Bit/66-MHz Dual-Channel Wide Ultra3 SCSI Adapter, Alternate OS
Servers
Single-channel Ultra320 SCSI Adapter
Smart Array 532 Controller
NOTE: Supports hot-plug tape drives only.
Smart Array 532 Controller (Japan)
NOTE: Supports hot-plug tape drives only.
Smart Array 5302/128 Controller
NOTE: Supports hot-plug tape drives only.
Smart Array 5304/256 Controller
NOTE: Supports hot-plug tape drives only.
Smart Array 641 Controller
NOTE: Supports hot-plug tape drives only.
Smart Array 642 Controller
NOTE: Supports hot-plug tape drives only.
Smart Array 6402/128 Controller
NOTE: Supports hot-plug tape drives only.
Smart Array 6404/256 Controller
NOTE: Supports hot-plug tape drives only.
Host Bus Adapters and
Controllers for
AlphaServers
32-bit Single Channel Ultra Wide HBA
NOTE: Not supported with hot-plug.
NOTE: Supported with DAT 40 models only.
Combo SCSI/Ethernet Dual Channel
NOTE: Not supported with hot-plug.
32-bit to LVD Single-Channel SCSI
PCI Combo Ultra2 LVD SCSI Adapter
64-bit Dual-Channel Ultra 3 LVD SCSI Adapter
Controllers for Third-Party 64-Bit/133-MHz Dual-Channel Ultra320 SCSI Adapter
Servers
NOTE: Not supported with DAT 24.
64-Bit/133-MHz Single-Channel Ultra320 SCSI Adapter
Media
HP DDS-2 Data Cartridge, 8 GB
HP DDS-3 Data Cartridge, 24 GB
HP DDS-4 Data Cartridge, 40 GB
HP DAT 72 Data Cartridge, 72 GB
HP DDS Cleaning Cartridge
DA - 11883
Worldwide — Version 15 — March 20, 2006
374654-B21
284688-B21
365289-B21
225338-B21
225338-291
283552-B21
283551-B21
291966-B21
291967-B21
273915-B21
273914-B21
KZPBA-CA
KZPCM-DA
3X-KZPCA-AA
3X-DEPVZ-AA
3X-KZPEA-DB
268351-B21
374654-B21
C5707A
C5708A
C5718A
C8010A
C5709A
Page 22
QuickSpecs
HP StorageWorks DAT Drives
Options
Rack-Mount Options
Cable Kits
1U Rack-Mount Kit
NOTE: 1U Rack-Mount Kit holds up to two internal DAT drives (and other tape
technologies).
NOTE: Please refer to the following web page for further information:
http://h18006.www1.hp.com/products/storageworks/1urackmount/index.html
1U USB Cable Option Kit
NOTE: This cable kit can be purchased to convert a 1U SCSI rack-mount kit to a USB
interface to support the DAT USB drives. It includes 1 - 5 meter USB cable, 1- plastic
grommet, 1- metallic panel, and documentation. All pieces are pre-assembled for
easy implementation.
3U Rack-Mount Kit
NOTE: 3U Rack-Mount Kit holds up to four internal DAT drives (and other tape
technologies).
NOTE: Please refer to the following web page for further information:
http://h18006.www1.hp.com/products/storageworks/3urackmount/index.html
Tape Array 5300
NOTE: Tape Array 5300 holds up to four offline hot-swap DAT array modules (and
other tape technologies).
NOTE: Please refer to the following web page for further information:
http://www.hp.com/products1/storage/products/tapebackup/tapearrays/
tapearray5300/index.html
LVD Cable Kit, 68-Pin HD/68-pin VHDCI
NOTE: Contains both internal & external cables.
LVD Cable Kit, 68-Pin HD/68-Pin HD
NOTE: Contains both internal & external cables.
External SCSI Cable, 68-pin HD/68-pin VHDCI, 12ft/3.66m
External SCSI Cable, 68-pin HD/68-Pin HD, 16.4ft/5m
External SCSI Cable, 68-pin HD/68-Pin HD, 32.8ft/10m
DA - 11883
Worldwide — Version 15 — March 20, 2006
A7445B
396114-B21
274338-B22
C7508B
168048-B21
242381-B21
341177-B21
328215-001
328215-002
Page 23
QuickSpecs
HP StorageWorks DAT Drives
Technical Specifications
Dimensions
DAT 24
Half-height, 5¼ inches
(internal and array
module)
DAT 40
Form Factor
Half-height, 5¼ inches
(internal and array
module)
or 3½ inches (hot-plug)
Physical (HxWxD)
1.6 x 5.7 x 6.1 in
1.6 x 5.7 x 6.1 in
Internal
(4.0 x 14.5 x 15.5 cm)
(4.0 x 14.5 x 15.5 cm)
Physical (HxWxD) SCSI-2 3.9 x 4.5 x 8.6 in
3.9 x 4.5 x 8.6 in
External
(10.0 x 11.5 x 22.0 cm) (10.0 x 11.5 x 22.0 cm)
Physical (HxWxD) SCSI-3 N/A
N/A
External
1.8 x 7.1 x 8.7 in
Physical (HxWxD) USB 1.8 x 7.1 x 8.7 in
External
(4.5 x 18.1 x 22.2 cm)
(4.5 x 18.1 x 22.2 cm)
N/A
1.6 x 4.5 x 7.7 in
Physical (HxWxD)
Hot-Plug
(4.1 x 11.5 x 19.5 cm)
1.6 x 6.3 x 11.2 in
1.6 x 6.3 x 11.2 in
Physical (HxWxD)
Array Module
(4.0 x 16.0 x 28.5 cm)
(4.0 x 16.0 x 28.5 cm)
9.5 x 7.9 x 9.5 in
9.5 x 9.25 x 9.5 in
Shipping (HxWxD)
Internal
(24.0 x 20.0 x 24.0 cm) (24.0 x 23.5 x 24.0 cm)
11.8 x 11.02 x 12.6 in
Shipping (HxWxD) SCSI 11.25 x 9.6 x 13.6 in
External
(28.6 x 24.3 x 34.5 cm) (30.0 x 28.0 x 32.0 cm)
Shipping (HxWxD) USB 11.8 x 11.02 x 12.6 in 11.8 x 11.02 x 12.6 in
External
(30.0 x 28.0 x 32.0 cm) (30.0 x 28.0 x 32.0 cm)
N/A
5.5 x 9.0 x 9.1 in
Shipping (HxWxD)
Hot-Plug
(14.0 x 22.5 x 23.1 cm)
11.4 x 17.7 x 12.2 in
11.4 x 17.7 x 12.2 in
Shipping (HxWxD)
Array Module
(29.0 x 45.0 x 31.0 cm) (29.0 x 45.0 x 31.0 cm)
DAT 72
Half-height, 5¼ inches
(internal and array
module) 3½ inches (hotplug)
1.6 x 5.7 x 6.1 in
(4.0 x 14.5 x 15.5 cm)
3.9 x 4.5 x 8.6 in
(10.0 x 11.5 x 22.0 cm)
1.8 x 7.1 x 8.7 in
(4.5 x 18.1 x 22.2 cm)
1.8 x 7.1 x 8.7 in
(4.5 x 18.1 x 22.2 cm)
1.6 x 4.5 x 7.7 in
(4.1 x 11.5 x 19.5 cm)
1.6 x 6.3 x 11.2 in
(4.0 x 16.0 x 28.5 cm)
9.5 x 9.25 x 9.5 in
(24.0 x 23.5 x 24.0 cm)
11.8 x 11.02 x 12.6 in
(30.0 x 28.0 x 32.0 cm)
11.8 x 11.02 x 12.6 in
(30.0 x 28.0 x 32.0 cm)
14.2 x 10.0 x 11.0 in
(36.0 x 25.0 x 28.0 cm)
11.4 x 17.7 x 12.2 in
(29.0 x 45.0 x 31.0 cm)
DAT 24
2.2 lb (1.0 kg)
4.7 lb (2.15 kg)
DAT 40
2.1 lb (.95 kg)
4.6 lb (2.10 kg)
DAT 72
2.1 lb (.95 kg)
4.6 lb (2.10 kg)
N/A
N/A
4.2 lb (1.90 kg)
4.2 lb (1.90 kg)
4.2 lb (1.90 kg)
4.2 lb (1.90 kg)
N/A
3.2 lb (1.45 kg
1.9 lb (.85 kg)
3.2 lb (1.45 kg)
1.9 lb (.85 kg)
3.1 lb (1.40 kg)
8.2 lb (3.7 kg)
11.2 lb (5.1 kg)
3.2 lb (1.44 kg)
7.0 lb (3.2 kg)
3.2 lb (1.44 kg)
7.0 lb (3.2 kg)
N/A
N/A
6.4 lb (2.9 kg)
6.4 lb (2.9 kg)
6.4 lb (2.9 kg)
6.4 lb (2.9 kg)
Weight
Out of box Internal
Out of box
SCSI-2 External
Out of box
SCSI-3 External
Out of box
USB External
Out of box Hot-Plug
Out of box Array
Module
Shipping Internal
Shipping
SCSI-2 External
Shipping
SCSI-3 External
Shipping
USB External
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 24
QuickSpecs
HP StorageWorks DAT Drives
Technical Specifications
Shipping Hot-Plug
Shipping Array Module
Capacity
Native
Compressed
(assumes 2:1data
compression)
Buffer Size (SCSI)
Buffer Size (USB)
Performance
N/A
7.9 lb (3.6 kg)
2.9 lb (1.3 kg)
7.9 lb (3.6 kg)
8.8 lb (4.0 kg)
7.9 lb (3.6 kg)
DAT 24
12 GB
24 GB
DAT 40
20 GB
40 GB
DAT 72
36 GB
72GB
2 MB
8MB
8 MB
8MB
8 MB
8MB
DAT 24
>1.5 MB/s
DAT 40
3.2 MB/s*
DAT 72
3.2 MB/s*
Sustained Transfer Rate
(native)
Where 1KB = 1,000
Bytes
>3 MB/s
6.4 MB/s*
6.4 MB/s*
Sustained Transfer Rate
(with 2:1 data
compression)
Where 1KB = 1,000
Bytes
3 MB/s (asynchronous) 6.4MB/s (asynchronous) 6.4 MB/s (asynchronous)
Burst Transfer Rate
Where 1KB = 1,000
10 MB/s (synchronous) 40 MB/s (synchronous) 40 MB/s (synchronous)
Bytes
N/A
N/A
6.4 MB/s (asynchronous)
Burst Transfer Rate
(SCSI-3 interface)
160 MB/s (synchronous)
Where 1KB = 1,000
Bytes
Burst Transfer Rate (USB 6.4MB/s (asynchronous) 6.4MB/s (asynchronous) 6.4 MB/s (asynchronous)
interface)Where 1KB =
40 MB/s (synchronous) 40 MB/s (synchronous) 40 MB/s (synchronous)
1,000 Bytes
40 s
50 s
68 s
Data Access Time
(SCSI)
14 s
15 s
15 s
Average Load Time
(SCSI)
14 s
15 s
15 s
Average Unload Time
(SCSI)
80 s (end to end)
110 s (end to end)
120 s (end to end)
Rewind Time (SCSI)
1.56 m/s
1.41 m/s
1.41 m/s
Rewind Tape Speed
(SCSI)
40 s
50 s
68 s
Data Access Time (USB)
15 s
15 s
15 s
Average Load Time
(USB)
15 s
15 s
15 s
Average Unload Time
(USB)
90 s (end to end)
110 s (end to end)
120 s (end to end)
Rewind Time (USB)
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 25
QuickSpecs
HP StorageWorks DAT Drives
Technical Specifications
Rewind Tape Speed
(USB)
Reliability
MTBF (SCSI)
Uncorrected Error Rate
(SCSI)
MTBF (USB)
Uncorrected Error Rate
(USB)
Media
Recommended media
Backward read-write
compatibility (SCSI)
Backward read-write
compatibility (USB)
Tape Format
1.41 m/s
1.41 m/s
1.41 m/s
DAT 24
300,000 hours
at 12% duty cycle
1x1015 bits read
DAT 40
125,000 hours
at 100% duty cycle
1x10-17 bits read
DAT 72
125,000 hours at 100%
duty cycle
1x10-17 bits read
125,000 hours
at 100% duty cycle
1x10-17 bits read
125,000 hours
at 100% duty cycle
1x10-17 bits read
125,000 hours at 100%
duty cycle
1x10-17 bits read
DAT 24
DDS-3 (125m)
DDS-2 (120m)
DDS (60 and 90m)
DDS-2 (120m)
DAT 40
DDS-4 (155m)
DDS-3 (125m)
DDS-2 (120m)
DDS-3 (125m)
DDS-2 (120m)
DAT 24
DAT 40
Recording Method
4 mm helical scan
4 mm helical scan
Recording Format
DDS-3, DDS-2, and DDS DDS-4, DDS-3, and
(SCSI)
(ANSI/ISO/ECMA)
DDS-2
(ANSI/ISO/ECMA)
Recording Format (USB) DDS-3 and DDS-2 DDS DDS-4, DDS-3, and
(ANSI/ISO/ECMA)
DDS-2
(ANSI/ISO/ECMA)
Data Compression
Lempel-Ziv (DCLZ)
Lempel-Ziv (DCLZ)
Error
Reed-Solomon
Reed-Solomon
Detection/Correction
Partial Response
Partial Response
Data Encoding Method
Maximum Likelihood
Maximum Likelihood
(PRML)
(PRML)
DA - 11883
Worldwide — Version 15 — March 20, 2006
DAT 72
DAT 72 (170m)
DDS-4 (155m)
DDS-3 (125m)
DDS-4 (155m)
DDS-3 (125m)
DAT 72
4 mm helical scan
DAT 72, DDS-4, DDS-3
(ANSI/ISO/ECMA)
DAT 72, DDS-4, DDS-3
(ANSI/ISO/ECMA)
Lempel-Ziv (DCLZ)
Reed-Solomon
Partial Response
Maximum Likelihood
(PRML)
Page 26
QuickSpecs
HP StorageWorks DAT Drives
Technical Specifications
Interface
SCSI-2 Interface
SCSI-3 Interface
SCSI Connector
USB Interface
USB Connector
Termination - is only
required for the SCSI
product
Power Specifications
DAT 24
Narrow SCSI-2 singleended
N/A
Internal: 50-pin LVDS
External: 50-pin narrow
HD LVDS, bail lock
DAT 40
DAT 72
Wide Ultra SCSI
Wide Ultra SCSI
(LVD/SE)
(LVD/SE)
N/A
SCSI-3 Ultra 160 LVD
Internal: 68-pin wide HD Internal: 68-pin wide HD
LVD
LVD
External: 68-pin wide
External: 68-pin wide
HDLVD, thumbscrew
LVDS, thumbscrew
Array module: 80-pin
Hot-plug: 80-pin SCA-2 Hot-plug: 80-pin SCA-2
EBBI
(SCSI and power)
(SCSI and power)
Array module: 80-pin
Array module: 80-pin
EBBI
EBBI
USB 2.0
USB 2.0
USB 2.0
USB standard series B
USB standard series B
USB standard series B
receptacle
receptacle
receptacle
No terminator is required for internal model (assumes use of terminated
cable).
External model requires termination with multimode terminator (included with
product).
SCSI Array module requires termination with multimode terminator (ordered
separately - p/n C2364A).
DAT 24
Power Requirements
+5V ± 5% (100mV Max
(SCSI-2 internal, hotripple) @1.2A
plug, and array module) +12V ± 10% (150mV
Max ripple) @0.1A
Power Requirements
+5V ± 5% (100mV Max
(USB and SCSI-3
ripple) @0.8A
internal, and array
+12V ± 10% (150mV
module)
Max ripple) @0.3A
Power Requirements
100 to 240 VAC, 50-60
(external)
Hz, auto-ranging
Power consumption
6 Watts
(SCSI) (average)
7.1 Watts
Power consumption
(USB) (average)
DAT 40
+5V ± 5% (100mV Max
ripple) @0.6A
+12V ± 10% (150mV
Max ripple) @1.2A
+5V ± 5% (100mV Max
ripple) @0.8A
+12V ± 10% (150mV
Max ripple) @0.3A
100 to 240 VAC, 50-60
Hz, auto-ranging
7.3 Watts
DAT 72
+5V ± 5% (100mV Max
ripple) @0.6A
+12V ± 10% (150mV
Max ripple) @1.2A
+5V ± 5% (100mV Max
ripple) @0.8A
+12V ± 10% (150mV
Max ripple) @0.3A
100 to 240 VAC, 50-60
Hz, auto-ranging
7.1 Watts
7.3 Watts
7.1 Watts
Environmental
Specifications
(all models)
Relative Humidity
5% to 95%
20% to 80%
-40° to 158° F/(-40° to 70° C)
41° to 104° F/(5° to 40° C)
Standards Compliance
cCSAus Certification to C22.2, No. 60950, TÜV EN60950 (IEC 60950), FCC and CE Declaration of
Conformity, C-TICK Approved (AS/NZS CISPR22), VCCI Approved, RRL Approved, BSMI Approved,
GOSH Approved
Temperature Range
DA - 11883
Storage
Operating
Storage
Operating
Worldwide — Version 15 — March 20, 2006
Page 27
QuickSpecs
HP StorageWorks DAT Drives
Technical Specifications
Drive LED Indicators
Tape Ready Signal
Tape LED
On steady
Tape Loading Signal
Flashing slowly
Tape Activity Signal
Flashing rapidly
Media Caution Signal
Error Condition Signal
OBDR Signal
Off or
flashing
Off
Clean LED
Off
Meaning
The data cartridge is loaded and the
drive is ready.
Off
The cartridge is loading or unloading, or
power-on self-test is in progress
Off
The cartridge is loaded, activity is
occurring.
Flashing slowly If the media caution signal is displayed:
On steady
Both flashing slowly
in an alternating pattern
Wait for the current operation to
finish, then insert a different tape
and repeat the operation that was
being performed.
If the media caution signal does
not show this time, it indicates that
the original cartridge was nearing
the end of its useful life. Copy any
data you want to keep from the
original tape onto a new tape if
possible, and then discard the old
tape.
If the media caution signal
appears again with the second
tape, the tape heads need
cleaning.
If the media caution signal
appears after using a cleaning
cartridge, the cleaning cartridge
has probably expired and should
be discarded.
HP DAT drives perform a comprehensive
self-test during power-up. If a hard error
causes the self-test to fail, the clean light
changes to steady amber. Run HP Library
& Tape Tools to help diagnose the
problem.
The tape drive is in disaster recovery
mode, restoring the operating system.
© Copyright 2006 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation. Unix is a registered trademark of The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 11883
Worldwide — Version 15 — March 20, 2006
Page 28
