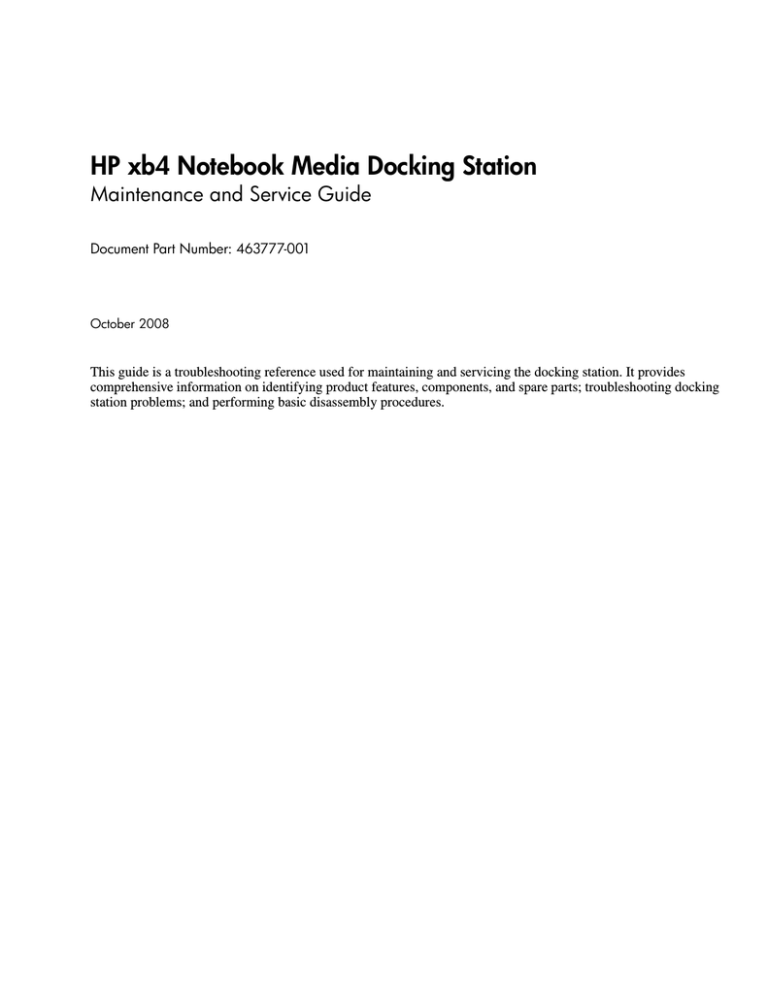

HP xb4 Notebook Media Docking Station
Maintenance and Service Guide
Document Part Number: 463777-001
October 2008
This guide is a troubleshooting reference used for maintaining and servicing the docking station. It provides
comprehensive information on identifying product features, components, and spare parts; troubleshooting docking
station problems; and performing basic disassembly procedures.
© Copyright 2008 Hewlett-Packard Development Company, L.P.
Windows is a U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in
the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
First Edition: October 2008
Document Part Number: 463777-001
Safety warning notice
Å
WARNING: To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly
on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface,
such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow
the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of
Information Technology Equipment (IEC 60950).
Contents
1 Product description
Compatability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Expansion port features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
External components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3
Front components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3
Bottom components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
Rear components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Right-side components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Left-side components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Wireless accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Design overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Using the docking station. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9
Adjusting the docking station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–9
Connecting to AC power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10
Docking the computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12
2 Troubleshooting
Troubleshooting checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Problems and solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General use and connection problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Video problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Getting more information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–1
2–1
2–2
2–2
2–3
2–3
3 Illustrated parts catalog
Serial number location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Docking station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hard drive adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power cords (not illustrated) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sequential part number listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–1
3–2
3–2
3–3
3–3
3–3
4 Removal and replacement procedures
Preliminary replacement requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Component replacement procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing an optional hard drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing an HP Pocket Media Drive and HP Pocket Media Drive Adapter . . . . . . . . . . . . . . . . . . . .
Maintenance and Service Guide
4–1
4–2
4–2
4–3
4–5
iii
Contents
5 Specifications
6 Connector pin assignments
Audio-in (microphone). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio-out (headphone) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cable docking connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
External monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RJ-45 (network) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Universal Serial Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6–1
6–1
6–2
6–3
6–4
6–4
7 Power cord set requirements
Requirements for all countries and regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1
Requirements for specific countries and regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–2
3-Conductor power cord set requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–2
Index
iv
Maintenance and Service Guide
1
Product description
The HP xb4 Notebook Media Docking Station provides an efficient, less-cluttered work environment, improved
cable management, and wireless peripherals. It eliminates the need to purchase a separate monitor, external
speakers, USB hub, and a wireless keyboard and mouse kit.
✎ The wireless keyboard and mouse kit are available in select countries and regions.
Compatability
The docking station is compatible with all HP and Compaq notebooks having a USB 2.0 port.
Maintenance and Service Guide
1–1
Product description
Features
■
Adjustable height
■
Support for display panel sizes up to 43 cm (17 inches) wide
■
Bottom-mounter sub-woofer speakers
■
Wireless keyboard, mouse, receiver (select models only)
■
Hard drive bay and power connector
■
Infrared pass-through support
■
Lights (power, good dock, mute)
■
Volume control
■
Allows use of iPod or MP3 player with its sound system
■
Can control your home entertainment audio system
■
Connectors:
❏ Expansion cable
❏ Audio-out (headphone) jack
❏ Audio-in (microphone) jack
❏ Universal Serial Bus (USB) 2.0 connectors (6)
❏ Power connector
❏ Component video jacks
❏ S-Video-out jack
❏ Composite video jack
❏ S/PDIF (Sony/Philips Digital Interface) audio jack
❏ External VGA monitor port
❏ RJ-45/Ethernet port
❏ Hard drive power connector
Expansion port features
1–2
■
USB 2.0
■
Gigabit Ethernet
■
Consumer infrared (for optional remote control only)
■
Power inputs (16 W to 90 W maximum)
■
Headphone/speaker audio-out
■
Microphone audio-in
■
VGA
■
Power button
■
Volume control (up/down)
■
Mute/unmute status
Maintenance and Service Guide
Product description
External components
Front components
Item
Component
Function
1
Power button
Turns on the docked computer, and initiates or exits Hibernation and
Standby.
After the computer is docked, the power button on the docking station
acts like the computer power button, using the computer management
settings.
2
Power status light
On: The docking station is on.
3
Volume mute button
Mutes and restores speaker sound.
4
Volume scroll zone
Adjusts speaker volume.
Slide your finger to the left to decrease volume and to the right to
increase volume. You can also tap the minus sign on the scroll zone to
decrease volume, or tap the plus sign on the scroll zone to increase
volume.
5
Speakers (2)
Produce stereo docking station sound.
6
Upper panel
Holds the docked computer.
Maintenance and Service Guide
1–3
Product description
Bottom components
Item
1–4
Component
Function
1
Vent
Enables airflow to cool internal components.
2
Subwoofer
Produces low audio-frequency sound.
Maintenance and Service Guide
Product description
Rear components
Item
Component
Function
1
Power connector 1 light
On: The docking station is connected to AC power.
2
Power connector 1
Connects the docking station to a Smart AC adapter.
3
Power connector 2 light
On: The docking station is connected to AC power.
4
Power connector 2
Connects the docking station to a standard AC adapter.
5
USB ports (4)
Connect optional USB device.
Power is always on to all USB ports when the docking station is connected to
AC power.
✎ There are 2 additional USB ports on the right panel of the docking station.
6
RJ-45 (network) jack
Connects an Ethernet network cable.
7
External VGA monitor port
Connects an optional external VGA monitor or projector.
8
S/PDIF (Sony/Philips Digital
Interface) digital audio jack
Connects an optional compatible audio/video receiver through a digital control cable
(purchased separately).
9
Hard drive power connector
Connects an optional HP Personal Media Drive to dedicated external AC power.
-
Expansion cable
Docks a computer.
q
Good dock connection light
On: The computer is correctly docked.
w
Security cable slot
Attaches an optional security cable to the docking station.
The security cable is designed to act as a deterent, but it may not prevent the
✎ docking
station from being mishandled or stolen.
e
Hard drive security screw
Maintenance and Service Guide
Secures the hard drive carrier for the optional internal hard drive.
1–5
Product description
Right-side components
Item
Component
Function
1
PC port
The (USB type B) PC port connects an optional secondary computer to
the docking station.
✎ Do not use the PC port as a printer connection.
2
Auxilliary audio jack
Connects an optional MP3 player or other audio device to docking
station speakers.
3
Audio-out (headphone) jack
Produces sound when connected to optional external powered stereo
speakers, headphones, ear buds, a headset, or television audio.
speakers are muted when a device is connected to the
✎ The
telephone jack.
4
Audio-in (microphone) jack
Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
Connects the microphone to the audio-in (microphone) jack on the
docking station when a computer is docked.
docked computer microphone settings may need to be
✎ The
changed before you connect a microphone to the audio-in
(microphone) jack on the docking station. Refer to your
Windows® operating system instructions for more information.
specific microphone usage information, refer to the
✎ For
microphone manufacturer’s instructions.
5
USB ports (2)
Connect optional USB devices.
Power is always on to all USB ports when the docking station is
connected to AC power.
are 4 additional USB ports on the rear panel of the docking
✎ There
station.
1–6
Maintenance and Service Guide
Product description
Left-side components
Component
Description
Hard drive bay
Holds an optional internal HP Personal Media Drive or HP Pocket Media Drive.
Wireless accessories
Item
Component
Description
1
Wireless keyboard
Connects to the docking station without a cable.
2
Wireless mouse (with receiver)
Connects to the docking station without a cable.
Maintenance and Service Guide
1–7
Product description
Design overview
This section presents a design overview of key parts and features of the docking station. To identify replacement
parts, refer to “Chapter 3, “Illustrated parts catalog.”
The docking station provides the following device connections:
1–8
■
Expansion cable
■
S/PDIF (Sony/Philips Digital Interface) audio jack
■
Audio-out (headphone) jack
■
Audio-in (microphone jack
■
Auxiliary audio-in jack
■
Hard drive power connector
■
IR device
■
PC port
■
RJ-45 (network) jack
■
USB 2.0 ports (6)
■
External VGA monitor port
Maintenance and Service Guide
Product description
Using the docking station
Adjusting the docking station
The upper panel on the docking station must be raised before a computer can be docked. To raise the upper panel:
1. Lower the lever 1 located on the left side of the upper panel to the down position.
2. Grasp the upper panel 2 with both hands, and lift the panel toward you.
3. Lift the lever 3 to the up position to lock the upper panel position.
Maintenance and Service Guide
1–9
Product description
To lower the upper panel:
1. Lower the lever 1 located on the left side of the upper panel to the down position.
2. Grasp the upper panel 2 with both hands, and tilt the upper panel down.
3. Lift the lever 3 to the up position to lock the upper panel position.
Connecting to AC power
Å
WARNING: To reduce the risk of electric shock or damage to your equipment:
Plug the power cord into an AC outlet that is easily accessible at all times.
Disconnect power from the product by unplugging the power cord from the AC outlet.
If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable
the power cord grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety feature. It is
possible to receive an electric shock from a system that is not properly grounded.
a smart AC power connector and a standard AC power connector are provided. Choose the connector that
✎ Both
corresponds to the computer AC power adapter being used.
1–10
Maintenance and Service Guide
Product description
Connect the docking station to an AC power source using the computer AC adapter and power cord.
1. Identify the correct power connector to the docking station.
cords and AC outlets vary in appearance by region and country. The AC adapter is included with the
✎ Power
computer or purchased separately.
2. Connect the computer AC a dapter to the corresponding power connector on the docking station 1.
❏ Connect a smart AC adapter to the corresponding power connector 1.
– or –
❏ Connect a standard AC adapter to the corresponding power connector 1.
3. Connect the AC power cord to the AC adapter 2.
4. Connect the AC power cord to the AC outlet 3.
Maintenance and Service Guide
1–11
Product description
Docking the computer
1. Open the computer.
2. Slide the computer into the docking station with the keyboard facing you.
✎ The computer is held in place by a buffer pad, which prevents the computer from shifting out of position.
1–12
Maintenance and Service Guide
Product description
3. Move the expansion cable to either side of the docking station, depending on where the expansion port on your
computer is located.
✎ The location of the expansion port on your computer varies by computer series and model.
✎ It is important to position the cable correctly, so that the cable can move freely.
Maintenance and Service Guide
1–13
Product description
4. Press and hold the buttons on the sides of the expansion cable connector 1.
5. Connect the expansion cable to the expansion port on the computer 2, matching the icon on the computer
expansion port with the icon on the end of the expansion cable.
Ä
CAUTION: To prevent damage to the expansion port, be sure that you correctly align the expansion cable with the expansion
port on the computer.
✎ The expansion port may also be called expansion port 3 in the computer documentation.
If the computer is already on, the good dock connection light on the expansion cable turns on.
1–14
Maintenance and Service Guide
Product description
6. If the computer is off, press the power button on the docked computer or the power button on the docking
station.
✎ The power button location on the docked computer varies by computer series and model.
The power status light on the front of the docking station turns on.
the computer is docked, the internal computer speakers are disabled and the docking station speakers are
✎ After
activated.
Maintenance and Service Guide
1–15
2
Troubleshooting
Å
WARNING: Only authorized technicians trained by HP should repair this equipment. All troubleshooting and repair
procedures are detailed to allow only subassembly-/module-level repair. Because of the complexity of the individual boards and
subassemblies, do not attempt to make repairs at the component level or modifications to any printed wiring board. Improper
repairs can create a safety hazard. Any indication of component replacement or printed wiring board modification may void
any warranty or exchange allowances.
This chapter contains troubleshooting information for the docking station. Carefully match the symptoms of
the malfunction against the problem description in the troubleshooting tables to avoid a misdiagnosis. Refer to
Chapter 4, “Removal and replacement procedures,” for all removal and replacement procedures.
Follow these guidelines when troubleshooting:
■
Complete the recommended actions in the order in which they are given.
■
When the problem is resolved, do not complete the remaining troubleshooting steps.
Troubleshooting checklist
When troubleshooting a problem, check the following list for possible solutions before replacing parts:
■
Be sure that cables are connected properly to the suspected defective part.
■
Be sure that all required device drivers are installed.
Problems and solutions
The following tables list possible problems, the possible cause of each problem, and the recommended solution.
Maintenance and Service Guide
2–1
Troubleshooting
General use and connection problems
Problem
Possible cause
Solution
The connection
indicator light is not on.
The computer is not powered on.
Turn on the computer.
The docking station is not connected to AC power.
Connect the AC adapter to the docking station and to
an AC outlet.
The expansion cable on the docking station is not
fully connected to the expansion port on the
computer.
Disconnect the expansion cable from the computer,
and then reconnect the cable to the expansion port on
the computer.
The computer is in Sleep, Standby, or Hibernation.
Exit Sleep, Standby, or Hibernation.
The computer shuts
down unexpectedly.
The docking station is not connected to AC power,
draining the computer battery.
Connect the AC adapter to the docking station and to
an AC outlet.
The docked computer
cannot access docking
station USB devices.
A secondary computer is connected to the docking
station PC port.
Disconnect the secondary computer.
The ports or jacks on
the docking station are
not working.
The docking station is not connected to AC power.
Connect the AC adapter to the docking station and to
an AC outlet.
The computer is not docked correctly.
Redock the computer.
The optional wireless
keyboard or mouse
does not work.
The wireless receiver is not connected to a USB
port.
Connect the wireless receiver to a USB port.
The wireless receiver and keyboard or mouse have
not been synchronized.
Synchronize the devices by pressing the appropriate
buttons.
The wireless keyboard or mouse has no battery
power.
Be sure that batteries are inserted correctly in the
wireless keyboard or mouse and that the batteries are
functional.
Audio problems
Problem
Possible cause
Solution
The docking station
speakers have little
or no volume.
The docking station speakers have
been muted or the volume is set too
low.
Adjust the volume using the volume scroll zone.
The docking station is not connected
to AC power.
Connect the AC adapter to the docking station and to an AC outlet.
An audio device is connected to the
headphone jack of the docking
station or computer, muting the
docking station speakers.
Unplug the audio device.
The computer is not docked
correctly.
Redock the computer.
The volume level
does not increase
or decrease.
The volume scroll zone is not being
used correctly.
To increase volume, slide your finger from left to right on the volume
scroll zone, or tap the plus sign.
To decrease volume, slide your finger from right to left on the volume
scroll zone, or tap the minus sign.
Media from the
docked computer
or docking station
hard drive will
not play.
There is an auxiliary audio device
connected to the docking station.
Disconnect the auxiliary audio device.
(Continued)
2–2
Maintenance and Service Guide
Troubleshooting
Problem
Possible cause
Solution
An audio device
connected to the
docking station
does not produce
sound.
An audio device is connected to the
headphone jack on the computer.
Using the headphone jack on the
computer mutes the docking station
sound.
Disconnect the audio device from the headphone jack on the computer.
A microphone
connected to the
computer does not
work.
A microphone is connected to the
docking station.
Either use the microphone connected to the docking station or
disconnect it.
A connected home
entertainment
system does not
have audio.
Audio is not connected properly.
Be sure that the docking station is properly connected to the home
entertainment system.
A connected home
entertainment
system does not
experience
surround sound.
The home entertainment system
may not support digital audio.
Be sure that your home entertainment system is S/PDIF compatible.
Video problems
Problem
Possible cause
Solution
A connected home
entertainment
system does not
have video.
The video cable is not connected
correctly.
Disconnect and reconnect the video cable.
The screen image is displaying on
the computer.
Press fn-f4 on the computer to switch the image from the computer to the
external display.
The docking station is not connected
to AC power.
Connect the AC adapter to the docking station and to an AC outlet.
The computer is not docked
correctly.
Redock the computer.
Getting more information
■
For comprehensive information about your computer, as well as government agency and safety information
about the use of your computer, access Help and Support by selecting Start > Help and Support.
■
The HP Web site (http://www.hp.com) provides product news and software updates.
Maintenance and Service Guide
2–3
3
Illustrated parts catalog
Serial number location
When ordering parts or requesting information, provide the docking station serial number and model number
located on the bottom of the docking station.
Maintenance and Service Guide
3–1
Illustrated parts catalog
Docking station
Description
Spare Part Number
HP xb4 Docking Station (whole unit replacement)
481018-001
Wireless components
Item
1
2
3–2
Description
Spare part number
Wireless USB keyboard (U.S.)
481019-001
Wireless USB keyboard (Brazil)
481019-201
Wireless USB keyboard (Latin America)
481019-161
Wireless USB keyboard (South Korea)
481019-AD1
Wireless USB keyboard (Asia/Pacific, English)
481019-009
Wireless mouse (with receiver)
480975-001
Maintenance and Service Guide
Illustrated parts catalog
Hard drive adapter
Description
Spare Part Number
Mini hard drive adapter
481562-001
Power cords (not illustrated)
Description
Spare Part Number
Refer to the spare parts list for your computer
Sequential part number listing
Description
Spare Part Number
Wireless mouse (with receiver)
480975-001
HP xb4 Docking Station (whole unit replacement)
481018-001
Wireless USB keyboard (U.S.)
481019-001
Wireless USB keyboard (Asia/Pacific, English)
481019-009
Wireless USB keyboard (Latin America)
481019-161
Wireless USB keyboard (Brazil)
481019-201
Wireless USB keyboard (South Korea)
481019-AD1
Mini hard drive adapter
481562-001
Maintenance and Service Guide
3–3
4
Removal and replacement procedures
Preliminary replacement requirements
Plastic parts
Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the
plastic parts. Apply pressure only at the points designated in the maintenance instructions.
Cables and connectors
Ä
CAUTION: When servicing the docking station, be sure that cables are placed in their proper locations during the reassembly
process. Improper cable placement can damage the docking station or the attached computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the
cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid
bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or
snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.
Maintenance and Service Guide
4–1
Removal and replacement procedures
Component replacement procedures
The docking station is whole unit replacement item and the only spare part that requires removal and installation is
the mini hard disk drive adapter.
Serial number
Report the docking station serial number to HP when requesting information or ordering spare parts. The serial
number is located on the bottom of the docking station. The table below identifies the key information that you
need when contacting HP for replacement parts or for service-related questions. Each component identified appears
on the label on the bottom of the unit.
4–2
Component
Description
Product name
This is the product name affixed to the front of your computer.
Serial number (s/n)
This is an alphanumeric identifier that is unique to each product.
Part number/ product number (p/n)
This number provides specific information about the product’s hardware
components. The part number helps a service technician to determine what
components and parts are needed.
Model description
This is the number you use to locate documents, drivers, and support for
your docking station.
Warranty period
This number describes the duration (in years) of the warranty period for this
computer.
Maintenance and Service Guide
Removal and replacement procedures
Installing an optional hard drive
Installing an HP Personal Media Drive
You can insert a Personal Media Drive (PMD) into the docking station for extra storage capacity.
1. Remove the hard drive security screw 1 on the rear panel of the docking station and remove the hard drive
cover 2 from the hard drive bay.
Ä
CAUTION: To reduce the possibility of damaging the hard drive cover, grasp the hard drive cover from the bottom to remove it.
Maintenance and Service Guide
4–3
Removal and replacement procedures
2. Insert the hard drive 1 into the hard drive bay until the drive is fully seated.
✎ If the hard drive light 2 does not turn on, reseat the hard drive.
3. Replace the hard drive security screw 3.
4. Connect the hard drive to dedicated external AC power.
WARNING: To reduce the risk of electric shock or damage to your equipment:
Plug the power cord into an AC outlet that is easily accessible at all times.
■ Disconnect power from the product by unplugging the power cord from the AC outlet.
■ If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not
disable the power grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety
feature. It is possible to receive an electric shock from a system that is not properly grounded.
Å■
a. Connect the hard drive AC adapter to the hard drive power connector 1 on the docking station.
b. Connect the power cord to the AC adapter 2.
c. Connect the power cord to an AC outlet 3.
✎ Power cords and AC outlets vary in appearance by region and country.
For more information on the hard drive, refer to the instructions that were included with the drive.
5. To remove the drive, reverse the installation procedure.
4–4
Maintenance and Service Guide
Removal and replacement procedures
Installing an HP Pocket Media Drive and HP Pocket Media Drive Adapter
WARNING: To reduce the risk of electric shock or damage to your equipment:
Plug the power cord into an AC outlet that is easily accessible at all times.
■ Disconnect power from the product by unplugging the power cord from the AC outlet.
Å■
■
If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not
disable the power grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety
feature. It is possible to receive an electric shock from a system that is not properly grounded.
1. Disconnect the docking station from AC power.
2. Remove the hard drive security screw 1 on the rear panel of the docking station and remove the hard drive
cover 2 from the hard drive bay.
Ä
CAUTION: To reduce the possibility of damaging the hard drive, grasp the hard drive cover from the bottom to remove it.
Maintenance and Service Guide
4–5
Removal and replacement procedures
3. Insert the drive adapter 1 into the hard drive bay until the adapter is fully seated.
4. Replace the hard drive security screw 2.
5. Reconnect the docking station to AC power.
6. Insert the drive 1 into the adapter until the drive is fully seated.
✎ If the hard drive light 2 does not turn on, reseat the hard drive.
For more information on the PMD, refer to the instructions that were included with the kit.
7. To remove the drive, press the eject button 3 on the front of the adapter.
4–6
Maintenance and Service Guide
5
Specifications
This table provides physical and performance specifications for the docking station.
Metric
U.S.
Dimensions
Length
Width
Height
35.7 cm
30.3 cm
18.7 cm
14.1 in
11.9 in
7.4 in
Weight
With 2.5” PMD
With 3.5” PMD
5.54 kg
5.05 kg
12.2 lb
11.1 lb
Temperature
Operating
Nonoperating
10°C to 35°C
-20°C to 60°C
50°F to 95°F
-4°F to 140°F
Applicable product safety standards specify thermal limits for plastic surfaces. The expansion base operates well within
✎ this
range of temperatures.
Relative humidity (noncondensing)
Operating
Nonoperating
Maintenance and Service Guide
10% to 90%
5% to 95%, 38.7°C (101.6°F) maximum wet bulb
temperature
5–1
Specifications
This table provides physical and performance specifications for the hard drive.
Dimensions
Height
Width
Weight
25.4 mm
89 mm
499 g
Logical geometry
Cylinders
Heads
Sectors
16,383
16
63
Interface type
AT 16 bit
Total logical sections
2,001,382
Data transfer rate
Disk to buffer
Interface with or with IORDY
Disk rotational speed
7200 rpm
45 Mbytes/sec
16.6 Mbytes/sec
Average latency
5.5 ms
Spin-up time (maximum)
7.0 s
Spin-down time
(maximum)
100 S
Seek times (typical read, including setting)
Single track
Average
Maximum
Physical geometry
Cylinders
Heads
Sectors
Operating temperature
3 ms
13 ms
24 ms
158,518
4
ID 528-710
OD 998-1216
5°C to 55°C (41°F to 131°F)
✎ Certain restrictions and exclusions apply. Consult Help and Support for details.
*Total storage capacity is 300 billion bytes (for hard drives, 1GB = 1 billion bytes); actual accessible capacity is less. Actual
drive specifications may differ slightly.
5–2
Maintenance and Service Guide
6
Connector pin assignments
Audio-in (microphone)
Pin
Signal
1
Audio signal in
2
Audio signal in
3
Ground
Audio-out (headphone)
Pin
Signal
1
Audio out, left channel
2
Audio out, right channel
3
Ground
Maintenance and Service Guide
6–1
Connector pin assignments
Cable docking connector
6–2
Pin
Signal
Pin
Signal
1
Dock present
23
Sleep Button
2
Battery out
24
Digital Ground
3
Microphone ground
25
Mute_LED
4
Battery out
26
Vsync
5
Microphone Left
27
PWR_ON
6
MDI0-
28
USB-
7
Microphone Right
29
CIR Input
8
MDI0+
30
DDC Clock
9
Left headphone
31
TV ground
10
MDI1-
32
Hsync
11
Right headphone
33
TV composite
12
MDI1+
34
CRT_Blue
13
Audio Output ground
35
TV chrome
14
MDI2-
36
DDC_DATA
15
S/PDIF
37
TV Luma
16
MDI2+
38
CRT_Red
17
Vol_down
39
Digital Ground
18
MDI3-
40
CRT_Green
19
Vol_UP
41
VSS-
20
MDI3+
42
VSS-
21
Jaco Detect
43
VDC+
22
USB+
44
VDC+
Maintenance and Service Guide
Connector pin assignments
External monitor
Pin
Signal
1
Red analog
2
Green analog
3
Blue analog
4
Not connected
5
Ground
6
Ground analog
7
Ground analog
8
Ground analog
9
+5 VDC
10
Ground
11
Monitor detect
12
DDC 2B data
13
Horizontal sync
14
Vertical sync
15
DDC 2B clock
Maintenance and Service Guide
6–3
Connector pin assignments
RJ-45 (network)
Pin
Signal
1
Transmit +
2
Transmit
3
Receive +
4
Unused
5
Unused
6
Receive -
7
Unused
8
Unused
Universal Serial Bus
6–4
Pin
Signal
1
+5 VDC
2
Data -
3
Data +
4
Ground
Maintenance and Service Guide
7
Power cord set requirements
The wide range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts AC
or from 220 to 240 volts AC.
The 3-conductor power cord set included with the computer meets the requirements for use in the country or region
where the equipment is purchased.
Power cord sets for use in other countries and regions must meet the requirements of the country or region where
the computer is used.
Requirements for all countries and regions
The requirements listed below are applicable to all countries and regions:
■
The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).
■
All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the
country or region where the power cord set will be used.
■
The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage rating of 125 or
250 V AC, as required by the power system of each country or region.
■
The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C13
connector for mating with the appliance inlet on the back of the computer.
Maintenance and Service Guide
7–1
Power cord set requirements
Requirements for specific countries and regions
3-Conductor power cord set requirements
Country/region Accredited agency
Accredited agency
Applicable note number
Australia
EANSW
1
Austria
OVE
1
Belgium
CEBC
1
Canada
CSA
2
Denmark
DEMKO
1
Finland
FIMKO
1
France
UTE
1
Germany
VDE
1
Italy
IMQ
1
Japan
METI
3
The Netherlands
KEMA
1
Norway
NEMKO
1
The People's Republic of China
CCC
5
South Korea
EK
4
Sweden
SEMKO
1
Switzerland
SEV
1
Taiwan
BSMI
4
The United Kingdom
BSI
1
The United States
UL
2
1. The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance coupler and wall
plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type
with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the Japanese
Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall plug must be a
two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.
4. The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler and wall
plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
5. The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler and wall
plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
7–2
Maintenance and Service Guide
Index
A
accessories, wireless 1–7
audio
audio-in jack pin assignments 6–1, 6–3
audio-out jack pin assignments 6–1
auxilliary jack 1–6
S/DPIF jack 1–5
audio problems 2–2
auxilliary audio jack 1–6
B
bottom components 1–4
button
power 1–3
volume mute 1–3
C
cable docking connector pin assignments 6–2
cables, service considerations 4–1
components
bottom 1–4
front 1–3
right-side 1–6
components, left-side 1–7
connection problems 2–2
connectors, service considerations 4–1
D
docking station part number 3–2, 3–3
drive bay, hard drive 1–7
E
expansion cable 1–5
expansion port features 1–2
external monitor port pin assignments 6–3
F
features 1–2
front components 1–3
G
general use problems 2–2
good dock connection light 1–5
H
hard drive adapter, part number 3–3
hard drive bay 1–7
Maintenance and Service Guide
hard drive power connector 1–5
hard drive security screw 1–5
headphone jack pin assignments 6–1
L
left-side components 1–7
light
good dock connection 1–5
power connector 1 1–5
power connector 2 1–5
power status 1–3
M
microphone jack pin assignments 6–1
model name 4–2
monitor port 1–5
monitor port pin assignments 6–3
N
network jack 1–5
network jack pin assignments 6–4
P
panel, upper 1–3
part number
docking station 3–2, 3–3
hard drive adapter 3–3
pocket media drive 3–3
wireless keyboard 3–2
wireless mouse 3–2
PC port 1–6
Personal Media Drive installation 4–3
pin assignments
audio-in 6–1
audio-out 6–1
cable docking connector 6–2
external monitor port 6–3
headphone 6–1
microphone 6–1
monitor port 6–3
network 6–4
RJ-45 6–4
USB port 6–4
plastic parts 4–1
Index–1
Index
pocket media drive
installation 4–5
part number 3–3
power button 1–3
power connector 1 1–5
power connector 1 light 1–5
power connector 2 1–5
power connector 2 light 1–5
power connector, hard drive 1–5
power cord set requirements 7–1
power status light 1–3
problems
audio 2–2
connection 2–2
general use 2–2
video 2–3
product name 4–2
R
rear components 1–5
removal/replacement procedures 4–2
right-side components 1–6
RJ-45 jack
location 1–5
pin assignments 6–4
S
S/PDIF jack 1–5
scroll zone volume control 1–3
security cable slot 1–5
security screw 1–5
serial number location 3–1, 4–2
speaker location 1–3, 1–4
specifications 5–1
subwoofer location 1–4
U
upper panel 1–3
USB port 1–5
USB port pin assignments 6–4
V
vent location 1–4
VGA monitor port 1–5
video problems 2–3
volume control
mute button 1–3
scroll zone 1–3
W
warranty period 4–2
wireless keyboard part number 3–2
wireless mouse part number 3–2
Index–2
Maintenance and Service Guide
