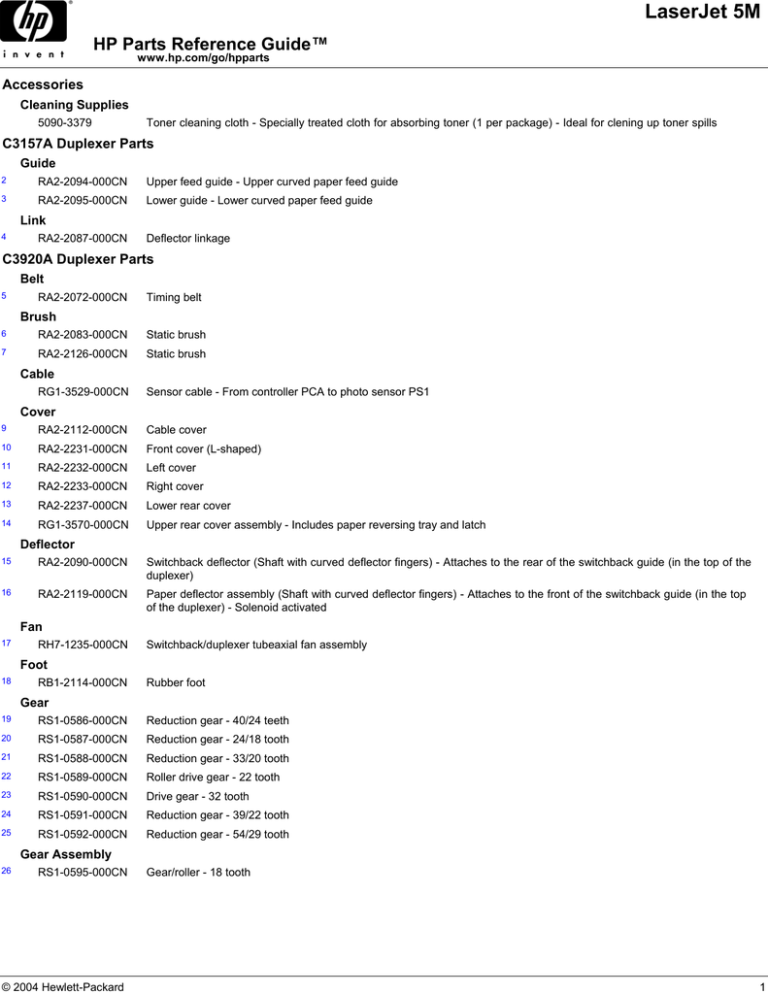

LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Accessories
Cleaning Supplies
5090-3379
Toner cleaning cloth - Specially treated cloth for absorbing toner (1 per package) - Ideal for clening up toner spills
C3157A Duplexer Parts
Guide
2
RA2-2094-000CN
Upper feed guide - Upper curved paper feed guide
3
RA2-2095-000CN
Lower guide - Lower curved paper feed guide
Link
4
RA2-2087-000CN
Deflector linkage
C3920A Duplexer Parts
Belt
5
RA2-2072-000CN
Timing belt
Brush
6
RA2-2083-000CN
Static brush
7
RA2-2126-000CN
Static brush
Cable
RG1-3529-000CN
Sensor cable - From controller PCA to photo sensor PS1
Cover
9
RA2-2112-000CN
Cable cover
10
RA2-2231-000CN
Front cover (L-shaped)
11
RA2-2232-000CN
Left cover
12
RA2-2233-000CN
Right cover
13
RA2-2237-000CN
Lower rear cover
14
RG1-3570-000CN
Upper rear cover assembly - Includes paper reversing tray and latch
Deflector
15
RA2-2090-000CN
Switchback deflector (Shaft with curved deflector fingers) - Attaches to the rear of the switchback guide (in the top of the
duplexer)
16
RA2-2119-000CN
Paper deflector assembly (Shaft with curved deflector fingers) - Attaches to the front of the switchback guide (in the top
of the duplexer) - Solenoid activated
Fan
17
RH7-1235-000CN
Switchback/duplexer tubeaxial fan assembly
Foot
18
RB1-2114-000CN
Rubber foot
Gear
19
RS1-0586-000CN
Reduction gear - 40/24 teeth
20
RS1-0587-000CN
Reduction gear - 24/18 tooth
21
RS1-0588-000CN
Reduction gear - 33/20 tooth
22
RS1-0589-000CN
Roller drive gear - 22 tooth
23
RS1-0590-000CN
Drive gear - 32 tooth
24
RS1-0591-000CN
Reduction gear - 39/22 tooth
25
RS1-0592-000CN
Reduction gear - 54/29 tooth
Gear Assembly
26
RS1-0595-000CN
© 2004 Hewlett-Packard
Gear/roller - 18 tooth
1
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
C3920A Duplexer Parts
Guide
27
RA2-2088-000CN
Switchback guide - Large ribbed piece in the top of the switchback area of the duplexer
28
RF1-3811-000CN
Paper feed guide
Holder
29
RA2-2089-000CN
Roller holder - Pinch roller holder
Link
30
RF1-3806-000CN
Holding tray linkage
Motor
31
RF1-3813-000CN
Stepper motor
32
RF1-3814-000CN
Rear motor
33
RF1-3815-000CN
Front motor
PC Board
34
RG1-3582-000CN
Duplexer controller board
Pin
RS1-7009-000CN
Switchback pin - Pivot point of switchback assembly
Power Supply
36
RG1-3503-000CN
Power supply assembly
Roller
37
RA2-2093-000CN
Pinch roller - Top of switchback guide
NO LONGER SUPPLIED
RA2-2102-000CN
Guide roller - Non spring loaded rollers on front of switchback guide
39
RA2-2118-000CN
Paper drive roller (Shaft with four rubber rollers on it) - Mounts in the rear of the switchback area of the duplexer (Rollers
extend through cut outs in the rear support frame)
40
RA2-2124-000CN
Paper drive roller (Shaft with four rubber rollers on it) - Mounts in the top center in the switchback area of the duplexer
Sensor
41
WG8-5210-000CN
Photo sensor
Solenoid
42
RF1-3808-000CN
Switchback solenoid - Moves paper deflector
Spring
43
RS1-2408-000CN
Switchback tension spring - Provides tension for switchback tray
NO LONGER SUPPLIED
44
RS1-2410-000CN
Deflector spring - Provides tension for duplex paper switchback paper deflector assembly
NO LONGER SUPPLIED
45
RS1-2411-000CN
Roller holder spring - Provides tension for pinch roller
46
RS1-2412-000CN
Deflector spring - Provides tension for switchback defelctor at top back of duplexer
C3921A Lower Cassette
Arm
47
RB1-2615-000CN
Cassette sensor arm
Cable
48
RG5-0530-000CN
Cable assembly - From paper control board to connector for the optional lower cassette sheet feeder assembly
Drive
49
RG5-2209-000CN
Lower cassette drive assembly (Drive motor and gears)
Foot
50
RB1-2620-000CN
© 2004 Hewlett-Packard
Rubber foot
2
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
C3921A Lower Cassette
PC Board
52
RG5-1086-000CN
Drive board
Paper Weight
51
RB1-2627-020CN
Paper weight - Clips on to paper pickup drive shaft of the lower cassette base drive assembly
Roller
53
RB1-2616-000CN
Guide roller - Mounts in the lower cassette base assembly
54
RB1-7983-000CN
Pickup roller - Oval shaped
Upgrade Kit
C3921A
Lower cassette upgrade (500 sheet feeder) for LaserJet 5/N/M - With 500 sheet multi-size paper tray
Electronic Accessories
Adapter
C2809A
Serial cable adapter - 9-pin male to 25-pin female
Cable (Interface)
24540-80010
Centronics (parallel) cable - 36 pin (M) to 25 pin (M) - 2.0m (6.6ft) long
5063-1256
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1257
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
92215N
Interface cable kit - For HP peripherals designed for use in an AppleTalk/Phonenet network - Not for Macintosh models
that have recessed I/O connectors
92215S
RS-422 serial cable - 8 pin (M) to 8 pin (M) - 2.0m (6.6ft) long - For connecting Apple Macintosh with LocalTalk/serial
connector
C2932A
RS-232C serial cable - 9 pin (M) to 9 pin (F) - 3.0m (9.8ft) long
NO LONGER SUPPLIED
C2933A
RS-232C serial cable - 9 pin (M) to 25 pin (F) - 3.0m (9.8ft) long
NO LONGER SUPPLIED
C2950A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m
(6.6ft) long
5063-1256
New Part for C2950A
C2951A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m
(9.8ft) long
C2990A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 1.8m (6ft) long
NO LONGER SUPPLIED
C2991A
IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 3.0m (10ft) long
NO LONGER SUPPLIED
Duplexer
C3920A
Duplexer assembly - For 2 sided printing
C3920-67901
New Part for C3920A
Envelope Feeder
C3927-69001
Power envelope feeder - Holds 75 envelopes
C3927A
Power envelope feeder - Holds 75 envelopes
Memory (Product)
C3131A
2MB, 70nS, 36-bit SIMM memory module - For HP LaserJet 4P, 4+, 4V, 5, 5N, 5M, 5P, 5Si
NO LONGER SUPPLIED
C3146-67901
New Part for C3131A
C3132A
4MB, 70nS, 36-bit SIMM memory module - For HP LaserJet 4P, 4+, 4V, 5, 5N, 5M, 5P, 5Si
NO LONGER SUPPLIED
C3146-67901
New Part for C3132A
© 2004 Hewlett-Packard
3
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Electronic Accessories
Memory (Product)
C3133A
8MB, 70nS, 36-bit SIMM memory module - For HP LaserJet 4P, 4+, 4V, 5, 5N, 5M, 5P, 5Si
NO LONGER SUPPLIED
C3146-67901
New Part for C3133A
C3930A
2MB flash SIMM for LaserJet 5 - Used to store special fonts and forms downloaded from the host
NO LONGER SUPPLIED
C3931A
4MB flash SIMM for LaserJet 5 - Used to store special fonts and forms downloaded from the host
NO LONGER SUPPLIED
Memory (SIMM)
C2747-69501
16MB SIMM memory module
REQUIRES RETURN OF DEFECTIVE PART
1818-5621
New Part for C2747-69501
C3130-60001
1MB, 32-bit SIMM memory module
C3131-67901
2MB, 32-bit SIMM memory module
NO LONGER SUPPLIED
C3146-67901
New Part for C3131-67901
C3132-67901
4MB, 70nS, 36-bit parity SIMM memory module
NO LONGER SUPPLIED
C3146-67901
New Part for C3132-67901
C3133-67901
8MB, 70nS, 36-bit parity SIMM memory module
NO LONGER SUPPLIED
C3146-67901
New Part for C3133-67901
C3146-67901
16MB SIMM memory module
PostScript
C3918-69001
Adobe's PostScript (Level 2) SIMM module - Includes 2MB additional memory & 35 adobe typefaces
REQUIRES RETURN OF DEFECTIVE PART
C3918-67901
New Part for C3918-69001
C3918A
Adobe's PostScript (Level 2) SIMM module - Includes 2MB additional memory and 35 adobe typefaces
External Case Parts
Cover
84
RB1-2366-000CN
Empty slot cover
85
RB1-7881-000CN
Left side cover
86
RB1-7889-000CN
Right front cover assembly - Includes spring loaded font door
87
RF5-1644-000CN
Right side cover
88
RG5-2186-000CN
Top cover assembly - Includes hinges, top cover, & top door
Door
89
RB1-7883-000CN
Door - On top of printer (Lift-up printer access cover) - This part is no longer available - Order the top cover assembly
NO LONGER SUPPLIED
RG5-2186-000CN
New Part for RB1-7883-000CN
90
RB1-7886-000CN
MP door - On front panel - Does NOT include tray extension
91
RF5-1645-000CN
Rear door assembly - Includes support strap, latch, and spring
Foot
92
RB1-2114-000CN
Rubber foot
Holder
93
RB1-7903-000CN
Left latch holder
94
RB1-7923-000CN
Right latch holder
© 2004 Hewlett-Packard
4
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
External Case Parts
Latch
95
RB1-7890-000CN
Rear door latch
96
RB1-7902-000CN
MP tray/front door latch
Overlay
97
C3916-40005
Control panel overlay (English)
98
C3916-40006
Control panel overlay (French)
99
C3916-40007
Control panel overlay (Italian)
Spring
100
RS5-2571-000CN
Rear door spring - Fits under rear door latch
Strap
101
RB1-2354-000CN
Support strap for rear door - Supports door when open
Tray
102
RB1-7885-000CN
Multi-Purpose tray extension - Flips out from MP door (Tray)
103
RG5-2199-000CN
Multi-Purpose input tray - Attaches to front door
Window
104
RB1-7887-000CN
Control panel display window/cover
Fusing Assembly Parts
Fusing Assembly
105
5182-2805
Fusing assembly (240V, 50Hz) - Bonds toner to paper by heat - In quantity price break packaging (Contains 5 New
fusing assemblies)
NO LONGER SUPPLIED
106
5182-2806
Fusing assembly (240V, 50Hz) - Bonds toner to paper by heat - In quantity price break packaging (Contains 10 New
fusing assemblies)
107
C2037-69001
Fusing assembly (120V) - Bonds toner to paper by heat
REQUIRES RETURN OF DEFECTIVE PART
RG5-0879-130CN
New Part for C2037-69001
C2037-69002
Fusing assembly (240V) - Bonds toner to paper by heat
REQUIRES RETURN OF DEFECTIVE PART
RG5-0880-130CN
New Part for C2037-69002
108
Gear
109
111
RS5-0231-000CN
Fuser drive gear - 19 tooth
RS5-0232-000CN
Fuser output gear - 23 tooth
RS5-0388-000CN
Fusing roller drive gear - 42 tooth
Lamp
112
RH7-4054-020CN
Fusing heat lamp (120v, 60Hz)
113
RH7-4055-020CN
Fusing heat lamp (240v, 50Hz)
Roller
114
RB1-3516-020CN
Fusing roller - Hollow roller - Heat lamp goes in its core
115
RB1-3517-030CN
Lower pressure roller - Hard rubber roller - In fusing assembly
Thermistor
116
RH7-7054-000CN
Thermistor assembly - Includes cable
Thermoswitch
117
RG5-0881-000CN
© 2004 Hewlett-Packard
Thermoswitch (fuser temperature switch) - At left of fusing roller
5
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Labels and Transparencies
Film (Transparency)
92296U
LaserJet printer transparency film - A4 size (21.0cm x 29.7cm) - 50 sheets per box
92296T
LaserJet printer transparency film - A size (8.5 x 11-inches) - 50 sheets per box
Labels
92296A
LaserJet printer addressing labels - 2.54cm (1.00in) x 6.67cm (2.63in) labels - 30 per sheet - 100 sheets per box
NO LONGER SUPPLIED
92296B
LaserJet printer addressing labels - 3.38cm (1.33in) x 10.2cm (4.00in) labels - 14 per sheet - 100 sheets per box
NO LONGER SUPPLIED
92296C
LaserJet printer addressing labels - 2.54cm (1.00in) x 10.2cm (4.00in) labels - 20 per sheet - 100 sheets per box
NO LONGER SUPPLIED
92296D
LaserJet printer addressing/shipping labels - 5.08cm (2.00in) x 10.2cm (4.00in) labels - 10 per sheet - 100 sheets per
box
NO LONGER SUPPLIED
92296E
LaserJet printer shipping labels - 8.47cm (3.33in) x 10.2cm (4.00in) labels - Six per sheet - 100 sheets per box
NO LONGER SUPPLIED
92296F
LaserJet printer return address labels - 1.27cm (0.50in) x 4.45cm (1.75in) labels - 80 per sheet - 25 sheets per box
NO LONGER SUPPLIED
92296G
LaserJet printer file folder labels - 1.69cm (0.67in) x 8.73cm (3.44in) labels - 30 per sheet - 25 sheets per box
NO LONGER SUPPLIED
92296H
LaserJet printer labels for 3.5-inch diskettes - 7.00cm (2.75in) x 7.00cm (2.75in) labels - Nine per sheet - 70 sheets per
box
NO LONGER SUPPLIED
92296J
LaserJet printer labels for 5.25-inch diskettes - 3.81cm (1.50in) x 10.2cm (4.00in) labels - 12 per sheet - 70 sheets per
box
NO LONGER SUPPLIED
92296K
LaserJet printer full sheet label - A size (8.5 x 11-inches) label - One per sheet - 100 sheets per box
NO LONGER SUPPLIED
92296L
LaserJet/DeskJet printer labels - 9.91cm (3.90in) x 3.81cm (1.50in) labels on A4 size (21.0cm x 29.7cm) sheet - 14 per
sheet - 100 sheets per box
NO LONGER SUPPLIED
92296M
LaserJet/DeskJet printer labels - 9.91cm (3.90in) x 3.38cm (1.33in) labels on A4 size (21.0cm x 29.7cm) sheet - 16 per
sheet - 100 sheets per box
NO LONGER SUPPLIED
92296N
LaserJet/DeskJet printer labels - 6.35cm (2.52in) x 3.81cm (1.50in) labels on A4 size (21.0cm x 29.7cm) sheet - 21 per
sheet - 100 sheets per box
NO LONGER SUPPLIED
92296P
LaserJet/DeskJet printer labels - 10.0cm (3.94in) x 5.10cm (2.01in) labels on A4 size (21.0cm x 29.7cm) sheet - 10 per
sheet - 100 sheets per box
NO LONGER SUPPLIED
92296R
LaserJet/DeskJet printer labels - 20.0cm (7.86in) x 28.9cm (11.4in) labels on A4 size (21.0cm x 29.7cm) sheet - One per
sheet - 100 sheets per box
NO LONGER SUPPLIED
Logic/Control Electronics
Cable
135
RG5-0524-000CN
Cable assembly - From DC controller to paper control board
136
RG5-0982-000CN
Cable assembly - From DC controller board to the control panel
Control Panel
137
RG5-2238-000CN
Control panel board (with display) - Does NOT include the panel overlay or display window
Interface (Product)
J2552B
© 2004 Hewlett-Packard
LAN & LocalTalk interface - Has EtherTwist (10Base-T) , ThinLAN (10Base-2) , and LocalTalk (DIN-8) connectors
NO LONGER SUPPLIED
6
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Logic/Control Electronics
PC Board
139
140
141
C2037-69004
DC controller board
RG5-0966-030CN
New Part for C2037-69004
C3919-69001
Formatter (Main logic) board
REQUIRES RETURN OF DEFECTIVE PART
C3919-60001D
New Part for C3919-69001
RG5-0512-070CN
Paper control board - On right side of paper feed assembly
PC Board (Interface)
J2552-69013
LAN and LocalTalk interface - EtherTwist (10Base-T), ThinLAN (10Base-2), and LocalTalk (DIN-8) connectors
PostScript
C3918-69001
Adobe's PostScript (Level 2) SIMM module - Includes 2MB additional memory & 35 adobe typefaces
REQUIRES RETURN OF DEFECTIVE PART
C3918-67901
New Part for C3918-69001
C3918A
Adobe's PostScript (Level 2) SIMM module - Includes 2MB additional memory and 35 adobe typefaces
Optional Interfaces
Interface (Module)
J4101-61011
External JetDirect 300X print server module (10Base-T and 100Base-T) - Connects between printer parallel port and
LAN network - Does NOT include power module - (J4101A, J4101B)
Interface (Product)
C2929A
Infared transceiver pod - Plugs in empty IR port slot - For wireless interfacing with a IRDA compliant PC or notebook PC
NO LONGER SUPPLIED
J2550B
EtherTwist (10Base-T) LAN interface board
NO LONGER SUPPLIED
J2552B
LAN & LocalTalk interface - Has EtherTwist (10Base-T) , ThinLAN (10Base-2) , and LocalTalk (DIN-8) connectors
NO LONGER SUPPLIED
J2555B
Token ring LAN interface board - DB-9 and RJ-45 connectors
NO LONGER SUPPLIED
J2556B
EtherTwist (10Base-T) or 100Base-TX LAN interface board - Has an RJ-45 connector
NO LONGER SUPPLIED
J2590A
External JetDirect LAN interface module with RJ-45 connector for EtherTwist (10Base-T) or 100VG/802.12 input and 3
parallel (DB-25) output connectors
NO LONGER SUPPLIED
J2591A
External JetDirect LAN interface module and power module - Has EtherTwist (10Base-T) and ThinLAN (10Base-2)
connectors
NO LONGER SUPPLIED
J3258B
External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN
J3264A
External JetDirect 500X token ring interface module - Interfaces up to 3 parallel printers to a token ring (DB-9 or RJ-45)
LAN
J3265A
External JetDirect 500X LAN interface module - Interfaces up to 3 parallel printers to an ethernet 10Base-T (RJ-45),
10Base2 (BNC), or 100Base-TX (RJ-45) LAN
J4100A
JetDirect 400N modular input/output (MIO) - Internal print server - Provides 10/100Base-T or 10Base-2 network
connection using RJ45 or BNC connectors
J4105A
JetDirect 400N modular input/output (MIO) internal print server - Provides token ring network connection using RJ45 or
DB9 connectors
J4106A
JetDirect 400N modular input/output (MIO) internal print server - Provides 10Base-T network connection using RJ45
connector
Module
J2382-69003
External JetDirect LAN interface module with ethertwist (10Base-T) and ThinLAN (10BASE-2) connectors
J2383-61005
External token ring interface module - Has DB-9 connector
J2590-69001
External JetDirect LAN interface module with RJ-45 connector for ethertwist (10Base-T) or 100VG/802.12 input and 3
parallel (DB-25) output connectors
REQUIRES RETURN OF DEFECTIVE PART
J2590-61011
© 2004 Hewlett-Packard
New Part for J2590-69001
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Optional Interfaces
Module
J2591-69001
External JetDirect LAN interface module with ethertwist (10Base-T) and ThinLAN (10BASE-2) connectors
J2592-69001
External JetDirect LAN interface module with ethertwist (10Base-T) connector
REQUIRES RETURN OF DEFECTIVE PART
J2592-61001
New Part for J2592-69001
J2593-69001
External JetDirect LAN interface module with Ethertwist (10Base-T) and ThinLAN (10BASE-2) input connectors and 3
parallel (DB-25) output connectors - (part of J2593A)
J2594-69001
External JetDirect token ring interface module with DB-9 and RJ-45 input connectors and 3 parallel (DB-25) output
connectors - (part of J2594A)
REQUIRES RETURN OF DEFECTIVE PART
J2594-61011
New Part for J2594-69001
J3258-61011
External JetDirect LAN interface module with EtherTwist (10Base-T) connector - (J3258A, J3258B)
J4102-69011
External JetDirect LAN interface module with EtherTwist (10Base-T) connector - (J4102A, J4102B)
REQUIRES RETURN OF DEFECTIVE PART
J4102-61011
New Part for J4102-69011
Module (Product)
J4101B
External JetDirect LAN interface module with EtherTwist (10Base-T/Base-TX) connector
J4102B
External JetDirect LAN interface module with EtherTwist (10Base-T) connector
PC Board (Interface)
J2550-69013
EtherTwist 10Base-T LAN interface board
J2552-69013
LAN and LocalTalk interface - EtherTwist (10Base-T), ThinLAN (10Base-2), and LocalTalk (DIN-8) connectors
J2555-69013
Token ring LAN interface board - DB-9 and RJ-45 connectors
J4100-69001
JetDirect 400N modular input/output (MIO) internal print server - Provides 10/100Base-TX or 10Base-2 network
connection using RJ45 or BNC connectors - (J4100A)
REQUIRES RETURN OF DEFECTIVE PART
J4100-61001
New Part for J4100-69001
J4106-69001
Replacement JetDirect 400N modular input/output (MIO) internal print server
REQUIRES RETURN OF DEFECTIVE PART
J4106-61001
New Part for J4106-69001
Power Cord
8120-1351
Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V in the UK, Hong Kong,
Singapore, Malaysia, and Brunei)
8120-1369
Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in Australia, New Zealand,
and China)
8120-1378
Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 120V in USA, Canada, Latin
America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)
8120-1689
Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Europe, Bangladesh,
Indonesia, Pakistan, Burma, Sri Lanka, and Vietnam)
8120-2104
Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Switzerland)
8120-2956
Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Denmark)
8120-4753
Power cord (Flint Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 100V in Japan)
8120-6302
'Daisy chain' power cord (Dove Gray) - 18 AWG, 1.2m (4.0ft) long - Has C14 (M) plug for power input and C13 (F) plug
for power output
Power Module
0950-2372
Power supply module - 100-240VAC input, 47-63Hz, requires separate AC power cord - 5VDC output, 1A, 5 watts - For
J2382/83A/B
0950-3169
Wall mount power supply module - 110-127V AC 57-63Hz input - 13V DC output at 300mA (USA, Canada) - For use
with the J2592A external JetDirect LAN interface module
0950-3170
Power supply module - 209-253VAC input, 47-53Hz - 13VDC output, 300mA (Europe, Israel) - For use with the J2592A
external JetDirect LAN interface module
© 2004 Hewlett-Packard
8
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Optional Interfaces
Power Module
0950-3171
Power supply module - 220-240VAC input, 47-53Hz - 13VDC output, 300mA (U.K., Hong Kong) - For use with the
J2592A external JetDirect LAN interface module
0950-3172
Power supply module - 240VAC input, 47-53Hz - 13VDC output, 300mA (Australia) - For use with the J2592A external
JetDirect LAN interface module
0950-3348
Wall mount power supply module (MEI-AH ED12006) - 110-127VAC input, 57-63Hz - 13VDC output, 800mA, 10.4 watts
(for use in the United States and Canada) - For models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B,
J4101A/B, J4102A/B
0950-3349
Wall mount power supply module (MEI-AH ED12007) - 230VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts (for
use in Europe and Israel) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A,
J3282B, J4101A/B, J4102A/B
0950-3350
Wall mount power supply module (MEI-AH ED12008) - 220-240VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts
(for use in the United Kingdom) - For JetDirect/infrared interfaces J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A,
J3282B, J4101A/B, J4102A/B
0950-3351
Wall mount power supply module (MEI-AH ED12009) - 220VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (for
use in South Korea) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A,
J3282B, J4101A/B, J4102A/B
0950-3352
Wall mount power supply module (MEI-AH ED12010) - 100VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (for
use in Japan) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B,
J4101A/B, J4102A/B
0950-3354
Wall mount power supply module (MEI-AH ED12010) - 220-250VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts
(for use in South Africa) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A,
J3282B, J4101A/B, J4102A/B
9100-5176
Wall mount power supply module (Leader Electronics 48130625HK) - 200VAC input, 48-52Hz - 13VDC output, 625mA
(Hong Kong) - For JetDirect Modules and Infrared Interface Models J2590/91/93/94A, J2964A, J3258A/B,
J3263/64/65A, J3282B, J4101A/B, J4102A/B
0950-3350
New Part for 9100-5176
Optional Paper Trays
Stop
195
RB1-2370-020CN
Stop plate - For paper length in 250 page universal cassette
196
RF5-0430-000CN
Stop plate - For paper width in 250 page universal cassette
197
RF5-1675-000CN
Stop plate for paper length in 500 page lower cassette
Tray
198
C3923A
HP LaserJet 5, 5M, and 5N Multipurpose paper tray (Tray 3) - Holds 500 sheets of letter, legal, Executive, or A4 size
paper
199
C3924A
HP LaserJet 5, 5M, and 5N Multipurpose paper tray (Tray 2) - Holds 250 sheets of letter, legal, Executive, or A4 size
paper
200
C3925A
HP LaserJet 5, 5M, and 5N Letter paper tray (Tray 2) - Holds 250 sheets of 8.5in x 11in letter size paper
201
C3926A
HP LaserJet 5, 5M, and 5N A4 paper tray (Tray 2) - Holds 250 sheets of 8.3in x 11.7in A4 size paper
Other Accessories
Cartridge
92298A
Black toner (EP) cartridge - With 'Micro-Fine' toner - Prints approximately 6,800 pages
92298X
Maximum black toner (EP) cartridge - With 'Micro-Fine' toner - Prints approximately 8, 800 pages
Manual
C3916-90984
LaserJet 4, 4M, 4+, 4M+, 5, 5M, and 5N printer combined service manual (English) - Also includes installation and
service and parts information on the C3157A and C3920A duplexers
J2552-90001
JetDirect network J2552A software configuration guide
J2552-90011
HP jet direct network J2552A installation guide
5021-8943
LaserJet quick reference guide - Volume 1 of 2 volume set
5090-3390
LaserJet quick reference guide - Volume 2 of 2 volume set
© 2004 Hewlett-Packard
9
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Accessories
Manual Kit
5021-0377
HP-GL/2, PCL5 and PJL technical reference manual kit
C3916-99024
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide
C3916-99025
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (French)
C3916-99026
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Italian)
C3916-99027
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (German)
C3916-99028
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Spanish)
C3916-99029
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Norwegian)
C3916-99030
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Danish)
C3916-99031
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Portuguese)
C3916-99032
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Dutch)
C3916-99033
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Finnish)
C3916-99034
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Polish)
C3916-99035
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Swedish)
C3916-99036
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Traditional
Chinese)
NO LONGER SUPPLIED
C3916-99039
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Turkey)
C3916-99040
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide
(Czechoslovakian)
C3916-99042
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Hungarian)
C3916-99044
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (Russian)
C3916-99046
LaserJet 5, 5M and 5N printer manual bundle - Includes the user's manual and 'Getting Started' guide (European
English)
Software
C6072-60301
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(English)
C6072-60304
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(German)
C6072-60305
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(French)
C6072-60306
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks
(Spanish)
C6072-60307
HP-GL/2 driver software for AutoCAD - For DOS and Windows 3.1/95/NT 4.0 - On 3.5-inch 1.44MB floppy disks (Italian)
Tool
233
RB1-7895-000CN
Hook tool - For removing the transfer roller
Training Kit
C3916-67909
Self paced training kit for LaserJet 4, 4M, 4+, 4M+, 5, 5M, and 5N - Includes service manual, NTSC format video (VHS)
C3916-67910
Self paced training kit for LaserJet 4, 4M, 4+, 4M+, 5, 5M, and 5N - Includes service manual, PAL format video (VHS)
Training Test
C3916-90995
Additional self paced training test - Contains 5 tests for the LaserJet 5 series - Also covers the LJ 4, 4+, 4M, and 4M+
Other Internal Parts
Cable
237
RG5-0529-000CN
Cable assembly - From paper control board to envelope feeder
238
RG5-0975-000CN
Cable assembly - 8 pin (F) connector to both a 16.5cm (6.5 inch) cable with a 4 pin (F) connector and a 22.5cm (8.9
inch) cable with a ferrite and a 6 pin (F) connector
239
RG5-0976-000CN
Cable assembly - 7 pin (F) connector on each end - 31.1cm (12.3 inches) long
© 2004 Hewlett-Packard
10
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Other Internal Parts
Cable
240
RG5-0978-000CN
Cable assembly - From DC controller to main motor
241
RG5-0979-000CN
Cable assembly - From DC controller to connector board assembly - For high voltage connector block
Cover
242
RB1-2226-000CN
High voltage cover - Plastic 'Pan' for high voltage board
243
RB1-7888-000CN
Inner cover plate
244
RF5-1654-000CN
SIMM access cover plate
Fan
245
RH7-1178-000CN
Exhaust fan
Guide
247
RB1-7913-000CN
Cassette guide - Paper cassette support guide
RF5-1657-000CN
Right cassette guide (L-shaped)
Laser/Scanner
248
C2037-69008
Laser/scanner assembly
REQUIRES RETURN OF DEFECTIVE PART
RG5-0903-070CN
New Part for C2037-69008
Lever
249
RB1-2138-000CN
Top cover interlock lever
PC Board
250
RG5-0515-000CN
Interconnect board - Includes cable to A/C power module - Connects DC controller and high voltage power supply to
fusing assembly
Shield
251
RF5-1647-000CN
Formatter board EMI shield
Shutter
252
RB1-2080-000CN
Laser shutter - Attaches to bottom of laser/scanner assembly
Support
253
RB1-2105-030CN
Toner cartridge support - Black plastic bar that attaches above the toner cartridge
Paper Path Parts
Arm
254
RB1-2133-000CN
'Paper out' sensor arm
Belt
255
XF9-0410-000CN
Timing belt
Brush
256
RB1-2237-020CN
Brush - Static eliminating
Cable
257
RG5-0980-000CN
Cable assembly - From DC controller to delivery sensor (PS3)
Cover
258
RB1-3481-020CN
Cover for gear cluster (Main Drive train) assembly
Gear Assembly
259
RG5-0876-050CN
Gear cluster (Drive train) assembly
Guide
260
RB1-2131-000CN
Paper guide - Guides paper out of tray 1
NO LONGER SUPPLIED
261
RB1-2236-000CN
Feeder guide - Ribbed (Gray) metal plate at top of printer
262
RF5-0647-000CN
Upper delivery guide - On top of paper output assembly
© 2004 Hewlett-Packard
11
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper Path Parts
Guide
263
RG5-0469-020CN
Transfer guide assembly - Plate between toner cartridge & fuser
264
RG5-2192-000CN
Transfer guide assembly - Ribbed paper guide for the high voltage transfer roller (Does NOT include transfer roller)
Holder
265
RB1-2181-000CN
Guide roller holder (U-shaped)
266
RB1-2259-040CN
Rear paper holder
267
RF5-0369-040CN
Front paper holder
C3916-69001
Maintenance kit (120V) - Includes fusing assembly, separation pad, transfer roller, tray 1,2,& 3 pick-up rollers and
instruction manual
REQUIRES RETURN OF DEFECTIVE PART
C3916-67912
New Part for C3916-69001
C3916-69002
Maintenance kit (220V) - Includes fusing assembly, separation pad, transfer roller, tray 1,2,& 3 pick-up rollers, and
instruction manual
REQUIRES RETURN OF DEFECTIVE PART
C3916-67913
New Part for C3916-69002
H3968-60001
Paper exit jam repair kit - Includes upper and lower delivery rollers, output rollers and roller pressure springs Installation procedure requires service manual
Kit
Motor
271
RH7-1197-000CN
Paper pickup motor
272
RH7-1301-000CN
Main motor assembly
PC Board
276
RG5-0514-000CN
Sensor board - Narrow board w/ sensors
Pad
273
RF5-0343-000CN
Separation pad (Rectangular) - For multipurpose tray input
Paper Output Unit
274
RG5-2189-000CN
Paper output assembly - Belt driven
Paper Pick-Up
275
C3916-69005
Paper pickup (Feeder) assembly (Motor driven)
REQUIRES RETURN OF DEFECTIVE PART
RG5-2195-000CN
New Part for C3916-69005
Roller
277
RB1-2182-000CN
278
RB1-2205-000CN
Pickup roller (Oval shaped) - For multipurpose tray
279
RB1-2253-000CN
Guide roller - Fits on paper guide
280
RB1-2299-030CN
Delivery roller - Double roller in paper output assembly
281
RB1-7911-000CN
Pickup roller (Quarter circle shaped) - For upper cassette
282
RF5-0349-000CN
Transfer roller - Goes in paper guide/hv contact plate assembly
283
RF5-1077-030CN
Lower delivery roller - Shaft with 4 double rollers on it
284
RF9-1326-000CN
Upper delivery roller - Shaft with 7 rollers on it
Guide roller - In center of paper feed assembly
Roller/Holder
285
RF5-0425-040CN
Output roller & holder
286
RF5-0747-000CN
Roller
Sensor
287
RG5-0466-000CN
Leading edge registration sensor and PC paper out sensor
288
RG5-0475-060CN
Paper exit (Delivery) sensor assembly
© 2004 Hewlett-Packard
12
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper Path Parts
Sensor
289
WG8-0291-000CN
Photo sensor
Solenoid
290
RH7-5071-000CN
Pickup solenoid (SL1) - For the paper cassette paper pickup (feed) roller
291
RH7-5075-000CN
Pickup solenoid (SL2) - For multipurpose tray pickup roller
Spring
292
RB1-2302-000CN
Delivery roller spring (U-shaped)
293
RS5-2267-000CN
Spring - For delivery roller holder in paper output
Power Supplies and Parts
Base
294
RB1-7906-000CN
Base structure - For the power switch actuator assembly - Does NOT include the power switch
Button
295
RB1-7907-000CN
Power switch button (rocker)
Cable
296
RG5-0526-000CN
Cable assembly - From DC controller to AC power supply
Power Cord
8120-1351
Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V in the UK, Hong Kong,
Singapore, Malaysia, and Brunei)
8120-1369
Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in Australia, New Zealand,
and China)
8120-1378
Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 120V in USA, Canada, Latin
America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam)
8120-1689
Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Europe, Bangladesh,
Indonesia, Pakistan, Burma, Sri Lanka, and Vietnam)
8120-2104
Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Switzerland)
8120-2956
Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Denmark)
8120-4211
Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in South Africa and India)
Power Supply
304
C2037-69007
Power supply assembly - 220/240VAC
REQUIRES RETURN OF DEFECTIVE PART
RG5-2500-000CN
New Part for C2037-69007
305
RG5-0969-040CN
High voltage power supply assembly
306
RG5-2499-000CN
Power supply assembly - 100-120VAC input
Rod
307
RB1-7896-000CN
© 2004 Hewlett-Packard
Power switch rod - From main switch assembly to power supply
13
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Main Assembly Locator (1 of 2)
137
258, 259
105, 106, 107, 108
_
_
_
_
304, 306
_
263
275
_
_
_
|
305
© 2004 Hewlett-Packard
141
276
14
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Main Assembly Locator (2 of 2)
|
140
274
_
_
139
_
288
248
_
199, 200, 201
_
© 2004 Hewlett-Packard
_
103
15
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Delivery Sensor Assembly
288
_
/
257
/
289
© 2004 Hewlett-Packard
16
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Duplexer Assembly External Covers
_
13
\
14
12
/
\
10
/
11
© 2004 Hewlett-Packard
17
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Duplexer Holding Tray Assembly (1 of 2)
34
\
36
/
7
\
/
18, 92
© 2004 Hewlett-Packard
18
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Duplexer Holding Tray Assembly (2 of 2)
41
|
31, 32
|
/
19
/
21
/
20
\
26
\
26
33
|
© 2004 Hewlett-Packard
/
19
/
5
\
26
/
20
/
21
\
26
19
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Duplexer Switchback Assembly (1 of 2)
15
\
37
\
/
46
45
/
29
/
27
\
44
_
\
16
\
4
30
/
43
/
2
\
_
28
3
\
\
6
© 2004 Hewlett-Packard
20
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Duplexer Switchback Assembly (2 of 2)
17
\
22
/
24
/
31
\
_
25
24
/
_
_
42
9
23
23
22
/
_
_
\
40
\
39
\
41
© 2004 Hewlett-Packard
21
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
External Covers and Panels
95
\
_
91
100
_
_
101
_
102
_
_
90
_
_
© 2004 Hewlett-Packard
87
86
85
22
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Fusing Assembly
105, 106, 107, 108
_
114
\
\
116
115
\
112, 113
\
\
117
\
111
\
109
© 2004 Hewlett-Packard
23
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Internal Components (1 of 4)
_
_
239
238
248
\
\
252
/
247
94
_
_
96
_
\
253
93
_
243
\
18, 92
_
96
_
256
\
© 2004 Hewlett-Packard
18, 92
\
263
24
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Internal Components (2 of 4)
304, 306
\
307
/
245
\
240
/
272
/
296
|
/
139
\
258, 259
© 2004 Hewlett-Packard
25
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Internal Components (3 of 4)
84
\
251
/
244
/
/
140
© 2004 Hewlett-Packard
26
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Internal Components (4 of 4)
264
|
279
/
261
\
\
282
\
305
/
241
\
250
\
242
/
266
/
267
© 2004 Hewlett-Packard
27
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Lower Cassette Tray Assembly
198
_
/
197
© 2004 Hewlett-Packard
28
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Multipurpose (MP) Tray Assembly
|
103
© 2004 Hewlett-Packard
29
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Optional Lower Cassette Base Assembly
47
\
/
52
53
\
/
50
/
50
© 2004 Hewlett-Packard
30
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Optional Lower Cassette Base Drive Assembly
54
\
51
\
/
49
© 2004 Hewlett-Packard
31
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper Output Assembly
274
_
262
\
255
\
\
284
\
283
292
292
_
280
292
292
280
_
_
_
280
280
_
_
_
_
\
285
_
293
\
285
_
© 2004 Hewlett-Packard
\
285
_
293
\
285
_
293
293
32
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper Pickup Assembly (1 of 2)
275
_
249
|
141
\
237
|
289
/
/
265
289
/
/
277
\
254
|
287
260
\
|
290
© 2004 Hewlett-Packard
33
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Paper Pickup Assembly (2 of 2)
275
_
273
\
281
\
278
/
\
286
/
276
291
\
271
/
© 2004 Hewlett-Packard
34
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Power Switch Actuator Assembly
135
\
48
\
\
295
/
294
© 2004 Hewlett-Packard
35
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Top Cover Assembly
104
\
97, 98, 99
/
137
\
/
136
233
\
88, 89
|
\
89
© 2004 Hewlett-Packard
36
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
Universal Paper Tray
199, 200, 201
_
196
/
195
\
© 2004 Hewlett-Packard
37
LaserJet 5M
HP Parts Reference Guide™
www.hp.com/go/hpparts
HP Parts Reference Guide
http://www.hp.com/go/parts
HP PartSurfer
http://partsurfer.hp.com
HP Parts Ordering Information
http://www.hp.com/go/hpparts
HP Parts Questions/Comments
http://partsurfer.hp.com/contactus.htm
© 2004 Hewlett-Packard
38
