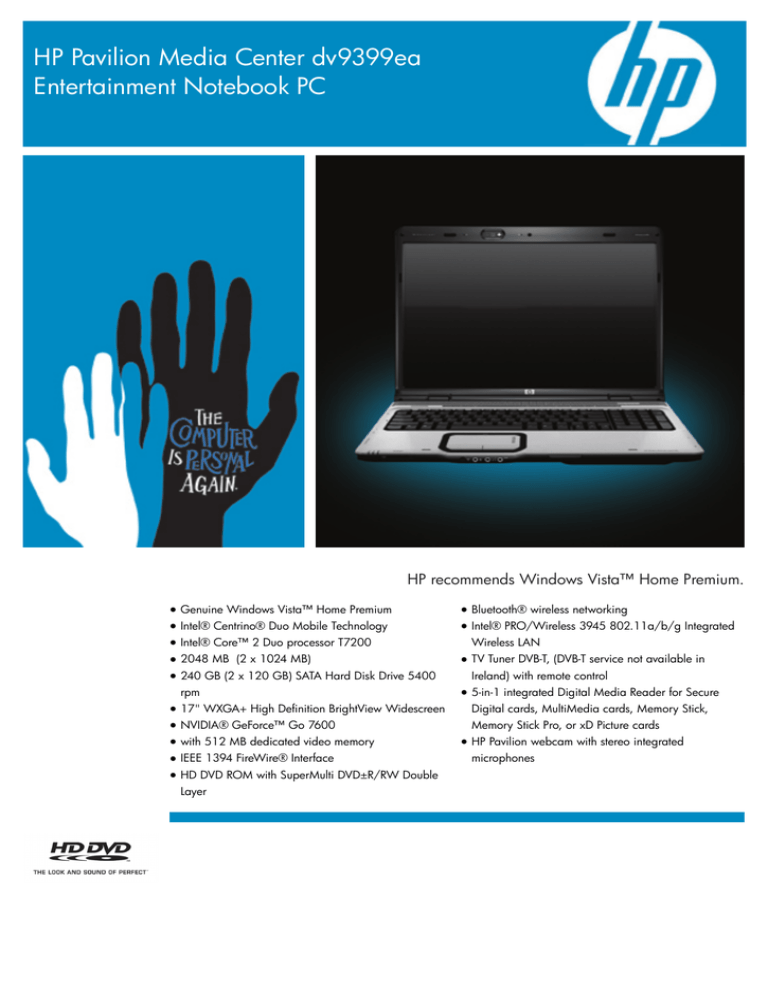

HP dv9399ea User's Manual

HP Pavilion Media Center dv9399ea

Entertainment Notebook PC

● Genuine Windows Vista™ Home Premium

● Intel® Centrino® Duo Mobile Technology

● Intel® Core™ 2 Duo processor T7200

● 2048 MB (2 x 1024 MB)

● 240 GB (2 x 120 GB) SATA Hard Disk Drive 5400 rpm

● 17" WXGA+ High Definition BrightView Widescreen

● NVIDIA® GeForce™ Go 7600

● with 512 MB dedicated video memory

● IEEE 1394 FireWire® Interface

● HD DVD ROM with SuperMulti DVD±R/RW Double

Layer

HP recommends Windows Vista™ Home Premium.

● Bluetooth® wireless networking

● Intel® PRO/Wireless 3945 802.11a/b/g Integrated

Wireless LAN

● TV Tuner DVB-T, (DVB-T service not available in

Ireland) with remote control

● 5-in-1 integrated Digital Media Reader for Secure

Digital cards, MultiMedia cards, Memory Stick,

Memory Stick Pro, or xD Picture cards

● HP Pavilion webcam with stereo integrated microphones

HP Pavilion Media Center dv9399ea Entertainment Notebook PC

HP recommends Windows Vista™ Home Premium.

Operating system

Processor

Memory

Storage

Communication

Display

Video

Sound

Keyboard

Ports

Power

Genuine Windows Vista™ Home Premium

Intel® Core™ 2 Duo processor T7200

2 GHz, Level 2 cache 4 MB

2048 MB  (2 x 1024 MB)

Supports up to 2 GB DDR2 memory

240 GB (2 x 120 GB) SATA Hard Disk Drive 5400 rpm up to 9 GB partition for system recovery

HD DVD ROM with SuperMulti DVD±R/RW Double Layer

5-in-1 integrated Digital Media Reader for Secure Digital cards,

MultiMedia cards, Memory Stick, Memory Stick Pro, or xD Picture cards

Mobile entertainment HP QuickPlay media player software and its dedicated menu controls, music and DVD buttons

HP Pavilion webcam with stereo integrated microphones

TV Tuner DVB-T, (DVB-T service not available in Ireland) with remote control

High speed 56K modem

Ethernet 10/100BT integrated network interface

Intel® PRO/Wireless 3945 802.11a/b/g Integrated Wireless LAN

Bluetooth® wireless networking

One ExpressCard/54 slot (also supports ExpressCard/34)

17" WXGA+ High Definition BrightView Widescreen

Resolution: 1440 x 900

NVIDIA® GeForce™ Go 7600 with 512 MB dedicated video memory

PCI Express®

3D Sound Blaster Pro compatible sound 16 bit integrated

Altec Lansing® speakers

Full size desktop keyboard (with separate numeric keypad layout)

Touch Pad with On/Off button and dedicated vertical Scroll Up/Down pad, volume control, mute buttons, 2 Quick Launch Buttons

1 VGA port

1 HDMI port

4 USB 2.0 ports

1 IEEE-1394

1 RJ 11 modem connector

1 RJ 45 Ethernet connector

S-video TV out

Remote control infrared port (Remote Control optional)

2 Headphones-out one w/ SPDIF Digital Audio, 1 Microphone-in port

Cable docking connector

90 W AC Power Adapter

8-cell Lithium-Ion (Li-Ion) battery

Software Microsoft® Works 8

Microsoft® Internet Explorer 7.0

Windows Mail

Adobe® Reader 8.0

Windows Media Player

HP Photosmart Essential, Windows Photo Gallery

DVD Play

Windows Movie Maker, Windows DVD Maker, Roxio MyDVD Basic

Roxio Creator Basic

Windows Media center, QuickPlay for Windows

TV Play

Special offer: for accessories, software and warranty promotions, please visit: www.mypcchoice.com

Service & support

Additional information P/N: GH844EA#ABU

UPC/EAN code: 883585194070

Weight Out of package: 3.56 kg (7.8 lbs)

Packed: 5.10 kg

Dimensions

Recovery partition (including possibility to recover system, applications and drivers separately)

Optional re-allocation of recovery partition

Recovery CD/DVD creation tool

Symantec™ Norton Internet Security™ 2007 (60 days live update)

Notebook Help & Support

Warranty

Out of package: 28.50 cm (L) x 39.60 cm (W) x 3.16 cm (min)H /

4.18 cm (max) H

Packed: 480 x 170 x 350 mm

1 year, pick-up and return, parts and labour

A +2 years warranty extension is available - HP Care Pack U4819E or

U4821E (including Accidental Damage Protection) Express service

UE601E (D+2 Turn around Time)

The product could differ from the images shown. © 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Certain Windows Vista product features require advanced or additional hardware. See http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit www.windowsvista.com/upgradeadvisor. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. 03/07

www.hp.com
