Maintenance and Service

Guide

HP Notebook Expansion Base

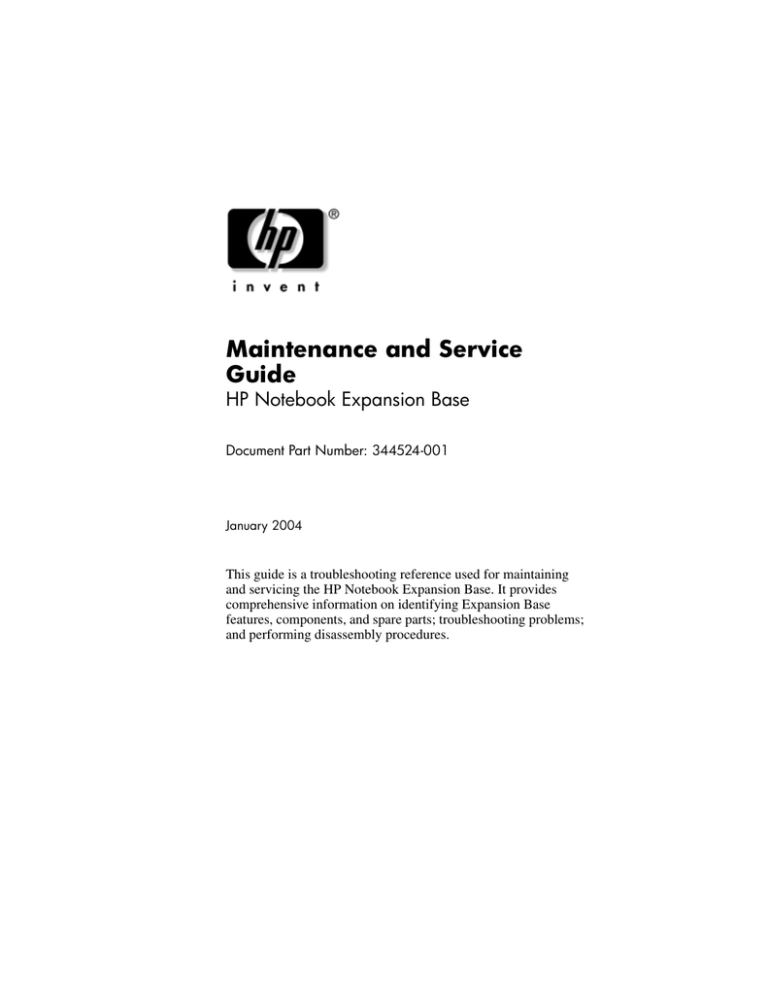

Document Part Number: 344524-001

January 2004

This guide is a troubleshooting reference used for maintaining and servicing the HP Notebook Expansion Base. It provides comprehensive information on identifying Expansion Base features, components, and spare parts; troubleshooting problems; and performing disassembly procedures.

© Copyright 2004 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Maintenance and Service Guide

HP Notebook Expansion Base

First Edition January 2004

Document Part Number: 344524-001

Contents

1 Product Description

1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.2 External Components . . . . . . . . . . . . . . . . . . . . . . . . 1–3

1.3 Wireless Accessories. . . . . . . . . . . . . . . . . . . . . . . . . 1–9

1.4 Design Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10

2 Troubleshooting

Before Replacing Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

3 Illustrated Parts Catalog

3.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 3–1

3.2 HP Notebook Expansion Base

Major Components . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

4 Removal and Replacement Preliminaries

4.1 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.2 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . 4–1

Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 4–2

4.3 Preventing Electrostatic Damage . . . . . . . . . . . . . . . 4–2

4.4 Packaging and Transporting Precautions . . . . . . . . . 4–3

4.5 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 4–4

4.6 Grounding Equipment and Methods . . . . . . . . . . . . . 4–5

Maintenance and Service Guide iii

Contents

5 Removal and Replacement Procedures

5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . 5–3

5.3 Preparing the HP Notebook Expansion Base for Disassembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

5.4 Base Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

5.5 Upper Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

5.6 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10

5.7 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–12

5.8 Front Tray Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . 5–14

5.9 Back Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–16

5.10 Expansion Cable . . . . . . . . . . . . . . . . . . . . . . . . . . 5–17

5.11 Speaker Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 5–18

5.12 Front Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–20

6 Specifications

A Connector Pin Assignments

B Power Cord Set Requirements

3-Conductor Power Cord Set . . . . . . . . . . . . . . . . . . . . . . B–1

General Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1

Country-Specific Requirements . . . . . . . . . . . . . . . . . . . . B–2

C Screw Listing

Index

iv Maintenance and Service Guide

1

Product Description

The HP Notebook Expansion Base expands the connectivity of HP Compaq Business Notebook nx9100 Series; HP Pavilion zd7000, zv5000, and zx5000 Series notebook PCs; and the

Compaq Presario R3000 Series notebook PC. The Expansion

Base provides an efficient, less-cluttered work environment, improved cable management, and wireless peripherals. It eliminates the need to purchase a separate monitor, external speakers, USB hub, and a wireless keyboard and mouse kit.

HP Notebook Expansion Base

Maintenance and Service Guide 1–1

Product Description

1.1 Features

AC power (charges attached notebook while docked)

Supports panel sizes up to 17” wide

Altec Lansing speakers

Wireless keyboard

Wireless mouse

Wireless keyboard/mouse receiver

Security slots

Connectors:

Expansion cable

S/PDIF (Sony/Philips Digital Interface) audio connector

Audio out/Headphone jack

Composite out

RJ-11 (modem) connection (from wall to

Expansion Base)

❏ RJ-11 (modem) connection (from Expansion Base to notebook)

RJ-45/Ethernet port

Six Universal Serial Bus (USB) 2.0 connectors

S-Video out

Serial port

1–2 Maintenance and Service Guide

Product Description

1.2 External Components

The external components on the front panel of the

Expansion Base are shown below and described in Table 1-2.

Front components

Maintenance and Service Guide 1–3

Product Description

2

3

4

5

6

Item Component

1 Expansion cable

Stereo speaker assembly

Volume down button

Mute button

Volume up button

Connection indicator light

Table 1-2

Front Components

Function

Connects the HP Notebook Expansion Base to the notebook computer.

Produces stereo sound from the notebook.

Lowers system volume.

Mutes or restores volume.

Increases system volume.

Glows solid blue when the notebook is connected correctly.

1–4 Maintenance and Service Guide

Product Description

The external components on the right side of the Expansion Base are shown below and described in Table 1-3 .

Item Component

1

2

Audio out/Headphone jack

USB connectors (3)

3 Vent

4

Right-side components

Table 1-3

Right-Side Components

Kensington security cable slot

Function

Connects optional headphone or powered stereo speakers.

Connect optional USB 2.0 devices.

Allows airflow to cool internal components.

Ä To prevent overheating, do not obstruct the vents.

Connects an optional security cable.

The purpose of security solutions is to act as a deterrent. These solutions do not prevent the product from being mishandled or stolen.

Maintenance and Service Guide 1–5

Product Description

The external components on the rear of the Expansion Base are shown below and described in Table 1-4.

Rear components

1–6 Maintenance and Service Guide

Product Description

9

2

3

4

5

Item Component

1 Expansion cable

6

7

8

RJ-11 jack

Vents (2)

USB connectors (3)

RJ-45 network jack

RJ-11 jack

Table 1-4

Rear Panel Components

S/PDIF (Sony/Philips

Digital Interface) audio connector

TV out/Composite jack

Function

Connects the Expansion Base to a notebook computer.

Connects a modem cable from the

Expansion Base to a notebook.

Allow airflow to cool internal components.

Ä To prevent overheating, do not obstruct the vents.

Connect optional USB 2.0 devices

Connects an Ethernet network cable from the Expansion Base to an RJ-45 wall jack.

Connects the Expansion Base to an RJ-11 telephone wall jack.

Connects high-end digital systems, such as surround sound or a home theatre.

10

11

TV out/ S-Video jack

Serial connector

Power connector

Connects a television, VCR, camcorder, or projector.

Connects an optional S-Video device, such as a television, VCR, camcorder, projector, or video capture card.

Connects a serial device, such as a mouse.

Connects AC power cord. Charges notebook while docked.

Maintenance and Service Guide 1–7

Product Description

The external components on the left side of the Expansion Base are shown below and described in Table 1-5.

Item Component

1 Kensington security cable slot

2

Left-Side Components

Table 1-5

Left-Side Components

Vent

Function

Connects an optional security cable.

The purpose of security solutions is to act as a deterrent. These solutions do not prevent the product from being mishandled or stolen.

Allows airflow to cool internal components.

Ä To prevent overheating, do not obstruct the vents.

1–8 Maintenance and Service Guide

1.3 Wireless Accessories

Product Description

2

3

Receiver

Wireless mouse

Table 1-6

Wireless Accessories

Item Component

1 Wireless keyboard

Function

Connects to the Expansion Base without a cable.

Connects to a USB port on the Expansion

Base. Allows connection between the

Expansion Base and the wireless keyboard and mouse.

Connects to the Expansion Base without a cable.

Maintenance and Service Guide 1–9

Product Description

1.4 Design Overview

This section presents a design overview of key parts and features of the HP Notebook Expansion Base. Refer to

Chapter 3,

“Illustrated Parts Catalog,” to identify replacement parts, and

Chapter 5, “Removal and Replacement Procedures,” for

disassembly steps.

The Expansion Base provides the following device connections:

Expansion cable

S/PDIF (Sony/Philips Digital Interface) audio connector

Audio out/Headphone jack

Composite out

RJ-11 (modem) connection (from wall to Expansion Base)

RJ-11 (modem) connection (from Expansion Base to notebook)

RJ-45/Ethernet port

Six USB 2.0 connectors

S-Video out

Serial port

The HP Notebook Expansion Base uses electrical fans for ventilation. The fans are controlled by a temperature sensor and are designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, and software applications. Exhaust air is displaced through the ventilation grill located on the right side, left side, and rear panel of the unit.

Ä CAUTION: To properly ventilate the HP Notebook Expansion Base, allow at least a 7.6-cm (3-inch) clearance on the left and right sides of the unit.

1–10 Maintenance and Service Guide

2

Troubleshooting

Å WARNING: Only authorized technicians trained by HP should repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module level repair. Because of the complexity of the individual boards and subassemblies, do not attempt to make repairs at the component level or modifications to any printed wiring board. Improper repairs can create a safety hazard. Any indication of component replacement or printed wiring board modification may void any warranty or exchange allowances.

This chapter contains troubleshooting information for the

HP Notebook Expansion Base. Carefully match the symptoms of the malfunction against the problem description in the

Troubleshooting tables to avoid a misdiagnosis. Refer to

Chapter 5 for all removal and replacement procedures.

Follow these guidelines when troubleshooting:

■ Complete the recommended actions in the order in which they are given.

■ When the problem is resolved, do not complete the remaining troubleshooting steps.

Before Replacing Parts

When troubleshooting a problem, check the following list for possible solutions before replacing parts:

■ Verify that cables are connected properly to the suspected defective part.

■ Verify that all required device drivers are installed on the notebook.

Maintenance and Service Guide 2–1

Troubleshooting

Problems and Solutions

The following tables list possible problems, the possible cause of each problem, and the recommended solution.

Problem

The blue indicator light does not come on.

Table 2-1

Power Problems and Solutions

Possible Cause

The notebook is not powered on.

Solution

Turn on the notebook.

The notebook shuts down.

The Expansion Base is not connected to AC power.

Verify that the AC cable is properly connected to the

Expansion Base and to an

AC power outlet.

The expansion cable on the Expansion Base is not properly connected to the expansion connector on the notebook.

Turn off the notebook and unplug the expansion cable.

Then plug the expansion cable back in to the notebook and turn the notebook on.

If the above solutions are unsuccessful, the expansion cable may be damaged.

Replace the expansion cable.

(Section 5.10)

If the above solutions are unsuccessful, the power supply may be malfunctioning.

Replace the power supply.

(Section 5.6)

The Expansion Base is not plugged into an AC power outlet, draining the notebook battery pack.

Plug the Expansion Base into an AC power outlet.

If the above solution is unsuccessful, the power supply may be malfunctioning.

Replace the power supply.

(Section 5.6)

2–2 Maintenance and Service Guide

Troubleshooting

Table 2-2

External Device Problems and Solutions

Problem Possible Cause

A new device is not recognized as part of the notebook system.

The device cable or power cord is loose.

Solution

Test the device first by plugging it into the appropriate notebook connector. Note that composite TV out and serial connectors are not supported on the notebook.

Ensure that all cables are securely connected to the device and the

Expansion Base.

Ensure that all power cords are securely connected to the device and to an electrical outlet.

Device cabling is incorrect. Ensure that the device cable is in the correct connector on the Expansion Base.

The device was connected while the system was on.

Turn off the notebook, turn on the device (if applicable), and then turn on the notebook.

Device drivers may need to be installed on the notebook.

Install drivers according to the device manufacturer’s instructions.

If the above solutions are unsuccessful, the system board may be malfunctioning.

Replace the system board.

(Section 5.7)

Maintenance and Service Guide 2–3

3

Illustrated Parts Catalog

This chapter provides an illustrated parts breakdown and a reference for spare part numbers and option part numbers.

3.1 Serial Number Location

When ordering parts or requesting information, provide the

Expansion Base serial number and model number located on the bottom of the base plate.

Serial number location

Maintenance and Service Guide 3–1

Illustrated Parts Catalog

3.2 HP Notebook Expansion Base

Major Components

3–2

HP Notebook Expansion Base major components

Maintenance and Service Guide

Illustrated Parts Catalog

Table 3-1

Spare Parts: HP Notebook Expansion Base

Major Components

8

9

6

7a

7b

7c

3

4

5

Item Description

1

2

Back panel (with modem connector and cable)

Upper chassis

Expansion cable

Speaker assembly

Front tray cover

Miscellaneous Plastics Kit (including the following components)

Front case

Rear cover

Base enclosure

Base plate

Power supply and shield

System board

Spare Part

Number

347433-001

347434-001

347435-001

347431-001

347432-001

347436-001

347438-001

347437-001

Maintenance and Service Guide 3–3

Illustrated Parts Catalog

HP Notebook Expansion Base miscellaneous components

3–4 Maintenance and Service Guide

Illustrated Parts Catalog

Table 3-1

Spare Parts: HP Notebook Expansion Base Miscellaneous

Components

Item Description

1

2

Receiver

Wireless mouse

3 Wireless keyboard

ADP

Australia

Brazil

Canada (Fr.)

Czech Rep.

Denmark

Europe

France

Germany

Greece

Hong Kong

Hungary

India

Iceland

Israel

Italy

Japan

Korea

348086-371

348086-011

348086-201

348086-121

348086-221

348086-081

348086-021

348086-051

348086-041

348086-151

348086-DC1

348086-211

348086-D61

348086-DD1

348086-BB1

348086-061

348086-291

348086-AD1

Latin America

The Netherlands

Norway

Poland

Portugal

Peoples Republic of

China

Russia

Saudi Arabia

Sweden/Finland

Slovenia

Spain

Thailand

Turkey

Taiwan

United Kingdom

United States

Spare Part

Number

348088-001

348087-001

348086-161

348086-331

348086-091

348086-241

348086-131

348086-AA1

348086-251

348086-171

348086-B71

348086-BA1

348086-071

348086-281

348086-141

348086-AB1

348086-031

348086-001

Maintenance and Service Guide 3–5

Illustrated Parts Catalog

Table 3-2

Spare Parts: HP Notebook Expansion Base

Miscellaneous Components (not illustrated)

Spare Part

Number Item Description

Power cord

Australia

Brazil

Denmark

Europe

French Canada

Israel

India

Italy

Japan

Korea

China

Switzerland

United Kingdom

United States

345252-011

345252-201

345252-081

345252-021

345252-121

345252-BB1

345252-D61

345252-061

345252-291

345252-AD1

345252-AA1

345252-111

345252-031

345252-001

3–6 Maintenance and Service Guide

4

Removal and Replacement

Preliminaries

This chapter provides essential information for proper and safe removal and replacement service.

4.1 Tools Required

You will need the following tools to complete the removal and replacement procedures:

Magnetic screwdriver

Phillips P0 screwdriver

5.0-mm hex socket for system board standoffs

Flat-bladed screwdriver

Tool kit (includes connector removal tool, loopback plugs, and case utility tool)

4.2 Service Considerations

The following sections include some of the considerations that you should keep in mind during disassembly and assembly procedures.

As you remove each subassembly from the Expansion Base, place the subassembly (and all accompanying screws) away from the work area to prevent damage.

Maintenance and Service Guide 4–1

Removal and Replacement Preliminaries

Plastic Parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts.

Apply pressure only at the points designated in the maintenance instructions.

Cables and Connectors

Cables must be handled with extreme care to avoid damage.

Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Ensure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Ä CAUTION: When servicing the Expansion Base, ensure that cables are placed in their proper locations during the reassembly process.

Improper cable placement can damage the Expansion Base.

4.3 Preventing Electrostatic Damage

Many electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains enough power to alter device parameters or melt silicon junctions.

A sudden discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry.

Often the spark is neither felt nor heard, but damage occurs.

An electronic device exposed to electrostatic discharge might not be affected at all and can work perfectly throughout a normal cycle. Or the device might function normally for a while, and then degrade in the internal layers, reducing its life expectancy.

4–2 Maintenance and Service Guide

Removal and Replacement Preliminaries

4.4 Packaging and Transporting

Precautions

Use the following grounding precautions when packaging and transporting equipment:

■ To avoid hand contact, transport products in static-safe containers, such as tubes, bags, or boxes.

■ Protect all electrostatic-sensitive parts and assemblies with conductive or approved containers or packaging.

■ Keep electrostatic-sensitive parts in their containers until the parts arrive at static-free workstations.

■ Place items on a grounded surface before removing items from their containers.

■ Always be properly grounded when touching a sensitive component or assembly.

■ Store reusable electrostatic-sensitive parts from assemblies in protective packaging or nonconductive foam.

■ Use transporters and conveyors made of antistatic belts and roller bushings. Ensure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Maintenance and Service Guide 4–3

Removal and Replacement Preliminaries

4.5 Workstation Precautions

Use the following grounding precautions at workstations:

■ Cover the workstation with approved static-shielding material

(refer to

Table 4-2, Static-Shielding Materials)

.

■ Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.

■ Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

■ When using fixtures that must directly contact dissipative surfaces, only use fixtures made of static-safe materials.

■ Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.

■ Handle electrostatic-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

Turn off power and input signals before inserting or removing connectors or test equipment.

4–4 Maintenance and Service Guide

Removal and Replacement Preliminaries

4.6 Grounding Equipment and

Methods

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

■ When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

■ When standing, use foot straps and a grounded floor mat.

Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

Other grounding equipment recommended for use in preventing electrostatic damage includes:

Antistatic tape

Antistatic smocks, aprons, and sleeve protectors

Conductive bins and other assembly or soldering aids

Nonconductive foam

Conductive tabletop workstations with ground cords of one megohm resistance

■ Static-dissipative tables or floor mats with hard ties to the ground

Field service kits

Static awareness labels

Maintenance and Service Guide 4–5

Removal and Replacement Preliminaries

Material-handling packages

Nonconductive plastic bags, tubes, or boxes

Metal tote boxes

Electrostatic voltage levels and protective materials

Table 4-1 shows how humidity affects the electrostatic voltage levels generated by different activities.

Table 4-1

Typical Electrostatic Voltage Levels

Event

Walking across carpet

Walking across vinyl floor

Motions of bench worker

Removing DIPS from plastic tube

Removing DIPS from vinyl tray

Removing DIPS from Styrofoam

Removing bubble pack from PCB

10%

35,000 V

Relative Humidity

40% 55%

15,000 V 7,500 V

12,000 V

6,000 V

2,000 V

11,500 V

14,500 V

26,500 V

5,000 V

800 V

700 V

4,000 V

5,000 V

20,000 V

3,000 V

400 V

400 V

2,000 V

3,500 V

7,000 V

Packing PCBs in foam-lined box 21,000 V

A product can be degraded by as little as 700 V.

11,000 V 5,000 V

Table 4-2 lists the shielding protection provided by antistatic bags and floor mats.

Table 4-2

Static-Shielding Materials

Material

Antistatic plastic

Carbon-loaded plastic

Metallized laminate

Use

Bags

Floor mats

Floor mats

Voltage Protection Level

1,500 V

7,500 V

5,000 V

4–6 Maintenance and Service Guide

5

Removal and Replacement

Procedures

This chapter provides removal and replacement procedures.

There are 37 screws and standoffs, in six different sizes, that must be removed, replaced, and loosened when servicing the

Expansion Base. Make special note of each screw size and location during removal and replacement.

Refer to

Appendix C, “Screw Listing,”

for detailed information on screw sizes, locations, and usage.

Maintenance and Service Guide 5–1

Removal and Replacement Procedures

5.1 Serial Number

Report the Expansion Base serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the Expansion Base.

Serial number location

5–2 Maintenance and Service Guide

Removal and Replacement Procedures

Section

5.3

5.4

5.9

5.10

5.11

5.12

5.5

5.6

5.7

5.8

5.2 Disassembly Sequence Chart

Use the chart below to determine the section number to be referenced when removing Expansion Base components.

Disassembly Sequence Chart

Description

# of Screws

Removed

Preparing the Expansion Base for disassembly

Base plate 4

Upper chassis

Power supply

System board

Front tray cover

Back panel

Expansion cable

Speaker assembly

Front case

2

6

4

4

5

4

2

5

Maintenance and Service Guide 5–3

Removal and Replacement Procedures

5.3 Preparing the HP Notebook

Expansion Base for Disassembly

Perform the following steps before disassembling the

Expansion Base:

1. If the notebook computer is in the Expansion Base, turn off the notebook and press the buttons on the end of the expansion cable 1 to disconnect the cable from the notebook 2.

2. Disconnect the AC adapter and all external devices.

The location of the expansion connector on the notebook may vary by notebook series and model.

5–4

Disconnecting the expansion cable

Maintenance and Service Guide

Removal and Replacement Procedures

5.4 Base Plate

Spare Part Number Information

Base plate The base plate is included in the

Miscellaneous Plastics Kit

347436-001

1. Turn the Expansion Base upside down with the front facing away from you.

2. Remove the four PM2.5×17.0 screws 1 that secure the base plate to the base enclosure.

3. Remove the base plate 2.

Removing the base plate

Reverse the above procedure to install the base plate.

Maintenance and Service Guide 5–5

Removal and Replacement Procedures

5.5 Upper Chassis

1. Prepare the Expansion Base for disassembly

(Section 5.3) .

2. Remove the base plate (Section 5.4) .

3. Turn the Expansion Base right-side up with the rear panel facing you.

4. Remove the adhesive-backed 8.0-mm diameter screw covers 1.

5. Remove the two PM2.0×6.0 screws 2 that secure the rear cover to the base enclosure.

5–6

Removing the rear cover screws

Maintenance and Service Guide

Removal and Replacement Procedures

6. Lift the front edge of the rear cover up 1 until it disengages from the base enclosure.

7. Slide the rear cover toward you 2 and remove it.

Removing the rear cover

Maintenance and Service Guide 5–7

Removal and Replacement Procedures

8. Disconnect the following cables from the system board:

1 4-wire cable

2 2-wire RJ-11 modem cable

3 50-pin cable

4 6-wire cable

5 4-wire power cable

Disconnecting the cables from the system board

5–8 Maintenance and Service Guide

Removal and Replacement Procedures

9. Remove the two PM2.0×4.0 screws 1 that secure the upper chassis to the base enclosure.

10. Swing the top edge of the upper chassis upward 2 to disengage it from the base enclosure.

11. Lift the upper chassis straight up 3 and remove it.

Removing the upper chassis

Reverse the above procedure to install the upper chassis.

Maintenance and Service Guide 5–9

Removal and Replacement Procedures

5.6 Power Supply

Spare Part Number Information

Power supply 347438-001

1. Prepare the Expansion Base for disassembly

(Section 5.3) .

2. Remove the base plate (Section 5.4) .

3. Remove the upper chassis (Section 5.5)

.

4. Turn the base enclosure upside down with the front facing you.

5. While holding the power supply in place with one hand underneath, remove the five PM2.0×6.0 screws that secure the power supply to the base enclosure.

5–10

Removing the power supply screws

Maintenance and Service Guide

Removal and Replacement Procedures

6. Turn the base enclosure right-side up with the rear facing you.

7. On the base enclosure, disconnect the power supply cable 1 from the system board.

8. Lift the power supply and shield approximately one inch 2.

9. While holding the power supply and shield, remove the power connector 3 from the supports in the base enclosure.

Removing the power supply

Reverse the above procedure to install the power supply.

Maintenance and Service Guide 5–11

Removal and Replacement Procedures

5.7 System Board

Spare Part Number Information

System board 347437-001

1. Prepare the Expansion Base for disassembly

(Section 5.3) .

2. Remove the base plate (Section 5.4) .

3. Remove the upper chassis (Section 5.5)

.

4. Remove the power supply

(Section 5.6) .

5. Position the base enclosure with the rear panel facing you.

6. Remove the three PM2.0×6.0 screws 1 that secure the system board to the base enclosure.

7. Use a 5.0-mm hex socket to remove the two HM5.0x9.0 standoffs 2 on either side of the serial connector.

5–12

Removing the system board screws and standoffs

Maintenance and Service Guide

Removal and Replacement Procedures

8. Swing the top left edge of the system board clockwise 1 until the audio connector 2 disengages from the hole 3 in the base enclosure.

9. Remove the system board from the base enclosure 4.

Removing the system board

Reverse the above procedure to install the system board.

Maintenance and Service Guide 5–13

Removal and Replacement Procedures

5.8 Front Tray Cover

Spare Part Number Information

Front tray cover 347432-001

1. Prepare the Expansion Base for disassembly

(Section 5.3) .

2. Remove the base plate (Section 5.4) .

3. Remove the upper chassis (Section 5.5)

.

4. Turn the upper chassis upside down with the docking connector and cable facing away from you.

5. Cut all tie-wraps 1 that bundle the Expansion Base cables and secure the RJ-11 modem cable to the chassis.

6. Remove the four PM2.0×4.0 screws 2 that secure the front tray cover to the chassis.

5–14

Removing the front tray cover screws

Maintenance and Service Guide

Removal and Replacement Procedures

7. Turn the upper chassis right-side up with the expansion cable facing you.

8. Slide the front tray cover upward and then away from you to remove it.

Removing the front tray cover

Reverse the above procedure to install the front tray cover.

Maintenance and Service Guide 5–15

Removal and Replacement Procedures

5.9 Back Panel

Spare Part Number Information

Back panel with RJ-11 cable 347433-001

1. Prepare the Expansion Base for disassembly

(Section 5.3) .

2. Remove the base plate (Section 5.4) .

3. Remove the upper chassis (Section 5.5)

.

4. Remove the front tray cover

(Section 5.8)

.

5. Position the upper chassis right-side up with the speakers facing you.

Make sure that the back panel is supported before performing the following steps.

6. Remove the four PM2.0×4.0 screws 1 that secure the back panel to the chassis.

7. Remove the back panel with the RJ-11 cable attached 2.

5–16

Removing the back panel

Reverse the above procedure to install the back panel.

Maintenance and Service Guide

Removal and Replacement Procedures

5.10 Expansion Cable

Spare Part Number Information

Expansion cable 347435-001

1. Prepare the Expansion Base for disassembly

(Section 5.3) .

2. Remove the base plate (Section 5.4) .

3. Remove the upper chassis (Section 5.5)

.

4. Remove the front tray cover

(Section 5.8)

.

5. Remove the back panel

(Section 5.9) .

6. Turn the upper chassis right-side up with the rear facing you.

Rotate the chassis so that the expansion cable connector is facing away from you.

7. Remove the four PM2.0×2.0 screws 1 that secure the expansion cable clamps to the chassis.

8. Remove the expansion cable clamps 2 and the expansion cable 3.

Removing the expansion cable clamps and expansion cable

Reverse the above procedure to install the expansion cable.

Maintenance and Service Guide 5–17

Removal and Replacement Procedures

5.11 Speaker Assembly

Spare Part Number Information

Speaker assembly 347431-001

1. Prepare the Expansion Base for disassembly

(Section 5.3) .

2. Remove the base plate (Section 5.4) .

3. Remove the upper chassis (Section 5.5)

.

4. Remove the front tray cover

(Section 5.8)

.

Although the back panel and expansion cable are not shown in the figure, it is not necessary to remove them.

5. Turn the upper chassis upside down, with the bottom facing you and the speaker assembly facing down.

6. Remove the 6-wire audio control cable 1 and the 4-wire speaker cable 2 from the chassis hole through which they are routed.

7. Remove the two PM2.0×4.0 screws 3 that secure the speaker assembly to the chassis.

5–18

Removing the speaker assembly screws

Maintenance and Service Guide

Removal and Replacement Procedures

8. Rotate the chassis 180 degrees toward you.

9. Slide the speaker assembly away from you 1 to disengage it from the chassis.

10. Lift the edge of the speaker assembly to remove it from the chassis 2.

Removing the speaker assembly

Reverse the above procedure to install the speaker assembly.

Maintenance and Service Guide 5–19

Removal and Replacement Procedures

5.12 Front Case

Spare Part Number Information

Front case (plastics kit)

Upper chassis

347436-001

347434-001

1. Prepare the Expansion Base for disassembly

(Section 5.3) .

2. Remove the base plate (Section 5.4) .

3. Remove the upper chassis (Section 5.5)

.

4. Remove the front tray cover

(Section 5.8)

.

5. Remove the speaker assembly

(Section 5.11) .

6. Turn the chassis right-side up with the rear facing you. Rotate the top of the chassis toward you.

7. Remove the six PM2.0×5.0 screws 1 that secure the upper chassis front case to the chassis.

8. Slide the front case toward you 2 to disengage it from the chassis.

9. Remove the front case 3 from the chassis.

5–20

Removing the front case

Reverse the above procedure to install the front case.

Maintenance and Service Guide

6

Specifications

This chapter provides physical and performance specifications.

Table 6-1

HP Notebook Expansion Base

Dimensions

Height

Width

Depth

Weight

22.8 cm

31.8 cm

29.8 cm

3.5 kg

Stand-alone power requirements

Power supply 18.5 V at 8 amps

9 in

12.5 in

11.75 in

7.5 lb

Temperature

Operating (not writing optical)

Operating (writing optical)

Nonoperating

0°C to 35°C

5°C to 35°C

-20°C to 60°C

32°F to 95°F

41°F to 95°F

-4°F to 140°F

Applicable product safety standards specify thermal limits for plastic surfaces. The notebook operates well within this range of temperatures.

Relative humidity (noncondensing)

Operating

Nonoperating

10% to 90%

5% to 95%, 38.7°C (101.6°F) maximum wet bulb temperature

Maintenance and Service Guide 6–1

Specifications

Power supply

Rated input voltage

Rated input current

Rated frequency

Table 6-2

Internal AC Adapter

160 W with PFC

100 to 240 VAC RMS

1.7 A RMS

47 to 63 Hz

6–2 Maintenance and Service Guide

A

Connector Pin Assignments

Table A-1

RJ-45 Network Interface

2

3

Pin

1

4

Signal

Transmit +

Transmit –

Receive +

Unused

6

7

Pin

5

8

Signal

Unused

Receive –

Unused

Unused

Maintenance and Service Guide A–1

Connector Pin Assignments

Table A-2

RJ-11 Modem

2

3

Pin

1

Signal

Unused

Tip

Ring

5

6

Pin

4

Signal

Unused

Unused

Unused

Table A-3

Universal Serial Bus

Pin

1

2

Signal

+5 VDC

Data –

Pin

3

4

Signal

Data +

Ground

A–2 Maintenance and Service Guide

Pin

1

2

Signal

Ground (Y)

Ground (C)

Connector Pin Assignments

Table A-4

S-Video

2

4 3

1

Pin

3

4

Signal

Y-Luminance (Intensity)

C-Chrominance (Color)

Table A-5

Audio Line-Out

Pin

1

Signal

Audio out

Pin

2

Signal

Ground

Maintenance and Service Guide A–3

Connector Pin Assignments

Table A-6

Serial

4

5

2

3

Pin

1

Signal

Carrier detect

Receive data

Transmit data

Data terminal ready

Ground

7

8

Pin

6

9

Signal

Data set ready

Ready to send

Clear to send

Ring indicator

A–4 Maintenance and Service Guide

Pin

1

Signal

Video signal

Table A-7

S/PDIF Audio Line-Out

Connector Pin Assignments

Pin

1

Signal

Audio signal

1 2

Pin

2

Signal

Ground/return

Table A-8

Video

1 2

Pin

2

Signal

Ground/return

Maintenance and Service Guide A–5

B

Power Cord Set Requirements

3-Conductor Power Cord Set

The wide range input feature of the notebook permits it to operate from any line voltage from 100 to 120 or 220 to 240 volts AC.

The power cord set shipped with the notebook meets the requirements for use in the country where the equipment is purchased.

Power cord sets for use in other countries must meet the requirements of the country where the notebook is used.

General Requirements

The requirements listed below are applicable to all countries:

■ The length of the power cord set must be at least 1.5 meters

(5.00 feet) and a maximum of 2.0 meters (6.50 feet).

■ All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be used.

■ The power cord set must have a minimum current capacity of

10 amps and a nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system.

■ The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C13 connector for mating with the appliance inlet on the back of the notebook.

Maintenance and Service Guide B–1

Power Cord Set Requirements

Country-Specific Requirements

3-Conductor Power Cord Set Requirements

Country

Australia

Austria

Belgium

Canada

Denmark

Finland

France

Germany

Italy

Japan

The Netherlands

Norway

Sweden

Switzerland

Accredited Agency

EANSW

OVE

CEBC

CSA

DEMKO

FIMKO

UTE

VDE

IMQ

METI

KEMA

NEMKO

SEMKO

SEV

1

1

1

1

2

1

1

1

1

1

3

1

1

Applicable Note

Number

1

B–2 Maintenance and Service Guide

Power Cord Set Requirements

3-Conductor Power Cord Set Requirements (Continued)

Country

United Kingdom

Accredited Agency

BSI

Applicable Note

Number

1

United States UL 2

Notes

1. The flexible cord must be <HAR> Type HO5VV-F, 3-conductor, 1.0 mm² conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country where it will be used.

2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG,

3-conductor. The wall plug must be a 2-pole grounding type with a NEMA

5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.

3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the Japanese Dentori Law.

The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00 mm² conductor size. The wall plug must be a 2-pole grounding type with a

Japanese Industrial Standard C8303 (7 A, 125 V) configuration.

Maintenance and Service Guide B–3

C

Screw Listing

This appendix provides specification and reference information for the screws used in the HP Notebook Expansion Base. All screws listed in this appendix are available in the Miscellaneous

Screw Kit, spare part number 347439-001.

Maintenance and Service Guide C–1

Screw Listing

Table C-1

Phillips PM2.5×17.0 Screw mm

Color Qty.

Length Thread

Bronze 4 17.0 mm 2.5 mm

Where used:

Four screws that secure the base plate to the base enclosure

(documented in Section 5.4)

Head

Width

6.0 mm

C–2

Phillips M2.5×17.0 screw locations

Maintenance and Service Guide

Screw Listing

Table C-2

Phillips PM2.0×6.0 Screw mm

Color Qty.

Length Thread

Bronze 10 6.0 mm 2.0 mm

Where used:

Five screws that secure the power supply to the base enclosure

(documented in Section 5.6)

Head

Width

4.5 mm

Phillips M2.0×6.0 screw locations

Maintenance and Service Guide C–3

Screw Listing

Table C-2

Phillips PM2.0×6.0 Screw (Continued) mm

Color Qty.

Length Thread

Bronze 10 6.0 mm 2.0 mm

Where used:

Two screws that secure the rear cover to the base enclosure

(documented in Section 5.5)

Head

Width

4.5 mm

C–4

Phillips M2.0×6.0 screw locations

Maintenance and Service Guide

Screw Listing

Table C-2

Phillips PM2.0×6.0 Screw (Continued) mm

Color Qty.

Length Thread

Bronze 10 6.0 mm 2.0 mm

Where used:

Three screws that secure the system board to the base enclosure

(documented in Section 5.7)

Head

Width

4.5 mm

Phillips M2.0×6.0 screw locations

Maintenance and Service Guide C–5

Screw Listing

Table C-4

HM5.0×9.0 Standoff mm

Color Qty.

Length Thread

Silver 2 9.0 mm 5.0 mm

Where used:

Two standoffs that secure the system board to the base enclosure

(documented in Section 5.7)

Head

Width

5.0 mm

C–6

HM5.0×9.0 screw locations

Maintenance and Service Guide

Screw Listing

Table C-5

Phillips PM2.0×4.0 Screw mm

Color Qty.

Length Thread

Bronze 18 4.0 mm 2.0 mm

Where used:

Two screws that secure the upper chassis to the base enclosure

(documented in Section 5.5)

Head

Width

4.0 mm

Phillips M2.0×4.0 screw locations

Maintenance and Service Guide C–7

Screw Listing

Table C-5

Phillips PM2.0x4.0 Screw (Continued) mm

Color Qty.

Length Thread

Bronze 18 4.0 mm 2.0 mm

Where used:

Four screws that secure the front tray cover to the upper chassis

(documented in Section 5.8)

Head

Width

4.0 mm

Phillips M2.0x4.0 screw locations

C–8 Maintenance and Service Guide

Screw Listing

Table C-5

Phillips PM2.0×4.0 Screw (Continued) mm

Color Qty.

Length Thread

Bronze 18 4.0 mm 2.0 mm

Where used:

Four screws that secure the back panel to the chassis

(documented in Section 5.9)

Head

Width

4.0 mm

Phillips M2.0x4.0 screw locations

Maintenance and Service Guide C–9

Screw Listing

Table C-5

Phillips PM2.0×4.0 Screw (Continued) mm

Color Qty.

Length Thread

Bronze 18 4.0 mm 2.0 mm

Where used:

Two screws that secure the speaker assembly to the chassis

(documented in Section 5.11)

Head

Width

4.0 mm

C–10

Phillips M2.0x4.0 screw locations

Maintenance and Service Guide

Screw Listing

Table C-5

Phillips PM2.0×4.0 Screw (Continued) mm

Color Qty.

Length Thread

Bronze 18 4.0 mm 2.0 mm

Where used:

Six screws that secure the front case to the chassis

(documented in Section 5.12)

Head

Width

4.0 mm

Phillips M2.0x4.0 screw locations

Maintenance and Service Guide C–11

Screw Listing

Table C-6

Phillips PM2.0×2.0 Screw mm

Color Qty.

Length Thread

Silver 4 2.0 mm 2.0 mm

Where used:

Four screws that secure the expansion cable brackets to the chassis

(documented in Section 5.10)

Head

Width

8 mm

C–12

Phillips M2.0x2.0 screw locations

Maintenance and Service Guide

Index

A

AC adapter specifications

6–2

audio line-out pin assignments

A–3

B back panel removal

5–16

spare part number

3–3

base enclosure, spare part number

3–3

base plate removal

5–5

spare part number

3–3

C cables, service considerations

4–2

components front

1–3

left-side

1–5

rear

1–5

right-side

1–3 ,

1–5

composite jack

1–7

connection indicator light

1–4

connector pin assignments audio line-out

A–3

modem jack

A–2

network jack

A–1

RJ-11 telephone jack

A–2

RJ-45 network jack

A–1

S/PDIF audio line-out jack

A–5

serial connector

A–4

S-Video connector

A–3

USB connectors

A–2

connectors, service considerations

4–2

D design overview

1–10

disassembly sequence chart

5–3

E electrostatic discharge

4–2 ,

4–6

expansion base specifications

6–1

expansion cable

1–4

, 1–7

disconnecting

5–4

removal

5–17

spare part number

3–3

F features

1–2

front case removal

5–20

spare part number

3–3

front components

1–3

front tray cover removal

5–14

spare part number

3–3

Maintenance and Service Guide Index–1

Index

G grounding equipment and methods

4–5

H headphone jack

1–5

K keyboard, wireless

1–9

L left-side components

1–5

M

Miscellaneous Plastics Kit, spare part number

3–3

modem jack, pin assignments

A–2

mouse, wireless

1–9

mute button

1–4

N network jack, pin assignments

A–1

P packing precautions

4–3

plastic parts

4–2

power connector

1–7

power cord set requirements

B–1

power cord, spare part numbers

3–6

power supply removal

5–10

spare part number

3–3

R rear components

1–5

rear cover removal

5–6

spare part number

3–3

receiver function

1–9

spare part number

3–5

removal preliminaries

4–1

replacement preliminaries

4–1

right-side components

1–3 ,

1–5

RJ-11 telephone jack location

1–7

pin assignments

A–2

RJ-45 network jack location

1–7

pin assignments

A–1

S

S/PDIF audio line-out jack pin assignments

A–5

S/PDIF connector location

1–7

screw listing

C–1

security cable slot

1–5 ,

1–8

serial connector location

1–7

pin assignments

A–4

serial number

3–1 ,

5–2

service considerations

4–1

speaker assembly location

1–4

removal

5–18

spare part number

3–3

specifications

AC adapter

6–2

expansion base

6–1

static shielding materials

4–6

S-Video connector location

1–7

pin assignments

A–3

Index–2 Maintenance and Service Guide

system board removal

5–12

spare part number

3–3

system board cables, removal

5–8

T tools required

4–1

transporting precautions

4–3

troubleshooting

2–1

problems and solutions

2–2

TV out, location

1–7

U upper chassis removal

5–6

spare part number

3–3

USB connectors location

1–5 ,

1–7

pin assignments

A–2

V vent

1–5

, 1–7 ,

1–8

volume down button

1–4

volume up button

1–4

W wireless accessories

1–9

wireless keyboard

1–9

spare part numbers

3–5

wireless mouse

1–9

spare part number

3–5

workstation precautions

4–4

Index

Maintenance and Service Guide Index–3

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals
