Technical specifications
HP ep9012 Instant Cinema Digital Projector
(L1752B/C/D/E/F)*
Display technology
Texas Instruments Digital Light Processing™ (DLP™)
Image contrast
1600:1 (full-on/full-off)
Resolution
800 x 600 True SVGA
1024 x 768 True XGA
Brightness
840 ANSI (max) lumens
1020 ANSI (max) lumens
HP Home Digital Projectors
HP ep7112 Home Cinema Digital Projector
(L1750A)
HP ep7122 Home Cinema Digital Projector
(L1751A)
Projected image
Size
Adjustable from 0.94 to 2.8 m diagonal (37 to 110 inches)
Uniformity
+30 to -40% ANSI
Throw distance
Approximately 1 to 10 m (3 to 33 ft)
Projection offset
128% of image above the center line
Projector lens
F/2.4 max, 1.16:1 manual zoom focus
Keystone correction
Vertical +/- 20° (40° total)
Video capability
S-video, composite, component, HDTV (up to 1080i)
Scalable resolution
Native SVGA (800 x 600)—scales up from VGA (640 x 480) and scales down from XGA (1024 x 768)
Video formats
NTSC M (3.58 MHz), 4.43 MHz; PAL B, D, G, H, I, M, N; SECAM B, D, G, K, K1, L; DTV 480i, 480p, 720p, 1080i, 576p; V-chip and closed captioning not supported
Audio
2.1 internal speakers (L/R/subwoofer), internal 30 W amplifier
(5 x 5 x 20), relative volume control, system response: 50 Hz – 20 KHz,
>70dB(A) S/N, <1% THD, stereo sound via headphone-out
Noise level
< 34 dB(A) at 23º C
Lamp life
4,000 hours
Light source
210-watt lamp
Input connections
1 Composite video input (RCA x 1); 1 S-video input (Mini DIN 4-pin x 1);
1 Component video Input (RCA x 3); DVI-I (with HDCP); L/R audio in
(RCA x 2); USB for service upgrades; subwoofer volume control
Output connections
5.1 digital audio output (RCA x 1); L/R audio out (RCA x 2); stereo
headphone jack (mutes built-in speakers)
Detection of computer input signal
Automatic
Computer compatibility
Via DVI-to-VGA adaptor; S-video
Image synchronisation
Automatic
Menus
User-friendly multilingual On Screen Display (OSD)
One 5-watt integrated speaker
1 Composite video input (RCA x 1); 1 S-video input (Mini DIN 4-pin x 1);
1 Component video Input (RCA x 3); L/R audio in (RCA x 2)
1 Composite video input (RCA x 1); 1 S-video input (Mini DIN 4-pin x 1);
1 Component video Input (RCA x 3); DVI-I (with HDCP); L/R audio in
(RCA x 2)
Via S-video only; PC must have video out
Via DVI-to-VGA adaptor; S-video
Remote control
Wireless remote for basic functionality with DVD control
Tilt angle
+/- 10º; 2º minimum
Weight
10 kg (22 lb)
Dimensions (w x d x h)
524 x 400 x 320 mm (20.6 x 15.7 x 12.6 inches)
386 x 365 x 205 mm (15.2 x 14.4 x 8.1 inches)
What’s in the box
HP ep9020 Instant Cinema Digital Projector, power cord (3 m, 10 ft),
DVI-VGA adaptor, wireless remote control, multilanguage User’s Guide
(CD-ROM), multilanguage Quick Start Card, battery x 2, warranty card
HP ep7112 Home Cinema Digital Projector, power cord (3 m, 10 ft),
wireless remote control, multilanguage User’s Guide (CD-ROM),
multilanguage Quick Start Card, battery x 2, warranty card
Warranty
Native XGA (1024 x 768)—scales up from SVGA (800 x 600) and
scales down from SXGA (1400 x 1050)
Wireless remote for basic functionality
© 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change
without notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
5.7 kg (12.5 lb)
One-year limited hardware warranty on digital projector
* L1752B—Code 2 (Japan); L1752C—Code 3 (South East Asia, Hong Kong, Taiwan, Korea); L1752D—Code 4 (Australia,New Zealand); L1752E—Code 5 (India); L1752F—Code 6 (China)
HP ep7122 Home Cinema Digital Projector, power cord (3 m, 10 ft),
S-video and composite video cables (6 m, 20 ft), DVI-VGA adaptor,
wireless remote control, multilanguage User’s Guide (CD-ROM),
multilanguage Quick Start Card, battery x 2, warranty card
www.hp.com/homeprojectors
Home Cinema. Redefined.
World’s first digital projector with integrated DVD player, subwoofer and 2.1 surround sound*
Printed in Singapore, 2001-3875-EEP, 10(rev 1)/2004
* HP ep9012 Instant Cinema Digital Projector
Other HP digital projectors
for your business needs
Movies at home will never be the same
Accessories
With widescreen and stereo surround sound capabilities, the
HP ep9012 Instant Cinema Digital Projector is the world’s first
digital projector with integrated DVD player, subwoofer and
2.1 surround sound. Now you can have a complete big
screen cinema experience with you wherever you go, whether
it’s to the next room or to the next outdoor event.
Mobile
Versatile
Conference
Technical specifications
Maximise the capabilities of your HP Home Digital Projectors with our comprehensive range
of optional accessories and peripherals, sold separately.
HP Digital Projector sb21
HP mp3222 Digital Projector
HP Digital Projector mp3130
HP Digital Projector vp6110/6120
HP Digital Projector xp8010
HP Digital Projector xp8020
Requirements
I need HP’s smallest, lightest and
most compact digital projector
I need a quality solution that
provides outstanding price-toperformance, ease of use, image
quality and mobility
I need a mobile projector with
wireless connectivity and networking
options
I need an affordable, versatile
projector for use in a classroom,
at home or office
I need a projector for use in large
auditoriums and conference rooms
I need a powerful projector
capable of wireless/wireline
networking and connectivity
features for use in large
auditioriums or conference rooms
Special features
• Ultra light 1 kg weight
• Small A5 sized footprint
• Easy to use
• Wireless remote control
with laser pointer
• Designer carrying case
• 1.2x manual zoom
• Credit-card style remote
• LED illuminated controls
• Easy-access lamp module
• 5-segment colour wheel
• Wireless and media card
connectivity with optional Smart
Attachment Module (SAM)
• Unique space saving tower design
• Versatile performance
• Outstanding image/colour quality
• Rugged and reliable
• Theatre mode for high colour
• Automatic input detection
• Picture-in-picture feature
• Robust design
• Simple to use
• Dual colour wheel system
with 3 video modes for
maximum flexibility
• Remote management
• Optional Advanced
Connectivity Module
• Anti-theft system
• Comprehensive input connections
• Optional lenses
• Dual colour wheel system
with 3 video modes for
maximum flexibility
• Wireless presentation capabilities
• Advanced remote management
• Sophisticated anti-theft system
• Presentation from media cards
• Comprehensive input connections
• Optional lenses
Projection system
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Brightness (peak lumens)
1000
2000
1800
vp6110: 1500
vp6120: 2000
2600/3600 in greyscale
3100/3750 in greyscale
Resolution (native)
SVGA (800 x 600)
XGA (1024 x 768)
XGA (1024 x 768)
vp6110: SVGA (800 x 600)
vp6120: XGA (1024 x 768)
XGA (1024 x 768)
XGA (1024 x 768)
Contrast (full-on/full-off)
1800:1
2000:1
2000:1
2000:1
800:1
1000:1
Lamp life (hours)
2000
2000 (up to 3000
—economy mode)
2000 (up to 4000
—lamp saver mode)
2000 (up to 3000
—lamp saver mode)
2000 (up to 4000
—lamp saver mode)
2000 (up to 4000
—lamp saver mode)
Weight
1.0 kg
1.7 kg
1.5 kg
2.9 kg
6.0 kg
6.1 kg
Warranty (pick up & return)
2 years
3 years
2 years
2 years
3 years
3 years
Noise level dB(A)
35
37, 35 in economy mode
37, 35 in economy mode
36, 34 in economy mode
32 ± 2 dBA
32 ± 2 dBA
Model number
L1510A
L1742A
L1599A
vp6110: L1595A
vp6120: L1596A
L1575A
L1576A
Features
Image optimisation selector lets
you choose between maximum
brightness or maximum colour
saturation, optional ceiling
mount bracket
Image optimisation selector, VGA/
Composite/S-video/audio inputs,
vertical keystone correction,
ceiling mountable
Automatic vertical keystone
correction, optional ceiling mount
bracket, optional SAM module for
USB port, wireless, network and
CompactFlash card support
Image optimisation selector,
component video connector,
optical zoom lens
Seven video connections with
switched audio; LAN and RS-232
control; two built-in 5-watt stereo
speakers; optional short and long
throw bayonet mounted lenses
Seven video connections with
switched audio; LAN and RS-232
control; two built-in 5-watt stereo
speakers; optional short and long
throw bayonet mounted lenses
HP ep9012 Instant Cinema Digital Projector and
HP ep7112 and ep7122 Home Cinema Digital Projectors
Mobile 50-inch (4:3) screen (L1671A)
(L1710A)
Lamp Module (L1731A)
(L1711A)
HP ep9012 DVD Function Home
Remote Control and HP ep7100 series
Home Remote Control
S-video 20' Cable (L1715A)
HDTV mobile 60-inch (16:9) screen (L1740A)
HP ep7100 series Ceiling
Mount (L1733A)
HDTV mobile 80-inch (16:9) screen (L1741A)
DVI to VGA Adaptor
(L1718A)
Roller-case (L1732A)—
only for HP ep9012 Instant
Cinema Digital Projector
Experience a complete digital home theatre
Bring the big screen box-office theatre experience into your living room. Crystal clear digital
widescreen images are complemented by a subwoofer-equipped audio system for added bass
punch. The built-in DVD player maintains digital clarity throughout the life of the product and
offers support for both DTS and Dolby 5.1 playback.
Complete your home cinema experience with HP.
Styled to impress
To house this technological wizardry, HP has designed a futuristic, hi-tech body. Sleek,
curved lines evoke a sense of understated technological superiority, easily blending in with
chic, contemporary home interiors.
Style and substance come together to impress your audience.
A digital feast for the eyes
The high-quality DLP™ technology used in the HP ep9012 Instant Cinema Digital Projector,
HP ep7112 and ep7122 Home Cinema Digital Projectors is a true wonder. Be amazed by
razor sharp digital performance that is robust and long-lasting.
Say goodbye to faded movies and washed out colour.
The DLP™ logo and DLP™ medallion
are trademarks of Texas Instruments.
“With the HP ep9012, I can
bring my home theatre system
whenever and wherever my
friends get together for fun
and excitement.”
Every time there’s a party, Ryan’s friends and family
know just whom they can rely on to provide widescreen
projection, complete digital, home theatre entertainment.
With built-in subwoofer and stereo speakers and DVD
player, the HP ep9012 Instant Cinema Digital Projector
lets Ryan bring fun and excitement right along with him.
HP ep9012 Instant Cinema
Digital Projector
DLP™ at 24 hours
Lights! Sound! Action! Complete cinema
experience in your home
DLP™ at 3312 hours
The HP ep9012 Instant Cinema Digital Projector
is a high-quality DLP™ widescreen digital projector,
stereo speakers with subwoofer and a DVD player
in one seamless whole. Just pop a DVD into the
built-in DVD player and transform a humble room
into a widescreen theatrette.
LCD at 24 hours
Durable and superior image quality
—DLP™ technology
LCD at 3312 hours
Using Digital Light Processing™ (DLP™) technology,
the HP ep9012 Instant Cinema Digital Projector
produces razor-sharp, crystal clear images. Robust
and extremely resistant DLP™ components make the
HP ep9012 Instant Cinema Digital Projector more
durable and long-lasting compared to LCD projectors1.
Picture reliability comparison—DLP™ vs. LCD
True-to-life colours—HP six-segment colour wheel
HP Home Digital Projectors image quality doesn’t just stop at DLP™ technology. HP’s sixsegment colour wheel delivers a superior spectrum with excellent brightness for deep,
saturated colours. The deeper colour spectrum gives depth and vibrancy to HP’s reds
and blues, so you can expect to get rich, vivid big-screen image reproduction. That
means excellent theatre video performance with clean, natural images and true-to-life
colours. What’s more, with the built-in 840 ANSI (max) lumens lamp, you can be
assured that the projector will produce bright and clear projection.
1
In tests conducted by the Munsell Color Science Laboratory at Rochester Institute of Technology, projectors were operated
continuously for 4,000 hours. The five Liquid Crystal Display (LCD) technology projectors experienced significant and
unacceptable degrees of failure, including falling contrast, colour shifts and visible picture defects. These failures were not
recoverable by replacing the lamp module.
In contrast, the DLP™ projectors tested maintained consistent contrast, colorimetry and picture quality after 4,000 hours of
continuous operation.
HP six-segment colour wheel technology
SVCD
Colours are less vibrant,
especially yellows
mp3
Standard four-segment
colour wheel
Richer viewing experience
with vibrant reds, blues
and yellows
HP’s six-segment
colour wheel
Superior audio with built-in subwoofer and 2.1 sound system
Play DVDs, VCDs and mp3 CDs with the built-in DVD player
DVD playback… and more
Easy plug-and-play
Play DVDs straight from the projector, with support for
DVD-video and DVD±R/RW. But that’s not all. You also
get flexibility with support for VCD, SVCD, CD-R, CD-RW,
CD-audio and mp3-audio playback. In addition, you will
have the ability to display your jpeg digital image files
as a slideshow, straight off the disc.
Go anywhere, set up in record time. Just plug the power cable into a power socket
and start the action with a DVD of your choice.
Cinematic sound experience
Attention to detail
Never lose the lens cap; it’s integrated and slides into the body during operation.
At 34 dB(A), the HP ep9012 Instant Cinema Digital Projector is whisper quiet.
You will also appreciate other friendly details like the front-loading 4,000-hour lamp
for easy lamp replacement and the integrated handle for convenient carrying.
Complete your home theatre experience with the built-in
2.1 stereo sound and subwoofer system. 20-watt stereo
with two speakers per channel (facing front and rear)
and a 30-watt subwoofer provide big, pulse-pounding
sound to match the widescreen visuals. Or just be blown
away by awesome sound while playing your audio or
mp3 CDs.
Read your jpeg images right off the disc and showcase them in slideshow
or thumbnail format
Need more audio punch? Support for 5.1 playback is
included. Just plug it into your DTS or Dolby Digital 5.1enabled home theatre system and hold on to your seats!
User friendly on-product
direct access keys
20 W speaker
(2 for right channel)
Slide-away lens cover
20 W speaker
(2 for left channel)
Built-in DVD player
Pivoted base
All the connections you need
30 W subwoofer for
added bass power
The HP ep9012 Instant Cinema Digital Projector is
equipped with S-video, composite video, component
video, PC DVI and VGA (via adaptor provided) inputs
and best of all, it is HDTV-ready.
Bring a complete 2.1 digital home theatre with you
More than just a digital projector
“The widescreen HP ep7122
lets me share my home
theatre experience with more
friends and family.”
Once Max brought home his new digital projector,
he knew he had found a match for his home theatre.
Complementing Max’s home theatre set-up perfectly,
the HP ep7122 Home Cinema Digital Projector brings
his living room viewing to new heights.
Now he can invite more than just a couple of friends
over to share in glorious widescreen entertainment.
Sporting events, movies and even console gaming
will never be the same again.
HP ep7112 and ep7122
Home Cinema Digital Projectors
Large screen entertainment in the comfort
of your living room
Widescreen projection multiplies your viewing enjoyment
With the HP ep7112 and ep7122 Home Cinema Digital
Projectors, it’s easy to turn your normal home theatre
system into great widescreen fun for friends and family.
DLP technology—professional cinema
projection in your home
™
The more the merrier—share the fun with more friends and family
The HP ep7112 and ep7122 Home Cinema Digital
Projectors with DLP™ technology produce long lasting
vibrant, high quality images. Coupled with HP’s sixsegment colour wheel and 1020 ANSI (max) lumens1,
you will be amazed by rich life-like video performance
throughout the lifetime of your projector.
Ease of use
Direct access buttons make controlling and setting up the digital
projector is a breeze
Operating the HP ep7112 and ep7122 Home Cinema
Digital Projectors is a breeze. Thanks to features like
the integrated sliding lens cap and front-loading lamp
module. With 4000 hours of lamp life, it’s cost effective
to enjoy your favourite movies and games too.
Make the most of your home theatre system
Add a whole new level of visual excitement to your home theatre with the HDTV-ready
HP ep7112 and ep7122 Home Cinema Digital Projectors. S-video, composite video,
component video, PC DVI2 and VGA2 (via adaptor provided) inputs give you easy
connectivity to VCRs, gaming consoles, desktops, laptops and full-scale home theatres
for widescreen movie viewing.
Flexible installation
With flexible mounting option and 1 – 10-meter (3.3 to 33 feet) throw distance, you can
integrate the HP ep7112 and ep7122 Home Cinema Digital Projectors easily and
unobtrusively into your current home theatre set-up.
1
840 ANSI (max) lumens for HP ep7112 Home Cinema Digital Projector.
2
Not available on the HP ep7112 Home Cinema Digital Projector.
The optional ceiling mount (sold separately)
provides flexible mounting options
Ceiling
Projector
table
Add a touch of class with the
stylish ceiling mount
HP gives your senses a thrilling ride with
superior Digital Light Processing™ (DLP™)
technology and more
1. DLP™ TrueVision™ Image Processing combines field
jam and intra-field interpolation for optimal
video performance
Field jam
3. Adaptive 3D video noise reduction
Consistent, quality images, time after time
with TrueVision™ Image Processing
To give you crisp, sharp graphics time after time, movie
after movie, HP has incorporated the latest DLP™ features
into the HP ep9012 Instant Cinema Digital Projector
and HP ep7112 and ep7122 Home Cinema Digital
Projectors. With DLP™ technology, you will get the best
picture with unmatched clarity and video fidelity.
Intra-field interpolation
Without noise reduction1
With noise reduction1
(Does not blur spatial detail)
DLP™ TrueVision™ Image Processing de-interlacer functions
offer features like:
•Motion-adaptive scan rate conversion
Crystal-clear motion-adaptive
scan image
•Film mode
•Adaptive 3D video noise reduction
4. Edge-adaptive interpolation
2. Film mode
•Edge-adaptive interpolation
So you can look forward to smoother images and
graphics throughout the life of the projector.
1
Without film mode
(Aliasing occurs in highly detailed
moving objects)
With film mode
(Original progressive frame
is reconstructed)
Without edge-adaptive interpolation
(Angular lines appear jagged)
DLP™ TrueVision™ Image Processing de-interlacer functions for greater image quality
The DLP™ logo and DLP™ medallion are trademarks of Texas Instruments.
With edge-adaptive interpolation
(Angular lines are smooth)
Image shown for illustrative purposes.
Processor
Memory
Projection lens
DMD
Shaping
lens
Colour filter
Screen
Condensing lens
Widescreen wonder
DLP™ Technology and HP
six-segment colour wheel
DLP™ Board
The combination of these advanced
technologies, together with HP’s deep
understanding of colour science and
technology, allow HP Home Digital
Projectors to produce vivid, lifelike colours
and reveal crisp details and rich textures.
4:3 aspect ratio
16:9 widescreen
View your movies in full cinematic splendour.
With the default 16:9 widescreen capability
on these HP Home Digital Projectors
(4:3 aspect ratio selectable), you don’t miss
any peripheral detail while watching
wide-format movies.
1
Light source
Native resolution of the HP ep7122 Home Cinema Digital
Projector is XGA.
SVGA1 resolution with default 16:9 setting
Technology that delivers impactful theatre
video performance
All the right connections
Vibrant, colourful images
Low contrast
1600 : 1 contrast
1600:1 contrast ratio produces greater
colour definition for colours that are
richer and more vibrant, so you get more
accurate and life-like pictures.
Home theatre
Games
HP ep9012
rear view, showing
connectivity options
Connect your HP ep9012 Instant Cinema
Digital Projector, HP ep7112 and ep7122
Home Cinema Digital Projectors to a wide
range of electronic devices, with the
comprehensive suite of connectivity options.
2
PC 2
Get vibrant images with high 1600:1 contrast
HP ep7112
and ep7122
rear view, showing
connectivity options
HP ep7112 Home Cinema Digital Projector can only connect
to PCs with video-out, via S-video connector.
DVD Player
Squaring the corners
HP Home Digital Projectors with DLP™
TrueVision™ Image Processing have
scaling engines which allow vertical
keystone correction of up to ±20º,
so that you have square, undistorted
images when projecting at an angle.
Convenient image adjustment with advanced electronic
keystone correction feature
Connect the projectors to your game console and
other devices easily
Remote convenience
The handy remote control adds a whole
new level of viewing convenience,
allowing you to control the action from
the comfort of your sofa.
Remote control for easy access
Other HP digital projectors
for your business needs
Movies at home will never be the same
Accessories
With widescreen and stereo surround sound capabilities, the
HP ep9012 Instant Cinema Digital Projector is the world’s first
digital projector with integrated DVD player, subwoofer and
2.1 surround sound. Now you can have a complete big
screen cinema experience with you wherever you go, whether
it’s to the next room or to the next outdoor event.
Mobile
Versatile
Conference
Technical specifications
Maximise the capabilities of your HP Home Digital Projectors with our comprehensive range
of optional accessories and peripherals, sold separately.
HP Digital Projector sb21
HP mp3222 Digital Projector
HP Digital Projector mp3130
HP Digital Projector vp6110/6120
HP Digital Projector xp8010
HP Digital Projector xp8020
Requirements
I need HP’s smallest, lightest and
most compact digital projector
I need a quality solution that
provides outstanding price-toperformance, ease of use, image
quality and mobility
I need a mobile projector with
wireless connectivity and networking
options
I need an affordable, versatile
projector for use in a classroom,
at home or office
I need a projector for use in large
auditoriums and conference rooms
I need a powerful projector
capable of wireless/wireline
networking and connectivity
features for use in large
auditioriums or conference rooms
Special features
• Ultra light 1 kg weight
• Small A5 sized footprint
• Easy to use
• Wireless remote control
with laser pointer
• Designer carrying case
• 1.2x manual zoom
• Credit-card style remote
• LED illuminated controls
• Easy-access lamp module
• 5-segment colour wheel
• Wireless and media card
connectivity with optional Smart
Attachment Module (SAM)
• Unique space saving tower design
• Versatile performance
• Outstanding image/colour quality
• Rugged and reliable
• Theatre mode for high colour
• Automatic input detection
• Picture-in-picture feature
• Robust design
• Simple to use
• Dual colour wheel system
with 3 video modes for
maximum flexibility
• Remote management
• Optional Advanced
Connectivity Module
• Anti-theft system
• Comprehensive input connections
• Optional lenses
• Dual colour wheel system
with 3 video modes for
maximum flexibility
• Wireless presentation capabilities
• Advanced remote management
• Sophisticated anti-theft system
• Presentation from media cards
• Comprehensive input connections
• Optional lenses
Projection system
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Brightness (peak lumens)
1000
2000
1800
vp6110: 1500
vp6120: 2000
2600/3600 in greyscale
3100/3750 in greyscale
Resolution (native)
SVGA (800 x 600)
XGA (1024 x 768)
XGA (1024 x 768)
vp6110: SVGA (800 x 600)
vp6120: XGA (1024 x 768)
XGA (1024 x 768)
XGA (1024 x 768)
Contrast (full-on/full-off)
1800:1
2000:1
2000:1
2000:1
800:1
1000:1
Lamp life (hours)
2000
2000 (up to 3000
—economy mode)
2000 (up to 4000
—lamp saver mode)
2000 (up to 3000
—lamp saver mode)
2000 (up to 4000
—lamp saver mode)
2000 (up to 4000
—lamp saver mode)
Weight
1.0 kg
1.7 kg
1.5 kg
2.9 kg
6.0 kg
6.1 kg
Warranty (pick up & return)
2 years
3 years
2 years
2 years
3 years
3 years
Noise level dB(A)
35
37, 35 in economy mode
37, 35 in economy mode
36, 34 in economy mode
32 ± 2 dBA
32 ± 2 dBA
Model number
L1510A
L1742A
L1599A
vp6110: L1595A
vp6120: L1596A
L1575A
L1576A
Features
Image optimisation selector lets
you choose between maximum
brightness or maximum colour
saturation, optional ceiling
mount bracket
Image optimisation selector, VGA/
Composite/S-video/audio inputs,
vertical keystone correction,
ceiling mountable
Automatic vertical keystone
correction, optional ceiling mount
bracket, optional SAM module for
USB port, wireless, network and
CompactFlash card support
Image optimisation selector,
component video connector,
optical zoom lens
Seven video connections with
switched audio; LAN and RS-232
control; two built-in 5-watt stereo
speakers; optional short and long
throw bayonet mounted lenses
Seven video connections with
switched audio; LAN and RS-232
control; two built-in 5-watt stereo
speakers; optional short and long
throw bayonet mounted lenses
HP ep9012 Instant Cinema Digital Projector and
HP ep7112 and ep7122 Home Cinema Digital Projectors
Mobile 50-inch (4:3) screen (L1671A)
(L1710A)
Lamp Module (L1731A)
(L1711A)
HP ep9012 DVD Function Home
Remote Control and HP ep7100 series
Home Remote Control
S-video 20' Cable (L1715A)
HDTV mobile 60-inch (16:9) screen (L1740A)
HP ep7100 series Ceiling
Mount (L1733A)
HDTV mobile 80-inch (16:9) screen (L1741A)
DVI to VGA Adaptor
(L1718A)
Roller-case (L1732A)—
only for HP ep9012 Instant
Cinema Digital Projector
Technical specifications
HP ep9012 Instant Cinema Digital Projector
(L1752B/C/D/E/F)*
Display technology
Texas Instruments Digital Light Processing™ (DLP™)
Image contrast
1600:1 (full-on/full-off)
Resolution
800 x 600 True SVGA
1024 x 768 True XGA
Brightness
840 ANSI (max) lumens
1020 ANSI (max) lumens
HP Home Digital Projectors
HP ep7112 Home Cinema Digital Projector
(L1750A)
HP ep7122 Home Cinema Digital Projector
(L1751A)
Projected image
Size
Adjustable from 0.94 to 2.8 m diagonal (37 to 110 inches)
Uniformity
+30 to -40% ANSI
Throw distance
Approximately 1 to 10 m (3 to 33 ft)
Projection offset
128% of image above the center line
Projector lens
F/2.4 max, 1.16:1 manual zoom focus
Keystone correction
Vertical +/- 20° (40° total)
Video capability
S-video, composite, component, HDTV (up to 1080i)
Scalable resolution
Native SVGA (800 x 600)—scales up from VGA (640 x 480) and scales down from XGA (1024 x 768)
Video formats
NTSC M (3.58 MHz), 4.43 MHz; PAL B, D, G, H, I, M, N; SECAM B, D, G, K, K1, L; DTV 480i, 480p, 720p, 1080i, 576p; V-chip and closed captioning not supported
Audio
2.1 internal speakers (L/R/subwoofer), internal 30 W amplifier
(5 x 5 x 20), relative volume control, system response: 50 Hz – 20 KHz,
>70dB(A) S/N, <1% THD, stereo sound via headphone-out
Noise level
< 34 dB(A) at 23º C
Lamp life
4,000 hours
Light source
210-watt lamp
Input connections
1 Composite video input (RCA x 1); 1 S-video input (Mini DIN 4-pin x 1);
1 Component video Input (RCA x 3); DVI-I (with HDCP); L/R audio in
(RCA x 2); USB for service upgrades; subwoofer volume control
Output connections
5.1 digital audio output (RCA x 1); L/R audio out (RCA x 2); stereo
headphone jack (mutes built-in speakers)
Detection of computer input signal
Automatic
Computer compatibility
Via DVI-to-VGA adaptor; S-video
Image synchronisation
Automatic
Menus
User-friendly multilingual On Screen Display (OSD)
One 5-watt integrated speaker
1 Composite video input (RCA x 1); 1 S-video input (Mini DIN 4-pin x 1);
1 Component video Input (RCA x 3); L/R audio in (RCA x 2)
1 Composite video input (RCA x 1); 1 S-video input (Mini DIN 4-pin x 1);
1 Component video Input (RCA x 3); DVI-I (with HDCP); L/R audio in
(RCA x 2)
Via S-video only; PC must have video out
Via DVI-to-VGA adaptor; S-video
Remote control
Wireless remote for basic functionality with DVD control
Tilt angle
+/- 10º; 2º minimum
Weight
10 kg (22 lb)
Dimensions (w x d x h)
524 x 400 x 320 mm (20.6 x 15.7 x 12.6 inches)
386 x 365 x 205 mm (15.2 x 14.4 x 8.1 inches)
What’s in the box
HP ep9020 Instant Cinema Digital Projector, power cord (3 m, 10 ft),
DVI-VGA adaptor, wireless remote control, multilanguage User’s Guide
(CD-ROM), multilanguage Quick Start Card, battery x 2, warranty card
HP ep7112 Home Cinema Digital Projector, power cord (3 m, 10 ft),
wireless remote control, multilanguage User’s Guide (CD-ROM),
multilanguage Quick Start Card, battery x 2, warranty card
Warranty
Native XGA (1024 x 768)—scales up from SVGA (800 x 600) and
scales down from SXGA (1400 x 1050)
Wireless remote for basic functionality
© 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change
without notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
5.7 kg (12.5 lb)
One-year limited hardware warranty on digital projector
* L1752B—Code 2 (Japan); L1752C—Code 3 (South East Asia, Hong Kong, Taiwan, Korea); L1752D—Code 4 (Australia,New Zealand); L1752E—Code 5 (India); L1752F—Code 6 (China)
HP ep7122 Home Cinema Digital Projector, power cord (3 m, 10 ft),
S-video and composite video cables (6 m, 20 ft), DVI-VGA adaptor,
wireless remote control, multilanguage User’s Guide (CD-ROM),
multilanguage Quick Start Card, battery x 2, warranty card
www.hp.com/homeprojectors
Home Cinema. Redefined.
World’s first digital projector with integrated DVD player, subwoofer and 2.1 surround sound*
Printed in Singapore, 2001-3875-EEP, 10(rev 1)/2004
* HP ep9012 Instant Cinema Digital Projector
Other HP digital projectors
for your business needs
Movies at home will never be the same
Accessories
With widescreen and stereo surround sound capabilities, the
HP ep9012 Instant Cinema Digital Projector is the world’s first
digital projector with integrated DVD player, subwoofer and
2.1 surround sound. Now you can have a complete big
screen cinema experience with you wherever you go, whether
it’s to the next room or to the next outdoor event.
Mobile
Versatile
Conference
Technical specifications
Maximise the capabilities of your HP Home Digital Projectors with our comprehensive range
of optional accessories and peripherals, sold separately.
HP Digital Projector sb21
HP mp3222 Digital Projector
HP Digital Projector mp3130
HP Digital Projector vp6110/6120
HP Digital Projector xp8010
HP Digital Projector xp8020
Requirements
I need HP’s smallest, lightest and
most compact digital projector
I need a quality solution that
provides outstanding price-toperformance, ease of use, image
quality and mobility
I need a mobile projector with
wireless connectivity and networking
options
I need an affordable, versatile
projector for use in a classroom,
at home or office
I need a projector for use in large
auditoriums and conference rooms
I need a powerful projector
capable of wireless/wireline
networking and connectivity
features for use in large
auditioriums or conference rooms
Special features
• Ultra light 1 kg weight
• Small A5 sized footprint
• Easy to use
• Wireless remote control
with laser pointer
• Designer carrying case
• 1.2x manual zoom
• Credit-card style remote
• LED illuminated controls
• Easy-access lamp module
• 5-segment colour wheel
• Wireless and media card
connectivity with optional Smart
Attachment Module (SAM)
• Unique space saving tower design
• Versatile performance
• Outstanding image/colour quality
• Rugged and reliable
• Theatre mode for high colour
• Automatic input detection
• Picture-in-picture feature
• Robust design
• Simple to use
• Dual colour wheel system
with 3 video modes for
maximum flexibility
• Remote management
• Optional Advanced
Connectivity Module
• Anti-theft system
• Comprehensive input connections
• Optional lenses
• Dual colour wheel system
with 3 video modes for
maximum flexibility
• Wireless presentation capabilities
• Advanced remote management
• Sophisticated anti-theft system
• Presentation from media cards
• Comprehensive input connections
• Optional lenses
Projection system
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Digital Light Processing (DLP™)
Brightness (peak lumens)
1000
2000
1800
vp6110: 1500
vp6120: 2000
2600/3600 in greyscale
3100/3750 in greyscale
Resolution (native)
SVGA (800 x 600)
XGA (1024 x 768)
XGA (1024 x 768)
vp6110: SVGA (800 x 600)
vp6120: XGA (1024 x 768)
XGA (1024 x 768)
XGA (1024 x 768)
Contrast (full-on/full-off)
1800:1
2000:1
2000:1
2000:1
800:1
1000:1
Lamp life (hours)
2000
2000 (up to 3000
—economy mode)
2000 (up to 4000
—lamp saver mode)
2000 (up to 3000
—lamp saver mode)
2000 (up to 4000
—lamp saver mode)
2000 (up to 4000
—lamp saver mode)
Weight
1.0 kg
1.7 kg
1.5 kg
2.9 kg
6.0 kg
6.1 kg
Warranty (pick up & return)
2 years
3 years
2 years
2 years
3 years
3 years
Noise level dB(A)
35
37, 35 in economy mode
37, 35 in economy mode
36, 34 in economy mode
32 ± 2 dBA
32 ± 2 dBA
Model number
L1510A
L1742A
L1599A
vp6110: L1595A
vp6120: L1596A
L1575A
L1576A
Features
Image optimisation selector lets
you choose between maximum
brightness or maximum colour
saturation, optional ceiling
mount bracket
Image optimisation selector, VGA/
Composite/S-video/audio inputs,
vertical keystone correction,
ceiling mountable
Automatic vertical keystone
correction, optional ceiling mount
bracket, optional SAM module for
USB port, wireless, network and
CompactFlash card support
Image optimisation selector,
component video connector,
optical zoom lens
Seven video connections with
switched audio; LAN and RS-232
control; two built-in 5-watt stereo
speakers; optional short and long
throw bayonet mounted lenses
Seven video connections with
switched audio; LAN and RS-232
control; two built-in 5-watt stereo
speakers; optional short and long
throw bayonet mounted lenses
HP ep9012 Instant Cinema Digital Projector and
HP ep7112 and ep7122 Home Cinema Digital Projectors
Mobile 50-inch (4:3) screen (L1671A)
(L1710A)
Lamp Module (L1731A)
(L1711A)
HP ep9012 DVD Function Home
Remote Control and HP ep7100 series
Home Remote Control
S-video 20' Cable (L1715A)
HDTV mobile 60-inch (16:9) screen (L1740A)
HP ep7100 series Ceiling
Mount (L1733A)
HDTV mobile 80-inch (16:9) screen (L1741A)
DVI to VGA Adaptor
(L1718A)
Roller-case (L1732A)—
only for HP ep9012 Instant
Cinema Digital Projector

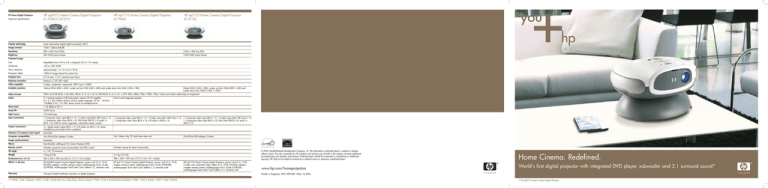

Technical specifications
HP ep9012 Instant Cinema Digital Projector
(L1752B/C/D/E/F)*
Display technology
Texas Instruments Digital Light Processing™ (DLP™)
Image contrast
1600:1 (full-on/full-off)
Resolution
800 x 600 True SVGA
1024 x 768 True XGA
Brightness
840 ANSI (max) lumens
1020 ANSI (max) lumens
HP Home Digital Projectors
HP ep7112 Home Cinema Digital Projector
(L1750A)
HP ep7122 Home Cinema Digital Projector
(L1751A)
Projected image
Size
Adjustable from 0.94 to 2.8 m diagonal (37 to 110 inches)
Uniformity
+30 to -40% ANSI
Throw distance
Approximately 1 to 10 m (3 to 33 ft)
Projection offset
128% of image above the center line
Projector lens
F/2.4 max, 1.16:1 manual zoom focus
Keystone correction
Vertical +/- 20° (40° total)
Video capability
S-video, composite, component, HDTV (up to 1080i)
Scalable resolution
Native SVGA (800 x 600)—scales up from VGA (640 x 480) and scales down from XGA (1024 x 768)
Video formats
NTSC M (3.58 MHz), 4.43 MHz; PAL B, D, G, H, I, M, N; SECAM B, D, G, K, K1, L; DTV 480i, 480p, 720p, 1080i, 576p; V-chip and closed captioning not supported
Audio
2.1 internal speakers (L/R/subwoofer), internal 30 W amplifier
(5 x 5 x 20), relative volume control, system response: 50 Hz – 20 KHz,
>70dB(A) S/N, <1% THD, stereo sound via headphone-out
Noise level
< 34 dB(A) at 23º C
Lamp life
4,000 hours
Light source
210-watt lamp
Input connections
1 Composite video input (RCA x 1); 1 S-video input (Mini DIN 4-pin x 1);
1 Component video Input (RCA x 3); DVI-I (with HDCP); L/R audio in
(RCA x 2); USB for service upgrades; subwoofer volume control
Output connections
5.1 digital audio output (RCA x 1); L/R audio out (RCA x 2); stereo
headphone jack (mutes built-in speakers)
Detection of computer input signal
Automatic
Computer compatibility
Via DVI-to-VGA adaptor; S-video
Image synchronisation
Automatic
Menus
User-friendly multilingual On Screen Display (OSD)
One 5-watt integrated speaker
1 Composite video input (RCA x 1); 1 S-video input (Mini DIN 4-pin x 1);
1 Component video Input (RCA x 3); L/R audio in (RCA x 2)
1 Composite video input (RCA x 1); 1 S-video input (Mini DIN 4-pin x 1);
1 Component video Input (RCA x 3); DVI-I (with HDCP); L/R audio in
(RCA x 2)
Via S-video only; PC must have video out
Via DVI-to-VGA adaptor; S-video
Remote control
Wireless remote for basic functionality with DVD control
Tilt angle
+/- 10º; 2º minimum
Weight
10 kg (22 lb)
Dimensions (w x d x h)
524 x 400 x 320 mm (20.6 x 15.7 x 12.6 inches)
386 x 365 x 205 mm (15.2 x 14.4 x 8.1 inches)
What’s in the box
HP ep9020 Instant Cinema Digital Projector, power cord (3 m, 10 ft),
DVI-VGA adaptor, wireless remote control, multilanguage User’s Guide
(CD-ROM), multilanguage Quick Start Card, battery x 2, warranty card
HP ep7112 Home Cinema Digital Projector, power cord (3 m, 10 ft),
wireless remote control, multilanguage User’s Guide (CD-ROM),
multilanguage Quick Start Card, battery x 2, warranty card
Warranty
Native XGA (1024 x 768)—scales up from SVGA (800 x 600) and
scales down from SXGA (1400 x 1050)
Wireless remote for basic functionality
© 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change
without notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
5.7 kg (12.5 lb)
One-year limited hardware warranty on digital projector
* L1752B—Code 2 (Japan); L1752C—Code 3 (South East Asia, Hong Kong, Taiwan, Korea); L1752D—Code 4 (Australia,New Zealand); L1752E—Code 5 (India); L1752F—Code 6 (China)
HP ep7122 Home Cinema Digital Projector, power cord (3 m, 10 ft),
S-video and composite video cables (6 m, 20 ft), DVI-VGA adaptor,
wireless remote control, multilanguage User’s Guide (CD-ROM),
multilanguage Quick Start Card, battery x 2, warranty card
www.hp.com/homeprojectors
Home Cinema. Redefined.
World’s first digital projector with integrated DVD player, subwoofer and 2.1 surround sound*
Printed in Singapore, 2001-3875-EEP, 10(rev 1)/2004
* HP ep9012 Instant Cinema Digital Projector
