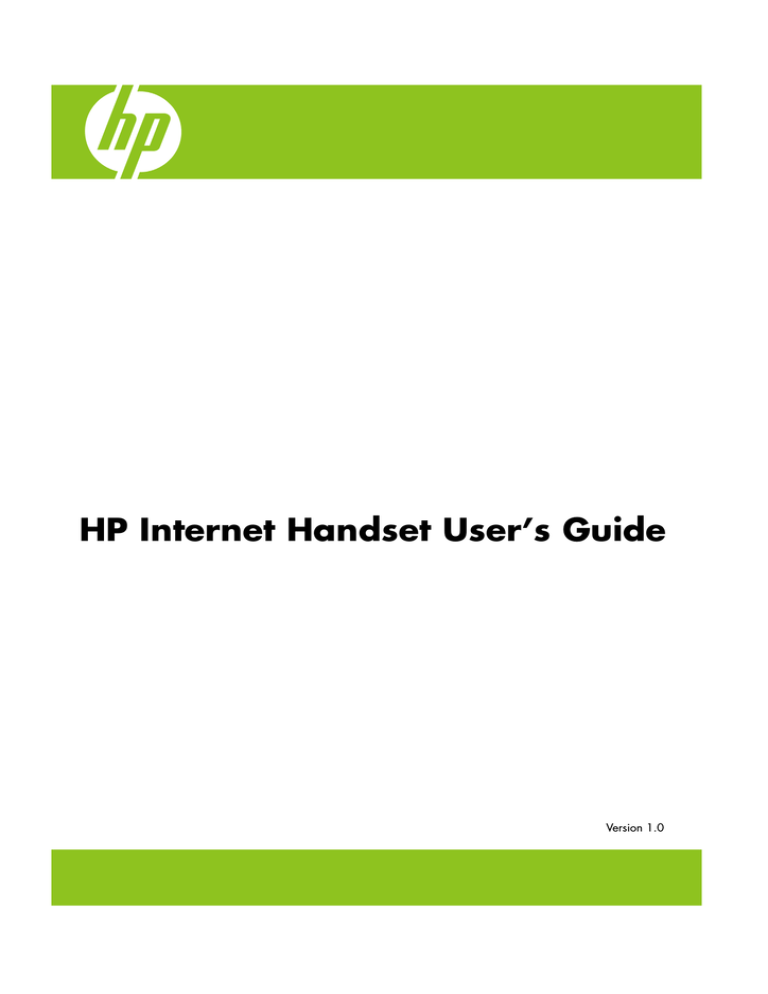

HP Internet Handset User’s Guide
Version 1.0
Copyright © 2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
Product Registration
Registration is quick, easy and offers: e-mail updates containing notifications about product
enhancements, the most recent support alerts, and driver updates specific to the product(s)
you own.
For faster help, be sure to register your recently purchased product at
https://register.hp.com
Table of Contents
Welcome......................................................................................................................... 1
Overview ........................................................................................................................ 1
Getting Started ................................................................................................................ 2
What is Skype?................................................................................................... 2
Glossary of Terms................................................................................................ 3
Minimum System Requirements ............................................................................. 3
Connecting the HP Internet Handset....................................................................... 4
Software Installation ......................................................................................................... 4
HP Software Installation ....................................................................................... 5
Restoring your Default Audio Device back to the Sound Card ................................... 8
Skype Software Installation................................................................................... 9
Registering as a Skype User ............................................................................... 11
Another Program Wants To Use Skype ................................................................. 13
Automatic Audio Switching Technology................................................................ 13
Running the Software ...................................................................................................... 14
Starting Up ....................................................................................................... 14
Closing Down ................................................................................................... 14
Configuration................................................................................................................. 15
Speech Properties.............................................................................................. 17
Making Calls ................................................................................................................. 19
Receiving Calls .............................................................................................................. 19
Listening to Voicemail...................................................................................................... 20
Collecting Your Voicemail Messages.................................................................... 20
Troubleshooting.............................................................................................................. 20
Uninstalling HP Software .................................................................................... 20
Uninstalling Skype Software ............................................................................... 21
Frequently Asked Questions................................................................................ 21
Identifying Software Versions .............................................................................. 22
Software Updates.............................................................................................. 23
Contacting Support ........................................................................................... 23
Technical Specifications .................................................................................................. 24
Table of Contents iii
iv HP Internet Handset User’s Guide
Welcome
Welcome to the HP Internet Handset User’s Guide.
Read this guide carefully to get the most out of your Hewlett-Packard product with Skype, and keep this
guide in a safe place for future reference.
Thank you for purchasing your HP product. We hope that you spend many happy hours using it and
chatting with Skype.
Overview
The HP Internet Handset is a two-piece USB phone with keypad and a built-in ringer that connects to your
computer USB port.
HP Internet Handset
Apart from the usual number keys, the HP Internet Handset has special keys. See Making Calls for more
information on using these special keys.
HP Internet Handset User’s Guide 1
Getting Started
What is Skype?
Skype software enables you to make free* calls to your friends all over the world.
Skype also offers paid services such as SkypeOut, SkypeIn, and Skype Voicemail. SkypeOut is a service
that allows you to call ordinary phones at low cost.
SkypeIn is a service that assigns you a telephone number, and people can call you from ordinary phones.
Skype Voicemail is a voicemail service for taking messages if you are away or your line is busy.
Visit www.skype.com for more information about Skype and additional Skype services.
*Requires the SkypeOut service for landline calls.
2 HP Internet Handset User’s Guide
Glossary of Terms
The following terms are used in this user guide.
ADSL (Asymmetric Digital Subscriber Line)
Broadband Internet connection where the download speed is faster than the upload speed.
Application
Software running on your computer, such as the HP Internet Handset software.
CPU (Central Processing Unit)
Main chip within any computer. Processor speeds are measured in MHz (Mega Hertz), which equals a
million instructions per second, and GHz (Giga Hertz), which equals a billion instructions per second. The
higher the number, the faster the processor speed.
HDD (Hard Disk Drive)
Permanent memory within your computer that stores programs and settings.
MB (Mega Byte)
Size of HDD or RAM, 1MB is equal to one million bytes.
RAM (Random Access Memory)
Temporary memory within your computer. The larger the RAM, the faster applications run.
USB (Universal Serial Bus)
Socket on your computer to connect USB hardware such as your HP Internet Handset, keyboards, or mice.
Username
Name used to gain access (log in) to a locked system. Usernames can contain letters and numbers.
Password
Code used to gain access (log in) to a locked system. Good passwords contain an unpredictable
combination of letters and numbers.
SysTray (System Tray)
Area on your computer desktop next to the clock display. The SysTray shows various icons for applications
that are running.
Minimum System Requirements
Before continuing the installation, you should have the following minimum system requirements:
•
•
•
•
•
•
PC running Microsoft Windows 2000, XP, or Vista
400MHz processor (CPU)
128MB RAM
150MB free hard disk space
One free USB port (USB1.1 or USB2.0)
Internet connection (dialup: 33kbps minimum, or broadband: for example, cable or ADSL)
HP Internet Handset User’s Guide 3
Connecting the HP Internet Handset
To connect the HP Internet Handset, plug the USB cable from the phone into an available USB port on
your computer or into a powered USB hub.
Insert the CD-ROM into your computer; this will install the HP Internet Handset and Skype software, and
enable you to get the maximum benefit when using your HP Internet Handset with Skype.
Refer to Making Calls, Receiving Calls, and Listening to Voicemail for information about using your HP
Internet Handset after setup is complete.
Software Installation
This section describes how to install the software.
The software installation has two parts. The first part is the HP Internet Handset. The second part is the
Skype software installation.
Your HP Internet Handset should already be connected before installing any software. See Overview in
this user guide.
If you already have a previous version of this software installed, make sure it is not running and remove it.
See Troubleshooting in this user guide for software removal instructions.
If you already have Skype software installed and it is running, close it before continuing with the
HP software installation.
4 HP Internet Handset User’s Guide
HP Software Installation
1 Insert the CD into your computer CD-ROM drive; the setup should start automatically.
If it does not start automatically, browse the CD-ROM drive using My Computer or Windows Explorer
and click setup.exe.
2 At the InstallShield Wizard welcome screen, click Next to continue, or click Cancel at any screen to
stop the installation.
HP Internet Handset User’s Guide 5
3 Read the software Licence Agreement. If you agree, click I agree, and then click Next to continue
with the installation.
4 Enter your User Name and Company Name. We recommended selecting the Anyone who
uses this computer (all users) option. Click Next to continue with the installation.
5 For ease of installation, select Complete. Click Next to continue with the installation.
6 HP Internet Handset User’s Guide
6 Click Install to continue with the installation.
The Setup Status screen shows the software installation progress, which can take several minutes
to install.
7 Click Finish to complete the installation of the HP Internet Handset software.
NOTE: Make sure you read and understand the important info before using your HP Internet Handset for
the first time.
HP Internet Handset User’s Guide 7
Restoring your Default Audio Device back to the Sound Card
When you install the HP Internet Handset on the computer, it is automatically set by Windows as the
default audio device. All sounds, such as music, Windows, and game sounds, play through the phone
and not the computer speakers. To play these sounds through the computer speakers, you need to change
a few settings in the Sounds and Audio Devices Properties that should be displayed on screen at the end
of the software installation. (Notice that HP Internet Handset is the default device for both Sound playback
and Sound recording.)
NOTE: Changing the settings to allow sounds to play through the computer speakers does not affect the
functionality of the HP Internet Handset.
1 Select your sound card from the Sound playback drop-down list.
2 Select your sound card from the Sound recording list.
In our example, the sound card is Realtek AC97 Audio; yours might be different.
3 Click OK to play all music, Windows, and game sounds through the computer speakers.
8 HP Internet Handset User’s Guide
Skype Software Installation
If you already have the latest version of the Skype software installed, you can cancel the Skype installation
at this point and ignore this section.
Skype Licence Agreement
1 Read the Skype End User Licence Agreement. If you agree, click Yes, I have read and accept the
Skype End User License Agreement and the Skype Privacy Statement, and then click
Install to continue with the Skype Installation.
2 (Optional) Place a check in the Install the free Google Toolbar checkbox to install the Google
toolbar. Click Next.
HP Internet Handset User’s Guide 9
This screen shows the Skype software installation progress, which can take several minutes.
When the installation is complete, click Start Skype.
10 HP Internet Handset User’s Guide
Registering as a Skype User
After installing Skype, you can see the Create Account screen.
If you do not have a free Skype user account, enter your details as requested, and then click Sign In to
continue.
HP Internet Handset User’s Guide 11
If you have a Skype account, the Create Account screen is not shown. Enter your Skype username and
password, and then click Sign in.
12 HP Internet Handset User’s Guide
Another Program Wants To Use Skype
The first time you sign into Skype with the HP application running, you must authorize the connection
access by selecting Allow this program to use Skype, and then clicking OK.
Automatic Audio Switching Technology
When making or receiving a call using Skype, you can choose to use the computer microphone and
speakers, or the HP Internet Handset.
To use this function, make sure that the Skype settings for Microphone, Speakers, and Ringing are set to
Windows default device.
HP Internet Handset User’s Guide 13
Examples of use are as follows:
A call comes in on Skype: Click the Answer button on the Skype screen to take the call through the
computer microphone and speakers.
A call comes in on Skype: Lift the handset to take the call on the HP Internet Handset.
A call comes in on Skype: Click the Answer button on the Skype screen to take the call on the computer
microphone and speakers. At any point during the call, pick up the handset to transfer the call from the
computer speakers to the HP Internet Handset.
Make a call using Skype: Click the Dial button in Skype. When you hear the call being answered through
the computer speakers, pick up the handset to carry on the conversation.
Running the Software
This section describes how to start and close the HP Internet Handset software.
Starting Up
You must start the HP Internet Handset software before you start the Skype software. There are two ways to
start the HP Internet Handset software: automatically as Windows starts, or manually.
To start the application manually, click the HP Internet Handset shortcut icon on your desktop, or click
HP Internet Handset from the program option under Program Files in the Windows Start Menu.
To start the application automatically when Windows starts, place a check in the Start HP Software
when I Start Windows box. See Configuration.
When the HP Internet Handset runs, you see a small icon on the computer SysTray and the Skype icon.
The colour of this icon indicates the current status of HP Internet Handset application.
No connection with a HP Internet Handset, check that the
phone is connected to your USB port.
A HP Internet Handset is connected, but Skype could not be
connected. This could be because Skype is not running.
The HP Internet Handset is off the hook and Skype is
connected. This shows if you are on a call.
A HP Internet Handset is connected and Skype is connected.
This shows if you are not on a call.
Closing Down
To exit the HP Internet Handset application, right-click the HP Internet Handset icon on the Windows
SysTray, and then click Exit.
14 HP Internet Handset User’s Guide
Configuration
1 Right-click the HP Internet Handset icon on the Windows SysTray.
2 Click Options.
3 Click the General tab and set any of the following options:
Start HP software when I start Windows
Check this box to start the HP Internet Handset software when you turn on your computer. We
recommend checking this box.
Start Skype when I start HP software
Check this box to start Skype when the HP Internet Handset software starts. If you want to Skype
manually after starting the HP Internet Handset software, remove the check from this box. We
recommend checking this box.
Ringer volume
Click and drag the slider to adjust the ringer volume.
Set Defaults
Click this button to restore the HP Internet Handset software default settings.
HP Internet Handset User’s Guide 15
4 Click the Speech tab and set any of the following options:
Speak Caller Name
Check this box to hear the callers name when you receive a call. You can then answer the call by
pressing # or reject the call by replacing the handset.
Speak Online Status
Check this box to hear the online/offline status when dialling a number using voice prompted dialling.
Check for New Voicemails
Check this box to hear a notification when you receive new Voicemail messages. You can then listen to
the message by pressing #.
Language Selection
Select the language for the voice prompts: German, English, Spanish, French, Italian, Dutch, Russian,
Chinese, and Portuguese.
Voice Selection
Select a male or female voice for the voice prompts.
Pronounce # as
Select “Hash” or “Pound” as the voice prompt for the # symbol.
Enable Speech Recognition
Check this box to use voice dialling. When the voice prompt asks who you want to call, say the word
“Skype” followed by the Skype contact name to make the call.
Who would you like to Skype
Remove the check from this box to disable the “who would you like to Skype” voice prompt. Speech
recognition remains active as long as the Enable Speech Recognition box is checked.
5 Click OK to make the changes, or click Cancel to reject the changes.
16 HP Internet Handset User’s Guide
Speech Properties
The Speech Properties window allows you to configure the Microsoft® TTS Engine (Text To Speech) and to
train the computer to recognize your voice.
1 Right-click the HP Internet Handset icon on the SysTray and select Speech Options. (You can
also access Speech Properties through the Windows Control Panel under Speech.)
2 Click the Text To Speech tab.
3 Click Audio Output and set the audio output to HP Internet Handset or USB Audio Device
(Windows 2000).
HP Internet Handset User’s Guide 17
4 Click OK.
5 Click the Speech Recognition tab.
6 Click Train Profile and follow the on-screen instructions.
7 Click OK when you are finished, or click Cancel to exit without making any changes.
18 HP Internet Handset User’s Guide
Making Calls
Voice Dialling
To use voice dialling, right-click the HP Internet Handset icon on the SysTray and select Options. At
the bottom of the Speech tab, place a check in the Enable Speech Recognition checkbox.
To make a call, lift the handset and a voice prompts, “Who would you like to Skype?” Say the word
“Skype” followed by the name of the Skype contact you want to call, for example, “Skype David”. The
call connects and you hear a voice confirmation, for example, “Calling David”.
Skype Contacts List
If you do not want to use voice dialling, lift the handset and press the Contacts button until you reach the
Contacts tab in Skype. Use the volume up and down keys to scroll through your Skype contacts list. After
you highlight the desired contact, press the Dial key to make a call to that contact.
Other Ways to Dial Skype Contacts
Lift the handset and press *. A voice prompts, “Press digit to select Skype contact”. Press the
corresponding letters that appear on the number keys to dial the name of your Skype contact. For
example, to call “David”, dial 32843. The software reads a list of matching contacts when you dial the
first one or two letters of the contact name. Press # and follow the voice prompts.
If Speak Online Status is enabled, a voice prompt tells you the online/offline status as the call is
being made.
Skype to Skype Speed-Dial Numbers
Make sure that you associated speed-dial numbers for your contacts in Skype. To make a call, lift the
handset, and enter the speed-dial number followed by the Dial key.
SkypeOut Calls
Press and hold the 0/+ key to enter a +. Dial the country code, followed by the area code (excluding the
first zero), followed by the phone number. Then press the Dial key.
Skype Key
Press the Contacts key to toggle between Contacts, Dial and Calls List in Skype.
Hold Key
Press the Hold Key to put calls on hold. Press it again to take calls off hold.
Receiving Calls
When you receive a Skype call, the HP Internet Handset rings and the LED flashes. Lift the handset and
answer the call.
If Speak Caller Name is enabled, a voice prompt announces. For example, “Press hash to accept the
call from David”. Press # to accept the call or hang up to reject the call.
HP Internet Handset User’s Guide 19
Listening to Voicemail
Visit www.skype.com for more information about SkypeIn and Skype Voicemail services.
Collecting Your Voicemail Messages
There are two ways to collect messages.
1 Voice Announcement
Right-click the HP Internet Handset icon on the SysTray. On the Speech tab, place a check in the
Check for New Voicemails checkbox.
When you receive a voicemail, the LED on the handset flashes. Lift the handset and a voice prompts,
“You have one new Voicemail message. Press # to listen.” Press # to listen to the message.
2 One-click Voicemail LED
Right-click the HP Internet Handset icon on the SysTray. On the Speech tab, remove the check
from the Check for New Voicemails checkbox.
The LED on the handset flashes when a voicemail message is received. Lift the handset and press the
Voicemail key to listen to the message. A voice prompts For example, “Voicemail from David
received on (date and time).” The voicemail message automatically plays.
Troubleshooting
This section covers uninstalling the software and general troubleshooting.
Uninstalling HP Software
1 Click the Windows Start Button® and select Control Panel.
2 Select Add/Remove programs.
3 Select HP Integration for Skype and click Remove. Then follow the on-screen instructions.
4 After the uninstall finishes, click Finish, and restart your computer if prompted.
20 HP Internet Handset User’s Guide
Uninstalling Skype Software
1 Click the Windows Start Button and select Control Panel.
2 Select Add/Remove programs.
3 Select Skype and click Remove. Then follow the on-screen instructions.
Frequently Asked Questions
Why does my HP Internet Handset not ring for incoming calls?
See I can’t dial any numbers. What could be wrong?
I can’t dial any numbers. What could be wrong?
There could be several reasons for this:
• If you just installed the HP Internet Handset driver or integration, try restarting the computer
with the HP Internet Handset attached to the USB port.
• Make sure there are no device conflicts in the computer Device Manager.
• Make sure both the HP Internet Handset and Skype icons are green on the SysTray.
How do I dial a ‘+’ sign when making International calls?
Pressing two zeros (00) is equivalent to entering + when dialling international numbers, or if you prefer
press and hold the 0 key until the + appears.
How do I rename a Skype contact?
Right-click the username you want to rename, click Rename, enter a new name, and then click OK.
How do I use Skype?
Visit www.skype.com for full details about how to use Skype.
If you have a Skype specific issue, visit www.skype.com and navigate to the Skype Forum.
HP Internet Handset User’s Guide 21
Identifying Software Versions
To identify the version of the HP Internet Handset software, right-click the HP Internet Handset icon on
the SysTray and click About. To close the window, click OK.
To identify the version of Skype software, within Skype, click Help and then click About. To close the
window, click the window.
22 HP Internet Handset User’s Guide
Software Updates
Periodically, software updates become available.
HP Internet Handset Updates
A pop-up message appears when a new version of the HP Internet Handset software becomes available.
Right-click the HP Internet Handset icon on the SysTray, and then click Update to begin downloading
and installing the update. If no updates are available, the Update option is disabled.
Skype Updates
If new versions of Skype are available, you are notified automatically, unless you disabled the Automatic
updates option within Skype.
Click Yes to get the latest Skype update. When updating Skype, your Skype login, contacts, and call logs
are not deleted.
You can visit www.skype.com, if automatic updates are disabled in Skype.
Contacting Support
We can only assist with HP Internet Handset and HP Internet Handset software issues. To contact support
directly, email hpbp@hp-voip.com giving as much detail as possible.
NOTE: We cannot help with Skype software queries.
HP Internet Handset User’s Guide 23
Technical Specifications
Cable length
1.6 metres
Supply voltage
5 V DC ± 5% from PC USB port
Current consumption
In use < 200mA
Standby, approx 500uA
Max power consumption
1W
Frequency response
Microphone 100 Hz to 7 kHz
Speaker 300 Hz to 7 kHz
Ringer output
>70dBA SPL
Keys
0–9, * and #
Scroll (Volume) up/down
Dial
End call
Microphone mute
Contacts/Tab
Hold
Voicemail
LED’s
Voicemail
Ringer
Microphone mute
Certifications
USB 1.1 and 2.0
Skype
24 HP Internet Handset User’s Guide
