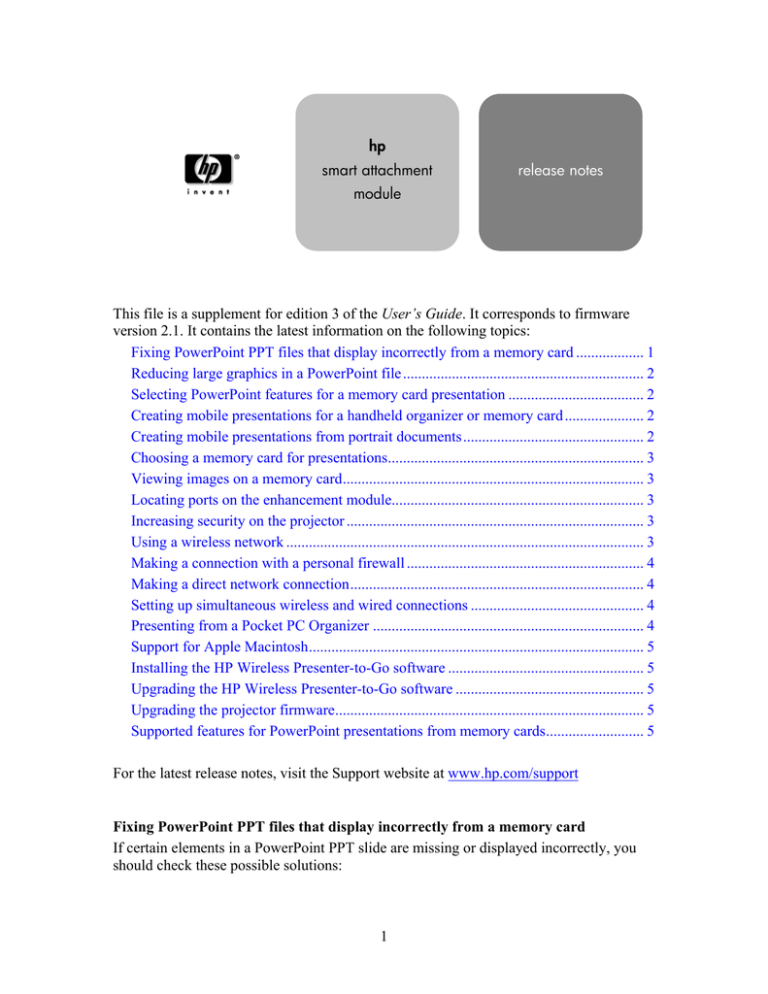

hp smart attachment module release notes
This file is a supplement for edition 3 of the User’s Guide. It corresponds to firmware version 2.1. It contains the latest information on the following topics:
Fixing PowerPoint PPT files that display incorrectly from a memory card .................. 1
Selecting PowerPoint features for a memory card presentation .................................... 2
Creating mobile presentations for a handheld organizer or memory card ..................... 2
Supported features for PowerPoint presentations from memory cards.......................... 5
For the latest release notes, visit the Support website at www.hp.com/support
Fixing PowerPoint PPT files that display incorrectly from a memory card
If certain elements in a PowerPoint PPT slide are missing or displayed incorrectly, you should check these possible solutions:
1
• If the slide includes large graphic images or uses several fonts, the slide may require more memory than available in the projector. Try using fewer fonts, or try using fonts that use less memory (you can check font file sizes by looking in the font folder on the memory card). Or try reducing the memory size of the graphics
(see the next topic below).
• Certain PowerPoint features are not supported while presenting a PowerPoint PPT file from a memory card. Try editing the slide to use supported features (see the second topic below).
Reducing large graphics in a PowerPoint file
A large graphic image may not display in a PowerPoint presentation shown from a memory card due to memory requirements on the projector. You can use an editor to create a smaller image file. Or you can try the following steps in PowerPoint to reduce the size of an image.
1. Right-click the graphic, then select Copy.
2. Click Edit > Paste Special, and select the option to paste in PNG format.
3. Delete the old image.
An alternative solution is creating a mobile presentation PDB file.
Selecting PowerPoint features for a memory card presentation
When you show a PC-free presentation from a memory card, the projector has available only the information stored on the memory card—it does not have access to the Microsoft
PowerPoint application. Although the projector provides most of the popular features of
PowerPoint 2002, not all features are supported during a memory card presentation. To avoid unexpected problems, select features that are supported for either a PowerPoint
PPT file or a mobile presentation PDB file. See the table of supported PowerPoint features at the end of this document.
Creating mobile presentations for a handheld organizer or memory card
You can use HP Wireless Presenter-to-Go to create mobile presentations from
PowerPoint. In some situations, a mobile presentation you create may omit certain
PowerPoint elements, such as special fonts, vertically oriented text, or arrowheads. If this occurs, try choosing a lower animation setting in the Wireless Presenter-to-Go creator window.
Creating mobile presentations from portrait documents
If you want to create a mobile presentation (PDB file) by printing from an application, you should check the page setup first. If the page has portrait orientation (vertical layout), you should do one of the following to avoid losing the bottom of all pages in your presentation:
• Before printing, change the document to landscape orientation (horizontal layout), or
• In the print window, change the printer properties to use portrait orientation
(vertical layout).
2
Choosing a memory card for presentations
The projector supports several standard types of memory cards, which you can connect to the CompactFlash slot or to a USB port. Such cards are available from HP and many other manufacturers. However, you may find that some memory cards or adapters do not work properly with the projector, such as some USB 2.0 devices. If you have a memory card or adapter that does not work with the projector, try a different brand or type of card.
For example, the HP USB digital drive with SD memory card (DG921B) is supported.
Viewing images on a memory card
If you are viewing a picture presentation from a memory card, certain problems may cause a picture to be shown as "X", a missing picture:
• The image is larger than 3.5 MB or requires more memory than available on the projector. Check file sizes, and edit large images or convert them to JPG format so they are smaller than 3.5 MB.
• The image file is not a valid JPG, BMP, or PNG file.
• The file name contains any of the characters \ / : * ? " < > , | [ ] ; =
Locating ports on the enhancement module
The USB ports on some enhancement modules may be covered by a label. If you want to use these ports, remove the label. Note that use of the audio port is not supported.
Increasing security on the projector
The projector includes several security options for preventing unauthorized access. You can set up all of these security settings using the projector's embedded web server. The first two options are required to secure the projector.
• Admin password. In Networking > Admin. Account you can set a password that prevents unauthorized access to most settings in the embedded web server. This password protects all other security settings below.
• SNMP community names. In Networking > SNMP you can specify secure community names for read-only and read-write access to the embedded SNMP server.
• Wireless Presenter password. In Networking > Wireless Presenter you can set a password that prevents unauthorized network presentations via wired and wireless connections.
• WEP encryption and shared mode authentication. In Networking > Wireless
Settings you can set an encryption key and key index, then use them to authenticate wireless connections and encrypt wireless data.
• Access control. In Networking > Access Control you can defines ranges of IP addresses that are authorized to access the projector.
Using a wireless network
While you are using HP Wireless Presenter-to-Go, you have access to only one wireless network: the infrastructure or ad-hoc network that connects to the projector. If you use a different wireless network to connect to other computers or to the internet, you do not
3
have access to those connections whenever HP Wireless Presenter-to-Go is running. This software disables wireless network services while it is running and restores those services when it closes. If you want to change to your normal wireless network or view available networks, you should exit HP Wireless Presenter-to-Go first.
Making a connection with a personal firewall
If your computer has personal firewall protection installed, you can still make a network connection to a projector.
• If you disable the firewall software, available projectors are listed when you start
HP Wireless Presenter-to-Go.
• If you do not disable the firewall software, no projectors are listed, but you can click Other Projector, enter the projector's network settings, and make a connection.
Making a direct network connection
If you need to make a direct network connection between a computer and the projector, you may need to use a cross-over network cable, not a standard network cable. You might need such a connection when you are upgrading firmware without having access to a standard network. If you make such a connection, you must configure the network settings on the computer and projector.
• On the computer, open the properties for the network connection and edit the
TCP/IP settings. Disable the automatic addressing (DHCP) and set or write down the IP address of the computer. For example, you could set the IP address to
10.2.3.4.
• On the projector, open the on-screen menu and go to Setup > Network. Disable the DHCP option, then set the IP address to a value that differs from the computer address in the 4th field (assuming the subnet mask is 255.255.255.0). For example, you could set the IP address to 10.2.3.5.
Setting up simultaneous wireless and wired connections
If you want to set up the projector for both wired and wireless connections, you should try to have the wired IP address and wireless IP address on different network subnets.
This means the access point and the projector would not be connected to the same section of the network. You can confirm this with your network administrator.
If you do not have access to two subnets, both projector connections may not be available in Wireless Presenter-to-Go. However, you should be able to connect to the projector and make a presentation.
Presenting from a Pocket PC Organizer
After you install HP Wireless Presenter-to-Go software on a Pocket PC handheld organizer, you have the option of showing the organizer display on the projector screen.
• To show the organizer display, start the Wireless Mirror program, select the projector you want to connect to, then tap Connect. To remove the Wireless Mirror screen, tap Hide.
4
• To change the projected image, open the Wireless Mirror program and select from the options shown on the screen. For example, you can enlarge and rotate the projected image.
• To end the presentation, open the Wireless Mirror program, tap the wireless icon, then tap Disconnect.
Support for Apple Macintosh
You can use an Apple Macintosh computer to manage the projector via the embedded web server. The projector supports the Safari web browser provided with Mac OS X version 10.2 and later, in addition to browsers listed in the user’s guide.
If you use Internet Explorer to upgrade the projector firmware, you should rename the
DLD file you download from the web so Internet Explorer can process it correctly. After downloading the file, add “.binary” at end of DLD file name, then upgrade the projector.
Installing the HP Wireless Presenter-to-Go software
After you install HP Wireless Presenter-to-Go on a computer, if you get a presentation error when starting your first presentation, try rebooting the computer. This step may be required on some computers.
Upgrading the HP Wireless Presenter-to-Go software
In the future, HP may release new versions of HP Wireless Presenter-to-Go. They will be available for download at the Support website listed at the beginning of this document.
Upgrading the projector firmware
If you use a network connection to upgrade the projector firmware, your browser must not block popup windows. Popup windows are required for a successful upgrade.
Supported features for PowerPoint presentations from memory cards
The following table lists PowerPoint 2002 features and shows whether they are supported while showing a PowerPoint PPT file or mobile presentation PDB file. New features added by PowerPoint 2003 and later are not supported. The information in the following table is subject to change.
Microsoft PowerPoint 2002 Feature
Basic Features:
Header & Footer
PowerPoint Presentation
(PPT file)
Mobile Presentation
(PDB file)
Yes Yes
No No Sound Support
Movie Support (Export as Movie) No No
Drawing Tools No No
Auto Shapes Yes, except not freehand scribble lines
Yes
Fill color, line color, font color
Edit Points
3D Styles
3D Effects
Yes
No
No
No
Diagrams Yes
Word Art No. Placeholder displayed.
Yes
No
No
No
Yes
Yes
5
Microsoft PowerPoint 2002 Feature PowerPoint Presentation
(PPT file)
Mobile Presentation
(PDB file)
Forms No No
Search No No
XML (XHTML) No No
Grid No No
E-mail No No
Pack No No
Bullets Yes Yes
Customized bullets Yes, except unexpected character Yes may be substituted if bullet font is not available.
Graphical bullets
Serial bullets (numbered bullets,
Yes Yes
Yes Yes lettered bullets)
Gradient Partial Yes
Gradient from center or corner
Image contrast and brightness adjustments
Interlaced JPEG images
Large Images
No Yes
No Yes
Yes, up to 1024x768
Depends on the amount of memory that is available after displaying the rest of the slide.
Yes
Yes
Font alignment and wrapping
Bold fonts
Italic fonts
Shadow text
Shadow effects
Patterned lines
Date/Time Meta-tags
Centering of vertical text
Text auto-adjust
Texture fill of irregular shape
Animation & Transition Effects:
Multiple objects animated at the same time
Blinds (any direction)
Box (any direction)
Checkerboard (any direction)
Comb (any direction)
Cover (left, right, up, down)
Cover (diagonal)
Yes, if the font is available. May not be correct if a font must be substituted.
Fonts are algorithmically widened, and may not appear as they do on the computer.
Fonts are algorithmically slanted, and may not appear as they do on the computer.
Yes, except shadow is gray.
Yes
Yes
Yes
No
No
No
Yes
Yes
Yes
Shows date/time PDB file was created
Yes, with some exceptions. No
Text may be cut off at bottom.
No
Yes
Yes
No No
Yes
Yes
Yes
Displayed as Appear
Displayed as Appear
Displayed as Appear
Yes
Yes
Yes
Displayed as Blinds
Displayed as Wipe
Yes
Cut Through Black Displayed as Appear Displayed as Appear
Dissolve Yes Yes
6
Microsoft PowerPoint 2002 Feature
Fade (any variation)
News Flash
Push (any direction)
Random Bars (any direction)
PowerPoint Presentation
(PPT file)
Displayed as Appear
Displayed as Appear
Displayed as Appear
Yes
Mobile Presentation
(PDB file)
Displayed as Appear
Displayed as Box
Displayed as Wipe
Displayed as Blinds
Shape (circle, diamond, plus)
Split (any direction)
Strips (any direction)
Uncover (left, right, up, down)
Uncover (diagonal)
Wedge (any variation)
Wipe (any direction)
Random Transition
Entrance Effects:
Displayed as Appear
Yes
Yes
Displayed as Appear
Displayed as Appear
Displayed as Appear
Yes
Yes
Displayed as Box Out
Yes
Yes
Displayed as Wipe
Displayed as Cover
Displayed as Appear
Yes
Yes
Appear Yes Yes
Box Yes Yes
Circle
Flash Once
No. Displayed as Appear
No. Displayed as Appear
No. Displayed as Appear
Yes
Peek In
Random Bars
No. Displayed as Appear
Yes
Yes
Yes
Split Yes Yes
Wedge No. Displayed as Appear No. Displayed as Appear
Wipe Yes Yes
Blinds Yes Yes
Checkerboard Yes
Crawl In No. Displayed as Appear
Yes
Yes
Dissolve In
Fly In
Plus
Random Effects
Yes
No. Displayed as Appear
No. Displayed as Appear
No. Displayed as Appear
Yes
Yes
No. Displayed as Appear
No. Displayed as Appear
Strips
Wheel
Subtle Effects (any version)
Moderate Effects (any version)
Exciting Effects (any version)
Emphasis Effect
Motion Path
Exit effects
Effect preview
Yes
No. Displayed as Appear
No. Displayed as Appear
No. Displayed as Appear
No. Displayed as Appear
No
No
No
No
Yes
No. Displayed as Appear
No. Displayed as Appear
No. Displayed as Appear
No. Displayed as Appear
No
No
No
No
7
