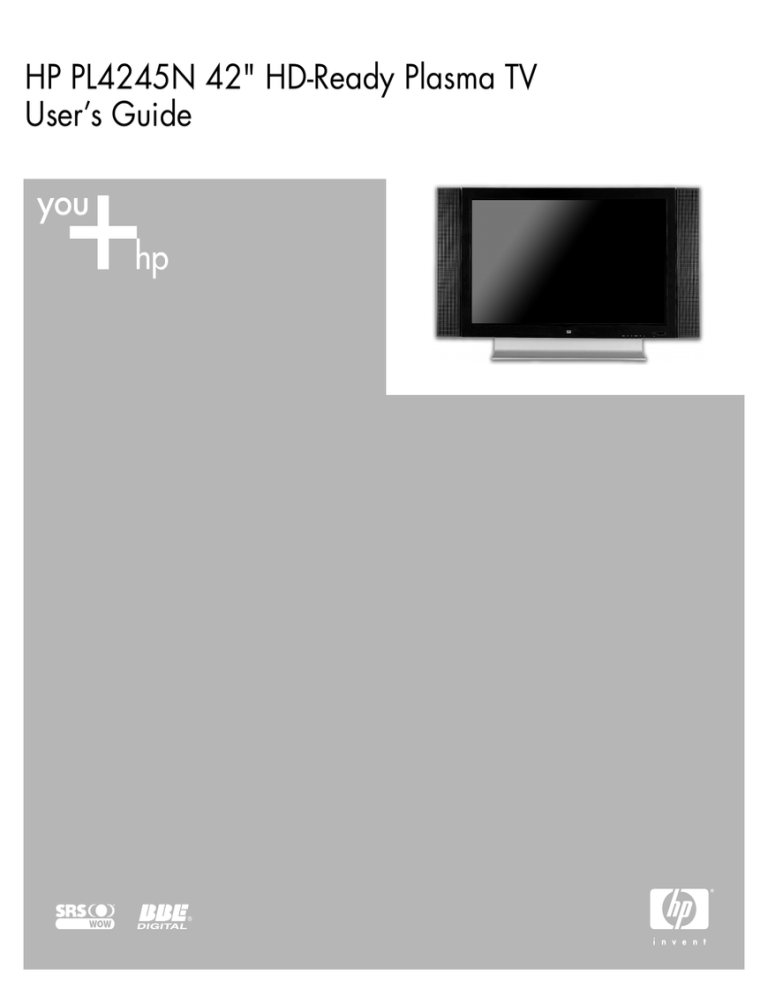

HP PL4245N 42" HD-Ready Plasma TV
User’s Guide
The information in this document is subject to change without notice.
Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose.
HP shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing,
performance, or use of this material.
THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT
EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO ANY MANDATORY STATUTORY RIGHTS APPLICABLE TO THE
SALE OF THIS PRODUCT OR SERVICE TO YOU.
HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.
This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document
may be photocopied, reproduced, or translated to another language without the prior written consent of HP.
Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015-4010
USA
© 2004 Hewlett-Packard Development Company, L.P.
All rights reserved.
HP supports lawful use of technology and does not endorse or encourage the use of our products for purposes other than those
permitted by copyright law.
WOW, SRS and the
from SRS Labs, Inc.
symbol are trademarks of SRS Labs, Inc. SRS WOW technology is incorporated under license
BBE Digital - License Manufactured under license from BBE Sound, Inc. Patent Licensed by BBE Sound, Inc. under USP4638258,
5510752, and 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.
WARNING: Text set off in this manner indicates that failure to follow directions could
result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could
result in damage to equipment or loss of information.
NOTE: Text set off in this manner indicates additional information.
DANGEROUS VOLTAGE: Text set off in this manner indicates the presence of
uninsulated voltages within the product enclosure that may be of sufficient magnitude
to constitute a risk of electrical shock to persons.
Table of Contents
Safety ..................................................................................................................... 1
Precautions...........................................................................................................................................2
Cleaning the TV ....................................................................................................................................4
Preventing Image Retention ....................................................................................................................4
Wall Mounting or Stand Replacement .....................................................................................................4
Introduction ............................................................................................................ 5
What’s in the Box .................................................................................................................................6
Features ...............................................................................................................................................6
Overview .............................................................................................................................................7
Identifying front panel controls and indicators .......................................................................................7
Identifying the remote control buttons ...................................................................................................8
Rear Panel..........................................................................................................................................10
Identifying connectors.......................................................................................................................10
Lower Video and Audio Connectors ...................................................................................................11
Upper Video and Audio Connectors ..................................................................................................11
DVI-D and VGA Connectors ..............................................................................................................12
Power Switch ..................................................................................................................................12
RF IN and RS232C Connectors .........................................................................................................12
Setup .................................................................................................................... 13
Attaching and Connecting External Speakers .........................................................................................13
Identifying Your Component’s Cables ....................................................................................................14
Connecting an Antenna or Cable TV .....................................................................................................15
Connecting an antenna/cable box/satellite dish .................................................................................15
Connecting a HDTV Tuner to the TV ...................................................................................................15
Connecting a PC to the TV using the VGA Connector ..............................................................................15
Connecting a PC or other equipment to the TV using the DVI Connector ....................................................16
Connecting a Composite Video Source..................................................................................................16
Connecting an S-Video Source .............................................................................................................16
Connecting a Component (YPbPr or YCbCr) Source ................................................................................17
Connecting the HP Media Center PC .....................................................................................................17
Using the HP MCPC with the TV remote control ...................................................................................18
Installing or Replacing Remote Control Batteries......................................................................................18
Table of Contents
iii
Using the TV ..........................................................................................................20
Basic Operations ................................................................................................................................ 20
Turning on the TV ............................................................................................................................ 20
Setting Up Your Channels ................................................................................................................. 20
Adding and Deleting Channels.......................................................................................................... 20
Selecting the input source ................................................................................................................. 21
Adjusting volume ............................................................................................................................. 21
Muting sound .................................................................................................................................. 21
Using the sleep timer to turn off the TV ............................................................................................... 22
Setting up the V-chip ........................................................................................................................ 22
Selecting the screen aspect ............................................................................................................... 23
Using the On Screen Display (OSD) Controls ......................................................................................... 23
PC Mode ........................................................................................................................................... 24
PC Mode Operation ........................................................................................................................ 24
Display........................................................................................................................................... 25
Image............................................................................................................................................. 25
Audio............................................................................................................................................. 26
Language and Color Temperature...................................................................................................... 26
OSD Information ............................................................................................................................. 27
Video Format .................................................................................................................................. 27
Audio/Video Mode............................................................................................................................. 28
Audio/Video Operation ................................................................................................................... 28
Display........................................................................................................................................... 29
Image............................................................................................................................................. 29
Audio............................................................................................................................................. 30
Language and Color Temperature...................................................................................................... 31
OSD Information ............................................................................................................................. 31
Video Format .................................................................................................................................. 32
Using the Remote Control..................................................................................................................... 33
Programming the remote control for component control ........................................................................ 33
Troubleshooting.....................................................................................................44
iv
Table of Contents
Specifications ........................................................................................................ 46
General Specifications.........................................................................................................................46
TV Tuner Specifications ........................................................................................................................47
Audio ................................................................................................................................................47
Controls .............................................................................................................................................47
Connectors .........................................................................................................................................48
Power Supply Specifications .................................................................................................................48
Dimensions and Weight Specifications ..................................................................................................48
Timing Mode Factory Settings...............................................................................................................49
Agency Regulatory Notice ..................................................................................... 50
Federal Communications Commission Notice .........................................................................................50
Modifications......................................................................................................................................50
Cables ...............................................................................................................................................50
Declaration of Conformity for products marked with the FCC logo — United States only .............................51
Index .................................................................................................................... 52
Table of Contents
v
vi
Table of Contents
Safety
First:
• Read all instructions before installing and operating the TV.
• Keep this user guide in a safe place for future reference.
• To reduce the risk of bodily injury, electric shock, fire, and damage to the TV, observe all warnings
•
•
and precautions in this user guide.
Follow all instructions in this user guide.
Do not use attachments that are not recommended by HP with this product. Use of inadequate
attachments may result in damage to the product or personal injury.
Opening the package:
• Due to the size and weight of the TV, it is recommended that a minimum of two people move it.
• Whenever possible, use the handles on the back of the TV for transport.
• If speakers are attached to the TV, do not lift the TV by the speakers; instead, use the handles and
•
•
the area under the screen.
The protective glass and the glass substrate are installed on the front of the TV. Because both
glasses can be broken and scraped easily, move the product gently. Never place the TV with the
glass facing downward, unless it is protected with pads.
The TV is packaged in a carton with other standard accessories. When opening the carton, check
that the TV is in good condition and that all standard accessories and items are included. Any
optional accessories come separately in another carton.
Installing the TV:
• A specified technician from the distributor or authorized agent should install the TV. Refer to “Wall
•
•
•
•
•
•
Mounting or Stand Replacement” on page 4 for more information.
Install the TV on a flat surface to avoid tipping. Leave some distance between the back of the TV
and the wall for proper ventilation. Never install the unit where the ventilation on the top of the TV
is covered. Otherwise, fire or damage to the unit may occur.
Avoid installing the TV in the kitchen, the bathroom, or any other area with high humidity. Damp
conditions may shorten the service life of the electronic components, or may cause fire or electrical
shock.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade, or the third prong, is provided for your safety. If the provided plug does not
fit your outlet, consult an electrician for replacement of the obsolete outlet.
Do not install the TV in a vehicle; vibrations may damage the unit, or the unit may fall and cause
injury.
Do not install the TV in a ship or a vessel; seawater damages the unit and may start a fire.
Do not use this TV near water.
Safety
1
• Install the TV horizontally; any 90-degree clockwise or counterclockwise installation may induce
•
•
•
•
•
•
•
poor ventilation and subsequent component damage. Do not hang the TV from the ceiling; the unit
may fall and cause injury.
Do not install near appliances, such as a microwave.
Do not place the TV on an unstable cart or stand; the unit may fall over and cause injury.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the TV. When a cart is used, use caution when moving the cart/TV combination to avoid injury
from tip-over.
Do not install the TV where it has a protruding edge. For example, do not place the TV where an
edge overhangs a table. Do not install the product on a column, where it may accidentally fall.
If moving the TV from a cold place to a warm place, condensation may occur inside the unit. Allow
the condensation to dry before turning on the unit.
Unplug the TV during lightning storms or when unused for long periods of time.
Clean only with a soft dry cloth.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
Precautions
DANGEROUS VOLTAGE: Do not attempt to repair your television yourself. Removing
the back cover of the TV may cause fire or electric shock. An HP authorized service
provider should do service needed on components inside the TV.
If the following conditions exist, unplug the TV from the electrical outlet and contact a qualified service
professional:
•
•
•
•
•
•
•
When
When
When
When
When
When
When
the power cord or plug is damaged.
liquid was spilled on the product or when objects have fallen into the product.
the product does not operate as described in the instructions.
the product has been damaged or dropped.
the product displays an abnormal condition.
the product was exposed to rain or water.
the product shows signs of overheating.
CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electrical shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Avoid hot areas: The TV should be placed away from heat sources such as radiators, heat
registers, stoves, or other product (including amplifiers).
Avoid wet areas: Never use the TV in a wet location.
Avoid pushing objects into the product: Never pushing objects of any kind into cabinet slots or
other openings in the TV. Slots and openings are provided for ventilation. These opening must not be
blocked or covered.
2
Safety
Using mounting accessories: Any mounting of the TV should follow the manufacturer’s
instructions and should use the mounting accessory recommended by the manufacturer.
Adjust the volume: Turn down the volume before using headphones or other audio devices.
Use the correct external power source: The product should be operated only from the type of
power source indicated on the electrical ratings label. If you are not sure of the type of power source
required, consult your HP authorized service provider or local power company.
Position the power cord carefully: Route the power cord so that it will not be walked on,
tripped over, or pinched by items placed upon or against it. Pay particular attention to the plug,
electrical outlet and the point where the power cord exits the product.
Overloading: Do not overload an electrical outlet, power strip, or convenience receptacle. The
overall system load must not exceed 80% of the power strip input rating.
Observe extension cord ratings: If an extension cord or power strip is used, make sure that the
cord or strip is rated for the product and that the total ampere ratings of all products plugged into the
extension cord or power strip do not exceed 80% of the extension cord or strip ampere ratings limit.
Using cables and power cords:
•
•
•
•
•
•
Plug the product into a grounded (earthed) electrical outlet that is easily accessible at all times.
Do not disable the power cord grounding plug. The ground plug is an important safety feature.
Disconnect power from the TV by unplugging the power cord from the electrical outlet.
Do not pull on cords and cables. When unplugging the cord from an electrical outlet, grasp and
pull the cord by the plug.
Do not attempt to power the TV with converter kits sold for appliances.
Unplug the TV from the electrical outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners.
WARNING: Do not place any objects on top of the TV. Spilled water or metal objects
may cause short circuit, fire, or electric shock if they penetrate into the housing of
the TV.
Never use a damaged power cord. Do not place power cords in areas where they can
be pinched, stepped on, or otherwise compromised. Heavy objects, heat, chemicals,
or tensile force may damage the power cord and cause fire or electric shock.
Do not change or open the back cover. Removing the back cover of the TV may cause
fire or electric shock. Contact the manufacturer when inspection or adjustment is
required.
Do not use the TV if any abnormality occurs. If any smoke or odor becomes apparent,
unplug the power cord and contact the manufacturer immediately.
Do not try to repair the TV on your own.
Safety
3
Cleaning the TV
Use a dry, soft cloth to remove dust from the TV screen and the chassis.
• Unplug the TV before cleaning the screen.
• A special anti-glare coating is applied to the screen of your TV. Using solvents such as alcohol or
•
•
abrasive material such as a power towel may affect the screen coating or bezel paint.
Do not expose the product to volatile gas or fluid such as a pesticide.
Do not put the TV in contact with vinyl or rubber products for a long period of time. Extended
contact may result in the removal of the coating or degradation of the surface.
Preventing Image Retention
Your plasma TV illuminates phosphor to display images, much like a conventional tube-type television.
Viewing stationary images for extended periods of time results in uneven aging of the phosphor,
causing grayed-out images to permanently appear on the screen.
Permanent image retention can be avoided by taking some basic precautions. Following the
recommendations listed below ensures your plasma TV will have longer life and offer better
performance:
• Whenever possible, avoid frequently displaying stationary images, such as Web sites, computer
•
•
•
•
graphics, or video games for extended periods of time.
Display video and images in the widescreen 16:9 ratio format. Use the Aspect button on the
remote control to change from 4:3 screen size (such as standard television) to fill the screen in
16:9 ratio. This will prevent potential image retention of sidebars. Refer to “Selecting the screen
aspect” on page 23.
Avoid viewing the on screen display (OSD) menus from DVD players, VCRs, and other components
for extended periods of time.
When watching a movie from a DVD player or VCR, do not leave the same image paused
continuously over a long period of time.
Turn down the contrast and brightness of the screen. High brightness and contrast can accelerate
image retention of stationary images.
Image retention and uneven screen aging are not covered by your HP Warranty; refer to the Warranty
and Support Guide that came with your TV.
Wall Mounting or Stand Replacement
A specified technician from the distributor or authorized agent should install the TV, including stand
replacement or wall mounting. Wall mounting brackets are sold separately and are not included with
the TV.
Wall mounting the TV requires:
•
•
•
•
Removal of the transport handles on the back of the TV.
Removal of the stand from the TV panel.
Assembly of the wall mounting bracket and installation of the bracket onto the TV panel.
Placement and installation of the TV panel with wall bracket onto the wall.
Due to the size and weight of the TV, it is recommended that a minimum of two people move it.
4
Safety
Introduction
The HP PL4245N is a 42" HD Ready plasma television designed to deliver a fantastic high-definition
image for an impressive home theater experience. Your new television features a bright and
high-contrast high-definition plasma panel, backed by leading edge video processing for rich colors
and stunning images. Your television is encased in a stylish piano black cabinet, and can be
wall-mounted or used with the included stand.
• 3000:1 Contrast delivers rich, deep blacks and rich images.
• Low Angle Interpolation detects low-angle lines to smooth out staircases and jagged edges —
•
•
•
•
•
•
•
•
•
bringing a new tier of realism to sporting events and movies.
FilmMode Processing with 3:2 & 2:2 pull down accurately reproduces film-originated
content from video sources.
Cross Color Suppression removes cross color artifacts from composite video sources, delivering
consistent, true color every time.
Motion Adaptive Noise Reduction greatly enhances quality of standard definition of off air
media and standard definition video.
SRS WOWTM creates a bigger, enhanced sound experience by providing three dimensional
sound, enhancing musical vocals, and creating the perception of deep, rich bass.
BBE High Definition Sound restores clarity and presence for better speech intelligibility and
musical realism.
Black Level Enhancement
Picture-in-Picture
Screen orbiting reduces chance of image retention with static images, such as from console
games.
Universal Remote Control, compatible with up to three additional devices, including
HP Media Center PCs.
Introduction
5
What’s in the Box
•
•
•
•
•
•
•
•
•
Plasma television with attached stand
Power cord
Remote control with batteries (two, non-rechargeable, size AA)
This guide
External speakers
External speaker cable
Warranty and Support Guide
Antenna cable
Quick Start Poster
These items are all you need to setup your television for operation in its most basic configuration.
Features
The features you’ll enjoy include:
• 42-inch Plasma Display: Accepts inputs in all major digital television (DTV)* formats (1080i,
•
•
720p, 480p and 480i). Native resolution of 720p (1024 x 768 pixels).
D-sub 15-pin VGA Input: Enables connection to a computer for use as a monitor.
Input Signals:
• Component video (YCbCr/YPbPr)
•
•
•
•
•
•
Composite video
S-video
RGB (D-sub 15-pin)
Digital Video Interface (DVI)
RS-232 communication port (D-sub 9-pin)
TV Tuner
• 16:9 Enhancement: Widescreen technology that maximizes picture quality when playing
•
•
•
•
•
•
•
6
widescreen enhanced video.
Channel Memory: User-adjustable channel settings.
Picture-in-Picture (PIP): Simultaneous display of two images from different video sources.
Parental Control: V-chip technology allows parents to block unsuitable programming for
underage viewers.
DVI: Digital video interface allows for high-quality display, analog and digital compatible.
3-D digital comb filter: Enhances the color purity of composite video and S-video input sources,
reducing cross-color artifacts like dot crawl.
Color temperature: Three options allow user-controlled image optimization.
Built-in TV tuner: Built-in NTSC tuner to receive conventional analog broadcasts; de-interlacing
circuit with 3:2 pull-down converts interlaced analog sources to a progressive-scan display,
significantly improving picture quality.
Introduction
• Wide viewing angle: More than 160 degrees, both horizontal and vertical.
• Built-in TV video and all sources audio out: Outputs TV video /all audio signal to other
•
•
devices.
Speakers: Stereo speakers with ten watts per channel.
Built-in screen move: Decreases tendencies toward image retention.
* An optional HDTV Tuner is required to receive off-the-air digital television signals.
Overview
Identifying front panel controls and indicators
The front panel controls and indicators are on the lower right corner of the TV. The buttons for each
control are directly underneath the TV’s edge.
Item
Description
A
Menu
Press to bring up the onscreen display (OSD). Keep pressing to scroll through
the six OSD pages.
B
Left and Right
arrows (volume)
Press the left arrow button to lower the sound, and press the right arrow button
to raise the sound.
C
Select
Changes the input signal source for the main picture.
D
Down and Up
arrows (channel)
Press the down and up buttons to select the next lower or higher channel.
E
Power
Press to turn the TV on and off. The Power/standby indicator is blue when the
TV is on, and amber when the TV is in standby mode.
F
Remote Control
Sensor
Aim the remote control within 30 degrees left and right at the Remote control
sensor window and press a button to operate the TV.
Introduction
7
Identifying the remote control buttons
Remote Control
Item
Description
Indicator light
The red light blinks once each time a button is
pushed. If the red light blinks two times when a
button is pushed, the remote control batteries are
low and need replacement.
Setup
Use the SETUP button when programming the
remote control for component control; see
“Programming the remote control for component
control“ on page 33.
PWR
Press PWR once to turn on or off the selected home
entertainment component.
TV, CBL/SAT,
DVD/VCR, or
HP.PC
Press one of these buttons once to select a home
entertainment component to control, and then point
the remote control at the component.
HP.PC selects the HP Media Center PC (connected
to the VGA or DVI connector) and enables the HP
MCPC special buttons on the remote. Refer to
“Using the HP MCPC with the TV remote control“ on
page 18 for more information.
To program the remote control to operate a cable or
satellite set-top-box or a DVD or VCR; see
“Programming the remote control for component
control“ on page 33.
Keypad
Use the keypad (0 ~ 9, +100) to directly select
channels.
Mute
Press MUTE once to turn sound off or on.
VOL
Use VOL+ (or VOL–) to raise (or lower) the sound
volume.
CH. RTN
Press CH. RTN (channel return) once to recall the
last channel or to page back one screen in the main
menu.
HP.MC
Press HP.MC to start Media Center when using the
HP Media Center PC.
CH
Use CH+ (or CH–) to select the next higher (or
lower) channel.
Selects TV as the input source.
Guide/P. Mode
Use GUIDE to display the program guide for a TV
set-top-box or for HP MCPC. Use Picture mode to
scroll through the three picture modes Standard,
Movie, or Dynamic.
EXIT/Back
Use EXIT to exit out of the selected component’s
menu or guide.
Use Back for the HP MCPC.
8
Introduction
Remote Control
Item
Description
Arrow buttons
Use the arrow buttons to move the cursor in a program guide or in menu screens.
Enter
Press ENTER once after entering channel numbers. Use Enter as the OK button for
the HP MCPC.
Info/Display
Use INFO to display current channel and program information.
Menu
Press MENU to access the on screen menu of your chosen component. Keep
pressing to scroll through the six OSD pages.
PIP size/Fast
reverse
Press PIP SIZE to change the size of the PIP from off, small, medium, and large.
Play/Audio
Swap
Press Play when using other components.
Fast
forward/Swap
Press Fast forward when using other components.
Record/PIP
Input
Use PIP Input as the Record button for HP MCPC and other components.
Press PIP Input to select the source for PIP.
Stop play/PIP
Position
Press the PIP Position button to change the location of the PIP.
Press Fast reverse to rewind when using other components.
Press Audio Swap when using the PIP to switch the audio source between your main
display and the PIP.
Press Swap when using PIP to exchange the pictures in the main display and the PIP
display.
Press the Stop play button to stop when using other components.
Freeze/Pause
Press the Freeze button to pause on a frame. When using a VCR or DVD, pressing
Freeze again returns you to the exact place you paused. When watching live TV,
pressing Freeze again advances you to the current live feed.
Zoom+
Zooms in the screen toward the middle of the display, cutting out the edges. You can
Zoom in up to five levels.
Zoom–
Zooms out the screen.
Replay
Use the Replay button for HP MCPC Replay. When using a DVD, use Replay to go to
the beginning of a chapter.
Skip
Use the Skip button for HP MCPC Skip. When using a DVD, use Skip to go to the
end of a chapter.
Aspect
Use the Aspect button to select one of six screen sizes.
MTS
Use MTS to select STEREO, MONO, SAP (second audio program) for TV sound.
Sleep
Use Sleep to set the timer for the number of minutes before the TV powers off.
DVI/VGA,
YCbCr, YPbPr,
AV, SV
Press one of these buttons one or more times to select the input source for the main
picture:
DVI/VGA selects the input sources connected to the DVI or VGA (RGB) connectors.
YCbCr selects the input source connected to the Component Video Input (YCbCr).
YPbPr selects the input source connected to the Component Video Input (YPbPr).
AV selects the input sources connected to the Composite Video Inputs.
SV selects the input source connected to the S-video Input.
Introduction
9
Rear Panel
Identifying connectors
10
Item
Description
A
External speaker
left and right output
Connect the external speakers.
B
Main power switch
Turns the AC power on and off. This switch is on from the factory. When this
main power switch is off, the TV is fully unpowered; the power/standby
indicator light on the front of the TV is off, and neither the front panel power
button nor the remote control can be used to turn on the TV. If you turn the
main power switch off, wait at least 5 seconds before turning it on again.
C
Component Video
Inputs
Connect cables for component video input.
D
DVI-D with HDCP
(29-pin) input
Connect a digital video cable for digital input signals from a PC monitor
connector, or from a DVD player, digital cable or satellite receiver
set-top-box.
E
VGA, a D-sub
(15-pin) input
Connect an analog RBG-type cable for analog input signals from a PC
monitor connector. See your component user documentation for information
about the connector types it supports.
Introduction
Use YPbPr/YCbCr Component Input from devices that support High
Definition signals such as a progressive scan DVD player, or a digital cable
or satellite set-top-box. This connector supports 480i, 480p, 720p, and
1080i format video signals.
F
Video and Audio
Connectors
• Connect composite video cable and left-right audio cables for one or two
devices such as a VCR, a DVD player, or a laser disc player.
• Connect S-video cable and left-right audio cables for one or two devices
such as a VCR, a DVD player, or a laser disc player.
• Connect cables for component video input.
• Connect the audio cables for a PC.
• Connect the audio cables for composite video and S-video.
• Connect audio left-right cables for the YPbPr input and the YCbCr input.
G
TV Antenna Cable In
Connect broadcasting (terrestrial) antenna or cable TV signal cable here.
H
RS232C
This terminal is used for service only.
I
AC in connector
Connect the included power cord.
Lower Video and Audio Connectors
Use these connectors to connect composite devices, S-video devices, component devices, audio
receivers, subwoofer out, TV video out, and audio out.
Upper Video and Audio Connectors
Use the green (Y2), blue (Cb2/Pb2), and red (Cr2/Pr2) inputs to connect the video cables from
devices that support High Definition signals such as a progressive scan DVD player, or a digital cable
or satellite set-top box. This connector supports 480i, 480p, 720p, and 1080i format video signals.
Use the audio inputs to connect the audio cables from the same component.
Introduction
11
DVI-D and VGA Connectors
Connect a digital video cable for digital input signals from a PC monitor
connector, or from a digital cable or satellite receiver set-top-box.
Connect an analog RBG-type cable for analog input signals from a PC
monitor connector. See your component user documentation for
information about the connector types it supports.
Power Switch
Turns the AC power on and off. This switch is on from the factory. When this main power switch is off,
the TV is fully unpowered; the power/standby indicator light on the front of the TV is off, and neither
the front panel power button nor the remote control can be used to turn on the TV. If you turn the main
power switch off, wait at least 5 seconds before turning it on again.
RF IN and RS232C Connectors
Connect broadcasting (terrestrial) antenna or cable TV signal cable to the
RF IN connector.
This RS232 terminal is used for service only.
12
Introduction
Setup
This section describes:
•
•
•
•
•
•
•
•
•
How to attach and connect the external speakers; see page 13.
How to identify your component cables, see page 14.
How to connect an antenna or cable TV input; see page 15.
How to connect a PC to the TV using the VGA or DVI-D connectors; see page 15.
How to connect a composite video source, such as a VCR; see page 16.
How to connect an S-video video source, such as a VCR or DVD; see page 16.
How to connect a component video source, such as a DVD; see page 17.
How to connect the HP Media Center PC (HP MCPC) and use the remote to operate the HP MCPC;
see page 17.
How to install or replace the batteries in the remote control; see page 18.
Attaching and Connecting External Speakers
External speakers are included with your TV and are not attached. Use the screws and attachment
brackets to attach the external speakers to the TV.
CAUTION: Unplug the TV and all connected components before attaching external
speakers. Use only speakers with 8-ohm impedance and a power input rating of
8 watts or more.
What you have
• Two speakers
• Four mounting brackets
• Twelve screws
What else you need
• Phillips head screw driver
• One more person to hold up the speaker while the other tightens the screws
1 Place two mounting brackets on each speaker, insert one screw in each bracket and tighten the
screw.
2 Align the 2 holes in each bracket with the holes on the back of the TV. Have one person hold the
speaker in place, while the other person inserts and tightens two screws for each bracket.
3 If necessary, strip the ends of the speaker cables to expose the wires.
Setup
13
4 Press down the tab for the speaker connector, insert the speaker wire and release the tab to secure
the wire:
•
•
•
•
Connect the right speaker red (positive +) wire to the right red (+) connector.
Connect the right speaker black (negative –) wire to right black (–) connector.
Connect the left speaker red (positive +) wire to the left red (+) connector.
Connect the left speaker black (negative –) wire to left black (–) connector.
Identifying Your Component’s Cables
Where you connect your component into the connectors depends on the type of component and
cables you are using. Your TV is compatible with composite, component, S-video, DVI-D, or VGA
cables. Use the following chart to determine your component type:
Type of
Component
Description of Cable(s)
Where to Connect
Composite
One three headed cable:
• Insert the yellow cable into the
• One yellow for video
• One red for audio
• One white for audio
yellow AV video in.
• Insert the red and white cables into
the red and white audio inputs.
S-video
One cable with 4 pins.
Insert the cable into the S-video in.
Component
Three or five headed cable:
• Insert the red cable into the red
• One red for Pr signal
• One green for Y signal
• One blue for Pb signal
Some component cables come with red and
white audio cables attached.
YPbPr video in.
• Insert the green cable into the
green YPbPr video in.
• Insert the blue cable into the blue
YPbPr video in.
• Insert the red and white audio
cables into the red and white
YPbPr audio inputs.
14
Setup
DVI-HDCP
One cable with 3 rows of 8 pins.
Insert the cable into the DVI video
input.
VGA
One cable with 3 rows of 5 pins.
Insert the cable into the VGA video
input.
Connecting an Antenna or Cable TV
Connecting an antenna/cable box/satellite dish
Use standard 75-ohm coaxial cable to connect a ground antenna or cable TV signal cable to the TV.
Use shielded coaxial cable to reduce radio frequency (RF) interference. To make this connection:
1 Turn off the TV.
2 Connect the antenna/cable TV coaxial cable/satellite dish to the RF connector on the back of
the TV.
3 Turn on the TV.
4 Select TV as the input source for the main TV picture by using the front panel buttons or the TV
remote control. Refer to “Selecting the input source” on page 21.
5 Perform the Channel Auto Search procedure; refer to “Setting up your channels” on page 20. This
procedure scans and identifies the available channels.
Connecting a HDTV Tuner to the TV
Use a standard DVI-D cable to connect a HDTV Tuner to the TV. To make this connection:
1 Turn off the TV and the HDTV Tuner.
2 Connect your indoor or outdoor antenna to the RF Input of your HDTV Tuner.
3 Connect one end of a DVI-D cable to the DVI Out HDTV Tuner connector, and the other end of the
cable to the DVI connector on the back of the TV.
4 Turn on the TV and the HDTV Tuner.
5 Select a Resolution setting on your HDTV tuner that gives you the best picture (1080i, 720p,
or 480p).
6 Select Digital RGB as the input source for the main TV picture by using the front panel buttons or the
TV remote control. Refer to “Selecting the input source” on page 21.
7 Perform the Channel Auto Search procedure; refer to “Setting up your channels” on page 20. This
procedure scans and identifies the available channels.
8 To set up the TV remote control to operate the HDTV Tuner, refer to “Programming the remote
control for component control” on page 33.
Connecting a PC to the TV using the VGA Connector
Use the VGA connector to view your PC on your TV.
To make these connections:
1 Turn off the TV and the PC or other equipment.
2 Connect one end of the VGA cable to the output connector on the PC or other equipment, and the
other end of the cable to the VGA connector on the back of the TV.
3 Turn on the TV and the PC or other equipment.
4 Select Analog RGB as the input source for the main TV picture by using the front panel buttons or
press the DVI/VGA button the TV remote control. Refer to “Selecting the input source” on page 21.
Setup
15
Connecting a PC or other equipment to the TV using the DVI Connector
You may connect the TV to a DVD player, digital set-top box, PC or other equipment with a DVI-D
cable. Use a DVI-D 29-pin signal cable when making connections to the DVI connector. Note that the
DVI terminal does not support analog RGB input.
NOTE: To maintain display quality, use a DVI-standard cable no longer than 5 meters (16.4 feet).
To make these connections:
1 Turn off the TV and the PC or other equipment.
2 Connect one end of the DVI cable to the output connector on the PC or other equipment, and the
other end of the cable to the DVI connector on the back of the TV.
3 Turn on the TV and the PC or equipment.
4 Select Digital RGB as the input source for the main TV picture by using the front panel buttons or
press the DVI/VGA button the TV remote control. Refer to “Selecting the input source” on page 21.
Connecting a Composite Video Source
Use the yellow, red, and white cables to connect your composite video source to the TV.
To make these connections:
1 Turn off the TV and the composite video source.
2 Connect one end of the yellow cable to the video output connector on the back of your composite
video source, and connect the other yellow end to the Video In on the back of the TV.
3 Connect the red and white audio cables from your composite video source to the Audio In on the
back of the TV. Be careful to keep the audio right and left channel connections correct for stereo
sound.
4 Turn on the TV and the composite video source. Insert media into the composite video source and
play it.
5 Select Composite Video 1 or Composite Video 2 as the input source for the main TV picture (so you
see the image playing from the composite video source) by using the front panel buttons or press
the AV button on the TV remote control. Refer to “Selecting the input source” on page 21.
6 To set up the TV remote control to operate the composite video source, refer to “Programming the
remote control for component control” on page 33.
Refer to your composite video source owner’s manual for information about your equipment’s video
output requirements.
Connecting an S-Video Source
Use S-video cable to connect your S-video source to the TV.
To make these connections:
1 Turn off the TV and the S-video source.
2 Connect one end of the S-video cable to the S-video output connector on the back of your S-video
source, and connect the other end to the S-video In on the back of the TV.
16
Setup
3 Connect the red and white audio cables from your video source to the Audio In on the back of the
TV. Be careful to keep the audio right and left channel connections correct for stereo sound.
4 Turn on the TV and the S-video source. Insert media into the S-video source and play it.
5 Select S-video as the input source for the main TV picture (so you see the image playing from the
S-video source) by using the front panel buttons or press the SV button on the TV remote control.
Refer to “Selecting the input source” on page 21.
6 To set up the TV remote control to operate the S-video source, refer to “Programming the remote
control for component control” on page 33.
Refer to your S-video source owner’s manual for information about your equipment’s video output
requirements.
Connecting a Component (YPbPr or YCbCr) Source
Use YPbPr cables to connect your component video source or other equipment to the component input
connectors (YPbPr or YCbCr) on the TV.
To make these connections:
1 Turn off the TV and the component input source equipment.
2 Connect one end of the red, green, and blue component cables to the YPbPr or YCbCr video output
connector on the component video source, and connect the other ends to the YPbPr or YCbCr
inputs on the back of the TV.
3 Connect the red and white audio cables from your video source to the Audio In on the back of the
TV. Be careful to keep the audio right and left channel connections correct for stereo sound.
4 Turn on the TV and the component video source. Insert media into the component video source and
play it.
5 Select YPbPr1, YPbPr2, or YCbCr as the input source for the main TV picture (so you see the image
playing from the component video source) by using the front panel buttons or press the YPbPr or
YCbCr button on the TV remote control. Refer to “Selecting the input source” on page 21.
6 To set up the TV remote control to operate the component video source, refer to “Programming the
remote control for component control” on page 33.
Refer to your component video source owner’s manual for information about your equipment’s video
output requirements.
Connecting the HP Media Center PC
You can connect the TV to an HP Media Center PC (HP MCPC) and use the special buttons on the
remote control associated with the HP MCPC.
Refer to your HP MCPC documentation to connect the TV to the HP MCPC as:
• A monitor using either a VGA cable or a DVI-D cable.
• A TV using the TV input source connectors for video (composite) inputs, S-video, or component
video inputs; see the appropriate procedure in this document.
Setup
17
Using the HP MCPC with the TV remote control
1 Turn on the TV and the HP MCPC.
2 Press the appropriate TV input source button on the TV remote control to display the image on the
main picture (refer to “Selecting the input source” on page 21):
• Choose the DVI/VGA button when you’ve connected the TV to the HP MCPC as a monitor using
the DVI-D or VGA connectors.
• Choose the AV button when you’ve connected the TV to the HP MCPC as a TV using the Video
or S-video inputs.
• Choose the YPbPr or YCbCr button when you’ve connected the TV to the HP MCPC as a TV
using the Component Video inputs.
3 Press HP.PC button on the remote control to select the HP MCPC as the controlled device.
Point the remote control at the HP MCPC remote control sensor and press the buttons you want to use.
The remote control buttons, such as the guide, channel, volume, and cursor buttons, function along
with the special HP MCPC buttons described in the table.
TV Remote Button
HP MCPC Button Function
YCbCr, YPbPr, AV, or DVI/VGA
Selects the TV input source for the main screen.
HP.PC
Selects the HP MCPC as the device controlled by the
remote control.
HP.MC
Start
Back (EXIT)
Back
Enter
OK
PIP Input
Record
Replay/Reverse
Replay
Skip/Forward
Skip
Installing or Replacing Remote Control Batteries
When the batteries are low, the red light on the remote control blinks twice when a button is pushed.
Insert two AA non-rechargeable batteries into the remote control ensuring that you place them with the
proper polarity.
1 Press and open the cover on the back of the remote control.
2 Insert the batteries into the remote control, and make sure that you match polarities.
3 Close the cover.
18
Setup
CAUTION: Use only the size and type of batteries specified.
Be sure to follow the correct polarity when installing the batteries as indicated in the
battery compartment. Reversed batteries may cause damage to the device.
Do not mix different types of batteries together (e.g. alkaline and carbon-zinc) or old
batteries with fresh ones.
When not using the remote for a long period of time, remove the batteries to prevent
damage or injury from possible battery leakage.
Do not try to recharge batteries that are not intended to be recharged; they can
overheat and rupture. (Follow the battery manufacturer’s directions for the batteries
you are using.)
Always remove batteries as soon as they become weak. Weak batteries can leak and
severely damage the unit.
The battery life depends on how much the remote control is used. Replace batteries
when remote control operation becomes erratic.
Do not take apart the batteries, heat them, or throw them into a fire.
Setup
19
Using the TV
Basic Operations
Turning on the TV
1 Plug the power cord into an active AC power outlet. The Power/standby indicator light on the front
panel flashes until the power is completely on; then the light is solid amber.
NOTE: The main power switch (on the back of the TV) is on from the factory. If the Power/standby
indicator light is off after you plug in the TV, the main power switch is off. To operate the main
power switch, reach around the left side of the front of panel, and press the button on.
If you turn the main power switch off, wait at least 5 seconds before turning it on again.
2 Press the Power button on the front panel or on the remote control to turn on the TV. The
Power/standby indicator light flashes until the power is completely on; then the light is solid blue.
Setting Up Your Channels
Use the Channel Auto Search feature to set up your channels. The Channel Auto Search scans
channels 1 to 125 and adds the channels that return a signal. Use the following steps to run the
Channel Auto Search:
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the last icon (Video Format) is highlighted.
3 Use the Down arrow button to highlight the TV Channel Setup function, and then
press the right arrow button to view the options.
4 Select Air or CATV as your input source.
5 Press the down arrow button once to highlight Channel Auto Search, and then press the right arrow
button to begin the search. Channels 1 to 125 are scanned and the channels that return a signal
are added to your channel list.
6 Press the EXIT button on your remote control to return to your TV display.
Adding and Deleting Channels
Use the Channel Edit feature to add and remove channels that fit your preference. Use the following
steps to add and remove channels:
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the last icon (Video Format) is highlighted.
3 Use the Down arrow button to highlight the TV Channel Setup, and then press the
right arrow button.
4 Press the Down arrow button until Channel Edit is highlighted.
5 Use the Left and Right arrow buttons to find a channel to add or erase, and then press the down
arrow button.
20
Using the TV
6 Use the Left or Right arrow buttons to highlight Add or Erase. Press the Enter button to add or erase
the current channel.
7 Press the EXIT button on your remote control to return to your TV display.
Turning off the TV
Press the Power button on the front panel or on the remote control to turn off the TV. The
Power/standby indicator light becomes amber. The TV is in standby.
If the TV is not used for an extended period of time, turn off the main power switch.
Selecting the input source
Select the input source for the main picture and the PIP using the front panel buttons or the remote
control buttons.
Using the remote control buttons
Press the TV button (below the remote control indicator light) to select the TV as the controlled home
entertainment device, and then press one of these input source buttons at the bottom of the remote
control:
DVI/VGA selects the input sources connected to the DVI or VGA (RGB) connectors.
YCbCr selects the input source connected to the Component Video Input (YCbCr).
YPbPr selects the input sources connected to the Component Video Inputs (YPbPr).
AV selects the input sources connected to the Composite Video Inputs.
SV selects the input source connected to the S-video Input.
CH (+) (–) selects the input from the TV antenna/cable in the RF connector.
Selecting the main picture input source using the front panel buttons
Press the Select button repeatedly until you see the desired input source.
Selecting the PIP input source using the remote control buttons
Press the TV button (below the remote control indicator light) to select the TV as the controlled home
entertainment device, press PIP Input to select the source for PIP.
Adjusting volume
1 Press and hold the VOL+ button (on the remote control or on the TV) to increase to the desired level.
2 Press and hold the VOL– button (on the remote control or on the TV) to decrease to the desired
level.
Muting sound
Press the Mute button on the remote control to cancel the sound; press it again to restore sound.
Using the TV
21
Using the sleep timer to turn off the TV
Press the Sleep button on the remote control to set the timer at 30 minutes. Press the button again until
you arrive at your desired turn-off time or Timer Off to cancel the timer.
The timer cannot be canceled after it starts.
Setting up the V-chip
The V-chip feature requires a password to be entered to view movies and TV programs with unsuitable
ratings for some viewers who share the TV. Follow these steps to lock movies and TV programs:
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the Video Format icon is highlighted.
3 Use the Down arrow button to highlight V-chip, and then press the Right arrow
button.
4 Enter 1, 1, 1, 1, 1, 1 as the default password to gain access.
5 Use the following table to set up your V-chip.
V-chip
Function
Options
TV Guidelines blocking
Blocks selected TV-rating
and all ratings below it.
TV-Y, TV-Y7, TV-G, TV-PG, TV-14-V,
TV-MA
MPAA Rating
Blocks selected MPAArating and all ratings
above it.
G, PG, PG-13, R, NC-17, X
Change Password
Number
Enter a new password.
V: Violence
S: Sexual content
L: Offensive language
D: Dialogue (sexual innuendo)
NOTE: If you forget the password, enter 1, 6, 8, 1, 6, 8 to erase the password.
22
Using the TV
Selecting the screen aspect
With this function you can select one of six screen sizes.
Press the Aspect button on the remote control, and if necessary press it again to select the desired
screen size.
Ratio
Full
Description
This image is expanded in the horizontal direction.
Use this mode for viewing wide screen movies from DVD players.
Fill Aspect Ratio
This image is expanded in the horizontal direction.
Use this mode for viewing wide screen movies from DVD players.
4:3 to 16:9
The image is expanded in the horizontal and the vertical directions,
maintaining the original proportions.
Use this mode to zoom in on the image.
LB to 16:9
The image is expanded in the horizontal and the vertical directions at
different ratios.
Use this mode to zoom in on the image.
LB to subtitles 16:9
The image is expanded in the horizontal and the vertical directions at
different ratios.
Use this mode to zoom in on the image.
One to One
Normal proportions.
Using the On Screen Display (OSD) Controls
Your LCD TV comes with a On Screen Display (OSD) menu. Use the remote control to navigate the
OSD menu. Press the MENU button to bring up the OSD menu. The two different modes for the OSD
are the following:
• PC Mode: Displays when the Analog RGB or Digital RGB input is selected.
• Audio/Video Mode: Displays when the TV, Composite 1, Composite 2, S-video, YCbCr,
YPbPr 1, or YPbPr 2 input is selected.
Using the TV
23
Depending on which mode you are displaying the following options appear on your OSD menu:
Icon
Menus
Function
Display
Adjusts the brightness, contrast,
horizontal position, vertical position,
phase and clock of your display.
Displays the video format, and
adjusts scaling and comb filter.
Audio
Adjusts the volume, treble, bass,
balance, and avanced of your sound.
Language and Color
Temperature
Adjusts the language and shades of
red, green and blue.
OSD Info
Sets the position, timeout, and
background of your OSD menu.
Video Format
Adjusts the screen format, and PIP
settings.
NOTE: Not all functions are included in each mode.
PC Mode
PC Mode Operation
1 Press the MENU button on the remote control to display the On Screen Display (OSD) menu.
2 Continue to press the MENU button to highlight each icon on the top row.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left or Right arrow buttons to either scroll through the options of a specific function or
change the setting.
5 Press the MENU button to highlight a different icon.
Or
Press the EXIT button to save your changes and return to the TV display.
24
Using the TV
Display
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the Display icon is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other Display settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
You can make the following adjustments to your Display:
Display
Function
Options
Reset
Puts all of your display settings back to their
default.
Brightness
Adjusts the darkness and lightness of the
display.
0 to 100
Contrast
Adjusts the color brightness of the display.
0 to 100
H - Position
Moves image to the left or right.
0 to 100
V - Position
Moves image up or down.
0 to 100
Phase
Video timing adjustment.
0 to 100
Clock
Moves image left and right.
0 to 100
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the Image icon is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other Image settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
You can make the following adjustments to your Image settings:
Function
Options
Auto Adjust
Automatically detects optimal video format.
Auto
Using the TV
25
Audio
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the Audio icon is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other Audio settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
You can make the following adjustments to your Audio:
Audio
Function
Options
Mute
Turns off the sound.
Enable or disable
Volume
Increases and decreases the level of sound.
0 to 100
Treble
Increases and decreases the level of treble.
0 to 100
Bass
Increases and decreases the level of bass.
0 to 100
Balance
Adjusts the left and right sound level.
0 to 50
Advanced
SRS WOW, BBE, Subwoofer
SRS WOW: On, Off
BBE: On, Off
Subwoofer: On, Off
Language and Color Temperature
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the Language and Color Temperature icon
is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other Language and Color Temperature settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
You can make the following adjustments to your Language and Color Temperature settings:
26
Language and Color
Temperature
Function
Options
Language
Set the language for the audio.
English, French, German,
Italian, Spanish, Portuguese,
Netherlands, Traditional Chinese,
Simplified Chinese, and Japanese
Color Temperature
Adjusts the level of the color temperature.
Cool, Neutral, Warm, User
Using the TV
OSD Information
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the OSD Information icon is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other OSD settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
You can make the following adjustments to your OSD settings:
OSD Information
Function
Options
OSD Position
Moves the OSD to different locations.
Nine different
locations.
OSD Timeout
Set the number of seconds for OSD to
remain displayed before disappearing
after final use.
10 to 255 seconds
OSD Background
Set the OSD background to either
opaque or transparent.
Opaque or
translucent
Move Screen Mode
Decreases chance of image retention.
Off, mode1, mode2
Move Screen Time
Adjusts the length of time screen move
activates.
5 ~ 255 seconds
System Reset
Sets OSD back to default settings.
Video Format
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the Video Format icon is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other Video Format settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
Using the TV
27
You can make the following adjustments to your Video Format:
Video Format
Function
Signal Format
Displays RGB signal
information.
PIP Set
Adjust the PIP size, source,
position, audio source, and
display.
Options
• Sets the size: off, small, medium, large.
• Select a Source: TV (varies according to video
sources connected).
• Position: Nine different positions.
• Audio Source: Select between the sound of
your main picture or PIP.
• PIP Display: Adjust the brightness, contrast
and saturation.
• Swap: Switches your main picture and PIP.
• V-chip: Blocks programs unsuitable for certain
viewers in the household.
Advanced
Adjusts the white pattern
and gamma.
Gamma: 0.8, 1.0, 1.2, or 1.4
DPMS
Display Power
Management Signal
On or Off
Audio/Video Mode
Audio/Video Operation
1 Press the MENU button on the remote control to display the following On Screen Display (OSD)
menu items: Display, AV System, Audio, Language and Color Temperature, OSD Info, and Video
Format. (Press the EXIT key to return one level back in the OSD menu.)
2 Press the MENU button to highlight each icon on the top row.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left or Right arrow buttons to either scroll through the options of a specific function or
change the setting.
5 Press the MENU button to highlight a different icon.
Or
Press the EXIT button to save your changes and return to the TV display.
28
Using the TV
Display
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the Display icon is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other Display settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
You can make the following adjustments to your Display:
Display
Function
Options
Reset
Puts all of your display settings back to
their default.
Brightness
Adjusts the darkness and lightness of the
display.
0 to 100
Contrast
Adjusts the color brightness of the
display.
0 to 100
Saturation
Adjusts the level of color.
0 to 100
Hue
Adjusts the color properties.
0 to 100
Sharpness
Adjusts the clarity of images.
0 to 100
Picture Mode (not
available with YPbPr1
and 2)
Select a preset customized picture
setting.
• Standard
• Movie
• Dynamic
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the Image icon is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other Image settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
Using the TV
29
You can make the following adjustments to your Image settings:
Function
Options
Scaling
Six different screen sizes.
• Full
• Fill Aspect Ratio
• 4:3 to 16:9
• LB to 16:9
• LB subtitles to 16:9
• One to one
Video Format
Automatically detects video
format.
Auto
Audio
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the Audio icon is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other Audio settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
You can make the following adjustments to your Audio:
30
Audio
Function
Options
Mute
Turns off the sound.
Enable or disable
Volume
Increases and decreases the level of
sound.
0 to 100
Treble
Increases and decreases the level of
treble.
0 to 100
Bass
Increases and decreases the level of
bass.
0 to 100
Balance
Adjusts the left and right sound level.
0 to 50
Advanced
Turns SRS WOW, BBE, Subwoofer on
and off.
SRS WOW: On, Off
BBE: On, Off
Subwoofer: On, Off
Using the TV
Language and Color Temperature
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the Language and Color Temperature icon
is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other Language and Color Temperature settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
You can make the following adjustments to your Language and Color Temperature settings:
Language and Color
Temperature
Function
Options
Language
Set the language for the audio.
English, French, German, Italian,
Spanish, Portuguese, Netherlands,
Traditional Chinese, Simplified
Chinese, and Japanese
Color Temperature
Adjusts the level of the color temperature.
Cool, Neutral, Warm, User
OSD Information
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the OSD Information icon is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other OSD settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
You can make the following adjustments to your OSD settings:
OSD Information
Function
Options
OSD Position
Moves the OSD to different locations.
Nine different locations.
OSD Timeout
Set the number of seconds for OSD to remain
displayed before disappearing after final use.
10 to 255 seconds
OSD Background
Set the OSD background to either opaque or
transparent.
Opaque or translucent
Move Screen Mode
Decreases chance of image retention.
Off, mode1, mode2
Move Screen Time
Adjusts the length of time screen move activates.
5 ~ 255 seconds
System Reset
Sets OSD back to default settings.
Using the TV
31
Video Format
1 Press the MENU button on the remote control to bring up the OSD menu.
2 Continue to press the MENU button until the Video Format icon is highlighted.
3 Use the Up and Down arrow buttons to highlight a function.
4 Press the Left and Right arrow buttons to change a setting.
5 Press the Up and Down arrow buttons to select other Video Format settings.
Or
Press the MENU button to highlight a different icon.
6 Press the EXIT button to save your changes and return to the TV display.
You can make the following adjustments to your Video Format:
Video Format
Function
Signal Format
Displays video signal information.
Options
Advanced
Adjusts the white pattern and gamma.
Gamma: 0.8, 1.0, 1.2, or 1.4
PIP Set
Adjust the PIP size, source, position,
audio source, and display.
• Sets the size: off, small, medium,
large.
• Select a Source: TV (varies
according to video sources
connected).
• Position: Nine different positions.
• Audio Source: Select between the
sound of your main picture or PIP.
• PIP Display: Adjust the brightness,
contrast and saturation.
• Swap: Switches your main picture
and PIP.
V-chip
Requires a password to be entered to
view movies and TV programs with
unsuitable ratings for some viewers who
share the TV.
See “Setting up the V-chip” on
page 22.
Closed Caption
Displays text.
• CC1
• CC2
• TT1
• TT2
• CC background transparent black
TV Channel Setup
Choose a TV source, performs an
automatic channel search, add and
delete channels.
TV Source: TV or CATV
Channel Auto Search: Scans channels
1 to 125 for a signal. See “Setting Up
Your Channels” on page 20.
Add or erase channel: Customize your
channel list. See “Adding and Deleting
Channels” on page 20.
32
Using the TV
Using the Remote Control
The remote control operates the TV, your cable or satellite set-top-box, your DVD/VCR, and your
HP Media Center PC (HP PC). Refer to “Identifying the Remote Control buttons” on page 8 for
information on the remote control buttons.
NOTE: Use the remote control within a distance of 16.4 feet (5 meters) from the front of the TV remote
control sensor window and at the maximum horizontal and vertical angles of 30°.
To use the remote control:
1 Press the TV, CBL/SAT, DVD/VCR, or HP.PC button to select the home entertainment component
(TV, set-top-box, DVD/VCR, or HP MCPC) to control.
2 Aim the remote control at the remote control sensor of the selected home entertainment component,
and then press the button you want to use.
Programming the remote control for component control
Programming the component code
1 Turn on the TV. Turn on the cable or satellite set-top-box, VCR, or DVD and, if applicable, insert
media (a cassette or a disc).
NOTE: Please read steps 2 through 4 completely before proceeding. We recommend highlighting
or writing down the codes and device you wish to program before performing step 2.
2 On the remote control, press CBL/SAT button or DVD/VCR button once. Press and hold SETUP until
the red light blinks twice, then release SETUP.
3 Use the Manufacturer’s Codes (see listing that follows) to locate the type of component by brand
name and then enter the first four-digit code for your component. If performed correctly, the red
light blinks twice.
NOTE: If the red light did not blink twice, then repeat steps 2 and 3, entering the code again.
4 Aim the remote control at the component and press PWR once. The component should turn off. If it
does not respond, repeat steps 2 and 3, trying each code for your brand until you find one that
works. If it still does not work, try searching for the code; see “Searching for the component code“
on page 34.
NOTE: If the device does not have a power button, press PLAY.
5 Repeat steps 1 through 4 for each component you want to control with the remote control.
Using the TV
33
Searching for the component code
If your device does not respond to the remote control after trying all codes listed for your brand, or if
your brand is not listed at all, try searching for your code:
1 On the remote control, press CBL/SAT button or DVD/VCR button once.
2 Press and hold SETUP until the red light blinks twice, then release SETUP.
3 Press the number buttons 9, 9,1. The red light blinks twice.
4 Aim the remote control at the set-top-box or the VCR or DVD and slowly alternate between pressing
PWR and the component (CBL/SAT or DVD/VCR) button. Stop when the component turns off.
NOTE: In the search mode, the remote control sends codes from its library to the selected device,
starting with the most popular code first.
5 Press SETUP once to lock in the code.
Checking the component code
If you have set up the remote control to use a component, you may need to find out which four-digit
code is operating your component equipment:
1 On the remote control, press CBL/SAT or DVD/VCR once.
2 Press and hold SETUP until the red light blinks twice, then release SETUP.
3 Press the number buttons 9, 9,1. The red light blinks twice.
4 For the first digit of the code, press the number button 1 once. Wait 3 seconds, and then count the
number of times the red light blinks and write down the number.
NOTE: When you count three blinks, it means the code digit is 3. When a code digit is 0, the red
light will not blink.
5 Repeat step 4 for the three remaining digits of the code, pressing 2 for the second digit, 3 for the
third digit, and 4 for the fourth digit.
Reassigning component buttons
The remote control can be set up to control a second TV or VCR, or any combination of eight home
entertainment components.
For example, to control a TV, a Cable Converter, and two VCRs, you need to re-assign a component
button to operate the second VCR as follows:
1 On the remote control, press and hold SETUP until the red light blinks twice, then release SETUP.
2 Press the number buttons 9, 9,1. The red light blinks twice.
3 Press DVD/VCR once, then press CBL/SAT once.
4 The CBL/SAT button is now ready to be programmed for your second VCR. See “Programming the
component code“ on page 33.
34
Using the TV
To re-assign other device keys, repeat steps 1 through 4 by substituting the key sequence from the
following table for the most popular components:
To assign
Use this sequence
TV as 2nd DVD/VCR button
SETUP - 9 - 9 - 2 — DVD/VCR - TV
TV as 2nd CBL/SAT button
SETUP - 9 - 9 - 2 — CBL/SAT - TV
TV back to TV
SETUP - 9 - 9 - 2 — TV - TV
VCR as 2nd CBL/SAT button
SETUP - 9 - 9 - 2 — CBL/SAT - VCR
VCR back to VCR
SETUP - 9 - 9 - 2 — VCR - VCR
CBL/SAT as 2nd VCR button
SETUP - 9 - 9 - 2 — VCR - CBL/SAT
CBL/SAT back to CBL/SAT
SETUP - 9 - 9 - 2 — CBL/SAT - CBL/SAT
When a re-assignment is done, the red light blinks twice to confirm your choice. Then, you need to
program the remote control to control the new component; see “Programming the component code“
on page 33.
Changing volume lock
The remote control is set to control volume of a component through your TV while in the TV, DVD/VCR,
or CBL/SAT mode. However, in the HP.PC mode you have separate control of the volume.
If you want the volume to be controlled by a different component than the TV, you can change the
Volume Lock setting to control volume through a non-associated mode (e.g., through the cable in the
TV mode).
To change volume lock to another mode:
1 On the remote control, press and hold SETUP until the red light blinks twice, then release SETUP.
2 Press the number buttons 9, 9, 3, and then press any mode key once (except TV). The red light will
blink twice.
3 Now, whenever you press VOL+, VOL–, or MUTE, volume is controlled by your component mode
choice.
To change volume lock back to the TV mode:
1 On the remote control, press and hold SETUP until the red light blinks twice, then release SETUP.
2 Press the number buttons 9, 9, 3, and then press TV. The red light blinks twice.
3 Now, whenever you press VOL+, VOL–, or MUTE on the remote control, volume is controlled by
your TV.
Using the TV
35
Troubleshooting the remote control programming
Problem
Solution
Red light does not blink when you press a key.
Replace the batteries with two (2) new AA nonrechargeable batteries.
Red light blinks when you press a key, but
home entertainment component does not
respond.
Make sure the remote control is aimed at your home
entertainment component and is not farther than
15 feet away.
Remote control does not control home
entertainment components or commands are
not working properly.
Try all listed codes for the component brands being set up.
Make sure they can be operated with an infrared remote
control.
No volume on a 2nd TV.
Follow instructions in “Changing Volume Lock.”
CH+, CH–, and CH.RTN do not work for your
RCA TV.
Due to RCA design (1983-1987), only the original remote
control will operate these functions.
Changing channels does not work properly.
If original remote control required pressing ENTER to
change channels, press ENTER on the Remote control after
entering the channel number.
Tried “Search Method” and still could not find
a working code.
Try the “Search Method” again after clearing out the
component button as follows: Press and hold SETUP until
red light blinks twice, then release. Next enter 9 - 9 - 2.
Then press and release the component button to be cleared
twice.
Manufacturer’s codes
36
Manufacturer
Codes for VCR
Admiral
0048
Adventura
0000
Aiko
0278
Aiwa
0037, 0000
Akai
0041
American High
0035
Asha
0240
Audiovox
0037
Beaumark
0240
Bell & Howell
0104
Broksonic
0184, 0121, 0209, 0002
CCE
0072, 0278
Calix
0037
Canon
0035
Carver
0081
Cineral
0278
Citizen
0037, 0278
Colt
0072
Using the TV
Manufacturer
Codes for VCR
Craig
0037, 0047, 0240, 0072, 0271
Curtis Mathes
0060, 0035, 0041, 0162
Cybernex
0240
Daewoo
0045, 0278
Denon
0042
Dynatech
0000
Electrohome
0037
Electrophonic
0037
Emerex
0032
Emerson
0037, 0184, 0000, 0121, 0043, 0209, 0002, 0278
Fisher
0047, 0104
Fuji
0035, 0033
Funai
0000
GE
0060, 0035, 0048, 0240
Garrard
0000
Go Video
0526
GoldStar
0037, 0038
Gradiente
0000
HI-Q
0047
Harley Davidson
0000
Harman/Kardon
0081, 0038
Harwood
0072
Headquarter
0046
Hitachi
0000, 0042, 0041
JVC
0067, 0041
Jensen
0041
KEC
0037, 0278
KLH
0072
Kenwood
0067, 0041, 0038, 0046
Kodak
0035, 0037
LXI
0037
Lloyd’s
0000
Logik
0072
MEI
0035
MGA
0240, 0043
MGN Technology
0240
MTC
0240, 0000
Using the TV
37
38
Manufacturer
Codes for VCR
Magnasonic
0278
Magnavox
0035, 0039, 0081, 0000, 0149
Magnin
0240
Marantz
0035, 0081, 0038
Marta
0037
Matsushita
0035, 0162, 0454
Memorex
0035, 0037, 0048, 0039, 0047, 0240, 0000, 0104, 0046, 1162, 1262
Minolta
0042
Mitsubishi
0048, 0067, 0043
Motorola
0035, 0048
Multitech
0000, 0072
NAP
0035, 0037, 0039, 0042, 0033
NEC
0104, 0067, 0041, 0038
Nikko
0037
Noblex
0240
Olympus
0035
Optimus
0037, 0048, 0104, 0162, 0454, 1062, 1162, 1262
Orion
0184, 0002
Panasonic
0035, 0162, 0225, 0454, 1162
Penney
0035, 0037, 0240, 0042, 0038
Pentax
0042
Philco
0035, 0209
Philips
0035, 0081
Pilot
0037
Pioneer
0067
Profitronic
0240
Proscan
0060
Protec
0072
Pulsar
0039
Quarter
0046
Quartz
0046
Quasar
0035, 0162, 0454, 1162
RCA
0060, 0035, 0048, 0240, 0042, 0149
Radio Shack
0000
Radix
0037
Randex
0037
Realistic
0035, 0037, 0048, 0047, 0000, 0104, 0046
Using the TV
Manufacturer
Codes for VCR
Runco
0039
STS
0042
Samsung
0240, 0045
Sanky
0048, 0039
Sansui
0000, 0067, 0041, 0271
Sanyo
0047, 0240, 0104, 0046
Scott
0184, 0045, 0121, 0043
Sears
0035, 0037, 0047, 0000, 0042, 0104, 0046
Semp
0045
Sharp
0048
Shintom
0072
Shogun
0240
Signature
0035
Singer
0072
Sony
0035, 0032, 0000, 0033
Sylvania
0035, 0081, 0000, 0043
Symphonic
0000
TMK
0240
Tatung
0041
Teac
0000, 0041
Technics
0060, 0035, 0039, 0162
Teknika
0035, 0037, 0000
Thomas
0000
Toshiba
0045, 0043
Totevision
0037, 0240
Unitech
0240
Vector
0045
Vector Research
0038
Video Concepts
0045
Videosonic
0240
Wards
0060, 0035, 0048, 0047, 0081, 0240, 0045, 0000, 0042, 0072, 0149
White
Westinghouse
0278
XR-1000
0035, 0000, 0072
Yamaha
0041, 0038
Zenith
0039, 0000, 0033
Using the TV
39
40
Manufacturer
Codes for cable converter box
ABC
0003, 0008, 0014, 0017, 0007, 0011, 0013
Allegro
0153, 0315
Archer
0153, 0797
Bell & Howell
0014
Century
0153
Citizen
0153, 0315
Comtronics
0040
Contec
0019
Eastern
0002
Emerson
0797
Everquest
0015, 0040
Focus
0400
Garrard
0153
Gemini
0015
General Instrument
0476, 0276, 0011, 0810
GoldStar
0144, 0040
Goodmind
0797
Hamlin
0020, 0259, 0009, 0034
Hitachi
0011
Hytex
0007
Jasco
0015, 0153, 0315
Jerrold
0003, 0012, 0476, 0276, 0014, 0015, 0011, 0810
Magnavox
0014
Memorex
0000
Movie Time
0063
NAP
0007
NSC
0063
Oak
0019, 0007
Optimus
0021
Panasonic
0000, 0107, 0021
Paragon
0000
Philips
0153
Pioneer
0144, 0533
Popular Mechanics
0400
Proscan
0021
Pulsar
0000
Quasar
0000
Using the TV
Manufacturer
Codes for cable converter box
RCA
0021
Radio Shack
0015, 0315, 0797, 0883
Recoton
0400
Regal
0020, 0259
Regency
0002
Rembrandt
0011
Runco
0000
SL Marx
0040
Samsung
0144, 0040
Scientific Atlanta
0008, 0477, 0017, 0877
Signal
0015, 0040
Signature
0011
Sprucer
0021
Starcom
0003, 0015
Stargate
0015, 0040, 0797
Starquest
0015
TV86
0063
Teleview
0040
Tocom
0012, 0013
Toshiba
0000
Tusa
0015
Unika
0153
United Artists
0007
Universal
0153, 0191
Viewstar
0063
Zenith
0008, 0000, 0015, 0525
Zentek
0400
Using the TV
41
42
Manufacturer
Codes for satellite or DBS receivers
AlphaStar
0772
Echostar
0775
Expressvu
0775
General Instrument
0627, 0361, 0869
HTS
0775
Hitachi
0819
Hughes Net. Sys.
0749
JVC
0775
Jerrold
0627, 0361
Magnavox
0724, 0722
Memorex
0724
Next Level
0869
Panasonic
0701
Philips
0724, 0722
Primestar
0627, 0361
Proscan
0566
RCA
0566, 0143, 0855
Radio Shack
0566, 0869
Sony
0639
Star Choice
0869
Toshiba
0790
Uniden
0724, 0722
Zenith
0856
Using the TV
Manufacturer
Codes for DVD players
Harman/Kardon
0582
JVC
0558
Kenwood
0534
Magnavox
0503
Mitsubishi
0521
Onkyo
0503
Optimus
0525
Panasonic
0490
Philips
0503, 0539
Pioneer
0525, 0571
Proscan
0522
RCA
0522
Samsung
0573
Sony
0533
Technics
0490
Theta Digital
0571
Toshiba
0503
Yamaha
0490, 0545
Zenith
0503, 0591
Using the TV
43
Troubleshooting
If the picture quality is poor or you are experiencing another type of problem, check the adjustments
and operations before requesting service. See the symptoms listed below, and try the checks and
remedies.
Symptom
Remedy
There is no picture or sound.
• Make sure the power cord is properly inserted in the power
outlet.
• Make sure the main power switch of the unit is on.
• Make sure another electronic device such as a lamp works
in the power outlet.
There is no picture from AV.
• Make sure the brightness and contrast levels are properly
adjusted.
• The backlight may have reached the end of its service.
• Make sure all the connections are connected properly.
There is a picture, but no sound.
• Make sure the volume is not set to minimum.
• Make sure the sound is not set to mute.
• Make sure the speakers are properly connected.
There is no picture or sound, just
noise.
• The reception may be weak.
The picture is not clear.
• The reception may be weak.
• The state of the broadcast may also be bad.
• The state of the broadcast may also be bad.
• Make sure the antenna or cable is not disconnected.
• Make sure the antenna or cable is not disconnected.
The picture is light or improperly
tinted.
• Check the color adjustments.
The picture is too dark.
• Adjust the brightness setting in the OSD.
• Check the color system settings.
• The backlight may have reached the end of its service life.
The remote control does not work.
• Check the batteries. Replace them if they are old.
• Make sure the remote control is within operating range.
• Check that there are no obstacles between the remote
control and the sensor window on the display.
The picture is not sharp.
• The reception may be weak.
• The state of the broadcast may also be bad.
• Make sure the antenna or cable is not disconnected.
The picture moves.
• The reception may be weak.
• The state of the broadcast may also be bad.
• Make sure the antenna or cable is not disconnected.
• Screen move feature in the OSD may be turned on.
44
Troubleshooting
Symptom
Remedy
The picture is doubled or tripled.
• Make sure the antenna is facing the right direction.
• There may be reflected electric waves from mountains or
buildings.
The picture is spotted.
• There may be interference from automobiles, trains, highvoltage lines, or neon lights.
• There may be interference between the antenna cable and
the power cable. Try positioning them further apart.
There are stripes on the screen or
colors fade.
• Check that the display is not receiving interference from
other devices.
• Transmission antennas of radio broadcasting stations and of
amateur radio and cellular phones may also cause
interference.
• Use the units as far as possible from other devices that may
be causing interference.
Troubleshooting
45
Specifications
General Specifications
46
Model
HP PL4245N 42" Plasma HDTV
Plasma Panel Size
42 inch (Diagonal)
Pixel Resolution
1024 X 768 pixels
Display Color
16.7 millions of colors (R/G/B each 256 scales)
Comb Filter
3D Digital Comb Filter for more accurate color
processing on TV and Composite Video
Brightness
1000 Cd/m2 (without filter)
Contrast Ratio
3000:1
Viewing Angle
Over 160 degrees horizontal and vertical
Audio Function
External speakers with 10 watts per channel
Picture in Picture
Second sub screen to show different input source
simultaneously
Zoom and Freeze function
Enlarge, minimize, or freeze the image
Screen Aspect Ratio Control
16:9 Widescreen
HDTV Signal Compatible
Accepts HDTV signals up to 1080i when using
external DTV receiver
OSD Language
English
Diagonal Screen Size
29.6 inches
Viewable Image Area
42 inches
Screen Opening (W x H) (mm)
946(W) x 546(H) mm
Anti-reflective coating
Yes
Specifications
TV Tuner Specifications
TV Tuner
Built-in NTSC TV Tuner with Picture-in-Picture viewing
capability (second source required)
Tuning Options
• Auto channel finder
• Intelligent tuning system
Channel Coverage
• VHF 2 ~ 13
• UHF 14 ~ 69
• CATV 1 ~ 125
Antenna
75 Ohm External
Cable Tuning System
Standard, AIR
Closed Caption
Yes (TV only)
MTS Sound Processing
Stereo, mono, SAP
V-chip
Password protect viewing according to age and
content rating, TV rating, and MPAA rating
HDTV Supported Inputs
Component Input (YpvPr) and DVI:
1080i/720p/480p/480i
Sound Modes
Standard, SRS WOW, BBE, Subwoofer
Audio Power
10W x 2
Audio
Speakers
Removable
MTS/SAP
Yes — Stereo, mono, SAP
Audio Out
1(RCA Pair)
Audio Controls
Bass/Treble/Volume/Balance/Mute
Controls
Universal Remote Control
Programmable universal remote controls TV and three
additional devices, including HP Media Center PCs
Front Controls
Input Selection, Menu, Channel Up and Down,
Volume Up and Down, Power
Specifications
47
Connectors
Antenna input (75 Ohm F connector)
1
High Definition Component Input (Y, Pb, Pr)
2 set
Composite Video Input (AV)
2 set
S-Video Input
1
PC Input (RGB-VGA)
1
DVI-HDCP Interface
1
HDCP Support
Yes
A/V Audio Inputs
2 set
PC Audio Input
1 set
Component Audio Input
2 set
TV Video Out
1 set
Audio Out — RCA Pair
1
Subwoofer Audio Output
1
RS-232 (for service)
1
Power Supply Specifications
Power Supply
Auto-ranging, 90 to 265 V; internal power supply,
47.5 ~ 63 Hz
Power Input
AV 100 V ~ 220 V
Frequency
50 Hz ~ 60Hz
Power Consumption
400 Watts (average)
Nominal Current
3.8A
Power Saving Mode
<5W
Off Mode
<3W (switch off)
Power Cable Length
70 inches
Dimensions and Weight Specifications
48
Dimension
49.7"(W) x 28.9"(H) x 11.7"(D) with stand
Weight
75 lbs. (without stand)
Display Size
36.3"(W) x 20.4"(H)
Aspect Ratio
16:9
Specifications
Timing Mode Factory Settings
There are total of 17 default timing modes in factory setting listed in the table below:
Factory Setting Modes (RGB)
Number
Resolution
Horizontal
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Dot Frequency
Clock (MHz)
Remark
1
640×480
31.469
59.940
25.175
VGA
2
640×480
37.500
75.000
31.500
VESA
3
640×480
37.861
72.809
31.500
VESA
4
640×480
43.300
85.000
36.000
VESA
5
720×400
31.469
70.087
28.322
VGA
6
800×600
35.162
56.300
40.000
VESA
7
800×600
37.879
60.317
40.000
VESA
8
800×600
46.875
75.000
49.500
VESA
9
800×600
48.077
72.188
50.000
VESA
10
800×600
53.700
85.000
56.300
VESA
11
1024×768
48.363
60.004
65.000
VESA
12
1024×768
56.476
70.069
75.000
VESA
13
1024×768
60.024
75.000
78.750
VESA
14
1024×768
68.700
85.000
94.500
VESA
15
1280×720
45.106
60.142
76.500
VESA
16
1280™960
60.000
60.000
108.000
VESA
17
1280×1024
63.980
60.018
107.997
VESA
• When the input signal exceeds the unit’s allowable range, a “Signal out of range” message is
•
displayed.
Refer to the Video Information menu in the OSD to ensure the correct format of the input signal.
Specifications
49
Agency Regulatory Notice
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
•
connected.
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that
are not expressly approved by Hewlett-Packard Company may void the authority to operate the
equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods
in order to maintain compliance with FCC Rules and Regulations.
50
Agency Regulatory Notice
Declaration of Conformity for products marked with the FCC logo —
United States only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
For questions regarding your product, contact:
Hewlett-Packard Company
