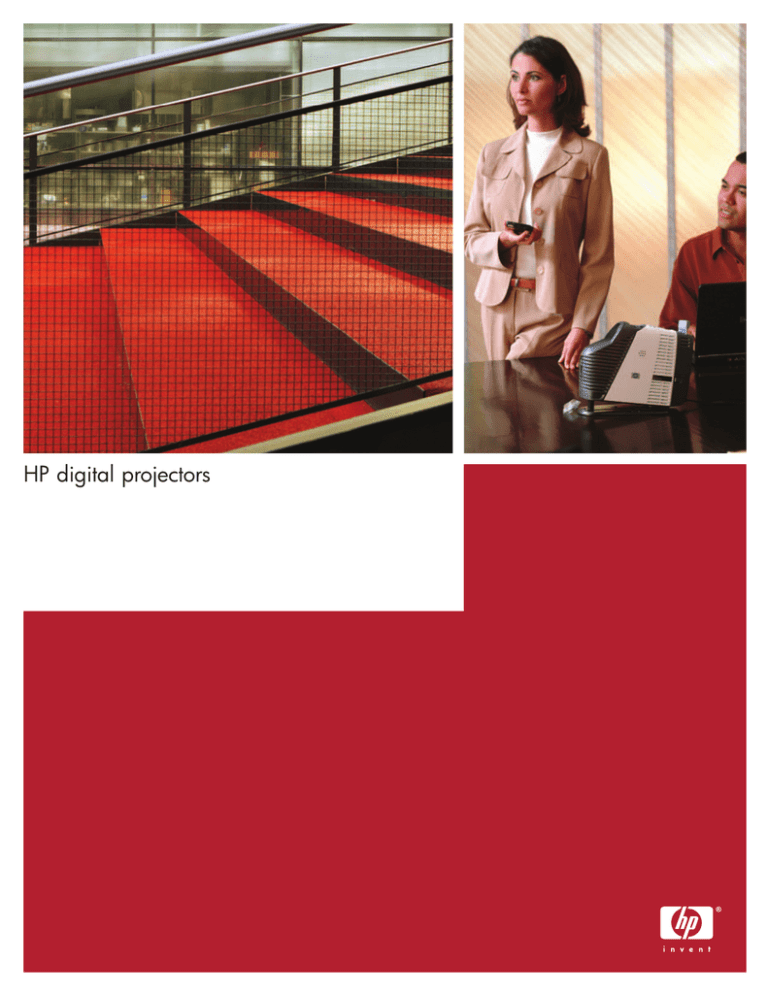

HP digital projectors
If your presentation looks good,
you look good.
HP digital projectors are perfect for professionals who
present in conference or training rooms onsite or on the
road—to small audiences or large.
• Color by HP—What you see on your laptop is what you see projected on the screen—accurate in all light conditions. Versatile portable for your
classroom or training room
From your home to the classroom or board room, these
versatile projectors are loaded with features to keep your
audience’s attention.
• Texas Instrument’s Digital Light ProcessingTM (DLPTM) technology provides superb image quality year in and year out.
• Up to 2000 ANSI lumens of lighting intensity for images bright enough to be effective even in rooms with the lights on. • Legendary HP reliability and total care support—
24/7 support seven days a week means you get the
help you need when you need it, where you need it.
• Versatile connections supporting multiple inputs plus VGA pass-through, RS-232 and DVI for mixed use environments.
Mobile projectors for the road
From small, lightweight, value priced models to deluxe
executive models with wireless and network connectivity,
HP’s mobile line is ready to present whenever and
wherever you are.
• Up to 2000 ANSI lumens of lighting power
• Super lightweight micro-portables—as light as 2.4 pounds and small enough to slip into the pocket of your carry-on. • Advanced features like automatic keystone correction,
image optimization and unique tower design to set
you apart from your competition.
• Present without a wired connection via a LAN,
or even without a laptop from a memory device.
HP provides this flexibility for those on the go. • Image optimization enables impressive business graphics and stunning video colors from the same projector at the touch of a button. Powerful installed models
for professional environments
From large classrooms to board rooms, these powerful
projectors offer features not available from anyone
but HP.
• Up to 3100 ANSI lumens (3750 in greyscale)
of brightness for large screens and large audiences.
• The industry’s only dual color wheel technology for
unmatchable theater color or super bright business
graphics and a black and white mode for specialty
applications like medical and satellite imaging.
• Easily interfaced to all major room control suppliers
and multiple lens options to work in any environment.
• IT friendly network manageability and HP presenter
to go software for easy presenting from the network,
wirelessly or wired, or from a memory device—
as easy as it is from a VGA cable.
HP mp2210 Mobile Digital Projector
Product number: L1799A
HP mp3135
Digital Projector
Product number: L1797A
Brightness: 1500 ANSI (max) lumens
Brightness: 1800 ANSI (max) lumens
Resolution: XGA (102 x 768) with VGA to SXGA scaling
Resolution: 1024 x 768 True XGA
Image contrast: 2200:1
Image contrast: 2000:1 full on/full off
Lamplife (normal/economy) 3000/4000 hrs
Lamplife (normal/economy) 2000 hrs/4000 hrs
Weight: 2.4 lb
Weight: 3.8 lb
Projected image size: 31 to 348 in
Projected image size: 25 to 295 in
Throw distance: 5 to 46 ft
Throw distance: 3.3 to 29.4 ft
Display technology: Single-panel 0.7-in 12º DDR DMD
Scalable resolution: VGA to UXGA, Mac
Display technology: Single-panel 0.7-in 12 in DDR DMD
XGA projection system (TI DPLTM)
Projector lens: F/2.4–2.6, optical throw, manual focus
Scalable resolution:: SXGA+/SXGA/XGA/SVGA/VGA
Keystone correction: ±40ºV, ±17ºH
Projector lens: Optical intelligent zoom lens with manual
focus and 1.2x manual zoom (F/2.44-269, f=28.8–34.5mm)
Noise level (normal/economy): 37 dBA/35dBA
Video compatibility: Full-screen NTSC/PAL/SECAM/HDTV
(480i/P, 576i/P, 720p, 1080i)
Lamp source: 156-watt
Audio: None
Signal interface: Two VGA with two .5 mm stereo mini jacks;
YPbPr RCA jack (component) with pair audio RCA jacks;
video RCA jack (composite) with pair audio RCA jacks;
S-video with pair audio RCA jacks, BNC plugs (R-G-B-H-V)
with pair audio RCA jacks; wired remote in; RS-232 port;
RJ-45 LAN port
Resizing of images to full screen: Automatic
Detection of computer signal input: Automatic
Image synchronization: Automatic
Remote control: Deluxe IR wireless, USB mouse, laser pointer
Mounting capability: Tripod and table top
Environmental humidity: 0 to 80% RH
Dimensions (l x w x h): 8.2 x 6.6 x 2.5 in
Warranty: 3-year express exchange
What’s in the box: HP mp2210 Digital Projector,
10 ft power cord, VGA cable carrying case, wireless remote
control with mouse function, cord case, USB cable, warranty
card, users guide on CD, quick set-up card
Keystone correction: ±30ºV, ±12ºH
Noise level (normal/economy): 37 dBA/35dBA
Video compatibility: Full-screen NTSC/PAL/SECAM/HDTV
(480i/P, 576i/P, 720p, 1080i)
Light source: 180-watt compact P-VIP projector bulb
Audio: Mono sound via 2-watt internal speaker
Signal interface: One 35-pin VESA M1-AD for analog
RGB/digital/component video/HDTV/USB; 1 RCA jack for
composite video input; 1 mini-DIN 4-pin for S-video input;
one 3.5 mm phone jack for audio input
Resizing of images to full screen: auto-image resizing to
1024 x 768 screen
Detection of computer signal input: Automatic
Image synchronization: Automatic
Remote control: Wireless remote control with USB mouse
function and laser pointer
Mounting capability: Ceiling, tripod and table top
(with optional accessories)
Environmental humidity: 20 to 80% RH
Dimensions (l x w x h): 2.9 x 9 x 7.8 in
Warranty: 1-year limited hardware warranty
What’s in the box: HP mp3135 digital projector; lens
cap;10-ft power cable; M1-AD to USB/VGA cable;
S-video cable; component cable; audio cable; remote
control; remote control battery; carry case; documentation
kit, including Quick Setup Card, CD-ROM with User’s
Guide, Important Safety Information booklet, Worldwide
Limited Warranty and Technical Support booklet,
Worldwide Telephone Numbers booklet and Program
License Agreement.
HP mp3135W
Digital Projector
Product number: L1805A
HP mp3220 Digital Projector
Product number: L1675A
Brightness: 1800 ANSI (max) lumens
Brightness: 2000 ANSI (max) lumens
Resolution:1024 x 768 True XGA
Resolution: 1024 x 768 True XGA
Image contrast: 2,000:1 full on/full off
Image contrast: 2000:1 full on/full off
Lamplife (normal/economy): 2000/4000 hrs
Lamplife (normal/economy): 2000 hr/3000 hrs
Weight: 4.0 lb
Weight: 3.8 lb
Projected image size: 25 to 295 in
Projected image size: 24.4 to 292.5 in
Throw distance: 3.3 to 29.4 ft
Throw distance: 3.3 to 29.4 ft
Display technology: Single-panel 0.7-in 12 in DDR DMD
XGA projection system (TI DPLTM)
Display technology: Single-panel 0.7 in 12° DDR DMD XGA
projection system (TI DLPTM)
Scalable Resolution: SXGA+/SXGA/XGA/SVGA/VGA
Scalable Resolution: Native XGA/VGA/UXGA
Projector lens: Optical intelligent zoom lens with manual
focus and 1.2x manual zoom (F/2.44~269, f=28.8~34.5 mm)
Keystone correction: +/- 16° (32° total)
Keystone correction: ±30ºV, ±12ºH
Noise level (normal/economy): 37 dBA/35dBA
Noise level (normal/economy): 37 dBA/35dBA
Video compatibility: Full-screen NTSC/PAL/SECAM/HDTV
Video compatibility: S-video, composite, component,
HDTV (up to 1080i)
(480i/P, 576i/P, 720p, 1080i)
Light source: 200-watt compact P-VIP projector bulb
Light source: 180-watt compact P-VIP projector bulb
Audio: 1 watt, mono internal speaker
Audio: Mono sound via 2-watt internal speaker
Signal interface: Computer input (VGA terminal), composite
video input (RCA jack), S-video inputs (Min Din 4 pin),
audio input (3.5 mm phone jack), USB input,
component/HDTV via L1713A adapter cable
Signal interface: One 35-pin VESA M1-AD for analog
RGB/digital/component video/HDTV/USB; 1 RCA jack for
composite video input; 1 mini-DIN 4-pin for S-video input;
one 3.5 mm phone jack for audio input
Resizing of images to full screen: auto-image resizing to
1024 x 768 screen
Detection of computer signal input: Automatic
Image synchronization: Automatic
Projector lens: F/2.4–2.65
Resizing of images to full screen: Automatic
Detection of computer signal input: Automatic
Image synchronization: Automatic
Remote control: With power, page up/down, mouse, menu,
sync, and source buttons
Remote control: Wireless remote control with USB mouse
function and laser pointer
Mounting capability: Ceiling, tripod, and table top
Mounting capability: Ceiling, tripod and table top
(with optional accessories)
Dimensions (l x w x h): 2.77 x 9.88 x 8.27 in
Environmental humidity: 20 to 80% RH
What’s in the box: HP mp3220 digital projector,10-ft power
cable, VGA cable, USB cable, remote control, remote control
battery, carry case, documentation kit, including Quick Setup
Card, CD-ROM with User’s Guide, Important Safety
Information booklet, Worldwide Limited Warranty and
Technical Support booklet, Worldwide Telephone Numbers
booklet, Program License Agreement
Dimensions (l x w x h): 2.9 x 9 x 7.8 in
Warranty: 1-year limited hardware warranty
What’s in the box: HP digital mp3135W projector; lens
cap; 10-ft power cable; M1-AD to USB/VGA cable; S-video
cable; component cable; audio cable; remote control;
remote control battery; carry case; documentation kit,
including Quick Setup Card, CD-ROM with User’s Guide,
Important Safety Information booklet, Worldwide Limited
Warranty and Technical Support booklet, Worldwide
Telephone Numbers booklet and Program License
Agreement. (HP mp3135W digital projector includes the
SAM and an 802.11b CompactFlash wireless card.)
Environmental humidity: 80% RH
Warranty: 2-year standard unit warranty
HP vp6310 series Digital Projector
HP vp6320 series Digital Projector
Product number:
L1686A – 1-year warranty, projector & lamp
L2314A – 2-year warranty, projector & lamp
L2315A – 3-year warranty, projector & lamp
Product number:
L1687A – 1-year warranty, projector & lamp
L2317A – 2-year warranty, projector & lamp
L2318A – 3-year warranty, projector & lamp
Brightness: 1600 ANSI (max) lumens
Brightness: 2000 ANSI (max) lumens
Resolution: True SVGA (800 x 600)
Resolution: True XGA (1024 x 768)
Image contrast: 2,000:1 full on/full off
Image contrast: 2,500:1 full on/full off
Lamplife (normal): 4000 hr
Lamplife (normal): 4000 hr
Weight: 7.7 lb
Weight: 7.7 lb
Projected image size: 3 to 33 ft
Projected image size: 3 to 33 in
Throw distance: 1.7 to 2.0 ft
Throw distance: 1.8 to 2.1 ft
Display technology: Texas Instruments DLPTM
Display technology: Texas Instruments DLPTM
Scalable resolution: SXGA+, SXGA, XGA, SVGA, VGA,
MAC
Scalable resolution: SXGA+, SXGA, XGA, SVGA, VGA,
MAC
Projector lens: f/2.4~2.6, f=24.3~29.2 mm; optical zoom,
manual focus
Projector lens: f/2.4~2.6, f=24.3~29.2 mm; optical zoom,
manual focus
Keystone correction: Vertical, ±20%
Keystone correction: Vertical, ±20%
Noise level (normal/economy): 34 dBA
Noise level (normal/economy): 34 dBA
Video compatibility: NTSC 3.58 MHz and 4.43 MHz; PAL
B, D, G, H, I, M, N; SECAM B,D, G, K, K1, L; HDTV
(480i/p, 575i/p, 720p, 1080i); PC video up to SXGA
Video compatibility: NTSC 3.58 MHz and 4.43 MHz;
PAL B, D, G, H, I, M, N; SECAM B, D, G, K, K1, L;
HDTV (480i/p, 575i/p, 720p, 1080i); DVI with HDCP;
PC video up to SXGA
Light source: 210-watt lamp; lamp saver mode reduces lamp
power to 168 watts
Audio: Monaural speaker, 6-watt peak output
Signal interface: Input: VGA, RCA jack (composite),
S-video, audio RCA jack Output: USB (mouse control),
VGA pass through
Resizing of images to full screen: Automatic
Light source: 210-watt lamp; lamp saver mode reduces lamp
power to 168 watts
Audio: Monaural speaker, 6-watt peak output
Signal interface: Input: VGA, RCA jack (composite),
S-video, audio RCA jack Output: USB (mouse control),
VGA pass through, DVI-D, RS-232, 12-Vdc
Detection of computer signal input: Automatic
Resizing of images to full screen: Automatic
Image synchronization: Automatic
Detection of computer signal input: Automatic
Remote control: Wireless remote controller with USB mouse
function
Image synchronization: Automatic
Mounting capability: Ceiling and tabletop, front and rear
projection
Remote control: Wireless remote controller with USB mouse
function
Environmental humidity: 0 to 80% RH
Mounting capability: Ceiling and tabletop, front and rear
projection
Dimensions (l x w x h): 11.6 x 10.7 x 4.4 in.
Environmental humidity: 0 to 80% RH
Warranty: 1, 2, or 3-year warranty for projector & lamp
Dimensions (l x w x h): 11.6 x 10.7 x 4.4 in.
What’s in the box: HP vp6310 digital projector, 3-conductor
10 ft power cord, 1.8-meter USB cable, 1.8-meter VGA
cable, wireless remote control with mouse function and
batteries, multi-language User’s Guide (CD-ROM),
multilanguage Quick Start Card, warranty card
Warranty: 1, 2, or 3-year warranty for projector & lamp
What’s in the box: HP vp6320 digital projector, 3-conductor
10 ft power cord, 1.8-meter USB cable, 1.8-meter VGA
cable, wireless remote control with mouse function and
batteries, multi-language User’s Guide (CD-ROM),
multilanguage Quick Start Card, warranty card
Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation
© 2005 Hewlett-Packard Development Company, L.P. The information contained herein is subject to
change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting
an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
5981-3199ENUC, October 2005
