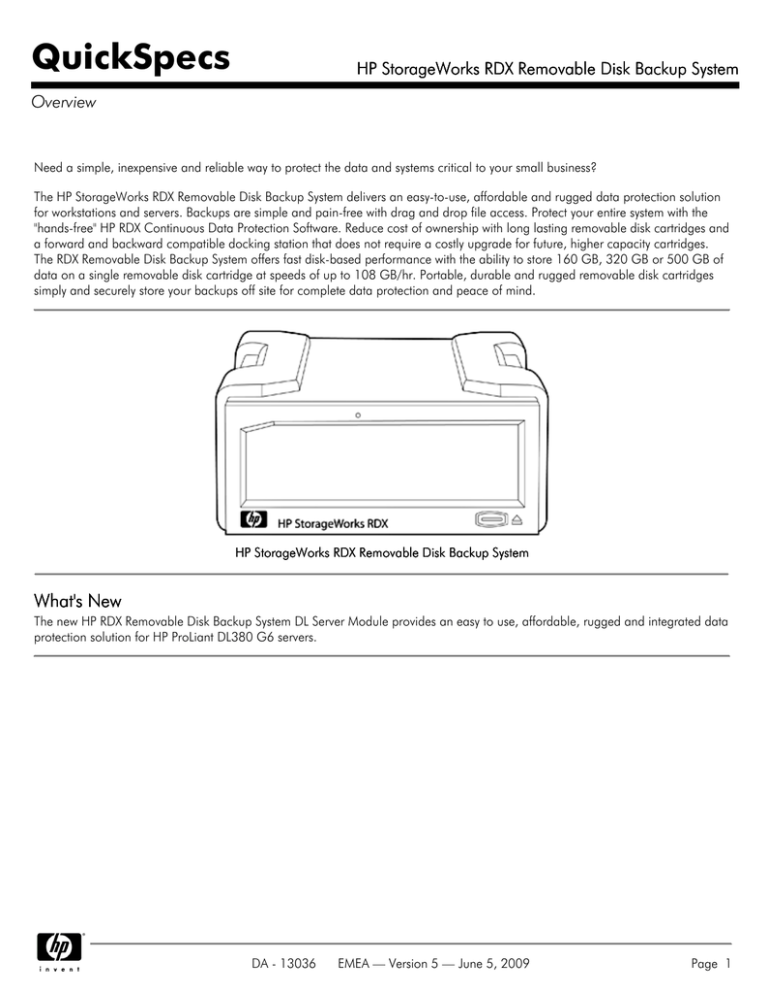

QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Overview
Need a simple, inexpensive and reliable way to protect the data and systems critical to your small business?
The HP StorageWorks RDX Removable Disk Backup System delivers an easy-to-use, affordable and rugged data protection solution
for workstations and servers. Backups are simple and pain-free with drag and drop file access. Protect your entire system with the
"hands-free" HP RDX Continuous Data Protection Software. Reduce cost of ownership with long lasting removable disk cartridges and
a forward and backward compatible docking station that does not require a costly upgrade for future, higher capacity cartridges.
The RDX Removable Disk Backup System offers fast disk-based performance with the ability to store 160 GB, 320 GB or 500 GB of
data on a single removable disk cartridge at speeds of up to 108 GB/hr. Portable, durable and rugged removable disk cartridges
simply and securely store your backups off site for complete data protection and peace of mind.
HP StorageWorks RDX Removable Disk Backup System
What's New
The new HP RDX Removable Disk Backup System DL Server Module provides an easy to use, affordable, rugged and integrated data
protection solution for HP ProLiant DL380 G6 servers.
DA - 13036
EMEA — Version 5 — June 5, 2009
Page 1
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Overview
Models
HP StorageWorks RDX160 Internal Removable Disk Backup System
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
HP StorageWorks RDX160 External Removable Disk Backup System
HP StorageWorks RDX320 Internal Removable Disk Backup System
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
HP StorageWorks RDX320 External Removable Disk Backup System
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
HP StorageWorks RDX500 External Removable Disk Backup System
AJ765A
HP StorageWorks RDX160 Removable Disk Backup System DL Server Module
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
HP StorageWorks RDX320 Removable Disk Backup System DL Server Module
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
HP StorageWorks RDX500 Removable Disk Backup System DL Server Module
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
AP724A
DA - 13036
EMEA — Version 5 — June 5, 2009
AJ766A
AJ767A
AJ768A
AJ934A
AJ935A
AP725A
AP726A
Page 2
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Features and Benefits
Key Features
Drag and drop file backup and restore
"Hands free" HP RDX Continuous Data Protection Software
Up to 108 GB/hour* transfer rate (uncompressed data) - * Where 1KB = 1,000 Bytes
Fast disk based random access file retrieval
Choice of 160 GB, 320 GB or 500 GB capacity removable disk cartridges (interchangeable in any HP RDX docking station)
Compatibility with leading ISV backup software applications
Disk cartridges designed for long usage life - over 5,000 load/unload insertions
Compatible with future higher capacity cartridges and mobile 2.5 inch Hard Disk Drive technology roadmap
Portable, durable and shock proof cartridges (can withstand drop of 1 meter)
Easy to install (USB 2.0 plug and play) and compact (Half-height 5.25-inch form-factor) internal or external docking station
for removable cartridges
Choice of half-height external, internal or rack-mount models to fit both servers and workstations
HP RDX Removable Disk Backup System DL Server Module provides integrated data protection inside HP ProLiant DL380 G6
rack-optimized servers.
Broad compatibility with a wide range of servers and operating systems
Supporting tools -- HP StorageWorks LT&T available as a download with the drive to make installation, performance tuning
and trouble-shooting even easier
Customer Benefits
The simple way to protect
your business data
Reduces total cost of
protecting your business
data
Simply and securely store
backups off-site for
complete data protection
Drag and drop file access makes backup as easy and convenient as the click of a mouse
Protect your entire system with "hands free" HP RDX Continuous Data Protection Software
Less time spent on backups with fast disk based file transfer/retrieval performance
Flexibility to meet budget and capacity requirements with choice of cartridge capacities
Usage model fits traditional backup architecture (e.g. ISV software) if required
Long usage life span of cartridges lowers media replacement costs
No need to replace docking station when future higher capacity cartridges are available
Portable/durable disk cartridges enable easy off site archiving and disaster recovery
Rugged cartridge protects data from drops, ESD and harsh environmental conditions for secure
archiving/transportation/archiving
Plug and play USB dock allows flexible media rotation and easy future scalability
DA - 13036
EMEA — Version 5 — June 5, 2009
Page 3
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Product Highlights
Product Highlights
Combines the best of
tape and disk
The HP RDX Removable Disk Backup System is based on removable disk technology that handles and
operates like a traditional tape drive and media, yet has all of the advantages of disk-to-disk backup.
The HP RDX Removable Disk Backup System allows backups to be accomplished with "hands free" HP
RDX Continuous Data Protection Software, standard ISV backup applications or data can be dragged
and dropped directly to the rugged removable storage media. To the host computer, the HP RDX
Removable Disk Cartridge appears as a Windows drive letter with the high performance benefits of a
disk based backup system.
Easy to implement and
use
Many small business customers have limited time, knowledge, experience or desire to dedicate to
backup and therefore currently have no or very rudimentary backup processes in place. The HP RDX
Removable Disk Backup System offers these customers a complete backup solution that is simple to
implement and easy to use.
Installation is an easy and quick process of connecting the industry standard form factor HP RDX
Removable Disk Backup System USB docking station either internally to a server or rack-mount kit or
externally as a tabletop. The new HP StorageWorks RDX Removable Disk Backup System DL Server
Module provides integrated data protection for HP ProLiant DL380 G6 servers,
optimizing rack utilization by integrating into any HP ProLiant DL380 G6 rack-optimized server.
Backing up is a simple matter of inserting a removable disk cartridge into the docking station. The
cartridge will automatically show up as a letter drive in Windows explorer with no extra formatting or
extra steps required. Simply select the files that need to be protected and drag them into the removable
drive folder. To restore files, just reverse the process.
For a hands free backup experience use the HP RDX Continuous Data Protection Software designed for
ease of use and complete workstation and server backup protection. Key features of the HP RDX
Continuous Data Protection Software include continuous data protection, file deduplication, bare metal
restore, seamless cartridge rotation and archiving support, simple file recovery, complete backup
coverage (unlimited file versions, open files, application data user settings and the complete operating
system are all automatically backed up), and comprehensive backup status updates. Scheduled backups
can be performed through support for standard ISV backup applications.
Fast backup and restore
Staff productivity and thus customer service can be negatively impacted by the lengthening backup
window and restore/recovery times associated with optical backup solutions. The HP RDX Removable
Disk Backup System provides a backup solution that backs up and retrieves data quickly and reliably
thus optimizing application availability and staff productivity.
Data can be backed up to HP RDX Removable Disk Cartridges at hard drive speeds (up to 108
GB/hour). HP RDX Removable Disk Cartridges are randomly accessed and read so critical single files
and selected file stores can be restored in seconds instead of hours.
DA - 13036
EMEA — Version 5 — June 5, 2009
Page 4
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Product Highlights
Affordable cost of
ownership
Many small business customers have limited IT budget available for data protection with business owners
wanting to reduce IT capital and operational expenditure and protect IT investments to optimize business
profitability. The HP RDX Removable Disk Backup System provides a complete backup solution that has
low initial acquisition costs and low on-going media and upgrade costs.
Total cost of ownership is lowered by the fact that HP RDX Removable Disk Cartridges are specified for
5,000 insertion/removal cycles, so HP RDX Removable Disk Cartridges will not wear out (and therefore
need to be replaced) over the typical life cycle of the solution. Upgrade and obsolescence costs are also
reduced and investment protection guaranteed by the fact that HP RDX Removable Disk Backup System
docking stations are compatible with all current and future higher capacity HP RDX Removable Disk
Cartridges. Customers will not need to purchase a new docking station when next generation higher
capacity HP RDX Removable Disk Cartridges are released. Similarly, today's HP RDX Removable Disk
Cartridges are compatible with all current and future HP RDX docking stations. Customer's existing HP
RDX Removable Disk Cartridges will work with next generation HP RDX docking stations when they are
released.
Removability and
portability
To ensure complete data protection against all types of data loss - including on-site system/site
destruction or natural disaster - small businesses need the ability to remove their backup and archive
data off-site. The HP RDX Removable Disk Backup System provides a backup solution that enables onsite backup data to be removed, stored and rotated off-site in an easy, safe and secure way.
HP RDX Removable Disk Cartridges are portable (palm size), durable (2.5 inch disk drive features
include ramp loading heads, fluid dynamic bearings, inactive state spin down) and rugged (designed
and proven to withstand a 3 feet (one meter drop) onto concrete). The robust HP RDX Removable Disk
Cartridge is also designed to protect data from potentially damaging Electrostatic Discharge (ESD) and
as well as prolonged exposure to heat, dust and other environmental contaminants.
Reliability
The HP RDX Removable Disk Backup System provides a docking station specified for more than 10,000
load and unloads and an HP RDX cartridge specified for over 5,000 load and unloads and long life
expectancy.
Easy scalability and
expandability
Many growing small businesses are experiencing storage capacity growth that is outstripping the
capacity/performance of current optical backup solutions. The HP RDX Removable Disk Backup System
provides a backup solution that scales easily as capacity needs grow. Adding capacity is a simple matter
of adding cartridges to an existing HP RDX Removable Disk Backup System USB docking station. The HP
RDX Removable Disk Backup System docking Station will work with all current as well future higher
capacity cartridges as they are introduced. The product's roadmap leverages the industry standard
mobile 2.5" hard disk drive roadmaps with new higher capacity cartridges expected to be introduced
regularly.
DA - 13036
EMEA — Version 5 — June 5, 2009
Page 5
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Compatibility
Compatibility
The HP extensive compatibility testing program assures that your HP StorageWorks RDX Removable Disk
Backup System works with leading servers, operating systems, and backup applications. For the latest list
of servers, workstations, operating systems, and backup software that support the HP RDX Removable
Disk Backup System, check the HP RDX Removable Disk Backup System compatibility pages on our web
site at: http://www.hp.com/go/connect.
HP Server and
The HP StorageWorks RDX Removable Disk Backup System is compatible with HP ProLiant servers and
Workstation Compatibility HP workstations. HP StorageWorks RDX Removable Disk Backup System is supported on the following
classes of HP systems:
HP ProLiant DL servers
including the HP ProLiant DL380 G6 servers
HP ProLiant ML servers
HP Personal Workstations
For details of which HP RDX Removable Disk Backup System models work with which systems, including
third-party systems, visit: http://www.hp.com/go/connect for the latest hardware compatibility
information.
NOTE: HP recommends that no more than one HP RDX Removable Disk Backup System be connected
to a system at a time.
OS Support
Microsoft® Windows®, Linux (various distributions)
NOTE: Please visit: http://www.hp.com/go/connect for the latest compatibility information.
Backup Software Support HP RDX Continuous Data Protection Software, HP Data Protector Express, CA BrightStor ARCServe
Backup, Symantec Backup Exec, and other backup applications that support removable disk media
NOTE: Please visit: http://www.hp.com/go/connect for the latest compatibility information.
DA - 13036
EMEA — Version 5 — June 5, 2009
Page 6
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Service and Support, HP Care Pack, and Warranty Information
HP Care Pack Services
HP Care Pack Services offer upgraded service levels to extend and expand your standard product
warranty with easy to buy, easy to use support packages that help you make the most of your hardware
and software investments. They let you choose the support levels that meet your business requirements.
They help you contain total cost of ownership.
HP Care Pack warranty extensions can be purchased along with HP products to cost-effectively upgrade
or extend your warranty. For many products, post-warranty HP Care Pack Services are available when
your original warranty has expired.
Why purchase an HP Care Pack service?
Your standard warranty protects against product defects. HP Care Pack Services help you guard against
unplanned downtime, which can reduce your productivity and profitability. These convenient service
packages:
Protect your investment in HP products
Provide consistent, predictable levels of support across your entire department or business
Ease budget planning with fixed-cost support that includes parts
Give you direct access to proven technical and problem-solving expertise
Deliver prompt, measurable results
Are available whenever and wherever you do business
HP Care Pack availability may vary by country and product.
Warranty and Services
Hewlett-Packard provides a 1-year, next-day, parts exchange, limited warranty for the HP StorageWorks
Included with the Product RDX Removable Disk Backup System, plus 9x5 phone support for the duration of the warranty.
HP warrants only that the StorageWorks software media will be free of physical defects for a period of
ninety (90) days from delivery.
For more information about HP's Global Limited Warranty and Technical Support, visit:
ftp://ftp.compaq.com/pub/products/storageworks/warranty/en_321708-008.pdf
Recommended
Services
In order to increase ROI and product uptime, and reduce the cost of ownership, Hewlett Packard
recommends:
3 year Next Business Day Parts Exchange
Guards against downtime, which reduces productivity and profitability
Eases budget planning with fixed-cost support that includes parts and labor
Direct access to proven technical and problem-solving expertise
DA - 13036
EMEA — Version 5 — June 5, 2009
Page 7
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Service and Support, HP Care Pack, and Warranty Information
Available HP Care
Pack Services
Extend your product warranty on the HP StorageWorks RDX Removable Disk Backup System with a costsaving support package.
HP Care Pack Services are sold by HP and HP authorized enterprise and commercial resellers. Services
for customers purchasing via direct and enterprise resellers are quoted using HP order configuration
tools. Additional information about HP Care Pack Service features and benefits is available at:
http://www.hp.com/hps/carepack/services/.
Key for HP Care Pack Service availability in the table below:
E = Service available for customers purchasing direct and via enterprise resellers
C = Service available for customers purchasing via commercial resellers
N/A = Service not applicable
HP Care Pack Services
Deployment and Per Event Services
HP Installation
HP Installation & Startup
HP Implementation
Service Available
N/A
N/A
N/A
For more information about Deployment and Per Event Services for HP Storage, visit:
http://www.hp.com/hps/storage/.
HP Care Pack Services
Availability Services
HP Next Business Day Hardware Support
1 yr
3 yr
4 yr
5 yr
N/A
E/C
N/A
N/A
* Both Proactive 24 & Critical Service relate only to 'reactive elements'. 'Proactive elements' are available
on a time & materials basis. (SW is supported separately per package.)
To find HP Care Pack Services available via HP authorized commercial resellers, visit:
http://h30125.www3.hp.com/csn/salesmktg/elfpack/elf_nonlkup_ctrylang.asp?code=elnl
HP Care Pack Service
Product Numbers
Enterprise & Commercial Purchased Care Packs
('A' stands for physical Care Pack, 'E' for electronic Care Pack)
Product Description
DA - 13036
Product Number
EMEA — Version 5 — June 5, 2009
Support Band
Page 8
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Service and Support, HP Care Pack, and Warranty Information
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit: http://www.hp.com/support
HP Education Services
For more information about HP Education Services for Storage and SAN, visit:
http://education.hp.com/curr-storsan.html
Additional Services
Information
For more information about Deployment, Per Event, Consulting and Education services for HP Storage,
visit: http://www.hp.com/hps/storage/
For more information about HP Care Pack services for storage products, visit:
http://www.hp.com/hps/carepack/storage/cp_networked.html
For more information about HP storage software, services and updates, visit:
http://h18006.www1.hp.com/storage/software.html
If you have specific questions, contact your local HP representative. Contact information for a
representative in your area can be found at "Contact HP" http://www.hp.com/
DA - 13036
EMEA — Version 5 — June 5, 2009
Page 9
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Kit Contents
Kit Contents
Model Name
HP RDX160 Internal
Removable Disk Backup
System
Kit Contents Description
RDX Internal Docking Station, installation poster, HP StorageWorks CD (containing
electronic user's guide and drivers), internal USB cable, HP RDX 160 GB Removable
Disk Cartridge, HP RDX Continuous Data Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
HP RDX160 External
Removable Disk Backup
System
RDX External Docking Station, installation poster, HP StorageWorks CD (containing
electronic user's guide and drivers), external USB cable, power cord/supply, HP RDX
160 GB Removable Disk Cartridge, HP RDX Continuous Data Protection Software CD
AJ766A
HP RDX320 Internal
Removable Disk Backup
System
RDX Internal Docking Station, installation poster, HP StorageWorks CD (containing
electronic user's guide and drivers), internal USB cable, HP RDX 320 GB Removable
Disk Cartridge, HP RDX Continuous Data Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
AJ767A
HP RDX320 External
Removable Disk Backup
System
RDX External Docking Station, installation poster, HP StorageWorks CD (containing
electronic user's guide and drivers), external USB cable, power cord/supply, HP RDX
320 GB Removable Disk Cartridge, HP RDX Continuous Data Protection Software CD
AJ768A
HP RDX500 Internal
Removable Disk Backup
System
RDX Internal Docking Station, installation poster, HP StorageWorks CD (containing
electronic user's guide and drivers), internal USB cable, HP RDX 500 GB Removable
Disk Cartridge, HP RDX Continuous Data Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
AJ934A
HP RDX500 External
Removable Disk Backup
System
RDX External Docking Station, installation poster, HP StorageWorks CD (containing
electronic user's guide and drivers), external USB cable, power cord/supply, HP RDX
500 GB Removable Disk Cartridge, HP RDX Continuous Data Protection Software CD
AJ935A
HP RDX160 DL Server
Module
HP RDX Removable Disk Backup System DL Server Module, installation poster/flyer,
HP StorageWorks CD (containing electronic user's guide and drivers), internal USB
cable, power cable, HP RDX 160 GB Removable Disk Cartridge, HP RDX Continuous
Data Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
AP724A
HP RDX320 DL Server
Module
HP RDX Removable Disk Backup System DL Server Module, installation poster/flyer,
HP StorageWorks CD (containing electronic user's guide and drivers), internal USB
cable, power cable, HP RDX 320 GB Removable Disk Cartridge, HP RDX Continuous
Data Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
AP725A
DA - 13036
EMEA — Version 5 — June 5, 2009
Part Number
AJ765A
Page 10
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Kit Contents
HP RDX500 DL Server
Module
RDX Removable Disk Backup System DL Server Module, installation poster/flyer, HP
StorageWorks CD (containing electronic user's guide and drivers), internal USB cable,
power cable, HP RDX 500 GB Removable Disk Cartridge, HP RDX Continuous Data
Protection Software CD
NOTE: 0D1 will appear after this part number on your sales order if factory
integration is indicated.
AP726A
Media
HP 160 GB RDX Removable Disk Cartridge
HP 320 GB RDX Removable Disk Cartridge
HP 500 GB RDX Removable Disk Cartridge
Q2040A
Q2041A
Q2042A
Rack-Mount Options
HP StorageWorks 1U USB Rack-Mount Kit
NOTE: 1U USB Rack-Mount Kit holds up to two internal HP RDX Removable Disk
Backup Systems
NOTE: Please refer to the following web page for further information:
http://h18006.www1.hp.com/products/storageworks/1urackmount/index.html
A8007A
DA - 13036
EMEA — Version 5 — June 5, 2009
Page 11
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Technical Specifications
HP RDX 160
Dimensions
Form Factor
Half-height, 5¼ in
(internal module)
Physical (HxWxD)
Internal Dock
Physical (HxWxD)
External Dock
Physical (HxWxD)
Removable Disk
Cartridge
Shipping (HxWxD)
Internal/External
Shipping (HxWxD)
Removable Disk
Cartridge
Weight
Orientation
Half-height, 5¼
inches (internal
module)
1.63 x 5.78 x 6.72 1.63 x 5.78 x 6.72
in
in
(4.14 x 14.68 x
(4.14 x 14.68 x
17.07 cm)
17.07 cm)
2.04 x 4.32 x 7.00
in (incl bezel)
(5.18 x 10.98 x
17.75 cm
(incl.bezel))
0.92 x 3.39 x 4.68
in
(2.34 x 8.66 x 11.9
cm)
8.07 x 7.87 x
15.75 in
(20.5 x 20.0 x 40
cm)
3.35 x 5.32 x 7.99
in
(8.50 x 13.5 x 20.3
cm)
Out of box, Internal 1.40 lb (635 g)
Dock
1.19 Ib (540 g)
Out of box,
External Dock
0.38 lb (173 g)
Out of box,
Removable Disk
Cartridge
3.37 lb (1.53 kg)
Shipping, Internal
Dock Shipping
3.5 lb (1.59 kg)
External Dock
0.76 lb (345 g)
Shipping,
Removable Disk
Cartridge
Internal Dock
External Dock
Capacity
Native
HP RDX 320
2.04 x 4.32 x 7.00
in (incl bezel)
(5.18 x 10.98 x
17.75 cm
(incl.bezel))
0.92 x 3.39 x 4.68
in
(2.34 x 8.66 x 11.9
cm)
8.07 x 7.87 x
15.75 in
(20.5 x 20.0 x 40
cm)
3.35 x 5.32 x 7.99
in
(8.50 x 13.5 x 20.3
cm)
HP RDX 500
HP RDX DL380 G6
server module
Half-height, 5¼ in Module with Half(internal module)
height, 5¼ inch
internal RDX drive
1.63 x 5.78 x 6.72 3.36 x 7.00 x 6.72
in
in
(4.14 x 14.68 x
(8.535 x 17.791 x
17.07 cm)
17.072 cm)
2.04 x 4.32 x 7.00
N/A
in (incl bezel)
(5.18 x 10.98 x
17.75 cm
(incl.bezel))
0.92 x 3.39 x 4.68 0.92 x 3.39 x 4.68
in
in
(2.34 x 8.66 x 11.9 (2.34 x 8.66 x 11.9
cm)
cm)
8.07 x 7.87 x
TBD
15.75 in
(20.5 x 20.0 x 40
cm)
3.35 x 5.32 x 7.99 3.35 x 5.32 x 7.99
in
in
(8.50 x 13.5 x 20.3 (8.50 x 13.5 x 20.3
cm)
cm)
1.40 lb (635 g)
1.40 lb (635 g)
3.29 lb (1494 g)
1.19 Ib (540 g)
1.19 Ib (540 g)
N/A
0.38 lb (173 g)
0.41 lb (188 g)
0.38 lb (173 g)/
0.41 lb (188 g)
3.37 lb (1.53 kg)
3.45 lb (1.57 kg)
TBD
3.5 lb (1.59 kg)
0.77 lb (349 g)
3.58 lb (1.63 kg)
0.81 lb (367 g)
N/A
0.77 lb (349 g)/
0.81 lb (382 g)
Horizontal +/- 90
degrees
Horizontal +/- 90
degrees
Horizontal +/- 90
degrees
Horizontal +/- 90
degrees
Horizontal +/- 90
degrees
Horizontal +/- 90
degrees
Horizontal +/- 90
degrees
N/A
160 GB
320 GB
500 GB
Choice of 160 GB,
320 GB or 500 GB
DA - 13036
EMEA — Version 5 — June 5, 2009
Page 12
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Technical Specifications
Performance
Reliability
Media
Compatibility
Interface
Power Specifications
Compressed
320 GB
(assumes 2:1
application based
data compression)
Average sustained 30 MBs
transfer rate, native
Average sustained 60 MBs
transfer rate,
compressed
(assumes 2:1
application based
data compression)
640 GB
1 TB
Choice of 320 GB,
640 GB or 1 TB
30 MBs
30 MBs
30 MBs
60 MBs
60 MBs
60 MBs
Burst transfer
rate(USB)
Data access time
Supported file
systems
MTBF (Dock)
480 MBs
480 MBs
480 MBs
480 MBs
15 milliseconds
FAT32, NTFS, ext2,
ext3
550,000 hours
@100% duty cycle
500,000 hours
1 error per 1014
bits read
10,000 (minimum)
15 milliseconds
FAT32, NTFS, ext2,
ext3
550,000 hours
@100% duty cycle
500,000 hours
1 error per 1014
bits read
10,000 (minimum)
15 milliseconds
FAT32, NTFS, ext2,
ext3
550,000 hours
@100% duty cycle
500,000 hours
1 error per 1014
bits read
10,000 (minimum)
15 milliseconds
FAT32, NTFS, ext2,
ext3
550,000 hours
@100% duty cycle
500,000 hours
1 error per 1014
bits read
10,000 (minimum)
5,000 (minimum)
5,000 (minimum)
5,000 (minimum)
Backwards and
forwards
compatibility to any
current/future RDX
removable disk
cartridge
USB 2.0
USB standard series
B receptacle
+5V ± 5% (100mV
Max ripple) @1.1A
+12V ± 10%
(150mV Max ripple)
@0.4A
Backwards and
forwards
compatibility to any
current/future RDX
removable disk
cartridge
USB 2.0
USB standard series
B receptacle
+5V ± 5% (100
mV Max ripple) @
1.1 A
+12V ± 10% (150
mV Max ripple) @
0.4 A
100 to 240 VAC,
50-60 Hz, autoranging
6.6W/20 W
(typical)/ (peak)
Backwards and
forwards
compatibility to any
current/future RDX
removable disk
cartridge
USB 2.0
USB standard series
B receptacle
+5V ± 5% (100
mV Max ripple) @
1.1 A
+12V ± 10% (150
mV Max ripple) @
0.4 A
100 to 240 VAC,
50-60 Hz, autoranging
6.6W/20 W
(typical)/ (peak)
MTBF (cartridge)
Uncorrected Error
Rate
Docking Station
Load/Unload cycles
5,000 (minimum)
Cartridge
Load/Unload cycles
Backwards and
forwards
compatibility to any
current/future RDX
removable disk
cartridge
USB 2.0
Interface type
USB standard series
USB connector
B receptacle
+5V ± 5% (100mV
Power
requirements,
Max ripple) @1.3A
Internal
+12V ± 10%
(150mV Max ripple)
@0.005A
Power
requirements,
External
Power consumption
Environmental
100 to 240 VAC, 100 to 240 VAC,
50-60 Hz, auto50-60 Hz, autoranging
ranging
6.6W/20 W
6.6W/20 W
(typical/peak)
(typical)/ (peak)
Temperature range 5 to 45º C; 41 to 113º F (operating)-
DA - 13036
EMEA — Version 5 — June 5, 2009
Page 13
QuickSpecs
HP StorageWorks RDX Removable Disk Backup System
Technical Specifications
Specifications (all models)
Relative humidity
Altitude
Vibration
Shock: Cartridge
non operating drop
shock
Standards Compliance
(all models)
-40 to 65º C; -40 to 149º F (non operating)
20 to 80%, non condensing (operating), 10 to 90%, non-condensing (non
operating)
-50 ft to 10,000 ft (operational), -50 ft to 35,000 ft (non operational)
random vib(operational): 0.30Grms 5Hz to 500Hz, sine vib(non-op): 0.75g (0peak) 5Hz to 500Hz, random(non-op): 2.41Grms 5Hz to 500Hz
half sine 31G @2.6ms (operational), half sine 71G @ 2m (non operational)
1 m (39.4 in) drop to tile over concrete floor
cURus Recognized (UL60950), TÜV EN60950 (IEC 60950), FCC and CE Declaration of Conformity, CTICK Approved (AS/NZS CISPR22), VCCI Approved, RRL Approved, BSMI Approved, GOSH Approved
Front Panel LED
Eject Button/Power LED
Indicators and buttons (all (on docking station)
models)
Off
Green
Blinking Green
Amber
No Power
Power is on and unit is working correctly
Unit is ejecting the cartridge
Unit has detected a fault. For more information
run a diagnostic application
Blinking Amber
Host computer is accessing the media, and the
user has pressed the eject button. The unit will
eject the cartridge after the host access
completes
Activity LED (on cartridge) Green
Cartridge is ready
Blinking Green
Activity (Reading, writing, seeking)
Amber
Unit has detected a fault. For more information
run a diagnostic application
Emergency Eject Hole
Emergency Eject Hole to eject the cartridge
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For RDX drives and media, 1 GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13036
EMEA — Version 5 — June 5, 2009
Page 14
