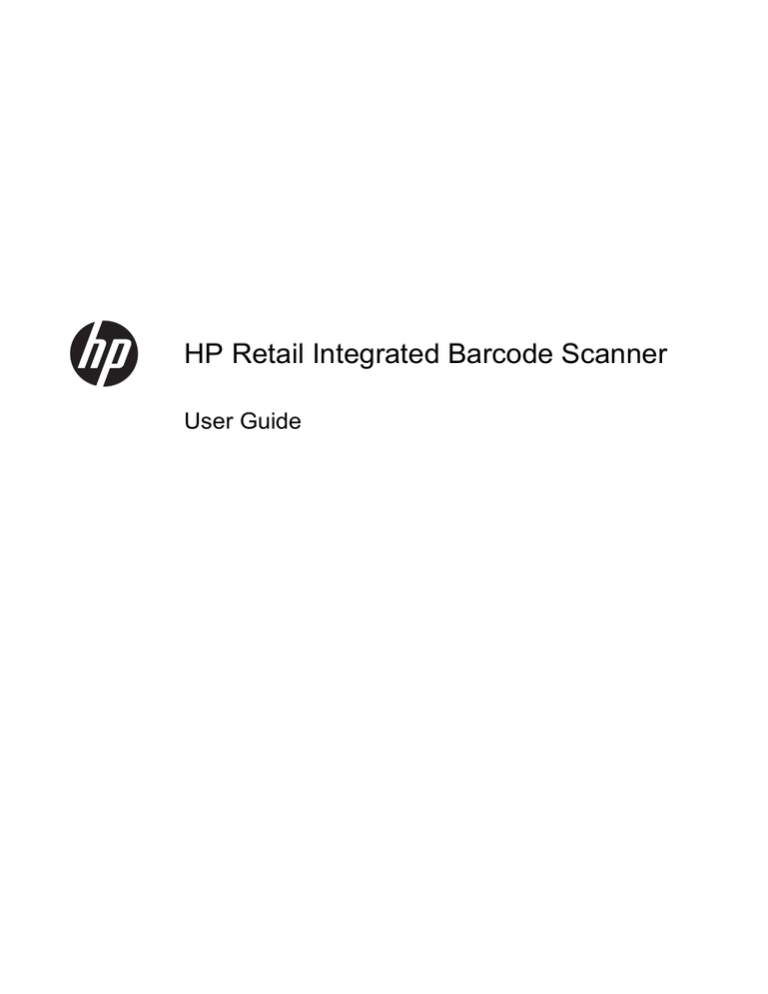

HP Retail Integrated Barcode Scanner
User Guide
© 2013 Hewlett-Packard Development
Company, L.P.
Microsoft and Windows are either
trademarks or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
The only warranties for HP products and
services are set forth in the express
warranty statements accompanying such
products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
First Edition (June 2013)
Document Part Number: 736672-001
About This Guide
This guide provides information on setting up and using the HP Retail Integrated Barcode Scanner.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE:
Text set off in this manner provides important supplemental information.
iii
iv
About This Guide
Table of contents
1 Quick Setup ..................................................................................................................................................... 1
OPOS Driver ........................................................................................................................................ 1
Carriage Return .................................................................................................................................... 2
Tab ....................................................................................................................................................... 3
Volume ................................................................................................................................................. 4
2 Product Features ............................................................................................................................................ 6
HP Retail Integrated Barcode Scanner ................................................................................................ 6
3 Safety and Maintenance ................................................................................................................................. 7
Ergonomic Recommendations ............................................................................................................. 7
4 Setting Up and Using the Scanner ................................................................................................................ 8
Using the Scanner ................................................................................................................................ 8
Configuring the Interface ..................................................................................................... 9
USB-COM ........................................................................................................... 9
Keyboard Interface .............................................................................................. 9
Scancode Tables ................................................................................................ 9
Country Mode .................................................................................................... 10
5 Programming the Scanner ........................................................................................................................... 11
Using Programming Bar Codes .......................................................................................................... 11
Configure Other Settings .................................................................................................................... 11
Resetting Standard Product Defaults ................................................................................................. 11
Reading Parameters .......................................................................................................................... 12
Aiming System ................................................................................................................... 12
Good Read Green Spot Duration ...................................................................................... 12
Operating Modes ................................................................................................................................ 13
Appendix A Troubleshooting .......................................................................................................................... 14
Solving Common Problems ................................................................................................................ 14
Online Technical Support ................................................................................................................... 14
Preparing to Call Technical Support ................................................................................................... 14
v
Appendix B Technical Specifications ............................................................................................................ 16
LED and Beeper Indications ............................................................................................................... 19
Error Codes ........................................................................................................................................ 20
Appendix C Product Labeling ......................................................................................................................... 21
Aiming System ................................................................................................................................... 21
Appendix D Agency Regulatory Notices ....................................................................................................... 22
Federal Communications Commission Notice ................................................................................... 22
Modifications ...................................................................................................................... 22
Cables ................................................................................................................................ 22
Declaration of Conformity for Products Marked with the FCC Logo (United States Only) ................. 22
Canadian Notice ................................................................................................................................. 23
Avis Canadien .................................................................................................................................... 23
European Union Regulatory Notice .................................................................................................... 23
Japanese Notice ................................................................................................................................. 23
Korean Notice ..................................................................................................................................... 24
Laser Compliance .............................................................................................................................. 24
Product Environmental Notices .......................................................................................................... 25
Materials Disposal ............................................................................................................. 25
Disposal of Waste Equipment by Users in Private Household in the European Union ..... 25
HP Recycling Program ...................................................................................................... 25
Chemical Substances ........................................................................................................ 25
Restriction of Hazardous Substances (RoHS) ................................................................... 25
vi
1
Quick Setup
Use the bar codes in this chapter to perform quick setup procedures for common tasks. Scan the
following bar code to set the scanner back to the factory defaults.
Figure 1-1 Set All Defaults
NOTE:
Scanning the “Set All Defaults” bar code does not change the interface type.
Scan the following bar code (USB HID Keyboard Emulation) in order to put the HP Retail Integrated
Barcode Scanner into the default mode of the scanner.
Figure 1-2 USB HID Keyboard Emulation
When the scanner is changed between HID and USB-COM mode, allow the Windows operating
system a little time to reload the native drivers for the scanner.
OPOS Driver
The HP Retail Integrated Barcode Scanner by default is shipped in the human interface device (HID)
keyboard emulation mode. In order to use the barcode scanner with OLE for Retail POS (OPOS)
drivers the scanner must be put into USB COM (OPOS) mode.
For your convenience the bar code to put the HP Retail Integrated Barcode Scanner into USB COM
(OPOS) mode or into HID keyboard emulation are located in this document. Refer to the HP Retail
Integrated Barcode Scanner Programming Reference Guide for complete list of barcodes. The
document can be found on the HP Point of Sale System Software and Documentation CD that comes
with the scanner or the softpaq that is located on the HP support web site.
Scan the following bar code (USB COM OPOS) in order to put the HP Retail Integrated Barcode
Scanner into the mode to be used with the OPOS drivers.
Figure 1-3 USB COM (OPOS)
OPOS Driver
1
Carriage Return
Scan the following bar code to set the scanner back to the factory defaults.
Figure 1-4 Set All Defaults
NOTE:
Scanning the “Set All Defaults” bar code does not change the interface type.
If a carriage return is required after each scanned bar code, scan the following bar codes in order:
Figure 1-5 Enter Programming Mode
Figure 1-6 Set Global Suffix
Figure 1-7 0
Figure 1-8 D
Figure 1-9 Exit Global Suffix Mode
2
Chapter 1 Quick Setup
Figure 1-10 Exit Programming Mode
Tab
Scan the following bar code to set the scanner back to the factory defaults.
Figure 1-11 Set All Defaults
NOTE:
Scanning the “Set All Defaults” bar code does not change the interface type.
If a tab is required after each scanned bar code, scan the following bar codes in order:
Figure 1-12 Enter Programming Mode
Figure 1-13 Set Global Suffix
Figure 1-14 0
Figure 1-15 9
Tab
3
Figure 1-16 Exit Global Suffix Mode
Figure 1-17 Exit Programming Mode
Volume
Scan the following bar code to set the scanner back to the factory defaults.
Figure 1-18 Set All Defaults
Scan the following barcode to set the volume of the good read beep on the HP Retail Integrated
Barcode Scanner:
Figure 1-19 Enter Programming Mode
Scan one of the four barcodes to set the volume to the desired setting:
Figure 1-20 Off
Figure 1-21 Low
4
Chapter 1 Quick Setup
Figure 1-22 Medium
Figure 1-23 High
Scan the following barcode to exit the programming mode.
Figure 1-24 Exit Programming Mode
Volume
5
2
Product Features
HP Retail Integrated Barcode Scanner
With rich feature sets, the HP Retail Integrated Barcode Scanner represents the premium level of
data collection equipment for general purpose point of sale applications. The HP scanner has
enhanced optics with improved motion tolerance, allowing codes placed on fast-moving objects to be
easily and quickly captured, creating the ideal scanner for tasks requiring high throughput like those
found in retail environments. The scanner includes the following features:
●
Omni-Directional Operation: To read a symbol or capture an image, simply present to the
scanner and the object sense, read, and decode automatically take place. The HP Retail
Integrated Barcode Scanner is a powerful omni-directional scanner, so the orientation of the
symbol is not important.
●
Intuitive Aiming System: The “Green Spot” for good-read feedback helps to improve
productivity in noisy environments or in situations where silence is required. While using the
scanner with its multi-orientation capabilities, the aiming pattern can work as an aiming system
to aid in positioning the bar code for quick and intuitive reading.
●
1D and 2D Symbol Decoding: Reliably decodes all standard 1D (linear) and 2D bar codes,
including:
◦
GS1 DataBar™ linear codes
◦
Postal Codes (China Post)
◦
Stacked Codes (such as GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1
DataBar, Stacked Omnidirectional)
The data stream — acquired from decoding a symbol — is rapidly sent to the host. The scanner
is immediately available to read another symbol.
6
●
Imaging: The scanner can also function as a camera by capturing entire images or image
portions of labels, signatures, and other items.
●
Mobile Phone Scanning: The scanner is designed with enhanced motion tolerance and
technology to optimize contrast levels. These features allow quick reading of barcodes off of
mobile phones and PDAs.
●
Flexible Orientation: When mounted in application, the scanner's orientation feature allows for
flexible 2-axis positioning, permitting each user to optimize for their set up and scanning.
Chapter 2 Product Features
3
Safety and Maintenance
Ergonomic Recommendations
WARNING! In order to avoid or minimize the potential risk of ergonomic injury follow the
recommendations below. Consult with your local Health & Safety Manager to ensure that you are
adhering to your company’s safety programs to prevent employee injury.
●
Reduce or eliminate repetitive motion
●
Maintain a natural position
●
Reduce or eliminate excessive force
●
Keep objects that are used frequently within easy reach
●
Perform tasks at correct heights
●
Reduce or eliminate vibration
●
Reduce or eliminate direct pressure
●
Provide adjustable workstations
●
Provide adequate clearance
●
Provide a suitable working environment
●
Improve work procedures
CAUTION: The chemicals contained in Hepicide bacterial cleaners that are used in the retail market
to reduce the risk and spread of bacterial disease from contaminated scanner surfaces may affect
plastic structural properties and result in permanent failure of plastics under pressure.
Ergonomic Recommendations
7
4
Setting Up and Using the Scanner
Follow the steps below to connect and get the scanner up and communicating with its host.
1.
Attach the HP Retail Integrated Barcode Scanner to the host device.
2.
Configure the Interface, if necessary (refer to Configuring the Interface on page 9).
3.
Configure the scanner as described in Programming the Scanner on page 11 (optional,
depends on settings needed).
Using the Scanner
The scanner functions by capturing the barcode (object) image and decoding the codes. The bar
code scanner is set by default for Automatic Object Sense Read Mode that activates the aiming
system on object motion. The aiming system indicates the field of view as an indication of where the
bar code or object should be located for decoding.
Figure 4-1 Aiming System
Figure 4-2 Relative Size and Location of Aiming System Pattern
A red illumination lights up the label. The field of view indicated by the aiming system will be smaller
when the scanner is closer to the bar code and larger when it is farther from the code. Symbologies
with smaller bars or elements (mil size) should be read closer to the unit. Symbologies with larger
bars or elements (mil size) should be read farther from the unit.
If the aiming system is centered and the entire bar code is within the aiming field, you will get a good
read. Successful reading is signaled by an audible tone plus a good-read green spot indication.
Refer to the HP Retail Integrated Barcode Scanner Programming Reference Guide (PRG) for more
information about this feature and other programmable settings.
8
Chapter 4 Setting Up and Using the Scanner
Configuring the Interface
The scanner supports USB as the host interface. Upon completing the physical connection between
the scanner and its host, select the desired Interface option (USB HID KBD is default) by scanning
the appropriate bar code to select your system’s interface type.
If you want to customize additional settings and features associated with the USB interface, proceed
to the corresponding chapter in the HP Retail Integrated Barcode Scanner PRG.
NOTE: Unlike some other programming features and options, USB type selections require that you
scan only one programming bar code label. DO NOT scan an ENTER/EXIT barcode prior to scanning
an interface selection bar code. Interface USB-OEM requires the scanner to start in the disabled state
when powered up. If additional scanner configuration is desired while in this state, it will be necessary
to enable the scanner or use the configuration utility for further programming.
USB-COM
USB Com to simulate RS-232 standard interface
Figure 4-3 Select USB-COM-STD
NOTE:
Install the correct USB Com driver from the CD included with your product.
Keyboard Interface
Select options for USB Keyboard Interfaces.
USB Keyboard with alternate key encoding
Figure 4-4 Select USB Alternate Keyboard
USB Keyboard with standard key encoding
Figure 4-5 Select USB Keyboard
Scancode Tables
See the HP Retail Integrated Barcode Scanner Programming Reference Guide (PRG) for information
about control character emulation which applies to keyboard interfaces.
Using the Scanner
9
Country Mode
This feature specifies the country/language supported by the keyboard. The following languages are
supported:
U.S. English
Norwegian
Korean
UK English
Spanish
Russian
Belgian
Swedish
Hebrew
Danish
Traditional Chinese
Arabic
French
Thai
Greek
French Canadian
Portuguese (EU)
Hungarian
German
Brazilian Portuguese
Slovakian
Italian
Japanese
See the HP Retail Integrated Barcode Scanner Programming Reference Guide (PRG) for information
and programming bar codes for this feature.
10
Chapter 4 Setting Up and Using the Scanner
5
Programming the Scanner
The scanner is factory-configured with a set of standard default features. After scanning the interface
bar code from the Interfaces section (if necessary), select other options and customize the scanner
through use of the programming bar codes available in the HP Retail Integrated Barcode Scanner
Programming Reference Guide (PRG). Check the corresponding features section for your interface,
and also the Data Editing and Symbologies chapters of the PRG.
Using Programming Bar Codes
This guide contains bar codes that allow you to reconfigure the scanner. Some programming bar
code labels, like the "Standard Product Default Settings" in this chapter, require only the scan of that
single label to enact the change.
Other bar codes require the scanner to be placed in Programming Mode prior to scanning them. Scan
an ENTER/EXIT bar code once to enter Programming Mode; scan the desired parameter settings;
scan the ENTER/EXIT bar code again to accept your changes, which exits Programming Mode and
returns the scanner to normal operation.
Configure Other Settings
Additional programming bar codes are available in the PRG to allow for customizing programming
features. If your installation requires different programming than the standard factory default settings,
refer to the PRG.
Resetting Standard Product Defaults
Reference the PRG for a listing of standard factory settings. If you aren’t sure what programming
options are in the scanner, or you’ve changed some options and want the factory settings restored,
scan the Standard Product Default Settings bar code below to copy the factory configuration for the
currently active interface to the current configuration.
NOTE: Factory defaults are based on the interface type. Configure the scanner for the correct
interface before scanning this label.
Figure 5-1 Standard Product Default Settings
Using Programming Bar Codes
11
Reading Parameters
The scanner default is Automatic Object Sense Reading mode. Simply present the bar code label in
front of the scanner and center the aiming pattern and illumination system to capture and decode the
image. See Using the Scanner on page 8 for more information.
The aiming system will briefly switch off after the acquisition time, and if no code is decoded will
switch on again before the next acquisition. While movement and the object are being sensed,
illumination will remain on until the symbol is decoded.
As you read code symbols, adjust the distance at which you are holding the object to optimize
reading performance.
Aiming System
A number of options for customizing control of the Aiming System are available. See the HP Retail
Integrated Barcode Scanner Programming Reference Guide (PRG) for more information and
programming bar codes.
Good Read Green Spot Duration
Successful reading can be signaled by a good read green spot indication.
Use the bar codes that follow to specify the duration of the good read pointer beam after a good read.
Figure 5-2 ENTER/EXIT PROGRAMMING MODE
Figure 5-3 Disabled
Figure 5-4 Short (300 ms)
Figure 5-5 Medium (500 ms)
Figure 5-6 Long (800 ms)
12
Chapter 5 Programming the Scanner
Operating Modes
The reader can operate in two scanning (read) modes, plus the illumination can be programmed for
several different operations states (off = default, dim, or on) while the read phase is not active. See
the HP Retail Integrated Barcode Scanner Programming Reference Guide for more information and
options.
Automatic: Scanning is continually on.
Automatic (Object Sense): Scanning is turned on automatically when an item is placed in the
reader’s field of view (default).
Operating Modes
13
A
Troubleshooting
Solving Common Problems
The following table lists possible problems and recommended solutions.
Problem
Solution
Scanner does not power up.
Ensure that the POS computer is powered on.
Ensure that the scan module is properly connected to the USB port
of the terminal monitor. If the scan module is attached to a
standalone monitor, ensure the monitor USB cable is properly
connected to the host.
Reposition the scan module to a different USB port.
If still not working, swap out with a different or new scan module.
Top light on scanner is flashing.
Scanner does not read barcodes (scanner emits a
target cross hair but there is no green dot or single
beep when reading a barcode).
Reader may be indicating that the scanner is currently disabled.
1.
Enable through host command.
2.
Connect with Configuration Utility and change interface.
Try scanning a different product barcode.
Clean the front window on the scanner if it is dirty.
Check the front window on the scanner. If it is heavily damaged,
replace the scanner.
Determine the symbology type and ensure the symbology is
enabled.
Scanner emits a target cross, emits a green dot, and
emits a single beep when reading a barcode but does
not transmit data to the host.
Reset the Interface option: USB Com or USB Keyboard Wedge
●
If interface = USB Com, open a comport emulator and
determine in Device Manager the correct comport number.
●
If interface = USB Keyboard Wedge, open a generic text editor
such as Notepad, Microsoft Word or Command prompt.
Online Technical Support
For the online access to technical support information, self-solve tools, online assistance, community
forums or IT experts, broad multi-vendor knowledge base, monitoring and diagnostic tools, go to
http://www.hp.com/support.
Preparing to Call Technical Support
If you can not solve a problem using the troubleshooting tips in this section, you may need to call
technical support. Have the following information available when you call:
14
●
If the product is connected to an HP POS computer, provide the serial number of the POS
computer
●
Purchase date on invoice
Appendix A Troubleshooting
●
The spares part number located on the product
●
Condition under which the problem occurred
●
Error messages received
●
Hardware configuration
●
Hardware and software you are using
Preparing to Call Technical Support
15
B
Technical Specifications
The following table contains physical and performance characteristics, user environment and
regulatory information.
Item
Description
Physical Characteristics
Color
Black
Dimensions (Scan Head)
Height 2.10"/53.4mm
Length 3.07"/78.0mm
Width 2.5"/63.5mm
Weight
Approximately 6.1 ounces / 172 grams
Positional Adjustments
10,000 cycles
Electrical Characteristics
Voltage & Current
Idle/Standby (typical) = 98ma @ 5.0VDC
Operating1 (typical) = 160ma @ 5VDC
Operating2 (max) = 215ma @ 5VDC
Operating3 (peak) = 335ma @ 5VDC
Input Voltage (USB Vbus) = 4.5 - 5.5VDC
Performance Characteristics
Light Source (illumination)
LEDs Red (625nm typ)
Roll (Tilt)
± 180° Tolerance from normal
Pitch Tolerance
± 40°
Skew (Yaw)
± 40°
Minimum Element Width
4 mil (1D Linear and HD)
5 mil (PDF-417)
7 mil (DataMatrix)
Print Contrast Minimum
1
2
3
16
while actively scanning
during good read of label (max = 100ms capture)
during good read of label (max peak = 250µS capture)
Appendix B Technical Specifications
25% minimum reflectance
Depth of Field (Typical)1
Symbology
SR: (typical)
Code 39
5mil: 1.8" - 7.0" (4.7 - 17.7cm)
10mil: 0.7" - 13.1" (1.7 - 33.2cm)
20mil: 0.4" - 19.4" (1.1 - 49.2cm)
EAN
13mil: 1.0" - 16.5" (2.5 - 41.9cm)
7.5mil: 1.1" - 10.8" (2.8 - 27.3cm)
PDF-417
6.6mil: 1.3" - 6.0" (3.3 - 15.4cm)
10mil: 0.9" - 9.4" (2.2 - 23.9cm)
15mil: 1.0" - 14.0" (2.5 - 35.6cm)
DataMatrix
10mil: 1.1" - 6.7" (2.7 - 17.1cm)
15mil: 0.5" - 9.7" (1.2 - 24.6cm)
QR Code
10mil: 1.4" - 6.3" (3.5 - 16.0cm)
15mil: 0.2" - 24.3" (0.5 - 24.6cm)
13 mils DOF based on EAN. All other 1D codes are Code 39. All labels grade A, typical environmental light, 20°C, label
inclination 10°.
1
Decode Capability
1D Bar Codes
●
UPC/EAN/JAN (A, E, 13, 8)
●
Code 128 ISBT
●
ABC Codabar
●
UPC/EAN/JAN (including P2 /P5)
●
LaPoste A/R 39
●
Code 93
●
UPC/EAN/JAN (including; ISBN /
Bookland & ISSN)
●
Interleaved 2 of 5
●
MSI
●
Standard 2 of 5
●
Plessey
●
UPC/EAN Coupons
●
Interleaved 2 of 5 CIP (HR)
●
Follet 2 of 5
●
Code 39 (including full ASCII)
●
Industrial 2 of 5
●
GS1 DataBar Omnidirectional
●
EAN 128 (GS1-128)
●
GS1 DataBar Limited
Code39 CIP (French
Pharmaceutical)
Datalogic 2 of 5 (China Post Code/
Chinese 2 of 5)
●
●
●
GS1 DataBar Expanded
●
IATA 2 of 5 Air cargo code
●
GS1 DataBar Truncated
●
Code 11
●
●
Codabar
GS1 DATABAR Expanded
Coupon
●
Code 32 (Italian Pharmacode 39)
●
Code 128
17
2D / Stacked Codes
The scanner is capable of decoding the following symbologies using multiple frames (i.e. Multi-Frame Decoding):
●
Aztec
●
QR Code
●
●
●
●
Datamatrix
Inverse Datamatrix
Datamatrix is configurable for the
following parameters:
●
QR Codes (QR, Micro QR and
Multiple QR Codes)
●
Sweden Post
●
Portugal Post
●
Australian Post
●
Japanese Post
●
Royal Mail Code (RM45CC)
●
Intelligent Mail Barcode (IMB)
●
PDF
●
Micro PDF417
●
GS1 Composites
●
GS1 DataBar Stacked
Omnidirectional
◦
Normal or Inverted
●
KIX Post
◦
Square or Rectangular Style
●
Planet Code
●
GS1 DataBar Expanded Stacked
◦
Data length (1 - 3600
characters)
●
Postnet
●
Chinese Sensible Code
Maxicode
Interfaces Supported
USB Com Std., USB Keyboard, USB (see Configuring the Interface on page 9 for
a listing of available interface options)
User Environment
Operating Temperature
50° to 104° F (10 to 40° C)
Storage Temperature
-22° to 149° F (-30° to 65° C)
Humidity
Operating 20% to 85%
Non-operating 5% to 90%
relative humidity, non-condensing at ambient
Drop Specifications
Scanner withstands 18 drops from 0.3 meters (12 inches) to
concrete
Ambient Light Immunity
Up to 100,000 Lux
Contaminants Spray/rain Dust/particulates
IEC 529-IP32
ESD Level
16 KV
Regulatory
18
Laser Safety
IEC Class 2
Wavelength
650 nm
Beam Divergence
±8˚
Pulse duration
Continuous wave
Max power output
1mW Avg
Appendix B Technical Specifications
LED and Beeper Indications
The scanner’s beeper sounds and its LED illuminates to indicate various functions or errors on the
scanner. An optional “Green Spot” also performs useful functions. The following tables list these
indications. One exception to the behaviors listed in the tables is that the scanner’s functions are
programmable, and so may or may not be turned on. For example, certain indications such as the
power-up beep can be disabled using programming bar code labels.
1
Indicator
Description
LED
Beeper
Power-up Beep
The scanner is in the
process of powering-up.
N/A
Scanner beeps four times at
highest frequency and
volume upon power-up.
Good Read Beep
A label has been
successfully scanned by the
scanner.
LED behavior for this
indication is configurable via
the feature “Good Read:
When to Indicate” (see the
PRG for information).
The scanner will beep once
at current frequency, volume,
mono/bitonal setting and
duration upon a successful
label scan.
ROM Failure
There is an error in the
scanner's software/
programming.
Flashes
Scanner sounds one error
beep at highest volume.
Limited Scanning Label
Read
Indicates that a host
connection is not
established.
N/A
Scanner 'chirps' six times at
the highest frequency and
current volume.
Scanner Active Mode
The scanner is active and
ready to scan.
The Illumination LED is lit
steadily1
N/A
Scanner Disabled
The scanner has been
disabled by the host.
The LED blinks continuously
N/A
Green Spot1 flashes
momentarily
Upon successful read of a
label, the software shall turn
the green spot on for the
time specified by the
configured value.
N/A
N/A
Image Capture
Capturing an Image
Upon image capture light
blinks once and will blink
multiple during larger image
transfers
N/A
Except when in sleep mode or when a Good Read LED Duration other than 00 is selected
Programming Mode - The following indications ONLY occur when the scanner is in Programming
Mode.
INDICATION
DESCRIPTION
LED
BEEPER
Label Programming Mode
Entry
A valid programming label
has been scanned.
LED blinks continuously
Scanner sounds four low
frequency beeps.
Label Programming Mode
Rejection of Label
A label has been rejected.
N/A
Scanner sounds three times
at lowest frequency and
current volume.
Scanner Configurator Mode
Scanner is in support mode
ready for configuration
change.
The Indicator LED is lit
steady
N/A
LED and Beeper Indications
19
INDICATION
DESCRIPTION
LED
BEEPER
Label Programming Mode
Acceptance of Partial Label
In cases where multiple
labels must be scanned to
program one feature, this
indication acknowledges
each portion as it is
successfully scanned.
N/A
Scanner sounds one short
beep at highest frequency
and current volume.
Label Programming Mode
Acceptance of Programming
Configuration option(s) have
been successfully
programmed via labels and
the scanner has exited
Programming Mode.
N/A
Scanner sounds one high
frequency beep and 4 low
frequency beeps followed by
reset beeps.
Label Programming Mode
Cancel Item Entry
Cancel label has been
scanned.
N/A
Scanner sounds two times at
low frequency and current
volume.
Error Codes
Upon startup, if the scanner sounds a long tone, this means the scanner has not passed its automatic
Selftest and has entered FRU (Field Replaceable Unit) isolation mode. If the scanner is reset, the
sequence will be repeated. Press and release the trigger to hear the FRU indication code.
The following table describes the LED flashes/beep codes associated with an error found.
20
Number of LED Flashes/Beeps
Error
Corrective Action
1
Configuration
Contact Help desk for assistance
2
Interface PCB
Contact Help desk for assistance
6
Digital PCB
Contact Help desk for assistance
11
Imager
Contact Help desk for assistance
Appendix B Technical Specifications
C
Product Labeling
The sample label shown is for illustrative purposes only. Please view the label on your product for
actual details, as they may vary.
See product manual and package for patent listing.
Aiming System
The Integrated Scanner’s aiming system meets the Class 2 requirements for laser safety. The laser
information is located on the aimer label as illustrated below.
LASER LIGHT - DO NOT STARE INTO BEAM. CLASS 2 LASER PRODUCT.
OUTPUT RADIATION 1 mW AVG. EMITTED WAVE LENGTH 650nm IEC60825 - 1:2007
Aiming System
21
D
Agency Regulatory Notices
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
●
Reorient or relocate the receiving antenna.
●
Increase the separation between the equipment and the receiver.
●
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●
Consult the dealer or an experienced radio or television technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this device that
are not expressly approved by Hewlett Packard Company may void the user's authority to operate the
equipment.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods
to maintain compliance with FCC Rules and Regulations.
Declaration of Conformity for Products Marked with the
FCC Logo (United States Only)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1.
This device may not cause harmful interference.
2.
This device must accept any interference received, including interference that may cause
undesired operation.
For questions regarding the product, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call 1-800-HP-INVENT (1-800 474-6836)
22
Appendix D Agency Regulatory Notices
For questions regarding this FCC declaration, contact:
Hewlett Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model number found on the product.
Canadian Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations. CAN ICES-3(B)/NMB-3(B)
Avis Canadien
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada. CAN ICES-3(B)/NMB-3(B)
European Union Regulatory Notice
Products bearing the CE marking comply with one or more of the following EU Directives as may be
applicable:
Low Voltage Directive 2006/95/EC; EMC Directive 2004/108/EC; Ecodesign Directive 2009/125/EC;
R&TTE Directive 1999/5/EC; RoHS Directive 2011/65/EU
Compliance with these directives is assessed using applicable European Harmonised Standards.
The full Declaration of Conformity can be found at the following web site: http://www.hp.eu/certificates
(Search with the product model name or its Regulatory Model Number (RMN), which may be found
on the regulatory label.)
The point of contact for regulatory matters is: Hewlett-Packard GmbH, Dept./MS: HQ-TRE,
Herrenberger Strasse 140, 71034 Boeblingen, GERMANY.
Japanese Notice
Canadian Notice
23
Korean Notice
Laser Compliance
This device is classified as a Class 2 Laser Product in accordance with US FDA regulations and the
IEC 60825-1.
Each laser product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to
Laser Notice No. 50, dated June 24, 2007; and with IEC 60825-1:2007
CAUTION: CLASS 2 LASER RADIATION DO NOT STARE INTO THE BEAM
Output Radiation 1mW Avg. Emitted Wave Length 650nm
WARNING! Use of controls or adjustments or performance of procedures other than those specified
herein or in the laser product's installation guide may result in hazardous radiation exposure. To
reduce the risk of exposure to hazardous radiation:
• Do not try to open the module enclosure. There are no user-serviceable components inside.
• Do not operate controls, make adjustments, or perform procedures to the laser device other than
those specified herein.
• Allow only HP Authorized Service technicians to repair the unit.
24
Appendix D Agency Regulatory Notices
Product Environmental Notices
Materials Disposal
Some HP LCD monitors contain mercury in the fluorescent lamps that might require special handling
at end-of-life.
Disposal of this material can be regulated because of environmental considerations. For disposal or
recycling information, contact the local authorities or the Electronic Industries Alliance (EIA)
http://www.eiae.org.
Disposal of Waste Equipment by Users in Private Household in the
European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of
with your household waste. Instead, it is your responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the recycling or waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that protects human
health and the environment. For more information about where you can drop off your waste
equipment for recycling, please contact the local city office, the household waste disposal service or
the shop where you purchased the product.
HP Recycling Program
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and
rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/
recycle.
Chemical Substances
HP is committed to providing our customers with information about the chemical substances in our
products as needed to comply with legal requirements such as REACH (Regulation EC No
1907/2006 of the European Parliament and Council). A chemical information report for this product
can be found at http://www.hp.com/go/reach.
Restriction of Hazardous Substances (RoHS)
A Japanese regulatory requirement, defined by specification JIS C 0950, 2005, mandates that
manufacturers provide Material Content Declarations for certain categories of electronic products
offered for sale after July 1, 2006. To view the JIS C 0950 material declaration for this product, visit
http://www.hp.com/go/jisc0950.
Product Environmental Notices
25
ᴹ∂ᴹᇣ⢙䍘઼‫ݳ‬㍐৺ަਜ਼䟿㺘
ṩᦞѝഭⲴlj⭥ᆀؑ᚟ӗ૱⊑ḃ᧗ࡦ㇑⨶࣎⌅NJ
ѱᶵ༺⨼ಞૂ
ᮙ✣ಞ
޻ᆎᶗ
I/O PCAs
⭫Ⓠ
䭤ⴎ
啖ḽ
ᵰ㇧ެԌ
伄᡽
޻䜞ཌ䜞჈։
䰻䈱䇴༽
ཌ䜞᧝࡬䇴༽
⭫㔼
⺢ⴎ傧ࣞಞ
ᱴ⽰ኅ
O: 㺞⽰䈛ᴿ∈ᴿᇩ⢟䍞൞䈛䜞Ԭᡶᴿൽ䍞ᶆᯏѣⲺ੡䠅ൽ൞SJ/T11363-2006
ḽ߼㿺ᇐⲺ䲆䠅㾷≸ԛсȾ
X: 㺞⽰䈛ᴿ∈ᴿᇩ⢟䍞㠩ቇ൞䈛䜞ԬⲺḆжൽ䍞ᶆᯏѣⲺ੡䠅䎻࠰
SJ/T11363-2006ḽ߼㿺ᇐⲺ䲆䠅㾷≸Ⱦ
㺞ѣḽᴿćXĈⲺᡶᴿ䜞Ԭ䜳ㅜਾ⅝ⴕRoHS⌋㿺ć⅝⍨䇤Րૂ⅝ⴕ⨼ӁՐ
2003ᒪ1ᴾ27ᰛީӄ⭫ᆆ⭫ಞ䇴༽ѣ䲆࡬ֵ⭞Ḇӑᴿᇩ⢟䍞Ⲻ2002/95/EC
ਭ᤽ԚĈȾ
⌞φ⧥ֵؓ⭞ᵕ䲆Ⲻ৸㘹ḽ䇼਌ߩӄӝ૷↙ᑮᐛ֒Ⲻ⑟ᓜૂ⒵ᓜㅿᶗԬȾ
26
Appendix D Agency Regulatory Notices
