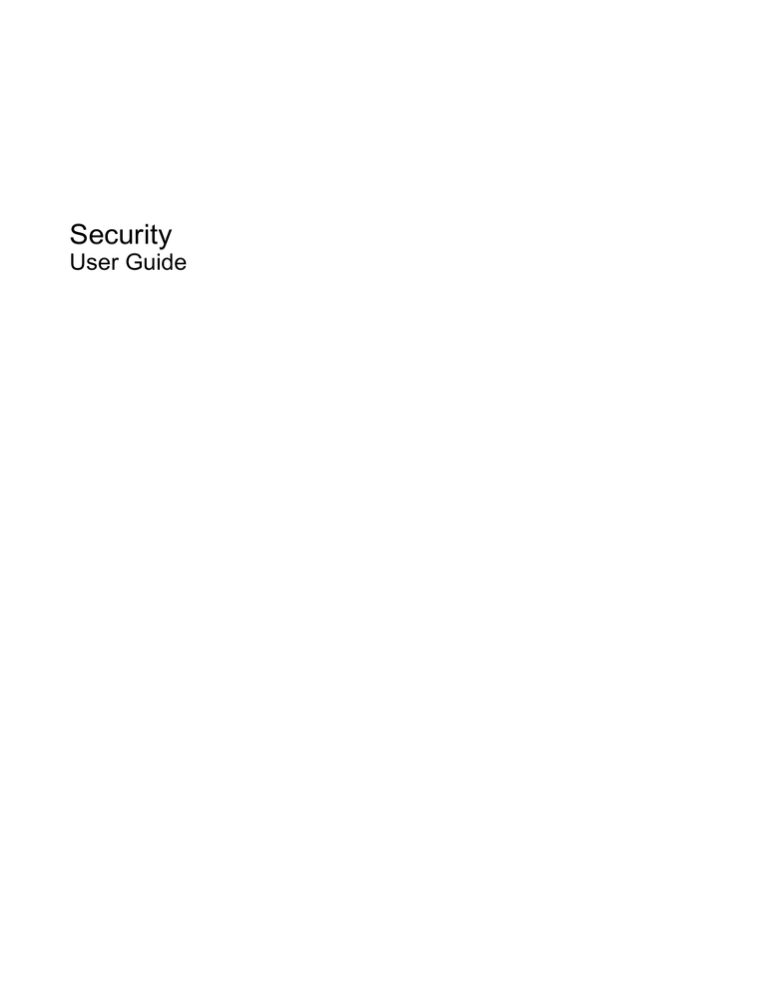

Security
User Guide
© Copyright 2008 Hewlett-Packard
Development Company, L.P.
Microsoft and Windows are U.S. registered
trademarks of Microsoft Corporation.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: June 2008
Document Part Number: 483456-001
Product notice
This user guide describes features that are common to most models. Some features may not be
available on your computer.
iii
iv
Product notice
Table of contents
1 Protecting the computer
2 Using passwords
Setting passwords in Windows ............................................................................................................. 3
Setting passwords in Setup Utility ........................................................................................................ 3
Administrator password ....................................................................................................... 3
Managing an administrator password ................................................................. 4
Entering an administrator password .................................................................... 4
Power-on password ............................................................................................................. 4
Managing a power-on password ......................................................................... 5
Entering a power-on password ........................................................................... 5
3 Using antivirus software
4 Using firewall software
5 Installing critical security updates
6 Installing an optional security cable
7 Using the fingerprint reader (select models only)
Locating the fingerprint reader ........................................................................................................... 11
Registering fingerprints ...................................................................................................................... 12
Using your registered fingerprint to log on to Windows ...................................................................... 13
Index ................................................................................................................................................................... 14
v
vi
1
Protecting the computer
Standard security features provided by the Windows® operating system and the non-Windows Setup
Utility can protect your personal settings and data from a variety of risks.
Follow the procedures in this guide to use the following features:
●
Passwords
●
Antivirus software
●
Firewall software
●
Critical security updates
●
Optional security cable
●
Fingerprint reader (select models only)
NOTE: Security solutions are designed to act as deterrents, but they may not deter software attacks
or prevent the computer from being mishandled or stolen.
NOTE:
Before you send your computer for service, remove all password and fingerprint settings.
Computer risk
Security feature
Unauthorized use of the computer
●
QuickLock
●
Power-on password
Computer viruses
Norton Internet Security software
Unauthorized access to data
●
Firewall software
●
Windows updates
Unauthorized access to Setup Utility, BIOS settings, and other
system identification information
Administrator password
Ongoing or future threats to the computer
Critical security updates from Microsoft
Unauthorized access to a Windows user account
User password
Unauthorized removal of the computer
Security cable slot (used with an optional security cable)
1
2
Using passwords
A password is a group of characters that you choose to secure your computer information. Several types
of passwords can be set, depending on how you want to control access to your information. Passwords
can be set in Windows or in the non-Windows Setup Utility preinstalled on the computer.
CAUTION: To prevent being locked out of the computer, record each password you set. Because
most passwords are not displayed as they are set, changed, or deleted, it is essential to record each
password immediately and store it in a secure place.
You can use the same password for a Setup Utility feature and for a Windows security feature. You can
also use the same password for more than one Setup Utility feature.
Use the following guidelines when setting a password in Setup Utility:
●
A password can be any combination of up to 8 letters and numbers and is case sensitive.
●
A password set in the Setup Utility must be entered at a Setup Utility prompt. A password set
in Windows must be entered at a Windows prompt.
Use the following tips for creating and saving passwords:
●
When creating passwords, follow requirements set by the program.
●
Write down your passwords and store them in a secure place away from the computer.
●
Do not store passwords in a file on the computer.
●
Do not use your name or other personal information that could be easily discovered by an outsider.
The following sections list Windows and Setup Utility passwords and describe their functions. For
additional information about Windows passwords, such as screen-saver passwords, select Start > Help
and Support.
2
Chapter 2 Using passwords
Setting passwords in Windows
Password
Function
Administrator password
Protects administrator-level access to computer contents.
NOTE: This password cannot be used to access Setup Utility
contents.
User password
Protects access to a Windows user account. It also protects
access to the computer contents and must be entered when
you exit Sleep or Hibernation.
QuickLock
Protects the computer by requiring a password to be entered
in the Windows Log On dialog box before you access the
computer. After you set a user or administrator password,
follow these steps:
1.
Initiate QuickLock by pressing fn+f6.
2.
Exit QuickLock by entering your Windows user or
administrator password.
Setting passwords in Setup Utility
Password
Function
Administrator password*
●
Protects access to Setup Utility.
●
After this password is set, it must be entered each time
you access Setup Utility.
CAUTION: If you forget your administrator password, you
cannot access Setup Utility.
Power-on password*
●
Protects access to the computer contents.
●
After this password is set, it must be entered each time
you turn on or restart the computer, or exit Hibernation.
CAUTION: If you forget your power-on password, you
cannot turn on or restart the computer, or exit Hibernation.
*For details about each of these passwords, refer to the following topics.
Administrator password
Your administrator password protects the configuration settings and system identification information in
Setup Utility. After this password is set, you must enter it each time you access Setup Utility.
Your administrator password is not interchangeable with an administrator password set in Windows,
nor is it displayed as it is set, entered, changed, or deleted. Be sure that you record your password and
store it in a safe place.
Setting passwords in Windows
3
Managing an administrator password
To set, change, or delete this password, follow these steps:
1.
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10.
– or –
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc. When the
Startup Menu is displayed, press f10.
2.
3.
Use the arrow keys to select Security > Set Administrator Password, and then press enter.
●
To set an administrator password, type your password in the Enter New Password and
Confirm New Password fields, and then press enter.
●
To change an administrator password, type your current password in the Enter Current
Password field, type a new password in the Enter New Password and Confirm New
Password fields, and then press enter.
●
To delete an administrator password, type your current password in the Enter Password field,
and then press enter 4 times.
To save your changes and exit the Setup Utility, use the arrow keys to select Exit > Exit Saving
Changes.
Your changes go into effect when the computer restarts.
Entering an administrator password
At the Enter Password prompt, type your administrator password, and then press enter. After 3
unsuccessful attempts to enter the administrator password, you must restart the computer and try again.
Power-on password
Your power-on password prevents unauthorized use of the computer. After this password is set, it must
be entered each time you turn on or restart the computer, or exit Hibernation. A power-on password is
not displayed as it is set, entered, changed, or deleted.
4
Chapter 2 Using passwords
Managing a power-on password
To set, change, or delete this password, follow these steps:
1.
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press f10.
– or –
Open the Setup Utility by turning on or restarting the computer. While the “Press the ESC key for
Startup Menu” message is displayed in the lower-left corner of the screen, press esc. When the
Startup Menu is displayed, press f10.
2.
3.
Use the arrow keys to select Security > Set Power-On Password, and then press enter.
●
To set a power-on password, type your password in the Enter New Password and Confirm
New Password fields, and then press enter.
●
To change a power-on password, type your current password in the Enter Current
Password field, type a new password in the Enter New Password and Confirm New
Password fields, and then press enter.
●
To delete a power-on password, type your current password in the Enter Current
Password field, and then press enter 4 times.
To save your changes and exit the Setup Utility, use the arrow keys to select Exit > Exit Saving
Changes.
Your changes go into effect when the computer restarts.
Entering a power-on password
At the Enter Password prompt, type your password, and then press enter. After 3 unsuccessful attempts
to enter the password, you must restart the computer and try again.
Setting passwords in Setup Utility
5
3
Using antivirus software
When you use the computer to access e-mail, a network, or the Internet, you expose it to computer
viruses. Computer viruses can disable the operating system, programs, or utilities, or cause them to
function abnormally.
Antivirus software can detect most viruses, destroy them, and in most cases, repair any damage they
have caused. To provide ongoing protection against newly discovered viruses, antivirus software must
be kept up to date.
Norton Internet Security, an antivirus program, is preinstalled on the computer. The software includes
60 days of free updates. It is strongly recommended that you protect the computer against new viruses
beyond 60 days by purchasing extended update service. Instructions for using and updating Norton
Internet Security software and for purchasing extended update service are provided within the program.
To view and access Norton Internet Security, select Start > All Programs > Norton Internet
Security.
For more information about computer viruses, type viruses in the Search box in Help and Support.
6
Chapter 3 Using antivirus software
4
Using firewall software
When you use the computer for e-mail, network, or Internet access, unauthorized persons may be able
to gain access to the computer, your personal files, and information about you. Use the firewall software
preinstalled on the computer to protect your privacy.
Firewall features include logging and reporting of network activity, and automatic monitoring of all
incoming and outgoing traffic. Refer to the firewall user guide or contact your firewall manufacturer for
more information.
NOTE: Under some circumstances a firewall can block access to Internet games, interfere with printer
or file sharing on a network, or block authorized e-mail attachments. To temporarily resolve the problem,
disable the firewall, perform the task that you want to perform, and then reenable the firewall. To
permanently resolve the problem, reconfigure the firewall.
7
5
Installing critical security updates
CAUTION: Microsoft sends alerts regarding critical updates. To protect the computer from security
breaches and computer viruses, install all critical updates from Microsoft as soon as you receive an
alert.
Updates to the operating system and other software may have become available after the computer
was shipped. To be sure that all available updates are installed on the computer, observe these
guidelines:
8
●
Run Windows Update as soon as possible after you set up your computer. Use the update link at
Start > All Programs > Windows Update.
●
Run Windows Update monthly thereafter.
●
Obtain updates to Windows and other Microsoft® programs, as they are released, from the
Microsoft Web site and through the updates link in Help and Support.
Chapter 5 Installing critical security updates
6
Installing an optional security cable
NOTE: A security cable is designed to act as a deterrent, but it may not prevent the computer from
being mishandled or stolen.
1.
Loop the security cable around a secured object.
2.
Insert the key (1) into the cable lock (2).
3.
Insert the cable lock into the security cable slot on the computer (3), and then lock the cable lock
with the key.
NOTE:
The location of the security cable slot varies by computer model.
9
7
Using the fingerprint reader (select
models only)
NOTE:
10
The location of the fingerprint reader varies by computer model.
Chapter 7 Using the fingerprint reader (select models only)
Locating the fingerprint reader
The fingerprint reader is a small metallic sensor that is located in one of the following areas of your
computer:
●
Near the bottom of the TouchPad
●
On the right side of the keyboard
●
On the upper-right side of the display
●
On the left side of the display
Depending on your computer model, the fingerprint reader may be oriented horizontally or vertically.
Both orientations require that you swipe your finger perpendicular to the metallic sensor.
Locating the fingerprint reader
11
Registering fingerprints
A fingerprint reader allows you to log on to Windows using a fingerprint that you have registered using
DigitalPersona Personal software, instead of using a Windows password.
To register one or more fingerprints, follow these steps:
1.
In Windows, click the DigitalPersona Personal icon in the notification area, at the far right of the
taskbar.
2.
Read the welcome text, and then click Next.
The “Verify Your Identity” page opens.
3.
Type your Windows password, if one has been established, and then click Next.
NOTE: If you do not have a Windows password, the “Protect Your Windows Account” page
opens. You can create a Windows password at this time, or you can skip this step by clicking
Next. However, setting a Windows password optimizes the security of your computer.
The “Fingerprint Registration Training” page opens.
4.
View the demonstration, and then click Next.
The “Register a Fingerprint” page opens.
5.
Click the finger on the screen that corresponds to the finger you want to register.
The next page opens, outlining that finger in green.
6.
Slowly swipe your chosen finger over the fingerprint sensor.
NOTE: If the swipe is not completed correctly, a message explains why the swipe was
unsuccessful.
NOTE: For best results, swipe the same finger in the same direction each time you use the
fingerprint reader.
7.
Continue swiping the same finger over the fingerprint sensor until you have completed 4 successful
swipes.
When the fingerprint is registered successfully, the “Register a Fingerprint” page opens again,
allowing you to register more fingerprints. Repeat steps 5 through 7 to register additional
fingerprints.
8.
When you are finished registering fingerprints, click Next.
If you register only one fingerprint, a message recommends that you register additional fingerprints.
Click Yes to register more fingerprints, and then repeat steps 1 through 8 for each fingerprint
registered.
– or –
Click No if you do not want to register additional fingerprints. The “Registration Complete” page
opens.
9.
Click Finish.
NOTE:
12
Each user who wants fingerprint access to the computer must repeat steps 1 through 9.
Chapter 7 Using the fingerprint reader (select models only)
Using your registered fingerprint to log on to Windows
To log on to Windows using your fingerprint, follow these steps:
1.
Immediately after you have registered your fingerprints, restart Windows.
2.
Swipe any of your registered fingers to log on to Windows.
Using your registered fingerprint to log on to Windows
13
Index
A
administrator password
creating 4
entering 4
managing 4
antivirus software 6
C
cable, security 9
critical updates, software
R
registering fingerprints 12
8
E
entering a power-on password 5
entering an administrator
password 4
F
fingerprint reader 10
fingerprint reader location 11
firewall software 7
M
managing a power-on
password 5
managing an administrator
password 4
P
passwords
administrator 3
power-on 4
set in Setup Utility 3
set in Windows 3
power-on password
creating 5
entering 5
managing 5
Q
QuickLock
14
Index
3
S
security
features 1
passwords 2
security cable 9
Setup Utility
passwords set in 3
Setup Utility, passwords set in 3
software
antivirus 6
critical updates 8
firewall 7
W
Windows, passwords set in 3
