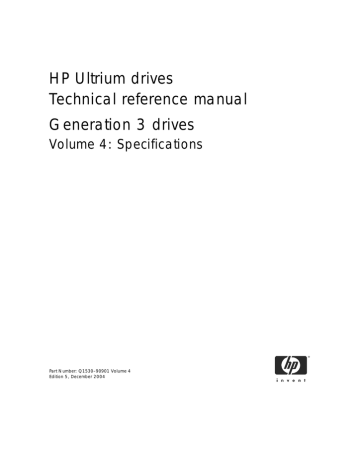

HP Ultrium drives
Technical reference manual
Generation 3 drives
Volume 4: Specifications
Part Number: Q1530–90901 Volume 4
Edition 5, December 2004
Notice
© Copyright 2001–2004 Hewlett-Packard Development Company L.P.
The information contained in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties
of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or direct,
indirect, special, incidental or consequential damages in connection with the furnishing, performance, or use of this document.
This document contains proprietary information which is protected by copyright. All rights reserved. No part of this document may
be photocopied, reproduced or translated to another language without the prior written consent of Hewlett-Packard.
Revision History
Version
Date
Changed Pages
Edition 5
Dec 2004
For Ultrium Generation 3 SCSI and FC drives only
This document is frequently revised and updated. To find out if there is a later version, please ask your HP OEM Representative.
2
Related documents . . . . . . . . . . . . . . . . . . . .
Documents specific to HP Ultrium drives .
Documentation map . . . . . . . . . . . . . .
General documents and standardization
....................
....................
....................
....................
...
...
...
...
...
...
...
...
....
....
....
....
...
...
...
...
.
.
.
.
5
5
5
7
1 Features
2 Physical specification
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Detailed dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10
10
12
12
3 Electrical requirements
PSU requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Internal and rack-mounted drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4 Electromagnetic compatibility
ITE emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
ITE immunities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
DC magnetic field interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5 Environmental
Climatics . . . . . . . . . . . . . . . . . . .
Operating . . . . . . . . . . . . . . . .
Non-operating . . . . . . . . . . . . .
General . . . . . . . . . . . . . . . . .
Dynamics. . . . . . . . . . . . . . . . . . .
Noise . . . . . . . . . . . . . . . . . . . . .
Airflow . . . . . . . . . . . . . . . . . . . .
....................................
....................................
....................................
....................................
....................................
....................................
....................................
17
17
17
17
18
18
18
6 Safety
Safety regulatory standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Required agency approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Contents
3
Contents
Contents
7 Media
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental specifications (media) . . . . . . . . . . . . . . . . . . .
Operating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage (day-to-day). . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage (transportation) . . . . . . . . . . . . . . . . . . . . . . . . .
Storage (archival) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LTO-Cartridge Memory (EEPROM) . . . . . . . . . . . . . . . . . . . .
Interface specification. . . . . . . . . . . . . . . . . . . . . . . . . . .
Further information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
....
....
....
....
....
....
....
....
....
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
....
....
....
....
....
....
....
....
....
.
.
.
.
.
.
.
.
.
20
21
21
21
21
21
21
22
22
8 Ultrium format standard
Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Future compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9 Reliability
10Performance specification
Transfer rates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Data compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Capacity full backup times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Load/unload times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Access times (time to data) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
....
....
....
....
....
....
....
....
.
.
.
.
.
.
.
.
25
25
25
26
26
26
26
26
11Automation Control Interface
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
ACI command set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4
Contents
Related documents
The following documents provide additional information:
Documents specific to HP Ultrium drives
• Hardware Integration Guide, volume 2 of the HP Ultrium Technical Reference Manual
• Software Integration Guide, volume 2 of the HP Ultrium Technical Reference Manual
• The SCSI Interface, volume 3 of the HP Ultrium Technical Reference Manual
• HP Ultrium Configuration Guide, volume 5 of the HP Ultrium Technical Reference Manual
• Background to Ultrium Drives, volume 6 of the HP Ultrium Technical Reference Manual
• HP Ultrium Technology White Paper, describing features and benefits of HP Ultrium drives
Please contact your HP supplier for copies.
Documentation map
The following will help you locate information in the 6-volume Technical Reference Manual:
Drives—general
SCSI Drives
Connectors
Controller architecture
Front Panel LEDs
Mechanism and hardware
FC Drives
1 HW Integration: ch. 7 1 HW Integration: ch. 4
6 Background: ch. 4
1 HW Integration: ch. 6 1 HW Integration: ch. 3
6 Background: ch. 3
Specifications
4 Specs
Installation and configuration
SCSI Drives
Connectors
FC Drives
1 HW Integration: ch. 7 1 HW Integration: ch. 4
Determining the configuration
2 SW Integration: ch. 2 2 SW Integration: ch. 2
External drives (SCSI only)
1 HW Integration: ch. 5
In Libraries
n/a
1 HW Integration: ch. 1
In Servers (SCSI only)
1 HW Integration: ch. 4
n/a
In Tape Arrays (SCSI only)
1 HW Integration: ch. 3
n/a
Modes of Usage (SCSI only)
1 HW Integration: ch. 8
n/a
Optimizing performance (SCSI only)
1 HW Integration: ch. 8
n/a
2 SW Integration: ch. 4
UNIX configuration
5 UNIX Config
Related documents
5
Operation
External drives (SCSI only)
SCSI Drives
FC Drives
1 HW Integration: ch. 5
n/a
In Libraries
1 HW Integration: ch. 1
In Servers (SCSI only)
1 HW Integration: ch. 4
n/a
In Tape Arrays (SCSI only)
1 HW Integration: ch. 3
n/a
SCSI Drives
FC Drives
Cartridges
Cartridge Memory (LTO-CM)
Cartridges
2 SW Integration: ch. 5
6 HW Integration: ch. 5
1 HW Integration: ch. 9 1 HW Integration: ch. 5
Features
6 HW Integration: ch. 5
Managing the use of cartridges
2 SW Integration: ch. 1
Use of cartridges
2 SW Integration: ch. 3
Interface
SCSI Drives
FC Drives
SCSI Guide
3 SCSI
Commands
3 SCSI: ch. 4
Error codes
1 HW Integration: ch. 10 1 HW Integration: ch. 6
Implementation
3 SCSI: ch. 1
Interpreting sense data
2 SW Integration: ch. 3
Messages
3 SCSI: ch. 2
Mode pages
—see the MODE SENSE command
3 SCSI: ch. 4
Pre-execution checks
3 SCSI: ch. 3
Responding to Sense Keys and ASC/Q
2 SW Integration: ch. 6
Sense Keys and ASC/Q
—see REQUEST SENSE command
3 SCSI: ch. 4
Maintenance and troubleshooting
SCSI Drives
Cleaning
External drives (SCSI only)
In Libraries
6
FC Drives
2 SW Integration: ch. 5
2 SW Integration: ch. 7
1 HW Integration: ch. 5
n/a
1 HW Integration: ch. 1
In Servers (SCSI only)
1 HW Integration: ch. 4
n/a
In Tape Arrays (SCSI only)
1 HW Integration: ch. 3
n/a
SCSI Drives
FC Drives
Monitoring drive and tape condition
2 SW Integration: ch. 7
Software troubleshooting techniques
2 SW Integration: ch. 1
Dealing with errors
SCSI Drives
Error Codes
FC Drives
1 HW Integration: ch. 10 1 HW Integration: ch. 6
Handling errors
2 SW Integration: ch. 5
How error correction works
6 Background: ch. 4
Logs—see the LOG SENSE command
3 SCSI: ch. 4
Recovering from write and read errors
2 SW Integration: ch. 7
Software response to error correction
2 SW Integration: ch. 3
Software response to logs
2 SW Integration: ch. 3
TapeAlert log
2 SW Integration: ch. 7
Ultrium features
SCSI Drives
Adaptive Tape Speed (ATS)
FC Drives
6 Background: ch. 1
Autoload
1 HW Integration: ch. 2
Automation Control Interface (ACI)
1 HW Integration: ch. 2
6 Background: ch. 1
Cartridge Memory (LTO-CM)s
1 HW Integration: ch. 2
2 SW Integration: ch. 5
6 HW Integration: ch. 5
Data Compression, how it works
6 Background: ch. 5
Data Compression, managing
2 SW Integration: ch. 5
Design principles
6 Background: ch. 1
OBDR and CD-ROM emulation
Performance optimization
6 Background: ch. 1
2 SW Integration: ch. 7
1 HW Integration: ch. 8
n/a
2 SW Integration: ch. 1
Performance, factors affecting
2 SW Integration: ch. 4
Software design
2 SW Integration: ch. 1
Supporting Ultrium features
2 SW Integration: ch. 5
Ultrium Format
6 Background: ch. 2
General documents and standardization
• Enhanced Small Computer System Interface (SCSI-2), ANSI X3T9.2-1993 Rev. 10L,
available through ANSI
Related documents
7
• See http://www.t10.org/t10_main.htm for ANSI SCSI-3 and other specifications
Copies of documents of other standards bodies can be obtained from:
ANSI 11 West 42nd Street
New York, NY 10036-8002
USA
ISO CP 56
CH-1211 Geneva 20
Switzerland
ECMA 114 Rue du Rhône
CH-1204 Geneva
Switzerland
Global Engineering Documents 2805 McGaw
Irvine, CA 92714
USA
8
Tel: +41 22 849 6000
Web URL: http://www.ecma.ch
Tel: 800 854 7179 or 714 261 1455
1 Features
Feature
Specification
Recording format
Linear Tape Open Ultrium-3 and Ultrium-2.Ultrium-1 tapes can be
read but not written.
Data compression
ALDC
Data encoding method
16-channel PRML
Variable speed recording
27–80 MB/s (1:3) Ultrium-3
Read-While-Write
Standard—data is verified immediately after it is written
Auxiliary memory in cartridge (CM) Standard part of the Ultrium format
Data interfaces
SCSI: Ultra320 SCSI
Serial-Attach-SCSI (SAS)
FC: 2 Gb/s Fibre Channel, Class 3, dual port, multi-mode connector:
duplex-LC (native)
Library interface
Bi-directional RS422 (serial protocol RS422 9600 to
115200 baud
Main data buffer size
128 MB
Burst buffer size
SCSI: 8 MB
Fibre Channel: 16 MB
9
2 Physical specification
Dimensions
SCSI
Fibre Channel
width:
146 mm (5.75")
146 mm (5.75")
height:
82.5 mm (3.25")
82.5 mm (3.25")
depth:
203 mm (8")
213.8 mm (8.4")
width:
208 mm (8.2")
n/a
height:
121 mm (4.75")
n/a
depth:
298 mm (11.75")
n/a
width:
208 mm (8.2")
n/a
height:
121 mm (4.75")
n/a
depth:
298 mm (11.7")
n/a
Internal
External
Rack-Mount
Detailed dimensions
Figure 1-1 Plan
10
Physical specification
Figure 1-2 Side
With Fiber Channel, the connector stands out at the back of the drive:
Figure 1-3 Fibre Channel connector
[No drawing available as of November 30, 2004]
Figure 1-4 Front
11
Figure 1-5 Rear View—SCSI
Figure 1-6 Rear view—Fibre Channel
[No drawing available as of November 30, 2004]
Product weight
Internal*
2.239 kg (4.94 lb)
External
5.572 kg (12.28 lb)
*including front panel and ESD bag but excluding rails
Drive orientation
An HP Ultrium drive will operate in the 0°, –90° and +90° when viewed from the front panel.
In addition, in the 0° axis, the drive will operate with +20°nose-up tilt.
12
Physical specification
3 Electrical requirements
PSU requirements
Internal and rack-mounted drives
The drives are specified to operate at 5V±5% and 12V±10%. Any PSU used to power the
drive must be capable of providing 5V nominal (when the drive pulls 5A on the 5V rail) and
12V nominal (when the drive pulls 2A on the 12V rail). HP recommends a 10% buffer when
selecting a power supply source capable of delivering the amperage and power required.
SCSI Drives
Specification
FC Drives
5V
12V
5V
12V
Maximum voltage
5.25V
13.2V
5.25V
13.2V
Minimum voltage
4.75V
10.8V
4.75V
10.8V
Maximum steady-state current
4.75*A
1.0A
4.75*A
1.0A
Maximum transient current
4.75*A
2.0A
4.75*A
2.0A
Maximum steady-state power
22.5W
12W
17.5W
12W
Maximum transient power
22.5W
24W
22.5W
24W
150 mVpp
150 mVpp
150 mVpp
150 mVpp
Maximum noise/ripple
* The current values are calculated based on constant power and minimum power supply voltage.
Power consumption
Power Requirements
Internal Drives
External Drives
<40W
100–240 VAC 50/60 Hz 0.8A max.
5V DC
3.0A typical (4.5A max.)
12V DC
0.8A typical (2.0A max.)
SCSI Drives
FC Drives
Activity
Average
Peak
Average
Idle
15.8W
15.8W
TBD
Load
18.1W
32.3W
TBD
Write
30.2W
35.3W
TBD
13
SCSI Drives
14
FC Drives
Activity
Average
Peak
Average
Read
24.3W
30.8W
TBD
Reposition/Rewind
24.4W
31.6W
TBD
Unload
16.8W
28.2W
TBD
Electrical requirements
4 Electromagnetic compatibility
NOTE: The EMC performance of internal storage products depends on the characteristics of
the system in which the product is installed. HP has tested products installed in network storage
system enclosures and in external desktop enclosures to verify EMC performance against the
regulatory standards in force at the time of introduction.
ITE emissions
Standards
Parameter
International
European Economic Area
Radiated and conducted
CISPR 22:1997
+ Amendment 1:2000
+ Amendment 2:2002
FCC CFR 47 Part 15, referencing
ANSI C63.4-2003 (U.S.A. only)
EN 55022:1998
+ /A1:2000
+ /A2:2003
Harmonic current
IEC 61000-3-2:2000
EN 61000-3-2:2000
Voltage fluctuations and flicker
IEC 61000-3-3:1994
+ Amendment 1:2001
EN 61000-3-3:1995
+ /A1:2001
ITE immunities
Standards
Parameter
International
European Economic Area
Generally
CISPR 24:1997
+ Amendment 1:2001
+ Amendment 2:2002
referencing the following:
EN 55024:1998
+ /A1:2001
+ /A2:2003
referencing the following:
Electrostatic discharge
IEC 61000-4-2:1995
EN 61000-4-2:1995
Radiated RF electromagnetic field
IEC 61000-4-3:1995
EN 61000-4-3:1996
Electrical fast transient/Burst
IEC 61000-4-4:1995
EN 61000-4-4:1995
Surge
IEC 61000-4-5:1995
EN 61000-4-5:1995
Conducted disturbances by RF fields
IEC 61000-4-6:1996
EN 61000-4-6:1996
Power frequency magnetic field
IEC 61000-4-8:1993
EN 61000-4-8:1993
Voltage dips, interruptions & variations
IEC 61000-4-11:1994
EN 61000-4-11:1994
15
DC magnetic field interference
• IATA Dangerous Goods Regulations, 30th Edition, 1989-01-01
• U.S. CFR 49, paragraph 173.1020, revision date: 1983-11-01
16
Electromagnetic compatibility
5 Environmental
Climatics
These apply to the mechanism unless otherwise noted. For the environmental specification of
media, see Chapter 7, “Media”.
Operating
Parameter
Specification
Operating temperature with media
at 6 cfm airflow: 10°C to 35°C (50°F to 95°F)
at 8 cfm airflow: 10°C to 40°C (50°F to 104°F)
Maximum operating temperature rise
10°C/hr (50°F/hr)
Operating non-condensing humidity
20% to 80% RH
Maximum operating humidity rise
<30%/hr
Maximum wet bulb temperature
26°C (79°F)
Operating altitude
0 to 4 km (0 to 13,000 ft)
Non-operating
Parameter
Specification
Non-operating temperature
-40°C to 66°C (-40°F to 151°F)
Maximum non-operating temperature rise
20°C/hr (68°F/hr)
Non-operating humidity
10% to 95% RH
Non-operating humidity rise
30%/hr
Non-operating altitude
0 to 15.25 km (0 to 50,000 ft)
General
Parameter
Specification
Suspended particle density
<200 µg/m3
17
Dynamics
Parameter
Specification
Operating sine vibration
0.31G pk 5–500 Hz @ 1 octave/min with 15 min dwell at peak
resonance
Operating random vibration
0.31G rms 5–500 Hz 0.000194 g2/Hz
Operating shock
5G 3 ms half-sine (no performance change)
2G 11 ms half-sine (no performance change)
8G 11 ms half-sine (no data loss)
Pulse rate: 0.1 Hz
Non-operating sine vibration
1.0G pk 5–500 Hz @ 1 octave/min with 5 min dwell at peak
resonance
Non-operating random vibration 2.41G rms 5–500 Hz
Non-operating shock
90G 3 ms half-sine (no damage)
30G 26 ms trapezoidal (no damage)
Transportation sine vibration
0.5G pk 5–200–5 Hz @ 1 octave/min with 5 min dwell at peak
resonance
Transportation random vibration
1.47G rms 5–200 Hz
Package drop
0.91m (36 in)
Noise
Parameter
Specification
Operating acoustic noise
<5.0 bel sound power
Airflow
HP Ultrium drives require forced airflow from front to back.
Parameter
Specification
Airflow (operating and non-operating) 0.17 m3/min (6 cu ft/min) at 35ºC ambient operation, rising to
0.23 m3/min (8 cu ft/min) for up to 40ºC ambient operation
18
Environmental
6 Safety
Safety regulatory standards
Agency
Referenced Standard
Underwriters Laboratories (UL)
UL 60951 First Edition
Canadian Standards Association (CSA) CSA 22.2 60950-1-03
CE and TÜV
EN 60950-1:2001, including all amendments
IEC 60950-1:2001, including all amendments
CB Report and Certificate
IEC 60950-1:2001, including all amendments (including
all National Deviations)
Required agency approvals
Agency
National Standard
NOM-1-NYCE
Product Safety: NOM-0190SCFI-1998
GOSH
Product Safety: GOST R 50377
EMC: GOST R 51318.22-99 & GOST R 50839=2000
Acoustic Report: GOST 26329-84
VCCI
EMC: CISPR 22:1997
C-Tick
EMC: AS/NZS 3548 (EN 55022, CISPR22)
RRL
MIC No. 1996-18 (EN 55022)
BSMI
CNS 13438
Transceivers
The Fibre Optic transceivers used in FC products are Class 1 Laser components and comply
with US FDA regulations.
These components are certified to meet the Class 1 eye safety requirements of EN (IEC) 60825
and the electrical safety requirements of EN (IEC) 60950.
19
7 Media
Specification
HP Product Number
Format
Capacity*
Notes
C7973A
U3
800 GB
Read and write
C7973W
U3 WORM
800 GB
Write once, read many times
C7972A
U2
400 GB
Read and write
C7971A
U1
200 GB
Read-only in Gen 3 drives
*Capacities at 2:1 data compression. The actual capacity depends on the compression ratio of the data. This is
typically 2:1 but can be anywhere between 1:1 and 110:1.
Ultrium 1
Tape
Base film:
Ultrium 2
Ultrium 3
6 µm (Poly-Ethylene-Naphthalate) PEN
Tape length:
609m
609m
680m
Tape length used for data:
580m
580m
648m
12.65 mm
12.65 mm
12.65 mm
8.9±0.3 µm
8.9±0.3 µm
8.0±0.3 µm
1200 ppm
1200 ppm
1200 ppm
Maximum tape speed:
5.5 m/s
7.29 m/s
7.29 m/s
Rewind speed:
4.1 m/s
7.00 m/s
7.00 m/s
Tape width:
Tape thickness:
Tape dimensional stability:
Durability: 1,000,000 passes 1,000,000 passes 1,000,000 passes
Cartridge
Recording layout
Width:
105.4±0.30 mm
105.4±0.30 mm
105.4±0.30 mm
Depth:
102.0±0.30 mm
102.0±0.30 mm
102.0±0.30 mm
Height:
21.5±0.25 mm
21.5±0.25 mm
21.5±0.25 mm
Weight:
0.220 kg
0.220 kg
0.220 kg
Track pitch:
27.5 µm
20.17 µm
14.3 µm
Track density (TPI):
768
1024
1773
Data tracks:
384
512
704
Data channels:
8
8
16
Number of wraps:
48
64
44
Number of bands:
4
4
4
4.88 kb/mm
7.32 kb/mm
9.57 kb/mm
Bit density:
20
Media
Environmental specifications (media)
Operating
Parameter
Specification
Ambient Temperature
10°C to 45°C (50°F to 113°F)
Relative Humidity (non-condensing)
10% to 80%
Maximum Wet Bulb Temperature
26°C (78.8°F)
Storage (day-to-day)
Parameter
Specification
Ambient Temperature
16°C to 35°C (60°F to 95°F)
Relative Humidity (non-condensing)
20% to 80%
Maximum Wet Bulb Temperature
26°C (78.8°F)
Storage (transportation)
Parameter
Specification
Ambient Temperature
-23°C to 49°C (-9.4°F to 102°F)
Relative Humidity (non-condensing)
5% to 80%
Maximum Wet Bulb Temperature
26°C (78.8°F)
Storage (archival)
Cartridges should be stored in plastic containers, preferably on their sides.
Parameter
Specification
Ambient Temperature
16°C to 25°C (60°F to 77°F)
Relative Humidity (non-condensing)
10% to 50%
Maximum Wet Bulb Temperature
26°C (78.8°F)
Archive Life
30 years
LTO-Cartridge Memory (EEPROM)
LTO Cartridge Memory (LTO-CM) is EEPROM memory that is embedded in every LTO Ultrium
tape cartridge. It is non-volatile and is contactless in that it is read by RF coupling rather than
electrical contact.
21
Interface specification
• Contactless, passive RF interface using a proximity inductive coupling with a range in the
order of millimeters.
• Power to the transponder is coupled through the interface.
• The range depends on implementation (10 to 20 mm is the maximum). The best error rate
performance will occur at short distances.
• The memory can be read from below (by a drive) or from the front (in libraries).
• 32 kilobits (4 kilobytes)
• Organized as 128 x 32 byte blocks
• >500K write cycles, 20 year data retention life
• Write size is word wide (2 bytes) or block wide (32 bytes)
• The transfer-rate performance of the cartridge memory is as follows:
• Reads:
2 byte: ~20 Kb/s
• Writes:
2 byte: ~1.4 Kb/s
• 32 byte read: ~ 5.8 ms
32 byte: ~70 Kb/s
32 byte: ~18.5 Kb/s
4 KB: ~0.5s
4 KB: ~1.8s
32 byte write: ~ 15.8 ms
Further information
• For general information about LTO-CM, see “LTO Cartridge Memory” in Chapter 5,
“Cartridges” in Background to Ultrium Drives, Volume 6 of the Ultrium Technical Manual.
• For suggestions of how to make use of cartridge memory in libraries, see “LTO Cartridge
Memory (LTO-CM)” in Chapter 5, “Supporting Ultrium Features” in Software Integration,
Volume 2 of the Ultrium Technical Manual.
22
Media
8 Ultrium format standard
Compatibility
HP Gen 3 Ultrium drives are specified to interchange data cartridges with other tape drives
that comply to the LTO U-18, U-28, and U-316 specification documents:
Capacity (2:1 compression)
Format
Write
Read
800 GB WORM
Ultrium-3
Yes
Yes
800 GB (680m)
Ultrium-3
Yes
Yes
400 GB (580m)
Ultrium-2
Yes
Yes
200 GB (580m)
Ultrium-1
No
Yes
100 GB (290m)
Ultrium-1
No
Yes
This specification is only applicable when:
• Cartridges carry the Ultrium logo.
• Cartridges are not damaged or faulty.
• Cartridges are read on a drive in good operating condition, and have been written on a
logo-certified drive that is in good condition.
• The environmental conditions (including DC voltage supplies) are within the specified limits.
NOTE: HP Gen 3 Ultrium drives do not support 10 GB and 30 GB cartridges. HP
recommends the use of the SET CAPACITY SCSI command to shorten standard cartridges
logically for test purposes.
Future compatibility
In future, HP Ultrium drives will always be capable of reading and writing tapes from the
current generation and one generation before, and reading tapes from two generations before.
HP Ultrium drives will always maintain write and read compatibility with other manufacturers’
Ultrium drives and tapes that meet the LTO Ultrium format specification.
23
9 Reliability
Description
MTBF (100% duty cycle)
250,000 hours
Load/unload life
100,000 swaps
MSBF (automation swaps)
100,000 swaps
Head life (typical)
60,000 hours
Media durability
1,000,000 passes
Maximum cartridge uses
24
Specification
20,000 threads
Backup failure rate
<0.1%
Restore failure rate
<0.001%
Interchange failure rate
<0.1%
Uncorrectable error rate
1 in 1017 bits
Undetected error rate
1 in 1027 bits
Tape pulling life (5 years at 100% duty cycle)
43,800 hours
Reliability
10 Performance specification
Transfer rates
SCSI
FC
Native:
80 MB/s
80 MB/s
Compressed (2:1):
160 MB/s
160 MB/s
Ultra3 SCSI wide:
320 MB/s
Sustained transfer rate
Burst transfer rate
Ultra3 FC:
2 GB/s: class 3
ATS data rate range (3:1)
27–80 MB/s (U3)
10–30 MB/s (U2)
6.6–20 MB/s (U1)
The bandwidth of the data compression engine determines the drive’s streaming capabilities
based on the compression ratio of the data it is handling as follows:
Compression Engine Bandwidth:
120 MB/s
Maximum Streaming Compression Ratio:
3:1
The drive will match the throughput of any host up to the maximum native transfer rate
multiplied by the current compression ratio. There will not be any performance penalty for hosts
that are slower than the maximum. This capability is accomplished with a 64 MB buffer and
the Adaptive Tape Speed (ATS) algorithm.
Data compression
The compression engine uses an enhanced algorithm based on ALDC where data expansion
due to redundant data is minimized to <5%. This is achieved by having two compression
schemes (normal and pass-through) with the ability to switch dynamically between them.
It is possible to force the drive to use Scheme 2 (pass-through mode) of the LTO-DC algorithm
using the Data Compression mode page or the SDCA parameter in the Sequential Access
Mode Page.
Speeds
Maximum tape speed
7.00 m/s
Tape read/write speed
5.32 m/s (Ultrium-3), 5.50 m/s (Ultrium-1/2)
Tape rewind speed
7.00 m/s
25
Timings
Capacity full backup times
The following table shows approximate backup times for the available tape cartridges:
Cartridge
Time
800 GB Ultrium 3
1 hr 30 min at a transfer rate >70 MB/s
400 GB Ultrium 2
1 hr 55 min
200 GB Ultrium 1
1 hr 55 min
Load/unload times
The load and unload times are as follows:
SCSI
FC
Typical load time to BOT, ready to read or write
<19s*
<19s*
Unload time, excluding rewind
<19s
<19s
Automation eject (tape unthreaded)
<1s
<1s
* The unload time for WORM cartridges is greater, typically 22s
Access times (time to data)
Time
Average access time from BOT
Maximum access time from BOT
800 GB Ultrium 3:
52s
400 GB Ultrium 2:
46s
200 GB Ultrium 1:
46s
800 GB Ultrium 1:
104s
400 GB Ultrium 2:
92s
200 GB Ultrium 1:
92s
Other times
Parameter
Time
Mean reposition time
2.5s
Turn-around time at end of wrap
98s (U3), 88s (U1/2)
Time to rewind MOT—BOT at 7.0 m/s
49s (U3), 44s (U1/2)
Cleaning time with a cleaning cartridge
26
1.5s max.
Time to rewind EOT–BOT at 7.0 m/s
Performance specification
<180s
11 Automation Control Interface
Specification
Physical interface
• RS-422, Drive Sense, Library Sense, Reset and Attention signals
• A default of 9600 baud at power-on, after a tape drive reset and after an ACI reset. After
that, the library can configure the tape drive to use other baud rates (19200, 38400,
57600 and 115200 baud for HP Ultrium drives) using the Set Baud Rate command.
• 1 start bit, 8 data bits, 2 stop bits, no parity
Protocol
• Binary data packets, including checksum, packet length, status, sequence number,
• XON/XOFF flow control
• Positive or negative acknowledgement of transmission
• Constant polling not necessary— the drive returns status upon completion of each
command
ACI command set
The following ACI commands are supported on HP Ultrium drives:
Mandatory Commands
Optional Commands
SCSI Surrogate Commands
00h Get Drive Info
40h Send SCSI Command
70h Configure SCSI Surrogate
01h Load
42h Send Firmware Image
71h Get SCSI CDB
02h Unload
43h Get Firmware Segment
72h Get SCSI Data
03h Get Drive Status
49h Get Buffer Size
73h Send SCSI Data
04h Set Drive Configuration
4Ah Send Firmware Segment
74h Send SCSI Status
05h Get Drive Configuration
4Bh Set Time
06h Reset
4Ch Get Time
07h Set Baud Rate
08h No Op
09h Get Error Info
0Ah Acknowledge Attention
27
28
Automation Control Interface
Index
access time 26
ACI 27
agency approvals 19
airflow 18
altitude 17
ANSI 5
archival storage
environment 21
automation control interface 27
B
backup times 26
bandwidth 25
C
climatics 17
CM 9, 21
compatibility 23
compression 25
compression format 9
D
data compression 25
dimensions, drive 10
documents, related 5
drive orientation 12
dynamics 17
E
electrical requirements 13
electromagnetic compatibility
15
emissions 15
environmental specifications
17
error rates 24
F
features 9
fibre channel connector 11
format 9
format standard 23
future compatibility 23
reliability 24
rewind times 26
S
humidity
drives 17
media 21
safety regulatory standards 19
SCSI 5
shock 17
speed of recording 9
suspended particle density 17
I
T
immunities 15
interfaces 9
temperature
drives 17
media 21
times
access 26
capacity full backup 26
load/unload 26
rewind 26
turn-around 26
transfer rates 25
transportation of media 21
turn-around times 26
H
L
library interface 9
life of drive 24
load/unload times 26
LTO-cartridge memory 21
M
magnetic field interference 15
media specification 20
MTBF 24
N
noise 18
O
orientation 12
P
performance specification 25
physical specification 10
power consumption 13
PSU requirements 13
U
Ultrium format standard 23
V
vibration 17
W
weight, drive 12
wet bulb temperature
drives 17
media 21
R
read-while-write 9
Index
29
Index
A
30
Index
