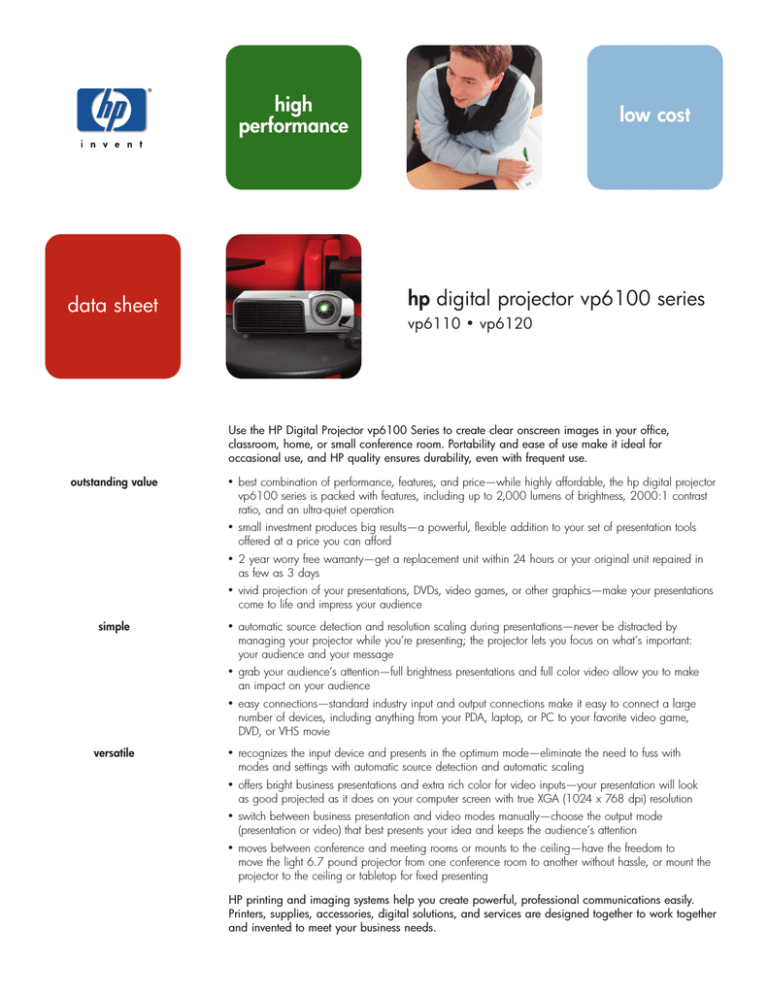

high
performance
data sheet
low cost
hp digital projector vp6100 series
vp6110 • vp6120
Use the HP Digital Projector vp6100 Series to create clear onscreen images in your office,
classroom, home, or small conference room. Portability and ease of use make it ideal for
occasional use, and HP quality ensures durability, even with frequent use.
outstanding value
• best combination of performance, features, and price—while highly affordable, the hp digital projector
vp6100 series is packed with features, including up to 2,000 lumens of brightness, 2000:1 contrast
ratio, and an ultra-quiet operation
• small investment produces big results—a powerful, flexible addition to your set of presentation tools
offered at a price you can afford
• 2 year worry free warranty—get a replacement unit within 24 hours or your original unit repaired in
as few as 3 days
• vivid projection of your presentations, DVDs, video games, or other graphics—make your presentations
come to life and impress your audience
simple
• automatic source detection and resolution scaling during presentations—never be distracted by
managing your projector while you’re presenting; the projector lets you focus on what’s important:
your audience and your message
• grab your audience’s attention—full brightness presentations and full color video allow you to make
an impact on your audience
• easy connections—standard industry input and output connections make it easy to connect a large
number of devices, including anything from your PDA, laptop, or PC to your favorite video game,
DVD, or VHS movie
versatile
• recognizes the input device and presents in the optimum mode—eliminate the need to fuss with
modes and settings with automatic source detection and automatic scaling
• offers bright business presentations and extra rich color for video inputs—your presentation will look
as good projected as it does on your computer screen with true XGA (1024 x 768 dpi) resolution
• switch between business presentation and video modes manually—choose the output mode
(presentation or video) that best presents your idea and keeps the audience’s attention
• moves between conference and meeting rooms or mounts to the ceiling—have the freedom to
move the light 6.7 pound projector from one conference room to another without hassle, or mount the
projector to the ceiling or tabletop for fixed presenting
HP printing and imaging systems help you create powerful, professional communications easily.
Printers, supplies, accessories, digital solutions, and services are designed together to work together
and invented to meet your business needs.
hp digital projector vp6100 series
hp digital projector vp6120 shown
features
• TI DLP™ quality and life-long
image reliability
• USB slot for connecting remote
• infrared (IR) receiver windows—
front and rear of projector
• Kensington lock slot
• 3-watt speaker
• ceiling mount, table-top mount,
and rear mount ready
• dual mode output for optimized colors
inputs
• HDTV ready—
component video inputs
• 15-pin VGA input connector
outputs
• composite input (RCA jack)
15-pin VGA output connector •
• S-video connector
(Mini-DIN 4-pin connector)
B-type USB terminal for mouse port •
• audio RCA jack (3.5mm mini jack)
• universal asynchronous
receiver-transmitter (UART)
Mini-DIN 8-pin connector
product highlights
• presentation and video mode—super bright PowerPoint
slides and deep video colors in a single projector—you no
longer need to agonize over colors and brightness tradeoffs
when selecting a projector
• image sharpness—keep your audience engaged and
entertained with clear, crisp, accurate images and text—
no more eyestrain to read what is being projected—
2000:1 contrast ratio
• large number of input and output connections—use
the versatile connection options to seamlessly integrate
components you want (PDA, PC, DVD, video, and audio)
into your presentation
• signal detection—don’t waste time trying to get the projector
to recognize the source—automatically detects the source
and scales the resolution accordingly
• monitor pass through—view your presentation on a
strategically placed external laptop or PC monitor, giving
you the confidence and power to communicate effectively
• home and business use—enjoy the projector’s amazing
versatility while watching DVDs in the comfort of your home
or while presenting critical fiscal information to colleagues
and managers
hp digital projector vp6100 series at a glance
hp digital projector vp6110
hp digital projector vp6120
ideal for projecting in
small conference or meeting rooms
for classrooms, auditoriums, or
larger conference rooms
packed with 1,500 powerful lumens
and SVGA resolution (800 x 600 native)
ultra-bright 2,000 lumens
and XGA resolution (1024 x 768 native)
low-cost, easy-to-use solution for your
data- and video-projection needs
Imagine a versatile and affordable digital projector that lets you
give an easy-to-read accounting workshop early in the morning,
a product rollout presentation filled with realistic images and vivid
colors after lunch, and an initial screening of the company’s latest
commercial with stunning video and audio before quitting time. The
HP Digital Projector vp6100 Series gives you all of this and more.
powerful performance—at a reasonable price
The versatile HP Digital Projector vp6100 Series offers superior
presentation features in an affordable and compact projector.
Equipped with Digital Light Processing (DLP) technology, the
projector offers amazing contrast and long-term picture reliability.
Expect crisp, sharp, detailed projections. Enjoy easy-to-read text,
precise graphics, and realistic images. Even numbers in complex
spreadsheets and tables are easy to see and read.
And, the video and presentation modes let you effortlessly
switch between your presentation and video—regardless of
the input device.
worry-free projector—focus on your presentation
Giving relaxed and effective presentations is hard work, and the
last thing you need to worry about is your projector. You want a
projector that is flexible and robust enough to meet your needs,
regardless of how much light is in the room or how sophisticated
your presentation is. If you’ve put time into coordinating audio,
video, slides, and graphics, you want the projector to handle it
without any issues.
The high lumens in the HP Digital Projector vp6100 Series
give you greater flexibility in where and when you make
your presentations, allowing you to leave the lights on or the
curtains open.
Additionally, you’ll enjoy simple, easy-to-understand settings
that get you up and running more quickly. Concentrate on your
presentation instead of which button to push or what switch to
toggle. With the HP Digital Projector vp6100 Series, the source is
automatically detected and the resolution is automatically scaled.
all the connections you could ask for
The HP Digital Projector vp6100 Series lets you:
• connect any device from PCs, DVDs, and video
games to the vp6100 series with component, VGA,
RGA, composite, and S-video
• view an external monitor to keep track of your
presentations, letting you check the status of your
presentations and manage events with confidence
and control
lightweight design—put the projector where you want it
The HP Digital Projector vp6100 Series is lightweight and easy
to transport at only 6.7 pounds, making it light enough to carry
from room to room or venue to venue. Simply slip the projector into
a carrying case and be on your way.
It is also easy to mount on the ceiling, letting you optimize your
presentation space. If you have a week of intensive training
classes, mount the projector to the ceiling and don’t worry about
setup and storage.
maximize your presentation with versatile accessories from hp
lamp module
L1624A
HDTV
component
cable (RGB)
L1634A
60-inch
mobile screen
L1633A
always have a back-up
lamp module for your
presentations
<need photo>
carrying case
L1629A
premium
wireless
remote control
with USB
easily connect your
HP projector to your DVD
and VCR for the ultimate
home theater experience
L1631A
lightweight and easy-to-carry
with a built-in handle; easily
sets up anywhere you need
a mobile screen
<need photo>
ceiling mount
connector
L1630A
6-foot
S-video cable
L1635A
easily connect to a wide
range of video equipment,
from a VCR to a camcorder
the lightweight and sturdy
design allows you to take
it wherever you need
to present
built-in mouse ball and
laser pointer allow you to
easily control every detail
of your presentation
positioning your projector
to achieve the optimal
image size for your screen
or viewing surface
HP Digital Projector vp6110
Technical Specifications
HP Digital Projector vp6100 Series
L1596A
Brightness
1,500 Peak ANSI lumens
2,000 Peak ANSI lumens
Resolution
800 x 600 True SVGA
1024 x 768 True XGA
Image contrast
2000:1 contrast ratio full on/off
Lamp life
2000 hours Standard mode, 3000 hours in Lamp Saver mode
Weight
6.7 lbs
Projected image size
Types
HP Digital Projector vp6120
L1595A
29.3 to 187.5 in (diagonal)
Throw distance
Display technology
Resolutions supported
through scaling
Texas Instruments DLP™
Scales up from VGA (640 x 480) and scales down from XGA (1024 x 768)
Projection lens
Scales up from SVGA (800 x 600) and scales down from SXGA (1280 x 1024)
F/2.6, f=23.2 to 28.38 mm with 1.2:1 manual zoom and manual focus
+⁄– 7º (14º total) except 1080i/1035i
Keystone correction
Noise level
35 dB(A) under 25º C, 32dB(A) in Lamp Saving mode
Video capability
S-video, composite, component, HDTV (up to 1080i)
Lamp type
250-watt UHP projector bulb
Audio
One 3-watt speaker
Video composite input
Signal interface
37.5 to 240 in (diagonal)
4.9 to 26.2 ft
Composite: RCA jack (yellow); S-video: mini-DIN 4-pin connector; component (HDTV): RCA jack (green/red/blue)
15-pin VGA input connector, YPbPr RCA jack (green/red/blue), video RCA jack (yellow), audio RCA jack (white/red), 3.5 mm stereo mini jack,
S-video connector, UART mini-DIN 8-pin connector; Output: B-type USB terminal for mouse port, 15-pin VGA output connector
Resizing of images
to full screen
Automatic
Detection of
computer signal input
Automatic
Image synchronization
Automatic
Remote control
Wireless IR Remote Control
Mounting capability
Ceiling and tripod mountable
Mounting environment humidity
10 to 90% RH, 10 to 35º C
Dimensions (l x w x h)
What’s in the box
12 x 9.5 x 4.5 in
HP Digital Projector vp6110, user manual on CD, Quick Set-up Guide,
warranty information, video port instruction card, powercord, VGA cable,
RCA cable, PC audio cable, remote control
HP Digital Projector vp6120, user manual on CD, Quick Set-up Guide,
warranty information, video port instruction card, powercord, VGA cable,
RCA cable, PC audio cable, remote control
onscreen languages
English, French, German, Spanish, Italian, Traditional Chinese, Simplified Chinese, Japanese,
Korean, Brazilian Portuguese, Danish
ordering information
environmental ranges
Product Number HP Product
Operating temperatures: 50 to 95º F (10 to 35º C)
L1595A
HP Digital Projector vp6110
Storage temperatures: 14 to 140º F (0 to 40° C)
L1596A
HP Digital Projector vp6120
Service and Support
U4802A/E
HP Supportpack, 1-year post warranty express exchange
Supplies and Accessories
L1624A
Lamp Module (both vp6110, vp6120)
L1628A
Remote Control, Credit Card
L1629A
Carrying Case
L1630A
Ceiling Mount Kit (both vp6110, vp6120)
L1631A
Premium Wireless Remote Control with USB cable
L1633A
60-inch Mobile Screen
L1630A
Ceiling Mount Connector
power requirements
Input voltage 100 to 240 VAC (+⁄– 10%), 50/60 Hz (+⁄– 3 Hz)
power consumption
Maximum: 330 watts
power certification
Safety certifications: USA/Canada (cULus), Mexico (NOM-1-NYCE)
Electromagnetic compatibility: USA FCC part 15, Canada (DoC)
warranty
2-year repair and return or express exchange on the projector, and 90 days warranty on lamp
Cables
L1625A
Cable, VGA
L1626A
Cable, RCA (composite, 3-head white/yellow/red)
L1627A
Cable, Audio (2-head green/blue)
L1634A
Cable, HDTV (RGB) Component
L1635A
Cable, S-Video - 6-foot
For more information on the HP Digital Projector vp6100 Series, visit our website at www.hp.com and click on
products and services. Here you will find information on products, supplies, and accessories for all your computing
needs. HP printers, personal computers, digital solutions, supplies, and accessories are available at authorized
HP resellers worldwide.
HP PCs use genuine Windows Operating Systems
www.microsoft.com/piracy/howtotell
All brand and product names are trademarks or registered trademarks of their respective companies. The
information contained in this document is subject to change without notice. HP makes no warranty of any kind
with respect to this information. HP specifically disclaims the implied warranty of merchantability and fitness for a
particular purpose. HP shall not be liable for any direct, indirect, incidental, consequential, or other damage alleged
in connection with the furnishing or use of this information.
5981-7519ENUC
© Hewlett-Packard Company 2003
