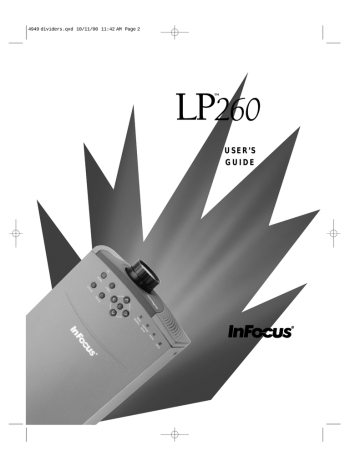

4949 dividers.qxd 10/11/00 11:42 AM Page 2
U S E R ’ S
G U I D E
Copyright © 2000 by InFocus Corporation
Wilsonville, Oregon. All rights reserved.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Canada
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
Safety Certifications
UL, CUL, TUV, NOM
EN 55022 Warning
This is a Class A product. In a domestic environment it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room or auditorium.
Declaration of Conformity
Manufacturer: InFocus Corporation
27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA
European Office: Olympia 1, NL-1213 NS Hilversum, The Netherlands
We declare under our sole responsibility that the LP260 projector conforms to the following directives and norms:
Directive 89/336/EEC, Amended by 93/68/EEC
EMC: EN 55022: 1994 + A1 + A2
EN 61000-3-2: 1995 + A1 + A2
EN 61000-3-3: 1995
EN 50082-1:1992
Directive 73/23/EEC, Amended by 93/68/EEC
Safety: EN 60950: 1992 + A1 + A2 + A3 + A4: 1997
November, 2000
Australian Certification C-tick mark
Trademarks
Apple, Macintosh, and PowerBook are trademarks or registered trademarks of
Apple Computer, Inc. IBM and PS/2 are trademarks or registered trademarks of
International Business Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered trademarks of Microsoft Corporation. InFocus and LP are trademarks or registered trademarks of InFocus.
TABLE OF CONTENTS
Powering up the Projector and Adjusting the Image
Using the Keypad and Remote Buttons
Video Adjustments
Cleaning the Fan Intake Filters
Replacing the Batteries in the Remote Control 38
26
Portable and Laptop Activation Chart 46
Using Video Mirroring with a PowerBook Computer 51
i
T a b l e o f C o n t e n t s ii
SAFETY INSTRUCTIONS
Please read and follow all safety instructions provided BEFORE using your new projector. Failure to comply with safety instructions may result in fire, electrical shock, or personal injury and may damage or impair protection provided by equipment. Please save all safety instructions.
Safety Definitions:
• Warning: Statements identify conditions or practices that could result in personal injury.
• Caution: Statements identify conditions or practices that could result in damage to your equipment.
Safety Symbols:
Attention: For information about usage of a feature, please refer to the User’s Guide.
Warning: Hot surface. Do not touch.
An arrow pointing to the lamp door on the projector.
Safety Terms:
• Warning: Don’t look directly into the lens when the lamp is turned on.
• Warning: To replace the lamp, turn the projector off by unplugging the power cord. To avoid burns, wait 45 minutes before opening the lamp door. Follow all instructions provided in this User’s Guide.
• Warning: Please use the power cord provided. Connect the power cord to a receptacle with a protective safety
(earth) ground terminal.
• Warning: Refer all service to qualified service personnel. Servicing your own projector will void the warranty. See the following page for the customer service contact information.
• Caution: Don’t block ventilation openings.
iii
S a f e t y I n s t r u c t i o n s
• Caution: Don’t set liquids on the projector. Spilled liquids may damage your projector.
• Caution: Don’t place the projector on a hot surface or in direct sunlight.
• Caution: Do not drop the projector. Transport the projector in an InFocus-approved case.
Important Operating Considerations
Do not place the projector on a tablecloth or other soft covering that may block the vents. In the unlikely event of the bulb rupturing, thoroughly clean the area behind the projector and discard any edible items placed in that area.
Customer Service
If you need assistance, call InFocus Customer Service directly at
1-800-799-9911 . Support is free between 6 a.m. and 6 p.m. PST,
Monday through Friday. Support is available in North America after hours and weekends for a fee at 1-888-592-6800.
Or, send us an e-mail at [email protected]
.
In Europe, call InFocus in The Netherlands at (31) 35-6474010 .
In Asia, call InFocus in Singapore at (65) 332-0659 . iv
INTRODUCTION
The InFocus
®
LP260™ multimedia projector is specifically designed for the mobile presenter. It generates crisp, clear images and is easy to connect, easy to use, easy to transport, and easy to maintain.
Image Resolution
The SVGA resolution of the LP260’s projected image is 800x600.
The projector cannot compress screen resolutions above
1280x1024. If your computer’s screen resolution is higher than
1280x1024, reset it to a lower resolution before you connect the projector.
Compatibility
The projector is compatible with a wide variety of computers and video devices, including:
• IBM-compatible computers, including laptops, up to 1280x1024 resolution.
• Apple
®
Macintosh
®
and PowerBook
®
computers up to
1280x1024 resolution.
• Most standard VCRs, DVD players, HDTV sources, camcorders and laser disc players.
Unpacking the Projector
The projector comes with the items shown in Figure 1. Check to
make sure all are included. Contact your InFocus dealer imme-
diately if anything is missing.
If you are experienced in setting up presentation systems, use the
Quick Start card that was included in the shipping box. For complete details on connecting and operating the projector, refer to this User’s Guide. User’s Guides are also available for download from our website at www.infocus.com.
A registration card is included in the box. Register to receive product updates, announcements, and special offers from
InFocus. Or, register online at www.infocus.com/service/register and you will be automatically entered to win free merchandise.
NOTE: The projector automatically expands 640x480 images to
800x600. You can display these images at their native resolutions
using the True feature. See “True” on page 25 for more information.
1
I n t r o d u c t i o n
2
1
3
6
4
10
5 light stan dby mute help freez brigh tnes volu me men com video
11
12
7
9
13
8
14
F IGURE 1
Shipping box contents
1.
LP260 projector + lens cap
2.
Soft carry case
3.
User’s Guide and quick start card
4.
Power cords
5.
Remote control
6.
Macintosh adapter
7.
8.
9.
VGA computer cable
Computer audio cable
AV Audio cable
10.
Composite video cable
11.
S-video cable
12.
Control cable for PS/2 port
13.
Control cable for ADB port
14.
Control cable for serial port
2
keypad speaker focus ring zoom ring foot
IR receiver latch power cord connector connector panel air intake vent lamp cover air filters air intake vent exhaust vent adjustable foot adjustable foot
F IGURE 2
Views of the projector
3
I n t r o d u c t i o n
Usage Guidelines
• Do not look directly into the projection lens when the lamp is turned on. The bright light may harm your eyes.
•
Do not block the grills on the projector. Restricting the air flow can cause it to overheat and turn off. If this happens, you must wait a minute before attempting to turn it back on.
• Handle the projector as you would any product with glass components. Be especially careful not to drop it.
• Avoid leaving the projector in direct sunlight or extreme cold for extended periods of time. If this happens, allow it to reach room temperature before use.
• Transport the projector in a vendor-approved hard or soft case.
Part numbers for these cases are listed on page 45.
If You Need Assistance
The first place to look for help is in this manual. Be sure to check
the guidelines in “Troubleshooting” on page 39. Or, check the
Service and Support section of our website at http://www.infocus.com/service. You’ll find a Technical Library,
FAQs, and support contacts including a technical support e-mail form.
If those sources don’t answer your question, call your InFocus dealer. You can also call InFocus Customer Service directly at
1-800-799-9911 . Call between 6 a.m. and 6 p.m. PST, Monday through Friday. Service is available in North America after hours and on weekends for a fee at 1-888-592-6800.
In Europe, call InFocus in The Netherlands at (31) 35-6474010 .
In Asia, call InFocus in Singapore at (65) 332-0659 .
Or, send us an e-mail at [email protected]
Our World Wide Web address is http://www.infocus.com.
Warranty
This product is backed by a limited two-year warranty. The details of the warranty are printed at the back of this manual. A longer term warranty can be purchased from your InFocus
dealer. Refer to page 45 for the part number.
4
SETTING UP THE PROJECTOR
1 Place the projector on a flat surface.
• The projector must be within 10 feet (3 m) of your power source and within 6 feet (1.8 m) of your computer.
• If you want to project from behind a translucent screen, set
up the projector behind your screen. See “Rear” on page 33
to reverse the image.
2 Position the projector the desired distance from the screen.
• The distance from the lens of the projector to the screen and the zoom setting determine the size of the projected image.
Figure 3 and Table 1 show projected image sizes.
4.6’ (1.4m)
36”
7.8’ (2.4m)
60”
50”
30”
13.1’ (4.0m)
100”
83”
19.7’ (6.0m)
150”
125”
26.3’ (8.0m)
200”
Max Zoom
167”
H1
Min Zoom
H2
F IGURE 3
Projected image sizes
Screen Size
(W x H) mm
Height (H1)
Height (H2)
Table 1:
Image Size, Width and Height
30” 60” 100” 150” 200”
610 x 457 1219 x 914 2032x1524 3048x2286 4064x3048
16.6”
(422mm)
1.4”
(35mm)
33.2”
(844mm)
2.8”
(70mm)
55.4”
(1407mm)
4.6”
(117mm)
83.1”
(2110mm)
6.9”
(176mm)
110.8”
(2814mm)
9.2”
(234mm)
3 Make sure the projector and the computer are turned off.
5
S e t t i n g u p t h e P r o j e c t o r
NOTE: Before you continue, make sure the projector and all other equipment is turned off. If you’re connecting a computer, make sure the distance between it and the projector is 6 feet or less.
video
Y ––– Pb ⁄ Cb – Pr ⁄ Cr
S-video reset audio OUT
composite video
S-video
Audio in
computer IN
AV computer audio
IN
PC control
NOTE: Pressing the reset button with a pen causes the projector to shut down and restart. Only press this button if the projector has locked up.
F IGURE 4
Connector panel
NOTE: In the following figures, an asterisk (*) indicates the cable is not supplied with the projector.
6
Connecting a Computer
The following cables can be used to connect a computer:
VGA HD-15 cable (for all computers)
Mac adapter (for certain Macintosh computers)
PC audio cable (if you want sound with your presentations)
Control cable for serial port/PS-2 port/ADB port (if you want to control your computer’s mouse with the projector’s remote)
Audio cable (if you want to connect an external speaker, not included*)
Desktop computer
Laptop computer
Mac adapterset switches according to table below
Serial port PS/2 port ADB port Audio output
Audio cable
NOTE: Many laptop computers do not automatically turn on their external video port when a secondary display device such as a projector is connected. Refer to your computer manual for the command that activates the external video port. Activation commands for some laptop computers are listed in the Appendix of this
Service section of our website.
VGA cable
Use one of these control cables, depending on your computer video
Y ––– Pb ⁄ Cb – Pr ⁄ Cr
S-video
Audio out reset audio OUT computer IN
AV computer audio
IN
PC control
Computer audio in
Control port
Computer in
Audio cable*
Amplifier
Audio input
Speakers
Mac adapter
Set the switches as shown in the table below depending on the desired resolution.
ON
OFF
ON DIP
1 2 3 4 5 6
13" MODE (640 x 480)
16" MODE (832 x 624)
19" MODE (1024 x 768)
21" MODE (1152 x 870)
1
ON
OFF
OFF
ON
2
ON
ON
ON
ON
3
OFF
OFF
ON
ON
4 5 6
OFF OFF OFF
ON OFF OFF
OFF OFF OFF
ON OFF OFF
F IGURE 5
Connecting the projector to a computer
Now you’re ready to power up the projector and your computer.
Skip to “Powering up the Projector and Adjusting the Image” on page 9.
7
S e t t i n g u p t h e P r o j e c t o r
NOTE: HDTV sources must be connected to the projector using either the Y, Pb, Pr input or the computer IN input.
Connecting a Video Player
The following cables can be used to connect a video source:
• Composite video cable (RCA x 1)
• Component video cable (RCA x 3, not included*)
• S-video cable
• AV audio cable
Video cassette recorder Video disk player Component video (DVD, HDTV)
Composite video out
Component video out
S-video out
Audio out
PC audio cable
Video cable
(RCA x 1)
Video cable
(RCA x 3)*
S-video cable
Audio cable
Y-Pb/Cb-Pr/Cr
S-video
Video
Audio out
AV audio in
8
Amplifier
Audio input
Speakers
F IGURE 6
Connecting the projector to a video source
The projector is compatible with these major broadcast video standards: NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, and SECAM.
It automatically adjusts to optimize its performance for the incoming video.
Powering up the Projector and Adjusting the Image
1 Remove the lens cap.
2 Plug the power cord into the side of the projector, then plug it into your electrical outlet. A surge-protected power strip is recommended.
• The Ready indicator on top of the projector lights green, indicating the projector is ready to be turned on, and the
Lamp indicator lights red.
3 Press the power button on the top of the projector or on the remote.
• The fans start to run, the Lamp indicator dims, and the
Preparation screen appears. This screen counts down from
30 seconds, then the image from the active source appears.
4 If you connected a video player, turn it on.
• The video image should display on the projection screen. If a computer source is active, press the source button on the
video button on the remote to display your video image.
• Use the volume buttons on the remote to adjust the volume.
The volume dialog box, showing the current volume level and mute status, appears for 4 seconds.
NOTE: Always use the power cord that shipped with the projector.
NOTE: The first time you connect your computer to the projector, the computer may display a message stating that new hardware was found. The Add New Hardware
Wizard may appear. Use the Wizard to load the correct driver (the computer considers the projector a
Plug and Play Monitor).
9
S e t t i n g u p t h e P r o j e c t o r
NOTE: With some computers, the order in which you power up the equipment is very important.
Most computers should be turned on last, after all other peripherals have been turned on. Refer to your computer’s documentation to determine the correct order.
NOTE: To maximize lamp life, allow the projector to run for at least five minutes before turning it off.
5 Turn on your computer.
• The computer image should display on the projection screen. If a video source is active, press the source button on the keypad or the computer button on the remote to display your computer’s image. Make sure your laptop’s external
video port is activated; see “Portable and Laptop Activation
Chart” on page 46 for details.
• If necessary, make adjustments to the image using the projector’s on-screen menus. To open the menus, press the menu button on the keypad or remote, then select the desired menu. For more information about the menus, see
Turning Off the Projector
If you want to turn off the image for a short period of time, press the Blank button on the remote. This blanks the screen, but keeps the projector running. To exit Blank mode, press the Blank button again or any other function button.
To turn off the projector, press the Power button. The message
“Power off?” appears on the screen. Press the Power button again to turn the projector off. The Lamp indicator lights, and the
Ready indicator dims. The fans run for 90 seconds after the projector is turned off. When the projector has cooled, the Ready indicator lights green, indicating you can turn the projector back on if desired.
10
USING THE PROJECTOR
This section describes how to use and make adjustments to the projector. It also provides a reference to the keypad and remote buttons and the options available from the on-screen menus.
Adjusting the Image
To focus the image, rotate the focus ring (Figure 7) until the image
is clear. To zoom the image, rotate the zoom ring. This adjusts the image size without affecting focus. Turn the ring in the “Wide” direction to make the image larger and in the “Tele” direction to make the image smaller.
zoom ring focus ring
F IGURE 7
Focus ring and zoom ring
The projector is equipped with self-locking, quick-release eleva-
To raise the projector:
1 Lift the front of the projector and lift the feet lock latches on
both sides of the projector (Figure 8).
2 Raise the projector to the height you want, then release the latches to lock the elevator feet into position. If necessary, turn the feet to fine tune the position and tilt.
11
U s i n g t h e P r o j e c t o r
12 foot latch
F IGURE 8
Adjusting the height of the projector
Keystone Adjustment
Use this feature to adjust the image vertically and make a squarer image.
1 Press the keystone up/down button on the remote or select Key-
stone in the Screen menu (see page 16 for details on the
menu).
The message “Keystone” appears.
2 Press the keystone up button or the point up button to reduce the upper part of the image, and press the keystone down button or the point down button to reduce the lower part.
increasing keystone decreasing keystone
F IGURE 9
Adjusting the keystone
Using the Remote Control
To control the computer’s mouse from the projector’s remote or keypad, you must connect one of the Control cables to the com-
puter. See page 7 for details.
Turn the remote on using the on/off button on the side of the remote. Point the remote control at the projection screen or at the front of the projector (not at the computer). The range for optimum operation is about 16 feet and 60 degrees from the front of
the projector (see Figure 10). If you point the remote at the projec-
tion screen, the distance to the screen and back to the projector must be less than or equal to 16 feet. For best results, point the remote directly at the projector.
60º
16.4’ (5m)
F IGURE 10
Remote range
13
U s i n g t h e P r o j e c t o r on all off on/off switch power keystone d.zoom
volume mute menu computer video point button select button p-timer blank auto image freeze normal right click button
F IGURE 11
Remote control
Press anywhere on the edge of the point button to move the cursor on the screen. You can move the cursor at any angle by press-
function buttons.
If you are creating presentations in Microsoft
®
PowerPoint
®
, you can use the remote’s right click , select , and point buttons to navigate through your presentation while in Slide Show mode. To configure PowerPoint for this, choose Options from the Tools menu, click the View Tab, de-select the “Popup Menu on Right
Mouse Click” option in the Slide Show section, then click OK.
Then, when you’re in PowerPoint’s Slide Show mode, a left click advances to the next slide and a right click returns to the previous slide (other PowerPoint modes are not affected).
14
Using the Keypad and Remote Buttons wide tele power menu lamp replace warning temp.
ready lamp normal source point buttons (4) select button
F IGURE 12
Keypad buttons
Point button (1 button on remote, 4 buttons on keypad)
Press this button to navigate in the menus, make adjustments to menu items, or pan the image in Digital Zoom mode. When you press the center of this button on the remote, it works like the select button.
Select button
Use the select
button to confirm a selection in the menus. See
“Using the On-Screen Menus” on page 17.
Power
Press this to turn the projector on and off. See page 9 for the
power-up sequence and page 10 for the power off sequence.
Menu
Press the menu button to open the on-screen menus. Press menu again to close the menus. For more information about the on-
Normal
This feature restores the projector’s factory set, default settings. It affects all the parameters in the Image menu except horizontal size and fine sync.
15
U s i n g t h e P r o j e c t o r
Source (keypad only) or Computer and Video (remote only)
When you have more than one source (computer and video) connected to the projector, select between them by pressing the source button on the keypad or the computer or video button on the remote.
Keystone
Use this button to adjust the keystone distortion. See page 12 for
details.
d. zoom (digital zoom)
This allows you to zoom a computer image. See page 25 for
details.
Volume
To increase the volume, press volume +. To decrease the volume, press volume -.
Mute
Press mute to mute the sound. To restore the sound to its previous level, press the mute button again or the volume +/ button.
P-timer button
This feature allows you to set a timer. Press the p-timer button to display and start the timer. Press it again to stop the timer. Press it again to remove the timer from the display.
Blank
When you press blank , the display and audio turn off and a blank screen is displayed until you press the blank button again or any function button.
Freeze
Press the freeze button to freeze the image on the screen. To unfreeze the image, press the freeze button again or any function button.
Auto Image
Press this button to automatically adjust the image. See page 23
for details.
Right Click
Use this button to compress the image in Digital Zoom mode (see
16
Using the On-Screen Menus
The projector has menus that allow you to make image adjustments and change a variety of settings. Most of these adjustments aren’t available directly from the keypad.
To open the on-screen menus, press the menu button on the remote or keypad. A red frame appears around the selected menu. Use the point buttons on the remote or keypad to move the cursor left and right. To select an item, press the select button on the remote or keypad.
mode computer system auto image image position
PC adjust screen setting language
NOTE: Some menu items may be grayed out (dimmed) at certain times. This indicates the item is not applicable to your setup or the item is not enabled until another selection is made.
F IGURE 13
Computer menus point buttons (4) power point button menu mode
F IGURE 14
Keypad and remote navigation and selection buttons
To change a menu setting, use the up and down point buttons to move the cursor up and down to the item you want to change
(the pointer changes to a red arrow), then use the left and right point buttons or the select buttons to adjust a setting. All changes are saved when you close the menus.
To access another menu, use the up point button to return to the menu bar, then use the right and left point buttons to move to the desired menu (you may need to Quit out of a menu before navigating to the top menu.)
17
U s i n g t h e P r o j e c t o r
Computer Adjustments
Select Computer mode by pressing the source button on the keypad, pressing the computer button on the remote, or clicking the
Computer icon in the menu. When you select Computer, the current mode display appears, showing details of the connected computer.
system menu
System Menu
The projector automatically adjusts to most incoming computer signals and projects the image without any user interaction. If a problem is encountered, the message “Go to PC adj.” may appear and the settings must be input manually. If the message “No signal” appears, verify the connections between the projector and
the computer. See Troubleshooting on page 39 for more informa-
tion.
To select the computer system manually:
1
Select the System menu (see “Using the On-Screen Menus” on page 17 for menu navigation details).
The “System” menu appears.
18
2 Press the point down button, move the arrow to the system you want to select, then press the select button.
These systems are set up using the PC Adjustment menu.
PC Adjustment
The projector automatically adjusts to most incoming computer signals and projects the image without any user interaction.
However, some computers employ unique signal formats that the projector cannot handle properly. These images may flicker or appear non-synchronized. The PC adjustment feature allows you to specify parameters to match the unique signal formats and save and restore five different unique settings.
1 Select the PC Adjust menu.
The “Where to reserve” menu appears.
NOTE: This feature is not available when RGB, HDTV1035i, or
HDTV1080i is selected in the System menu.
PC adjust menu
2 Select where to save the settings. “Free” indicates no settings have been saved; “Stored” indicates settings have been saved.
The “Parameter adjustment” menu appears.
19
U s i n g t h e P r o j e c t o r
20
3 Move to the parameter you want to change using the point up/ down buttons, and adjust each setting using the point right/left buttons.
4 Navigate to “Save” and press the select button.
The parameter is memorized in the selected mode.
5 To activate the mode, select it in the System Select menu (see
Total Lines
The number of vertical lines.
Horiz. Size
The number of dots in one horizontal period.
H Position/V Position
The left/right and up/down position of the image.
Clamp
The clamp level. If the image has dark bars, use this adjustment.
Display area
The area displayed by the projector. Point the arrow at the Display area option and press the select button to open a dialog box where you can select the resolution from a list, or adjust the value with the left and right point buttons.
Full Screen
Select On to resize the image with a 4x3 aspect ratio.
After adjusting the settings, press Save to save the settings, press
Reset to recall the saved settings, press Mode Free to clear the previously saved settings, and press Quit to close the menu.
21
U s i n g t h e P r o j e c t o r
Image Menu
The Image menu allows you to manually adjust the image.
1 Select the Image menu.
The “Image Adjustments” menu appears.
image menu
Fine sync
Adjust the sync as necessary from 0 to 255 to eliminate flicker in the image.
Horiz. Size
Press the point buttons to adjust the number of dots in one horizontal period.
Color Balance (Red, Green, Blue)
Press the point left button to lighten the color and the point right button to deepen the color from 0 to 63.
Contrast
Press the point left button to decrease the contrast and the point right button to increase the contrast from 0 to 63.
Brightness
Press the point left button to darken the image and the point right button to lighten the image from 0 to 63.
22
Gamma
Press the point left or right button to obtain better contrast from 0 to 16.
Auto Image menu
Auto image automatically adjusts fine sync, total dots, and image position for most computers. You can turn these automatic adjustments off and set these parameters manually, if desired.
1 Select Auto Image in the menu.
The “Auto Adjust Image” menu appears.
auto image menu
2 Move the arrow to the desired parameter using the up and down point buttons.
3 Press select to turn the automatic adjustments on and off.
Fine sync and Horiz. Size
See page 22 for instructions on setting these manually.
Position
See the following section for instructions on setting this manually.
Press Save to store the on/off settings, press Start to start Auto
Image adjustments, and press Quit to exit this menu.
23
U s i n g t h e P r o j e c t o r
Position menu
You can move the image up, down, left and right using this menu.
1 Select the Position menu.
The “Position” menu appears.
position menu
2 Use the point buttons to adjust the position.
Press the select button to chose a position. To cancel this adjustment, press any button except the point buttons.
24
.
Screen menu
1 Select the Screen menu.
The “Screen Adjustments” menu appears.
screen menu
2 Move the cursor to the desired feature.
True
Select True to display the image in its original size. If the original size is larger than 800x600, the projector enters Digital Zoom automatically.
Keystone
Select Keystone to adjust the image vertically and make a squarer image. The menus disappear and the message “Keystone” appears. Adjust the keystone using the keystone up/down buttons on the remote or the point up/down buttons on the keypad. See
Digital Zoom
To adjust the image size or pan a computer image, select Digital
Zoom. The menus disappear and the message “D.Zoom” appears. The projector also enters digital zoom mode when the d.zoom
button on the remote is pressed.
To expand the image size, press the d.zoom
up button or the select button. The image is magnified by degrees.
To compress the image size, press the d.zoom
down button or the right click button. The image is reduced by degrees.
To pan the image, press the point up/down/left/right buttons.
Panning only works when the image is larger than the screen size.
To exit digital zoom mode, press any button except d.zoom
, select , right click , or point . To display the image at 800x600, press the normal button on the remote.
NOTE: True and Digital Zoom are not available when RGB,
HDTV1035i, or HDTV1080i is selected in the System menu.
NOTE: Images not in the projector’s native resolution of SVGA
800x600 are automatically modified to fit the screen in the initial mode.
NOTE: Panning may not function if the incoming signals have been modified in the “PC Adjust” menu.
25
U s i n g t h e P r o j e c t o r
Video Adjustments
Select Video mode by pressing the source button on the keypad, pressing the video button on the remote, or clicking the video icon in the menu.
Video Source menu
The projector automatically detects the signal from any connected video sources. If more than one source is connected, use the Video Source menu to select the desire one.
1 Press the menu button, navigate to the Video Source menu, then press the select button.
The “Video Source” menu appears.
source menu
NOTE: When both the Video and
S-Video jacks are connected, the
S-video jack input is displayed.
When both the Y-Pb/Cb-Pr/Cr and
S-Video jacks are connected, the
Y-Pb/Cb-Pr/Cr jack input is displayed.
2 Press the point down button and position the red arrow by the desired source.
Auto
In this mode, the projector automatically detects the incoming video source and adjusts itself to optimize performance.
Video/S-Video/Y, Pb/Cb/Cr
When more than one video source is connected and the projector cannot select the proper video source, select the desired source in the menu.
26
Video System menu
1 Press the menu button, navigate to the System menu, then press the select button.
The “Video System” menu appears. system menu
2 Press the point down button and position the red arrow by the desired source.
When the video signal is from the Video or S-Video jack:
Auto
In this mode, the projector automatically detects the incoming video source and adjusts itself to optimize performance. When the video system is PAL-M or PAL-N, select the system manually.
PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N
If the projector can’t display the proper video signal, select the broadcast signal format from the menu.
27
U s i n g t h e P r o j e c t o r
When the video signal is from the Y, Pb/Cb, Pr/Cr jacks:
Auto
In this mode, the projector automatically detects the incoming video source and adjusts itself to optimize performance.
Component Video Signal Format
If the projector can’t display the proper video signal, select the component signal format from the menu.
28
Screen menu
1 Press the menu button, navigate to the Screen menu, then press the select button.
The “Video Screen” menu appears.
screen menu
2 Press the point down button and position the red arrow by the desired option.
Regular Screen
Normal video image size with 4x3 aspect ratio.
Wide Screen
Resizes the image for wide screen size with 16x9 aspect ratio.
Keystone
This option helps to keep the image square as the angle of projection is changed. When you select Keystone, the menus disappear and the message “Keystone” appears. Adjust the keystone using the keystone up/down buttons on the remote or the point up/down
buttons on the keypad. See page 12 for details.
29
U s i n g t h e P r o j e c t o r
Image Menu
1 Press the menu button, navigate to the Image menu, then press the select button.
The “Image Adjustments” menu appears.
image menu
2 Press the point down button and position the red arrow by the parameter you want to adjust. To change a value, press the point left or right button.
Color
The color setting adjusts a video image from black and white to fully saturated color. Press the point left button to decrease the amount of color in the image, press the point right button to increase the amount of color in the image.
Tint
The tint adjusts the purple-green color balance in the projected image. Press the point left button to increase the amount of purple in the image, press the point right button to increase the amount of green in the image.
Color Balance (Red/Green/Blue)
Press the point left button to lighten the color, press the point right button to deepen the color.
30
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. Press the point left button to decrease the contrast, press the point right button to increase the contrast, making the blacks appear blacker and the whites appear whiter.
Brightness
Adjusting the brightness changes the intensity of the image. Press the point left button to darken the image, press the point right button to lighten the image.
Sharpness
This setting adjusts the sharpness of a video image. Press the point left button to decrease the sharpness, press the point right button to increase the sharpness.
Gamma
Press either the point left or right button to obtain better balance of contrast.
Press Save to store the settings, press Reset to restore the previous settings, and press Quit to exit this menu.
31
U s i n g t h e P r o j e c t o r
Setting menu
1 Press the menu button, navigate to the Setting menu, then press the select button.
The “Other Projector Setting” menu appears.
setting menu
32
NOTE: Changing the volume using the menu is the same as changing it using the remote.
2 Press the point down button and position the red arrow by the parameter you want to adjust. To change a value, press the point left or right button. To turn a setting on and off, press the select button.
Volume
Press the point left button to decrease the volume, press the point right button to increase the volume.
Mute
Set to “On” to mute the sound. To restore the sound to its previous level, set “Off” or press the mute button or the volume +/- button on the remote.
Blue Background
When this feature is “On”, the proctor produces a blue image when the input source is unplugged or turned off.
Display
This feature allows you to turn the on-screen displays on and off.
Select “On1” to show all displays, select “On2” to show all displays except the Preparation screen, select “Off” to turn off all displays.
Ceiling
When you turn Ceiling on, the projector turns the image upside down for ceiling-mounted projection.
Rear
When you turn Rear on, the projector reverses the image so you can project from behind a translucent screen.
Power Management
This feature preserves lamp life by automatically turning the lamp off after no signal has been detected for five minutes.
1 When the input signal is interrupted, the message “No signal” appears with a counter that starts at 5 and counts down to 0.
2 After the counter reaches 0, the lamp is turned off, the Ready indicator turns off, and the fans run for 90 seconds. During this cool down time, the lamp cannot be turned on.
3 After 90 seconds, the Ready indicator blinks and the lamp can be turned back on.
The lamp is automatically turned on when the input signal is re-connected or any button on the remote or keypad is pressed.
Lamp Age
This allows you to reset the lamp monitor replacement timer. See
NOTE: The Power Management feature is On by default.
33
U s i n g t h e P r o j e c t o r
Language menu
You can display the on-screen menus in English, French, German,
Spanish, Italian, or Japanese.
1 Press the menu button, navigate to the Language menu, then press the select button.
The “Select Language” menu appears.
language menu
2 Press the point down button and position the red arrow by the desired language, then press the select button.
34
MAINTENANCE & TROUBLESHOOTING
This section describes how to:
• clean the lens
• clean the air filter
• replace the projection lamp
• replace the batteries in the remote
• troubleshoot the projector
Cleaning the Lens
Follow these steps to clean the projection lens:
1 Apply a non-abrasive camera lens cleaner to a soft, dry cloth.
• Avoid using an excessive amount of cleaner, and don’t apply the cleaner directly to the lens.
• Abrasive cleaners, solvents or other harsh chemicals might scratch the lens.
2 Lightly wipe the cleaning cloth over the lens in a circular motion.
3 If you don’t intend to use the projector immediately, replace the lens cap.
Cleaning the Fan Intake Filters
The fan intake filters on the bottom of the projector catch dust and particles in the air. If the filters become clogged, the projector does not cool properly and may malfunction. To prevent this, clean the filters after every 100 hours of use.
1 Turn off the projector and unplug the power cord.
2 Turn the projector upside down and remove the two filters by pulling the latches up.
35
M a i n t e n a n c e & T r o u b l e s h o o t i n g air filters
WARNING: To avoid burns, allow the projector to cool for at least 45 minutes before you open the lamp module door. Never extract the lamp module while the projector is operating.
F IGURE 15
Removing the air filters
3 Clean the filters with a brush.
4 Replace the filters, being sure they are fully inserted.
Replacing the Projection Lamp
The Lamp Replacement indicator lights yellow when the lamp needs to be replaced. You can order new lamp modules from
your InFocus dealer. See “Accessories” on page 44 for informa-
tion.
Follow these steps to replace the projection lamp:
1 Turn off the projector and unplug the power cord.
2 Wait 45 minutes to allow the projector to cool thoroughly.
3 Invert the projector on a soft flat surface, then remove the screw on the lamp cover and lift the cover off.
36
lamp cover
WARNING: Be extremely careful when removing the lamp module.
In the unlikely event that the bulb ruptures, small glass fragments may be generated. The lamp module is designed to contain these fragments, but use caution when removing the lamp module.
F IGURE 16
Removing the lamp cover
4 Remove the two screws on the outside of the module, then
grasp the handle and pull the module out (Figure 17). Dispose
of the lamp module in an environmentally proper manner.
CAUTION: Never operate the projector with the lamp door open or removed. This disrupts the air flow and causes the projector to overheat.
F IGURE 17
Removing the lamp module
37
M a i n t e n a n c e & T r o u b l e s h o o t i n g
WARNING: Do not drop the lamp module or touch the glass bulb! The glass may shatter and cause injury.
5 Install the new lamp module.
6 Tighten the screws on the outside of the module.
7 Replace the lamp door and the screw.
8 Plug in the power cord and press the power button to turn the projector back on.
9 To reset the lamp replacement monitor timer, press the menu button, select the Setting menu, then navigate to the Lamp
Age option. Press the select button, and the message “Lamp replace monitor reset” appears. Select Yes to reset the timer.
See “Using the On-Screen Menus” on page 17 for details
menu navigation.
Replacing the Batteries in the Remote Control
The life of the batteries depends on how often and how long you use the remote. Symptoms of low battery charge include erratic responses when using the remote and a reduced range of operation.
Follow these steps to replace the batteries:
1 Turn the remote face down in your hand.
2 Slide the battery cover off the end of the remote.
3 Remove the old batteries and dispose of them in an environmentally proper manner.
4 Install two new AA alkaline batteries. Make sure you install each in the correct direction.
5 Slide the battery cover back on the remote.
38
Troubleshooting
Problem: The projector is not running
• Make sure that the power cord is properly connected to a fully functional AC electrical outlet. Make sure that the power cord is also properly connected to the projector.
• If the projector is plugged into a power strip, make sure the power strip is turned on.
• Make sure the projector is turned on.
Problem: Projector is running, but nothing appears on projection screen
• Make sure you have removed the lens cap on the projection lens at the front of the projector.
• Check the projector’s lamp to ensure that it is securely connected in the lamp module. Make sure the lamp cover is
installed. See “Replacing the Projection Lamp” on page 36.
Problem: Only the start-up screen displays
•
Verify that the cables are connected correctly. See page 7 and
page 8 for connection procedures.
• Make sure that the cables do not have any bent pins.
•
Verify that the proper input source is connected. See “Source
(keypad only) or Computer and Video (remote only)” on page 16.
• You might need to turn everything off and power up the equipment again in the proper order. Refer to your computer’s documentation to determine the correct order.
• Make sure your laptop’s external video port is turned on. See
the “Portable and Laptop Activation Chart” on page 46 or
your computer’s manual for details.
• Make sure your computer’s video board is installed and configured correctly.
• Make sure your computer has a compatible video board. The projector isn’t CGA or EGA compatible.
39
M a i n t e n a n c e & T r o u b l e s h o o t i n g
If you’re using Windows 98:
1 Open “My Computer” icon, the Control Panel folder and then the Display icon.
2 Click the Settings tab.
3 Verify that the Desktop area is set to 1280x1024 or less.
Problem: Color or text not being projected
• You might need to adjust the brightness up or down until the
text is visible. Refer to “Brightness” on page 22 for more infor-
mation.
Problem: The screen resolution is not right
• Make sure the computer’s video card is set for a resolution of no greater than 1280x1024.
Problem: Image isn’t centered on the screen
• Move the projector to reposition the image.
•
Reposition the image using the menu. Refer to “H Position/V
• Be sure the projector is at a 90 degree angle to the screen.
Problem: Image is too wide or narrow for screen
• Adjust the zoom or projector placement.
• Adjust the resolution of your video card if it’s greater than
1280x1024.
Problem: Image is out of focus
• Turn the projection lens to focus the image.
• Make sure the projection screen is at least 4.6 feet (1.8 m) from the projector.
• Check the projection lens to see if it needs cleaning.
Problem: Image and menus are reversed left to right
• Rear projection mode is probably turned on. Turn Rear off in the Screen menu. The image should immediately return to for-
ward projection. See “Rear” on page 33.
40
Problem: the projector displays vertical lines, “bleeding” or spots
•
Adjust the brightness. See “Brightness” on page 22.
• Check the projection lens to see if it needs cleaning.
Problem: no sound
• Adjust volume.
• Verify audio/input connections.
• Adjust audio source.
Problem: Image is “noisy” or streaked
Try these steps in this order.
1 Deactivate the screen saver on your computer.
2 Adjust the synchronization manually to find an optimal set-
ting. See “Fine sync” on page 22.
• The problem could be with your computer’s video card. If possible, connect a different computer.
Problem: Projected colors don’t match the computer or video player’s colors
• Just as there are differences in the displays of different monitors, there are often differences between the computer image and the projected image. Adjust the brightness, tint and/or
contrast from the Display menu. See “Brightness” on page 22,
“Tint” on page 30 and “Contrast” on page 31.
Problem: Lamp seems to be getting dimmer
• The lamp begins to lose brightness when it has been in use for
a long time. Replace the lamp as described in “Replacing the
Problem: Lamp shuts off
• A minor power surge may cause the lamp to shut off. Unplug the projector, wait at least a minute, then plug it back in.
• Make sure the vents are not blocked.
41
M a i n t e n a n c e & T r o u b l e s h o o t i n g
The most current troubleshooting information can be found in the Service and Support section of our website at http://www.infocus.com/service. You’ll also find a Technical
Library, FAQs, and support contacts including a technical support e-mail form.
Before calling your dealer or InFocus Technical Support for assistance, please have the following information available:
• the projector’s serial number (located on the projector’s label)
• the resolution of your computer.
Call InFocus Technical Support at 1-800-799-9911 between 6 a.m. and 6 p.m. PST, Monday through Friday. Service is available in
North America after hours and on weekends for a fee at
1-888-592-6800.
In Europe, call InFocus in The Netherlands at (31) 35-6474010 between 8 a.m. and 6 p.m. Central European Time.
In Asia, call (65) 332-0659 between 9:30 a.m. and 5:30 p.m.
Or, send us an e-mail at [email protected]
42
APPENDIX
Specifications
The projector must be operated and stored within the temperature and humidity ranges specified.
Temperature
Operating
Non-operating
41 to 95
°
F (5 to 35
°
C)
14 to 140
°
F (-10 to 60
°
C)
Humidity
Operating and non-oper.
80% relative humidity, non-condensing
Dimensions
7.4 x 2.9 x 11.4 inches (18.9 x 7.5 x 29.0 cm)
Weight
5.5 lbs. (2.5 kg) unpacked
Altitude
Operating
Optics
Focus Range
0 to 7,500 feet (2,286 meters)
4.6 - 26 feet (1.4-8 m)
Lamp
Type 120-watt or 132-watt UHP lamp
Input Power Requirements
100-120VAC 2.2A;50/60Hz
200-240VAC 1.1A; 50/60Hz
43
A p p e n d i x
NOTE: Use only InFocusapproved accessories. Other products have not been tested with the projector.
Accessories
Standard Accessories
(ship with the projector)
Quick Start Card
User’s Guide
Soft Case
Shipping Box
Power Cord (North American)
Power Cord (European)
VGA computer cable
Composite Video Cable
Computer Audio Cable
AV Audio Cable
S-video Cable
Control Cable for PS/2 Port
Control Cable for ADB Port
Control Cable for Serial Port
Macintosh Adapter
Remote Control
Batteries for Remote Control
Projection Lamp Module
Lens Cap
Part Number
009-0550-xx
010-0262-xx
110-0362-00
110-0365-xx
210-0195-xx
210-0196-xx
210-0200-xx
210-0197-xx
210-0194-xx
210-0198-xx
210-0199-xx
210-0202-xx
210-0201-xx
210-0203-xx
515-0052-xx
590-0381-xx
521-0021-xx
SP-LAMP-LP260
340-0836-xx
44
Optional Accessories
Deluxe Carry Case
Executive Leather Case
Shipping Case (ATA approved)
Deluxe Travel Case
Hard Travel Porter Case
15’ Mac Extension Cable
15’ VGA Extension Cable
Audio/Video Cable
GyroMouse Pro RF Remote Control
SP-AV30
HW-RF-GPRO
RemotePoint RF Remote Control w Laser Pointer HW-RF-REMLSR
GyroMouse Presenter RF Remote Control HW-RF-GPRES
Executive Remote IR Receiver
PC Guardian Projector Cable Lock
40” Portable Projection Screen
50” Portable Projection Screen
HW-EXRCVR
SP-LOCK
HW-PORTSCR40
HW-PORTSCR50
60” Deluxe Insta-Theatre Screen
84” Pull Down Screen
Deluxe Wheeled Projector and Computer Cart
Portable Projector Stand eBeam (Web Enabled Electronic Meeting
Assistant)
3 rd
Year Advantage Service Plan
(1 year extension)
CA-C161
CA-C133
CA-ATA-260
CA-C160
CA-C142
SP-MAC15
SP-VGA15
HW-DLXSCRN
HW-WALLSCR84
HW-CART
SP-STND
HW-EBEAM
EW-LP26x-12
NOTE: You can purchase these items by contacting your dealer or
InFocus Catalog Sales at
1-800-660-0024.
45
A p p e n d i x
NOTE: Visit our website at www.infocus.com for the most current activation chart. It is located in the Technical Library in the Service and Support section.
Portable and Laptop Activation Chart
Many laptop computers do not automatically turn on their external video port when a projector is connected. Activation commands for some laptop computers are listed in the following table. (If your computer is not listed or the given command does not work, refer to the computer’s documentation for the appropriate command.) On many laptops, the activation function key is labeled with an icon, for example or the text CRT/LCD.
NOTE: Usually, pressing the key commands once activates the external video port, pressing it again activates both the external and internal ports, and pressing it a third time activates the internal port. Refer to your computer’s documentation for details on your specific model.
Computer
Acer
AST* **
AMS
AMT
AT&T
Advanced Logic
Research
Altima
Key command to activate port
Ctrl-Alt-Esc (for setup)
FN-D or Ctrl-D
Ctrl-FN-D
FN-F5 type from A:/IVGA/CRT
FN-F12
FN-F2 setup screen
FN-F3
FN-F6
Ctrl-Alt-V
Ambra**
Amrel* **
Apple
Aspen
Award
BCC*
Key command to de-activate port
Ctrl-Alt-Esc (for setup)
FN-D or Ctrl-D
Ctrl-FN-D
FN-F5 type from A:/IVGA/CRT
FN-F12
FN-F2 setup screen
FN-F3
FN-F6
Ctrl-Alt-V
Shift-Ctrl-Alt-C setup VGA/
Conf.Simulscan
FN-F12
FN-F5
F2/Choose Option/F5 setup menu
Shift-Ctrl-Alt-L setup VGA/
Conf.Simulscan
FN-F12
FN-F5
F2/Choose Option/F5 setup menu
Shift-Ctrl-D Shift-Ctrl-D see Mac Portable and Mac PowerBook automatic
FN-F6 automatic automatic
FN-F6 reboot computer
46
Computer
Bondwell
Chaplet**
Chembook
Commax
Compaq* **
Compuadd* **
Data General
Data General
Walkabout
Datavue
DEC**
Dell**
Digital*
Dolch
Epson
Everex*
For-A
Fujitsu
Gateway
Key command to activate port
LCD or CRT options after bootup setup screen
FN-F6
FN-F4
FN-F6
Key command to de-activate port reboot for LCD or CRT options to appear setup screen
FN-F6
FN-F4
FN-F6
Ctrl-Alt-#6
Ctrl-Alt-<
FN-F4 automatic
Ctrl-Alt-#5
Ctrl-Alt->
FN-F4 automatic mode/? (for setup option) mode/? (for setup option) automatic automatic
Alt-F for screen setup option
Alt-F for screen setup option
Ctrl-Alt-Command Ctrl-Alt-Command
2 CRT/X at DOS prompt reboot
Ctrl-Shift-M
FN-F5
FN-F4
Ctrl-Alt-<
Ctrl-Alt-F10
FN-F8 (CRT/LCD)
FN-D
FN-F12 automatic
FN-F2 dip switch to CRT dip switch to CRT setup screen option
Ctrl-Alt-Shift-C
FN-F10
FN-F3
FN-F1/FN-F1 again simultaneous
Ctrl-Shift-M
FN-F5
FN-F4
Ctrl-Alt->
Ctrl-Alt-F10
FN-F8
FN-D
FN-F12 reboot
FN-F2 dip switch to LCD dip switch to LCD setup screen option
Ctrl-Shift-Alt-L
FN-F3
FN-F1
47
A p p e n d i x
Computer
Grid* **
Hitachi
Honeywell
Hyundai
Key command to activate port
FN-F2, choose auto or simultaneous
Ctrl-Alt-Tab
FN-F7
FN-F10 setup screen option
Key command to de-activate port
FN-F2
Ctrl-Alt-Tab
FN-F7
FN-F10 setup screen option
IBM 970* automatic warm reboot
IBM ThinkPad** reboot, enter setup menu FN-F2
FN-F7, select choice from setup menu
Infotel
Kaypro
Kris Tech
Leading Edge
Mac Portable
100
Mac PowerBook
140, 145, 150,
170
160, 165, 180,
520, 540, 5300
FN-F1, select choice
FN-F5, select choice
PS/2 SC select choice
(CRT, LCD, etc.)
FN-F12 boot up, monitor plugged in
FN-F8
FN-F12 unplug monitor
FN-F8
FN-T FN-T no video port: not compatible no video port: requires a 3rd-party interface
Control Panel folder, PowerBook Display folder;
Activate Video Mirroring warm reboot requires Apple Docking Station or Mini Dock 210, 230, 250,
270, 280, 2300
Magitronic
Mastersport
Micro Express*
Micron
Microslate*
FN-F4
FN-F2 automatic
FN-F2 automatic
FN-F4
FN-F1 warm reboot
FN-F2 warm reboot
48
Computer
Mitsubishi
NCR
NEC* **
Key command to activate port
SW2 On-Off-Off-Off setup screen option setup screen option
CRT at the DOS prompt
FN-F3 automatic Olivetti*
FN-O/*
Packard Bell* ** FN-F0
Panasonic
Prostar
Samsung*
Ctrl-Alt-<
FN-F2
Ctrl-Alt-S at bootup setup screen option
Sanyo
Sharp
Sun SPARC-
Dataview
Tandy** setup screen option dip switch to CRT
Ctrl-Shift-M
Tangent
Texas Instruments*
Top-Link* **
Ctrl-Alt-Insert setup screen option
FN-F5 setup screen option
Toshiba* **
Twinhead* setup screen option
FN-F6
Ctrl-Alt-End
FN-End
FN-F5 setup screen option
FN-F7
WinBook
Wyse
Zenith**
FN-F5
Automatic
Ctrl-Alt-F10 software driven
FN-F10
FN-F2 setup screen option
FN-F6
Ctrl-Alt-Home
FN-Home
FN-F5 setup screen option
FN-F7
FN-F5
Automatic
Ctrl-Alt-F10 software driven
FN-F10
FN-F2
Key command to de-activate port
SW2 Off-On-On-On setup screen option setup screen option
LCD at the DOS prompt
FN-F3 automatic
FN-O/*
FN-F0
Ctrl-Alt->
FN-F2
Ctrl-Alt-S at bootup setup screen option setup screen option dip switch to LCD
Ctrl-Shift-M
Ctrl-Alt-Insert setup screen option
FN-F5 setup screen option
49
A p p e n d i x
Computer
Zeos**
Key command to activate port
FN-F1
Ctrl-Shift-D
FN-F1
Key command to de-activate port
FN-F1
Ctrl-Shift-D
FN-F1
* These manufacturers have models that automatically send video to the external CRT port when some type of display device is attached.
** These manufacturers offer more than one key command depending on the computer model.
50
Using Video Mirroring with a PowerBook Computer
When you turn video mirroring (called SimulScan in newer PowerBooks—see below) on, the projector displays the same information that appears on your PowerBook’s built-in screen. When video mirroring is off, the projector acts like a separate display.
To turn on video mirroring for the first time:
1 Open the Monitors control panel; click on Monitor 2.
2 Set the number of colors you want.
3 Open the Control Strip, then click on the monitor icon.
4 Select “Turn Video Mirroring On.”
Now you can turn video mirroring on and off from the Control
Strip without having to open the Monitors control panel again.
When using video mirroring and high color graphics such as slide shows, the projected image occasionally might turn black and white. If this happens, perform the following steps:
1 Turn off video mirroring.
2 Open the Monitors control panel.
3 Move the white menu bar to Monitor 2 to set the projector as the primary monitor.
4 Restart the PowerBook.
Using SimulScan
Some newer PowerBooks display images on an external monitor or projector differently than previous ones. When using
SimulScan, the projector displays the same information that appears on your PowerBook
To select SimulScan:
1 Open the Control Panel, then double-click Monitors and
Sound.
2 In the Resolution list, choose the SimulScan mode, then click
OK.
3 If this changes your display settings, a dialog box appears.
Click OK to confirm the change.
51
A p p e n d i x
52
INDEX
A
activation commands for laptop computers 46
adjusting
assistance. See Technical Support
B buttons on keypad
C cables
power 44
cleaning the projection lens 35
colors
compatibility
computers
connecting
D displaying
E
F
H
I
IBM-compatible computers
colors don’t match computer’s 41
size 5
K
53
I n d e x
54
L lamp
laptop computers
activation sequence to allow secondary display 46
lens
LP260
M
Macintosh computers
Menu button 17 menus. See on-screen menus
monitor, projected colors don’t match
mouse
buttons on keypad 15, 17 buttons on remote 17
O on-screen menus
displaying 17 making changes to menu functions 17
P power cord
ordering 44
PowerPoint slides, advancing with the remote 14
R remote control
advancing PowerPoint slides with 14
controlling the computer with 13
replacing projection lamp module 36
S
SimulScan, using with PowerBooks 51
T
Technical Support
in Europe 4 in Singapore 4 in USA 4
information to have on hand before you call 42
V
video mirroring on a PowerBook 51
Volume buttons 16 volume, adjusting 16
W
Z
LIMITED WARRANTY
InFocus Corporation (“InFocus”) warrants that each LP260 (“the Product”) sold hereunder will conform to and function in accordance with the written specifications of InFocus. Said limited warranty shall apply only to the first person or entity that purchases the Product for personal or business use and not for the purpose of distribution or resale. Said warranty shall continue for a period of two (2) years from the date of such purchase. The standard limited warranty excludes the lamps in projectors after 90 days and the accessories after one year. InFocus does not warrant that the Product will meet the specific requirements of the first person or entity that purchases the Product for personal or business use. InFocus’ liability for the breach of the foregoing limited warranty is limited to the repair or replacement of the Product or refund of the purchase price of the Product, at InFocus’ sole option. Replacement Product may be re-furbished in “like-new” condition, at
InFocus’ sole discretion. To exercise the Purchaser’s rights under the foregoing warranty, the Product must be returned at the Purchaser’s sole cost and expense, to InFocus or to any authorized InFocus service center provided, and the Product must be accompanied by a written letter explaining the problem and which includes (i) proof of date of purchase; (ii) the dealer’s name; and (iii) the model and serial number of the Product. When sending your unit in for repair, please ship your unit in its original packing material or an InFocus approved ATA Shipping Case, or have a professional packaging company pack the unit. Please insure your shipment for its full value. A return authorization number, issued by the InFocus customer service department, must also be clearly displayed on the outside of the shipping carton containing the Product.
Note: Remanufactured Products are exempt from the foregoing Limited Warranty. Please refer to the Remanufactured
Product Warranty for applicable warranty information.
WARRANTY LIMITATION AND EXCLUSION
InFocus shall have no further obligation under the foregoing limited warranty if the Product has been damaged due to abuse, misuse, neglect, accident, unusual physical or electrical stress, unauthorized modifications, tampering, alterations, or service other than by InFocus or its authorized agents, causes other than from ordinary use or failure to properly use the
Product in the application for which said Product is intended.
DISCLAIMER OF UNSTATED WARRANTIES
THE WARRANTY PRINTED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PURCHASE. ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. THERE ARE NO WARRANTIES
THAT EXTEND BEYOND THE FACE HEREOF AND THE FOREGOING WARRANTY SHALL NOT BE EXTENDED,
ALTERED OR VARIED EXCEPT BY WRITTEN INSTRUMENT SIGNED BY INFOCUS. SOME STATES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY MAY LAST, SO SUCH LIMITATIONS MAY NOT APPLY TO
YOU.
LIMITATION OF LIABILITY
IT IS UNDERSTOOD AND AGREED THAT INFOCUS’ LIABILITY WHETHER IN CONTRACT, IN TORT, UNDER ANY
WARRANTY, IN NEGLIGENCE OR OTHERWISE SHALL NOT EXCEED THE RETURN OF THE AMOUNT OF THE
PURCHASE PRICE PAID BY PURCHASER AND UNDER NO CIRCUMSTANCES SHALL INFOCUS BE LIABLE FOR
SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOST PROFITS, LOST REVENUES OR
LOST SAVINGS. THE PRICE STATED FOR THE PRODUCT IS A CONSIDERATION IN LIMITING INFOCUS’ LIABILITY.
NO ACTION, REGARDLESS OF FORM, ARISING OUT OF THE AGREEMENT TO PURCHASE THE PRODUCT MAY BE
BROUGHT BY PURCHASER MORE THAN ONE YEAR AFTER THE CAUSE OF ACTION HAS ACCRUED. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPE-
CIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
Part Number 010-0262-00
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
