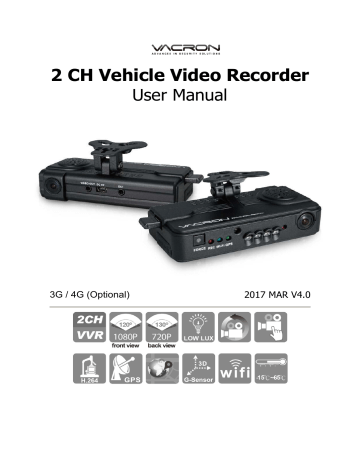

2 CH Vehicle Video Recorder
User Manual
3G / 4G (Optional)
2017 MAR V4.0
Vehicle video recorder user manual
Safety Precautions
For ensure device working correctly, please test record and play video function before use. Please note that manufacturer, subsidiaries, affiliates, and distributors are not liable for any consequential damages arising from any malfunction of main device accessory.
Including the losses cause by memory card that failed to record image or recorded files unable to read on any device.
Before using the product, please ensure that you read the safety precautions below. And always make sure the product is used correctly.
•
Please keep device away from children.
•
Only using the power supply as manufacture recommended.
•
Do not attempt to disassemble, alter or heat the product.
•
To avoid the risk of injury, do not touch the interior of the product if it has been dropped or otherwise damaged.
•
Stop using the product immediately if it emits smoke, a strange smell, or otherwise behaves abnormally.
•
Do not use organic solvents such as alcohol, benzene, or thinner to clean the product.
•
Do not let the product come into contact with water (e.g. sea water) or other liquids.
•
Do not allow liquids or foreign objects to enter the VVR.
•
Do not place the VVR nearby or direct touch flame.
•
Do not handle the power cord with wet hands.
•
Do not use the equipment in a manner that exceeds the rated capacity of the electrical outlet or wiring accessories. Do not use the damaged power cords or plugs, or the power cords or plugs were not fully plugged into the outlet.
•
Do not allow direct or metal objects (such as pins or keys) contact with the terminals or plugs.
•
Avoid using, placing or storing the product in the humid or dusty areas ii
Vehicle video recorder user manual
Table of Contents
............................................................................... 4
............................................................................................ 5
.............................................................................................. 9
....................................................................... 11
................................................................................... 12
...................................................................................... 20
..................................................................................... 22
3G Client Remote Surveillance (optional)
.................................................... 24
........................................................................................ 32
iii
Vehicle video recorder user manual
A.
Feature
1.
Suitable for record public or private vehicle security video. Apply vehicles as Taxi, cement trucks, container trucks, tank trucks, school buses, police cars, armored cars, ambulances, fire trucks,
SUVs, RVs and others.
2.
Sony IMX323 Ultra low-light one million high-resolution CMOS sensor.
3.
Built-in Supercapacitor offers extensional power supply and ensures video is well stored of critical moment and compact.
4.
Insert the card and activate power to start recording without additional operating.
5.
Recording vehicle interior and exterior condition simultaneously
6.
Complete time, date records that capable displays on the screen directly.
7.
Recording driving condition, sound, G-Sensor and GPS data.
8.
Front view angle approx. 120 degrees. Back view angle approx.
130 degrees.
9.
Recording track of driving routes which can be shown on Google
Map when we playback video records.
10.
Micro SD memory card Class 10 or above recommend.
11.
G-sensor sensitivity can be adjusted according to road situations.
When detect a strong shock, system will start emergency recording and keep the files without being overwritten.
12.
Professional file formats, without built-in lithium battery, no needs to afraid of heat and bursting concerns, it is the real black box.
13.
Carry on 3G dongle for remote surveillance, vehicles operating data can be handling on time.
14.
Carry on Wi-Fi dongle for on line video immediately download and backup.
1
Vehicle video recorder user manual
B.
Specifications
Terms
Sensor
Camera view angle
Voltage
Specifications
Front 1080P CMOS Sensor
Rear 720P CMOS Sensor
Front camera view angle approx.120°
Rear camera view angle approx. 130°
(a)Require 5V±5%, 1A Cigarette lighter adapter.
Start voltage as 4.7v above.
(b)Built-in1.5Fsupercapacity as backup power for file storage.
Operating Temp -15
℃
~+65
℃
Storage device
Recording
Frame
Recording contents
Storage format
Microphone
Time setting
G-Sensor
Recommend using Class 10 above micro-SDHC
Card (8G above) MAX TO 128GB.
Front 1920x1080 Max. Fps as 25/25Fps
(NTSC/PAL)
Rear 1280x720 Max. Fps as 15/15fps (NTSC/PAL)
Auto record when power up system; backward facing lens can be closed by setting of software.
Date, time, image, sound, G-sensor data, GPS data.
(a) Specific format for software player.
(b) H.264 compression
Build-in high sensitivity of single microphone for automatic voice adjustment
GPS auto adjustment, use built in calendar clock if no GPS signal.
Internal 3D G-Sensor
GPS
WIFI
Output/input device
Built-in GPS, capable connect with G-MOUSE.
GPS position, drive route tracking record.
Built-in USB WIFI Dongle(2.4G HZ)
。
(a) VIDEO OUT: TV-Out (1 Vp-p composite video output, 75 ohms)
(b) Video Output format: NTSC / PAL alternative.
2
Vehicle video recorder user manual
C.
Accessories
(c) Force Record Button: For emergency recording. Gleams in night time.
(d) Red light: Recording indicator. In emergency recording, it flashes more frequently.
(e) Green light: GPS connecting light (Flashing light means that 3D positioning is not ready, bright means that 3D already positioning).
(f) Blue light: WiFi connection light (flash light means WiFi do not connect, bright means success connect with WiFi.
(g) EXT: extra GPS Mouse external jack. Note: under night mode, the infrared ray is on and the indicator light is dimmed.
Standard :
(a) 5V cigarette Power adapter
(b) 4 pings, 3.5 inch headphone jack to RCA output cable
(c) IR remote controller
(d) Suction cup for bracket holder
(e) Bracket holder
(f) Product CD
(g) Quick start guide
(h) WiFi Dongle
Optional
:
(a) 8G Class10 Above micro SD Card
( 8GB/16GB/32BG/64GB/128GB ) .
(b) External GPS Mouse (4P Phone Jack Connect) .
(c)
Vertical 90˚ glass vehicle models, such as: tour buses, large trucks, container trucks, fire engines, can be used with AVM-
351 bracket.
3
Vehicle video recorder user manual
D.
Product structure diagram
Remote Control Receiver
Light Sensor
Force Recording Button
Recording Light /Red
WiFi connection light/Blue
GPS indicator/Green
IR LED light
Rear camera
Front camera
Video output
GPS Mouse
External connector
Power DC5V
4
Vehicle video recorder user manual
USB Jack / WiFi Dongle
E.
Product Dimension
Unit
:
mm
MICRO SD Card
5
Vehicle video recorder user manual
F.
Installation
1.
Use
「 suction cup
」 or
「
Double-sided adhesive
」 install device on vehicle front windshield.
Double-sided adhesive
2. Set up the machine in proper position
3. Adjust the camera view to proper angle
4. Plug the power cable to
DC5Vconnect jack
5. Plug in the cigarette adapter.
6
Vehicle video recorder user manual
6. Device wire installation diagram. During the wire installation, avoid set wire on left side above GPS, please set wire through device front hole to vehicle ceiling to get better GPS signal.
Best
installation
Location
Adapter
Connection
Notices
(a) GPS positioning accuracy may be affected by the installation position, sun-screen or weather condition.
(b) For ensure clarity of video, install device in the wiper washable area.
(c) Automotive front insulation paper with metal components may lead to GPS cannot position.
(d) Infrared ray start-up time and off time depends on the light intensity, which impact by the installation location, first file cellophane ... and other factors.
(e) The day and night mode with a delay of about 30 seconds, into the night mode when activate device.
(f) Before using the memory disk, please format the disk first by the software player. If not, device will automatically erase all data in the memory disk before recording, then recording as default setting.
(g) To ensure recording quality, please do not use adapter card with
Micro SD card. Doing so may lead to bad connection due to shock and vibration
(h) Memory card has life limit. For ensure it working correctly, please test the memory card on PC Player regularly
(i) Use new memory card insert device, it will doing professional files format about 2 minutes, and then start recording.
7
Vehicle video recorder user manual
(j) After SD card format by device or PC player, 8G, 16G, 32G, 64G or 128G SD card all showing 80.5MB storage space under
Windows system, other storage space as hidden files, user have to play video records by professional player that offer by manufacturer. The restore SD card also have to use the manufacturer player refer to format/restore memory card chapter.
(k) The collision and high frequency vibration may cause physical damage to the memory card magnetic field, resulting in video intermittent or unable playback. it is recommended that regular inspection and backup important data.
(l) If the device power consumes more than the standard USB single-hole output 500mA, the computer power supply may be insufficient, and it requires buying additional DC 5V / 1A above the power supply wire.
(m)
Devices video output normally divided into two systems: NTSC or PAL. Ensure using suitable system according to different devices and monitors.
8
Vehicle video recorder user manual
G.
Remote controller
Buttons
▲
Force recording button
Mode
Mode button
Functions
Manually establish a recorded file which cannot be overwritten
Full screen / Half screen spilt shift
Menu
Menu button
Firmware version of the device displayed
Mute button
Audio recording On/Off
◆
Introduction of OSD Interface: (Video output from connecting
TV-OUT line to the device):
( 1 ) Press Mode button in Live view interface switch CH1 front camera, CH2 rear camera and dual front and rear camera image as below:
Front camera image(CH1)
Rear camera image(CH2)
Front &Rear camera image display
9
Vehicle video recorder user manual
( 2 ) Illustration Description
G-Sensor event
GPS connection
Audio record On
Front camera
Rear camera
Rear camera image (CH2)
Front camera image (CH1)
GPS dirve information
1. Event Record: Appears in the top right side of LIVE screen, it means that G-Sensor didn't receive abnormal signal. When you press the record button from the remote control or click this icon at the right top to force the machine to record manually.
2. Click Menu button on remote controller under LIVE screen to display current software version.
3. In the LIVE screen you can choose whether open the recording or not, click Mute button on remote controller, the icon
will showing on top right of LIVE screen, this icon stand for stop recording audio, start and being recording the top right screen will showing icon.
4. GPS display: When icon appears at the top right of the
LIVE screen, it means there is no GPS signal; when the icon appears in the top right of the LIVE screen, it indicates that the
GPS is working.
* The boot screen and LIVE screen image may change due to software update or revision without any notice.
10
Vehicle video recorder user manual
H.
Recording and stop recording
When the device power on, the screen will show a welcome message for the device starts if connected to TV-Out
;
After activated device, software will display current software version as
「
Firmware Version
:
XXXX
」
before get into LIVE screen.
a)
Power on/ Start recording:
Power on, device activated after 1 minute later. The red light flash indicate device being recording.
Force recording button
Recording/Red
GPS
position/ Green
WiFi connection
Light indicator:
/Blue
FORCE: force recording button.
REC Red light: Stable flicker of red light: On recording
Fast flicker of red light: Force recording
Wi-Fi Blue light: Blue light stable flicker: Not connect with WIFI, the blue light stable bright: the WIFI is connecting.
GPS green light: the green light flicker means GPS 3D being positioning, the green light stable bright mean GPS position completed.
b) Power Off/ stop recording
Power off and then remove the memory card to read the recording file in computer.
11
Vehicle video recorder user manual
I.
Playback video records
How to read the files from Micro SD card?
Turn the rubber cover left and press the Micro
SD card with your finger to pop up.
Remove the card
1. Video playback
Insert the Micro
SD card into the card reader
(please make sure the direction is correct).
Connect the card reader to the PC and use the software in
CD to play the files.
Start the program (you can locate it in the CD-R),
Press button, and choose the memory card player list to play the files.
Note: Direct X 9.0 above is necessary for this program.
2. Main Screen
Viewer interface
12
Vehicle video recorder user manual
Control Interface Description:
Pause
Play
Stop
Play backward
play previous frame
Play next frame
Play previous file
Play next file
Close
Minimal screen
Playback video
Calendar
Backup
Screenshot Tool
Configuration, device setting
Tool list, can format memory card, doing language setting.
G-sensor
Compass
Free Google map key type in
13
Vehicle video recorder user manual
Disk Backup
Save the recorded files from memory card to your PC, click the button and it will pop up backup window as below.
Step 1: select the SD card location
Step 2: select the records which require to backup
14
Vehicle video recorder user manual
Step 3. Choose the backup file format
(1)Micro SD Card Backup (*.sd)
(2)AVI File Backup (*.avi)
Backup format
:
(1) Micro SD card backup format
Micro SD Card File type (*.sd)
(2)AVI File Backup (*.avi)
Chn01 is the front camera record. The file name is *.avi.
Chn02 is the rear camera record. The file name is *.avi.
★
Note: If backup by original format of Micro SD card, the file recorded with location of GPS
(longitude and latitude), speed and G-SENSOR.
If backup by the format of *.avi, the file recorded date, video and audio. We suggest to backup by original format of Micro SD card.
Step 4. Backup Path: Select your backup destination (e.g.:
C:\blackbox)
Step 5.Start backup
15
Vehicle video recorder user manual
Setting
Insert memory card into adapter card before recording, and then plug in adapter card to PC USB slot. Click and run software to setting recording method, after setting complete, insert the memory card back to device and continue recording.
1.
Quality
2.
Car
Informatio n
Select the video quality: High/
Normal / Low
The license plate number information can be input here, the film is easy to identify which vehicles to record video record (only English letter and number acceptable.
)
16
3.
4.
5.
Vehicle video recorder user manual
Password
Time zone
Speed
Encrypted memory card for prevent other people get any information from this card. Set a password to 15 characters limited, for example
:
123456789123456
After setting the password, it is required to enter password to access the playback file, setting, formatting memory card.
★
Note: Please confirm the font case and record the password to avoid password forgetting.
GMT (GPS automatic time correction)
Km/h: kilometer per hour
Mile/h: Mile per hour
Knot: knot per hour
★
Note: 1 KM=0.6214 mile,
1 mile=1.6093KM, 1 Knot
=1.853KM
6.
G-sensor
Sensitivity
Set for detect strength of vehicle collision, and condition to lead G-sensor sensitivity trigger force recording.
17
Vehicle video recorder user manual
7.
Audio
Recording
Audio recording.
On: start audio recording /
Off: stop audio recording
8.
Daylight
Saving
Time
Activate it in daylight saving time regions.
9.
Wi-Fi
SSID: can type in Wi-Fi connect ID ( character and number)
Password: Wi-Fi connection password, set password mainly by number, and type in
8 number at least
Screenshot tool
While playing the recorded file, you can use this function to snapshot the picture and save it into your PC.
Default saving path for snapshot picture will be in /Snapshot folder.
File format as *.bmp
18
Vehicle video recorder user manual a.
Speed Meter & Volume
Speed Meter
Volume control b.
Video Playback
Video
Speed
Play BAR
(1) Play BAR: capable move the play BAR by mouse
The flag above BAR can be move to backup video files.
(2)Video speed: Support 2x, 4x, 8x fast forwarding and -2x,
-4x, -8x slow play mode.
19
Vehicle video recorder user manual
J.
Format memory card
When You Should Format Micro SD CARD?
When you use the Micro SD card for the first time or just purchase a new card, you should format it in order to use it correctly. (The bundled Micro
SD card has been formatted and tested by the manufacturer already.)
★
Note: this record system cannot delete a particular video, backup video before format SD card.
*Notice:
1.
Before formatting Micro SD card, please ensure to unlock it first.
2.
If the card is unlocked but still cannot be formatted, please run the program as Administrator to prevent from this problem.
1
2
Format steps
: i.
Insert the CD in your PC and open the file ii.
Run program and click on “Format Micro SD Card”. iii.
Click on
『
Format
』 to start formatting the Micro SD card as following steps:
Windows XP
Windows 7
20
Vehicle video recorder user manual iv.
When formatting is completed, please insert the card into the machine for recording.
Open the plastic lid .
Insert the Micro SD card in correct direction.
Press the Micro SD card in until it is set.
Close the plastic lid.
21
Vehicle video recorder user manual
K.
Restore memory card
When you have backup the recorded files into PC and want to use the
Micro SD card for other purposes, you have to restore it first so it can be used correctly.
*Notice:
1. Before formatting Micro SD card, please ensure to unlock it first.
2. If the card is unlocked but still cannot be formatted, please run the program as Administrator to prevent from this problem.
1
2
How to restore memory card?
Steps as below
:
Insert the Micro SD card into the card reader (Please make sure the direction is correct)
Connect the card reader with the PC
3
、
Insert the CD in your PC and open file.
4 、 Find and run program and click on “Format Micro SD
Card”.
5 、 Click on 『 Restore 』 to restore the Micro SD card. Please see the following steps as reference. After finished, you can use the memory card for other purposes.
22
Vehicle video recorder user manual
Windows XP
Windows 7
23
Vehicle video recorder user manual
L.
3G Client Remote Surveillance (optional)
1. Log In
Please execute 3GClientApp.exe and log in.
Log in page shown as below figure, key in the user account and password to log in the system.
Notice: The version of executed software must be installed DirectX
9.0 or latter.
User Account
Password
Central Server IP
User Account
User Password
Server IP setting on the local device
24
Vehicle video recorder user manual
Central Server TCP
Port
Central Server UDP
Port
Default setting is Taipei Server
IP:202.39.134.134
Server TCP Port(Default Setting:24680)
Server UDP Port(Default Setting:24681)
(1) Live view
1
2
3
5
4
1 Display Operation Interface
25
2
3
4
5
Vehicle video recorder user manual
Device List
Device Positioning Light Description
The device is not positioning by
GPS
GPS positioning is ready.
Yellow light is idling status.
Red light is over speed status
Live view Display
Windows Division/Function Bottom
Events Information/Device List/ Map
(2) Track Page
※
The Device need to use G-mouse for GPS positioning.
Routes of Vehicle can be known by tracks and shown on the device.
26
Vehicle video recorder user manual
(3) Setting Pages
1Seeting Page 1
For setting parameters included video playing status, image recording setting, timming setting of auto flip and language setting.
Video Playing
Setting
Real time→Video smooth priority.
Smooth→Image smooth priority.
Recording
Setting
Recording storage route, Recording time,
HDD(SD/CIF) storage division related setting.
Photo device Photo storage route setting
Auto Flip Timing of auto flip setting
Language 3G Client system language setting.
27
Vehicle video recorder user manual
Setting Page 2
Setting recording, and e-mail.
Alarm Events
Record Setting
Setting of the default recording channel and timing when alarm switched.
Sent Email to the assigned mail box when alarm switched.
Mailing Function Options
Mail Setting
Warring 1
Warring 2
Warring 3
Warring 4
HDD out of function
28
Vehicle video recorder user manual
Over speed
System Crash
Video offline
G sensor switched
Offline
Common use of SMTP Server List
29
Vehicle video recorder user manual
Setting Page3
3G Relating Function Setting.
3G Setting
Others Setting
Speed unit setting, Video linking automatic break timing setting, Read device setting.
Communication time disable setting.
30
Vehicle video recorder user manual
(4) Report
Inquiry current device running data.
31
Vehicle video recorder user manual
M.
WiFi real time video
(1) software acquisition method
For Mobile device user could search the item name ”Vacron Player” on the Play store or link and install on Google
Play.
https://play.google.com/store/apps/details?id=com.fuho.E
07
iOS version:
https://itunes.apple.com/tw/app/vacronplayer/id9924128
25?l=zh&mt=8
(2) Turn on smart phone WiFi, choose
「
SSID
」 on searching list, the
32
Vehicle video recorder user manual default password is
「
12345678
」
.
(3) Open Vacron APP list, choose device list, add the channel and key in device name.
(4) Live View
→ →
33
→
Snapshot function
→
Instant video recording
functions
Vehicle video recorder user manual
(5) Playback/Back up
34
For more products information,
Please go to Vacron website: http://www.vacron.com Made in Taiwan
advertisement
Key Features
- 1080P resolution for crystal-clear footage
- 170-degree wide-angle lens captures a wider field of view
- Night vision capabilities for clear footage even in low-light conditions
- Built-in G-sensor automatically detects sudden impacts
- Loop recording feature ensures that you'll never run out of space on your memory card
- Easy to install and use
Related manuals
Frequently Answers and Questions
How do I install the Vacron CDR-E07D?
How do I use the Vacron CDR-E07D?
What is the loop recording feature?
advertisement
Table of contents
- 4 Feature
- 5 Specifications
- 6 Accessories
- 7 Product structure diagram
- 8 Product Dimension
- 9 Installation
- 12 Remote controller
- 14 Recording and stop recording
- 15 Playback video records
- 23 Format memory card
- 25 Restore memory card
- 27 3G Client Remote Surveillance (optional)
- 34 /
- 35 WiFi real time video
- 36 /
