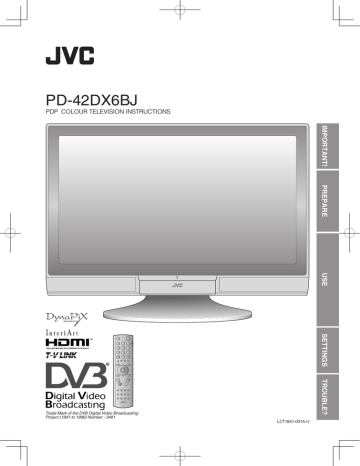

JVC PD-42DX6BJ User's Manual

PD-42DX6BJ

PDP COLOUR TELEVISION INSTRUCTIONS

Trade Mark of the DVB Digital Video Broadcasting

Project (1991 to 1996) Number : 3481

LCT1841-001A-U

2

Expanding the world of

Expanding the world of beautiful images

Contents

Enjoy rich multi-media with JVC

*In this manual,

ATV : analogue terrestrial broadcasting (VHF / UHF)

DTV : digital terrestrial broadcasting (DVB-T)

VHF / UHF / DVB-T broadcasting

First things first!

Warning 4

Digital camera

Video camera

VCR

Audio components

DVD player

DVD recorder

Game console

Personal computer

Getting started

Names of all the parts

Basic connections

Connecting external devices

Initial settings

Editing DTV channels

Editing ATV channels

6

8

10

12

14

16

Let's try it out

Enjoying your new TV!

· TV / Teletext / EPG / Video / Menu

Watching TV

Using EPG

Viewing teletext

Watching videos / DVDs

18

Try the advanced features

Useful functions

· Multi-picture / Favourite channel

· Sleep timer / Child lock

28

20

22

24

26

Just the way you like it

Customising your TV

Using DTV

Advanced picture adjustment

· Reduce noise / Watch a more natural picture

· Set the aspect ratio, etc.

32

34

40

When you have trouble

Troubleshooting

CH / CC List

Technical information

Specifications

42

45

46

47

3

Warning

Never cut or damage the power cord!

If the AC plug is not the right shape, or the power cord is not long enough, use an appropriate plug adapter or extension cable.

(Consult your retailer.)

Please follow all the guidelines below

Never place anything on the TV!

Placing liquids, naked flames, cloths, paper, etc. on the TV may cause a fire.

Never try to repair the TV yourself!

If the problem cannot be solved in

"Troubleshooting" (P. 42), unplug the power cord and contact your retailer.

If you have cut or damaged the power cord

"Technical information" (P. 46)

To change the fuse in UK plugs


Follow this manual regarding setup!

Use only the power cord included.

Connect only to an earthed AC110-240V,

50/60Hz mains outlet.

4

Unplug the power cord when going out!

The power buttons on the remote control and the TV unit can not completely turn off the

TV. (Make appropriate arrangements for bedridden people.)

Never insert objects into the cabinet openings!

It may cause a fatal electric shock.

Take care when children are near.

For more details on installation, usage and safety Consult your retailer

Never expose to rain or moisture!

To prevent fire or electric shock, never allow liquids to enter the unit.

If the TV is damaged or behaving strangely, stop using it at once!

Unplug the power cord and contact your retailer.

Never display the same image for a long time!

It causes a part of the image to remain on the screen ("burn-in").

Once burn-in occurs, it will never disappear.

To prevent burn-in :

Never display PC content or teletext for long periods of time.

Watch TV using the entire screen area.

Set the aspect raito to PANORAMIC

in ZOOM (P. 20)

Never view in MULTI-PICTURE (P. 28) mode for long periods of time.

Set PICTURE SHIFT to SLOW (P. 33).

Set CONTRAST (P. 33) and BRIGHT

(P. 33) to a lower level.

REFRESH (P. 33) may be able to partially remove mild burn-in.

To completely remove a burn-in, the whole plasma panel must be exchanged at the factory.

(This is not covered by the warranty.)

Never remove panels or covers!

It may cause an electric shock.

Never obstruct the ventilation holes!

It may cause overheating or a fire.

Handle all glass panels with care!

Use a soft, dry cloth when cleaning.

Never listen to headphones at high volume!

It may damage your hearing.

5

Names of all the parts

Power On/Off

Volume

Change channel/page

Power lamp

ON: Lit (Green)

OFF: Unlit

Remote control sensor Front panel

6

Switch between

TV/AV devices

Display on-screen

menu/set

EXT-5 (P. 11)

To personal computer (P. 11)

To headphones (P. 11) Rear panel

Connect a VCR or other video device

(P. 10)

EXT-6 EXT-1

EXT-3 EXT-2

Not available.

(For service adjustments)

To AC power cord

Check accessories

Remote control

(RM-C1813H)

AA/R6

Batteries

For confirming the TV works

CAM slot

("Watch pay-per-view" P. 8)

EXT-4

To VHF/UHF aerial

(P. 10)

To amplifier

(SUB WOOFER OUT)

To amplifier

(AUDIO OUT)

To amplifier

(CENTRE CH IN)

Power cord

Names of all the parts

Mute

Channel information

(P. 20)

To ATV/DTV

The coloured buttons can perform different functions according to the situation.

When viewing teletext

Follow on-screen instructions.

(P. 24)

Other uses

> COUNTRY

OK

START

Follow instructions in on-screen guides.

When watching TV/Video

Change the aspect ratio (P. 20)

Turn on 3D sound (P. 20)

Take a snapshot of the screen (P. 20)

View in multi-picture mode (P. 28)

Insert the batteries

Use two AA/R6 dry cell batteries.

Insert the batteries from the - end, making sure the and polarities are correct.

Power On/Off

Switch between VCR/TV/DVD

(P. 26)

Change the channel/page

Watch video, etc.

(P. 26)

To menu (P. 32)

Select and confirm settings in menus

To the previous channel

To teletext (P. 24)

Volume

Change the channel/page

When watching DTV

View subtitles (P. 20)

View the electronic programme guide (EPG)(P. 22)

When watching ATV (P. 16) when viewing teletext (P. 24)

When choosing a favourite channel (P. 29)

When operating a JVC VCR or DVD (P. 26)

7

Basic connections

Please read the user manuals of each device carefully before setting up.

It is necessary to connect an aerial to watch TV.

Connect with other devices "Connecting external devices" (P. 10)

Connect the aerial

AERIAL

8

Conditional

Access

Module

(optional)

Viewing

Card

(optional)

AC

INLET

TV

To the

AC outlet

Care when setting

Power requirements

Use the included power cord and connect only to an earthed

110-240V, 50/60Hz AC outlet.

200mm

When attaching the TV to the wall, use the optional

JVC wall mounting unit.

Consult a qualified technician.

See the included manual on

150mm 50mm 150mm 50mm mounting procedures.

JVC assumes no responsibility for damage due to improper mounting.

Installation requirements

To avoid overheating, ensure the unit has ample room.

Watch pay-per-view

Contract with a broadcasting company beforehand.

Unplug the power cord

Insert the Viewing Card into the CAM

Insert the CAM

Plug the power cord, and turn the power on

Set pay-per-view (P. 38)

The CAM and Viewing Card will be sent by the broadcasting company after contracting with them.

Connect a VCR/DVD recorder

Connect a VCR/DVD recorder

EXT-3 EXT-2 EXT-1

AERIAL

TV

Watch pay-per-view

Contract with a broadcasting company beforehand.

Unplug the power cord

Insert the Viewing Card into the CAM

Insert the CAM

Plug the power cord, and turn the power on

Set pay-per-view (P. 38)

The CAM and Viewing Card will be sent by the broadcasting company after contracting with them.

VCR/DVD recorder

AC

INLET

To the

AC outlet

Connect T-V LINK compatible device to EXT-2.

T-V LINK "What is T-V LINK?" (P. 12)

9

Connecting external devices

You can connect many different devices to the rear panel of the TV.

Please read the user manuals of each device before setting up.

(Connecting cables are not supplied with this TV.)

DVD player

(HDMI compatible)

EXT-6

(HDMI)

VCR VCR/DVD recorder

(T-V LINK compatible)

EXT-3

(T-V LINK)

EXT-2

AERIAL

(Y) (Pb) (Pr)

EXT-4

(R) (L)

CENTRE

CH IN

AUDIO

OUT

: signal direction

DVD player Amplifier

(L)

Connect DVI devices (P. 46)

T-V LINK (P. 12)

10

EXT-1

Output

Watching videos

· Composite signal

· Sound L/R

Input

· Composite signal/

RGB/S-VIDEO

· Sound L/R

Use S-VIDEO "S-IN" (P. 27)

EXT-2

Output

Dubbing videos

Using T-V LINK

Input

· Composite signal

· Sound L/R

· T-V LINK

· Composite signal/

RGB/S-VIDEO

· Sound L/R

Use S-VIDEO "S-IN" (P. 27)

Select dubbing sources

"DUBBING" (P. 27)

Connect a decoder "DECODER" (P. 33)

EXT-3

Watching videos

Output Input

· Composite signal

· Sound L/R

(R)

Connecting external devices

VCR/DVD/other devices

Satellite broadcast tuner

Rear panel

EXT-1

(R) (L)

AUDIO

OUT

SUB

WOOFER OUT

AC

INPUT

Front panel

Plug in headphones

Front panel

*Stereo mini-jack

Game Consoles/Video Devices

EXT-5

Front panel

PC IN

Connect a PC

EXT-5

Front panel

Watching videos

(R)

Amplifier

(L) (R)

To the

AC outlet

Check for PC compatibility


EXT-4

Watching DVDs

Output Input

· Component signal

(P. 47)

· Sound L/R

Component auto select (P. 33)

CENTRE CH IN SUB WOOFER/

AUDIO OUT

Using the TV's speakers as centre channel

Listening to the TV on external speakers

Input

· Centre channel sound

Output

· Sound L/R

· Subwoofer sound

EXT-6

Output

Connecting

HDMI devices

Input

· HDMI signal

(P. 47)

HDMI setting (P. 33)

11

Initial settings

Register DTV/ATV channels on TV. These channels can be edited later.

(In this manual, digital broadcasting is indicated as DTV, and analogue broadcasting as ATV.)

To the previous screen

Exit

If the "JVC" logo does not appear or if you wish to make changes later

DTV : "Automatic Search" (P. 38)

ATV : "AUTO PROGRAM" (P. 33)

TV/DTV

12

What is "T-V LINK"?

Connecting the TV to a T-V LINK compatible device allows :

ATV channels on the TV to be instantly registered on the device.

The "DIRECT REC" function to be used.


T-V LINK variations

“T-V LINK” (JVC) “Q-LINK” (Panasonic)

“Megalogic” (Grundig) “Data Logic” (Metz)

“SMARTLINK” (Sony) “Easy Link” (Philips)

(Set to "TV".)

MENU

BACK

1 Begin

2

3

4

Shown only when powering on for the first time.

The power button on the remote control can be used.

Automatically register DTV channels

Installation > Automatic Search

Channels:

BBC ONE

BBC TWO

BBC THREE

BBC NEWS 24

BBCi

CBBC Channel

UHF

100%

CH:68

Check what was registered

1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Edit DTV channels

in "Editing DTV channels" (P. 14)

Confirm

Select Delete Edit Name Lock Favourites

Automatically register ATV channels

> COUNTRY select

(blue)

>> AUTO PROGRAM

CH 28

14%

5

6

If "ACI START" appears, select and start settings.

(This will set up cable television channels.)

"What is ACI (Automatic Channel

Installation)?" (P. 46)

Check what was registered

>EDIT

03

04

05

06

PR

AV

01

02

07

08

09

ID

BBC1

BBC2

ITV

CH4

CH5

CH

CH

CH

CH

CH

CH

CH

CH

CH

21

22

23

24

25

26

27

28

Edit ATV channels

in "Editing ATV channels" (P. 16)

Confirm

Finish

T-V LINK

DOWNLOAD TV RECORDING DEVICE

When using T-V LINK When not using T-V LINK

If "FEATURE NOT

AVAILABLE" appears :

Is a T-V LINK compatible device connected to EXT-2?

Is the device turned on?

13

14

Editing DTV channels

Edit the channels registered with "Automatic search" in "Initial settings" (P. 12).

When coming from "Initial settings" (P. 12), skip to .

1 Select DTV

Confirm the channel picture

Select

Display the menu bar 2

Delete a channel

Delete

3 Select "DTV" select next select


Exit

Tips for operation

4

5

Select "Edit PR List"

DTV

Timers

Configuration

Edit PR List

Installation

Common Interface

Select a channel

1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi


Edit

6

7 Finish next select

Edit a channel name

Edit Name

Stop Children from watching specific channels

Lock

OK

MENU

Red: Page up�

Green: Page down�

TV/DTV: Go to DTV�

Guide: Go to guide�

Back: Go to previous i: Exit help

Register your favourite channel

Favourites

Editing DTV channels

Confirm the channel picture

Select

Select "Select"

1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Select Delete Edit Name Lock Favourites select 7 BBC THREE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi view



Delete

Select "Delete"

1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi


Select "Yes" select

1

EDIT PR LIST

BBC ONE

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

The selected service will be permanently deleted. Are you sure?

Yes No next

Select Delete Edit Name Lock Favourites select 1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi delete



Edit Name

Stop Children from watching specific channels

Lock

Register your favourite channel

Favourites

Select "Edit Name"

1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi


Decide

1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

BBC 3CH


Select "Lock"

1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi


1 BBC ONE

Select "Favourites"

1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi


Change the name select next

1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

BBC

Select Delete Edit Name Lock Favourites enter character move position

1 BBC ONE

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC 3CH

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

Select Delete Edit Name Lock Favourites select

1 BBC ONE next

1 BBC ONE

Enter PIN code

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

EDIT PR LIST

1. BBC ONE

2. BBC TWO

7. BBC THREE

EDIT PR LIST 30. CBBC Channel

40. BBC NEWS 24

51. BBCi

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

0

..

Select

9

Delete

Enter PIN code

Edit Name Lock Favourites

To release, repeat the same steps.

Lock icon

Select Delete Edit Name Lock

Default is "0000".

Favourites

"Change PIN code" (P. 37)

EDIT PR LIST

1. BBC ONE

2. BBC TWO select

30. CBBC Channel

40. BBC NEWS 24

51. BBCi

1. BBC ONE

2. BBC TWO

7. BBC THREE

30. CBBC Channel

40. BBC NEWS 24

51. BBCi set

Delete

0

..

Select Delete Edit Name Lock Favourites To release, repeat the

9

Enter PIN code same steps.

Edit Name

Favourite icon

Lock Favourites

Move through only your favourite channels

More..

"Favourite Mode" (P. 37)

Select Delete Edit Name

0

..

9

Enter PIN code

Lock Favourites

More..

15

16

Editing ATV channels

Edit the channels registered with "AUTO PROGRAM" in "Initial settings" (P. 12).

When coming from "Initial settings" (P. 12), skip to .

1 Select ATV

Move a channel's position

MOVE

2 Display the menu bar

3 Select "SET UP" select


ID

4 Select "EDIT/MANUAL"

SET UP

AUTO PROGRAM

EDIT/MANUAL

DECODER(EXT-2)

COMPONENT AUTO SELECT

EXT SETTING

HDMI SETTING

ATTENUATOR

OFF

ON

OFF next select


Exit

5

6

7

Select a row

>EDIT

05

06

07

08

09

PR

AV

01

02

03

04

ID

BBC1

BBC2

ITV

CH4

CH5

CH

CH

CH

CH

CH

CH

CH

CH

CH

21

22

23

24

25

26

27

28

Edit

Confirm settings next select

Insert a channel

INSERT


DELETE

8 Finish

T-V LINK

DOWNLOAD TV RECORDING DEVICE

When using

T-V LINK

If "FEATURE NOT

AVAILABLE" appears :

Is a T-V LINK compatible device connected to EXT-2?

Is the device turned on?

T-V LINK (P. 12)

When not using

T-V LINK

Register a new channel

MANUAL

Editing ATV channels

Move a channel's position

MOVE


ID

Insert a channel

INSERT


DELETE


MANUAL

Begin move out

Select a destination

04

05

06

07

08

09

PR

AV

01

02

03

>EDIT

ID

BBC1

BBC2

CH4

CH5

CH

CH

CH

CH

CH

21

22

24

25

CH

CH

CH

26

27

28

ITV

Begin

(red)

Begin

(green)

CH 23 select

Finish

>EDIT

04

05

06

07

08

09

PR

AV

01

02

03

ID

BBC1

BBC2

CH4

CH5

ITV

CH

CH

CH

CH

CH

CH

21

22

24

25

23

CH

CH

CH

26

27

28 move in

Enter a channel name

>EDIT

06

07

08

09

PR

AV

01

02

03

04

05

ID

BBC1

BBC2

ITV

CH4

CH5

A

CH

CH

CH

CH

CH

CH

21

22

23

24

25

CH

CH

CH

26

27

28 enter the first character

When selecting a preset name from the ID LIST

(blue)

PR

AV

01

02

03

04

05

06

07

08

09

>EDIT

ID

BBC1

BBC2

ITV

CH4

CH5

M

CH

CH

CH

CH

CH

CH

21

22

23

24

25

CH

CH

CH

26

27

28

ID LIST

M6

MBC

MCM

MDR

MOVIE

MTV

MTV3 select set

When manually naming a channel next column

>EDIT

05

06

07

08

09

PR

AV

01

02

03

04

ID

BBC1

BBC2

ITV

CH4

CH5

JVC

CH

CH

CH

CH

CH

CH

CH

CH

CH

21

22

23

24

25

26

27

28 enter set next column

Enter a CH number

>EDIT

05

06

07

08

09

PR

AV

01

02

03

04

ID

BBC1

BBC2

ITV

CH4

CH5

CH

CH

CH

CH

CH

CH

CH

CH

CH

21

22

23

24

25

30

27

28

CH/CC List (P. 45)

In Ireland, select CH/CC with .

Set

Receives the broadcast signal.

Delete

(yellow)

Begin

(blue)

Set

>EDIT

03

04

05

06

PR

AV

01

02

07

08

09

ID

BBC2

ITV

CH4

CH5

CH

CH

CH

CH

CH

CH

CH

CH

22

23

24

25

26

27

28

Search for a channel

>MANUAL

14

15

16

17

18

19

PR

10

11

12

13

ID CH

CH

CH

29

30

From high frequencies

From low frequencies

(red) (green) or

>EDIT

15

16

17

18

19

PR

10

11

12

13

14

ID CH

CH

CH

29

35

>MANUAL

PR

10

11

12

13

14

15

16

17

ID CH

CH

CH

29

35

18

Auto-search begins, and the nearest frequency is imported.

Repeat the previous steps until the desired channel is displayed

Picture fine tuning

(yellow) (blue)

/

17

Enjoying your new TV!

PAGE 20

Watching TV

View channel information

Change the aspect ratio

Enjoy 3D sound

Take snapshots of the screen

18

PAGE 24

Viewing teletext

Enlarge the text

To the index page

Hold the current page

Switch briefly between teletext and TV

Bookmark your favourite pages

TV and Text mode

PAGE 22

Using EPG

View the programme list for 8 days

Search from a genre

Reserve a programme to watch/record

Enjoying your new TV!

Using EPG

View the programme list for 8 days

Search from a genre

Reserve a programme to watch/record

PAGE 26

Watching videos/DVDs

Watch high quality video (S-VIDEO)

Name connected devices

Dub videos

Personal preferences

Adjust the picture

PAGE 32

Adjust the sound

Use DTV

(timer-record/configuration/channel settings, etc.)

Basic settings

(channel settings/anti-burn, etc.)

Advanced settings

(sleep-timer/child lock, etc.)

19

Watching TV

1 Power on

The green power lamp on the TV lights.

20

2

Press again to turn the screen off and put the TV into standby mode.

Select ATV/DTV

Channel information and clock

INFORMATION

3

DTV : Digital broadcasting

ATV : Analogue broadcasting

Select a channel

View subtitles

SUBTITLE

(DTV) Move up or down a channel up

Mute Volume

Switch between stereo/mono/ bilingual broadcasting

"STEREO/ · " (P. 33) down

With DTV, you can select only from your favourite channels

(P. 37)

To the previous channel

Note

To completely turn off the TV, unplug the AC plug.

Watch pay-per-view (P. 38)

Add a new station (P. 38)

Basic operations using the front panel

1

2

Power on

Change the channel

Change the aspect ratio

ZOOM

Enjoy ambient sound

3D SOUND

Take snapshots of the screen

FREEZE

Volume

When DTV is selected

Name of station Reception level

41

13:19

ITV News

CH61

Now: 13:00-14:00 Steve Scott

Next: 14:00-14:30 Steve Scott

Current programme

Time

Channel

Following programme

06

07

08

09

AV

01

02

03

04

05

When ATV is selected

PR LIST

PR ID

BBC1

PR LIST

Channels registered in "Initial settings" will appear here.

select

Select a page

BBC1

12 : 00

(No indication) select

Channel information

Time (in case of having viewed teletext)

Select and view a channel view

Subtitle ON

Shown only when subtitles exist

To avoid subtitle recording, turn the subtitles off before recording.

Turn off subtitles

Today's news!

ZOOM

AUTO

REGULAR

PANORAMIC

14:9 ZOOM

16:9 ZOOM

16:9 ZOOM SUBTITLE

FULL select

16 : 9 ZOOM set

Move the picture with

or while this bar is displayed

When set to AUTO, the aspect ratio will turn to the ratio obtained from the information the TV received.

Without receiving aspect information, it will be the setting in "4:3 AUTO

ASPECT" (P. 40).

Not available in PC mode or

1080i (1125i)/720p (750p) signals.

3D SOUND HIGH

HIGH : For stereo sound

LOW

OFF

: For stereo sound (when the sound distorts in HIGH mode)

MONO : For mono sound (emulates a stereo-like sound)

: Turns off 3D SOUND

Current programme

Not available when the SUB-PICTURE is displayed, or when in PC mode/

EXT-6 input.

You cannot save or export the snapshot.

Still picture

Cancel

Press again, or change the channel

21

22

Using EPG

(Electronic Programme Guide)

You can find a programme from an eight-day programme guide, check its information, and make a reservation.

1 Select DTV

2

3

Display EPG EPG

Electronic Programme Guide 05:27 20/10/2004

GENRE All

20/10 2. BBC TWO

21/10 7. BBC THREE

22/10 30. CBBC Channel

23/10 40. BBC NEWS 24

24/10 51. BBCi

25/10 89. BBC R Scotland

04:00- History: Britain 1750-1900

06:00- Big Cook Little Cook

06:20- Tots TV

06:30- Bobinogs

06:45- Wide Eye

07:00- Snailsbury Tales

26/10 90. BBC R n Gaidheal 07:15- Arthur

27/10 800. 16:9monoscope 07:30- I Love Mummy

04:00-6:00 History: Britain 1750-1900

Secondary Schools, How industrialisation changed the day-to-day� lives of the British people.

Find a programme select Select a date

Select a channel

Select a programme

You can check programme content.

next

Close EPG

Search from a genre

While EPG is displayed...

Display the

Genre List

(green)


GENRE All

20/10 2. BBC TWO

24/10 51. BBCi

Genre

All

News

Sports

Movies

04:00- History: Britain 1750-1900


06:20- Tots TV

06:30- Bobinogs

06:45- Wide Eye


26/10 90. BBC R n Gaidheal 07:15- Arthur

27/10

Drama

800. 16:9monoscope 07:30- I Love Mummy

Lifestyle

Kids

Education

Select a genre select set


GENRE

20/10 1. BBC ONE

21/10 2. BBC TWO

22/10 7. BBC THREE


24/10 40. BBC NEWS 24

25/10 51. BBCi

Movies


27/10 90. BBC R n Gaidheal �

00:15- Last Embrace

03:25-6:00 BBC News 24

BBC ONE joins the BBC's rolling news channel for a night of news,� with bulletins on the hour and the headlines every 15 minutes.

Find a programme

Only programmes in the selected genre are displayed.

select next

Reservations

Reserve a programme to watch

Programmeview setting

Reserve a programme to record

Programme- record setting

After


GENRE

20/10 2. BBC TWO

21/10 7. BBC THREE


23/10 40. BBC NEWS 24

24/10 51. BBCi


All


06:20- Tots TV

06:30- Bobinogs

06:45- Wide Eye


07:15- Arthur

26/10 90. BBC R n Gaidheal 07:30- I Love Mummy

27/10 800. 16:9monoscope 07:55- Newsround

04:00-6:00 History: Britain 1750-1900


(yellow)

At the start time, the channel will automatically change.

If the TV's power is off at the start time, nothing happens.

Cancel the reservation Select the reserved programme and press "OK"

After

(red)

6

7

4

5

2�

3

No.

1�

8

9

10�

REC TIMER

Name

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

Start

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

Name

00:00�

00:00�

End

Date

Mode

End

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

06:02 20/10/2004

Date

01/01/2004

01/01/2004

01/01/2004

01/01/2004

01/01/2004

Mode

Inactive�

Inactive�

Inactive�

01/01/2004

01/01/2004

Inactive�

Inactive�

01/01/2004

01/01/2004

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

7

8

9

10�

�5

6

�3�

�4�

No.

1�

2�

REC TIMER

Name

BBC TWO

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

Start

06:30�

00:00

00:00�

�00:00�

�00:00

00:00�

00:00�

00:00�

00:00�

00:00�

06:02

End Date

06:45 20/10/2004

00:00

00:00�

�00:00�

�00:00

00:00�

01/01/2000

01/01/2000

01/01/2000

01/01/2000

00:00�

00:00�

00:00�

00:00�

01/01/2004

01/01/2004

01/01/2004

01/01/2004

01/01/2004

20/10/2004

Mode

Active

Inactive

Inactive

Inactive

Inactive

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

Prepare for recording

·Set the recording device to external input mode before the start time.

·For T-V LINK incompatible devices, manually set the timer on the device.

For details, refer to the manual of the recorder.

·Make sure that recording times on the recording device do not overlap with recording times on the TV.

·When Rec Timer has been set, the power lamp on the TV will :

Start blinking 3 minutes before the start time (green or red)

Light during recording (green or orange)

·Some T-V LINK compatible DVD recorders may not work correctly.

Exit Press "MENU"

Confirm the reservation


GENRE

20/10 2. BBC TWO

21/10 7. BBC THREE


All


06:20- Tots TV

06:30- Bobinogs

23/10 40. BBC NEWS 24

24/10 51. BBCi

06:45- Wide Eye


25/10 89. BBC R Scotland 07:15- Arthur

26/10 90. BBC R n Gaidheal 07:30- I Love Mummy

27/10 800. 16:9monoscope 07:55- Newsround

04:00-6:00 History: Britain 1750-1900


(red)

At the start time, the channel will automatically change and the device connected to EXT-2 will begin recording the programme.

Change a reservation

"MENU" " " "Rec Timer" select a reservation next 7

8

9

10�

5

6

3

4

No.

1�

2�

REC TIMER

Name

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

Start

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

End

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

06:02 20/10/2004

Date

01/01/2004

01/01/2004

01/01/2004

01/01/2004

Mode

Inactive�

Inactive�

Inactive�

Inactive�

01/01/2004 Inactive�

01/01/2004

01/01/2004

Inactive�

Inactive�

01/01/2004

01/01/2004

Inactive�

Inactive�

20/10/2004

Once

Change with

Enter using the numerical keypad

Change with

(Once/Daily/Weekly)

Cancel a reservation

"MENU" " " "Rec Timer" select a reservation set the mode to

"Inactive"

8

9

10�

6

7

4

5

2�

3

No.

1�

REC TIMER

Name

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

Start

06:30�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

00:00�

06:02

End Date

06:45 20/10/2004

00:00�

00:00�

01/01/2004

01/01/2004

00:00�

00:00�

00:00�

00:00�

01/01/2004

01/01/2004

01/01/2004

01/01/2004

00:00�

00:00�

00:00�

01/01/2004

01/01/2004

01/01/2004

20/10/2004

Mode

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

23

Viewing teletext

This TV can display TV broadcasts and teletext on the same channel in two windows.

1 Select ATV/DTV When ATV is selected

When watching TV

2

TV TEXT

When DTV is selected

Operate according to the screen indications

When ATV is selected

Enter a teletext page

TEXT

Move up or down a page up down

View sub-pages

.....

to sub-page

1

Display your favourites list

(RED) (GREEN) (YELLOW) (BLUE)

24

2

Select a coloured button to save your page to

(red) (green) (yellow) (blue) Bookmark your favourite page

LIST MODE

(ATV)

3

Enter the number of the page to save

4

Save

Recall your favourite page Press the coloured button as in step 2

Hold the current page

HOLD

(ATV)

Hold the current page

Release Press again

Display hidden information

(answers to quizzes, etc) Reveal hidden pages

REVEAL

(ATV)

Double the size of the displayed text

Enlarge the text

SIZE

(ATV)

To the index page

INDEX

(ATV)

Returns to page "100" or a previously designated page

Switch briefly from teletext to TV

CANCEL

(ATV)

Leave the current page open, while you switch to watch TV

Useful when running a page search.

25

26


1 Select the video source

E1 VCR

*1

AV (PR 0)

*2

DTV E1

E2 PC

E.g. For EXT-1

E3 E6

2 Operate the connected device and play a video

E4 E5

*1 : Only appears when AV has been registered as a channel.

*2 : Switches to DTV.

To TV

Operate the

VCR (DVD)

1

Operate JVC VCRs and other devices

DVD players

2

VCRs and DVD recorders

Turn on the device

3 Select a channel (VCR mode)

Rewind/Playback/Fast-forward

Stop/Pause

Record/Display DVD top menu

Select a chapter (DVD mode)

Some models of JVC devices cannot be operated with this remote control.


1

Advanced functions

Display the menu bar

2

Select "SET UP" select

Select "EXT SETTING"

SET UP

AUTO PROGRAM

EDIT/MANUAL

DECODER(EXT-2)

COMPONENT AUTO SELECT

EXT SETTING

HDMI SETTING

ATTENUATOR

OFF

ON

OFF next select next

Switch to S-VIDEO input

S-IN

Select the EXT connected to S-VIDEO

> EXT SETTING

EXT-1

EXT-3

EXT-5

TV

DTV

DUBBING

EXT-2

EXT-4 select (yellow)

Cancel this mode

(yellow)

Press in again

Set S-VIDEO input

> EXT SETTING

EXT-1

S

EXT-3

EXT-5

TV

DTV

DUBBING

EXT-2

EXT-4

The device selection display will change from

E1 to S1.

Edit names of connected devices

ID LIST

Select an EXT to assign a name to

> EXT SETTING

EXT-1

EXT-3

EXT-5

TV

DTV

DUBBING

EXT-2

EXT-4 select (blue)

Show the name list

> EXT SETTING

EXT-1

EXT-3

EXT-5

TV

DTV

DUBBING

EXT-2

EXT-4

ID LIST

VHS

S-VHS

DVC

CAM

SAT

STB

GAME

DVD

DVR

Select a name from the list

> EXT SETTING

EXT-1

EXT-3

EXT-5

TV

DTV

DUBBING

EXT-2

EXT-4

ID LIST

VHS

S-VHS

DVC

CAM

SAT

STB

GAME

DVD

DVR select set

Clear the name Select the blank space in

> EXT SETTING

EXT-1

DVD

EXT-3

EXT-5

TV

DTV

DUBBING

EXT-2

EXT-4

Set up dubbing on

EXT-2

DUBBING

Select the arrow

> EXT SETTING

EXT-1

EXT-3

EXT-5

TV

DTV

DUBBING

EXT-2

EXT-4 select

Select the dubbing source

> EXT SETTING

EXT-1

EXT-3

EXT-5

TV

DTV

DUBBING

EXT-2

EXT-4 select

27

28

Useful functions

Select the number of screens select

Watch in multi-picture mode

MULTI-PICTURE set

Selecting " " returns to normal viewing mode

Not available in PC mode/EXT-6 input.

Watch in dual-picture mode

E.g. You can watch TV and video at the same time.

(For 1080i, 720p signal)

Main

Main Sub

Sub

Switch between the sound sources

Change the channel

(Main)

(Sub)

Select a channel in 12-screen mode (ATV)

All registered channels are displayed as still images.

select a channel

Main watch

Only the selected frame has a moving picture.

Move up or down a page

Not available when watching DTV channels.

Register a channel to a button

FAVOURITE CHANNEL

(ATV)

While the channel is displayed

SET 1 - 4?

(For 3 seconds)

PROGRAMMED!

Recall the favourite channel

"NOT AVAILABLE" is displayed:

Already registered

Disappears after a few seconds

Press the number you registered

FAVOURITE 1 - 4?

Press the number to register it on

1 BBC1

Customisations (P. 32) to the picture of a favourite channel get saved as well.

"NOT MEMORY" is displayed:

Not registered

Check your favourite channels Press and confirm that the channels you have registered have a beside them

Delete a favourite channel

"MENU" " " "FEATURES" "FAVOURITE SETTING"

FAVOURITE SETTING select Delete

(blue)

1

2

3

4

PR 07

PR 01

PR 23

PR 11

FAVOURITE SETTING

3

4

1

2

PR 07

PR 01

PR 11

29

30

Useful functions

1

2

FEATURES

FEATURES select

"FEATURES" next

Set a time for the TV to turn itself off

SLEEP TIMER

3

FEATURES select

"SLEEP TIMER" next

4

> SLEEP TIMER select a time in minutes set

Cancel

Set the time to "0" in step 4

Remaining time

You can confirm the remaining time at step 4, after repeating this process.

1

2

FEATURES

FEATURES select

"FEATURES" next

Stop children from watching specific channels

CHILD LOCK

(ATV)

3

4

FEATURES select

"CHILD LOCK"

5

6

>> SET ID NO.

enter an "ID NO."

(a secret number of your choice) set to the next column

> CHILD LOCK

PR

AV

01

02

03

04

05

06

07

08

09

ID

BBC1

BBC2

ITV

CH4

CH5

(blue)

CH

CH

CH

CH

CH

CH

CH

CH

CH

21

22

23

24

25

26

27

28

> CHILD LOCK

ID

03

04

05

06

07

08

09

PR

AV

01

02

BBC1

BBC2

ITV

CH4

CH5

ID

BBC1

BBC2

CH

CH

CH4

CH

21

22

23

24

25

CH

CH

CH

26

27

28 select a channel to lock

Lock more channels

Repeat steps 5 and 6

7

Release a channel

View a locked channel Display the channel. When appears, press and enter your "ID NO.".

(If you forget your "ID NO.", check it in step 4.)

31

32

Customising your TV

Display the menu bar 1


SOUND

FEATURES

SET UP

DTV (P. 34)

2 Select a menu select

PICTURE next

Selected menu's title

3 Select an item select



Exit

The menu disappears after one minute of inactivity.

4 Adjust/Configure adjust/ select set

When adjusting with the sliding-bar

Move

When selecting from presets

The item will change.

Some items have a sub-menu.

Items

PICTURE adjust

Sub-menu

Adjustments/Configurations set select set


Menu Item

PICTURE MODE

CONTRAST

BRIGHT

SHARP

COLOUR

HUE

COLOUR TEMP.

FEATURES

STEREO/ I · II

BASS

TREBLE

BALANCE

3D SOUND

A.H.B.

BBE*

SPEAKER

SLEEP TIMER

CHILD LOCK

APPEARANCE

Adjustments/Configurations

Picture mode (BRIGHT/STANDARD/SOFT)

Contrast (LOWER HIGHER)

Brightness (DARKER BRIGHTER)

Sharpness (SOFTER SHARPER)

Colour (LIGHTER DEEPER)

Tint (REDDISH GREENISH)

Colour temperature (COOL/NORMAL/WARM)

Finer picture adjustments (P. 40)

Mode/Language ( : STEREO/ : MONO/ : SUB1/ : SUB2)

Low tones (WEAKER STRONGER)

High tones (WEAKER STRONGER)

Speaker balance (LEFT STRONGER RIGHT STRONGER)

Ambience level (HIGH/LOW/MONO/OFF)

Emphasizes the bass sound (ON/OFF)

Sound enhancement technology (ON/OFF)

Output (TV SOUND/Sound from CENTRE CH input)

Timer for turning off the TV (P. 30)

Stops children from watching specific channels (P. 31)

Format for displaying the channel number

(TYPE A/TYPE B/TYPE C/TYPE D)

BLUE BACK

Displays a blue screen and mutes the sound when the signal is weak or absent (ON/OFF)

REFRESH Softens mild burn-in and residual images (takes about 1 hour)

FAVOURITE SETTING Clear favourite channel settings (P. 29)

AUTO PROGRAM

EDIT/MANUAL

DECODER(EXT-2)

COMPONENT

AUTO SELECT

EXT SETTING

PICTURE SHIFT

Select a country, it automatically registers channels (P. 13, )

Change registered channels or add new ones (P. 16)

For when connected to VCR with T-V LINK (ON/OFF)

Changes the TV input to EXT-4 when the component signals are input to EXT-4. (ON/OFF) (Not available when viewing DTV or PC)

For use with video players and other devices (P. 27)

Moves the displayed picture at regular intervals to prevent burn-in (OFF/SLOW-20min/FAST-10min)

HDMI SETTING

ATTENUATOR

Other settings

SIZE (AUTO/1/2)

AUDIO (AUTO/ANALOGUE/DIGITAL)

For when the picture is not displayed because of too strong radio waves

(ON/OFF)

· Change the aspect ratio "ZOOM" (P. 20)

· Turn on 3D SOUND "3D SOUND" (P. 20)

* BBE licence (P. 46)

33

34

Using DTV

Timer-record setting

DTV original function and setting, such as a recorder-linked timer-record setting, can be selected from the DTV menu.

1 Select DTV


Exit


3 Select "DTV" select

4 next

Select an item select

DTV

Rec Timer

Configuration

Edit PR List

Installation

Common Interface next

Rec Timer "Recording using timer setting" (P. 34)

Configuration "Change AV settings" (P. 36)

Edit PR List "Editing DTV channels" (P. 14)

Installation "Reset channel/Register a new channel/Initialise the DTV settings"

(P. 38)

Common Interface "Set pay-per-view" (P. 38)

DTV menu cannot be operated with the front panel buttons.

Recording using timer setting

Rec Timer


1

Select an "Inactive" column

�4�

�5

2�

�3�

No.

1�

REC TIMER

Name

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

06:02 20/10/2004

Start

00:00� 00:00� 01/01/2000 Inactive�

00:00

00:00�

�00:00�

�00:00

End

00:00

00:00�

�00:00�

�00:00

Date

01/01/2000

01/01/2000

01/01/2000

01/01/2000

Mode

Inactive

Inactive

Inactive

Inactive select Settings can be overwritten.

set

Recording using timer setting

Rec Timer

Channels Start to End Dates Timer-record setting state

Active : timer set

Inactive : completed, cancelled

2

Input timer-record setting details

REC TIMER

5

6

3

4

No.

Name

1�

2�

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

7

8

BBC ONE

BBC ONE

9 BBC ONE

10� BBC ONE

06:02 20/10/2004

Start End Date Mode

00:00� 00:00� 01/01/2004 Inactive�

00:00� 00:00� 01/01/2004 Inactive�

00:00� 00:00� 01/01/2004 Inactive�

00:00� 00:00� 01/01/2004 Inactive�

00:00� 00:00� 01/01/2004 Inactive�

00:00� 00:00� 01/01/2004 Inactive�

00:00�

00:00�

00:00�

00:00�

BBC TWO

06:30

00:00�

Mode

00:00�

00:00�

01/01/2004

01/01/2004

Inactive�

Inactive�

Change with

Enter using the numerical keypad

Change with

(Once/Daily/Weekly)

3

Set

7

8

�5

6

�3�

�4�

No.

1�

2�

9

10�

REC TIMER

Name

BBC TWO

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

Start

06:30�

00:00

00:00�

�00:00�

�00:00

00:00�

00:00�

00:00�

00:00�

00:00�

06:02

End Date

06:45 20/10/2004

00:00

00:00�

�00:00�

�00:00

00:00�

00:00�

00:00�

00:00�

00:00�

01/01/2000

01/01/2000

01/01/2000

01/01/2000

01/01/2004

01/01/2004

01/01/2004

01/01/2004

01/01/2004

20/10/2004

Mode

Active

Inactive

Inactive

Inactive

Inactive

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

For more details about the timer-record setting, refer to the notice of

"Prepare for recording" (P. 23)

A message will be displayed if you set past dates.

The channel will be selected automatically at the set start time, and the recorder connected to

EXT-2 will start recording.

Cancel a timer-record setting

Select the column at step 1 and press . (Mode will be changed to "Inactive")

Change a timer-record setting

Select the column at step 1 and repeat steps 2 and 3.

35

36

Using DTV

AV setting

Available for changing subtitle languages for DTV, favourite channel selection, changing PIN code, and upgrading the tuner software.

Also, you can upgrade the tuner software as newer versions become available.

1 Select DTV


Exit



4 next


DTV

Rec Timer

Configuration

Edit PR List

Installation






(P. 38)



Change

AV settings

Configuration


1

Select a configuration item

CONFIGURATION

Audio Language

Subtitle

Favourite Mode

Receiver Upgrade

Enter PIN code

English

English

Off

V.3.3

select

Change

AV settings

Configuration

2 Change settings

Audio Language Subtitle

Favourite Mode

: Change language

: Channel selection method

Audio Language

Subtitle

Favourite Mode select

Switch languages

(English/Welsh/Gaelic)

Select only DTV channels registered by using

"Favourites"(P. 14) with (On/Off)

Receiver Upgrade : Upgrade tuner

Automatic Download

Automatically and periodically

(Enabled/Disabled)

Search for New Version Download now (Press "OK" button.)

6

7

4

5

2�

3

No.

1�

8

9

10�

: Change PIN code

Subtitle

Favourite Mode

Receiver Upgrade

Enter PIN code

Name

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

Start

06:02

Date

20/10/2004

Input a new code twice

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

Inactive�

Inactive�

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

English

English

Off

V.3.3

6

7

4

5

2�

3

No.

1�

8

9

10�

Default is "0000".

If you forget the code

Default the code in

"Reset channel registration"

(P. 38)

06:02 20/10/2004

Name

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

BBC ONE

Start Date

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

00:00� 00:00� 01/01/2004

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

Inactive�

37

38

Using DTV

Registration and setting

Available for registration of DTV channels, initialisation of all DTV settings, and downloading software to use pay-per-view.

1 Select DTV


Exit



4 next


DTV

Rec Timer

Configuration

Edit PR List

Installation






(P. 38)



Reset channel registration


Initialise the

DTV settings

Installation


Set pay-per-view

Common Interface

Registration and setting

1

Select an installation item

Installation

Automatic Search

Manual Search

Factory Settings select next

Reset channel registration


Initialise the

DTV settings

Installation

2

Change settings

Automatic Search

Select "Yes"

: Reset channel registration select

Start automatic search? Current PR list will be replaced.

Yes No next

Installation > Automatic Search

Channels:

BBC ONE

BBC TWO

BBC THREE

BBC NEWS 24

BBCi

CBBC Channel

UHF

100%

CH:68

Manual Search : Register a new channel

Enter a channel number Receive the channel

Installation > Manual Search

Channel Number 61

Installation > Manual Search

Channel Number 62

Displays "Edit PR List"

(P. 14) after registering channels.

When receiving is completed, a message will be displayed and the screen will return to .

Signal Level:

Signal Quality:

Signal Level:

Signal Quality:

Factory Setting

Select "Yes"

: Initialise the DTV settings

Start channel registration select

in "Initial settings"

(P.12)

Are you sure you want to delete the PR list and reset all settings?

Yes No

PR list Empty. Start automatic search.

Ok next

Set pay-per-view

Common Interface

Preparation : Set the CAM etc. after contracting with the broadcasting company

"Watch pay-per-view" (P. 8)

Select the broadcasting station Select "Software Download"

Main menu

Common Interface

Top Up TV

Module information

Smart card information

Language

Software Download

Press Ok to select, or Exit to quit

OK Cancel

Select "Yes"

Software Download

Do you want to upgrade your module?

Yes

No select

Software Download

Searching for a new software version. Please wait...

Press Ok to select, or Exit to quit download

Press Ok Exit to quit

OK Cancel OK Cancel select next

Use this menu for settings and contract content for pay-per-view.

For details, consult your broadcasting company

39

40

Advanced picture adjustment

By default, the TV automatically adjusts itself for the best picture.

1 Display the menu bar DIGITAL

VNR

2 Select "PICTURE"

PICTURE select

Super

DigiPure

3 Select "FEATURES"

PICTURE next select

MOVIE

THEATRE next select

COLOUR

MANAGEMENT


Exit


4

5

6

Select an item

> FEATURES

DIGITAL VNR

Super DigiPure

MOVIE THEATRE

COLOUR MANAGEMENT

PICTURE MANAGEMENT

COLOUR SYSTEM

4:3 AUTO ASPECT

AUTO(LOW)

AUTO

AUTO

ON

ON

E.g. DIGITAL VNR

Change settings

> FEATURES

DIGITAL VNR

Super DigiPure

MOVIE THEATRE

COLOUR MANAGEMENT

PICTURE MANAGEMENT

COLOUR SYSTEM

4:3 AUTO ASPECT

AUTO(LOW)

AUTO

AUTO

ON

ON

E.g. DIGITAL VNR

Finish next select set


MANAGEMENT

COLOUR

SYSTEM

4:3 AUTO

ASPECT

Advanced picture adjustment

> FEATURES

DIGITAL VNR

To reduce noise

PICTURE MANAGEMENT

COLOUR SYSTEM

4:3 AUTO ASPECT

> FEATURES

For natural-looking outlines

COLOUR SYSTEM

DIGITAL VNR

For smooth cinema film

PICTURE MANAGEMENT

COLOUR SYSTEM

COLOUR

DIGITAL VNR

Super DigiPure

MANAGEMENT

For natural-looking pictures

COLOUR SYSTEM


DIGITAL VNR

Super DigiPure

MANAGEMENT

Fix bright/dark pictures

COLOUR SYSTEM

4:3 AUTO ASPECT

AUTO(LOW)

AUTO

AUTO

ON

ON

AUTO(LOW)

AUTO

AUTO

ON

ON

AUTO(LOW)

AUTO

AUTO

ON

ON

AUTO(LOW)

AUTO

AUTO

ON

ON

AUTO(LOW)

AUTO

AUTO

ON

ON

MIN

: When the picture loses sharpness

AUTO(LOW) AUTO(HIGH) MAX

: When noise appears level

OFF

: Function is turned off

MIN

: When noise appears

AUTO level

MAX

: When the picture loses sharpness

OFF


AUTO

: Automatically adjusts

ON

: Function is always on

OFF


ON

: Maintain a natural colour balance

OFF


ON

: Make it easier to view bright/dark pictures

When there is no colour

>> COLOUR SYSTEM

MAIN SUB

PAL AUTO

Select the screen to change settings on

MAIN

: Main picture

SUB

: Sub-picture in

MULTI-PICTURE mode (P. 28)

Select the colour system

PAL

: Western

Europe

NTSC 3.58

: USA

3.58 MHz

NTSC 4.43

: USA

4.43 MHz

AUTO

: When watching videos, etc.

Set a default aspect ratio

>> 4:3 AUTO ASPECT

PANORAMIC

REGULAR

14:9 ZOOM

Select a default aspect ratio for "AUTO" in "ZOOM"

(P. 20)

PANORAMIC REGULAR 14:9 ZOOM

16 : 9 4 : 3 14 : 9

41

Troubleshooting

Severe noise or snow

Is the TV connected correctly to the aerial?

Change the direction of the aerial.

Is the aerial or its cable damaged?

Consult your retailer

Patterns, stripes or noise

42

Is the aerial receiving interference from high-voltage power lines or wireless transmitters?

Consult your retailer

Are connected devices too close to the TV?

Insert the minimum distance between the aerial and the cause of interference until no interference

Ghosting

(Doubling of images)

I can't turn it on!

Is the power cord connected to the AC outlet correctly?

Are you receiving interference from signals reflected off mountains or buildings?

Adjust the direction of your aerial, or change to a good-quality directional aerial

The remote control doesn't work!

Are the batteries flat?

Are you more than 7 metres away from the TV?

Is the "VCR/TV/DVD SWITCH" set to "TV"?

When viewing teletext, the TV menu bar does not appear.

Depending on the stability of the signal, there may be a time lag when changing channels.

Problem

Not displayed

(black screen)

Remote control stops working

DTV screen is frozen

Some functions do not work

Aspect ratio changes unintentionally

Actions

Is the ATV reception poor, too?

Following the instructions in "Severe noise or snow"

can solve this problem.

Is there a DTV transmission tower nearby?

Turn "ATTENUATOR" to "ON", since the radio waves

are too strong.

There may be problems at the antenna, radio waves, or the area you live in, where reception is bad.

Consult your retailer.

Unplug TV, several minutes later plug it in again.

Hold down and simultaneously to restart.

on the TV

It is not a malfunction. Some functions (dark background) in the menu do not work depending on the situation.

-

-

page

42

33

-

Poor picture quality

Strange picture when using an external device

Poor sound

Press to return to your settings.

20

Unnatural colour >>> Adjust COLOUR and BRIGHT.

Check your COLOUR SYSTEM.

Noise >>> Set to the following functions.

PICTURE MODE : STANDARD

DIGITAL VNR : AUTO (HIGH)

Super DigiPure : MIN

Dull picture >>> Set to the following functions.

PICTURE MODE : STANDARD

DIGITAL VNR : MIN

Super DigiPure : MAX

If you connected S-Video output device, check the

“S-IN” setting.

If the top of the image is distorted, check the video signal quality itself.

If movement appears unnatural when receiving a signal from a DVD player, etc. with 625p (progressive-scanning), change the output setting of the external device to 625i

(interlace-scanning).

27

-

-

33

40

33

40

40

33

40

40

Adjust the BASS and TREBLE.

If receiving a poor signal in "STEREO/ · ", switch to MONO.

33

33

43

44

Troubleshooting

(continued)

Problem Actions page

Wrong screen size Switch SIZE in HDMI SETTING to "1" or "2".

33

No sound

Green and distorted screen

Some inputs are skipped in the sub-picture

Switch AUDIO in HDMI SETTING to ANALOGUE or DIGITAL.

33

Wait a little for the signal to stabilize when switching the signal format for an HDMI device.

-

DTV channels, EXT-4/EXT-6 inputs, and PC mode cannot be selected in the sub-picture.

28

"FEATURE NOT

AVAILABLE"

"ACI ERROR"

"NO RECORDING"

"NO RECORDING

POSSIBLE"

"NO RECORDING

MEDIA PROBLEM"

"NO RECORDING

DEVICE BUSY"

Black or white dots appear on the screen

Is the T-V LINK compatible device connected to EXT-2?

Is the SCART CABLE "Fully Wired"?

Is the T-V LINK compatible device turned on?

After confirming all the conditions above, press "OK" button again.

Press to start ACI again.

If you still receive the "ACI ERROR" after numerous tries, press to cancel ACI.

A problem occurs at the recorder.

-

-

The displayed video cannot be recorded.

The recorder is not ready for recording.

Check the videotape or DVD disc.

-

-

The recorder is recording another programme, or is playing.

-

Plasma panels use fine dots ("pixels") to display images.

While more than 99.99% of these pixels function properly, a very small number of pixels may not light, or may light all the time.

Please understand that this is not a malfunction.

-

46

46

-

Problem

An error message does not disappear

Actions

Deleting a DTV channel may cause an error message to appear while other channels displayed.

Register channels again in "Automatic Search" page

39

Remote controls for other devices stop working

Cordless headphones stop working, or noise can be heard

Remote controls are occasionally disrupted by interference from the plasma display panel.

Increase the distance between you and the TV and try again.

-

Occasionally infra-red type cordless headphones stop working, or noise can be heard due to interference from the plasma display panel.

Move the transmitter away from the TV and try again.

-

CH 21

CH 22

CH 23

CH 24

CH 25

CH 26

CH 27

CH 28

CH 29

CH 30

CH 31

CH 32

CH 33

CH

CH 02

CH 03

CH 04

CH 05

CH 06

CH 07

CH 08

CH 09

CH 10

CH 11

CH 12

CH 34

CH 35

CH 36

CH 37

CH 38

CH 39

CH/CC List

To use the INSERT function (P. 16), find the CH/CC number corresponding to the TV's channel number from this table. If you want to know a particular TV channel's channel menu, look in TV listings magazines or contact the broadcaster.

When the COUNTRY setting is UNITED KINGDOM, the CC number channels and channels from CH02 to

CH12 cannot be received.

E28

E29

E30

E31

E32

E33

E21

E22

E23

E24

E25

E26

E27

E34

E35

E36

E37

E38

E39

Channel

E2, IR A

E3, IR B

E4, IR C

E5, IR D

E6, IR E

E7, IR F

E8, IR G

E9

E10, IR H

E11, IR J

E12

CH 61

CH 62

CH 63

CH 64

CH 65

CH 66

CH 67

CH 68

CH 69

CH 51

CH 52

CH 53

CH 54

CH 55

CH 56

CH 57

CH 58

CH 59

CH 60

CH

CH 40

CH 41

CH 42

CH 43

CH 44

CH 45

CH 46

CH 47

CH 48

CH 49

CH 50

E61

E62

E63

E64

E65

E66

E67

E68

E69

E51

E52

E53

E54

E55

E56

E57

E58

E59

E60

E44

E45

E46

E47

E48

E49

E50

Channel

E40

E41

E42

E43

CC 22

CC 23

CC 24

CC 25

CC 26

CC 27

CC 28

CC 29

CC 30

CC 12

CC 13

CC 14

CC 15

CC 16

CC 17

CC 18

CC 19

CC 20

CC 21

CC

CC 01

CC 02

CC 03

CC 04

CC 05

CC 06

CC 07

CC 08

CC 09

CC 10

CC 11

S22

S23

S24

S25

S26

S27

S28

S29

S30

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S5

S6

S7

S8

S9

S10

S11

Channel

S1

S2

S3

S4

CC

CC 31

CC 32

CC 33

CC 34

CC 35

CC 36

CC 37

CC 38

CC 39

CC 40

CC 41

CC 75

CC 76

CC 77

CC 78

CC 79

X

Y

Z

Z+1

Z+2

S35

S36

S37

S36

S39

S40

S41

Channel

S31

S32

S33

S34

45

Technical information

What is T-V LINK?

T-V LINK allows the TV to share information easily with a connected T-V LINK compatible device.

By using T-V LINK :

You can send the ATV channel information programmed on the TV to the T-V LINK compatible device, so that both the TV and the external device have the same channel settings. When connecting a new external device, channel information is loaded into it, allowing channel setup to be completed very quickly. For more details, refer to the external device's manual.

You can easily record the TV programme you are viewing on a T-V LINK compatible device by using the

"DIRECT REC" feature. For more details, refer to the external device's manual.

After timer-record setting, the TV will instruct the recorder to start and stop recording, via DIRECT REC.

46

What is ACI (Automatic Channel Installation)?

Some cable companies transmit a signal called ACI which contains information that allows TV channels to be registered automatically on your TV.

When an ACI signal is received, "ACI START/ACI CANCEL" appears in the "AUTO PROGRAM" screen.

PC Signals that can be displayed

*Macintosh* computers are not supported.

(Macintosh is a registered trademark of

Apple Computer, Inc.)

If the signal doesn't appear, check that the vertical frequency on the PC is set to 60Hz.

Resolution

Vertical frequency (Hz)

Horizontal frequency (kHz)

640 x 480 (VGA) 1024 x 768 (XGA)

60.0

31.5

60.0

42.0

Connect DVI devices

Connect a DVI device to EXT-6 (HDMI) using DVI-HDMI conversion cable. Connect analogue sound output of the DVI device to L and R terminals in EXT-4.

Set AUDIO in HDMI SETTING to ANALOGUE or AUTO (P. 33)

If you accidentally cut the power cord

Attach a new plug following the steps below. If in doubt, contact your retailer.

Important

The wires in the mains lead on this product are coloured with the following code:

· Blue: Neutral wire (connect to the black terminal, or one marked "N")

· Brown: Live wire (connect to the red terminal, or one marked "L")

· Green-and-yellow: Safety earth wire (connect to the larger terminal marked with an

"E", the safety earth symbol " " or coloured green or green-and-yellow)

Change the fuse in the plug

Open the plug as illustrated on the right.

When replacing the fuse, always use a correctly rated and approved type and re-fit the fuse cover when finished.

If in doubt, contact your retailer.

Fuse

Licence

Manufactured under license from BBE Sound, Inc.

Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897.

BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

Specifications

Main unit

COUNTRY setting

Broadcasting systems

Colour systems

PD-42DX6BJ

UNITED KINGDOM IRELAND

CCIR I

PAL

·The EXT terminals also support the NTSC 3.58/4.43 MHz system.

Channels and frequencies

Sound-multiplex systems

Teletext systems

Power requirements

Power consumption

Screen size

Audio output

(Rated power output)

Speakers

Dimensions (W x H x D)

Weights

Accessories

Analogue : E21-E69,

Digital :

474 MHz-850 MHz (channel 21-68)

NICAM (I) system.

AC 110 V - 240 V, 50/60 Hz

339 W (standby : 3.0 W)

Analogue : IR A-J, E2-E12, E21-E69,

Digital :

474 MHz-850 MHz (channel 21-68)

Analogue : FLOF (Fastext), WST (World Standard System).

Digital : MHEG 5 UK profile

106 cm (visible area size measured diagonally)

10 W + 10 W

6.6 cm round x 4

1045 mm x 795.7 mm x 313 mm/1045 mm x 728.4 mm x 110 mm (without stand)

45 kg/38.5 kg (without stand)

(See "Check accessories", P. 6)

This TV has the CAM (Conditional Access Module) slot for watching pay-per-view.

Please note that the CAM and viewing card must be purchased separately.

Terminals/Connectors

Terminal name

Input/Output terminals

Input terminals

EXT-1

EXT-2

EXT-3

Terminal type

Euroconnector x 1

(SCART connector)

Euroconnector x 1

(SCART connector)

Euroconnector x 1

(SCART connector)

Signal type (IN)

Composite video, S-video,

Analogue RGB, AUDIO L/R


Analogue RGB, AUDIO L/R

Composite video,

AUDIO L/R

EXT-4 RCA connector x 5

Analogue component

(standard/Progressive :

576p (625p), 480p (525p),

720p/60 Hz (750p/60 Hz)/

HD : 1080i (1125i)),

AUDIO L/R


AUDIO L/R

EXT-5

RCA connector x 3,

S-VIDEO connector x 1

EXT-6 (HDMI) HDMI connector x 1

Digital video, Digital audio

(480p (525p), 480i (525i),

720p/60Hz (750p/60Hz),

1080i (1125i), 576p (625p), 576i (625i))

PC INPUT D-SUB (15 pins) x 1 Analogue PC signal (P. 46)

CENTRE CH IN RCA connector x 1 Audio centre channel

Output terminals

AUDIO OUT

Headphone

RCA connector x 3

Stereo mini-jack x 1

(3.5 mm in diameter)

We may change the design and specifications without notice.

Signal type (OUT)

TV out

Dubbing out

Audio L/R,

Subwoofer

Headphone output

47

For users in the UK :

If you have any problems setting up your new TV, please call the

Helpline on 0870 330 5000.

For users in the Republic of Ireland :

If you have any problems setting up your new TV, please call the

Helpline on 1890-582500.

C

2005 Victor Company of Japan, Limited 0305 MKH-CR-MU

No results
