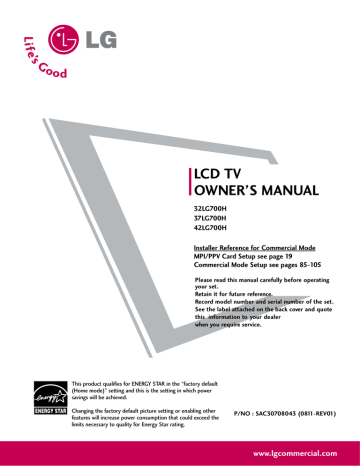

LCD TV

OWNER’S MANUAL

32LG700H

37LG700H

42LG700H

Installer Reference for Commercial Mode

MPI/PPV Card Setup see page 19

Commercial Mode Setup see pages 85-105

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the back cover and quote this information to your dealer when you require service.

This product qualifies for ENERGY STAR in the “factory default

(Home mode)” setting and this is the setting in which power savings will be achieved.

Changing the factory default picture setting or enabling other features will increase power consumption that could exceed the limits necessary to quality for Energy Star rating.

P/NO : SAC30708043 (0811-REV01)

www.lgcommercial.com

WARNING / CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK). NO

USER SERVICEABLE PARTS INSIDE. REFER TO

QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING / CAUTION

To prevent fire or shock hazards, do not expose this product to rain or moisture.

FCC NOTICE

Class B digital device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National

Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

CAUTION

Do not attempt to modify this product in any way without written authorization from LG Electronics.

Unauthorized modification could void the user’s authority to operate this product

1

2

SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

6

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

1 Do not use this apparatus near water.

7 Only use attachments/accessories specified by the manufacturer.

2 Clean only with dry cloth.

3 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

4 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers)that produce heat.

9 Unplug this apparatus during lighting storms or when unused for long periods of time.

5 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10

Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

11 Never touch this apparatus or antenna during a thunder or lighting storm.

12 When mounting a TV on the wall, make sure not to install the TV by the hanging power and signal cables on the back of the TV.

13 Do not allow an impact shock or any objects to fall into the product, and do not drop onto the screen with something.

14 CAUTION concerning the Power Cord :

It is recommend that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not connect too many appliances to the same

AC power outlet as this could result in fire or electric shock.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not make the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the

TV.

15 WARNING - To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles or expose the

TV to direct air conditioning.

16 Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).

17 G RO ND

Ensure that you connect the earth ground wire to prevent possible electric shock. (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grouned AC outlet) If grounding methods are not possible, have a qualified electrician install a separate circuit breaker.

Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

Short-circuit

Breaker

Power

Supply

18 DIIS CO CEE FFR OM

Mains plug is the disconnecting device. The plug must remain readily operable.

3

4

19

NT EN NA S uttd oo ntteen naa g un

If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur.

Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Elleeccttrriiccaall C od NS

Ground Clamp

Electric Service

Equipment

NEC: National Electrical Code

Antenna Lead in Wire

Antenna Discharge Unit

(NEC Section 810-20)

Grounding Conductors

(NEC Section 810-21)

Ground Clamps

Power Service Grounding

Electrode System (NEC

Art 250, Part H)

20 Cleaning

When cleaning, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzene.

21 Moving

Make sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press against or put stress on the front panel of the TV.

22 Ventilation

Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase.

Do not cover the product with cloth or other materials (e.g.) plastic while plugged in. Do not install in excessively dusty places.

23 If you smell smoke or other odors coming from the

TV or hear strange sounds, unplug the power cord contact an authorized service center.

24 Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.

25 Keep the product away from direct sunlight.

26

If the TV feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with TV.

Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.

Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.

Doing so may produce some temporary distortion effects on the screen.

ON DISPOSAL

(Only Hg lamp used LCD TV)

The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general household waste.

Disposal of this product must be carried out in accordance to the regulations of your local authority.

WARNING / CAUTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

SAFETY INSTRUCTIONS

. . . . . . . . . . . . . . . . . . . . . . . . . .

2

FEATURES OF THIS TV

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

PREPARATION

Accessories

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

Front Panel Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

Back Panel Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

Stand Instruction

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

Cable Management

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

Desktop Pedestal Installation

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

Swivel Stand

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

Attaching the TV to a desk

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15

VESA Wall Mounting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Securing the TV to the wall to prevent falling

When the TV is used on a stand

. . . . . . . . . . . . . . . . . . . . . . . . . .

17

Antenna or Cable Connection

. . . . . . . . . . . . . . . . . . . . . . . . . .

18

MPI Card Slot / PPV Card Installation

. . . . . . . . . . . . . . .

19

EXTERNAL EQUIPMENT SETUP

HD Receiver Setup

- Component Connection

. . . . . . . . . . . . . . . . . . . . . . . . . . .

20

- HDMI Connection

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21

- DVI to HDMI Connection

. . . . . . . . . . . . . . . . . . . . . . . . . .

22

DVD Setup

- Component Connection

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

- HDMI Connection

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

VCR Setup

- Antenna Connection

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

- Composite (RCA) Connection

. . . . . . . . . . . . . . . . . . .

25

Other A/V Source Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

26

PC Setup

- VGA (D-Sub 15 pin) Connection

. . . . . . . . . . . . . . .

27

- DVI to HDMI Connection

. . . . . . . . . . . . . . . . . . . . . . . . . .

28

- Screen Setup for PC mode

. . . . . . . . . . . . . . . . . . . . . . . .

29

Audio Out Connection

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

33

WATCHING TV / CHANNEL CONTROL

Remote Control Functions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

34

Turning On TV

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36

Channel Selection

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36

Volume Adjustment

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

36

On-Screen Menus Selection

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37

Channel Setup

CONTENTS

- Auto Scan (Auto Tuning)

. . . . . . . . . . . . . . . . . . . . . . . . . . .

38

- Add / Delete Channel (Manual Tuning)

. . . . . .

39

- Channel Editing

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

Channel Label

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

41

Input List

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42

Example Electronic Program Guide

. . . . . . . . . . . . . . . . . . .

43

PICTURE CONTROL

PIP (Picture-In-Picture)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

44

Picture Size (Aspect Ratio) Control

. . . . . . . . . . . . . . . . . .

46

Preset Picture Settings

- Picture Mode - Preset

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

49

- Color Tone - Preset

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

50

Manual Picture Adjustment

- Picture Mode - User Mode

. . . . . . . . . . . . . . . . . . . . . . . .

51

Picture Improvement Technology

. . . . . . . . . . . . . . . . . . . . .

52

Advanced Control - Black (Darkness) Level

. . . . . . .

53

Advanced Control - Eye Care

. . . . . . . . . . . . . . . . . . . . . . . . . . .

54

Advanced Control - Film Mode

. . . . . . . . . . . . . . . . . . . . . . . . .

55

Picture Reset

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

56

SOUND & LANGUAGE CONTROL

Auto Volume Leveler (Auto Volume)

. . . . . . . . . . . . . . . . .

57

Preset Sound Settings (Sound Mode)

. . . . . . . . . . . . . .

58

Sound Setting Adjustment - User Mode

. . . . . . . . . . .

59

- SRS TruSurround XT

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

60

Clear Voice

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

61

Balance

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

62

TV Speakers On/Off Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

63

Audio Reset

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

64

Stereo/SAP Broadcast Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . .

65

Audio Language

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

66

On-Screen Menus Language Selection

. . . . . . . . . . . . . .

67

Caption Mode

- Analog Broadcasting System Captions

. . . . . . .

68

- Digital Broadcasting System Captions

. . . . . . . .

69

- Caption Option

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

70

TIME SETTING

Clock Setting

- Auto Clock Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

71

- Manual Clock Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

72

Auto On/Off Time Setting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

73

Sleep Timer Setting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

74

Auto Shut-off Setting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

75

5

6

PARENTAL CONTROL / RATINGS

Set Password & Lock System

. . . . . . . . . . . . . . . . . . . . . . . . . . .

76

Channel Blocking

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

79

Movie & TV Rating

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

80

Downloadable Rating

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

83

External Input Blocking

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

84

COMMERCIAL MODE SETUP

Interactive TV Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

85

Installer Overview

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

86

Interactive TV Overview

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

87

Commercial Mode Setup for Master TV

. . . . . . . . . . . .

88

Master TV Profile Setup Learning/Teaching with

USB Memory Card

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

89

TLL-1100A Cloning Connections/Learning Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

91

LT2002 Cloning Connections/Learning Setup

. .

92

LT2002 Cloning Learning Setup

. . . . . . . . . . . . . . . . . . . . . .

93

Cloning Connections/Teaching Setup

. . . . . . . . . . . . . .

94

Installer Menu

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

95

Reference: Detailed Instructions For Making A

Master TV

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

101

Reference: Procedures for adding Channel Label

Icons/Custom Channel Labels (2-5-4 + MENU

Mode)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

102

Reference: Clonable Menu Features

. . . . . . . . . . . . . . . .

103

Reference: Power Saving Setup

. . . . . . . . . . . . . . . . . . . . . . .

104

TV Aux Input Configuration

. . . . . . . . . . . . . . . . . . . . . . . . . . .

104

TV Camport Auto Sense Operation

. . . . . . . . . . . . . . . .

105

APPENDIX

Troubleshooting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

106

Reference: LT2002 Cloning Procedure

Troubleshooting

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

108

Troubleshooting Flow Chart

. . . . . . . . . . . . . . . . . . . . . . . . . . .

109

Commercial Mode Check

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

110

Glossary of Terms

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

111

Maintenance

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

112

Product Specifications

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

112

Programming the Remote Control

. . . . . . . . . . . . . . . . . . .

113

IR Codes

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

116

Open Source License

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

118

FEATURES OF THIS TV

HDMI TM , the HDMI logo and High-Definition

Multimedia Interface are trademarks or registered trademarks of HDMI Licensing."

USB IN

SERVUCE ONLY

USB port shall be used for software update by service personnel only.

Manufactured under license from Dolby Laboratories.

“ Dolby “and the double-D symbol are trademarks of

Dolby Laboratories. is a trademark of SRS Labs, Inc.

TruSurround XT technology is incorporated under license from SRS Labs, Inc.

IMPORTANT INFORMATION TO PREVENT “IMAGE BURN

/ BURN-IN” ON YOUR TV SCREEN

■ When a fixed image (e.g. logos, screen menus, video game, and computer display) is displayed on the TV for an extended period, it can become permanently imprinted on the screen. This phenomenon is known as “image burn” or “burn-in.” Image burn is not covered under the manufacturer’s warranty.

■ In order to prevent image burn, avoid displaying a fixed image on your TV screen for a prolonged period

(2 or more hours for LCD, 1 or more hours for Plasma).

■ Image burn can also occur on the letterboxed areas of your TV if you use the 4:3 aspect ratio setting for an extended period.

7

8

PREPERATION

ACCESSORIES

Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the dealer where you purchased the TV.

The accessories included may differ from the images below.

Owner’s Manual

Copyright© 2007 LGE,

All Rights Reserved.

CD Manual

Power Cord

STB

GUIDE

TV

W

ER

POR

TAL

VCR

INFO

DVD

ENT

ER

RETU

RN

ME

NU

VOL

7

PQRS

PIP

PIP

CH-

PIP

CH+

RA

TIO

PIP

SW

AP

TIM

ER

PIP

INPU

SAP

0

&@

4

GHI

1

.:/,

5

JKL

8

TU

V

FLASHB

K

9

WX

YZ

6

MNO

2

ABC

RE

MUTE

MOVE

3

DEF

ALPHA/NU

CC

M

CH

E

G

A

P

INPU

T

1.5V 1.5V

Protective Bracket and

Bolt for Power Cord

(Refer to P.13)

Remote Control,

Batteries

Cable Holder

(Refer to P.13) x 4 x 4 x 2

Protection Cover

(Refer to P.12)

Screw for stand fixing

(Refer to P.15)

Bolts for stand assembly

(Refer to P.12)

Torx plus

Star head screw

(Refer to P.12)

* Wipe spots on the exterior only with the polishing cloth.

Polishing Cloth

(This feature is not available for all models.)

* Do not wipe roughly when removing stains.

Excessive pressure may cause scratches or discoloration.

Cable Holder

(Refer to P.13)

D-sub 15 pin Cable

When using the VGA (D-sub 15 pin cable) PC connection, the user must use shielded signal interface cables with ferrite cores to maintain standards compliance.

FRONT PANEL INFORMATION

■ Image shown may differ from your TV.

CH

CHANNEL( , )

Buttons

Stand

Intelligent Sensor

Power/Standby Indicator

Illuminates red in standby mode.

Illuminates blue when the set is switched on.

Remote Control Sensor

POWER Button

VOL

VOLUME (+, -)

Buttons

ENTER

MENU

INPUT

ENTER Button

MENU Button

INPUT Button

9

10

PREPARATION

BACK PANEL INFORMATION

■ Image shown may differ from your TV.

12

15

AV IN 2 11

13 14

1

HDMI/DVI IN

2

1(DVI)

RJP

INTERFACE

9

6

2

LAN

(SERVICE ONLY)

RESET

3

RGB(PC)

( )

AUDIO

(RGB/DVI)

UPDATE

7

4

5

OPTICAL

DIGITAL

AUDIO OUT

SPEAKER OUT

8

RS-232C IN

(SERVICE ONLY)

REMOTE

CONTROL OUT 8

VIDEO

COMPONENT IN

AUDIO

10

AUDIO / MONO

VIDEO

11

1

HDMI/DVI IN

Digital Connection. Supports HD video and Digital audio.

Accepts DVI video using an adapter or HDMI to

DVI cable (not included)

2 LAN (SERVICE ONLY)

Connect to control network.

3 UPDATE

Software downloads and debug mode enable/disable.

RESET

Hardware reset to PTC microcontroller.

4 OPTICAL DIGITAL AUDIO OUT

Digital audio output for use with amps and home theater systems.

Includes an optical connection.

Note: In standby mode, these ports do not work.

5 SPEAKER OUT 8 Ω

Connect to external speaker input.

6 RGB IN (PC)

Analog PC Connection. Uses a D-sub 15 pin cable

(VGA cable).

AUDIO (RGB/DVI)

1/8” headphone jack for analog PC audio input.

7 RS-232C IN (SERVICE ONLY)

Used for software updates.

8 REMOTE CONTROL OUT

IR output for controlling an auxiliary device.

9 RJP INTERFACE (REMOTE JACK PACK PORT)

Connect to remote jack pack control output port.

10 COMPONENT IN

Analog Connection.

Supports HD.

Uses a red, green, and blue cable for video & a red and white cable for audio.

11 AV (Audio/Video) IN

Analog composite connection. Supports standard definition video only (480i).

Used for PC/DTV audio input jack.

12 USB SERVICE ONLY

Used for software updates.

13 ANTENNA IN

Connect over-the air signals to this jack.

14

M.P. I.

15 Power Cord Socket

For operation with AC power.

Caution: Never attempt to operate the TV on DC power.

11

PREPARATION

STAND INSTRUCTION

■ Image shown may differ from your TV.

INSTALLATION

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

DETACHMENT

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

2

2 Remove the four screws that hold the base on.

3 Insert the stand as shown.

3 Detach the stand from TV.

12

4 x 4

Tighten the stand with the four screws (provided as parts of the TV).

or x 2 x 2

Tighten the two of these four screws and the two Torx plus star head screws

(provided as parts of the TV) to secure the TV. Tighten the two Torx plus star head screws with a star head driver bit (not provided as parts of the TV).

!

NOTE

Make sure the screws in the stand are fully tightened. (If not tightened fully, the product could tilt forward and fall). But do not over tighten, over-tightening can damage the threads on the screws.

PROTECTION COVER

After removing the stand, install the included

RO TE until you hear it click.

VE R into the TV

CABLE MANAGEMENT

■ Image shown may differ from your TV.

1 Connect the cables as necessary.

To connect additional equipment, see the

EXTERNAL EQUIPMENT SETUP section.

Secure the power cable with the CABLE

HOLDER for power code(only 32LG700H model) and PROTECTIVE BRACKET/Screw.

It will help prevent the power cable from being removed by accident.

3 Put the cables inside the CABLE MANAGEMENT

CLIP and snap it closed.

2

CABLE HOLDER

(only 32LG700H model)

PROTECTIVE BRACKET

(This feature is not available for all models.)

Install the CABLE MANAGEMENT CLIP as shown.

If your TV has the CABLE HOLDER, install it as shown and bundle the cables.

!

NOTE

Do not hold the CABLE MANAGEMENT CLIP when moving the TV.

- If the TV is dropped, you may be injured or the product may be broken.

CABLE MANAGEMENT CLIP

CABLE HOLDER

13

14

PREPARATION

DESKTOP PEDESTAL INSTALLATION

■ Image shown may differ from your TV.

For proper ventilation, allow a clearance of 4 inches on all four sides.

4 inches

4 inches

4 inches 4 inches

CAUTION Ensure adequate ventilation by following the clearance recommendations.

Do not mount near or above any type of heat source.

SWIVEL STAND

The TV can be conveniently swivelled on its stand 90° to the left or right to provide the optimum viewing angle.

ATTACHING THE TV TO A DESK

The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product. Use only the included screw.

Stand

1-Screw

(provided as parts of the product)

Desk

WARNING

To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

15

PREPARATION

VESA WALL MOUNTING

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer.

If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

We recommend that you use an LG brand wall mount when mounting the TV to a wall.

16

Product

LCD TV

Model

32LG700H

37LG700H

42LG700H

!

NOTE

Screw length needed depends on the wall mount used. For further information, refer to the instructions included with the mount.

Standard dimensions for wall mount kits are shown in the table.

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

Do not use screws longer then the standard dimension, as they may cause damage to the inside to the TV.

For wall mounts that do not comply with the VESA

VESA

(A * B)

200 * 100

200 * 200

200 * 200

Standard Screw Quantity

M4

M6

M6

4

4

4 standard screw specifications, the length of the screws may differ depending on their specifications.

Do not use screws that do not comply with the

VESA standard screw specifications.

Do not tighten the screws too much. It may damage the TV or allow the TV to a fall and cause personal injury. LG is not liable for these kinds of accidents.

LG is not liable for TV damage or personal injury when a non-VESA or non specified wall mount is used or the consumer fails to follow the TV installation instructions.

CAUTION

Do not install your wall mount kit while the TV is plugged in. It may result in personal injury due to electric shock.

WARNING

To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation instructions.

SECURING THE TV TO THE WALL TO PREVENT FALLING

WHEN THE TV IS USED ON A STAND

■ You should purchase necessary components to prevent TV from falling off of the stand.

■ Image shown may differ from your TV.

* This feature is not available for all models.

We recommend that you set the TV close to a wall so it cannot fall over if pushed backwards.

Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction, potentially causing injury or damaging the product.

Caution: Please make sure that children don’t climb on or hang from the TV.

■ Insert eye-bolts (or TV brackets and bolts) to attach the product to the wall as shown in the picture.

* If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.

* Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.

Secure the wall brackets with screws (sold separately) to the wall. Match the height of the bracket that is mounted on the wall to the holes in the product.

Ensure the eye-bolts or brackets are tightened securely.

■ Use a sturdy rope or cord (sold separately) to tie the product. It is safer to tie the rope so it becomes horizontal between the wall and the product (the less slack in the rope, the better).

!

NOTE

Use a platform or cabinet strong enough and large enough to support the size and weight of the TV.

To use the TV safely, make sure that the height of the bracket on the wall and the one on the TV are the same.

17

18

PREPARATION

■ To prevent damage do not connect to the power outlet until all connections are made between the devices.

ANTENNA OR CABLE CONNECTION

1. Antenna (Analog or Digital)

Wall Antenna Socket or Outdoor Antenna without a Cable Box

Connection.

For optimum picture quality, adjust the direction if needed.

Wall

Antenna

Socket

Multi-family Dwellings/Apartments

(Connect to wall antenna socket)

Outdoor

Antenna

(VHF, UHF)

M.P.I.

RF Coaxial Wire (75 ohm)

Single-family Dwellings /Houses

(Connect to wall jack for outdoor antenna)

Copper Wire

Be careful not to bend the copper wire when connecting the antenna.

2. Cable

Cable TV

Wall Jack

M.P.I.

RF Coaxial Wire (75 ohm)

■ To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.

If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.

If the antenna is not installed properly, contact your dealer for assistance.

( )

( )

MPI CARD SLOT / PPV CARD INSTALLATION

The MPI card is equipped with an RF jack for antenna/cable signal source connection.

The MPI card slot is also available for installing a PPV (Pay-Per-View) card.

MPI Card Removal / PPV Card Installation

1. Remove the two MPI card retainer screws.

2. Pull out current MPI card far enough so that the RF cable can be detached from the old card.

3. Detach RF cable.

4. Place new PPV card into slot and slide it in far enough to reconnect RF cable.

5. Insert card all the way into the slot making sure it is fully seated into back plane connector.

6. Replace the two card retainer screws.

ANTENNA IN

RF CABLE

RF cable needs to be disconnected to remove current card.

M.P. I.

Card Slot

19

20

EXTERNAL EQUIPMENT SETUP

■ To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.

■ Image shown may differ from your TV.

HD RECEIVER SETUP

This TV can receive Digital Over-the-air or Digital Cable signals without an external digital set-top box. However, if you do receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.

Component Connection

1. How to connect

1

Connect the video outputs (Y, P B , P R

) of the digital settop box to the C EO jacks on the TV. Match the jack colors (Y = green, P B = blue, and

P

R

= red).

Y P

B

P

R

L R

2

Connect the audio output of the digital set-top box to the C DIIO jacks on the TV.

1 LAN

(SERVICE ONLY)

RESET

2

UPDA

RGB(PC)

AUDIO

(RGB/DVI)

R

(S

2. How to use

■ Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-top box.)

■ Select C neen input source using the on the remote control.

IIN UT button

VIDEO

COMPONENT IN

AUDIO

Supported Resolutions

Signal

480i

480p

720p

1080i

1080p

Component

Yes

Yes

Yes

Yes

No

HDMI

No

Yes

Yes

Yes

No

Y, C

B/

P

B

, C

R/

P

R

Resolution

Horizontal Vertical

Frequency(KHz) Frequency(Hz)

720x480i

720x480p

1280x720p

1920x1080i

15.73

15.73

31.47

31.47

44.96

45.00

33.72

33.75

59.94

60.00

59.94

60.00

59.94

60.00

59.94

60.00

UPDATE RESET

HDMI Connection

1. How to connect

1

Connect the digital set-top box to H

DV or 2 jack on the TV.

2

No separate audio connection is necessary.

HDMI supports both audio and video.

2. How to use

■ Turn on the digital set-top box.

(Refer to the owner’s manual for the digital set-top box.)

■ Select H MII 1 or H MII 2 input source with using the IIN button on the remote control.

2

HDMI/DVI IN

1(DVI)

RJP

INTERFACE

1

HDMI-DTV OUTPUT

HDMI-DTV

Resolution

720x480p

1280x720p

1920x1080i

Horizontal Vertical

Frequency(KHz) Frequency(Hz)

31.47

31.47

44.96

45.00

33.72

33.75

59.94

60.00

59.94

60.00

59.94

60.00

VID

CO

(

21

22

EXTERNAL EQUIPMENT SETUP

DVI to HDMI Connection

1. How to connect

1

Connect the DVI output of the digital set-top box to the H DV jack on the TV.

2

Connect the audio output of the digital set-top box to the A DV jack on the TV.

HDMI/DVI IN

2

1(DVI)

RJP

INTERFACE

1

2. How to use

■ Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)

■ Select the H MII 1 input source on the TV using the

UT button on the remote control.

LAN

(SERVICE ONLY)

RESET

RGB(PC)

AUDIO

(RGB/DVI)

VIDEO

COMPONENT IN

AUDIO

2

DVI-DTV OUTPUT

!

NOTE

A DVI to HDMI cable or adapter is required for this connection. DVI doesn't support audio, so a separate audio connection is necessary.

DVD SETUP

Component Connection

1. How to connect

1

Connect the video outputs (Y, P B , P R

) of the DVD to the

EO jacks on the TV.

Match the jack colors (Y = green, P B = blue, and P R = red).

2 Connect the audio outputs of the DVD to the

DIIO jacks on the TV.

2. How to use

■ Turn on the DVD player, insert a DVD.

■ Select the C neen input source on the TV using the

U T button on the remote control.

■ Refer to the DVD player's manual for operating instructions.

Y P

B

P

R

L R

1 LAN

(SERVICE ONLY)

RESET

2

UPDAT

RGB(PC)

AUDIO

(RGB/DVI)

R

(SE

VIDEO

COMPONENT IN

AUDIO

Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV

Video output ports on DVD player

Y

Y

Y

Y

Y

P

B

P

B

B-Y

Cb

Pb

P

R

P

R

R-Y

Cr

Pr

23

24

EXTERNAL EQUIPMENT SETUP

HDMI Connection

1. How to connect

1

Connect the HDMI output of the DVD to the

H DM DV or 2 jack on the TV.

2 No separate audio connection is necessary.

HDMI supports both audio and video.

2. How to use

■ Select the H MII 1 or H MII 2 input source on the TV using the II N U T button on the remote control.

■ Refer to the DVD player's manual for operating instructions.

2

HDMI/DVI IN

1(DVI)

RJP

INTERFACE

1

(S

VIDEO

COM

HDMI OUTPUT

VCR SETUP

■ To avoid picture noise (interference), leave an adequate distance between the VCR and TV.

Antenna Connection

1. How to connect

1

Connect the RF antenna out socket of the

VCR to the A A IIN socket on the

TV.

1

ANTENNA IN

2 Connect the antenna cable to the RF antenna in socket of the VCR.

S-VIDEO VIDEO L R ANT OUT

OUTPUT

SWITCH

ANT IN

Wall Jack

2

2. How to use

■ Set VCR output switch to 3 or 4 and then tune TV to the same channel number.

■ Insert a video tape into the VCR and press

PLAY on the VCR. (Refer to the VCR owner’s manual.)

Antenna

Composite (RCA) Connection

1. How to connect

1 Connect the A E O jacks between TV and

VCR. Match the jack colors (Video = yellow, Audio Left

= white, and Audio Right = red)

AUDIO / MONO

VIDEO

M.P.I.

2. How to use

■ Insert a video tape into the VCR and press PLAY on the

VCR. (Refer to the VCR owner’s manual.)

■ Select the A V 1 input source on the TV using the II N button on the remote control.

■ If connected to A N2 , select A V 2 input source on the TV.

1

( )

!

NOTE

If you have a mono VCR, connect the audio cable

TV.

ANT OUT

R

ANT IN

L VIDEO

S-VIDEO

OUTPUT

SWITCH

25

( )

26

EXTERNAL EQUIPMENT SETUP

OTHER A/V SOURCE SETUP

1. How to connect

1

Connect the A EO jacks between TV and external equipment.

Match the jack colors.

(Video = yellow, Audio Left = white, and

Audio Right = red)

2. How to use

■ Select the A V 2 input source on the TV using the

UT button on the remote control.

■ If connected to A N1 input source on the TV. input, select the A

■ Operate the corresponding external equipment.

Camcorder

Video Game Set

VIDEO L R

1

AV IN 2

PC SETUP

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

RGB(PC)

AUDIO

(RGB/DVI)

RS-23

(SERVIC

VGA (D-Sub 15 pin) Connection

1. How to connect

1 Connect the VGA output of the PC to the R jack on the TV.

VIDEO

COMPONENT IN

AUDIO

2 Connect the PC audio output to the A jack on the TV.

1 2

2. How to use

■ Turn on the PC and the TV.

■ Select the R PC input source on the TV using the

U T button on the remote control.

RGB OUTPUT AUDIO

Supported Display Specifications

(RGB-PC, HDMI-PC)

Resolution

Horizontal Vertical

Frequency(KHz) Frequency(Hz)

640x350 31.468 70.09

720x400

640x480

31.469

31.469

70.08

59.94

800x600

1024x768

1280x768

1360x768

1280x1024

37.879

48.363

47.776

47.712

63.981

60.31

60.00

59.870

60.015

60.020

!

NOTES

To get the best picture quality, adjust the PC graphics card to 1360x768, 60Hz.

Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.

In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness.

If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the

PICTURE menu until the picture is clear.

When you use too long RGB-PC cable, there might be a noise on the screen.

Avoid keeping a fixed image on the screen for a long period of time. The fixed image could become permanently imprinted on the screen.

The synchronization input form for Horizontal and

Vertical frequencies is separate.

Depending on the graphics card, some resolution settings may not allow the image to be positioned on the screen properly.

27

28

EXTERNAL EQUIPMENT SETUP

DVI to HDMI Connection

1. How to connect

1

Connect the DVI output of the PC to the H

DV jack on the TV.

2 Connect the PC audio output to the A jack on the TV.

O ((R GB VII))

HDMI/DVI IN

2

1(DVI)

RJP

INTERFACE

1

LAN

(SERVICE ONLY)

RESET

RGB(PC)

AUDIO

(RGB/DVI)

2

VIDEO

COMPONENT IN

AUDIO

U

2. How to use

■ Turn on the PC and the TV.

■ Select the H MII 1 input source on the TV using the

U T button on the remote control.

DVI-PC OUTPUT AUDIO

Screen Setup for PC mode

Selecting Resolution

You can choose the resolution in RGB-PC mode.

The P on


Move

E

Screen (RGB-PC)

• Contrast 50

• Brightness 50

• Sharpness

• Color

50

50

• Tint 0

• Advanced Control

R

• Reset

Enter

G

Screen

Resolution

G

Auto config.

Position

Size

Phase

Reset

Move

MENU

Prev.

1024 x 768

1280 x 768

1360 x 768

1

MENU

2

ENTER

3

ENTER

4

ENTER

5

ENTER

Select the desired resolution.

29

30

EXTERNAL EQUIPMENT SETUP

Auto Configure

Automatically adjusts picture position and minimizes image instability. After adjustment, if the image is still not correct, try using the manual settings or a different resolution or refresh rate on the PC.


Move

E

Screen (RGB-PC)

• Contrast 50

• Brightness 50

• Sharpness

• Color

50

50

• Tint 0

• Advanced Control

R

• Reset

Enter

G

Screen

Resolution

Auto config.

G

Position

Size

Phase

Reset

Move MENU Prev.

Auto Config.

Yes No

1

MENU

2

ENTER

3

ENTER

4

ENTER

5

ENTER Start Auto Configuration.

• If the position of the image is still not correct, try Auto adjustment again.

• If picture needs to be adjusted again after Auto adjustment in RGB-PC, you

Adjustment for screen Position, Size, and Phase

If the picture is not clear after auto adjustment and especially if characters are still trembling, adjust the picture phase manually.

This feature operates only in RGB-PC mode.


Move

E

Screen (RGB-PC)

• Contrast 50

• Brightness 50

• Sharpness

• Color

50

50

• Tint 0

• Advanced Control

R

• Reset

Enter

G

Screen

Resolution

Auto config.

Position

Size

Phase

Reset

G

Move MENU Prev.

F

D

E

G

1

MENU

2

ENTER

3

ENTER

4

ENTER

5

ENTER

Make appropriate adjustments.

■ ture to left/right and up/down as you prefer.

■ vertical bars or stripes visible on the screen background. And the horizontal screen size will also change.

■ remove any horizontal noise and clear or sharpen the image of characters.

31

32

EXTERNAL EQUIPMENT SETUP

1

MENU

2

ENTER

3

ENTER

4

ENTER

5

ENTER

Screen Reset (Reset to original factory values)

This feature operates only in RGB-PC mode.


Move

E

Screen (RGB-PC)

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

R

• Reset

Enter

G

Screen

Resolution

Auto config.

Position

Size

Phase

Reset

G

Move

MENU Prev.

Initialize Settings.

Yes No

AUDIO OUT CONNECTION

Send the TV’s audio to external audio equipment via the Audio Output port.

Digital

1. How to connect

1 Connect one end of the optical or coaxial cable to the

ALL A UD O O T.

OPTICAL

DIGITAL

AUDIO OUT

SPEAKER OUT

8

UPDATE

O

VI)

RS-232C IN

(SERVICE ONLY)

1

REMOTE

CONTROL OUT

2 Connect the other end of the optical or coaxial cable to the digital audio input on the audio equipment.

3 Set the “TV Speaker option - Off ” in the AUDIO menu. (

G

). See the external audio equipment instruction manual for operation.

AUDIO / MONO

VIDEO

2

!

NOTE

When connecting with external audio equipments, such as amplifiers or speakers, you can turn the TV speakers off in the menu. ( G p 6 3 )

CAUTION

G Do not look into the optical output port. Looking at the laser beam may damage your vision.

Block the SPDIF out (optical/coaxial) about the contents with ACP(Audio Copy Protection) function.

33

34

WATCHING TV / CHANNEL CONTROL

REMOTE CONTROL FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

POWER Turns your TV or any other programmed equipment on or off, depending on mode.

TV/STB/DVD/VCR Select the remote’s operating mode: TV, STB, DVD, or

VCR.

GUIDE Displays and removes electronic channel guide.

PORTAL Displays and removes hotel interactive menu.

INFO Display information at the top of the screen.

TV

POWER

DVD

STB

GUIDE PORTAL

VCR

INFO i

ENTER

NUMBER button

Navigate the on-screen menus and adjust the system settings to your preference.

— (DASH) Used to enter a program number for multiple program channels such as 2-1, 2-2, etc.

FLASH BACK Tune to the last channel viewed.

VCR/DVD control buttons

Control video cassette recorders or DVD players.

PIP Switches the sub picture Double Window or off mode.

RATIO Change the aspect ratio. G p..4

6

TIMER Select the amount of time before your TV turns off automatically. G

SAP Analog mode: Selects MTS sound (Mono, Stereo, or a

SAP) G

DTV mode: Changes the audio language.

PIP CH +/Changes the PIP channel.

PIP SWAP Exchange the main/sub images.

PIP INPUT Select the connected input source for the sub-picture.

RETURN MENU INPUT

VOL

CC

ALPHA/NUM

MUTE

REMOVE

1

.:/,

4

GHI

7

PQRS

2

ABC

5

JKL

8

TUV

0

&@

CH

P

A

G

E

3

DEF

6

MNO

9

WXYZ

FLASHBK

PIP RATIO TIMER SAP

PIP CHPIP CH+ PIP SWAP PIP INPUT

THUMBSTICK

(Up/Down/Left

Right/ENTER)

Navigate the on-screen menus and adjust the system settings to your preference.

RETURN Clears all on-screen displays and returns to TV viewing from any menu.

MENU Displays the main menu.

INPUT External input modes rotate in regular sequence: TV, AV1-2, Component, RGB-PC,

HDMI1 and HDMI2.

VOLUME UP

/DOWN

CC

Increase/decrease the sound level.

Select a closed caption. G p..6

8

MUTE Switch the sound on or off.

G p..3

6

CHANNEL

UP/DOWN

Select available channels.

PAGE

UP/DOWN

Move from one full set of screen information to the next one.

Installing Batteries

■ Open the battery compartment cover on the back side and install the batteries matching correct polarity (+with +,-with -).

■ Install two 1.5V AAA batteries. Don’t mix old or used batteries with new ones.

■ Close cover.

35

36

TURNING ON TV

1 First, connect power cord correctly.

At this moment, the TV switches to standby mode.

■ In standby mode to turn TV on, press the the P ER button on the remote control.

button on the TV or press

2 Select the viewing source by using the IIN PU T button on the remote control.

■ This TV is programmed to remember which power state it was last set to, even if the power cord is out.

3 When finished using the TV, press the P

The TV reverts to standby mode.

ER button on the remote control.

!

NOTE

If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

CHANNEL SELECTION

1 Press the C H(( or )) or N UM BE buttons to select a channel number.

VOLUME ADJUSTMENT

Adjust the volume to suit your personal preference.

1 Press the V OLL ((+ or --)) button to adjust the volume.

2

3

If you want to switch the sound off, press the M UT E button.

You can cancel the Mute function by pressing the M UT E or V OLL ((+ or --)) button.

ON-SCREEN MENUS SELECTION

Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Channel Label

Data Broadcasting

Move Enter


Move

Aspect Ratio : 16:9

Picture Mode : Standard

• Back Light 80

• Contrast 90

• Brightness 50

• Sharpness 60

• Color

• Tint

E

60

0 R

Enter

G

AUDIO

Move

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

0 L

• SRS TruSurround XT: Off

• Treble 50

50 • Bass

• Reset

E

Enter

R

TIME

Move Enter

Clock

Off Time

: Feb/21/2008/ 2:10 AM

: Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

CHANNEL PICTURE AUDIO

TIME OPTION LOCK

OPTION

Language

Caption

Move

: English

: Off

Enter

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

1

MENU

Display each menu.

2

ENTER

Select a menu item.

3

ENTER

Enter to the pop up menu.

4

MENU

Return to TV viewing.

37

38

WATCHING TV / CHANNEL CONTROL

CHANNEL SETUP

Auto Scan (Auto Tuning)

Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list.

Run Auto Tuning again after any Antenna/Cable connection changes.

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Channel Label

Data Broadcasting

Move Enter

CHANNEL

Move Enter

Auto Tuning

Manual Tuning

Channel Edit

Channel Label

Data Broadcasting

Press ‘Yes’ button to begin auto tuning.

Yes

No

1

MENU

2

ENTER

3

ENTER

4

ENTER

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

■ A password is required to gain access to

Auto Tuning menu if the Lock System is turned on.

Add/Delete Channel (Manual Tuning)

If selecting DTV or CADTV input signal, you can view the on-screen signal strength monitor to see the quality of the signal being received.

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Channel Label

Data Broadcasting

Move Enter

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Channel Label

Data Broadcasting

Move Enter

F DIGITAL

Select channel type and

RF-channel number.

Channel

2

DIGITAL 2-1

Bad Normal Good

Delete

Close

1

MENU

2

ENTER

3

ENTER

4

Select channel you want to add or delete.

5

ENTER

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

■ A password is required to gain access to

Manual Tuning menu if the Lock System is turned on.

39

40

WATCHING TV / CHANNEL CONTROL

Channel Editing

The channels in the Custom List are displayed in black and the channels deleted from the Custom List are displayed in gray.

Once a channel is highlighted you can add or delete the channel by referring to the small window at the topright corner of the screen.

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Channel Label

Data Broadcasting

Move Enter

Add/Delete Tune Move CH Move Page MENU Previous Exit

1

MENU

2

ENTER

3

ENTER Select a channel.

4

Select channel you want to add or delete.

5

MENU Return to the previous menu.

RETURN

Return to TV viewing.

CHANNEL LABEL

Choose preset labels for your channels.

If a channel label is provided on the signal from the broadcasting station, the TV displays a short name for a channel even if you didn't preset a label for the channel.

CHANNEL

Auto Tuning

Manual Tuning

Channel Edit

Channel Label

Data Broadcasting

Move Enter

CHANNEL

Move Enter

Auto Tuning

Manual Tuning

Channel Edit

Channel Label

Data Broadcasting

Channel

Logo F

DIGITAL 2-1

Disney G

Close

1

MENU

2

ENTER

3

ENTER Select Channel.

4

Select a channel to set logo.

5

Select the appropriate logo for the channel.

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

41

42

WATCHING TV / CHANNEL CONTROL

INPUT LIST

TV AV1 AV2 Component RGB-PC

1

INPUT

ENTER Select the desired input source.

AV1 TV

HDMI2 HDMI1 RGB-PC

AV2

Component

■ and digital cable broadcasts.

■ other external equipment.

DVD or a Digital set-top box. definition devices.

EXAMPLE ELECTRONIC PROGRAM GUIDE

This is an example of a typical TV electronic program guide showing available programming.

CHANNEL INDICATOR

Currently tuned channel and program.

TV PROGRAM

Current program on selected channel.

Kids

PROGRAMMING GRID

Program listings arranged in time slots .

DATE/TIME OSD

Shows current Date/Time.

K&M Kids Movies Mon. 29 May 2009 11:07

Channel 01:30 AM

17 XYZ On The Political Scene

18 K&M

19 PQX

20 WBD

Kids Movies

Top Fashions

World Events Today

2:30 AM 2:45 AM

Kids ...

3:00 AM

Kids ...

New Release

Greatest Hits

EVENT CHANNEL SELECTION PORTAL INFO

ENTER

CHANNEL LIST

Shows available channels in numerical order.

PROGRAM TITLES

Highlight a title and press

Enter to display additional program information.

FEATURED ATTRACTION

Highlight and click to get expanded information.

1

GUIDE

2

RETURN

Return to TV viewing.

43

44

PICTURE CONTROL

PIP (PICTURE-IN-PICTURE)

PIP enables the end user to view two sources on the screen at the same time. The end user can switch between the Main and Sub picture sizes.

■ Note: Actual size of Main screen and PIP inset may be different than shown above.

PIP Operation

1. Connect auxiliary source(s) to TV connections panel.

2. Enter Installer menu to be sure source(s) is enabled.

3. Use the interactive remote provided in the room to operate PIP.

4. Press PIP on remote.

Use the PIP function keys to operate the available PIP features.

5. To exit PIP mode, simply press PIP.

PIP

Turns PIP mode on and off.

PIP CH+

Selects next higher channel for PIP window.

PIP CH-

Selects next lower channel for PIP window.

7

PQRS

8

TUV

0

&@

9

WXYZ

FLASHBK

PIP RATIO TIMER SAP

PIP CHPIP CH+ PIP SWAP PIP INPUT

PIP INPUT

Selects viewing source for PIP window.

PIP SWAP

Switches Main screen and

PIP window sources.

PIP Operation

Use the PIP function keys to operate the available PIP features.

■ Press PIP on remote to place PIP screen inset on the TV screen. See above.

1. With PIP active, press Swap to switch the PIP inset with the TV picture. See above.

Once the PIP inset shows the TV tuner picture, you can select TV channels with PIP Ch+ for channel up and PIP Ch- for channel down.

2. Press PIP Input to choose from available Aux sources that can be used for the PIP inset.

Note: Not all Aux sources can be used with PIP function.

■ To exit PIP mode press PIP to return to normal one source viewing.

45

46

PICTURE CONTROL

PICTURE SIZE (ASPECT RATIO) CONTROL

This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV.

■ RGB-PC input source use 4:3 or 16:9 aspect ratio.

1

RATIO

: S

2

RETURN

Return to TV viewing.

4::3 1 om 1 Sccaan .

PIIC TU E menu.

Set by program

Selects the proper picture proportion to match the source’s image.

(4:3 4:3)

16:9

Adjust the picture horizontally, in a linear proportion to fill the entire screen.

(16:9 16:9)

4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio.

47

48

PICTURE CONTROL

Zoom 1

Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

Just Scan

Normally the edges of video signals are cropped

1-2%. Just Scan turns off this cropping and shows the complete video.

Notes: If there is noise on the edges of the original signal, it will be visible when Just Scan is activated.

DTV/CADTV/HDMI-DTV/DVI-DTV

(720p/1080i/1080p),

Component(720p/1080i) input sources.

Zoom 2

Choose Zoom 2 when you want the picture to be altered, both vertically extended and cropped.

The picture taking a halfway trade off between alteration and screen coverage.

PRESET PICTURE SETTINGS

Picture Mode - Preset

There are factory presets for picture settings available in the user menus. You can use a preset, change each setting manually.


Move

Aspect Ratio : 16:9

Picture Mode : Standard

• Back Light 90

• Contrast 90

• Brightness 50

• Sharpness 60

• Color

• Tint

E

60

0 R

Enter

G


Move Enter

Aspect Ratio : 16:9

Picture Mode : Standard

• Back Light 90

• Contrast

Intelligent Sensor

• Brightness 50

• Sharpness 60

• Color

• Tint

E

0 R G

1

MENU

2

ENTER

3

ENTER Select IIn

Sttaan

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

■ the most suitable picture is automatically adjusted according to the surrounding conditions.

mum picture quality at the factory and are not adjustable.

49

50

PICTURE CONTROL

Color Tone - Preset

Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue.


Move

E

Screen (RGB-PC)

• Contrast 50

• Brightness 50

• Sharpness 50

• Color 50

• Tint 0

• Advanced Control

R

• Reset

Enter

G


Move Enter

E E

Screen (RGB-PC)

• Contrast 50

• Brightness 50

• Sharpness

Color Temperature

50

F Medium G

• Color

Off

• Tint 0 G

Off

Auto

• Reset Gamma Medium

Black Level Medium

Eye Care

Film Mode

Off

Off

Close

1

MENU

2

ENTER

3

ENTER

4

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

MANUAL PICTURE ADJUSTMENT

Picture Mode - User Mode

Adjust the picture appearance to suit your preference and viewing situations.


Move

Aspect Ratio : 16:9

Picture Mode : Standard (User)

• Back Light 90

• Contrast 90

• Brightness 50

• Sharpness 60

• Color

• Tint

E

60

0 R

Enter

G

• Back Light 80

E E

Enter

1

MENU

2

ENTER

3

ENTER

4

ENTER

5

ENTER Make appropriate adjustments.

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

51

52

PICTURE CONTROL

PICTURE IMPROVEMENT TECHNOLOGY

Fresh Contrast: Optimizes the contrast automatically according to the brightness of the reflection.

Fresh Color: Adjusts the color of the reflection automatically to reproduce as close as possible natural colors.

Noise Reduction: Removes interference up to the point where it does not damage the original picture.

Gamma: High gamma values display whitish images and low gamma values display high contrast images.


Move

E

Screen (RGB-PC)

• Contrast 50

• Brightness 50

• Sharpness

• Color

50

50

• Tint 0

• Advanced Control

R

• Reset

Enter

G


Screen (RGB-PC)

Move

E E

• Contrast 50

• Brightness 50

• Sharpness 50

• Color

• Tint 0

Enter

G

• Reset

Gamma

Black Level

Eye Care

Film Mode

F

Medium

Off G

Off

Auto

Medium

Medium

Off

Off

Close

1

MENU

2

ENTER

3

ENTER Select FFrreessh

No

4

Select your desired options.

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

ADVANCED CONTROL - BLACK (DARKNESS) LEVEL

Adjusting the contrast and the brightness of the screen using the black level of the screen.

This feature is disable in DTV and RGB-PC mode.


Move

E

Screen (RGB-PC)

• Contrast 50

• Brightness 50

• Sharpness

• Color

50

50

• Tint 0

• Advanced Control

R

• Reset

Enter

G


Move Enter

E E

• Contrast 50

• Brightness 50

Color Temperature

• Sharpness 50

• Color

• Tint 0 G

Screen (RGB-PC)

• Reset Gamma

Black Level

Eye Care

Film Mode

Close

Medium

Off

Off

Auto

Medium

Low G

Off

Off

1

MENU

2

ENTER

3

ENTER

4

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

■ darker.

■ brighter.

■ screen and set it to High or Low automatically.

53

54

PICTURE CONTROL

ADVANCED CONTROL - EYE CARE

Dims extremely bright pictures.


Move

E

Screen (RGB-PC)

• Contrast 50

• Brightness 50

• Sharpness

• Color

50

50

• Tint 0

• Advanced Control

R

• Reset

Enter

G


Move Enter

E E

• Contrast 50

• Brightness 50

• Sharpness 50

• Color

• Tint 0 G

Screen (RGB-PC)

• Reset

Gamma

Black Level

Eye Care

Film Mode

Close

Medium

Off

Off

Auto

Medium

Low

Off

Off

1

MENU

2

ENTER

3

ENTER

4

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

ADVANCED CONTROL - FILM MODE

Set up the TV for the best picture appearance for viewing movies.

When you operate Film Mode (3:2 Pull-Down Mode or Cinema Correction Mode), the TV will adjust 24 fps video from movies to 30 fps video for display.

This feature operates only in TV (Analog TV, Digital DTV), AV1, AV2, Component 480i/1080i, and HDMI 1080i mode.


Screen (RGB-PC)

Move

E

• Contrast 50

• Brightness 50

• Sharpness

• Color

50

50

• Tint 0

• Advanced Control

R

• Reset

Enter

G


Move Enter

E E

• Contrast 50

• Brightness 50

• Sharpness

Color Temperature

50

• Color

• Tint 0 G

Screen (RGB-PC)

• Reset Gamma

Black Level

Eye Care

Film Mode

Close

Medium

Off

Off

Auto

Medium

Low

Off

Off

1

MENU

2

ENTER

3

ENTER

4

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

55

56

PICTURE CONTROL

PICTURE RESET

Settings of the selected picture modes return to the default factory settings.


Move

E

Screen (RGB-PC)

• Contrast 50

• Brightness 50

• Sharpness

• Color

50

50

• Tint 0

• Advanced Control

R

• Reset

Enter

G


Move

E ii

• Contrast 50

• Brightness 50

• Sharpness 50

50

• Tint 0

• Advanced Control

R

• Reset

Screen (RGB-PC)

Enter

G

1

MENU

2

ENTER

3

ENTER

Initialize the adjusted value.

MENU

Return to TV viewing.

SOUND & LANGUAGE CONTROL

AUTO VOLUME LEVELER (AUTO VOLUME)

Auto Volume makes sure that the volume level remains consistent whether you are watching a commercial or a regular TV program.

AUDIO

Move

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

0 L

• SRS TruSurround XT: Off

• Treble 50

50 • Bass

• Reset

E

Enter

R

AUDIO

Move Enter

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

0

L

Off

On

• SRS TruSurround XT: Off

• Treble 50

50 • Bass

• Reset

E

R

1

MENU

2

ENTER

3

ENTER

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

57

58

PRESET SOUND SETTINGS (SOUND MODE)

Sound Mode lets you enjoy the best sound without any special adjustment as the TV sets the appropriate sound options based on the program content.

not adjustable.

AUDIO

Move

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

0 L

• SRS TruSurround XT: Off

• Treble 50

50 • Bass

• Reset

E

Enter

R

AUDIO

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

• Treble

• Bass

• Reset

E

Move Enter

0

L R

Standard

50

50

Cinema

Sport

Game

1

MENU

2

ENTER

3

ENTER

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

SOUND SETTING ADJUSTMENT - USER MODE

Adjust the sound to suit your taste and room situations.

AUDIO

Move

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

0 L

• SRS TruSurround XT: Off

• Treble 50

50 • Bass

• Reset

E

Enter

R

AUDIO

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

Move Enter

0

L R

• Treble

• Bass

• Reset

E

50

50

Treble

Bass

50

50

Close

Off

1

MENU

2

ENTER

3

ENTER

4

ENTER

5

ENTER Make appropriate adjustments.

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

59

60

SOUND &LANGUAGE CONTROL

SRS TRUSURROUND XT

Takes advantage of any multi-channel format without needing to add extra speakers or equipment. Dialog clarity, bass enrichment, and the addition of stereo audio enhancement produces an immersive sound experience from standard stereo material.

AUDIO

Move

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

0 L

• SRS TruSurround XT: Off

• Treble 50

50 • Bass

• Reset

E

Enter

R

AUDIO

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

Move Enter

0 L R

• Treble

• Bass

• Reset

E

50

50

Treble

Bass

50

50

Close

F Off G

1

MENU

2

ENTER

3

ENTER

4

RETURN

Return to the previous menu.

ou d X

MENU

Return to TV viewing.

CLEAR VOICE

By differentiating the human sound range from others, it improves the sound quality of voices.

AUDIO

Move

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

0 L

• SRS TruSurround XT: Off

• Treble 50

50 • Bass

• Reset

E

Enter

R

AUDIO

Move

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

Off

L

• SRS TruSurround XT: Off

• Treble 50

50 • Bass

• Reset

E

Enter

R

1

MENU

2

ENTER

3

ENTER

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

61

62

SOUND &LANGUAGE CONTROL

BALANCE

Adjust the left/right sound of speaker to suit your taste and room situations.

AUDIO

Move

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

0 L

• SRS TruSurround XT: Off

• Treble 50

50 • Bass

• Reset

E

Enter

R

AUDIO

Move Enter

Auto Volume : Off

Clear Voice : On

Balance 0

L R L

Sound Mode : Standard

• SRS TruSurround XT: Off Close

• Treble

• Bass

• Reset

E

50

50

R

1

MENU

2

ENTER

3

ENTER Make appropriate adjustments.

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

TV SPEAKERS ON/OFF SETUP

Turn the TV speakers off if using external audio equipment.

AUDIO

Move

E

Clear Voice

Balance

: On

0 L

Sound Mode : Standard

• SRS TruSurround XT: Off

TV Speaker

• Treble

• Bass

• Reset

: On

50

50

Enter

R

AUDIO

Move

E

Clear Voice

Balance

: On

0 L

Sound Mode : Standard

• SRS TruSurround XT: Off

TV Speaker

• Treble

• Bass

• Reset

: On

50

50

Off

On

Enter

R

1

MENU

2

ENTER

3

ENTER

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

63

64

SOUND &LANGUAGE CONTROL

AUDIO RESET

Settings of the selected Sound Mode return to the default factory settings.

AUDIO

Move

Auto Volume : Off

Clear Voice : On

Balance

Sound Mode : Standard

0 L

• SRS TruSurround XT: Off

• Treble 50

50 • Bass

• Reset

E

Enter

R

AUDIO

Move

Auto Volume : Off

Clear Voice : On

Balance 0 L

Sound Mode : Standard

• SRS TruSurround XT: Off

• Treble

• Bass

• Reset

E

50

50

Enter

R

1

MENU

2

ENTER

3

ENTER Initialize the adjusted value.

4

MENU

Return to TV viewing.

STEREO/SAP BROADCAST SETUP

For Analog only: This TV can receive MTS stereo programs and any SAP (Secondary Audio Program) that accompanies the stereo program if the station transmits an additional sound signal. Mono sound is automatically used if the broadcast is only in Mono.

MONO STEREO SAP

1

SAP

2

RETURN

Return to TV viewing.

■ If other languages available on the digital signal,

65

66

SOUND &LANGUAGE CONTROL

AUDIO LANGUAGE

Other languages may be available if a digital signal is provided by the broadcasting station.

This feature operates only in DTV mode.

OPTION

Language

Caption

Move

: English

: Off

Enter

OPTION

Language

Caption

Move Enter

: English

: Off

Menu

Audio

English

English G

Close

1

MENU

2

ENTER

3

ENTER

4

Select your desired language:

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

ON-SCREEN MENUS LANGUAGE SELECTION

The menus can be shown on the screen in the selected language.

OPTION

Language

Caption

Move

: English

: Off

Enter

OPTION

Language

Caption

Move Enter

: English

: Off

Menu F

Audio

English G

English

Close

1

MENU

2

ENTER

3

ENTER

4

Select your desired language.

From this point on, the on-screen menus will be shown in the selected language.

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

67

68

SOUND &LANGUAGE CONTROL

CAPTION MODE

Caption must be provided to help people with hearing loss watch TV.

This feature operates only in TV, AV1-2 mode.

1

CC

ALPHA/NUM

Analog, DTV, and Digital Option become disabled.

Analog Broadcasting System Captions

Caption must be provided to help people with hearing loss watch TV. Select a caption mode for displaying captioning information if provided on a program. Analog caption displays information at any position on the screen and is usually the program's dialog. Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable. This TV is programmed to memorize the caption/text mode

OPTION

Language

Caption

Move

: English

: Off

Enter

OPTION

Language

Caption

Move

: English

: CC1

Enter

On

Mode CC1

Digital Option

Close

1

MENU

2

ENTER

3

ENTER

4

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for the hearing impaired.

The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by the broadcaster.

Digital Broadcasting System Captions

Choose the language you want the DTV Captions to appear in.

Other Languages can be chosen for digital sources only if they are included on the program.

This function in only available when Caption Mode is set On.

OPTION

Language

Caption

Move

: English

: Off

Enter

OPTION

Language

Caption

Move Enter

: English

: Service1

Mode

On

Service1

Digital Option

Close

1

MENU

2

ENTER

3

ENTER

4

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

69

70

SOUND &LANGUAGE CONTROL

Caption Option

Customize the DTV captions that appear on your screen.

This function in only available when Caption Mode is set On.

OPTION

Language

Caption

Move

: English

: Off

Enter

OPTION

Language

Caption

Move Enter

: English

: Service1

Mode

On

Service1

Digital Option

Close

Size

Font

Text Color

Text Opacity

Bg Color

Bg Opacity

Custom G

A Standard

Font 1

White

Solid

Black

Edge Type

Edge Color

Solid

None

Black

Close

1

MENU

2

ENTER

3

ENTER

4

5

ENTER

6 preference. A preview icon is provided at the bottom of the screen, use it to see the caption language.

7

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

■ text.

■ for the text color.

■ background color.

■ the opacity for the background color.

edges.

TIME SETTING

CLOCK SETTING

Auto Clock Setup

The time is set automatically from a digital channel signal.

The digital channel signal includes information for the current time provided by the broadcasting station.

Set the clock manually if the current time is set incorrectly by the auto clock function.

TIME

Move Enter

Clock

Off Time

: Feb/21/2008/ 2:10 AM

: Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

TIME

Move Enter

Clock

Off Time

: Feb/21/2008/ 2:10 AM

: Off Year

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

Month

Date

Hour

Minute

Auto

2008

2

21

2 AM

10

Time Zone

Daylight

Saving

Eastern

Auto

Close

1

MENU

2

ENTER

3

ENTER

4

Select your viewing area time zone.

5 or not your viewing area observes Daylight Saving time).

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

71

72

Manual Clock Setup

If the current time setting is wrong, set the clock manually.

TIME

Move Enter

Clock

Off Time

: Feb/21/2008/ 2:10 AM

: Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

TIME

Move Enter

Clock

Off Time

On Time

: Feb/21/2008/ 2:10 AM

: Off Year

: Off

Month

Sleep Timer : Off

Date

Auto Sleep : Off

Hour

Minute

Time Zone

Daylight

Saving

Manual

2008

2

21

2 AM

10

Eastern

Auto

Close

1

MENU

2

ENTER

3

ENTER

4

Select the Year, Month, Date, Hour, or Minute option.

5

Set the Year, Month, Date, Hour, or Minute option.

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

AUTO ON/OFF TIME SETTING

This function operates only if the current time has been set.

TIME

Move Enter

Clock

Off Time

: Feb/21/2008/ 2:10 AM

: Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

TIME

Move Enter

Clock : Feb/21/2008/ 2:10 AM

Off Time

On Time

: Off

Repeat

: 6:30 AM (Once)

Sleep Timer : Off

Hour

Auto Sleep : Off

Minute

F Once G

6 AM

30

Close

1

MENU

2

ENTER

3

ENTER

4

5

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

73

74

SLEEP TIMER SETTING

The Sleep Time turns the TV off at the preset time.

Note that this setting is cleared when the TV is turned off.

10min

1

TIMER

Sleep timer options: Off, 10, 20, 30, 60, 90, 120, 180, and 240 minutes.

2

RETURN

Return to TV viewing.

■ Slleeeep menu.

AUTO SHUT-OFF SETTING

TV will be automatically turned off, in case of no signal for 15 minutes.

TIME

Move Enter

Clock

Off Time

: Feb/21/2008/ 2:10 AM

: Off

On Time : Off

Sleep Timer : Off

Auto Sleep : Off

TIME

Move Enter

Clock

Off Time

: Feb/21/2008/ 2:10 AM

: Off

On Time : Off

Sleep Timer : Off

Auto Sleep : On

Off

On

TV will be automatically turned off, in case of No Signal for 15 minutes.

1

MENU

2

ENTER

3

ENTER

4

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

75

76

PARENTAL CONTROL / RATINGS

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories. It is also possible to block all program viewing for a time period. To use this function, the following must be done :

1. Set ratings and categories to be blocked.

2. Specify a password

3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-tovideo movies use the Movie Rating System (MPAA) only.

Ratings for Television programs including made-for-TV movies :

■ TV-G (General audience)

■ TV-PG (Parental guidance suggested)

■ TV-14 (Parents strongly cautioned)

■ TV-MA (Mature audience only)

■ TV-Y (All children)

■ TV-Y7 (Children 7 years older)

SET PASSWORD & LOCK SYSTEM

Setting up Your Password

Set up blocking schemes to block specific channels, ratings, and external viewing sources.

A password is required to gain access to this menu.

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Enter Password

* * * *

Close

1

MENU

ENTER

2

1

.:/,

4

GHI

2

ABC

3

DEF

5

JKL

8

TUV

0

&@

6

MNO

9

WXYZ

Input the password.

■ Enter the password as requested.

■ The TV is set up with the initial password “0-0-0-0”.

Lock System

Enables or disables the blocking scheme you set up previously.

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

LOCK

Lock System : On

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Move Enter

Off

On

1

MENU

ENTER

2

1

.:/,

4

GHI

2

ABC

3

DEF

5

JKL

6

MNO

7

PQRS

8

TUV

9

WXYZ

0

&@

3

Input the password.

4

ENTER

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

■ is enable.

77

78

PARENTAL CONTROL /RATINGS

Set Password

Change the password by inputting a new password twice.

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

New

Confirm

* * * *

* * * *

Close

1

MENU

ENTER

2

1

.:/,

4

GHI

2

ABC

5

JKL

8

TUV

0

&@

3

DEF

6

MNO

9

WXYZ

3

Input the password.

4

ENTER

1

.:/,

4

GHI

7

PQRS

2

ABC

5

JKL

8

TUV

0

&@

3

DEF

6

MNO

9

WXYZ

Choose any 4 digits for your new password.

As soon as the 4 digits are entered, re-enter

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

CHANNEL BLOCKING

Blocks any channels that you do not want to watch or that you do not want your children to watch.

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Block/Unblock Tune Move CH

Move Page MENU Previous Exit

1

MENU

ENTER

2

1

.:/,

4

GHI

2

ABC

3

DEF

5

JKL

6

MNO

7

PQRS

8

TUV

9

WXYZ

0

&@

3

Input the password.

4

ENTER Select a channel to block or unblock.

5

Block or unblock a channel.

6

MENU

Return to the previous menu.

RETURN

Return to TV viewing.

79

80

MOVIE & TV RATING

Movie Rating (MPAA)

Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

LOCK

Move Enter

Blocking Off : Permits all programs

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

G

PG

PG-13

R

NC-17

X

Blocking Off

1

MENU

ENTER

2

1

.:/,

4

GHI

2

ABC

3

DEF

5

JKL

8

TUV

0

&@

6

MNO

9

WXYZ

3

Input the password.

4

ENTER

5

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

■ G (General audience)

■ PG (Parental guidance suggested)

■ PG-13 (Parents strongly cautioned)

■ R (Restricted)

■ NC-17 (No one 17 and under admitted)

■ X (Adult only)

■ Blocking Off (Permits all programs)

If you set PG-13: G and PG movies will be available, PG-13, R, NC-17 and X will be blocked.

TV Rating Children

Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Age

Fantasy Violence

Close

1

MENU

ENTER

2

1

.:/,

4

GHI

2

ABC

3

DEF

5

JKL

6

MNO

7

PQRS

8

TUV

9

WXYZ

0

&@

3

Input the password.

4

ENTER

5

ENTER Select block options.

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

■ Age (applies to TV-Y, TV-Y7)

■ Fantasy Violence (applies to TV-Y7)

81

82

TV Rating General

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Age

Dialogue

Language

Sex

Violence

Close

1

MENU

ENTER

2

1

.:/,

4

GHI

2

ABC

5

JKL

8

TUV

0

&@

3

DEF

6

MNO

9

WXYZ

3

Input the password.

4

ENTER

5

Select block options.

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

■ Age (applies to TV-G,TV-PG,TV-14,TV-

MA).

■ Dialogue-sexual dialogue (applies to

TV-PG,TV-14).

■ Language-adult language (applies to

TV-PG, TV-14, TV-MA).

■ Sex-sexual situations (applies to TV-PG,

TV-14, TV-MA).

■ Violence (applies to TV-PG, TV-14, TV-

MA).

DOWNLOADABLE RATING

This function may become available in the future and will be available only for digital channels.

This function operates only when TV has received Region5 Rating data.

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

Humor

Sport

Cruelty

Language

Sadness

Genre

Age

E

E

Close

■ Based on rating table, your TV's OSD

(On Screen Display) may differ slightly from what is shown in this manual.

1

MENU

ENTER

2

1

.:/,

4

GHI

2

ABC

3

DEF

5

JKL

6

MNO

7

PQRS

8

TUV

9

WXYZ

0

&@

3

Input the password.

4

ENTER

5

ENTER Select desired option and block it.

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

83

84

EXTERNAL INPUT BLOCKING

Enables you to block an input.

LOCK

Move

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

Enter

LOCK

Move Enter

Lock System : Off

Set Password

Block Channel

Movie Rating

TV Rating-Children

TV Rating-General

Downloadable Rating

Input Block

AV1

AV2

Component

RGB-PC

HDMI1

HDMI2

F Off G

Off

Off

Off

Off

Off

Close

1

MENU

ENTER

2

1

.:/,

4

GHI

7

PQRS

2

ABC

3

DEF

5

JKL

8

TUV

0

&@

6

MNO

9

WXYZ

3

Input the password.

4

ENTER

5

Select input source.

6

RETURN

Return to the previous menu.

MENU

Return to TV viewing.

COMMERCIAL MODE SETUP

INTERACTIVE TV SETUP

Set up the TV for Gem PPV or Gem Operation without a PPV card

Channel Guide

Hotel Information

Help

Exit

TV

STB

GUIDE

POWER

PORTAL

DVD

VCR

INFO i

ENTER

RETURN MENU INPUT

1

.:/,

4

GHI

7

PQRS

CC

VOL ALPHA/NUM

CH

MUTE

REMOVE

P

A

G

E

3

DEF

2

ABC

5

JKL

8

TUV

0

&@

6

9

MNO

WXYZ

FLASHBK

PIP RATIO TIMER SAP

PIP CHPIP CH+ PIP SWAP PIP INPUT

PPV GEM-TV Setup

1. Make all connections as required of PPV system.

2. Set TV to default condition.

3. Configure all relevant installer menu items and TV features.

4. Install PPV card. In most cases the PPV card is preprogrammed with the PPV provider master TV setup.

GEM-TV Setup Without PPV Card

Refer to Commercial Mode Setup on page 88.

1. See installer menu pages and make settings as required for Gem operation.

2. Specify a Gem Start Channel for item 118 that will tell the TV which channel to tune in for Gem operation.

3. Set TV features on TV Channel, Picture, Audio etc. menus as indicated on page 88.

Gem Operation Interactive Menu Features

Use the Gem remote provided in the room to operate both interactive menu and the regular TV features.

Channel Guide

Shows available TV programs. Indicates channel, program start and finish time and identifies the TV network.

Hotel Information

Shows typical hotel information. Such as photos of Guestroom, Dining, Business

Center, Fitness, Pool, and Facility. And any contributing Partners such as local schools in co-operation programs with the lodge.

Help

Offers explanation for interactive menu operation with provided IR remote.

Exit

Removes the interactive menu from the screen.

Note: TV clock must be set before Gem data can be downloaded.

85

86

COMMERCIAL MODE SETUP

INSTALLER OVERVIEW

This is the commercial mode setup guide only.

Operating Installer Menu

To set up the controls for the T V you will need to know how to enter the TV Installer menu and make changes to the default values as required. If necessary, familiarize yourself with the TV

Installer menu and how to make and save changes in the menu.

LG Installer Remote

shown to the right. The installer remote must have a “Source” button or its equivalent. The remote shown in this manual has

“INPUT” -- this button serves the purpose of a Source button.

The TV’s clonable features need to be set up. This is a critical step. If the Master TV display panel’s clonable features like adding channel icons or channel labels are not done correctly, then the cloned TVs will all have problems. Refer to the Owner’s Manual for other TV features: Video, Audio, Closed captions, V-Chip, etc.

TLL-1100A Clone Programmer

The TLL is a very simple cloner to use. It can be set up to clone a master TV setup and transfer it into a target TV. Cloning is accom-

TV Link

Loader-Demo plished using the TV/Cloner MPI ports for communication. Be sure the Master TV is set up complete-

TLL1100A

Ready ly. Cloning is only possible when the TV is tuned to an Analog channel, not a digital channel.

MODE MENU

GEM PTC INSTALLER MENU

000

UPN 000-000-000-000 FPGA E0F1

PTC V1.00.000

CPU V3.06.00

Typical Installer Menu

TV

STB

GUIDE

POWER

PORTAL

DVD

VCR

INFO i

ENTER

RETURN MENU INPUT

CC

VOL ALPHA/NUM CH

MUTE

REMOVE

G

E

P

A

3

DEF

1

.:/,

4

GHI

7

PQRS

2

ABC

5

JKL

8

TUV

0

&@

6

MNO

9

WXYZ

FLASHBK

PIP RATIO TIMER SAP

PIP CHPIP CH+ PIP SWAP PIP INPUT

ENTER

RECEIVE SEND

TLL1100A

INTERACTIVE TV OVERVIEW

Channel Guide

Hotel Information

Help

Exit

Gem Interactive TV Notes

A PPV card usually has a channel lineup included with the master TV setup. If this is the case, reset TV to default condition, set any TV features and installer menu items as required and then insert the

PPV pre-programmed card into the MPI slot.

■ After TV setup, remove the AC power cord for 15 seconds.

Through the interactive TV, the lodging guest is offered a more complete venue of lodge services and amenities. Using the TV in the comfort of the hotel room, the guest can browse the lodge resources available and make selections quickly. Charges for these offerings are billed at the time of reservation. The Gem TV is connected to the lodge’s billing computer.

After the interactive TV is installed, the following hotel and other resources may be available to the hotel guest, assuming that they are provided by the lodge.

Interactive Amenities may include the following

■ Hotel Information, News and Events.

■ Directory Services, (Tourist attractions, Restaurants, etc.)

■ Reservation Service (Business Meetings, Fitness, SPA, etc.)

Weather, Traffic Information.

Shopping Services (Delivery to Guest Room)

■ Room Service (Menu Ordering, Memo Service, Morning Wake Up Call, Laundry, etc.)

Ticketing Services.

Check Out Service (in the Guest Room).

■ Gaming Services.

Email resources, guest can access an email account, etc.

Other offerings as they become available.....

■ The TV will take a few minutes to load electronic program information. If enough time has not elapsed for the TV to acquire EPG data, the TV may operate erratically; menus may not work or TV will not respond to IR remote key presses.

■ If Pseudo Power Off is active, actual TV power cycle will not occur until pseudo power off has timed out.

87

88

COMMERCIAL MODE SETUP

COMMERCIAL MODE SETUP FOR MASTER TV

This page provides an overview of a Master TV configuration.

No

Tuning (Channel search) is disabled if there is an Aux input active.

GEM PTC INSTALLER MENU

Commercial Mode Setup Procedure

1. Set Installer Menu Items

(Enter TV Installer Menu, see Installer menus for detailed instructions.)

000 settings, channel labels / icons etc. and reloads the factory default settings.)

UPN 000-000-000-000 FPGA E0F1

PTC V1.00.000

CPU V3.06.00

Typical TV Installer Menu

nel search, Auto Tuning and Channel List/Edit options in the

Channel Menu.

d. Set other particular installer items that affect your TV programming haan neell etc.

e. After all required installer menu item settings have been adjusted, press ENTER on the remote to remove Installer Menu.

2. Set Up TV Features

(Channel, Picture, Audio, Lock, Time, Option, Digital Captions etc.

See TV Clonable options list and TV menus pages.)

3. Run Auto Tuning (Channel Search)

(Search for all available channels.) Go to the Channel menu and access the Auto Tuning option, follow onscreen instructions. a. Edit Channel Scan. In the Channel Menu, access Channel Edit option.

■ Add/Delete channels per your system requirements.

Note: Physical channel numbers are used to identify Virtual channels.

■ Add familiar channel trademarks/logos like ABC, CBS, NBC etc. to the Channel-Time onscreen display. In the Channel menu, select the

Channel Label option. Add identifiable labels (logos) for the end user to readily know what common networks are available.

4. Transfer TV Setup to Internal TV Controller: 2-5-5 + Menu Mode

After the TV channel scan has been edited and channel label icons added, enter the Installer menu. Once in the Installer menu, press 2-5-

5 and MENU on the remote. This transfers the TV setup to the internal controller box.

5. Add Custom Channel Labels for Analog Channels: 2-5-4 + Menu Mode

Enter Installer menu, press 2-5-4 and MENU. Add your own custom text labels to channel onscreen displays. Note: Digital Channels often have a broadcaster generated label. (See 2-5-4+Menu pages.)

00X

00X 003 BAND/AFC

001

Adjust the settings for these Installer Menu Items

DIGITAL 19-3

MONO STEREO SAP

WXYZ

Custom Text Label ‘WXYZ’ created in

2-5-4 + Menu (Add Channel Label)

Mode

001

Set 093 RJP Available to 001 if using a remote jack pack

000

After Master TV setup has been completed, set item 028 Ch

Overide to 000.

Verify TV Setup

At this point, verify that the channel lineup, channel icons and custom labels are correct. Make sure the TV features are set per your require-

After the preceding has been completed, the Master TV setup is ready to be copied to a Clone Programmer, see cloning options pages.

MASTER TV PROFILE SETUP LEARNING/TEACHING WITH USB

MEMORY CARD

On Master TV, Create Profile and Learn

1. Set up all Master TV features on the menus and do a Channel Search. Add Channel and Aux Labels etc.

Tune in an analog channel.

2. Plug USB memory card into the USB In port on

Master TV.

3. Press Menu key to open Main menu. Highlight the

Option icon.

4. Press the Left arrow key once, the Option icon on left side of menu will be highlighted.

5. Press number key ‘7’ a total of 7 times.

6. Key in password* used to enter Installer Menu.

7. Using Up/Down arrow key, highlight “Learn From

TV”, then press Enter.

8. To identify the profile from others, you can change the last 5 digits. Key in a custom file name, then press the Enter key.

9. The Learning status will be shown on progress bar.

As soon as learning the current profile is complete, a message will appear on screen indicating the learning process is done.

10. Remove the USB memory card.

Learn from TV

USB Download Menu

Learning current profile from master TV:

Select a type of sofware to be downloaded:

20%

Upgrade PTC Software

Teach To TV Don't remove the USB memory card.

Do not unplug!

* See Installer Menu pages.

Optional: Edit/Change File Name

If necessary, the file name can be edited or changed.

LEARN MODE

Choose the name of the image file:

37LG700H_UA_ a a c c c .TLL

!

NOTES

Do not remove TV power cord or USB memory card while Learning, doing so might harm your

USB memory card.

Do not remove TV power cord or USB memory card while Teaching, doing so may cause the T V to malfunction.

You are allowed to edit the file name, however, a file with edited contents will not be recognized.

Since clock data is copied into USB memory card as numeric data, the time difference between teaching and learning is not automatically adjusted. Either set the clock manually, or use Auto

Clock set on TV main menu.

89

90

COMMERCIAL MODE SETUP

On Target TV, Teach Master TV Profile

1. Plug USB memory card with Master TV Profile setup into Target T V USB input port.

2. Press Menu key to open Main menu and then highlight the Option Menu icon.

3. Press the Left arrow key once, this will highlight the

Option icon on left side of menu.

4. Press number key ‘7’, a total of 7 times.

5. Using the Up/Down arrow key, select ‘Teach to T V’, then press Enter key.

6. Use Up/Down arrow keys to navigate through profiles. Select the profile that you want to install by highlighting it and pressing the Enter key.

7. Teaching progress will be shown on the progress bar.

As soon as teaching is done, a message will appear indicating that the teaching process has been completed.

TEACH MODE

The following software files are found in the memory card.

Select the file you want to download to this TV.

Or, Press EXIT to cancel the upgrade.

Software File List in USB Memory

37LG700H-UA

TEACH MODE

Teaching the selected profile to the TV:

20%

Don't remove the USB memory card.

Do not unplug!

■ Image shown may differ from your TV.

TLL-1100A CLONING CONNECTIONS/LEARNING SETUP

Connections for the TLL-1100A Clone Programmer to Learn the TV Master TV Setup

On Master TV

Set up all Master TV features on the menus and do a Channel Search.

Add Channel and Aux labels etc. See previous page. Insert MPI cable into

TV MPI port.

CLONE SELECTION MENU

Selected Bank: CBank X Saved

(1) LEARN FROM TV

(2) TEACH TO TV

(3) SET CLONE CLOCK FROM TV

(4) SET TV CLOCK FROM CLONE

(5) DISPLAY TV SETUP

(6) DISPLAY CLONE SETUP

CLONE CLOCK = 00:00

TV CLOCK = 00:00

THE CLONE IS VERSION V2.2.2

-To change menu items, Press

channel keys or digits.

-To execute item, Press ENTER.

On TLL-1100A

1. Turn On the T LL-1100A.

2. Use the Mode button to select

Clone Mode.

3. Use the Left/Right arrow to select the CBank (1 - 8) to store the master setup in.

4. Plug the other end of the MPI cable into the MPI port on the bottom of the TLL.

5. With the Installer remote control, select item 1 on TLL menu.

6. Press Enter, to transfer the

Master setup into CBankX on the

TLL. The TLL will copy the master setup.

7. When learning is done, disconnect MPI cable from Master TV.

TV Link

Loader-Demo

TLL1100A

Ready

MODE

MENU

ENTER

RECEIVE SEND

TLL1100A

On Target TV

1. Connect MPI cable from the TLL to the MPI port on the Target

TV. Assure that the correct

CBank(X) is selected on TLL..

2. With the Installer remote control select item 2, to Teach the target TV the master TV setup.

3. Press Enter to begin teaching.

4. When Teaching is done, disconnect MPI cable and power the TV

Off. Unplug TV power cord.

5. Reconnect TV power cord. Power the TV On and the master setup should be resident on the TV.

Warning

G Do not use the TLL-1100A while any PPV card is installed in TV or clone programmer device will be damaged.

!

NOTE

Antenna

(or CATV)

M.P.I. Learning Setup

TV Link

Loader-Demo

TLL1100A

Ready

MODE MENU

ENTER

RECEIVE SEND

TLL1100A

M.P.I. Teaching Setup

Antenna

(or CATV)

CLONE SELECTION MENU

Selected Bank: CBank X Saved

(1) LEARN FROM TV

(2) TEACH TO TV

(3) SET CLONE CLOCK FROM TV

(4) SET TV CLOCK FROM CLONE

(5) DISPLAY TV SETUP

(6) DISPLAY CLONE SETUP

CLONE CLOCK = 00:00

TV CLOCK = 00:00

THE CLONE IS VERSION V2.2.2

-To change menu items, Press

channel keys or digits.

-To execute item, Press ENTER.

It is assumed that the TV is connected to a signal source, the TV source selected is Antenna (RF) In, the signal is from an Analog channel, not a digital channel, all equipment is connected to power and turned on and the TLL Cloner main menu is displayed on the

TV screen, see above.

91

COMMERCIAL MODE SETUP

LT2002 CLONING CONNECTIONS/LEARNING SETUP

Connections for the LT2002 Clone Programmer to Learn the TV Master TV Setup

92

Antenna or CATV

Ferrite Core

(TDK, ZCAT

2035-0930)

Connect cable to

TV MPI Jack and follow on screen instructions

MPI

Status

Indicator

Reset

Color

• green battery ok

• red battery low

Blink pattern

• slow power on

no communications

• heartbeat power on

communications ok

THE CLONE HAS CONTROL OF THE TV

THE CLONE IS VERSION

THE TV IS VERSION

THE SW IS REVISION

XX

XX

XX

CLONE CLOCK = XX:XX

TV CLOCK = XX:XX

-PRESS ANY KEY TO CONTINUE.

-DISCONNECT CLONE WHEN DONE.

QuickSet II Programmer

LT2002

Clone Programmer

Master TV

Warning

G Do not use LT2002 while any PPV card is installed in TV or clone programmer device will be damaged.

!

NOTE

It is assumed that the TV is connected to a signal source, the source selected is Antenna (RF) In, the signal is from an Analog channel, not a digital channel, all equipment is connected to power and turned on and the LT2002 Clone Programmer main menu (THE CLONE HAS CONTROL OF THE TV) menu is displayed on the TV screen, see above and next page.

Before you begin cloning...

The Master TV should be connected to a good, stable signal from an over-the-air antenna or cable service

Analog channel and connected to power. (See above.)

■ Teaching and Learning is only possible between identical model devices. (However, the LT2002 Clone programmer can store up to 3 different ‘master’ setups.)

WARNING: Copying a blank or incorrect memory into a TV, STB or other device will cause the TV, STB or other device to operate erratically or become inoperable.

■ Use an Installer’s remote to operate Learning and

Teaching menus.

■ Make sure that the batteries in the Clone programmer are fresh.

■ If batteries are removed, the Clone Clock time will be lost.

Decide if you want to set the time from the Clone programmer or copy the time to the Clone programmer; from a compatible TV which has the clock set to the current time.

Setting the time and transferring it to the Clone or other device is a separate procedure.

Follow the connection diagram above to connect the

Clone to a Master TV TV display panel. After learning is complete, to another identical TV TV display panel to “teach” it the master setup.

See the Clone Troubleshooting section to resolve problems.

Turn to the next page to continue Cloning Setup.

LT2002 CLONING LEARNING SETUP

Learning the Master TV Setup

Instructions for the Clone Programmer to Learn the Master TV Setup

Use MPI Cable to Connect LT2002 Clone

Programmer to Master TV MPI Port

If there is a good connection, “THE CLONE HAS

CONTROL OF TV” message will appear. Press any key on the Installer remote.

Learn Setup from Master TV

Press 1 to select the “LEARN FROM TV” option, then press ON/OFF, POWER, or ENTER to go to the Memory

Bank Selection Menu. Pick the Memory ”Bank” you want to store the master TV’s setup in by pressing either Channel key repeatedly to choose Memory 1, 2 or 3. (If you choose a Memory “Bank” that has a master device’s setup programmed into it, that setup will be overwritten by the new master TV’s setup.) Once the Clone memory bank is selected, press ON/OFF, POWER, or ENTER. The Clone memory bank you have selected will be shown. Press

ON/OFF or POWER to begin copying the master TV’s setup.

Set the Clock (Optional)

Set the time on a Master TV’s Clock. (If the time has already been copied from a TV into the Clone programmer, you can set a master TV’s clock by copying the time from the Clone programmer.) The Clone Programmer can copy the current time to both a master TV and to the Clone’s internal clock; accurate to within one minute. (Another reason that the Clone programmer should be equipped with fresh, high-quality alkaline batteries, is for it to keep the time as accurately as possible.)

Since the Clone Programmer’s time cannot be set directly, the current time needs to be copied from a Zenith/LG TV equipped with M.P.I. input capability.

After the time is copied to the Clone programmer, the current time can then be transferred to another TV. (This can be a master TV, or another TV which has already had the features set up.)

THE CLONE HAS CONTROL OF THE TV

THE CLONE IS VERSION

THE TV IS VERSION

THE SW IS REVISION

XX

XX

XX

CLONE CLOCK=

TV CLOCK=

XX:XX

XX:XX

-PRESS ANY KEY TO CONTINUE.

-DISCONNECT CLONE WHEN DONE.

This menu should appear by itself after the LT2002 is connected to the TV MPI port.

CLONE SELECTION MENU

(1) LEARN FROM TV

(2) TEACH TO TV

(3) SET CLONE CLOCK FROM TV

(4) SET TV CLOCK FROM CLONE

(5) DISPLAY TV SETUP

(6) DISPLAY CLONE SETUP

-TO CHANGE MENU ITEMS, PRESS

CHANNEL KEYS OR DIGITS.

-TO EXECUTE ITEM, PRESS ON/OFF,

POWER, OR ENTER

This menu should appear after any key is pressed on the Installer remote.

LT2002 Clone Programmer Communication

Problems

■ A slow flashing green light indicates there are communication problems between the TV and the LT2002 clone programmer. If this is the case, check for a damaged cable, poor contacts, or other connection troubles.

■ If the status indicator is red, the programmer batteries are low and should be replaced. Install

4 high-quality alkaline AA batteries.

93

COMMERCIAL MODE SETUP

CLONING CONNECTIONS/TEACHING SETUP

Teaching the Master Setup to Another TV

Connections for the LT2002 to Teach another TV the Master Setup

94

Antenna or CATV

THE CLONE HAS CONTROL OF THE TV

THE CLONE IS VERSION

THE TV IS VERSION

THE SW IS REVISION

XX

XX

XX

CLONE CLOCK = XX:XX

TV CLOCK = XX:XX

-PRESS ANY KEY TO CONTINUE.

-DISCONNECT CLONE WHEN DONE.

Target TV

Teach Master TV’s Setup to the target TV

After learning is complete, remove the M.P.I. cable from the master TV and connect it to the target TV that you want to copy the master TV’s setup into. With “THE CLONE HAS CONTROL

OF TV” message displayed, press 2 or use either Channel key to go to the “TEACH TO TV” option, press ON/OFF, POWER, or

ENTER. Select the LT2002 memory that the new setup is in.

Press On/Off to transfer the new setup and other information to the new TV. Teaching usually takes 2-3 minutes.

After the “TEACHING COMPLETE” message is displayed, press any key to return to the Clone menu, then press ON/OFF,

POWER, or ENTER. If finished, detach M.P.I. cable from the target, newly-cloned TV.

Disconnect TV Power for 15 Seconds

Unplug the AC power cord of the newly-cloned TV from the power outlet for about 15 seconds to activate the newly-copied setup.

Ferrite Core

(TDK, ZCAT

2035-0930)

Connect cable to

TV MPI Jack and follow on screen instructions

Status

Indicator

MPI

• green

• red

Color

battery ok

battery low

Blink pattern

• slow power on

no communications

• heartbeat power on

communications ok

Reset

QuickSet II Programmer

LT2002

Clone Programmer

CLONE SELECTION MENU

(1) LEARN FROM TV

(2) TEACH TO TV

(3) SET CLONE CLOCK FROM TV

(4) SET TV CLOCK FROM CLONE

(5) DISPLAY TV SETUP

(6) DISPLAY CLONE SETUP

-TO CHANGE MENU ITEMS, PRESS

CHANNEL KEYS OR DIGITS.

-TO EXECUTE ITEM, PRESS ON/OFF,

POWER, OR ENTER

This menu should appear after any key is pressed on the Installer remote.

TEACHING IN PROGRESS,

PLEASE WAIT

This display will appear during Teaching function.

TEACHING COMPLETE

This display will appear after Teaching is complete.

INSTALLER MENU

Use the Installer’s Menu to set up or change operational settings.

See more detailed descriptions of the Installer menu items on the following pages...

Accessing the Installer’s Menu

Make sure TV is on. Installer’s menu items can be accessed by using an installer’s remote control. Just press MENU repeatedly until the

TV seems to stop responding, then press 9, 8, 7, 6, then ENTER to access the Installer’s menu. To remove the Installer’s menu, press

ENTER again. Any changes you make will be stored in nonvolatile memory. (The menu also disappears automatically.)

GEM PTC INSTALLER MENU

000

The Installer’s menu opens with item 000 INSTALLER SEQ 000. Use the Up/Down arrow keys to sequence through the available menu items. Or, access an item directly by keying in the line number, then pressing MENU. For example, to access the Sleep Timer option which is item 015, press 0-1-5, then MENU. To change a setting, use the Left/Right arrow keys. Or, enter a value directly.

UPN 000-000-000-000 FPGA E0F1

PTC V1.00.000

CPU V3.06.00

Typical Installer Menu

Using the Installer’s Menu

Items 000 ~ 117 are immediately accessible only upon entering the

Installer’s Menu. Their numbers, descriptions, ranges, factory default settings, and a place for listing any changes made on-site are given below and on the following pages.

Installer Menu Items 000 through 117

021

022

023

028

029

030

031

032

008

009

010

011

015

016

017

034

Menu Item Function

000

001

002

003

004

005

007

INSTALLER SEQ

POWER MANAGE

AC ON

BAND/AFC

Value Range Default Value

0 ~ 3

0 ~ 7

0 / 1

0 ~ 3

STRT CHANNEL 0 ~ 127, 255

CHAN LOCK 0 / 1

STRT VOLUME 0 ~ 63, 255

0

0

0

1

255

0

255

MIN VOLUME

MAX VOLUME

0 ~ 63

0 ~ 63

MUTE DISABLE 0 / 1

KEY DEFEAT0 / 1

SLEEP TIMER

EN TIMER

ALARM

V-CHIP

MAX BLK HRS

CAPTION LOCK

CH. OVERIDE

OLD OCV

ACK MASK

POLL RATE

TIMING PULSE

CAMPORT EN

0 / 1

0 / 1

0 / 1

0 / 1

0

186

~

~

99

0 / 1

0 / 1

0 / 1

0 / 1

20 ~ 169

227

0 / 1

0

0

94

207

1

12

0

1

1

0

1

0

63

0

0

1

Brief Description of Function and Comments

Leave default set to 0.

Sets number of hours of no activity before auto shut Off.

Set to 1 to enable auto turn On at power up.

Selects Tuning Band: 0=Broadcast, 1=CAT V, 2=HRC, 3=IRC

Channel at turn-on (Set to 255 to tune in last channel before power Off).

If set to 1, cannot tune from current channel.

Sets Volume level at TV turn-on (Set 255 to retain last volume level).

Sets minimum allowable volume setting.

Sets maximum allowable volume setting.

Set to 1 to disable mute function.

Set to 1 to disable menu navigation keys on display panel.

Set to 1 to enable Sleep Timer.

Set to 1 to enable On/Off Timers.

Set to 1 to enable Alarm.

Set to 1 to enable V-Chip functions.

Sets number of V-Chip (Parental Control) blocking hours.

Set to 1 to retain caption setting at power Off.

If set to 0, limits direct access to favorite channels.

Set to 1 to change M.P.I. operation to OCV.

If set to 1, changes M.P.I. for some OCV boxes.

Selects poll rate for M.P.I.

Sets baud rate for M.P.I.

Set to 1 to enable Video 2 input.

95

96

COMMERCIAL MODE SETUP

Installer Menu Items 035 through 120

Menu Item Function

035

038

039

040

046

047

053

069

070

071

073

075

078

079

080

081

082

083

084

087

088

090

091

093

094

096

099

102

103

104

106

116

117

118

119

120

COMPPORT EN.

YPrPb EN.

REAR AUX EN

AUTO CAMPORT

STRT AUX SRCE

AUX STAT US

DIS. CH-TIME M.

EN. CH-T COL.

FOR. CH-TIME

BCK. CH-TIME

CH NOT AVBLE

REVERT CH

UPN MSB

UPN MSB-1

UPN MSB-2

UPN LSB

CHKSM ERROR

HANDSHK TIME

PERMANENT BLK

REAR RGB EN.

EN NOISE MUTE

KEY LOCK

YPrPb2

RJP AVAILABLE

SAP MENU EN

DEF. ASP. RATIO

BACK LIGHTING

ATSC BAND

ATSC TUNE MODE

ASP RATIO LOCK

VIDEO MUTE EN

FACT DEFAULT

POWER SAVING

GEM STRT CH

Value Range Default Value

0 / 1

0 / 1

0 / 1

0 / 1

1

1

1

1

1 ~

1

0

0

0

~

101

0

6, 255

0 / 1

0 / 1

0 / 1

0 ~ 7

0 ~ 7

0 / 1

0 / 1

0 ~ 255

0 ~ 255

0 ~ 255

0 ~ 255

0 / 1

0 / 1

0 / 2 / 18

0 / 1

0 / 1

0 / 1

0 ~ 2

0 / 1

~

0 / 1

START MINOR CH 0 ~ 255

0 / 1

0 / 1

0 / 1

0 / 1

~

~

~

~

5

5

100

200

4

135

PSEUDO PWR OFF 0 ~ 255

6

0

0

1

2

2

0

0

0

0

0

0

1

5

0

2

1

0

1

0

1

2

200

4

1

0

0

0

0

1

0

000

Brief Description of Function and Comments

Note 1. Set to 0 to disable HDMI 1. Set to 1 to enable HDMI 1.

Set to 1 to enable display panel Component Video 1 input jacks.

Set to 1 to enable display panel Video 1 input jack.

Set to 1 to automatically switch to Camport. If set to 1, STRT AUX

SRCE cannot be set to 2.

Sets the starting AUX source.

Set to 1 for M.P.I. AUX source to be reported as a channel number instead of Channel 0.

Set to 1 to disable Channel-Time display.

Set to 1 to enable custom color for the Channel-Time display.

Chooses custom foreground color for the Channel-Time display.

Chooses custom background color for the Channel-Time display.

If set to 1 and channel override is 0, “NOT AVAILABLE” message is displayed when directly accessing a channel not in the favorite channel list.

If set to 1 and loss of M.P.I. communication occurs, TV tunes to Start Channel.

User programmable number, most significant byte.

User programmable number, most significant byte - 1.

User programmable number, most significant byte - 2.

User programmable number, least significant byte.

Enforces rigid M.P.I. checksum.

Relaxes M.P.I. timing to be compatible with PC based

Windows-controlled systems.

Removes block hours setting for Parental Control and makes block permanent.

Note 1. Set to 0 to disable RGB1. Set to 2 for PC.

If set to 1, mutes audio if no signal is present.

If set to 1, keyboard is locked out, IR is still functional.

Set to 0 to disable HDMI 2. Set to 1 to enable HDMI 2.

Leave set to 0 if not used. Set to 1 for HDMI mode. Set to 2 for DVI mode.

Set to 0 to disable feature on Function menu. Set to 1 to enable feature on Function menu.

Sets default aspect ratio at power up. See detailed descriptions and item 106.

Sets the brilliance of the TV picture backlighting.

Settings above 101 control dynamic back lighting and disable power saving mode.

Selects ATSC band.

Default 01 for physical channel scan. Set to 0 for Virtual Channel scan.

Selects Minor start channel. Set 0 for NTSC. Not 0, sets Minor channel number.

To retain set aspect ratio on power cycle, set to 1. Set to 0 for default ratio on power cycle.

Set to 0 for normal, set to 1 for Blank.

0=Normal. 1=Loads presets of all above settings.

Set to 0 to disable power saving mode.

Sets the GEM Start Channel.

Set from 001 - 255 for faster TV turn on time. Set to 0 to disable, normal TV turn on time.

Detailed Descriptions of Installer Menu Items

000 - INSTALLER SEQUENCE

Specifies entry sequence to the Installer Menu.

0 = 9876

2 = 1478

1 = 4321

3 = 3698

001 - POWER MANAGE (Power Management)

Determines hours of no activity before automatic shutoff.

The POWER MANAGE function is for saving energy. If set to 0, Power Manage is Off. Settings range from 0

~

7, with 1

~

7 representing the hours that the unit will remain On, unless there has been activity from either the control panel or remote control.

002 - AC ON (AC Power Switchable)

If set to 1, allows the TV to turn On just by applying

AC power. Pressing the On button is not necessary. This is desirable if the TV is plugged into a cable box or a power outlet controlled by a wall switch. Use ADJ

Left/Right arrow to choose 0 or 1 where 0 is the default is Off, and 1 is On.

NOTE: If set to 1 (On), the TV does not respond to

On/Off commands from either the remote or the display control panel, and the SLEEP TIMER is also nonfunctional.

003 - BAND/AFC (Band/Automatic Frequency

Control)

There are 4 possible settings for this option:

0 = Broadcast

2 = HRC

1 = CATV

3 = IRC

If some channels were not found by Auto Tuning

(Channel Search), select the appropriate Band setting here and add the channels using the Channel Edit option in the Channel Menu.

004 - STRT CHANNEL (Start Channel)

If active, this function allows you to determine the initial channel number when the TV is turned On. This feature is useful for an in-house information channel, since the

TV would always select that channel when it is turned

On. Setting this to 255 causes the last channel viewed when the TV was turned Off, to be the tuned to channel when the TV is turned On again. Note: For a digital

Start Channel, always remember to set item 104 to the

Minor Start Channel number.

255 = Last channel 1

~

125 = Ch X 0 = Aux

126 Map to Channel 3. 127 Map to Channel 4.

005 - CHAN LOCK (Channel Lock)

CHAN LOCK is ideal if the system must always be on the same channel. Changing channels with Channel

Up/Down or keypad numbers is impossible. Channel

Lock is inactive if set to 0 (default).

Generally, this feature is used in connection with START

CHANNEL (Installer item 004) where the start channel may, for example, be set to 3 or 4. If the start channel is 3, then the TV will remain locked on Channel 3.

NOTE: For Items 007, 008 and 009

For legacy reasons, the scale used is 0 - 63. The PTC software will translate this to the 0 - 100 scale used by the TV.

To translate a T V volume level to the installer menu value, use the following formula:

Installer Value = TV Value x 63

100

Enter only the whole number (disregard fractions).

007 - STRT VOLUME (Start Volume)

This function allows the Installer to determine the initial volume level setting when the TV is turned On. This feature is useful for an in-house information channel, since the TV would always select that volume level when it is turned On. The range of values are 0 - 63, 255. If 255 is selected, the current volume level will be retained in memory when the TV is turned Off; at turn On, the volume level will be automatically set at the previous or last level.

008 - MIN VOLUME (Minimum Volume)

This function determines the minimum volume level allowable with the VOLUME (VOL) Up/Down control. In this way, for example, someone cannot set the volume too low to hear. The value range is from 0 to 63 — change values with ADJ Left/Right arrow. The factory default is 0, which provides the full range of volume control, if item 009 MAX VOLUME is also set to 63. It may be best to set the same value on every TV.

NOTE: The minimum volume level cannot have a value setting higher than the MAX VOLUME level (described below).

97

98

COMMERCIAL MODE SETUP

009 - MAX VOLUME (Maximum Volume)

This function determines the maximum volume level allowable with the VOLUME (VOL) Up/Down controls.

In this way, for example, someone can not set the volume level high enough to disturb others. The value range is 0 to 63, with 63 as the default, which gives the user the full range of volume control, if item 008 MIN

VOLUME is also set at 0. Change values with ADJ

Left/Right arrow keys. It may be best to set the same value on every TV.

NOTE: The maximum volume level cannot have a value setting lower than the MIN VOLUME level (described previously).

010 - MUTE DISABLE

Enables or disables sound mute function. If set to 1, sound cannot be muted. If set to 0, sound can be muted.

011 - KEY DEFEAT (Keyboard Defeat)

If set to 1, key defeat prevents the end user from accessing the on-screen menus with the display front panel—MENU, SELECT, and Left / Right arrow keys do not function. If set to 0, those keys do function.

NOTE: The menus can always be accessed by pressing

MENU on the remote.

015 - SLEEP TIMER

If set to 1, the SLEEP TIMER feature may be used. If set to 0, the Sleep Timer is not available.

016 - EN TIMER (Enable On/Off Timers) *

If set to 1, Timer function is available to user and enabled continuously. Set to 0 to disable On/Off

Timers. (Clock must be set in order to use Timers.)

017 - ALARM *

Gives the installer the option of making the Alarm function available to the end user. If set to 1, Alarm function is available to end user. Set to 0 to disable the Alarm function.

NOTE: Clock must be set before the Alarm function will work.

021 - V-CHIP (Parental Control) *

Set to 1 to activate V-Chip (Parental Control); have it available to end user to filter and control or otherwise restrict programming content that can appear. Set to 0 to turn V-Chip feature Off, not available to user; no programming restrictions can be set.

022 - MAX BLK HRS (Maximum Block Hours) *

Sets hours from 0 to 99 for the maximum V-Chip

(Parental Control) block hours. Default setting is for

12 blocking hours.

023 - CAPTION LOCK

Set to 1 to restore previous caption On/Off state after turn Off. If set to 0, captions are always Off at turn

On.

028 - CH. OVERIDE (Channel Override)

If set to 1, the user can select channels with either

Channel up/down or by direct keypad entry. If set to

0, only those channels that are entered for scanning can be selected.

029 - OLD OCV (On Command Video TM )

Set to 1 for operation with systems from On

Command Corporation.

030 - ACK MASK

M.P.I. Communication Parameter. Leave at default setting unless changed by Pay-Per-View provider. When set to 1, changes M.P.I. for some OCV boxes.

031 - POLL RATE

M.P.I. Communication Parameter. Selects Poll Rate for

M.P.I. Leave at default setting unless changed by Pay-

Per-View provider. Step size of 16 ms.

032 - TIMING PULSE

M.P.I. Communication Parameter. Leave at default setting unless changed by Pay-Per-View provider. Sets baud rate. Step size of 4.3 uS.

034 - CAMPORT EN. (Camera Port Enable)

Set to 1 to enable Video 2 input on display panel. If set to 0, Video 2 input on display panel is not functional.

NOTE: S-Video overrides Video jack.

035 - COMPPORT EN. (Computer Port Enable)

Enable/disables display panel HDMI1 input jack. Set to

0 to disable, set to 1 to enable.

NOTE: The setting above is ignored if Installer item

093 RJP AVAILABLE, is set to 1.

038 - YPrPb EN. (Rear Component Video Enable)

Set to 1 to enable display panel rear Component

Video input jacks.

Set to 0 to disable display panel rear Component

Video input jacks.

039 - REAR AUX EN. (Rear Aux Enable)

Set to 1 to enable display panel rear AUX (Video 1) input.

Set to 0 to disable display panel rear AUX (Video 1) input.

Note: S-Video overrides Video.

040 - AUTO CAMPORT

Set to 1 to automatically switch to Camport when equipment is connected to front Video input.

Set to 0 to disable front Video automatic source selection.

NOTE: If set to 1, 093 RJP Available is automatically set to 0.

046 - STRT AUX SRCE (Start Aux Source)

Sets the starting AUX source. At power up, TV will tune to starting Aux source if item 004 Start Channel is set to 0.

If item 093 RJP Available is set to 0 and item

040 Auto Camport is set to 0:

1 = Video 1

2 = Video 2

3 = HDMI 1

4 = RGB

5 = HDMI 2

6 = Component

255 = Last Aux

If item 093 RJP Available is set at 1:

2 = Video 2 5 = HDMI 2 6 = Component

If item 040 Auto Camport is set to 1:

1 = Video 1 5 = HDMI 2

3 = HDMI 1 6 = Component

4 = RGB

047 - AUX STATUS

Set to 1 for M.P.I. AUX source to be reported as a channel number instead of channel 0. Set to 0 to disable

AUX identification change. Controls M.P.I. status channel response for AUX inputs.

053 - DIS. CH-TIME (Disable Channel-Time)

Set to 1 to disable the Channel-Time display, Channel-

Time display will not appear.

Set to 0 to enable the Channel-Time display.

069 - EN. CH-T COL. (Enable Channel-Time Custom

Color)

Set to 1 to enable custom color for the Channel-Time display.

Set to 0 to disable custom color for the Channel-Time display.

070 - FOR. CH-TIME (Channel-Time Display

Foreground Color)

Set according to Color Chart.

0 = Black

1 = Red 4 = Blue

3 = Yellow 6 = Cyan

7 = White

2 = Green 5 = Violet

NOTE: If foreground and background color are the same, menu background is transparent.

071 - BCK. CH-TIME (Channel-Time Display

Background Color)

Set according to Color Chart.

0 = Black

1 = Red

3 = Yellow

4 = Blue

6 = Cyan

7 = White

2 = Green 5 = Violet

NOTE: If foreground and background color are the same, menu background is transparent.

073 - CH NOT AVBLE (Channel Not Available)

If set to 1 and item 028 CHANNEL OVERRIDE is set to

0, “NOT AVAILABLE” message is displayed when directly accessing a channel not in the channel scan list available in memory.

075 - REVERT CH (Revert to Start Channel)

If set to 1 and loss of M.P.I. communication occurs, TV automatically tunes to the specified Start Channel.

078 - UPN MSB (UPN Most Significant Byte)

User programmable number, most significant byte readable by M.P.I. command. Note: Not linked to serial number.

079 - UPN MSB-1 (UPN Most Significant Byte-1)

User programmable number, most significant byte-1 readable by M.P.I. command. Not linked to serial number.

080 - UPN MSB-2 (UPN Most Significant Byte-2)

User programmable number, most significant byte-2 readable by M.P.I. command. Not linked to serial number.

081 - UPN LSB (UPN Least Significant Byte)

User programmable number, least significant byte readable by M.P.I. command. Not linked to serial number.

082 - CHKSM ERROR (Checksum Error)

Enforces rigid M.P.I. checksum validation.

Set to 1 for validation.

Set to 0 to disable (does not check checksum on M.P.I.

async port). SPI is always checked.

083 - HANDSHK TIME (Handshake Time)

Adds an additional delay to the handshake time which is

64 msec, thus relaxing M.P.I. timing requirements to be compatible with PC based Windows controlled systems, range is 0 - 5.

(Timeout = 25.5MS + [25.5 MS* Handshake time]).

084 - PERMANENT BLK (Permanent Block)

Allows Lock (Parental Control) blocking schemes to be permanent by disabling the blocking hours function.

Set to 1 to install Parental Control restrictions permanently.

Set to 0 for user-specified hours control of blocking schemes.

99

COMMERCIAL MODE SETUP

100

087 - REAR RGB EN. (Rear RGB Enable)

Controls access to rear RGB input on TV.

Set to 0 to disable RGB input.

Set to 2 for PC for STB RGB input.

Set to 18 for Auto Configure one time only with power cord removal and reinsertion.

088 - EN NOISE MUTE (Enable Noise Mute)

If set to 1, audio mutes if no signal is present.

090 - KEY LOCK

If set to 1, display panel keyboard is locked out, not available to end user. IR receiver remains functional.

091 - YPrPb2 (HDMI2 Enable)

Set to 0 to disable display panel HDMI2 input.

Set to 1 to enable DTV mode. Set to 2 to enable PC mode.

093 - RJP AVAILABLE

Set to 0, remote jack pack is not available.

Set to 1 HDMI mode, TV selects RJP’s HDMI port for digital audio and video.

Set to 2 for DVI mode, TV selects RJP’s HDMI port for digital video only - audio remains from last audio source.

094 - SAP MENU EN (2nd Audio Program)

Set to 1 to enable SAP feature on Function menu, if

Function menu is available.

Set to 0 to disable SAP feature on Function menu, if

Function menu is available.

096 - DEF. ASP. RATIO (Default Aspect Ratio)

Selects default aspect ratio at power up, see settings below.

Set to 0 “Set By System”.

Set to 1 for 4:3.

Set to 2 for 16:9 (Factory Default).

Set to 3 for Horizon

Set to 4 for Zoom 1

Set to 5 for Zoom 2

099 - BACK LIGHTING

Sets the TV screen brightness at power up, see settings below.

Default setting is 200.

1 - 100 Static Backlighting.

(1 = Dimmest picture, 100 = Brightest picture.)

101 - 200 Dynamic Backlighting.

(101 = Dimmest picture, 200 = Brightest picture.) If settings are above 101, the TV automatically controls backlighting depending upon the picture level of the current program.

102 - ATSC BAND

Sets up TV to receive different types of incoming signals:

0=Broadcast, 1=CATV, 2=HRC, 3=IRC, 4=Same as NTSC.

103 - ATSC TUNE MODE

Sets ATSC tuning mode: Default set to 1 for Physical channel scan.

Set to 0 for Virtual Channel scan.

104 - START MINOR CHANNEL

Sets XX-XX minor start channel number at power up:

0=NTSC. If not 0, number selected is the Minor start channel number.

106 - ASP RATIO LOCK (Aspect Ratio Lock)

Set to 1 to retain previous aspect ratio with power Off.

Set to 0 to retain default aspect ratio with power Off.

See item 96 Default Aspect Ratio above.

116 - VIDEO MUTE EN (Video Mute Enable)

Set to 0 for normal.

Set to 1 for blank.

117 - FACT DEFAULT (Factory Default)

Set to 0 for normal.

Set to 1 to load presets to all of the previous item settings.

WARNING: Setting this to 1 will reload the factory defaults and clear the channel list including erasing any assigned Channel Icons and custom channel Labels.

118 - POWER SAVING

Default is set to 1, power saving mode is enabled.

Set to 0 to disable power saving mode.

■ Power Saving is only active when TV is in standby mode.

■ Power Saving is not available in normal power on mode.

If Power Saving is disabled and TV is in Standby mode with External card installed: TV can supply 12V (12

Watts) to External card and Sandby power consumption will be normal.

119 - GEM STRT CH (Gem Start Channel)

Sets the Gem start channel. Set the channel number that will provide Gem data to the TV at turn on. Initially the TV may take several minutes to load program data from AC power off state.

120 - PSEUDO PWR OFF (Pseudo Power Off)

Set to 0 to disable. If disabled, TV will take normal time to turn On.

If enabled, simulates TV power off state for user (black screen) and speeds up the apparent TV turn on time

(restores picture and sound). Set from 001 - 255 to specify time TV will remain on but show a black screen when power is pressed to turn TV off. In pseudo power off state with TV on, pressing power turns backlight off thus showing a black screen. TV is still active and can be turned on quickly from pseudo power off state if Power is pressed. Maximum time Pseudo Power Off can be enabled is 4 minutes and 15 seconds.

REFERENCE: DETAILED INSTRUCTIONS FOR MAKING A

MASTER TV

IMPORTANT INSTALLER SETUP INFORMATION! PLEASE READ THE FOLLOWING...

To set up a master T V you will need to know how to enter the TV Installer menu and make changes to the default values as required. If necessary, familiarize yourself with the TV

Installer menu and how to make and save changes in the menu, before attempting to clone the TV Master TV setup. is a critical step. If the Master TV display panel’s clonable features like adding channel icons or channel labels, digital font options etc., are not correctly added, then the cloned TVs will all have problems. similar to the one shown in the front of this manual. The installer remote must have a “Source” button or its equivalent. The remote shown in this manual has a “INPUT” button -- this button serves the purpose of a Source button.

As the cloning procedure is being performed, specific steps need to be done at the indicated times to achieve the desired result. Be sure to do each task as indicated. If a procedure or step is left out or not performed completely, cloning may not work. At each step, pay attention to assure the TV screen shows the proper message when cloning. If the message indicated does not appear, there is a problem with that step and cloning may not be successful. Cloning is only possible when the signal source is an Analog channel, not a digital channel.

Finally, the TV’s clonable features need to be set up. This

Making a Master TV

Detailed Instructions

The following describes the procedure for preparing a

Master TV for cloning and the procedure for adding

Channel Icons and/or Labels.

Note 1: Disconnect all Aux inputs. Under certain conditions, Auto Tuning Channel Search is disabled if there is an

Aux input active.

Note 2: Under certain conditions, changes to the input mode of the RGB inputs will not take effect until the power is cycled (TV is turned Off and On). To avoid confusion, disconnect all RGB inputs before entering the Installer menu.

1. Enter the TV installer menu. a. Reset the internal controller to factory default by accessing installer menu item 117 FACT DEFAULT, set it to 1 and press “ENTER”. The value will change back to 0 after the TV’s internal controller has been restored to factory default condition. This step will ensure that the

TV channel memory will be the active channel list. Check the Status LED. If it is blinking rapidly then the TV channel map is in use. b. Within the Installer menu, set the Installer menu items to the configuration required of your institution. c. It is important to set the tuning band at this time, see

Installer menu item 03 BAND/AFC. d. Set Installer menu item 28 – CH OVERIDE to 001 to allow access to the Auto Tuning and Ch. Edit features in the Channel Menu. Exit the Installer menu.

2. Access the Master TV menus and set the clonable options on the menus to the desired configuration.

Refer to the Clonable Menu Features Chart in this manual.

3. Run Auto Tuning to find analog and digital channels.

4. Enter the Channel Edit menu and edit the channel lineup to include the Free-To-Guest Channels only.

5. Assign ICONs to the channels using the Channel Label

Menu.

Note: You can add Channel ICONS typically network logos like ABC, NBC, PBS etc. in this step. Or, in Step 7, add Channel ICONS or labels for channels without Icons.

6. Transfer the T V setup: Enter the T V installer menu. Press

‘2’, ‘5’, ‘5’, ‘MENU’ to start the transfer of the TV’s setup to the internal controller. Once the transfer is complete, the system will exit the Installer menu. Check the Status

LED inside the TV. It should be blinking slowly (1 blink per second).

7. Edit/Add Channel ICONs and Channel Labels as needed.

Enter Installer menu. With menu displayed, press 2-5-4

+ MENU. See next page for detailed instructions:

- Editing/Adding Channel ICON and Labels on

Master TV

- Changing a Channel’s ICON on Master TV

- Changing/Adding Channel Labels on Master TV

- Changing Source Labels on Master TV

8. Verify Master TV setup and feature configuration:

Did you add Channel ICONS?

Did you add Channel Labels?

Did you add Source Labels?

Did you adjust all TV menu options as required?

After verifying master setup, enter the TV Installer menu and set Installer menu item 28 CH OVERIDE to 000.

Press ENTER to remove and exit the Installer menu.

101

102

COMMERCIAL MODE SETUP

REFERENCE: PROCEDURES FOR ADDING CHANNEL LABEL

ICONS/CUSTOM CHANNEL LABELS (2-5-4 + MENU MODE)

Adding Channel Icons and Labels in the 2-5-4 + Menu Mode

Editing/Adding Channel ICONs and/or

Labels

If there is no pre-assigned ICON, you can make a custom channel label of up to 7 characters to help in identifying the channel or network. At your option, channel labels can also be added in addition to a preassigned ICON. You may also add labels for the Aux input sources to clearly identify the devices that are connected to the Aux inputs.

(Icon)

Editing and adding the labels can only be done if there are channels entered into the TV’s channel map either by using the method described in item 6 (page 18), by cloning or by the use of the master remote control from the PPV provider.

Note: A blank letter space is available between ‘Z’ and

‘!’.

XYZ

XYZ

1 2 3 4 5 6 7

XYZ

NETWORK

(Label)

To Do Channel Editing/Labeling, Proceed as

Follows

1. Enter TV Installer menu.

2. Once the installer menu appears, press ‘2’, ‘5’, ‘4’,

‘MENU’. This enters the channel label editing mode.

Add your channel icons and channel labels in this menu, see below. (You can do this more than once.)

3. To exit the menu when done press “MENU”.

Changing a Channel’s ICON on

Master TV

1. With Channel Up/Down, select the channel you want to change the

Icon for.

2. With the Right or Left ADJ arrow, select the thin letter ‘I’ on the channel ID display.

3. With the Up or Down arrow, select the desired ICON you want to appear to identify the channel. (If you know the ICON number, enter the number followed by Enter /

Select.)

4. Proceed with Changing/Adding

Labels or go to the next channel.

Changing/Adding Channel

Labels on Master TV

1. Channel Up/Down to select the desired channel.

2. Press the Right or Left ADJ arrow repeatedly until the numbers 1 to

7 show up. The number shows the position of the character that can be changed. Number 1 is the first character, number 2 the second character and so on.

3. With the Up or Down arrow, select the desired character.

4. Proceed to the next number position or use Channel Up/Down to go to the next channel.

Changing Source Labels on

Master TV

1. Press “INPUT” to select the desired

Aux input source; A/V 1, A/V 2,

HDMI Component, RGB etc.

2. Press the Right or Left arrow repeatedly until the numbers 0 to 9 shows up. The number shows the position of the character that can be changed.

3. Use the Up or Down arrows to select the desired character.

4. Press “INPUT” for the next Aux source or proceed with Changing

Icon or Changing/Adding Labels.

Press Ch Up/Down to return to channels.

Installer Remote Control Key Functions for Master TV Channel

Editing/Labeling Menu

CHANNEL Up/Down - Tunes in the next channel in scan.

Left/Right Arrows - Select the item to change. If “I” is shown, the ICON can be changed. If a number is shown, it indicates the position of the character that can be changed.

Up/Down Arrows - Select the ICON or the character to be displayed. Tip: Arrows can be held down for fast scrolling.

0 – 9 - Use to enter the index number of the ICON, if known.

ENTER/SELECT - Changes the ICON after the number has been entered.

INPUT - Changes the Aux input label. (“Source” on the remote shown in this manual is INPUT.)

MENU - Exits the editing process.

REFERENCE: CLONABLE MENU FEATURES

Clonable Menu Features

Menu /Sub Menu Features

Installer Menu

Installer Item settings

Channel

Auto Tuning (Channel Lineup)

Channel Edit

Channel label


Aspect Ratio

Picture Mode

Advanced Control

Audio

Auto Volume

Clear Voice

Sound Mode

Balance

Audio Contd.

Treble

Bass

SRS TruSoundXT

TV Speaker

Option

Language

Caption

Caption Mode

DTV Captions Style - Style

DTV Captions Style - Size

DTV Captions Style - Font

DTV Captions Style - Text Color

DTV Captions Style - Text Opacity

DTV Captions Style - BG Color

DTV Captions Style - BG Opacity

DTV Captions Style - Edge Type

DTV Captions Style - Edge Color

Lock

Movie Rating

TV Rating – Children Age

TV Rating – Children Fantasy

Violence

TV Rating – General Age

Input Block

Time

Auto Clock

Manual Clock

Off Time

On Time

Auto Off

!

NOTE

Picture Menu and other menu settings shown above are not clonable on all TVs.

End user has access to Picture, Sound and Ratio on user remote control.

Menu options vary between Analog / Digital channels and Aux Sources.

Procedure for Checking Software Version

The software version of the TV may be checked by accessing the INSTALLER MENU.

To do this, press the MENU button repeatedly until the menu display ceases to respond to MENU key presses.

Then, press "9", "8", "7", "6", "ENTER/SELECT". Press ENTER/SELECT again to remove installer menu from screen.

GEM PTC INSTALLER MENU

000

UPN 000-000-000-000 FPGA E0F1

PTC V1.00.000

CPU V3.06.00

Typical Installer Menu

103

104

COMMERCIAL MODE SETUP

REFERENCE: POWER SAVING SETUP

Power Savings Setup

Installer Item 118 Power Saving: set to 001, enabled (Default).

Installer Item 099 Backlighting: value set as shown below. (Default value is 200)

Item 099 Picture Power Power

Backlighting Lumin.

Consumption Savings

(Static)

100

90

80

70

60

50

40

30

20

10

1

217

202

188

172

157

128

124

109

95

78

64

(Watts)

122

114

109

102

95

89

82

75

69

62

56

Rating

0 %

7 %

11 %

76 %

22 %

27 %

33 %

39 %

43 %

49 %

54 %

Item 099

Backlighting

(Dynamic)

200

190

180

170

160

150

140

130

120

110

101

Picture Power Power

Lumin.

Consumption Savings

130

123

117

109

101

94

86

79

72

63

57

(Watts)

86

83

80

76

74

70

67

64

61

58

56

Rating

30 %

32 %

34 %

38 %

39 %

43 %

45 %

48 %

50 %

52 %

54 %

Note: Values are results of controlled experiments under laboratory conditions.

TV AUX INPUT CONFIGURATION

TV CAMPORT AUTO SENSE OPERATION

The CAMPORT Auto Sense function is enabled when:

1. Installer Menu Item 34, CAMPORT EN is set to 1 AND

2. Installer Menu Item 40, AUTO CAMPORT is enabled (1).

Selectable= Can be accessed with INPUT key, direct access, etc.

Auto Sense= Switches to this input when connector is inserted.

The camport (Side Video) has the highest priority and will override any commands including tuning to the Start Channel.

CAMPORT (Front Video) Functionality Control

Item 34 Item 40 Front Video

CAMPORT EN AUTO CAMPORT

0 0

Operation

Disabled

0

1

1

1

0

1

Disabled

Selectable

Auto Sense

CAMPORT Operation (Stand-Alone)

When Camport Auto Sense is enabled as above, the TV’s source will switch to the side video aux source whenever a plug is inserted into any of the side video panel inputs

(either composite Video or S-Video).

When the plug is removed, the TV will switch back to the previous channel or input source that the TV was using before the plug was inserted. However, if any direct access to an RF channel or Aux channel is requested while the camport is active, then, when the camport plug is removed, the

TV will switch to the last requested channel. Source changes using any Source Keys (INPUT) are ignored. Channel

Up/Channel Down and Flashback Commands are not direct access tuning commands and they are also ignored.

Previous State Operation State

Before Inserting While CAMPORT Upon Removal

CAMPORT

Aux or RF Channel

Is Active

None

Of CAMPORT

Previous Aux

Aux or RF Channel

Aux or RF Channel

Direct Access

Ch Up/Down,

Flashback and TV/AV Keys or RF Channel

Last Requested

RF or Aux Channel

Previous Aux or RF Channel

CAMPORT Operation (PPV)

The operation will be similar to that of the Stand-

Alone mode. However, the PPV providers may send different commands to the TV for the same user commands. For instance, some providers will always send a direct tune command when it receives a channel up/down or a flashback command while other PPV providers will just send a key command.

Previous State Operation State

Before Inserting While CAMPORTUpon Removal

CAMPORTIs Active

Aux or RF Channel None

Of CAMPORT

Previous Aux

Aux or RF Channel Direct Access or RF Channel

Last Requested RF or Aux Channel

Last Requested Aux or RF Channel Ch Up/Down,

Flashback and TV/AV Keys

Channel if PPV translates it to direct access tuning command. Otherwise, goes to Previous Aux or RF Channel

105

106

APPENDIX

TROUBLESHOOTING

hee o peerraattiio

The remote control doesn’t work oeess n ott w orrkk n orrm

■ Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control directly at the TV.

■ Ensure that the batteries are installed with correct polarity (+ to +, - to -).

■ Ensure that the correct remote operating mode is set: TV, VCR etc.

■ Install new batteries.

Power is suddenly turned off

Is the sleep timer set?

Check the power control settings. Power interrupted.

T hee vviid o ffu nccttiio n d oeess n ott w orrkk..

No picture &No sound

■ Check whether the product is turned on.

■ Try another channel. T he problem may be with the broadcast.

■ Is the power cord inserted into wall power outlet?

■ Check your antenna direction and/or location.

■ Test the wall power outlet, plug another product’s power cord into the outlet where the product’s power cord was plugged in.

Picture appears slowly after switching on

No or poor color or poor picture

■ This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.

■ Adjust Color in menu option.

■ Try unplugging any others electronics that are near by to see if interference is causing the problem.

■ Try another channel. T he problem may be with the broadcast.

■ Are the video cables installed properly?

■ Activate any function to restore the brightness of the picture.

Horizontal/vertical bars or picture shaking

■ Check for local interference such as an electrical appliance or power tool.

Poor reception on some channels

■ Station or cable product experiencing problems, tune to another station.

■ Station signal is weak, reorient antenna.

■ Check for sources of possible interference.

Lines or streaks in pictures

■ Check antenna (Change the direction of the antenna).

No picture when connecting HDMI

■ Check HDMI cable over version 1.3.

If the HDMI cables don’t support HDMI version 1.3, it can cause flickers or no screen display. In this case use the latest cables that support HDMI version 1.3.

T hee aau o ffu nccttiio oeess n ott w

Picture OK but No sound

■ Press the VOL or VOLUME button.

■ Sound muted? Press the MUTE button.

■ Try another channel. T he problem may be with the broadcast.

■ Are the audio cables installed properly?

No output from one of the speakers

■ Adjust Balance in menu option.

Unusual sound from inside the product

■ A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the product.

No sound when connecting HDMI or USB

■ Check HDMI cable over version 1.3.

■ Check USB cable over version 2.0.

*This feature is not available for all models.

prro blleem n P C m dee.. ((O y P C m dee aap

The signal is out of range

■ Adjust resolution, horizontal frequency, or vertical frequency.

■ Check the input source.

Vertical bar or stripe on background &

Horizontal Noise &

Incorrect position

■ Run the Auto configure or adjust clock, phase, or H/V position. (Option)

Screen color is unstable or single color

■ Check the signal cable.

■ Update video card drivers.

P weerr

No Power ■ See troubleshooting flow chart.

Errrraattiicc O peerraattiio

Installer menu setup ■ Adjust Installer menu settings as required.

S offttw Prro mss

Cannot direct enter channel number or “No Signal” appears

■ After 2-5-5 + MENU, only channels included in TV controller will appear. If channel is available it can be added to channel scan, rescan channels. If it is not available, the ‘No Signal’ message appears on the TV screen.

!

NOTE

For other problems not caused by the TV, refer to other devices’ operating guides.

107

108

APPENDIX

REFERENCE: LT2002 CLONING PROCEDURE

TROUBLESHOOTING

Warning: Do not use LT2002 while any PPV card is installed in TV or clone programmer will be damaged.

Reset Clone After Static Shock

After replacing exhausted batteries, or if the programmer behaves strangely after a static shock, use a paper clip or similar instrument inserted through the small hole marked ”RESET” to activate the internal reset switch and restore normal operation. After a reset, check the real-time clock setting. It may be necessary to reset the Clone Programmer clock from a TV containing the correct time.

Note

The LT2002 programmer is designed to be used with

TVs containing the 221-01006 and later processors.

Use with earlier TV sets may give unpredictable results.

Processors used before the 221-01006-04 have a limited screen display capability. They cannot display entire screens as shown in the quick setup instructions accompanying the LT2002 clone programmer. Use the printed menu illustrations on the quick setup sheet supplied with the Clone as an aid to making your programming choices. (Although the menus are not all displayed, the clone functions all operate normally.)

Clone Programmer Troubleshooting

Clone copies Setup in less than 30 seconds

■ Press Reset on clone programmer, redo teach/learn. (Teach/Learn should take a minimum of 1 minute.)

LED does not blink

(32LG3DCH-UA)

■ Connect M.P.I. cord properly, assure good connection.

■ TV must be powered On for clone to work.

■ Install 4 fresh AA high-quality alkaline batteries.

Clone menu hard to read

No time set

■ Connect TV to a reliable Analog channel signal source.

■ Set time on a TV, copy time to Clone Programmer.

Clone not working

■ Try a different LT 2002 Clone programmer.

■ Reset Clone Programmer.

Clone Scans Channels more than once

■ Retry cloning again.

Cloning did not work

32LG3DC

(32LG3DC-UA)

Clone time disappeared

New Setup not present

■ Wait until procedure complete message is displayed.

■ Cloning is only possible with identical model TVs.

(32LG3DCH-UA)

■ Batteries must remain installed to retain time settings.

■ Disconnect newly-cloned TV from power for 5 seconds.

■ After cloning operations are complete, just unplug the LT2002 from the TV.

■ If the TV does not display a picture on the TV (blank screen) after a few seconds, just change channels.

TROUBLESHOOTING FLOW CHART

Controller

Quick

Check

Is

'STATUS'

LED on

Analog Board

Blinking

?

Yes

No

Is

TV

Connected to

AC Power

?

No

Yes

Plug into AC

Power Outlet

Bad

TV

Press 'POWER' or 'ON/OFF' key on TV

Did

TV Turn

On

?

Yes

No

Press 'POWER' or 'ON/OFF' or 'VOLUME UP/DOWN' or

'MUTE' key on Installer

Remote

1. Bad TV

Is

Red LED on TV

Lit

?

Yes

No

Cycle the power by removing and re-connecting the AC power cord. Observe the

'POWER' LED and TV screen as soon as AC power is re-applied.

1. Bad Analog Board.

2. Bad Digital Board.

Did

TV

Respond

?

Yes

No

1. Bad TV

2. Go to Remote

Control Checklist page 5

Press 'POWER' or 'ON/OFF' or 'VOLUME UP/DOWN' or 'MUTE' key on

User-Supplied Remote

Did

Analog

Board 'POWER'

LED Turn On

Momentarily

?

No

Yes

Bad

TV

Did TV

Turn On

Momentarily

?

Yes

No

Check to see if TV is in Commercial Mode.

See Commercial Mode

Check chart.

Did

TV

Respond

?

Yes

No

1. Bad PPV Card

2. Go to Remote

Control Checklist page 5

End

109

110

APPENDIX

COMMERCIAL MODE CHECK

Press the "On/Off" key on the front panel.

The On/Off key is always operational.

Did you get a response

?

No

Bad TV

Yes

Leave the

TV set On

Go to Installer menu by pressing "MENU" until the TV stops responding.

Did

TV stop responding or continue to respond

?

Continued to respond

Stopped responding

TV is in

Commercial

Mode.

TV is not in Commercial Mode

Call Technical Support for

Assistance

GLOSSARY OF TERMS

A list of definitions for some of the words found in this guide

75 OHM RF CABLE

The wire that comes from an off-air antenna or cable service provider. The end looks like a hex-shaped nut with a wire sticking through the middle. It screws onto the Antenna/Cable threaded jack on the back of the TV.

DIGITAL TELEVISION

High-resolution, cinema-quality television signals transmitted digitally.

DVI

Digital Video Interface

Accommodates analog and digital interfaces with a single connector.

300 TO 75 OHM ADAPTER

A small device that connects a two-wire 300 ohm antenna to a 75 ohm RF jack. They are usually about an inch long with two screws on one end and a round opening with a wire sticking out on the other end.

COMPOSITE VIDEO

Typical video jack, uses one wire for transporting three-color video signals.

COMPONENT VIDEO

Uses three wires for transporting threecolor video signals. The end result is usually better video quality.

ANALOG TELEVISION

Standard television broadcasting format in 4:3 picture aspect ratio. DELETED

Lets you remove channels from the list that the end user can scroll through using CH (Channel) Up/Down.

A/V CABLES

Audio/Video cables. Three cables bunched together—right audio (red), left audio (white), and video (yellow).

A/V cables are used for stereo playback of videocassettes and for higher quality picture and sound from other

A/V devices.

HDMI

High-definition multi-media interface.

HDTV

High-definition television. Refers to television signals that have higher resolution than ordinary analog TV signals.

A/V DEVICE

Any device that produces video or sound (VCR, DVD, cable box, or television).

AMPLIFIER

An electronic device that amplifies sound from a television, CD player, VCR,

DVD, or other Audio/Video device.

HDSTB

High-definition set top box. Refers to a tuner device that receives high-definition television signals which have higher resolution than ordinary analog TV signals.

ANTENNA

The physical receiver of television signals sent over the air. A large metal piece of equipment does not always have to be visible to be using an antenna.

INPUT

Refers to the input jack that receives a signal from a TV, VCR, DVD Player or other Audio/Video device.

CABLE

Cable service box. Refers to the descrambler box cable subscribers use to receive cable programming signals.

JACK

An input or output connector on the back of a TV, VCR, DVD Player or other Audio/Video device.

CATV

Programming provided by a cable service.

MONO SOUND

Mono (monaural) sound is one channel of sound. On more than one speaker, all the speakers play the same audio.

■ Note 1

Refer to www.atsc.org for further information.

OUTPUT

Refers to the output jack that sends a signal out of a VCR, DVD, or other A/V device.

PHYSICAL CHANNEL NUMBER

See Note 1.

RGB (Red, Green, Blue)

Connection input or output port available for producing a video image using three separate colors: Red, Green, and

Blue.

RS-232

Serial communication port through which firmware is downloaded.

2ND AUDIO PROGRAMMING/SAP

Second Audio Programming (SAP) is another, separate audio channel available with some programming. Choosing SAP often refers to listening to audio in another language, such as Spanish or

French.

SIGNAL

Picture and sound traveling through a cable, or over the air, to the TV.

STEREO SOUND

Stereo (Stereophonic) sound refers to audio that’s divided into right and left sides.

TUNER

Device that picks up the broadcast signal and turns it into picture and sound.

VIRTUAL CHANNEL NUMBER

See Note 1.

XDS

Extended Data Service: Additional program information included on the signal provided at the discretion of the broadcaster.

111

112

APPENDIX

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

1 Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the screen.

2 Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

WARNING

Do not use window/glass cleaner or anything with ammonia to clean the screen.

Cleaning the Cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.

Please be sure not to use a wet cloth.

Extended Absence

CAUTION

If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

PRODUCT SPECIFICATIONS

Dimensions

(Width x Height x Depth)

Weight

MODEL

With stand

Without stand

With stand

Without stand

32LG700H

(32LG700H-UA)

31.3 x 23.5 x 8.9 inches

797 x 597 x 227.3 mm

31.3 x 21.9 x 3.9 inches

797 x 558.6 x 100.5 mm

21.6 pounds / 9.82 kg

18.3 pounds / 8.34 kg

37LG700H

(37LG700H-UA)

36.1 x 26.9 x 11.5 inches

918.6 x 684.8 x 293.4 mm

36.1 x 24.9 x 3.4 inches

918.6 x 632.8 x 88 mm

41.6 pounds / 18.8 kg

35.2 pounds / 15.9 kg

42LG700H

(42LG700H-UA)

40.4 x 28.8 x 11.5 inches

1026.2 x 734.0 x 293.4 mm

40.4 x 27.0 x 4.4 inches

1026.2 x 687.9 x 111.8 mm

49.1 pounds / 22.3 kg

43.2 pounds / 19.6 kg

MPI card

(Width x Height x Depth)

Cable Card

Card Bracket Cover

(Width x Height )

Power requirement

Television System

Program Coverage

External Antenna Impedance

3.1 x 0.9 x 6.3 inches

80.0(+0.6/-0.2) x less than 23.0(including pcb thickness) x less than 162.0(excluding cover thickness) mm

3.7 x 1.1 inches

94.7(±0.5) x 28.3(±0.5) mm

AC100-120V ~ 50/60Hz

NTSC-M, ATSC, 64 & 256 QAM

VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135

75 ohm

Environment condition

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

32 ~ 104°F (0 ~ 40°C)

Less than 80%

-4 ~ 140°F (-20 ~ 60°C)

Less than 85%

■ The specifications shown above may be changed without prior notice for quality improvement.

PROGRAMMING THE REMOTE CONTROL

The provided universal remote control can be programmed to operate most remote-controllable devices.

Note that the remote may not control all models of other brands.

Programming a code into a remote mode

1 Testing your remote control.

To find out whether your remote control can operate other components without programming, turn on a buttons to see if the component responds correctly. If the component does not operate correctly, the remote control requires programming to operate the device.

2 the remote control. The remote control button of the desired device is illuminated.

3 the code.

4

Enter a code number using the number buttons on the remote control. Programming code numbers for the corresponding component can be found on the following pages. If the code is correct, the device will turn off.

5

6 Test the remote control functions to see if the component responds correctly. If not, repeat from step 2.

113

114

APPENDIX

Remote Control Code

VCR

Brand Codes

AIWA

AKAI

034

016 043 046 124

AMPRO

ANAM

125 146

072

031 033 103

AUDIO DYNAMICS 012 023 039 043

BROKSONIC

CANON

035 037 129

028 031 033

CAPEHART108

CRAIG 003 040 135

CURTIS MATHES 031 033 041

DAEWOO 005 007 010 064

065 108 110 111

112 116 117 119

DAYTRON

DBX

108

012 023 039 043

DYNATECH 034 053

ELECTROHOME 059

EMERSON 006 017 025 027

029 031 034 035

FISHER

FUNAI

GE

036 037 046 101

129 131 138 153

003 008 009 010

034

031 033 063 072

107 109 144 147

GO VIDEO

HARMAN KARDON

132 136

012 045

HITACHI 004 018 026 034

043 063 137 150

INSTANT REPLAY 031 033

JCL 031 033

JCPENNY 012 013 015 033

040 066 101

JENSEN

JVC

043

012 031 033 043

048 050 055 060

130 150 152

KENWOOD 014 034 039 043

047 048

LG (GOLDSTAR) 001 012 013 020

101 106 114 123

LLOYD

LXI

MAGIN

034

003 009 013 014

017 034 101 106

040

Brand

MAGNAVOX

MARANTZ

MARTA

MATSUI

MEI

MEMOREX

MGA

MINOLTA

MITSUBISHI

MTC

MULTITECH

NEC

NORDMENDE

OPTONICA

PANASONIC

Codes

031 033 034 041

067 068

012 031 033 067

069

101

027 030

031 033

003 010 014 031

033 034 053 072

101 102 134 139

045 046 059

013 020

013 020 045 046

049 051 059 061

151

034 040

024 034

012 023 039 043

048

043

053 054

066 070 074 083

133 140 145

PENTAX

PHILCO

PHILIPS

013 020 031 033

063

031 034 067

031 033 034 054

067 071 101

PILOT101

PIONEER

PORTLAND

PULSAR

QUARTZ

QUASAR

RCA

013 021 048

108

072

011 014

033 066 075 145

013 020 033 034

040 041 062 063

107 109 140 144

REALISTIC

RICO

RUNCO

SALORA

145 147

003 008 010 014

031 033 034 040

053 054 101

058

148

014

Brand Codes

SAMSUNG

SANSUI

SANYO

SCOTT

SEARS

032 040 102 104

105 107 109 112

113 115 120 122

125

022 043 048 135

003 007 010 014

102 134

017 037 112 129

131

003 008 009 010

013 014 017 020

031 042 073 081

101

031 054 149

024

003 009 031 052

SHARP

SHINTOM

SONY

SOUNDESIGN

STS

SYLVANIA

056 057 058 076

077 078 149

034

013

031 033 034 059

067

034

010 034

SYMPHONIC

TANDY

TAT UNG

TEAC

TECHNICS

TEKNIKA

THOMAS

TMK

TOSHIBA

039 043

034 039 043

031 033 070

019 031 033 034

101

034

006

008 013 042 047

TOTEVISION

UNITECH

059 082 112 131

040 101

040

VECTOR RESEARCH 012

VICTOR 048

VIDEO CONCEPTS 012 034 046

VIDEOSONIC

WARDS

040

003 013 017 024

031 033 034 040

053 054 131

YAMAHA

ZENITH

012 034 039 043

034 048 056

058 072 080 101

HDSTB

Brand Codes Brand Codes

ALPHASTAR DSR 123

AMPLICA 050

ASTRO PHILIPS(ML) 159

ASTRO THOMPSON(ML) 160

ASTRO NOKIA(ML) 161

BIRDVIEW 051 126 129

CHANNEL MASTER 013 014 015 018

036 055

CHAPARRAL

CITOH

008 009 012 077

054

CURTIS MATHES 050 145

DRAKE 005 006 007 010

011 052 112 116

141

DX ANTENNA

ECHOSTAR

024 046 056 076

038 040 057 058

093 094 095 096

097 098 099 100

122

ELECTRO HOME 089

EUROPLUS

FUJITSU

114

017 021 022 027

133 134

GENERAL INSTRUMENT 003 004 016 029

HITACHI

031 059 101

139 140

HOUSTON TRACKER 033 037 039 051

057 104

HUGHES

HUMAX(SL)

JANIEL

JERROLD

KATHREIN

LEGEND

LG

LUTRON

068

158

060 147

061

108

057

001

132

LUXOR

MACOM

062 144

010 059 063 064

065

057 MEMOREX

NEXTWAVE 028 124 125

NORSAT069 070

PACE SKY SATELLITE 143

PANASONIC 060 142

PANSAT121

PERSONAL CABLE 117

PHILIPS

PICO

071

105

PRESIDENT019 102

PRIMESTAR 030 110 111

PROSAT072

PSI(TH) 157

RCA

REALISTIC

SAMSUNG

066 106

043 074

123

Brand Codes

SATELLITE SERVICE CO 028 035 047 057

085

SCIENTIFIC ATLANTA 032 138

SKY LIFE 150

SONY

STARCAST

SUPER GUIDE

SAMART(TH)

TEECOM

103

041

020 124 125

156

023 026 075 087

088 090 107 130

137

002 127 TOSHIBA

TRUE VISION(TH) 155

UNIDEN 016 025 042 043

044 045 048 049

078 079 080 086

101 135 136

153 UBC(TH)

UBC/SAMART(TH) 154

VIEWSTAR 115

VTC(VN)

WINEGARD

ZENITH

162

128 146

081 082 083 084

091 120

DVD

Brand Codes

APEX DIGITAL

DENON

022

020 014

GE 005 006

HARMAN KARDON 027

JVC

LG

MAGNAVOX

MARANTZ

012

001 010 016 025

013

024

Brand

MITSUBISHI

NAD

ONKYO

PANASONIC

PHILIPS

PIONEER

PROCEED

PROSCAN

Codes

002

023

008 017

003 009

013

004 026

021

005 006

Brand

RCA

SAMSUNG

SONY

THOMPSON

TOSHIBA

YAMAHA

ZENITH

Codes

005 006

011 015

007

005 006

019 008

009 018

010 016 025

115

116

APPENDIX

IR CODES

1. How to Connect

■ Connect your wired remote control to the Remote Control port on the TV.

2. Remote Control IR Codes

Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

Tc

T1

Carrier frequency

FCAR = 1/TC = fOSC/12

Duty ratio = T1/TC = 1/3

Configuration of frame

1st frame

Lead code Low custom code High custom code Data code Data code

C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat frame

Repeat code

Tf

Lead code

9 ms

4.5 ms

Repeat code

0.55 ms

9 ms

2.25 ms

Bit ”0” Bit ”1”

0.56 ms

1.12 ms

The waveform is transmitted as long as a key is depressed.

Tf Tf

0.56 ms

2.24 ms

Tf=108ms @455KHz

Code

(Hexa)

Function Note

Code

(Hexa)

61

C1

C0

C2

C3

60

71

72

63

40

41

07

06

44

39

09

43

5B

08

0F

0B

0A

79

AB

OC

POWER

TV

Remote control Button (Power On/Off)

Remote control Button

INPUTRemote control Button

D6

5A

SAP

FF RATIO

GUIDE

PORTAL

Remote control Button

Remote control Button

Remote control Button

Remote control Button

D0

BF

03

00

01

0E

AA INFO Remote control Button

10-19 Number Key 0-9 Remote control Button

4C

1A

02

- (Dash)

FLASHBK

VOL +

Remote control Button

Remote control Button

Remote control Button

VOL -

CH

CH

GG TIMER

Remote control Button

Remote control Button

Remote control Button

Remote control Button

CC

MUTE

MENU

RETURN

Remote control Button

Remote control Button

Remote control Button

Remote control Button

Remote control Button

Remote control Button

Remote control Button

Remote control Button

Remote control Button

D5

CE

CC

76

77

AF

C4

C5

ENTER

PIP

PIP CH +

PIP CH-

PIP SWAP

Remote control Button

Remote control Button

Remote control Button

Remote control Button

PIP INPUTRemote control Button

A Stop Remote control Button

G Play ll ll Pause

Ô (Record)

Remote control Button

Remote control Button

Remote control Button

Function

TV

AV1

AV2

COMPONENT

RGB-PC

HDMI1

HDMI2

Ratio 4:3

Ratio 16:9

Ratio Zoom

POWER ON

POWER OFF

Note

Discrete IR Code

(TV Input Selection)

Discrete IR Code

(AV1 Input Selection)

Discrete IR Code

(AV2 Input Selection)

Discrete IR Code

(COMPONENT Input Selection)

Discrete IR Code

(RGB Input Selection)

Discrete IR Code

(HDMI1 Input Selection)

Discrete IR Code

(HDMI2 Input Selection)

Discrete IR Code

(Only 4:3 Mode)

Discrete IR Code

(Only 16:9 Mode)

Discrete IR Code

(Only Zoom1 Mode)

Discrete IR Code

(Only Power On)

Discrete IR Code

(Only Power Off)

117

118

APPENDIX

OPEN SOURCE LICENSE

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright (C) 1989, 1991 Free Software Foundation, Inc., 51

Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General

Public License is intended to guarantee your freedom to share and change free software - to make sure the software is free for all its users. This General Public License applies to most of the

Free Software Foundation's software and to any other program whose authors commit to using it. (Some other free software foundation software is covered by the GNU Lesser General Public

License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION

AND MODIFICATION

0. This license applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The

"Program", below, refers to any such program or work, and a

"work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.

(Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you".

Activities other than copying, distribution and modification are not covered by this license; they are outside its scope.

The act of running the Program is not restricted, and the output from the program is covered only if its contents constitute a work based on the program (independent of having been made by running the program). Whether that is true depends on what the program does.

1. You may copy and distribute verbatim copies of the program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this license and to the absence of any warranty; and give any other recipients of the program a copy of this license along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the

Program or any part there of, to be licensed as a whole at no charge to all third parties under the terms of this license.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this license.

(Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the

Program, and can be reasonably considered independent and separate works in themselves, then this license, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this license, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the program.

In addition, mere aggregation of another work not based on the program with the Program (or with a work based on the program) on a volume of a storage or distribution medium does not bring the other work under the scope of this license.

3. You may copy and distribute the program (or a work based on it, under section 2) in object code or executable form under the terms of sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machinereadable source code, which must be distributed under the terms of sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of sections

1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this license. Any attempt otherwise to copy, modify, sublicense or distribute the

Program is void, and will automatically terminate your rights under this license. However, parties who have received copies, or rights, from you under this license will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this license, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works.

These actions are prohibited by law if you do not accept this license. Therefore, by modifying or distributing the program

(or any work based on the program), you indicate your acceptance of this license to do so, and all its terms and conditions for copying, distributing or modifying the program or works based on it.

6. Each time you redistribute the program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the

Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this license.

119

APPENDIX

120

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this license, they do not excuse you from the conditions of this license. If you cannot distribute so as to satisfy simultaneously your obligations under this license and any other pertinent obligations, then as a consequence you may not distribute the program at all. For example, if a patent license would not permit royalty-free redistribution of the program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this license would be to refrain entirely from distribution of the program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this license.

8. If the distribution and/or use of the program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the program under this license may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this license incorporates the limitation as if written in the body of this license.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time.

Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the program specifies a version number of this license which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation.

If the program does not specify a version number of this license, you may choose any version ever published by the

Free Software Foundation.

10.If you wish to incorporate parts of the program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free

Software Foundation; we sometimes make exceptions for this.

Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE,

THERE IS NO WARRANTY FOR THE PROGRAM, TO THE

EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN

OTHERWISE STATED IN WRITING THE COPYRIGHT HOLD-

ERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS

IS" WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE

RISK AS TO THE QUALITY AND PERFORMANCE OF THE

PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE

DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY

SERVICING, REPAIR OR CORRECTION.

12.IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR

AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,

OR ANY OTHER PARTY WHO MAY MODIFY AND/OR

REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE

LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,

SPECIAL, INCIDENTAL OR CONSEQUENT IAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE THE PRO-

GRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA

OR DATA BEING RENDERED INACCURAT E OR LOSSES SUS-

TAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE

PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS),

EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to apply these terms to your new programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

one line to give the program's name and a brief idea of what it does.

Copyright (C) <year> <name of author>

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the license, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but

WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PUR-

POSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public

License along with this program; if not, write to the Free Software

Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA

02110-1301 USA.

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author

Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type ‘show w’. This is free software, and you are welcome to redistribute it under certain conditions; type ‘show c’ for details.

The hypothetical commands ‘show w’ and ‘show c’ should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than

‘show w’ and ‘show c’; they could even be mouse-clicks or menu items-whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program ‘Gnomovision’ (which makes passes at compilers) written by

James Hacker.

signature of Ty Coon, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this license.

121

APPENDIX

122

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999

Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51

Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General

Public Licenses are intended to guarantee your freedom to share and change free software - to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software packages - typically libraries - of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public

License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU

Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public

License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The

Lesser General Public License permits more lax criteria for linking other code with the library.

We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary

General Public License. It also provides other free software developers Less of an advantage over competing non-free programs.

These disadvantages are the reason we use the ordinary General

Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries.

In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C

Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the

GNU/Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library".

The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION

AND MODIFICATION

0. This license agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called “this license”). Each license is addressed as "you".

A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language.

(Hereinafter, translation is included without limitation in the term “modification”.)

“Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this license; they are outside its scope.

The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the library does and what the program that uses the library does.

1. You may copy and distribute verbatim copies of the library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this license and to the absence of any warranty; and distribute a copy of this license along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of section 1 above, provided that you also meet all of these conditions: a) The modified work must itself be a software library.

b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.

c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this license.

d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the library, and can be reasonably considered independent and separate works in themselves, then this license, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the library, the distribution of the whole must be on the terms of this license, whose permissions for other licenses extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the library.

In addition, mere aggregation of another work not based on the library with the library (or with a work based on the library) on a volume of a storage or distribution medium does not bring the other work under the scope of this license.

123

APPENDIX

124

3. You may opt to apply the terms of the ordinary GNU General

Public License instead of this License to a given copy of the

Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General

Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public

License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part of the code of the library into a program that is not a library.

4. You may copy and distribute the library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machinereadable source code, which must be distributed under the terms of sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

5. A program that contains no derivative of any portion of the

Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the

Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this license.

However, linking a “work that uses the library” with the Library creates an executable that is a derivative of the Library

(because it contains portions of the library), rather than a

“work that uses the library”. The executable is therefore covered by this license. Section 6 states terms for distribution of such executable.

When a “work that uses the library” uses material from a header file that is part of the library, the object code for the work may be a derivative work of the library even though the source code is not.

Whether this is true is especially significant if the work can be linked without the library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessories, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executable containing this object code plus portions of the library will still fall under Section 6.)

Otherwise, if the work is a derivative of the library, you may distribute the object code for the work under the terms of

Section 6. Any executable containing that work also fall under

Section 6, whether or not they are linked directly with the library itself.

6. As an exception to the sections above, you may also combine or link a "work that uses the library" with the library to produce a work containing portions of the library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the library is used in it and that the Library and its use are covered by this license. You must supply a copy of this license. If the work during execution displays copyright notices, you must include the copyright notice for the library among them, as well as a reference directing the user to the copy of this license. Also, you must do one of these things: a) Accompany the work with the complete corresponding machine-readable source code for the library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable “work that uses the Library”, as object code and/or source code, so that the user can modify the library and then relink to produce a modified executable containing the modified library. (It is understood that the user who changes the contents of definitions files in the library will not necessarily be able to recompile the application to use the modified definitions.) b) Use a suitable shared library mechanism for linking with the library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.

c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in

Subsection 6, above, for a charge no more than the cost of performing this distribution.

d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.

e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

For an executable, the required form of the "work that uses the library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the library together in an executable that you distribute.

7. You may place library facilities that are a work based on the library side-by-side in a single library together with other library facilities not covered by this license, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the sections above.

b) Give prominent notice with the combined library of the fact that part of it is a work based on the library, and explaining where to find the accompanying uncombined form of the same work.

of the rights granted herein.

You are not responsible for enforcing compliance by third parties with this license.

11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this license, they do not excuse you from the conditions of this license. If you cannot distribute so as to satisfy simultaneously your obligations under this license and any other pertinent obligations, then as a consequence you may not distribute the library at all. For example, if a patent license would not permit royalty-free redistribution of the library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this license would be to refrain entirely from distribution of the library.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a license cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this license.

8. You may not copy, modify, sublicense, link with, or distribute the library except as expressly provided under this license.

Any attempt otherwise to copy, modify, sublicense, link with, or distribute the library is void, and will automatically terminate your rights under this license. However, parties who have received copies, or rights, from you under this license will not have their licenses terminated so long as such parties remain in full compliance.

9. You are not required to accept this license, since you have not signed it. However, nothing else grants you permission to modify or distribute the library or its derivative works. These actions are prohibited by law if you do not accept this license.

Therefore, by modifying or distributing the library (or any work based on the library), you indicate your acceptance of this license to do so, and all its terms and conditions for copying, distributing or modifying the library or works based on it.

10.Each time you redistribute the library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise

12.If the distribution and/or use of the library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the library under this license may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this license incorporates the limitation as if written in the body of this license.

13.The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the library specifies a version number of this license which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation.

125

126

APPENDIX

If the library does not specify a license version number, you may choose any version ever published by the Free Software

Foundation.

14.If you wish to incorporate parts of the library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

15.BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE,

THERE IS NO WARRANTY FOR THE LIBRARY, TO THE

EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN

OTHERWISE STATED IN WRITING THE COPYRIGHT HOLD-

ERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS

IS" WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED

TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE

RISK AS TO THE QUALITY AND PERFORMANCE OF THE

LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE

DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY

SERVICING, REPAIR OR CORRECTION.

16.IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR

AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER,

OR ANY OTHER PARTY WHO MAY MODIFY AND/OR

REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE

LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL,

SPECIAL, INCIDENTAL OR CONSEQUENT IAL DAMAGES

ARISING OUT OF THE USE OR INABILITY TO USE THE

LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA

OR DATA BEING RENDERED INACCURAT E OR LOSSES SUS-

TAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE

LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE),

EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to apply these terms to your new libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library.

It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found.

one line to give the library's name and a brief idea of what it does.

Copyright (C) <year> <name of author>

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the license, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but

WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PUR-

POSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General

Public License along with this library; if not, write to the Free

Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston,

MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library ‘Frob’ (a library for tweaking knobs) written by James

Random Hacker.

signature of Ty Coon, 1 April 1990

Ty Coon, President of Vice

MOZILLA PUBLIC LICENSE

Version 1.1

---------------

1.Definitions.

1.0.1. “Commercial use” means distribution or otherwise making the covered code available to a third party.

1.1.

“Contributor” means each entity that creates or contributes to the creation of modifications.

1.2.

“Contributor version” means the combination of the original code, prior modifications used by a contributor, and the modifications made by that particular contributor.

code which is described in the source code notice required by exhibit as original code, and which, at the time of its release under this license is not already covered code governed by this license.

1.10.1.“Patent claims” means any patent claim(s), now owned or hereafter acquired, including without limitation, method, process, and apparatus claims, in any patent licensable by grantor.

1.3.

“Covered code” means the original code or modifications or the combination of the original code and modifications, in each case including portions thereof.

1.4.

“Electronic distribution mechanism” means a mechanism generally accepted in the software development community for the electronic transfer of data.

1.5.

“Executable” means covered code in any form other than source code.

1.11. “Source code” means the preferred form of the covered code for making modifications to it, including all modules it contains, plus any associated interface definition files, scripts used to control compilation and installation of an executable, or source code differential comparisons against either the original code or another well known, available covered code of the contributor's choice. The source code can be in a compressed or archival form, provided the appropriate decompression or de-archiving software is widely available for no charge.

1.6.

1.7.

1.8.

“Initial developer” means the individual or entity identified as the initial Developer in the Source Code notice required by exhibit A.

“Larger work” means a work which combines covered code or portions thereof with code not governed by the terms of this License.

“License” means this document.

1.12. “You” (or “Your”) means an individual or a legal entity exercising rights under, and complying with all of the terms of, this license or a future version of this license issued under section 6.1.

For legal entities, “You” includes any entity which controls, is controlled by, or is under common control with You. For purposes of this definition, “control” means (a) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (b) ownership of more than fifty percent (50%) of the outstanding shares or beneficial ownership of such entity.

1.8.1. “Licensable” means having the right to grant, to the maximum extent possible, whether at the time of the initial grant or subsequently acquired, any and all of the rights conveyed herein.

1.9.

“Modifications” means any addition to or deletion from the substance or structure of either the original code or any previous modifications. When covered code is released as a series of files, a modification is:

A. Any addition to or deletion from the contents of a file containing original code or previous modifications.

B. Any new file that contains any part of the original code or previous modifications.

1.10. “Original code” means source code of computer software

2. Source Code License.

2.1.

The initial developer grant.

The initial developer hereby grants You a world-wide, royalty-free, non-exclusive license, subject to third party intellectual property claims: a) under intellectual property rights (other than patent or trademark) licensable by initial developer to use, reproduce, modify, display, perform, sublicense and distribute the original code (or portions thereof) with or without modifications, and/or as part of a larger work; and

(b) under patents claims infringed by the making, using or selling of original code, to make, have made, use, practice, sell, and offer for sale, and/or otherwise dispose of the original code (or portions there of).

127

APPENDIX

128

(c) the licenses granted in this section 2.1(a) and (b) are effective on the date Initial developer first distributes original code under the terms of this license.

(d) Notwithstanding section 2.1(b) above, no patent license is granted: 1) for code that You delete from the original Code; 2) separate from the original code; or

3) for infringements caused by: i) the modification of the original code or ii) the combination of the original code with other software or devices.

2.2.

Contributor Grant.

Subject to third party intellectual property claims, each contributor hereby grants You a world-wide, royalty-free, non-exclusive license

(a) under intellectual property rights (other than patent or trademark) licensable by contributor, to use, reproduce, modify, display, perform, sublicense and distribute the modifications created by such contributor (or portions thereof) either on an unmodified basis, with other modifications, as covered code and/or as part of a larger work; and

(b) under patent claims infringed by the making, using, or selling of modifications made by that contributor either alone and/or in combination with its contributor version (or portions of such combination), to make, use, sell, offer for sale, have made, and/or otherwise dispose of: 1) modifications made by that contributor

(or portions thereof); and 2) the combination of modifications made by that contributor with its contributor version (or portions of such combination).

(c) the licenses granted in sections 2.2(a) and 2.2(b) are effective on the date contributor first makes commercial use of the covered code.

(d) Notwithstanding section 2.2(b) above, no patent license is granted: 1) for any code that contributor has deleted from the contributor version; 2) separate from the contributor version; 3) for infringements caused by: i) third party modifications of contributor version or ii) the combination of modifications made by that contributor with other software (except as part of the contributor version) or other devices; or 4) under patent claims infringed by covered code in the absence of modifications made by that contributor.

3. Distribution Obligations.

3.1.

Application of license.

The modifications which You create or to which you contribute are governed by the terms of this license, including without limitation section 2.2. The source code version of covered code may be distributed only under the terms of this license or a future version of this license released under section 6.1, and you must include a copy of this license with every copy of the source code you distribute.

You may not offer or impose any terms on any source code version that alters or restricts the applicable version of this license or the recipients' rights hereunder. However, you may include an additional document offering the additional rights described in section 3.5.

3.2.

Availability of source code.

Any modification which you create or to which you contribute must be made available in source code form under the terms of this license either on the same media as an executable version or via an accepted electronic distribution mechanism to anyone to whom you made an executable version available; and if made available via electronic distribution mechanism, must remain available for at least twelve (12) months after the date it initially became available, or at least six (6) months after a subsequent version of that particular modification has been made available to such recipients. You are responsible for ensuring that the source code version remains available even if the electronic distribution mechanism is maintained by a third party.

3.3.

Description of modifications.

You must cause all covered code to which you contribute to contain a file documenting the changes You made to create that covered code and the date of any change. You must include a prominent statement that the modification is derived, directly or indirectly, from original code provided by the initial developer and including the name of the initial developer in (a) the source code, and (b) in any notice in an executable version or related documentation in which you describe the origin or ownership of the covered code.

3.4.

Intellectual property matters

(a) Third party claims.

If contributor has knowledge that a license under a third party's intellectual property rights is required to exercise the rights granted by such contributor under sections 2.1

or 2.2, contributor must include a text file with the source code distribution titled "LEGAL" which describes the claim and the party making the claim in sufficient detail that a recipient will know whom to contact. If contributor obtains such knowledge after the modification is made available as described in section 3.2, contributor shall promptly modify the LEGAL file in all copies contributor makes available thereafter and shall take other steps (such as notifying appropriate mailing lists or newsgroups) reasonably calculated to inform those who received the covered code that new knowledge has been obtained.

(b) Contributor APIs.

If contributor's modifications include an application programming interface and contributor has knowledge of patent licenses which are reasonably necessary to implement that API, contributor must also include this information in the LEGAL file.

(c) Representations.

contributor represents that, except as disclosed pursuant to section 3.4(a) above, contributor believes that contributor's modifications are contributor's original creation(s) and/or contributor has sufficient rights to grant the rights conveyed by this license.

3.5.

Required notices.

You must duplicate the notice in exhibit A in each file of the source code. If it is not possible to put such notice in a particular source code file due to its structure, then You must include such notice in a location (such as a relevant directory) where a user would be likely to look for such a notice. If You created one or more modification(s), you may add your name as a contributor to the notice described in exhibit A. you must also duplicate this license in any documentation for the source code where You describe recipients' rights or ownership rights relating to covered code. You may choose to offer, and to charge a fee for, warranty, support, indemnity or liability obligations to one or more recipients of covered code. However, you may do so only on your own behalf, and not on behalf of the Initial developer or any contributor. You must make it absolutely clear than any such warranty, support, indemnity or liability obligation is offered by you alone, and You hereby agree to indemnify the Initial developer and every contributor for any liability incurred by the Initial developer or such contributor as a result of warranty, support, indemnity or liability terms you offer.

3.6.

Distribution of executable versions.

You may distribute covered code in executable form only if the requirements of section 3.1-3.5 have been met for that covered code, and if you include a notice stating that the source code version of the covered code is available under the terms of this license, including a description of how and where you have fulfilled the obligations of section

3.2. The notice must be conspicuously included in any notice in an executable version, related documentation or collateral in which you describe recipients' rights relating to the covered code. You may distribute the executable version of covered code or ownership rights under a license of your choice, which may contain terms different from this license, provided that you are in compliance with the terms of this license and that the license for the executable version does not attempt to limit or alter the recipient's rights in the source code version from the rights set forth in this license. If you distribute the executable version under a different license you must make it absolutely clear that any terms which differ from this license are offered by you alone, not by the Initial developer or any contributor. You hereby agree to indemnify the initial developer and every contributor for any liability incurred by the initial developer or such contributor as a result of any such terms You offer.

3.7.

Larger works.

You may create a larger work by combining covered code with other code not governed by the terms of this license and distribute the larger work as a single product. In such a case, you must make sure the requirements of this license are fulfilled for the covered code.

4. Inability to comply due to statute or regulation.

If it is impossible for you to comply with any of the terms of this license with respect to some or all of the covered code due to statute, judicial order, or regulation then you must: (a) comply with the terms of this license to the maximum extent possible; and (b) describe the limitations and the code they affect. Such description must be included in the LEGAL file described in section 3.4 and must be included with all distributions of the source code. Except to the extent prohibited by statute or regulation, such description must be sufficiently detailed for a recipient of ordinary skill to be able to understand it.

5. Application of this license.

This license applies to code to which the initial developer has attached the notice in exhibit A and to related covered code.

6. Versions of the license.

6.1.

New versions.

Netscape communications corporation (“Netscape”) may publish revised and/or new versions of the license from time to time. Each version will be given a distinguishing version number.

6.2.

Effect of new versions.

Once covered code has been published under a particular version of the license, you may always continue to use it under the terms of that version. You may also choose to use such covered code under the terms of any subsequent version of the license published by netscape. No one other than netscape has the right to modify the terms applicable to covered code created under this license.

6.3.

Derivative works.

If You create or use a modified version of this license

(which you may only do in order to apply it to code which is not already covered code governed by this license), You must (a) rename Your license so that the phrases

"Mozilla", "MOZILLAPL", "MOZPL", "Netscape", "MPL",

"NPL" or any confusingly similar phrase do not appear in your license (except to note that your license differs from this license) and (b) otherwise make it clear that Your version of the license contains terms which differ from the

Mozilla Public license and netscape Public License. (Filling in the name of the initial developer, original code or contributor in the notice described in exhibit A shall not of themselves be deemed to be modifications of this license.)

129

APPENDIX

130

7. DISCLAIMER OF WARRANTY.

COVERED CODE IS PROVIDED UNDER THIS LICENSE

ON AN “AS IS” BASIS, WITHOUT WARRANTY OF ANY

KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING,

WITHOUT LIMITATION, WARRANTIES THAT THE COV-

ERED CODE IS FREE OF DEFECTS, MERCHANTABLE, FIT

FOR A PARTICULAR PURPOSE OR NON-INFRINGING.

THE ENTIRE RISK AS TO THE QUALITY AND PERFOR-

MANCE OF THE COVERED CODE IS WITH YOU.

SHOULD ANY COVERED CODE PROVE DEFECTIVE IN

ANY RESPECT, YOU (NOT THE INITIAL DEVELOPER OR

ANY OTHER CONTRIBUTOR) ASSUME THE COST OF

ANY NECESSARY SERVICING, REPAIR OR CORRECTION.

THIS DISCLAIMER OF WARRANTY CONSTITUTES AN

ESSENTIAL PART OF THIS LICENSE. NO USE OF ANY

COVERED CODE IS AUTHORIZED HEREUNDER EXCEPT

UNDER THIS DISCLAIMER.

8. TERMINATION.

8.1.

This license and the rights granted hereunder will terminate automatically if you fail to comply with terms herein and fail to cure such breach within 30 days of becoming aware of the breach. All sublicenses to the covered code which are properly granted shall survive any termination of this license. Provisions which, by their nature, must remain in effect beyond the termination of this license shall survive.

8.2. If you initiate litigation by asserting a patent infringement claim (excluding declatory judgment actions) against initial developer or a contributor (the initial developer or contributor against whom you file such action is referred to as “Participant”) alleging that:

(a) such participant's contributor version directly or indirectly infringes any patent, then any and all rights granted by such participant to you under sections 2.1

and/or 2.2 of this license shall, upon 60 days notice from Participant terminate prospectively, unless if within

60 days after receipt of notice you either: (i) agree in writing to pay participant a mutually agreeable reasonable royalty for your past and future use of modifications made by such participant, or (ii) withdraw your litigation claim with respect to the contributor version against such participant. If within 60 days of notice, a reasonable royalty and payment arrangement are not mutually agreed upon in writing by the parties or the litigation claim is not withdrawn, the rights granted by participant to you under sections 2.1 and/or 2.2 automatically terminate at the expiration of the 60 day notice period specified above.

(b) any software, hardware, or device, other than such participant's contributor Version, directly or indirectly infringes any patent, then any rights granted to You by such participant under sections 2.1(b) and 2.2(b) are revoked effective as of the date you first made, used, sold, distributed, or had made, modifications made by that participant.

8.3.

If you assert a patent infringement claim against participant alleging that such participant's contributor version directly or indirectly infringes any patent where such claim is resolved (such as by license or settlement) prior to the initiation of patent infringement litigation, then the reasonable value of the licenses granted by such participant under sections 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license.

8.4.

In the event of termination under sections 8.1 or 8.2

above, all end user license agreements (excluding distributors and resellers) which have been validly granted by you or any distributor hereunder prior to termination shall survive termination.

9. LIMITATION OF LIABILITY.

UNDER NO CIRCUMSTANCES AND UNDER NO LEGAL

THEORY, WHETHER TORT (INCLUDING NEGLIGENCE),

CONTRACT, OR OTHERWISE, SHALL YOU, THE INITIAL

DEVELOPER, ANY OTHER CONTRIBUTOR, OR ANY DIS-

TRIBUTOR OF COVERED CODE,OR ANY SUPPLIER OF

ANY OF SUCH PARTIES, BE LIABLE TO ANY PERSON FOR

ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUEN-

TIAL DAMAGES OF ANY CHARACTER INCLUDING, WITH-

OUT LIMITATION, DAMAGES FOR LOSS OF GOODWILL,

WORK STOPPAGE, COMPUTER FAILURE OR MALFUNC-

TION, OR ANY AND ALL OTHER COMMERCIAL DAM-

AGES OR LOSSES, EVEN IF SUCH PARTY SHALL HAVE

BEEN INFORMED OF THE POSSIBILITY OF SUCH DAM-

AGES. THIS LIMITATION OF LIABILITY SHALL NOT APPLY

TO LIABILITY FOR DEATH OR PERSONAL INJURY RESULT-

ING FROM SUCH PARTY'S NEGLIGENCE TO THE EXTENT

APPLICABLE LAW PROHIBITS SUCH LIMITATION. SOME

JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAM-

AGES, SO THIS EXCLUSION AND LIMITATION MAY NOT

APPLY TO YOU.

10. U.S. GOVERNMENT END USERS.

The covered code is a "commercial item," as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of

"commercial computer software" and "commercial computer software documentation," as such terms are used in 48

C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R.

12.212 and 48 C.F.R. 227.7202-1 through 227.7202-4

(June 1995), all U.S. Government end users acquire covered code with only those rights set forth herein.

11. MISCELLANEOUS.

This license represents the complete agreement concerning subject matter hereof. If any provision of this license is held to be unenforceable, such provision shall be reformed only to the extent necessary to make it enforceable. This

License shall be governed by California law provisions

(except to the extent applicable law, if any, provides otherwise), excluding its conflict-of-law provisions. With respect to disputes in which at least one party is a citizen of, or an entity chartered or registered to do business in the united states of america, any litigation relating to this

License shall be subject to the jurisdiction of the federal courts of the northern district of california, with venue lying in santa clara county, california, with the losing party responsible for costs, including without limitation, court costs and reasonable attorneys' fees and expenses. The application of the united nations convention on contracts for the International sale of goods is expressly excluded.

Any law or regulation which provides that the language of a contract shall be construed against the drafter shall not apply to this license.

12. RESPONSIBILITY FOR CLAIMS.

As between initial developer and the contributors, each party is responsible for claims and damages arising, directly or indirectly, out of its utilization of rights under this license and you agree to work with initial developer and contributors to distribute such responsibility on an equitable basis. Nothing herein is intended or shall be deemed to constitute any admission of liability.

13. MULTIPLE-LICENSED CODE.

Initial developer may designate portions of the covered code as "Multiple-Licensed". "Multiple-Licensed" means that the initial developer permits you to utilize portions of the covered code under your choice of the NPL or the alternative licenses, if any, specified by the initial developer in the file described in exhibit A.

EXHIBIT A -Mozilla Public License.

The contents of this file are subject to the Mozilla Public License

Version 1.1 (the “license”); you may not use this file except in compliance with the License. You may obtain a copy of the license at http://www.mozilla.org/MPL/

Software distributed under the license is distributed on an "AS

IS" basis, WITHOUT WARRANTY OF ANY KIND, either express or implied. See the license for the specific language governing rights and limitations under the License.

The Original Code is ______________________________________.

The Initial Developer of the Original Code is___________________.

Portions created by ______________________ are Copyright (C)

_______________________. All Rights Reserved.

Contributor(s): ______________________________________.

Alternatively, the contents of this file may be used under the terms of the _____ license (the "[___] License"), in which case the provisions of [______] license are applicable instead of those above. If you wish to allow use of your version of this file only under the terms of the [____] license and not to allow others to use your version of this file under the MPL, indicate your decision by deleting the provisions above and replace them with the notice and other provisions required by the [___] license. If you do not delete the provisions above, a recipient may use your version of this file under either the MPL or the [___] license."

NOTE: The text of this exhibit A may differ slightly from the text of the notices in the source code files of the original code. You should use the text of this exhibit A rather than the text found in the original code/source code for Your modifications.
