LG DU-27FB34C User's Manual

LG Electronics U.S.A., Inc.

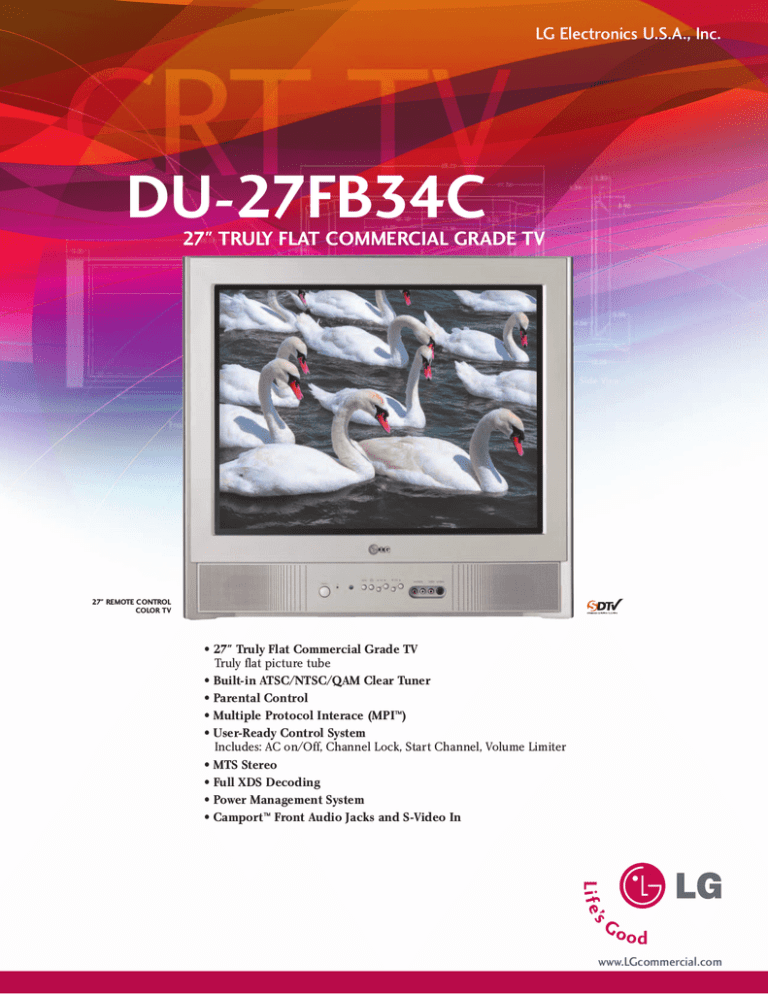

DU-27FB34C
27" TRULY FLAT COMMERCIAL GRADE TV
27" REMOTE CONTROL
COLOR TV
• 27" Truly Flat Commercial Grade TV
Truly flat picture tube
• Built-in ATSC/NTSC/QAM Clear Tuner
• Parental Control
• Multiple Protocol Interace (MPI™)
• User-Ready Control System
Includes: AC on/Off, Channel Lock, Start Channel, Volume Limiter
• MTS Stereo
• Full XDS Decoding
• Power Management System
• Camport™ Front Audio Jacks and S-Video In
www.LGcommercial.com
LG Electronics U.S.A., Inc.
DU-27FB34C
27" Truly Flat Commercial Grade TV
SPECIFICATIONS
Dimensions
Cabinet (W x H x D)
Weight
Carton Dimensions (W x H x D)
Shipping Weight
UPC Code
Video Enhancements
CRT
ATSC/NTSC/QAM Clear Tuner
Horizontal Lines Resolution
Dark Glass (ZDG)
Horizontal/Vertical Scan Rate
Black Level Expansion/ White
Level Compression
Comb Filter
Rear Jacks
RF Inputs with Intercept Capability
Composite Video
Component Video
Variable Audio Out
MPI (RJ11)
Front Jacks
CamPort A/V Jacks – In
S-Video In
Transmitter
QuickSet Clone Programmer
Compatible
Finish
Remote
26.46" x 24.49" x 19.51"
88.8 Lbs.
29.75" x 28.50" x 22.75"
97.6 Lbs.
719192171107
27” Flat
Yes
550 Lines (Component Video)
Yes
15.75kHz/60 Hertz
Yes
Cabinet/Chassis Description
Color
Mounting Holes for LSP Boxes
Spill-Proof Cabinet Back
Control Panel (Number of Buttons)
Invisible Bracket Compatibility
Power-On Indicator
Menu System
Trilingual Menus
Scrolling Menus
Menu Colors
2H Glass Combo
Configurable Menu Colors
1 Analog/Digital
1 Video/ L & R Audio
1 Y, Pb, Pr/L & R Audio
1 “Bathroom” Matrix
Speaker Out
1 Edge Board Connect
Installed
Menu Screens
Setup, Video, Audio, source
Parental Control (V-chip)
Yes
Molded Diamond Mist
Yes
English/Spanish/French
Channel Banks
Closed Captions
Cyan (Setup, Parental
Control, Alarm, Closed
Caption), Blue (Video),
Yellow (Channel Preview,
Sleep Timer)
Yes
Favorite Channel Selection
Sleep Timer, Wake-Up Timer
XDS Decoding
Flashback, Captions, CC When Mute
AC/DC
Yes
V-Chip Defeatable &
Clonable
Yes
Configurable Colors,
Defeatable & Clonable
Programmable
(20 minimum), Canned,
Clonable & Defeatable
Yes
Yes
Yes
Yes
AC Only/Cold Chassis
Service/Limited Warranty
Replacement Parts/CRT/Labor
Service Support Level
1 Year/ 2 Year/ 1 Year
Module Level
Ghost Channels Labels (Defeatable)
Channel/Time Display – OSD
Channel Labels
Independent from Rear
A/V In/Audio source
Select on CamPort
Video/Defeatable
Defeatable, Audio-Sensing
Silver
Yes
Yes
6
Yes
With Stand-by indicator
Audio
Mono/Stereo/MTS/SAP
SEQ Surround Sound (Front/Rear)
Volume Limiter
Bass/Treble/Balance
Total Audio Watts – 2 x 3W
Speaker Size – 6 x 13mm
Audio Preset
Special Features
User Ready Control System
Multiple Protocol Interface (MPI)
Power Management
8-Ft. 2-Wire Polarized Cord
Commercial Interface MPI w/ MPI/SPI
Short Circuit Protection for LSP Power
Fully Compatible with Pay-Per-View
System
Required Approvals
UL, C-UL, NOM, FCC (B)
www.LGcommercial.com
LG Electronics U.S.A., Inc., Commercial Products Division, 2000 Millbrook Drive, Lincolnshire, IL 60069
Contact Your LG Sales Manager Toll-Free – Hospitality: 1-800-228-1236; Channel Markets: 1-800-897-8871
Customer Service: 1-888-865-3026 Dimensions and weights are approximate. Design and specifications subject to change without notice.
