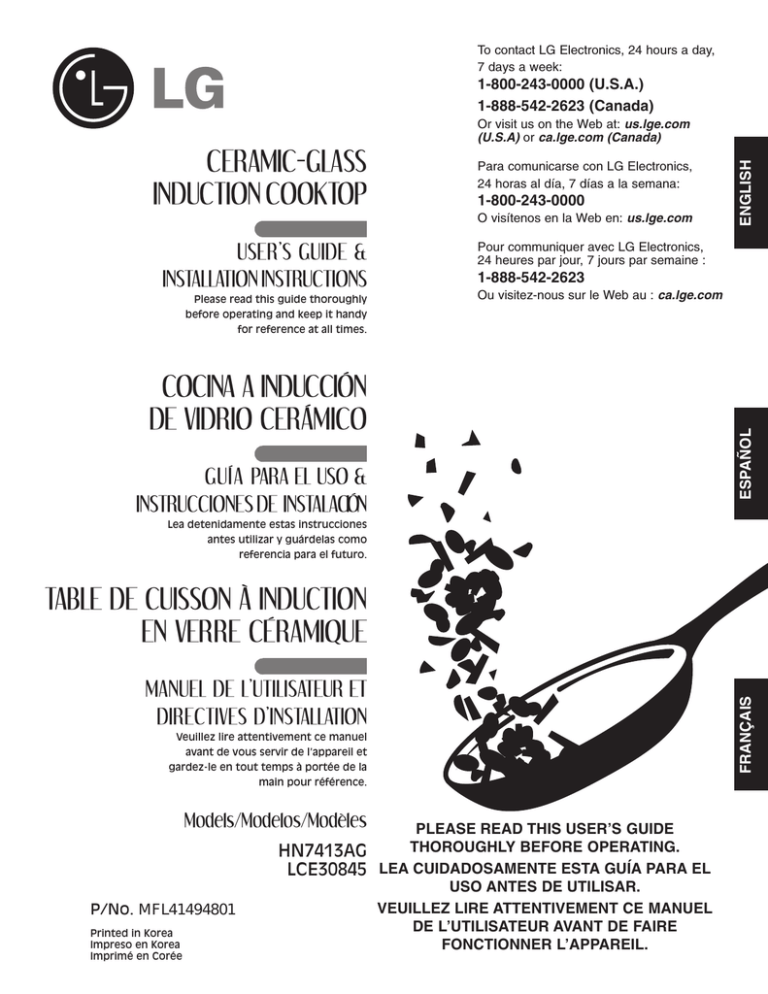

To contact LG Electronics, 24 hours a day,
7 days a week:
1-800-243-0000 (U.S.A.)
1-888-542-2623 (Canada)
USER’S GUIDE &
INSTALLATION INSTRUCTIONS
Please read this guide thoroughly
before operating and keep it handy
for reference at all times.
Para comunicarse con LG Electronics,
24 horas al día, 7 días a la semana:
1-800-243-0000
O visítenos en la Web en: us.lge.com
Pour communiquer avec LG Electronics,
24 heures par jour, 7 jours par semaine :
1-888-542-2623
Ou visitez-nous sur le Web au : ca.lge.com
COCINA A INDUCCIÓN
DE VIDRIO CERÁMICO
GUÍA PARA EL USO &
INSTRUCCIONES DE INSTALACIÓN
ESPAÑOL
CERAMIC-GLASS
INDUCTION COOKTOP
ENGLISH
Or visit us on the Web at: us.lge.com
(U.S.A) or ca.lge.com (Canada)
Lea detenidamente estas instrucciones
antes utilizar y guárdelas como
referencia para el futuro.
MANUEL DE L’UTILISATEUR ET
DIRECTIVES D’INSTALLATION
Veuillez lire attentivement ce manuel
avant de vous servir de l’appareil et
gardez-le en tout temps à portée de la
main pour référence.
Models/Modelos/Modèles
P/No. MFL41494801
Printed in Korea
Impreso en Korea
Imprimé en Corée
PLEASE READ THIS USER’S GUIDE
THOROUGHLY
BEFORE OPERATING.
HN7413AG
LCE30845 LEA CUIDADOSAMENTE ESTA GUÍA PARA EL
USO ANTES DE UTILISAR.
VEUILLEZ LIRE ATTENTIVEMENT CE MANUEL
DE L’UTILISATEUR AVANT DE FAIRE
FONCTIONNER L’APPAREIL.
FRANÇAIS
TABLE DE CUISSON À INDUCTION
EN VERRE CÉRAMIQUE
I N T RO D U C T I O N
IMPORTANT SAFETY INFORMATION
Important Notice: Radio Interference. . . . . . . . . . . . . 3
Important Safety Precautions . . . . . . . . . . . . . . . . 4–8
INTRODUCTION TO INDUCTION COOKING
THANK YOU!
Induction Cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Selecting Cookware . . . . . . . . . . . . . . . . . . . . . . . 9–11
Congratulations on your purchase
PARTS AND FEATURES
and welcome to the LG family.
Parts and Features of Your Cooktop . . . . . . . . . . . . 12
Touch Control Features . . . . . . . . . . . . . . . . . . . . . . 13
OPERATING INSTRUCTIONS
Before Using the Cooktop . . . . . . . . . . . . . . . . . . . . 14
Setting the Controls . . . . . . . . . . . . . . . . . . . . . . 14–16
Using the Bridge Cooking Zones. . . . . . . . . . . . . . . 17
Using the Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Using Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Other Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
CARE AND CLEANING
Cleaning the Cooktop . . . . . . . . . . . . . . . . . . . . . . . 19
INSTALLATION INSTRUCTIONS
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Unpacking the Cooktop . . . . . . . . . . . . . . . . . . . . . . 20
Technical Specifications. . . . . . . . . . . . . . . . . . . . . . 20
Preparing the Installation Location . . . . . . . . . . . . . 21
Dimensions and Clearances . . . . . . . . . . . . . . . . . . 22
Electrical Connections . . . . . . . . . . . . . . . . . . . . 23–25
Cooktop Installaton . . . . . . . . . . . . . . . . . . . . . . 25, 26
Final Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Your new LG Induction Cooktop
combines precision cooking
features with simple operation
and stylish design. By following
the operating and care instructions
in this manual, your cooktop will
provide you with many years of
reliable service.
TROUBLESHOOTING
Before Calling for Service. . . . . . . . . . . . . . . . . 27, 28
WARRANTY
Warranty for customers in the U.S.A.. . . . . . . . . . . 29
Warranty for customers in Canada . . . . . . . . . . . . . 30
Product Registration Information
Model: __________________________________
Serial Number: __________________________
2
Date of Purchase: ________________________
I M P O RTA N T S A F E T Y I N F O R M AT I O N
WARNING
For your safety, the information in this manual must be
followed to minimize the risk of fire, electric shock, or to prevent property damage,
personal injury, or death.
IMPORTANT NOTICE: RADIO INTERFERENCE
This unit has been tested and found to comply with
the limits for a class B digital device, pursuant to
Part 18 of the FCC rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This unit generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However there is no guarantee that interference
will not occur in a particular installation. If this unit
does cause harmful interference to radio or
television reception, which can be determined by
turning the unit off and on, the user is encouraged
to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the radio and/or television
receiving antennae.
• Increase the distance between the cooktop unit
and radio or television receiver.
• Connect the cooktop unit into an outlet or a
circuit different from that to which the radio or
television receiver is connected.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of
California to publish a list of substances known
to the state to cause birth defects or other
reproductive harm and requires businesses to
warn customers of potential exposure to such
substances.
3
ENGLISH
READ ALL INSTRUCTIONS BEFORE USE
I M P O RTA N T S A F E T Y I N F O R M AT I O N
READ ALL INSTRUCTIONS BEFORE USE
SAFETY PRECAUTIONS
• Proper Installation: Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National
Electrical Code ANSI/NFPA No. 70, latest
edition in the United States, and all local code
requirements. Install only per installation
instructions.
• Do not attempt to repair or replace any
part of your cooktop unless it is specifically
recommended in this manual. All other service
should be referred to a qualified technician.
• Remove all tape and packaging wrap before
using the appliance. Destroy the carton and
plastic bags after unpacking the appliance.
Never allow children to play with packaging
material.
• The safety aspects of this appliance comply
with accepted technical standards.
• Know how to disconnect the electrical
power to the appliance at the circuit
breaker or fuse box in case of an
emergency. Mark the breaker or fuse for ease
of identification and swift action if necessary.
• Do not repair or replace any part of the
appliance. All servicing should be done only
by a qualified technician to avoid the risk of
personal injury and damage to the appliance.
• Never modify or alter the construction of an
appliance such as removal of panels, wire
covers or any other permanent part of the
product.
• Storage on appliance: Flammable materials
should not be stored near or on the
cooking surface. This includes paper, plastic
and cloth items, such as cookbooks,
plasticware and towels, as well as flammable
liquids. Do not store explosives, such as
aerosol cans, on or near the appliance.
Flammable materials may explode and result
in fire or property damage.
• Do not leave children alone. Children
should not be left alone or unattended in
the area where an appliance is in use. They
should never be allowed to sit or stand on any
part of the appliance.
4
• Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
CAUTION
Items of interest to children should not be
stored in cabinets above a cooktop or on the
backsplash of a cooktop—children climbing
on the cooktop to reach items could be
seriously injured.
WARNING
Never use your appliance for warming or
heating a room.
WARNING
Persons with a pacemaker or similar
medical device should exercise caution
using or standing near an induction
unit while it is in operation, as the
electromagnetic field may affect the working
of the pacemaker or similar medical device.
It would be advisable to consult your doctor
or the pacemaker or similar medical device
manufacturer about your particular situation.
CAUTION
DO NOT touch Cooking Zones or areas
near these surfaces. Cooking Zones may be
hot from residual heat even though they are
dark in color. Areas near the Cooking Zones
may become hot enough to cause burns.
During and after use, do not touch or let
clothing or other flammable materials touch
these areas until they have had sufficient
time to cool.
I M P O RTA N T S A F E T Y I N F O R M AT I O N
SAFETY PRECAUTIONS (cont.)
• Wear proper apparel. Loose-fitting or
hanging garments should never be worn
while using the appliance. Do not let clothing
or other flammable materials contact hot
surfaces.
• Do not use water or flour on grease fires.
Smother the fire with a pan lid, or use baking
soda, a dry chemical or foam-type
extinguisher.
• When heating fat or grease, watch it
closely. Fat or grease may catch fire if
allowed to become too hot.
• Use only dry pot holders. Moist or damp pot
holders on hot surfaces may result in burns
from steam. Do not let the pot holders touch
hot surface units. Do not use a towel or other
bulky cloth instead of a pot holder.
• Do not heat unopened food containers.
Buildup of pressure may cause the container
to burst and result in injury.
ELECTRICAL SAFETY
WARNING
• If the surface is cracked, switch off the
appliance to avoid the possibility of
electric shock. Do not reuse your
COOKTOP until the glass surface has
been changed.
• When using the COOKTOP, never use
aluminum foil, products wrapped in
aluminum foil, or deep-frozen food in
aluminum cookware.
• If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
• The installation and connection of the new
appliance must only be carried out by qualified
personnel.
• Flush-mounted appliances may only be
operated following installation in suitable
cabinets and workplaces which conform to the
relevant standards. This ensures sufficient
protection against electric shock as required
by certification agencies.
• If your appliance malfunctions or fractures,
switch off all cooking zones, and contact
Service Center.
CHILD SAFETY
WARNING
• This appliance is not intended for use by
young children or infirm persons unless
they have been adequately supervised by
a responsible person to ensure that they
can use the appliance safely.
• Young children should be supervised to
ensure that they do not play with the
appliance.
• Accessible parts may become hot
during use. Young children should be
kept away.
5
ENGLISH
READ ALL INSTRUCTIONS BEFORE USE
I M P O RTA N T S A F E T Y I N F O R M AT I O N
READ ALL INSTRUCTIONS BEFORE USE
SAFETY DURING USE
• This appliance may only be used for normal
cooking and frying in the home. It is not
designed for commercial or industrial purposes.
• Do not use the cooktop to heat the room.
• Take care when plugging in electric
appliances near the cooktop. Cords must not
come into contact with the hot surface. This
could cause damage to the cooktop and cable
insulation.
• Overheated fats and oils catch fire quickly.
You should supervise cooking when preparing
foods in fat or oil.
• Switch off the Cooking Zones after use.
• Always keep the control panels clean and
dry. Do not let liquids or grease remain on the
cooktop controls area. Spilled or burnt-on foods
can activate or deactivate the appliance. Clean
the controls area thoroughly to resume normal
operation of the appliance.
• Never place combustible items on the
cooktop.
• Never keep any combustible items or
aerosol cans in a drawer located under
the cooktop.
• Avoid placing metal cooking utensils on
the cooking surface areas. Metal objects
can become hot and cause burns.
• Know which touch keypad controls each
surface of the cooking zones.
• Clean the appliance regularly to keep all
parts free of grease that could catch fire.
Exhaust fan ventilation hoods and grease filters
should be kept clean. Do not allow grease to
accumulate on hood or filter. Greasy deposits
in the fan could catch fire. Refer to hood
manufacturer's instructions for cleaning.
• Use proper pan size. This appliance is
equipped with one or more Cooking Zones
of different sizes.
• Select utensils having flat bottoms large
enough to cover the Cooking Zones. The
pan detection sensors will not allow the
affected cooking zones to operate without
a pan present.
6
• Do not place any object on or near the
control keypad area in order to prevent
accidental activation of the cooktop
controls.
• Utensil handles should be turned inward
and should not extend over adjacent
cooking zones to reduce the risk of burns,
ignition of flammable materials, and spillage
due to unintentional contact with the utensil.
• Never leave prepared food on the Cooking
Zones. Boilovers cause smoking and greasy
spillovers that may ignite, or a pan that has
boiled dry may melt or become damaged.
• Protective liners: Do not use aluminum foil
to line any part of the cooktop. Only use
aluminum foil as recommended after the
cooking process, if used as a cover to be
placed over the food. Any other use of
aluminum foil may result in the risk of electric
shock, fire or short circuit.
• Glazed cooking utensils: Only certain
types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils are
suitable for rangetop service without
breaking due to the sudden change in
temperature. Check the manufacturer’s
recommendations for cooktop use.
• Ventilating hood: The ventilating hood
above your cooking surface should be
cleaned frequently, so the grease from
cooking vapors does not accumulate
on the hood or filter.
• Do not clean or operate a broken cooktop.
If cooktop should break, cleaning solutions and
spillovers may penetrate the broken cooktop
and create a risk of electric shock. Contact a
qualified technician immediately.
• Clean cooktop with caution. If a wet sponge
or cloth is used to wipe spills on a hot cooking
area, be careful to avoid a steam burn. Some
cleaners can produce harmful fumes if applied
to a hot surface.
I M P O RTA N T S A F E T Y I N F O R M AT I O N
ENGLISH
READ ALL INSTRUCTIONS BEFORE USE
SAFETY DURING USE (cont.)
• Do not place hot cookware on cold cooktop
glass. This could cause glass to break.
• Do not slide pans across the cooktop
surface. They may scratch the cooktop
surface.
• Do not let pans boil dry. This may cause
permanent damage in the form of breakage,
fusion, or marking that can affect the ceramicglass cooktop. (This type of damage is not
covered by your warranty.)
• Never leave surface units unattended at
high heat settings. Boilover causes smoking
and greasy spillovers that may ignite.
CAUTION
DO NOT pick up the supplied bridge pan
handles after cooking. They might be hot
and there is a risk of burning yourself.
SAFETY WHEN CLEANING
• Always switch off the appliance before
cleaning.
• For safety reasons, do not clean the
appliance with a steam jet or high-pressure
cleaner.
• Clean the cooktop in accordance with the
maintenance and cleaning instructions in
this manual.
• Do not use harsh abrasive cleaners or
rough metal scrapers to clean the cooktop
glass since they can scratch the surface,
which may result in shattering of the glass.
COOK MEAT AND POULTRY THOROUGHLY
Cook meat and poultry thoroughly—meat to at
least an INTERNAL temperature of 160°F and
poultry to at least an INTERNAL temperature of
180°F. Cooking to these temperatures usually
protects against foodborne illness.
7
I M P O RTA N T S A F E T Y I N F O R M AT I O N
READ ALL INSTRUCTIONS BEFORE USE
HOW TO AVOID DAMAGE TO THE APPLIANCE
• Prior to using your cooktop for the first time,
apply the recommended cooktop cleaning
creme to the ceramic surface. Buff with a
non-abrasive cloth or pad. This will make
cleaning easier when soiled from cooking.
The special cooktop cleaning cream leaves
a protective finish on the glass to help prevent
scratches and abrasions.
• Do not use the cooktop as a worksurface or
storage space.
• Please be careful at the edges when moving
pots and pans around.
• Do not have the cooking zones on with empty
pans, or with no pots or pans on them.
• Ceramic glass is very tough, and impervious
to sharp temperature changes but is not
unbreakable. It can be damaged if particularly
hard or sharp objects fall onto it.
• Be very cautious if using pots made of cast
iron, or other pots with rough edges or burrs.
Moving these can cause scratches on glass.
• If sugar or a mixture containing sugar falls onto
a hot cooking zone and melts, remove
immediately, while still hot. If left to cool down,
it may damage the surface when removed.
NOTE: There is a risk of burning yourself
when the glass scraper is used on a hot
cooking zone!
• Keep meltable objects or materials away from
the ceramic glass surface, for example, plastic
utensils, aluminum foil, or cooking wraps.
If any materials or foodstuffs melt on the
ceramic-glass surface, these should be
cleaned up immediately.
DISPOSAL OF OLD APPLIANCES
To protect the environment, it is important that
worn-out appliances are disposed of in the
correct manner.
• The appliance must not be disposed of with
household rubbish.
• You can obtain information about collection
dates or public refuse disposal sites from
your local health council or environmental
health office.
CAUTION
Before disposing of old appliances please
make them inoperable so they cannot be
a source of danger. To do this, have a
qualified person disconnect the appliance
from the house circuitry.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
8
I N T RO D U C T I O N TO I N D U C T I O N C O O K I N G
HOW INDUCTION COOKING WORKS
IMPORTANT:
An induction coil is beneath
the ceramic glass cooking
surface. This generates
magnetic fields, which act
directly on the base of the
pots and pans as
compared to methods that
first heat the ceramic glass. This means that the
base of the pan is immediately heated up,
saving time and energy.
Since the heat required for cooking is generated
directly in the base of the pan, the Cooking Zone
itself warms up only slightly. The cooktop becomes
hot from the heat from the base of the pan.
NOTE: If there is no pot or pan on the cooking
zone, there is no energy transfer (heating up).
This prevents the Cooking Zones being switched
on and becoming hot accidentally.
• Remove all tape and packaging wrap before
using the appliance. Destroy the carton and
plastic bags after unpacking the appliance.
Never allow children to play with packaging
materials.
• Electromagnetic fields can affect electronic
circuits and interfere with portable radios
and phones.
• Do not put magnetically active objects (e.g.,
credit cards, computer diskettes, cassettes) on
or near the ceramic glass surface while one or
more induction cooking zones are in use!
• Do not put any metallic objects (e.g., spoons,
pan lids) on the Cooking Zones as they can
become hot when the Cooking Zones are
in use.
SELECTING COOKWARE
The magnetic Cooking Zone sensors located below the cooktop surface require the use of cookware
made with magnetic material in order to start the heating process on any of the Cooking Zones.
When purchasing pans, look for cookware specifically labeled by the manufacturer for use with
induction cooktops.
POTS AND PANS
SUITABILITY TEST:
• In principle, all pots and pans with magnetic
bases are suitable. These include steel, steelenamel, as well as cast-iron pots and pans.
• High grade steel pans with a mixed metal base
(sandwich base, e.g. Tefal® with an
aluminum/copper base) are suitable for
induction only if the manufacturer has
expressly marked them as such. In that case
they have a magnetic material in the base.
• If you wish to use a special type of pan (e.g., a
pressure cooker, simmering pan, wok), please
follow the manufacturer’s instructions and do
not use a very thin pan.
NOTE: Some cookware can produce noises
when used on induction cooking zones. This is
not a fault in the cooktop, and its function will not
be impaired in any way as a result.
If you are not sure if a pot or pan is suitable for
use with your induction cooktop, you can find out
with a few simple tests:
• Place a pot filled with a little water (1/8″–1/4″)
on the Cooking Zone. Set the Cooking Zone to
full power (power level 9).
CAUTION
The pan base of suitable kitchenware
heats up within a few seconds! Water
should boil rapidly.
• You can also check
cookware suitability
with a magnet. If the
magnet remains fixed to
the base of the pan, the
pan is suitable for
induction cooking.
9
ENGLISH
INDUCTION COOKING
I N T RO D U C T I O N TO I N D U C T I O N C O O K I N G
SELECTING COOKWARE
10
(continued)
AVOIDING SCRATCHES
USE FLAT-BOTTOMED COOKWARE
It is recommended to always use heavier gauge
stainless steel cookware on your induction
cooktop surface. This will help reduce the
possibility of developing scratches on the
ceramic surface. Low-quality cookware can
scratch the cooktop surface.
Cookware should always be lifted over the
ceramic cooktop surface to prevent scratching.
Sliding any type of cookware over the ceramic
cooktop can affect the overall appearance of the
cooktop. Over time, sliding ANY type of cookware
over the ceramic cooktop may alter the overall
appearance of the cooktop. Eventually, the
buildup of scratches can make cleaning the
surface difficult and degrade the overall
appearance of the cooktop.
Scratches can also result from grains of sand
(e.g., after washing vegetables) which are
dragged with the pot across the cooking surface.
Cookware must fully contact the surface of the
cooking element. Use flat-bottomed pans sized to
fit the cooking element and
amount of food being
prepared. Check for
flatness by rotating a ruler
across the bottom of the
cookware.
FOR BEST RESULTS:
TIPS FOR SAVING ENERGY:
Always follow the recommendations for proper
cookware type and size. In addition:
• Do not use dirty pans with grease buildup.
Always use pans that are easy to clean after
cooking, and make sure that the bottoms of the
pans are clean and dry.
• When cooking with large amounts of liquid, use
large pots so that nothing can boil over.
• Do not let pans boil dry. This may cause
permanent damage in the form of breakage,
fusion, or marring that can affect the ceramic
cooktop. (This type of damage is not covered
by your warranty.)
• Match the pan size and Cooking Zone to the
amount of food being prepared.
• Always position pots and pans before you
switch on the Cooking Zone.
• Dirty cooking zones and cookware use
more electricity.
• Whenever possible, always have the lid firmly
placed on the pots and pans so that they are
completely covered.
I N T RO D U C T I O N TO I N D U C T I O N C O O K I N G
Minimum pan size =
71⁄4″ (180 mm)
SELECTING THE PROPER PAN SIZE
• There are 4 Cooking Zones on the
induction cooktop. Each element requires a
minimum pan size to be used effectively.
The inner ring of each cooking zone is a
guide to correctly match the minimum pan
size. The bottom of the pan must fully
cover the inner ring for proper cooking
to occur.
• The thicker outer ring at each Cooking
Zone is helpful to determine the pan
MAXIMUM size. After centering the
cookware on the Cooking Zone, make sure
the cookware does not extend more than
1/2″ beyond the thicker line on the Cooking
Zone. The pan must make FULL contact
on the glass surface without the bottom of
the pan touching the metal cooktop trim.
Minimum pan size =
5″ (125 mm)
Minimum
pan size =
53⁄4″ (145 mm)
Only use the supplied pan on
the bridge element.
If a pan made of the correct material is centered
properly on any of the active Cooking Zones but is
TOO SMALL, the affected Cooking Zone LED will
blink and the pan will not heat.
COOKWARE SELECTION AND PLACEMENT
It is important that the proper cookware be used and placed correctly on the cooktop. ANY one of the
incorrect conditions shown below may be detected by the sensors located below the ceramic
cooktop surface. If this happens, one or more of the Cooking Zones will not heat, and an F will
appear in the affected Cooking Zone display. Correct the problem before attempting to use the
cooktop.
CORRECT
Cookware centered
correctly on Cooking
Zone surface.
INCORRECT
Flat pan bottom &
straight sides.
Pan rests completely
on the cooktop
surface.
Pan size meets or
exceeds the
recommended
minimum size for
the Cooking Zone.
Pan is properly
balanced.
Cookware not
Curved or warped
centered on Cooking pan bottoms or
Zone surface.
sides.
Pan does not meet
the minimum size
required for the
Cooking Zone used.
Pan bottom rests on Heavy handle
cooktop trim or does tilts pan.
not rest completely
on the cooktop
surface.
11
ENGLISH
SELECTING COOKWARE
PA RT S A N D F E AT U R E S
PARTS AND FEATURES OF YOUR COOKTOP
Throughout this manual, features and appearance may vary from your model.
2400W (Normal)
3300W (Boost)
1400W (Normal)
1800W (Boost)
1800W (Normal)
2400W (Boost)
Electronic touch controls
Ceramic Cooktop: LG’s new induction cooktop
features a ceramic cooktop surface that remains
cooler than conventional ceramic cooktops,
regardless of whether it is ON or OFF.
CAUTION
Burn Hazard: The Cooking Zones may
appear cool when turned ON and after
they have been turned OFF. The ceramic
surface may be HOT from residual heat
transferred from cookware.
Magnetic Detector: The coil sensor
automatically detects suitable cookware and
prevents accidental activation.
Pan Size Detection: The pan recognition sensor
automatically detects and adapts the Cooking
Zones to the pan size being used.
Improved Efficiency: Induction cooking heats
faster while using less energy. Induction cooking
brings liquids to a boil quickly yet allows even,
steady simmering.
12
Induction Cooking Zones: Induction Cooking
Zones under the ceramic cooktop heat the base
of the pan immediately without heating the
ceramic-glass cooktop first. The two mediumsized zones can be used together for larger
oblong pans.
Touch Controls: Easy-to-use touch controls
provide precise operation.
Easy Cleaning: The ceramic-glass cooking
surface and touch control make for easy cleanup and eliminate crevices and gaps where
grease can accumulate.
Control and Function Displays: Digital displays
show current settings and warn you of hot
surfaces from any residual heat of the
corresponding cooking zone.
Safety Shutoff: All Cooking Zones feature a
safety shut off that turns off the Cooking Zone if
ON/OFF is pressed but no power level is
selected within 10 seconds.
PA RT S A N D F E AT U R E S
ENGLISH
TOUCH CONTROL FEATURES
2
1
6
6
1 BRIDGE: Activates the two left Cooking Zones
together as a single large Cooking Zone.
For bridge operation, touch this pad to activate
or
and adjust the power level with the
pads for either left Cooking Zone.
2 TIMER: When activated, the time remaining is
shown in the display. Use the
adjust the timer.
or
pads to
3 CHILD LOCK: Press and hold for 3 seconds to
activate and deactivate the child lockout function.
3
4
5
6 COOKING ZONE CONTROLS: Each Cooking
Zone features its own control, and can be
activated individually.
The ON/OFF pad activates the desired
Cooking Zone.
Use the
or
pads for the active
Cooking Zone to adjust the power level
to
from
to
and
(Boost).
The display in the Cooking Zone control will
show the power level:
or
toto
WARM: This pad automatically lowers the last
4 selected active element to the lowest setting.
POWER: Press the POWER pad to turn the
5 entire cooktop ON and OFF. When it is ON, the
Hot Surface Indicator: After use, an
will
appear in the Cooking Zone power level display
until the cooking surface has cooled down.
cooktop is in standby mode until a Cooking Zone
is activated.
13
O P E R AT I N G I N S T RU C T I O N S
BEFORE USING THE COOKTOP
Before using the cooktop for the first time, clean
it thoroughly with the included cleaner or ceramic
cooktop cleaner according to the Care and
Cleaning instructions in this guide. This will
remove any help protect the ceramic surface
and make future cleanup easier.
CAUTION
Never use scrub pads or abrasive cleaners.
They can cause permanent damage to the
cooktop surface.
SETTING THE CONTROLS
To operate the touch control pads, touch the pad
firmly with the flat part of your fingertip.
FIRST OPERATION
The first time that power is supplied to the
cooktop,
will flash in the display for each
cooking zone for 60 seconds or until the
POWER pad is touched for approximately
2 seconds.
NOTE:
will also flash when power is restored
after a power outage.
ACTIVATING THE COOKTOP
To turn on the cooktop, touch the
POWER pad for approximately
2 seconds. The indicator above
the pad will light.
SELECTING THE COOKING ZONE
To select the desired Cooking Zone,
press the ON/OFF pad. The display for
the selected Cooking Zone will show
and and an indicator will light to indicate
that the Cooking Zone is on but no
power level is set.
NOTE: Once the Cooking Zone has been
selected with the ON/OFF pad, the power level
must be selected within 5 seconds with the
or
pad. Otherwise, the Cooking Zone
will turn off for safety reasons.
14
NOTE: After turning on the cooktop with
the POWER pad, you must select one of
the Cooking Zones within 20 seconds using
the Cooking Zone ON/OFF pad(s). If no
selection is made, the cooktop will turn off
for safety reasons.
O P E R AT I N G I N S T RU C T I O N S
ENGLISH
SETTING THE CONTROLS
SETTING THE POWER LEVEL
The power level for the selected Cooking Zone
to
can be set from
to
and
(Boost).
To adjust the power level:
or
pad for the selected
1 Touch the
Cooking Zone.
Touching
will set the power level to
.
Touching
will set the power level to
.
Touch the
or
pad of the selected
Cooking Zone to increase or decrease the
power level.
If power level
is selected, the Cooking
Zone will turn off after 5 seconds.
2 For faster power level adjustments, touch
and hold the
or
pads until the
desired setting is reached.
NOTE: Normal power
settings range in 1/2 step
increments for power
levels from 2 to 6 to
allow precision cooking.
A dot will appear next to
the number to indicate a
1/2 power level step.
NOTE:
• If the cookware or pan is moved from the
center of any active Cooking Zone for any
reason, a sensor will detect this and the
Cooking Zone will no longer heat. The display
for that Cooking Zone will flash the last power
level setting for the Cooking Zone.
• The Cooking Zone will remember the power
level setting for up to 90 seconds before the
Cooking Zone will automatically shut off.
WARNING
Your cooktop has a residual heat indicator
for each Cooking Zone. This indicator will warn
that this area has been used and is still giving
off enough heat to cause burns.
Avoid touching the burner when this
indicator is shown. Although the cooktop
is OFF, the
will stay lit until the
cooktop has cooled down.
3 If the Cooking Zone
or
pads are held
for more 10 seconds, the timer display will
show the error message
. To clear this
error message, press the ON/OFF pad for
the Cooking Zone you were setting. This
message does NOT relate to the timer pad.
To turn off the cooking zone:
1 Once cooking is complete, touch the
ON/OFF pad to turn the cooking zone OFF.
2 The corresponding cooking zone display witll
turn off.
3 If the POWER pad is touched instead of
ON/OFF, the entire cooktop will turn off.
15
O P E R AT I N G I N S T RU C T I O N S
SETTING THE CONTROLS (cont.)
POWER BOOST
WARM
Boost is the highest power level, designed for
quickly heating or boiling larger quantities. Boost
will operate for a maximum of 12 minutes. After
12 minutes, it will automatically revert to power
level 9.
ACTIVATING POWER BOOST
1 Turn on the desired Cooking Zone with the
ON/OFF pad for that Cooking Zone.
2 Touch the
pad and
3 Touch the
pad again and
will be displayed.
The cooktop features a WARM setting that
operates the last Cooking Zone used at the
LOW power level.
To activate:
Touch the WARM pad and the last Cooking Zone
used will be set to the LOW setting.
will
appear in the display.
To deactivate:
To turn off the WARM function and return to
normal power levels, touch the
pad and
will be displayed.
to
will be
displayed.
NOTE: The power boost function will be
activated for a maximum of 12 minutes. At
the end of the power boost cycle, the
Cooking Zone will automatically default to
the back to the power level
. The power
boost function CANNOT be used with the
front and rear Cooking Zones on the same
side at the same time.
4 To deactivate the power boost function
and revert to normal power levels, touch
the
pad.
NOTE: To protect the internal electronic
components of the cooktop, the cooktop
may automatically deactivate the power
boost function and return to a normal
power level before 12 minutes have passed.
This is normal.
NOTE: The electronic processes involved
with induction cooking create some unusual
background noises. These noises are normal
and part of the induction cooking process.
Please note that these noises are more
noticeable while cooking with power boost.
POWER LEVEL GUIDE
Setting
Function
Used for
9 or Boost
Fast heating
Bringing liquids to a boil.
7–9
Heaving browning, Browning meats, heating
deep fat frying
oil for deep-fat frying,
sautéing, maintaining a
fast boil for large amounts
of liquids.
6–7
Roasting, frying
Frying meats, chops,
pancakes, sausages, eggs.
4–5
Boiling, general
cooking
Cooking larger quantities,
soups and stews, steaming
potatoes, cooking meat
stock or bouillon.
3–4
Steaming
Steaming vegetables,
braising meats.
2–3
Simmering
Simmering rice or milkbased dishes, steaming
smaller quantities of
potatoes and vegetables,
heating ready-to-serve
meals.
1–2, L
Melting
Fluffy omelettes, keeping
dishes warm, melting
butter or chocolate.
0
OFF
Off setting.
NOTE: These settings are recommended guidelines for
cooking. You may need to adjust the power level for the type
of food and pan.
16
O P E R AT I N G I N S T RU C T I O N S
ENGLISH
USING THE BRIDGE COOKING ZONES
BRIDGE COOKING ZONES
The two left Cooking Zones can be used
together as a single Cooking Zone using the
Bridge function. This allows you to cook with
larger, oblong pans.
NOTE: When using the supplied bridge pan, it
is important to rub it with oil to prevent burning
and sticking.
ACTIVATING THE BRIDGE
COOKING ZONE
Touch the BRIDGE pad. The indicator
above the pad will light.
Touch the
or
pad for either left
Cooking Zone to adjust the power level for
both Cooking Zones.
NOTE:
• Use the supplied bridge pan ONLY on the
bridge cooking zone.
• To purchase a replacement or additional bridge pan, call 1-800-243-0000 (U.S.A)
or 1-800-542-2623 (Canada) and choose the appropriate prompt from the menu.
Or, visit our Web site at us.lgservice.com (U.S.A) or ca.lgservice.com (Canada).
USING THE TIMER
The timer feature may be helpful if a recipe calls
for cooking for a set time. The timer can be set
from 1 to 99 minutes. Once set, the digital display
between the timer
or
pads will begin to
count down the remaining time in minutes.
NOTE: The timer function is a minute timer only.
It does NOT turn the cooktop ON or OFF.
SETTING THE TIMER
CANCELING THE TIMER
1 Touch the
or
pads under the word
TIMER. Each touch will increase or decrease
the time by one minute, from 1 to 99
minutes. You may also touch and hold
or
to scroll up or down. The timer
display will flash.
1 To cancel the timer, touch the TIMER
and
pads at the same time, OR
Touch and hold the
or
appears in the display.
pad until
2 The timer display will turn off.
2 Once the desired time is set, the display will
stop flashing and the timer will start counting
down after no pad has been touched for 5
seconds. Once the timer reaches
, a long
beep will sound to indicate the time is up.
17
O P E R AT I N G I N S T RU C T I O N S
USING CHILD LOCK
You can lock the entire cooktop at any time when
it is not in use. Locking the cooktop will prevent
Cooking Zones from being turned on
accidentally.
SETTING CHILD LOCK
The cooktop must be OFF to set the
CHILD LOCK function. If it is not OFF,
touch and hold the POWER pad for
approximately 2 seconds. The indicator
above the POWER pad will turn OFF.
CANCELING CHILD LOCK
To turn off CHILD LOCK, touch and
hold the CHILD LOCK pad for 3
seconds. The indicator light above the
pad will go off and the cooktop can now
be used normally.
Touch and hold the CHILD LOCK pad for
3 seconds. The indicator light above the
CHILD LOCK pad will turn on to indicate
that the cooktop is locked.
OTHER FUNCTIONS
POWER SHARING
Your cooktop is equipped with four induction
Cooking Zones within two heating sections. The
right and left Cooking Zones are powered by two
independent induction inverters—one inverter for
each of the two heating sections. Two Cooking
Zones in a heating section share the power of
one inverter. This is called power sharing.
For example, if you are cooking on both right
Cooking Zones, the last power level set will be
maintained, while the first Cooking Zone may
experience a slight reduction in the power level.
POWER SHARING TIPS:
Remember to set the power level for the food
item you wish to keep constant last. When using
two Cooking Zones, you can maintain a constant
power level for two pans on separate heating
sections. Place one pan on one of the Cooking
Zones of the left heating section and the other
pan on one of the Cooking Zones of the right
heating section.
Left heating
section
18
Right heating
section
AUTOMATIC SHUTOFF
AUTOMATIC POWER LEVEL CONTROL
If a Cooking Zone is in constant use for more
than 17 hours and the control setting is not
changed, the Cooking Zone will shut off
automatically.
The power level displayed may be different from
the actual power level at the high temperature
range. To prevent the cooktop from overheating,
the power level is controlled automatically.
CARE AND CLEANING
General cleaning for induction ceramic glass
cooking surfaces is considerably easier than
for cooking surfaces with radiant heating.
NOTE:
To prevent accidental activation of the controls, it
is recommended that you set the CHILD LOCK
feature before cleaning.
REMOVING HEAVY SOIL
To remove food that has boiled over or stubborn
spills, use a glass scraper.
1 Hold the glass scraper at an angle of about
45° to the ceramic-glass surface.
2 Remove soiling by sliding the blade across
the area.
IMPORTANT:
• Cleaning agents must not come in contact with
the hot ceramic-glass surface. All cleaning
agents must be rinsed off thoroughly with
clean water.
• Do not use any aggressive cleaners such as
grill or oven sprays, coarse scouring cleansers,
or abrasive pan cleaners.
• Clean the ceramic-glass surface after each
use when it is warm to the touch or cold.
This will prevent spills from becoming burnt on.
Remove water marks, grease and discoloration
with a glass scraper and ceramic-glass
cleaner.
NOTE:
You can obtain glass scrapers and ceramicglass cleaners from your local hardware store.
GENERAL CLEANING
1 When it is cool, wipe the ceramic-glass
surface with a damp cloth and a small
amount of ceramic glass cleaner.
2 Wipe dry with a clean cloth.
3 Once a week, thoroughly clean the entire
ceramic-glass cooking surface with a
commercially available ceramic-glass
cleaner.
3 Use a ceramic glass cleaner as described in
GENERAL CLEANING.
PROBLEM SOILS
1 Remove sugar, melted plastic, aluminum foil,
or other meltable materials with a glass
scraper immediately and while still hot.
Failure to do so can cause permanent
damage to the cooktop surface. If the
Cooking Zone has already cooled down,
warm it up again.
IMPORTANT: There is a risk of burning yourself
when the glass scraper is used on a hot Cooking
Zone. Use care and wear an oven mitt.
2 Then clean the cooktop normally when it has
cooled down.
NOTE: Scratches or dark marks on the ceramicglass surface caused by a pan base with sharp
edges cannot be removed. However, they do not
impair the function of the cooktop.
4 Then, wipe the ceramic-glass surface
using a clean, soft cloth dampened with
clean water, and polish dry with a clean
lint-free cloth.
19
ENGLISH
CLEANING THE COOKTOP
I N S TA L L AT I O N I N S T RU C T I O N S
INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
IMPORTANT: SAVE THESE INSTRUCTIONS FOR LOCAL ELECTRICAL
INSPECTOR’S USE.
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
NOTES TO INSTALLER:
• Read all instructions contained in these
installation instructions before installing the
cooktop.
• Remove all packing material before connecting
the electrical supply to the cooktop.
• Observe all governing codes and ordinances.
• Only certain cooktop models may be installed
over certain built-in electric oven models.
• Be sure to leave these instructions with the
consumer.
NOTE TO CONSUMER:
Keep this User’s Guide and Installation
Instructions for future reference.
NOTE: This appliance must be properly
grounded.
Damage caused by failure to follow these
instructions is not covered by the cooktop
warranty.
UNPACKING THE COOKTOP
1 Unpack and visually inspect the cooktop for
any damage or missing components.
2 Be sure the bottle of cleaner and conditioner
packed in the literature bag is left where the
user can find it easily. It is important that the
ceramic-glass cooktop be pretreated before
use. See CARE AND CLEANING.
TECHNICAL SPECIFICATIONS
COOKTOP DIMENSIONS
COUNTERTOP CUTOUT DIMENSIONS
307⁄8″ (783 mm)
211⁄2″ (546 mm)
2 3⁄16″ (56 mm)
Width
Depth
Height
293⁄8″ (783 mm)
201⁄4″ (546 mm)
ELECTRICAL SPECIFICATIONS
COOKING ZONES
Position
Diameter
Power*
Front Left
Rear Left
Front Right
Rear Right
7″ (180 mm)
7″ (180 mm)
6″ (150 mm)
101/4″ (260 mm)
1800W (2400W Boost)
1800W (2400W Boost)
1400W (1800W Boost)
2400W (3300W Boost)
* The rated power consumption may vary according to pan size and type.
20
Width
Depth
Connection voltage:
240/208 VAC, 60 Hz.
Maximum connected power load:
7.4 kW/6.8 kW
I N S TA L L AT I O N I N S T RU C T I O N S
ENGLISH
PREPARING THE INSTALLATION LOCATION
IMPORTANT INSTALLATION INFORMATION
• All electric cooktops run off a single phase,
three-wire or four-wire cable, 240/208 volt,
60 hertz, AC-only electrical supply with ground.
• Minimum distance between cooktop and
overhead cabinetry is 30″ (76.2 cm).
I
J
** Do not obstruct these areas!
30” Min.
(76.2 cm)
ke**
aust**
air inta
h
s
e
r
Air exh
F
aust**
Air exh
B
A
C
D
E
H
K
L
G
M
Unit
A
B
Inch 3013/16 211/2
mm
783
546
F
C
D
E
23/16
2813/16
56
732.2
F
G
4" X 8" (10.2 cm x 20.3 cm)
opening to route armored
cable if panel is present.
H
I
Min
Max
Min
Max
195/8
293/8
291/2
201/4
203/8
13/16
15/16
498
746
749
515
518
20
33
J
K
L
M
43/16
11/2
24
106
38
610
Min
Max
Min
24
30
610 762
All dimensions are stated in inches and millimeters (mm).
Allow 2″ (5 cm) space below the armored cable opening to clear the electric cable and allow
space for installation of the junction box on the wall at the back of the cooktop.
21
I N S TA L L AT I O N I N S T RU C T I O N S
DIMENSIONS AND CLEARANCES
Overhead cabinet should not exceed a maximum
depth of 13” (33 cm).
I
Min. recommended
distance between rear
edge of cutout and
nearest combustible
surface.
30” (76.2 cm) min. clearance
between the top of the
cooktop and the bottom of
an unprotected wood or
metal cabinet.
J
L
18"
( 45.7 cm)
10"
( 25.4 cm)
F
K
24” (61 cm) min. when bottom of
wood or metal cabinet is protected by
not less than 1/8” flame-retardant
millboard covered with no less than
No. 28 MGS sheet steel, 0.015” (0.4
mm) stainless steel, 0.024” (0.6 mm)
aluminum, or 0.020” (0.5 mm) copper.
G
H
M
12"
(30.5 cm)
24"
(61 cm)
Min. from edge of
cooktop to nearest
combustible wall
(either side of unit).
Empty space is needed underneath
the cooktop for installation purposes.
Approximate location of junction box.
Model
30″
CAUTION
To eliminate the risk of burns or fire by
reaching over heated surfaces, cabinet
storage space located above the cooktop
should be avoided. If cabinet storage is
provided, risk can be reduced by installing
a range hood that projects horizontally a
minimum of 5″ (12.7 cm) beyond the face
of the cabinets.
22
H
L
71/2″ (191mm)
11/2″ (38mm)
I N S TA L L AT I O N I N S T RU C T I O N S
IMPORTANT SAFETY INSTRUCTIONS
PROVIDING THE
ELECTRICAL CONNECTION
• Be sure your cooktop is installed and grounded
properly by a qualified installer or service
technician.
• This cooktop must be electrically grounded in
accordance with local codes or, in their
absence, with the National Electrical Code
ANSI/NFPA No. 70, latest edition in the
United States.
Install the junction box under the cabinet and run
120/240 or 120/208 volt, AC wire from the main
circuit panel.
NOTE: DO NOT connect the wire to the circuit
panel at this time.
WARNING
The electrical power to the cooktop must be
shut off while line connections are being
made. Failure to do so could result in
serious injury or death.
ELECTRICAL REQUIREMENTS
Observe all governing codes and local
ordinances.
1 A 3-wire or 4-wire single-phase 120/240 or
120/208 volt, 60 Hz AC-only electrical supply
is required on a separate circuit fused on
both sides of the line (time-delay fuse or
circuit breaker is recommended). DO NOT
fuse neutral. The fuse size must not exceed
the circuit rating of the appliance specified on
the nameplate.
2 This unit can consume up to 7,400W at
240 VAC. A 40 Amp circuit breaker with wire
gauge #8 AWG must be used.
NOTE: Wire sizes and connections must
conform with the fuse size and rating of the
appliance in accordance with the National
Electrical Code ANSI/NFPA No. 70, latest
edition, and local codes and ordinances.
3 The appliance should be connected to the
fused disconnect (or circuit breaker) box
through flexible armored or nonmetallic
sheathed cable. The flexible armored cable
extending from this appliance should be
connected directly to the grounded junction
box. The junction box should be located as
shown on page 22 with as much slack as
possible remaining in the cable between the
box and the appliance, so it can be moved if
servicing is ever necessary.
4 A suitable strain relief must be provided to
attach the flexible armored cable to the
junction box.
WARNING
An extension cord must not be used with
this appliance. Such use may result in a fire,
electrical shock, or other personal injury.
23
ENGLISH
ELECTRICAL CONNECTIONS
I N S TA L L AT I O N I N S T RU C T I O N S
ELECTRICAL CONNECTIONS (cont.)
ELECTRICAL CONNECTION
Connect the flexible armored cable that extends
from the surface unit to the junction box using a
suitable strain relief at the point the armored
cable enters the junction box. Then make the
electrical connection as follows.
Electrical ground is required on this
appliance.
This appliance is manufactured with a supply
wire and a frame connected green or bare
copper grounding wire.
NOTE TO ELECTRICIAN:
The armored cable leads supplied with the
appliance are UL-listed for connection to larger
gauge household wiring. The insulation of the
leads is rated at temperatures much higher than
the temperature rating of household wiring. The
current-carrying capacity of the conductor wire
is governed by the temperature rating of the
insulation around the wire, rather than the
wire gauge alone.
WARNING
DO NOT ground to a gas supply pipe. DO
NOT connect to electrical power supply
until appliance is permanently grounded.
Connect the ground wire before turning
on the power.
WARNING
This appliance is equipped with a copper
conductor flexible cable. If connection is
made to aluminum house wiring, use only
special connectors which are approved for
joining copper and aluminum wires in
accordance with the National Electrical Code
and local codes and ordinances. Improper
connection of aluminum house wiring to
copper leads can result in a short circuit or
fire. Follow the connector manufacturer’s
recommended procedure closely.
WHERE LOCAL CODES PERMIT CONNECTING THE APPLIANCE-GROUNDING
CONDUCTOR TO THE NEUTRAL (WHITE) WIRE
Observe all governing codes and local
ordinances.
1 Disconnect the power supply.
2 At the circuit breaker box, fuse box or
junction box, connect appliance and power
supply cable wires as shown.
3-WIRE GROUNDED JUNCTION BOX
Cable from power supply
White wire
(neutral)
Red
wires
Black
wires
WARNING
You may not ground the cooktop through
the neutral (white) wire if cooktop is used
in a new branch circuit installation (1996
NEC), mobile home, recreational vehicle, or
where local codes do not permit grounding
to the neutral (white) wire. When grounding
to the neutral (white) wire is prohibited, you
must use a 4-wire power supply cable.
Failure to heed this warning may result
in electrocution or other serious
personal injury.
24
Junction box
UL-listed conduit
connector
Green wire (ground)
Cable from cooktop
I N S TA L L AT I O N I N S T RU C T I O N S
IF COOKTOP IS USED IN A NEW BRANCH CIRCUIT INSTALLATION (1996 NEC), MOBILE
HOME, RECREATIONAL VEHICLE, OR WHERE LOCAL CODES DO NOT PERMIT
GROUNDING TO THE NEUTRAL (WHITE) WIRE
Observe all governing codes and local
ordinances.
1 Disconnect the power supply.
2 At the circuit breaker box, fuse box or
junction box, connect appliance and power
supply cable wires as shown.
4-WIRE GROUNDED JUNCTION BOX
Cable from power supply
White wire
(no connection)
Ground
wire
Red
wires
Black
wires
WARNING
If connecting to a 4-wire power supply cable
electrical system, the appliance frame
connected ground wire MUST NOT be
connected to the neutral wire of the 4-wire
electrical system.
Junction box
UL-listed conduit
connector
Green wire (ground)
Cable from cooktop
COOKTOP INSTALLATION
1 Visually inspect the cooktop for damage.
Make sure all cooktop screws are tight
(see below for locations).
2 Carefully lower the cooktop into the counter-
top cutout, making sure not to trap any wires.
NOTE: Do not use caulking compound. The
cooktop must be removable, should service
be required.
Nylon spacers
Screws
WARNING
Do not remove the nylon spacers on the
edges of the cooktop. These spacers center
the cooktop in the space provided. The
cooktop must be centered to allow proper
venting and to prevent excess heat buildup
that may result in heat damage or fire.
25
ENGLISH
ELECTRICAL CONNECTIONS (cont.)
I N S TA L L AT I O N I N S T RU C T I O N S
COOKTOP INSTALLATION (cont.)
3 Install the retainer brackets to the bottom of
the cooktop; then snug the bolts against the
bottom of the countertop as shown.
Preferred
installation
NOTE: The retainer brackets MUST be
installed to meet local codes or, in their
absence, with the National Electrical Code
ANSI/NFPA No. 70, latest edition.
Alternative
installation
Retainer
brackets
Retainer
brackets
Cooktop
Countertop
Bolt
Retainer
brackets
FINAL CHECK
Perform a final operational check of the cooktop,
making sure the cooktop powers on properly and
that each Cooking Zone operates correctly. Refer
to the Operating Instructions in this guide for
details.
MODEL AND SERIAL NUMBER LOCATION
The model and serial numbers are located on a
plate on the bottom of the cooktop. Please
record them in this guide; you will need them
for warranty registration.
26
CAUTION
Do not touch cooktop glass or Cooking
Zones. They may be hot enough to
cause burns.
T RO U B L E S H O OT I N G
Before you call for service, review this list. It may save you time and expense. This list includes common
occurrences that are not the result of a defect in workmanship or materials.
Problem
Possible Causes
Solutions
Cooktop does not work
• Cooktop controls are locked.
• See USING CHILD LOCK to turn off the
CHILD LOCK feature.
• Circuit breaker has tripped or
fuse is blown.
• Reset the circuit breaker or replace the fuse.
• Power outage.
• Check house lights to confirm power outage.
• Installation wiring not complete.
• Contact the installer or dealer.
• No cookware or improper
cookware on Cooking Zone.
• Make sure that cookware is centered on the cooking
zone, and that cookware is of the proper type for
induction cooking. See SELECTING COOKWARE.
• Cookware incorrect size for
selected Cooking Zone.
• Cookware bottom must be large enough to cover
Cooking Zone completely. See SELECTING COOKWARE.
• Cookware not resting completely
on Cooking Zone.
• Cookware bottoms must be flat and centered on the
Cooking Zone, and must not rest on the cooktop triim.
See SELECTING COOKWARE.
• Incorrect Cooking Zone selected.
• Make sure the correct control is ON for the Cooking
Zone being used.
• No power to cooktop.
• See “Cooktop does not work” above.
• Cooktop internal heat sensor
has detected high temperature
inside the cooktop.
• Make sure the cooktop vents are not blocked. See
page 21 for Air Exhaust and Fresh Air Intake locations.
• Automatic shutoff has activated.
• The cooktop features an automatic shutoff feature
that turns the entire cooktop off if any Cooking Zone
has been on continuously for 17 hours.
• Liquid or object on controls area.
• The cooktop control may read liquids or objects in
the controls area as a touch, which could cause the
cooktop to shut off. Clean up spills or remove objects
and restart cooktop.
• Cookware has been removed from
the Cooking Zone.
• Place the cookware back on the Cooking Zone within
90 seconds to maintain the power level settings.
• Cookware not centered on
Cooking Zone.
• Make sure cookware is centered and resting flat on the
Cooking Zone. See SELECTING COOKWARE.
• Power Boost being used with two
Cooking Zones on the same side of
the cooktop.
• Each side of the cooktop shares an inverter for both
Cooking Zone. Power Boost cannot be used with two
Cooking Zones on the same inverter at the same time.
See POWER BOOST and POWER SHARING.
Cooktop does not heat
Cooktop turns off
while cooking
The power level for a
Cooking Zone is flashing
Power Boost does
not work
27
ENGLISH
BEFORE CALLING FOR SERVICE
T RO U B L E S H O OT I N G
BEFORE CALLING FOR SERVICE
28
Problem
Possible Causes
Solutions
appears in the
timer display
• Control pad was touched too long.
• This message will appear if any pad except the Timer
or
pads is touched for more than 10 seconds.
It will also appear if liquids or objects are spilled or left
on the controls area. To clear the error code, remove any
liquid or objects from the controls area and press the
POWER pad to reset the cooktop.
appears in the
timer display
• Supplied voltage to cooktop is
too low.
• If the voltage of the power supplied to the cooktop is too
low, it cannot operate properly and will show this error
code. This may be caused by reduced voltage being
supplied to the house circuit. If connections are
correct and the supplied voltage returns to normal,
the code will disappear.
appears in the
display and a number
appears in the timer
display
• Electronics fault error message.
• Turn the cooktop OFF; then shut off power at the fuse or
circuit breaker for about 30 seconds. Turn power back
on to the cooktop and turn the cooktop on using the
POWER pad. If the error message is still displayed, call
for service.
flashes in the
display
• Power outage or initial startup.
• When the cooktop is first turned on or after a power
outage,
will blink in the display for 90 minutes or
until the POWER pad is touched for 2 seconds.
LG ELECTRONICS, INC.
LG INDUCTION COOKTOP LIMITED WARRANTY — USA
WARRANTY PERIOD:
One year
from date of
original purchase
ENGLISH
LG Electronics Inc. will repair or replace your product, at LG’s option, if it proves to be defective in material or
workmanship under normal use, during the warranty period set forth below, effective from the date of original
consumer purchase of the product. This limited warranty is good only to the original purchaser of the product
and effective only when used in U.S.A.
WHAT IS COVERED:
Any part of the cooktop which fails due to a defect in materials or workmanship. During this
full one-year warranty, LG will also provide, free of charge, all labor and in-home service
to replace the defective part.
Five years
from date of
original purchase
A replacement glass cooktop if it should crack due to thermal shock and crack at the
rubber seal between the glass cooktop and the porcelain edge.
A replacement induction surface unit if it should fail.
During this limited additional four-year warranty, you will be responsible for any labor or
in-home service.
Please retain dealer’s dated bill of sale as evidence of the Date of Purchase for proof of warranty, and submit a copy of
the bill of sale to the service person at the time warranty service is provided.
Please call 1-800-243-0000 and choose the appropriate option to locate your nearest LG Authorized Service Center.
Or visit our Web site at http://us.lgservice.com.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY
IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE
FOR ANY CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS,
IN CONNECTION WITH THE PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY
LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS
MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace house fuses or correct
house wiring, or to replace owner-accessible light bulbs.
2. Repairs when your appliance is used in other than normal, single-family household use.
3. Pickup and delivery. Your appliance is designed to be repairable in the home.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God, or use of products not
approved by LG Corporation.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Replacement parts or repair labor costs for units operated outside the United States.
7. Any labor costs during the limited warranty period.
This warranty is extended to the original purchaser and any subsequent owner for products purchased for home use within the USA. In
Alaska, the warranty excludes the cost of shipping or service calls to your home. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state
consumer affairs or your state’s Attorney General.
TO CONTACT LG ELECTRONICS BY MAIL:
LG Customer Interactive Center
P. O. Box 240007
201 James Record Road
Huntsville, Alabama 35824
ATTN: CIC
29
LG ELECTRONICS, INC.
LG INDUCTION COOKTOP LIMITED WARRANTY — CANADA
LG Electronics Inc. will repair or replace your product, at LG’s option, if it proves to be defective in
material or workmanship under normal use, during the warranty period set forth below, effective from
the date of original consumer purchase of the product. This limited warranty is good only to the
original purchaser of the product and effective only when used in Canada.
WARRANTY PERIOD:
One year
from date of
original purchase
WHAT IS COVERED:
Any part of the cooktop which fails due to a defect in materials or
workmanship. During this full one-year warranty, LG will also provide, free
of charge, all labor and in-home service to replace the defective part.
Five years
from date of
original purchase
A replacement glass cooktop if it should crack due to thermal shock and
crack at the rubber seal between the glass cooktop and the porcelain edge.
A replacement induction surface unit if it should fail.
During this limited additional four-year warranty, you will be responsible
for any labor or in-home service.
Please retain dealer’s dated bill of sale as evidence of the Date of Purchase for proof of warranty, and
submit a copy of the bill of sale to the service person at the time warranty service is provided. This
warranty is invalid if the factory-applied serial number has been altered or removed from the product.
Please call 1-888-LG-CANADA (542-2623) and choose the appropriate option to locate your nearest
LG Authorized Service Center or to obtain product or customer service assistance. Or visit our Web site
at http://ca.lge.com. Have your product model, serial numbers and your postal code ready.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. LG WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, OR
INCIDENTAL DAMAGES OF ANY KIND, INCLUDING LOST REVENUES OR PROFITS, IN CONNECTION WITH
THE PRODUCT. SOME PROVINCES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY
LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS
OR EXCLUSIONS MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to replace
house fuses or correct house wiring, or to replace owner-accessible light bulbs.
2. Repairs when your appliance is used in other than normal, single-family household use.
3. Pickup and delivery. Your appliance is designed to be repairable in the home.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, improper installation, acts of God, or use of
products not approved by LG Corporation.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Replacement parts or repair labor costs for units operated outside the United States.
7. Any labor costs during the limited warranty period.
This warranty is extended to the original purchaser and any subsequent owner for products purchased for home use
within Canada. Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so this
exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other
rights which vary from province to province. To know what your legal rights are, consult your local or province
consumer affairs or your province’s Solicitor General.
TO CONTACT LG ELECTRONICS BY MAIL:
LG Customer Interactive Center
550, boul. Matheson Est
Mississauga (Ontario)
L4Z 4G3
30
