ENGLISH
ESPAÑOL

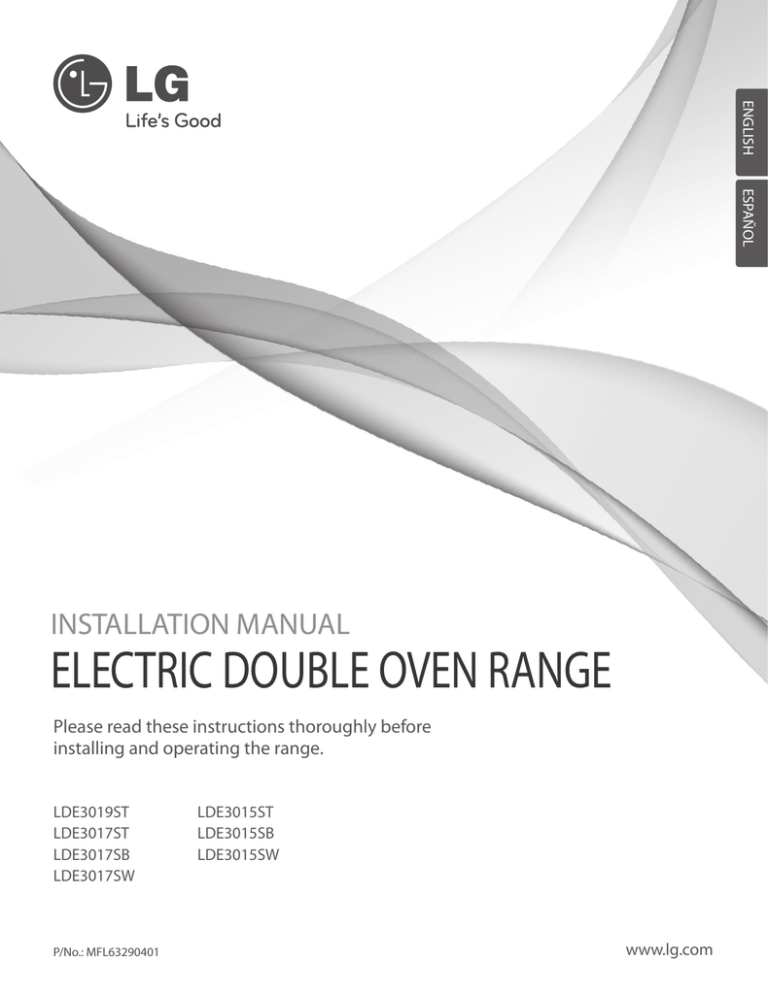

INSTALLATION MANUAL
ELECTRIC DOUBLE OVEN RANGE
Please read these instructions thoroughly before
installing and operating the range.
LDE3019ST
LDE3017ST
LDE3017SB
LDE3017SW
P/No.: MFL63290401
LDE3015ST
LDE3015SB
LDE3015SW
www.lg.com
Part 1
SAFETY
1 BEFORE YOU BEGIN
Remove all tape and packing materials before using the range.
Dispose of all plastic bags after unpacking the range. Never allow children to play with packing materials.
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your oven to prevent the riskSafety
of fire,
electric shock, personal injury,
Glasses
or damage when using the range. This guide does not cover all possible conditions that may occur. For further
Tape Measure
assistance contact your service agent or manufacturer.
Safety Glasses
This is the safety alert symbol. This symbol alerts you to potential hazards that can cause personal injury to you and
others. All safety messages will follow theTape
safety
alert symbol with either the word
Gloves“WARNING” or “CAUTION”.
Pencil
Measure
Safety Glasses
WARNING
This symbol will alert you to hazards or unsafe practices which could cause serious
TapePencil
Measure
Gloves
bodily harm or death.
CAUTION
This symbol will alert you to hazards or unsafe practices which could cause bodily
injury or property damage.
Gloves
Pencil
WARNING
• The information in this manual should be followed exactly.
- A fire or electrical shock may result causing property damage, personal injury or death.
• Any person should not step or sit on the oven door. You should install the Anti-Tip
Bracket supplied with the range.
- The range could be tipped and injury might result from spilled hot liquid, food, or the range itself.
- If the range is pulled away from the wall for cleaning, service, or any other reason, ensure that the Anti-Tip
Device is properly reengaged when the range is pushed back against the wall.
• You should use two or more people to move and install range.
(Excessive Weight Hazard)
- Failure to do so can result in back or other injury.
• You never pull or push any handles of upper& lower door to move and install range.
- Failure to do so can result in serious damage to the door of the range.
• New branch-circuit installations (1996 NEC) for mobile homes, recreational vehicles,
and installations where local codes do not allow grounding through the neutral wire
require a 4-conductor UL listed range cord or 4 wire conduit connection.
• Power supply cord and plug should not be modified. If it will not fit the outlet, have a
proper outlet Installed by a qualified electrician.
• Using an extension cord to connect the power is prohibited. The way to connect the
power cord and plug directly is strongly recommended.
• Electrical ground is required on this appliance.
• You should make sure that the power cord is not pinched by the range or heavy objects.
- Failure to do so can result in serious burns or electrical shock.
• You never remove the protection cover covering the rear of lower oven.
- Failure to do so can result in serious damage to power cord. The damage causes serious burns and electric
shock.
2
Part 1
SAFETY
• The middle (neutral or ground) wire of a 3 wire power cord or a 3 wire conduit has to be
connected to the middle post of the main terminal block. The remaining two wires of the
power cord or conduit have to be connected to the outside posts of the main terminal
connection block.
- Failure to do so can result in electrical shock, severe personal injury or death.
•O
nly a 4-conductor power-supply cord kit rated 120/240 volts, 50 amperes and marked for use
with ranges with closed-loop connectors or open-end spade lugs with upturned ends shall be
used. The middle (neutral) wire of the power cord or 4-wire conduit has to be connected to the
middle post of the main terminal block. The other two wires of the power cord or conduit have
to be connected to the outside posts of the main terminal connection block. The 4th ground
wire must be connected to the frame of the range with the ground screw.
- Failure to do so can result in electrical shock, severe personal injury or death.
CAUTION
• You should put on gloves during the installation procedure.
- Failure to do so can result in bodily injury.
• You should make sure that the wall covering, countertop and cabinets around the range
can withstand the heat (up to 194°F) generated by the range.
- Discoloration, delamination or melting may occur.
- This range has been designed to comply with the maximum allowable wood cabinet temperatures of 194°F.
• Cabinet storage space located above the surface units should be avoided.
• You should install a range hood that projects horizontally a minimum of 5 inches
beyond the bottom of the cabinets. If cabinet Storage is to be provided.
- The risk of burns or fire by reaching over the heated surface elements can be reduced.
• You should not install the range in the humid place. Splashing the range with water or
any electrolyte can result in electrical shock.
• You should not let cooking grease or flammable material accumulate in or near the
range.
- Failure to do so can result in serious burns.
3
ENGLISH
WARNING
Part 1
SAFETY
Safety Glasses
Tape Measure
PREPARE TO INSTALL THE RANGE
WARNING
• The information in this manual
should be followed exactly.
Gloves
Pencil
TOOLS NEEDED
Safety Glasses
Tape Measure
- A fire or electrical shock may result causing
property damage, personal injury or death.
Safety Glasses
Pencil
Gloves
Tape Measure
WARNING
Gloves
Pencil
• Any person should not
step or sit on the oven
door. You should install the
Anti-Tip Bracket supplied
with the range.
Safety Glasses
Tape Measure
Safety Glasses
Gloves
Tape
Measure
Pencil
- The range could be tipped and
injury might result from spilled hot
liquid, food, or the range itself.
Safety
Glasses
Gloves
Pencil
Tape Measure
- If the range is pulled away from
the wall for cleaning, service, or
any other reason, ensure that the
Anti-Tip Device is properly
reengaged when the range is
pushed back against the wall.
Gloves
Pencil
PARTS PROVIDED
Safety Glasses
Tape Measure
CAUTION
Gloves
Pencil
• You should put on gloves during
the installation procedure.
- Failure to do so can result in bodily injury.
NOTE
• Read all instructions contained in these installation
instructions before installing range.
• Remove all packing materials from the oven
compartments before connecting the electrical
supply to the range.
• Observe all governing codes and ordinances.
• B
e sure to leave these instructions with the consumer.
NOTE
Keep these instructions with your owner’s manual for
future reference.
• As when using any appliance generating heat, there
are certain safety precautions you should follow.
• Be sure your range is installed and grounded
properly by a qualified installer or service technician.
• Make sure the wall coverings around the range can
withstand the heat generated by the range.
• To eliminate the need to reach over the surface
elements, cabinet storage space above the elements
should be avoided.
(For Anti-Tip Bracket Mounted
on Concrete Floors and Walls)
PARTS NOT PROVIDED
4
R
Part 2
PREPARE TO INSTALL THE RANGE
NOTE
WARNING
•Y
ou should use two or more people to move
and install range. (Excessive Weight Hazard)
SAVE FOR THE USE OF THE LOCAL
ELECTRICAL INSPECTOR.
- Failure to do so can result in back or other injury.
CLEARANCES AND DIMENSIONS (Figure 1)
•Y
ou never pull or push any handles of upper
& lower door to move and install range.
To install range refer to the following Figure 1.
For installation in CANADA, a Free-standing range
is not to be installed closer than 15/32 (12mm) from
any adjacent surface.
Safetydamage
Glasses to
- Failure to do so can result in serious
the door of the range.
Tape Measure
CAUTION
•Y
ou should make sure that the wall
covering, countertop and cabinets
around the range can withstand the heat
(up to 194°F) generated by the range.
-D
iscoloration, delamination or melting may occur.
- This range has been designed to comply with
the maximum allowable wood cabinet
temperatures of 194°F.
Pencil
CAUTIONGloves
• Cabinet storage space located above
the surface units should be avoided.
•Y
ou should install a range hood that
projects horizontally a minimum of 5
inches beyond the bottom of the cabinets.
If cabinet Storage is to be provided.
- The risk of burns or fire by reaching over the
heated surface elements can be reduced.
Cabinet
opening
Wall
Center
15”(38cm)
11”(28cm)
Cabinet
6”
(15.2cm)
4”
(10cm)
9”
(23cm)
ENGLISH
2 INSTALLATION DRAWINGS (LDE Series only)
Tape
2.5”(6.3cm)
4”
(10cm)
5”
(13cm) 6”
(15.2cm)
9”
(23cm)
2.5”
(6.3cm)
A = 30”(76.2 cm) For U.S.A
= 30”(76.2 cm) ~ 31”(78.7 cm) For CANADA
Figure 1
Figure 2
MINIMUM DIMENSIONS (Figure 2)
* 30”(76.2 cm) minimum clearance between the top of the cooking surface and the bottom of an
unprotected wood or metal cabinet; or 24”(60.9 cm) minimum when bottom of wood or metal cabinet is
protected by not less than 1/4”(6.4 cm) flame retardant millboard covered with not less than no. 28 MSG
sheet steel, 0.015”(0.381 mm) stainless steel, 0.024”(0.610 mm) aluminum or 0.020”(0.508 mm) copper.
** 15”(38.1 cm) minimum between countertop and adjacent cabinet bottom.
5
Ta
Part 3
ELECTRICAL CONNECTIONS
3 ELECTRICAL CONNECTION
4 C
ONNECT RANGE CORD
REQUIREMENTS
Tape
WARNING
This appliance must be installed and grounded on a branch
circuit by a qualified technician in accordance with the
National Electrical code ANSI/NFPA NO. 70 - latest edition.
•Y
ou never remove the protection cover
covering the rear of lower oven.
All wiring should conform to Local and NEC. This range
requires a single-phase, 3 wire, A.C 120/208V or 120/240V 60Hz
electrical system. Use only a 3-conductor or a 4-conductor
UL-listed range cord with closed-loop terminals, open-end
spade lugs with upturned ends or similar termination. DO
NOT install the power cord without a strain relief.
-F
ailure to do so can result in serious damage to power cord.
The damage causes serious burns and electric shock.
The Rear Access cover must be removed. Loosen the
three screws with a screwdriver. The terminal block
will then be accessible.
A range cord rated at 40 amps with 120/240 minimum volt
range is required. If a 50 amp range cord is used, it should
be marked for use with 13⁄8” diameter connection openings.
Safety Glasses
This appliance may be connected by means of conduit or
power cord. If conduit is being used, go to page 7 for 3 wire
conduit connections or page 8 for 4 wire conduit connections.
Tape Measure
Protection cover
WARNING
Gloves
Pencil
• New branch-circuit installations (1996 NEC)
for mobile homes, recreational vehicles, and
installations where local codes do not allow
grounding through the neutral wire require a
4-conductor UL listed range cord or 4 wire
conduit connection.
•P
ower supply cord and plug should not be
modified. If it will not fit the outlet, have a proper
outlet Installed by a qualified electrician.
•U
sing an extension cord to connect the power is
prohibited. The way to connect the power cord
and plug directly is strongly recommended.
•E
lectrical ground is required on this appliance.
• You should make sure that the power cord is
not pinched by the range or heavy objects.
Figure 4
The Cord/Conduit connection plate is used for the
installation of power cord or conduit. For power cord,
install it with the connection plate as INSTALLED. For
conduit, remove the connection plate located below the
rear of the drawer body and use the conduit hole (11/8”)
instead of power cord hole (13/8”). (Refer to Figure 5 and 6.)
Remove the Conduit connection plate
- F ailure to do so can result in serious burns or electrical shock.
Figure 5
Specified power-supply-cord kit rating
Diameter (inches) of Range
Specified rating
connection Opening
of power-supplyConduit
120/240 volts 120/208 volts cord kit, amperes Power cord
3-wire
3-wire
40 or 50A
11/8”
8,750 - 16,500 7,801 - 12,500
13/8”
50
16,501 - 22,500 12,501 - 18,500
13/4”
13/8”
Range rating, watts
Assemble the
strain relief hole
3, 4 - Wire electrical wall Receptacle
4 Wire receptacle (14-50R)
3 WireProtection
receptacle
(10-50R)
cover
Reinstall the Cord/Conduit connection plate
Figure 3
6
Figure 6
Part 3
ELECTRICAL CONNECTIONS
3-wire connection with a power supply cord
Tape Measure
WARNING
Gloves
Pencil
• The middle (neutral or ground) wire of a 3
wire power cord or a 3 wire conduit has to
be connected to the middle post of the
main terminal block. The remaining two
wires of the power cord or conduit have to
be connected to the outside posts of the
main terminal connection block.
- Failure to do so can result in electrical shock, severe
personal injury or death.
Separate Strain Relief
before installation
Install the power cord as follows:
Assemble the strain relief
to the 1 3/8” opening in
Conduit connection plate
For power cord installations, Hook the strain relief
over the power cord hole (13/8”) located below the rear
of lower oven. Insert the power cord through the
strain relief and tighten it. (Refer to Figure 7.)
Figure 7
DO NOT install the power cord without a strain relief.
1. Remove the lower 3 screws from the terminal block
and retain them. (Refer to Figure 8.)
2. Insert the 3 screws through each power cord
terminal ring and into the lower terminals of the
terminal block.
Make sure that the center wire (white/neutral) is
connected to the center lower position of the
terminal block.
3. Tighten 3 screws securely into the terminal block.
Do not remove the ground strap connections.
4. Go to page 10.
3-wire connection
Figure 8
7
ENGLISH
Safety Glasses
Part 3
ELECTRICAL CONNECTIONS
Safety Glasses
4-wire connection with a power supply cord
3-wire connection: conduit
Tape Measure
Install the conduit as follows:
WARNING
Pencil
Remove
the Conduit connection Gloves
plate from the rear of
lower oven and rotate it as shown in Figure 5. The
conduit hole (11/8”) must be used.
• Only a 4-conductor power-supply cord kit
rated 120/240 volts, 50 amperes and
marked for use with ranges with closedloop connectors or open-end spade lugs
with upturned ends shall be used. The
middle (neutral) wire of the power cord or
4-wire conduit has to be connected to the
middle post of the main terminal block.
The other two wires of the power cord or
conduit have to be connected to the
outside posts of the main terminal
connection block. The 4th ground wire
must be connected to the frame of the
range with the ground screw.
First, prepare the conduit wires as shown in Figure 10.
3 wire
4 wire
or
Figure 10
- Failure to do so can result in electrical shock, severe
personal injury or death.
Second, install conduit as shown in Figure 6.
For conduit installations, after purchasing a strain
relief, insert it in the conduit hole (11/8”). Then install
the conduit through the body of strain relief and
fasten the strain relief with its ring. Reinstall the
bracket.
Follow the instructions under “ 4 CONNECT RANGE
CORD” on page 5 to correctly install the strain relief.
1. Remove the lower 3 screws from the terminal block
and retain them. (Refer to Figure 9.)
Remove the ground screw and retain it.
2. Remove ground strap and discard as shown
in Figure 9.
Do not discard any screws.
3. Insert the ground screw into the power cord ground
wire terminal ring and secure it to the range frame.
4. Insert the 3 screws through each power cord
terminal ring and into the lower terminals of the
terminal block. Make sure that the center wire
(white/neutral) is connected to the center lower
position of the terminal block.
Tighten 3 screws securely into the terminal block.
5. Go to page 10.
For conduit connections :
If the wire in the conduit is copper it must be 8 or 10
AWG wiring.
If the wire in the conduit is aluminum it must be 6 or 8
AWG wiring.
1. L
oosen the lower 3 screws from the terminal block.
(Refer to Figure 11.)
2. Insert the bare wire (white/neutral) end through the
center terminal block opening.
Do not remove ground strap connections.
3. Insert the two side bare wire ends into the lower left
and the lower right terminal block opening.
Tighten the 3 screws securely into the terminal block.
(approximately 35 - 50 IN-LB)
4. Go to page 10.
4-wire connection
3-wire connection
Figure 9
8
Figure 11
Part 3
ELECTRICAL CONNECTIONS
ENGLISH
4-wire connection: conduit
1. F
ollow the instructions under “Install the conduit as
follows” on page 7 to correctly install the strain
relief.
DO NOT install the conduit without a strain relief.
2. Loosen the 2 lower left and right screws from the
terminal block. (Refer to Figure 12.)
Remove the lower 2 center screws.
3. Remove ground strap and discard as shown
in Figure 12.
Do not discard any screws.
4. Attach the ground bare wire end to range frame
and secure it in place with the ground screw (Refer
to figure 12.)
5. Insert the bare wire (white/neutral) end through the
center terminal block opening.
6. Insert the two side bare wire ends into the left and
the right terminal block opening.
Tighten the 3 screws securely into the terminal
block. (approximately 35 - 50 IN-LB)
7. Go to page 10.
4-wire connection
Figure 12
9
Part 4
INSTALL THE RANGE
Replace the access cover on the back of the range. To
replace the wire cover, insert the two tabs into the
openings located below the opening and tighten the
three screws.
Safety Glasses
Tape Measure
5 ANTI-TIP DEVICE INSTALLATION
Pencil
Use a level to check your adjustments. Place the level
Safety
Glasses
diagonally on the oven rack, and
check
each direction
for level.
Tape Measure
Gloves
First check direction
WARNING
AfterPencil
check direction
• Any person should not
step or sit on oven door.
You should install the AntiTip Bracket supplied with
the range.
1
2
.
.
Gloves
If the level doesn’t show
level on the rack, adjust the
leveling legs with a wrench.
6 FINAL INSTALLATION
- The range could be tipped and
injury might result from spilled hot
liquid, food, or the range itself.
• Move range close enough to the opening to plug
into the receptacle.
• Slide range into position insuring that the left back
leg slides under the anti-tip bracket. Range should sit
flush against the back wall when properly installed.
• Carefully attempt to tip range forward to insure that
the anti-tip bracket is engaged properly. If properly
installed, the anti-bracket will prevent the range from
being tipped. If the range can be tipped, reinstall the
range until the bracket is properly installed and the
range will not tip forward.
• Turn on electrical power. Check the range for proper
operation as described in owner’s manual.
- If the range is pulled away from
the wall for cleaning, service, or
any other reason, ensure that the
Anti-Tip Device is properly
reengaged when the range is
pushed back against the wall.
1. Locate the bracket using the template
An Anti-tip bracket is packaged with template. The
instructions include necessary information to
complete the installation.
Read and follow range installation instruction sheet
(template).
2. Level the range
Level the range by adjusting the leveling legs with a
wrench.
10
R
LG Customer Information Center
1-800-243-0000 USA, Consumer User
1-888-865-3026 USA, Commercial User
1-888-542-2623 CANADA
Register your product Online!
www.lg.com
Printed in Mexico
