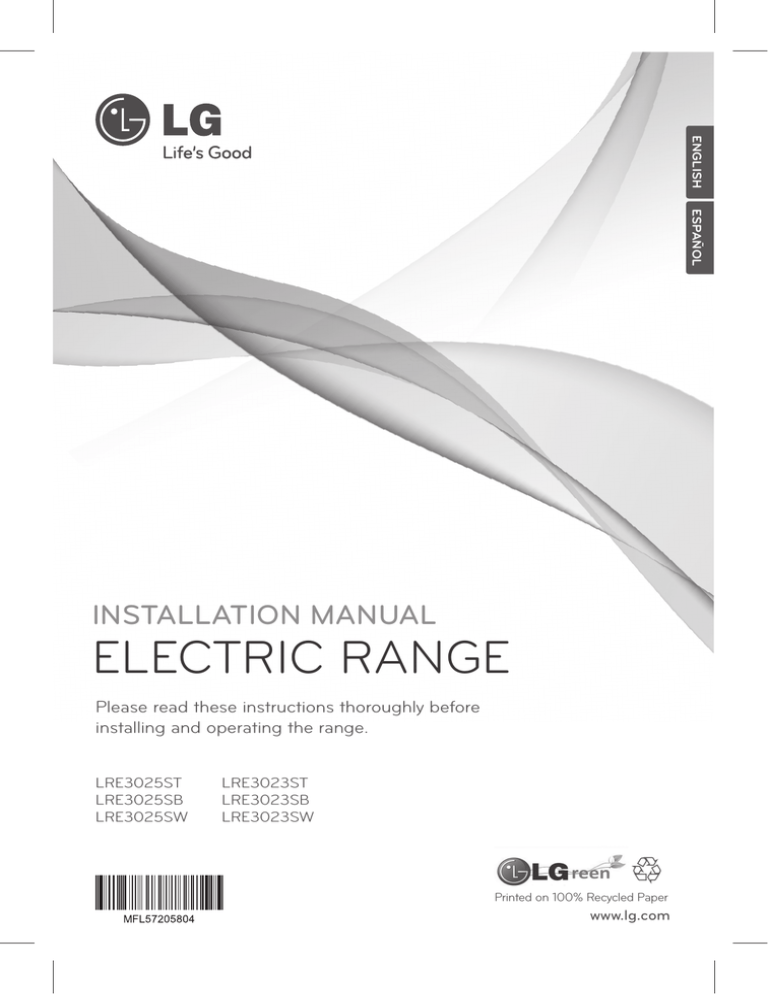

INSTALLATION MANUAL
ELECTRIC RANGE
Please read these instructions thoroughly before
installing and operating the range.
LRE3025ST
LRE3025SB
LRE3025SW
LRE3023ST
LRE3023SB
LRE3023SW
Printed on 100% Recycled Paper
www.lg.com
2
TABLE OF CONTENTS
TABLE OF CONTENTS
3
SAFETY
3
Before You Begin
3
Important Safety Instructions
5
Prepare to Install the Range
6
6
7
PREPARE TO INSTALL RANGE
Installation Drawings
ELECTRICAL CONNECTIONS
7
Electrical Connection Requirements
7
Connect Range Cord
8
3-Wire Connection With a Power Supply Cord
9
4-Wire Connection With a Power Supply Cord
9
3-Wire Connection: Conduit
10
4-Wire Connection: Conduit
11
INSTALL THE RANGE
11
Anti-Tip Device Installation
11
Final Installation
SAFETY
3
Remove all tape and packing materials before using the range.
Dispose of all plastic bags after unpacking the range. Never allow children to play with packing materials.
You can download the installation and owner’s manual at: http://www.lg.com.
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or
damage when using the range. This guide does not cover all possible conditions that may occur. For further assistance
contact your service agent or manufacturer.
This is the safety alert symbol. This symbol alerts you to potential hazards that can cause personal injury to
you and others. All safety messages will follow the safety alert symbol with either the word “WARNING” or
“CAUTION.”
WARNING
This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.
CAUTION
This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.
WARNING
• The information in this manual should be followed exactly.
• Do not step or sit on the oven door. Install the Anti-Tip Brackets supplied with the range.
- The range could be tipped and injury might result from spilled hot liquid, food, or the range itself.
- If the range is pulled away from the wall for cleaning, service, or any other reason, ensure that the Anti-Tip device is properly reengaged when the range is pushed back against the wall.
- Install the Anti-Tip Brackets.
- A child or adult can be killed when the range is tipped.
- Anti-Tips will fasten the range by holding the range’s 2 legs of the rear side and the Anti-Tip Bracket Template
lets you know proper locations of Anti-Tip Brackets easily.
- 2) Engage the range to the Anti-Tip Brackets by putting the range’s 2 legs into each Anti-Tip Bracket.
- 3) Re-engage the Anti-Tip Brackets if you can move the range except for range’s front direction.
- 4) See installation instructions for details (refer to the page 11).
- Failure to do so can result in death or serious burns to children or adults.
• You should use two or more people to move and install range. (Excessive Weight Hazard)
- Failure to do so can result in back or other injury.
• You never pull or push any handles of door to move and install range.
- Failure to do so can result in serious damage to the door of the range.
• New branch-circuit installations (1996 NEC) for mobile homes, recreational vehicles, and installations
where local codes do not allow grounding through the neutral wire require a 4-conductor UL listed range
cord or 4 wire conduit connection.
ENGLISH
BEFORE YOU BEGIN
4
SAFETY
WARNING
• Power supply cord and plug should not be modified. If it will not fit the outlet, have a proper outlet
• Using an extension cord to connect the power is prohibited. The way to connect the power cord and plug
directly is strongly recommended.
• Electrical ground is required on this appliance.
• You should make sure that the power cord is not pinched by the range or heavy objects.
- Failure to do so can result in serious burns or electrical shock.
• You never remove the protection cover covering the rear of oven.
- Failure to do so can result in serious damage to power cord. The damage causes serious burns and electric
shock.
• The middle (neutral or ground) wire of a 3 wire power cord or a 3 wire conduit has to be connected to the
middle post of the main terminal block. The remaining two wires of the power cord or conduit have to be
connected to the outside posts of the main terminal connection block.
- Failure to do so can result in electrical shock, severe personal injury or death.
• Only a 4-conductor power-supply cord kit rated 120/240 volts, 50 amperes and marked for use with
ranges with closed-loop connectors or open-end spade lugs with upturned ends shall be used. The
middle (neutral) wire of the power cord or 4-wire conduit has to be connected to the middle post of
the main terminal block. The other two wires of the power cord or conduit have to be connected to the
outside posts of the main terminal connection block. The 4th ground wire must be connected to the
frame of the range with the ground screw.
- Failure to do so can result in electrical shock, severe personal injury or death.
CAUTION
• You should put on gloves during the installation procedure.
- Failure to do so can result in bodily injury.
• You should make sure that the wall covering, countertop and cabinets around the range can withstand
the heat (up to 194°F) generated by the range.
- Discoloration, delamination or melting may occur.
- This range has been designed to comply with the maximum allowable wood cabinet temperatures of 194°F.
• Cabinet storage space located above the surface units should be avoided.
• You should install a range hood that projects horizontally a minimum of 5 inches beyond the bottom of
the cabinets. If cabinet Storage is to be provided.
• You should not install the range in the humid place. Splashing the range with water or any electrolyte can
result in electrical shock.
- Failure to do so can result in serious burns.
SAFETY
PREPARE TO INSTALL THE RANGE
TOOLS NEEDED
Phillips Screwdriver
Level
Flat-blade
Screwdriver
Adjustable Wrench
WARNING
• Any person should not step or
sit on the oven door. You should
install the Anti-Tip Brackets
supplied with the range.
- The range could be tipped and
injury might result from spilled hot
liquid, food, or the range itself.
- If the range is pulled away from the
wall for cleaning, service, or any
other reason, ensure that the AntiTip Device is properly reengaged
when the range is pushed back
against the wall. Broiling beyond
recommended cooking times.
CAUTION
• You should put on gloves during the installation
procedure.
- Failure to do so can result in bodily injury.
/ ” Nut Driver
1 4
Drill
Pliers
Safety Glasses
Tape Measure
Pencil
Gloves
PARTS PROVIDED
NOTE
• Read all instructions contained in these installation
instructions before installing range.
• Remove all packing materials from the oven
compartments before connecting the electrical
supply to the range.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the
consumer.
NOTE
Keep these instructions with your owner’s manual for
future reference.
• As when using any appliance generating heat, there
are certain safety precautions you should follow.
• Be sure your range is installed and grounded properly
• Make sure the wall coverings around the range can
withstand the heat generated by the range.
• To eliminate the need to reach over the surface
elements, cabinet storage space above the elements
should be avoided.
Template (1)
Anchor Sleeves (12)
Anti-Tip Brackets (2)
Lag Bolts (12)
(For Anti-Tip Bracket Mounted
on Concrete Floors and Walls)
PARTS NOT PROVIDED
(UL Approved 40 or 50 AMP)
4-Wire Cord OR 3-Wire Cord
Strain Relief
(For Conduit
Installations Only)
ENGLISH
WARNING
• The information in this manual should be
followed exactly.
- A fire or electrical shock may result causing
property damage, personal injury or death.
5
6
PREPARE TO INSTALL THE RANGE
INSTALLATION DRAWINGS
NOTE
SAVE FOR THE USE OF THE LOCAL ELECTRICAL INSPECTOR
CLEARANCES AND DIMENSIONS (Figure 1)
To install range refer to the following Figure 1.
For installation in CANADA, a Free-standing range is not to be installed closer than 15/32 (12mm) from any adjacent
surface.
CAUTION
CAUTION
• Make sure that the wall covering, countertop
and cabinets around the range can withstand the heat (up to 194°F) generated by
the range.
- Discoloration, delamination or melting may
occur.
- This range has been designed to comply with
the maximum allowable wood cabinet temperatures of 194°F.
• Cabinet storage space located above the
surface units should be avoided.
• Install a range hood that projects horizontally
a minimum of 5 inches beyond the bottom
of the cabinets if cabinet storage is to be
provided.
heated surface elements can be reduced.
A = 30 (76.2 cm) For U.S.A
= 30 (76.2 cm) ~ 31 (78.7 cm) For CANADA
FIgURE 1
FIgURE 2
MINIMUM DIMENSIONS (Figure 2)
* 30" (76.2 cm) minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or
metal cabinet; or 24" (60.9 cm) minimum when bottom of wood or metal cabinet is protected by not less than 1/4”(6.4
cm) flame retardant millboard covered with not less than no. 28 MSG sheet steel, 0.015" (0.381 mm) stainless steel,
0.024" (0.610 mm) aluminum or 0.020" (0.508 mm) copper.
** 15" (38.1 cm) minimum between countertop and adjacent cabinet bottom.
ELECTRICAL CONNECTIONS
This appliance must be installed and grounded on a
branch circuit by a qualified technician in accordance
with the National Electrical code ANSI/NFPA NO. 70 latest edition.
All wiring should conform to Local and NEC. This range
requires a single-phase, 3 wire, A.C 120/208V or 120/240V
60Hz electrical system. Use only a 3-conductor or a
4-conductor UL-listed range cord with closed-loop
terminals, open-end spade lugs with upturned ends
or similar termination. DO NOT install the power cord
without a strain relief.
A range cord rated at 40 amps with 120/240 minimum
volt range is required. If a 50 amp range cord is used, it
should be marked for use with 13⁄8” diameter connection
openings. This appliance may be connected by means
of conduit or power cord. If conduit is being used, go to
page 7 for 3 wire conduit connections or page 8 for 4
wire conduit connections.
WARNING
• New branch-circuit installations (1996 NEC)
for mobile homes, recreational vehicles, and
installations where local codes do not allow
grounding through the neutral wire require
a 4-conductor UL listed range cord or 4 wire
conduit connection.
• Power supply cord and plug should not be
modified. If it will not fit the outlet, have a
• Using an extension cord to connect the power is
prohibited. The way to connect the power cord
and plug directly is strongly recommended.
• Electrical ground is required on this appliance.
• You should make sure that the power cord is
not pinched by the range or heavy objects.
- Failure to do so can result in serious burns or
electrical shock.
CONNECT RANGE CORD
The Rear Access cover must be removed. Loosen the
three screws with a screwdriver. The terminal block will
then be accessible.
Terminal block
Power cord outlet
Drawer body
Cord/Conduit
connection
plate
Access
cover
FIgURE 4
The Cord/Conduit connection plate is used for the
installation of power cord or conduit. For power cord,
install it with the connection plate as INSTALLED. For
conduit, remove the connection plate located below the
rear of the drawer body and use the conduit hole (1 1/8”)
instead of power cord hole (1 3/8” ). (Refer to Figure 5 and 6.)
11/8"
(2.8cm)
13/8"(Cord)
13/8"
(3.5cm)
11/8"(Conduit)
Remove the Conduit connection plate
FIgURE 5
Cord/conduit
connection
plate
Strain relief
Conduit
Ring
Range rating, watts
rating of power
120/240 volts 120/208 volts supply-cord kit,
amperes
3-wire
3-wire
8,750 - 16,500 7,801 - 12,500
40 or 50A
16,501 - 22,500 12,501 - 18,500
50
1 3/8”
1 3/4”
Assemble the
strain relief hole
Body
1 1 /8 ”
1 3 /8 ”
3, 4 - Wire electrical wall Receptacle
4 Wire receptacle (14-50R)
3 Wire receptacle (10-50R)
FIgURE 3
Conduit
Diameter (inches) of Range
connection Opening
Power cord
Conduit
Cord Strain
relief
Reinstall the Cord/Conduit connection plate
FIgURE 6
ENGLISH
ELECTRICAL CONNECTION
REQUIREMENTS
7
8
ELECTRICAL CONNECTIONS
3-WIRE CONNECTION WITH
A POWER SUPPLY CORD
WARNING
• The middle (neutral or ground) wire of a 3
wire power cord or a 3 wire conduit has to
be connected to the middle post of the main
terminal block. The remaining two wires of the
power cord or conduit have to be connected
to the outside posts of the main terminal
connection block.
- Failure to do so can result in electrical shock,
severe personal injury or death.
Install the power cord as follows:
For power cord installations, Hook the strain relief over
the power cord hole (1 3/ 8”) located below the rear of
lower oven. Insert the power cord through the strain
relief and tighten it. (Refer to Figure 7.)
Cord strain relief
Conduit
connection
plate
Separate Strain Relief
before installation
Assemble the strain relief
to the 1 3/8” opening in
Conduit connection plate
FIgURE 7
DO NOT install the power cord without a strain relief.
1. Remove the lower 3 screws from the terminal block
and retain them. (Refer to Figure 8.)
2. Insert the 3 screws through each power cord terminal
ring and into the lower terminals of the terminal block.
Make sure that the center wire (white/neutral) is
connected to the center lower position of the terminal
block.
3. Tighten 3 screws securely into the terminal block. Do
not remove the ground strap connections.
4. Refer to page 11.
Power cord
3-wire connection
Black
White
Red
Terminal
block
Conduit
connection plate
FIgURE 8
ELECTRICAL CONNECTIONS
WARNING
• Only a 4-conductor power-supply cord kit rated
120/240 volts, 50 amperes and marked for use
with ranges with closed-loop connectors or
open-end spade lugs with upturned ends shall
be used. The middle (neutral) wire of the power
cord or 4-wire conduit has to be connected to
the middle post of the main terminal block.
The other two wires of the power cord or
conduit have to be connected to the outside
posts of the main terminal connection block.
The 4th ground wire must be connected to the
frame of the range with the ground screw.
- Failure to do so can result in electrical shock,
severe personal injury or death.
Install the power cord as follows:
For power cord installations, Hook the strain relief over
the power cord hole (1 3/ 8”) located below the rear of
lower oven. Insert the power cord through the strain
relief and tighten it. (Refer to Figure 7.)
DO NOT install the power cord without a strain relief.
1. Remove the lower 3 screws from the terminal block
and retain them. (Refer to Figure 9.)
2. Remove ground strap and discard as show in in
Figure 9.
3. Insert the ground screw into the power cord ground
wire terminal ring and secure it to the range frame.
4. Insert the 3 screws through each power cord terminal ring
and into the lower terminals of the terminal block. Make
sure that the center wire (white/neutral) is connected to
the center lower position of the terminal block.
5. Tighten 3 screws securely into the terminal block.
3-WIRE CONNECTION: CONDUIT
Install the conduit as follows:
Remove the Conduit connection plate from the rear of
lower oven and rotate it as shown in Figure 5. The
conduit hole (11/8") must be used.
First, prepare the conduit wires as shown in Figure 10.
3 wire
4 wire
Conduit
connection
plate
Ground
strap
3 wire
or
FIgURE 10
Second, install conduit as shown in Figure 6.
For conduit installations, after purchasing a strain relief,
insert it in the conduit hole (1 1/ 8”). Then install the
conduit through the body of strain relief and fasten the
strain relief with its ring. Reinstall the bracket.
For conduit connections :
If the wire in the conduit is copper it must be 8 or 10
AWG wiring.
If the wire in the conduit is aluminum it must be 6 or 8
AWG wiring.
1. Loosen the lower 3 screws from the terminal block.
Refer to Figure 11.)
2. Insert the bare wire (white/neutral) end through the
center terminal block opening. Do not remove ground
strap connections.
3. Insert the two side bare wire ends into the lower left
and the lower right terminal block opening. Tighten
the 3 screws securely into the terminal block.
(approximately 35 - 50 IN-LB)
4. Refer to page 11.
3-wire connection
4-wire connection
Black White Red
Black
Terminal
block
White
Red
Terminal
block
Ground
strap
Wire ends
Remove ground
strap and discard
Ground screw
Conduit
connection plate
FIgURE 9
Conduit
connection plate
FIgURE 11
ENGLISH
4-WIRE CONNECTION WITH
A POWER SUPPLY CORD
9
10 ELECTRICAL CONNECTIONS
4-WIRE CONNECTION: CONDUIT
1. Follow the instructions under “Install the conduit as
follows” on page 8 to correctly install the strain relief.
DO NOT install the conduit without a strain relief.
2. Loosen the 2 lower left and right screws from the
terminal block. (Refer to Figure 12.) Remove the lower
2 center screws.
3. Remove ground strap and discard as shown in Figure
12. Do not discard any screws.
4. Attach the ground bare wire end to range frame and
secure it in place with the ground screw (Refer to
figure 12.)
5. Insert the bare wire (white/neutral) end through the
center terminal block opening.
6. Insert the two side bare wire ends into the left and the
right terminal block opening. Tighten the 3 screws
securely into the terminal block. (approximately
35 - 50 IN-LB)
7. Refer to page 11.
4-wire connection
Black White Red
Terminal
block
Ground
strap
Wire
ends
Remove
ground
strap and
discard
Conduit
connection plate
Ground
Screw
Ground
Wire
FIgURE 12
INSTALL THE RANGE
11
ENGLISH
Replace the access cover on the back of the range. To
replace the wire cover, insert the two tabs into the
openings located below the opening and tighten the
three screws.
Lower
range
Access cover
Leg
leveler
Raise
range
Use a level to check your adjustments. Place the level
diagonally on the oven rack, and check each direction
for level.
ANTI-TIP DEVICE INSTALLATION
WARNING
• Any person should not step or
sit on the oven door. You should
install the Anti-Tip Brackets
supplied with the range.
- The range could be tipped and
injury might result from spilled hot
liquid, food, or the range itself.
- If the range is pulled away from the
wall for cleaning, service, or any
other reason, ensure that the AntiTip Device is properly reengaged
when the range is pushed back
against the wall. Broiling beyond
recommended cooking times.
Anti-tip
bracket
Screw must
enter wood
or concrete
Wall plate
1. Locate the brackets using the template
Anti-tip brackets are packaged with the template. The
instructions include necessar y information to
complete the installation. Read and follow range
installation instruction sheet (template).
2. Level the range
Level the range by adjusting the leveling legs with a
wrench.
First check direction Å .
level
After check direction Ç .
If the level doesn’t show
level on the rack, adjust
the leveling legs with a
wrench.
FINAL INSTALLATION
• Move range close enough to the opening to plug into
the receptacle.
• Slide range into position insuring that both back legs
slide under the anti-tip brackets. Range should sit flush
against the back wall when properly installed.
• Carefully attempt to tip range forward to insure that
the anti-tip brackets are engaged properly. If properly
installed, the anti-brackets will prevent the range from
being tipped. If the range can be tipped, reinstall the
range until the brackets are properly installed and the
range will not tip forward.
• Turn on electrical power. Check the range for proper
operation as described in owner’s manual.
12
MEMO
LG Customer Information Center
For inquires or comments, visit www.lg.com or call
1-800-243-0000 USA, Consumer User
1-888-542-2623 CANADA
Register your product Online!
www.lg.com
Printed on 100% Recycled Paper
Printed in Korea
